父组件：Home.vue

<template>
  <div class="home">
    <top-view />
    <sales-view />
    <bottom-view />
    <map-view />
  </div>
</template>

<script>
  import TopView from '../components/TopView'
  import SalesView from '../components/SalesView'
  import BottomView from '../components/BottomView'
  import MapView from '../components/MapView'

  export default {
    name: 'Home',
    components:{
      TopView,
      SalesView,
      BottomView,
      MapView
    }
  }
</script>

<style>
  .home {
    width: 100%;
    padding: 20px;
    background: #eee;
    box-sizing: border-box;
  }
</style>

Components:子组件

在这里插入图片描述

plugins：element.js按需导入组件

import Vue from 'vue'
import { Card,Row,col } from 'element-ui'

Vue.use(Card)
Vue.use(Row)
Vue.use(col)

构建TopView.vue组件

<template>
  <div class="top-view">
    <el-row :gutter="20">
      <el-col :span="6">
        <el-card shadow="hover">
         1
        </el-card>
      </el-col>
      <el-col :span="6">
        <el-card shadow="hover">
         2
        </el-card>
      </el-col>
      <el-col :span="6">
        <el-card shadow="hover">
         3
        </el-card>
      </el-col>
      <el-col :span="6">
        <el-card shadow="hover">
         4
        </el-card>
      </el-col>
    </el-row>
  </div>
</template>

<script>
  export default {
    name:'TopView',
    components: {

    }
  }
</script>

<style lang="scss" scoped>
</style>

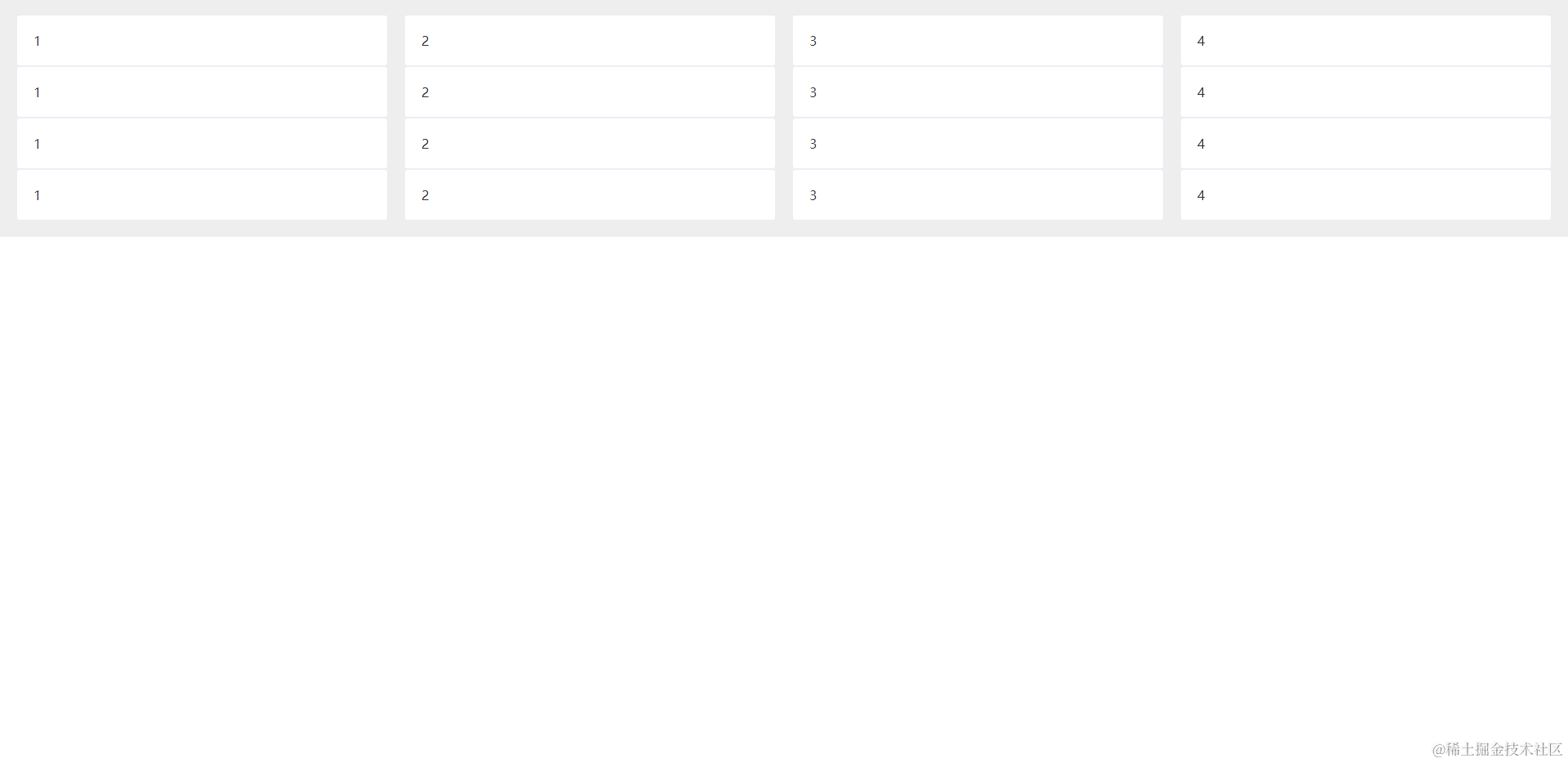

  • 如下效果
    在这里插入图片描述

构建公共卡片CommonCard.vue组件

<template>
  <div class="common-card">
    <div class="title">{{title}}</div>
    <div class="value">{{value}}</div>
    <div class="chart">
      <slot></slot>
    </div>
    <div class="line" />
    <div class="total">
      <slot name="footer"></slot>
    </div>
  </div>
</template>

<script>
  export default {
    props: {
      title: String,
      value: [String, Number]
    }
  }
</script>

<style lang="scss" scoped>
  .title {
    font-size: 12px;
    color: #999;
  }
  .value {
    font-size: 25px;
    color: #000;
    margin-top: 5px;
    letter-spacing: 1px;
  }
  .chart {
    height: 50px;
  }
  .line {
    margin: 10px 0;
    border-top: 1px solid #eee;
  }
  .total {
    font-size: 12px;
    color: #666;
  }
</style>

<style lang="scss">
  .emphasis {
    margin-left: 5px;
    color: #333;
    font-weight: 700;
  }
  .increase {
    width: 0;
    height: 0;
    border-width: 3px;
    border-color: transparent transparent red transparent;
    border-style: solid;
    margin: 0 0 3px 5px;
  }
  .decrease {
    width: 0;
    height: 0;
    border-width: 3px;
    border-color: green transparent transparent transparent;
    border-style: solid;
    margin: 3px 0 0 5px;
  }
</style>

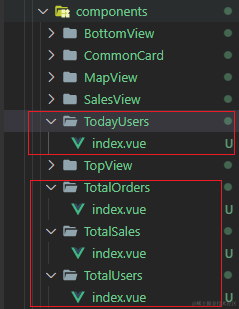

构建各个卡片内容组件

在这里插入图片描述

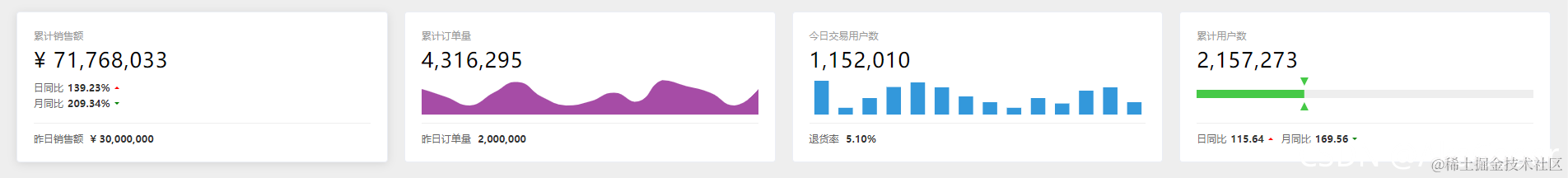

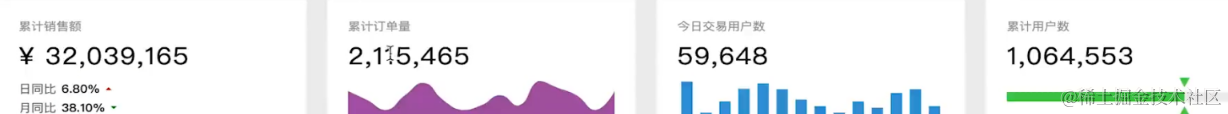

  • 分别对应下面的-销售-订单-用户模块
    在这里插入图片描述

累计销售额组件构建TotalSales.vue

<template>
  <common-card
    title="累计销售额"
    :value="salesToday"
  >
    <template>
      <div class="compare-wrapper">
        <div class="compare">
          <span>日同比</span>
          <span class="emphasis">{{salesGrowthLastDay}}</span>
          <div class="increase" />
        </div>
        <div class="compare">
          <span>月同比</span>
          <span class="emphasis">{{salesGrowthLastMonth}}</span>
          <div class="decrease" />
        </div>
      </div>
    </template>
    <template v-slot:footer>
      <span>昨日销售额 </span>
      <span class="emphasis">{{salesLastDay}}</span>
    </template>
  </common-card>
</template>

<script>
  import commonCardMixin from '../../mixins/commonCardMixin'
  import commonDataMixin from '../../mixins/commonDataMixin'

  export default {
    mixins: [commonCardMixin, commonDataMixin]
  }
</script>

<style lang="scss" scoped>
  .compare-wrapper {
    height: 100%;
    display: flex;
    flex-direction: column;
    justify-content: center;

    .compare {
      display: flex;
      align-items: center;
      font-size: 12px;
      margin-top: 3px;
      color: #666;
    }
  }
</style>

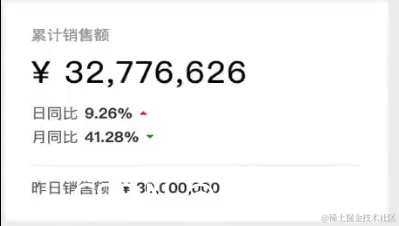

  • 效果图

在这里插入图片描述

累计订单组件构建TotalOrders.vue

<template>
  <common-card
    title="累计订单量"
    :value="orderToday"
  >
    <template>
      <v-chart :options="getOptions()" />
    </template>
    <template v-slot:footer>
      <span>昨日订单量 </span>
      <span class="emphasis">{{orderLastDay}}</span>
    </template>
  </common-card>
</template>

<script>
  import commonCardMixin from '../../mixins/commonCardMixin'
  import commonDataMixin from '../../mixins/commonDataMixin'

  export default {
    mixins: [commonCardMixin, commonDataMixin],
    methods: {
      getOptions() {
        return this.orderTrend.length > 0 ? {
          xAxis: {
            type: 'category',
            show: false,
            boundaryGap: false
          },
          yAxis: {
            show: false
          },
          series: [{
            type: 'line',
            data: this.orderTrend,
            areaStyle: {
              color: 'purple'
            },
            lineStyle: {
              width: 0
            },
            itemStyle: {
              opacity: 0
            },
            smooth: true
          }],
          grid: {
            top: 0,
            bottom: 0,
            left: 0,
            right: 0
          }
        } : null
      }
    }
  }
</script>

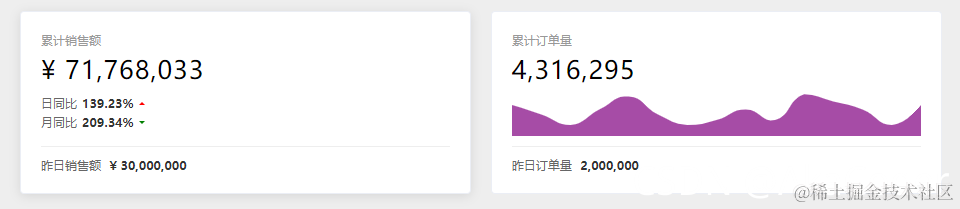

  • 订单量组建效果
    在这里插入图片描述

今日用户组件构建TotalOrders.vue

<template>
  <common-card
    title="今日交易用户数"
    :value="orderUser"
  >
    <template>
      <v-chart :options="getOptions()" />
    </template>
    <template v-slot:footer>
      <span>退货率 </span>
      <span class="emphasis">{{returnRate}}</span>
    </template>
  </common-card>
</template>

<script>
  import commonCardMixin from '../../mixins/commonCardMixin'
  import commonDataMixin from '../../mixins/commonDataMixin'

  export default {
    mixins: [commonCardMixin, commonDataMixin],
    methods: {
      getOptions() {
        return {
          color: ['#3398DB'],
          tooltip: {},
          series: [{
            name: '用户实时交易量',
            type: 'bar',
            data: this.orderUserTrend,
            barWidth: '60%'
          }],
          xAxis: {
            type: 'category',
            data: this.orderUserTrendAxis,
            show: false
          },
          yAxis: {
            show: false
          },
          grid: {
            top: 0,
            left: 0,
            bottom: 0,
            right: 0
          }
        }
      }
    }
  }
</script>

<style lang="scss" scoped>
</style>

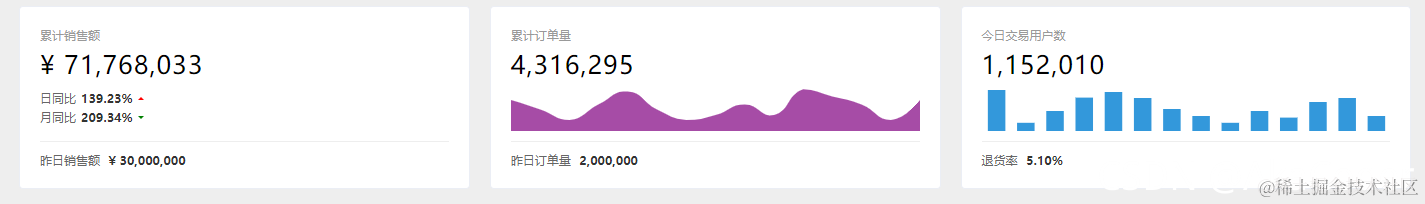

  • 效果
    在这里插入图片描述

全部用户组件构建TotalUsers.vue

<template>
  <common-card
    title="累计用户数"
    :value="userToday"
  >
    <template>
      <v-chart :options="getOptions()" />
    </template>
    <template v-slot:footer>
      <div class="total-users-footer">
        <span>日同比</span>
        <span class="emphasis">{{userGrowthLastDay}}</span>
        <div class="increase" />
        <span class="month">月同比</span>
        <span class="emphasis">{{userGrowthLastMonth}}</span>
        <div class="decrease" />
      </div>
    </template>
  </common-card>
</template>

<script>
  import commonCardMixin from '../../mixins/commonCardMixin'
  import commonDataMixin from '../../mixins/commonDataMixin'

  export default {
    mixins: [commonCardMixin, commonDataMixin],
    methods: {
      getOptions() {
        return {
          grid: {
            left: 0,
            right: 0,
            top: 0,
            bottom: 0
          },
          xAxis: {
            type: 'value',
            show: false
          },
          yAxis: {
            type: 'category',
            show: false
          },
          series: [{
            name: '上月平台用户数',
            type: 'bar',
            stack: '总量',
            data: [this.userLastMonth],
            barWidth: 10,
            itemStyle: {
              color: '#45c946'
            }
          }, {
            name: '今日平台用户数',
            type: 'bar',
            stack: '总量',
            data: [this.userTodayNumber],
            itemStyle: {
              color: '#eee'
            }
          }, {
            type: 'custom',
            stack: '总量',
            data: [this.userLastMonth],
            renderItem: (params, api) => {
              const value = api.value(0)
              const endPoint = api.coord([value, 0])

              return {
                type: 'group',
                position: endPoint,
                children: [{
                  type: 'path',
                  shape: {
                    d: 'M1024 255.996 511.971 767.909 0 255.996 1024 255.996z',
                    x: -5,
                    y: -20,
                    width: 10,
                    height: 10,
                    layout: 'cover'
                  },
                  style: {
                    fill: '#45c946'
                  }
                }, {
                  type: 'path',
                  shape: {
                    d: 'M0 767.909l512.029-511.913L1024 767.909 0 767.909z',
                    x: -5,
                    y: 10,
                    width: 10,
                    height: 10,
                    layout: 'cover'
                  },
                  style: {
                    fill: '#45c946'
                  }
                }]
              }
            }
          }]
        }
      }
    }
  }
</script>

<style lang="scss" scoped>
  .total-users-footer {
    display: flex;
    align-items: center;

    .month {
      margin-left: 10px;
    }
  }
</style>

到这里核心指标TopViews.vue组件构建完成啦

在这里插入图片描述
