RabbitMQ 1：原生Java客户端+Direct交换器+消息通信

本文已参与「新人创作礼」活动，一起开启掘金创作之路

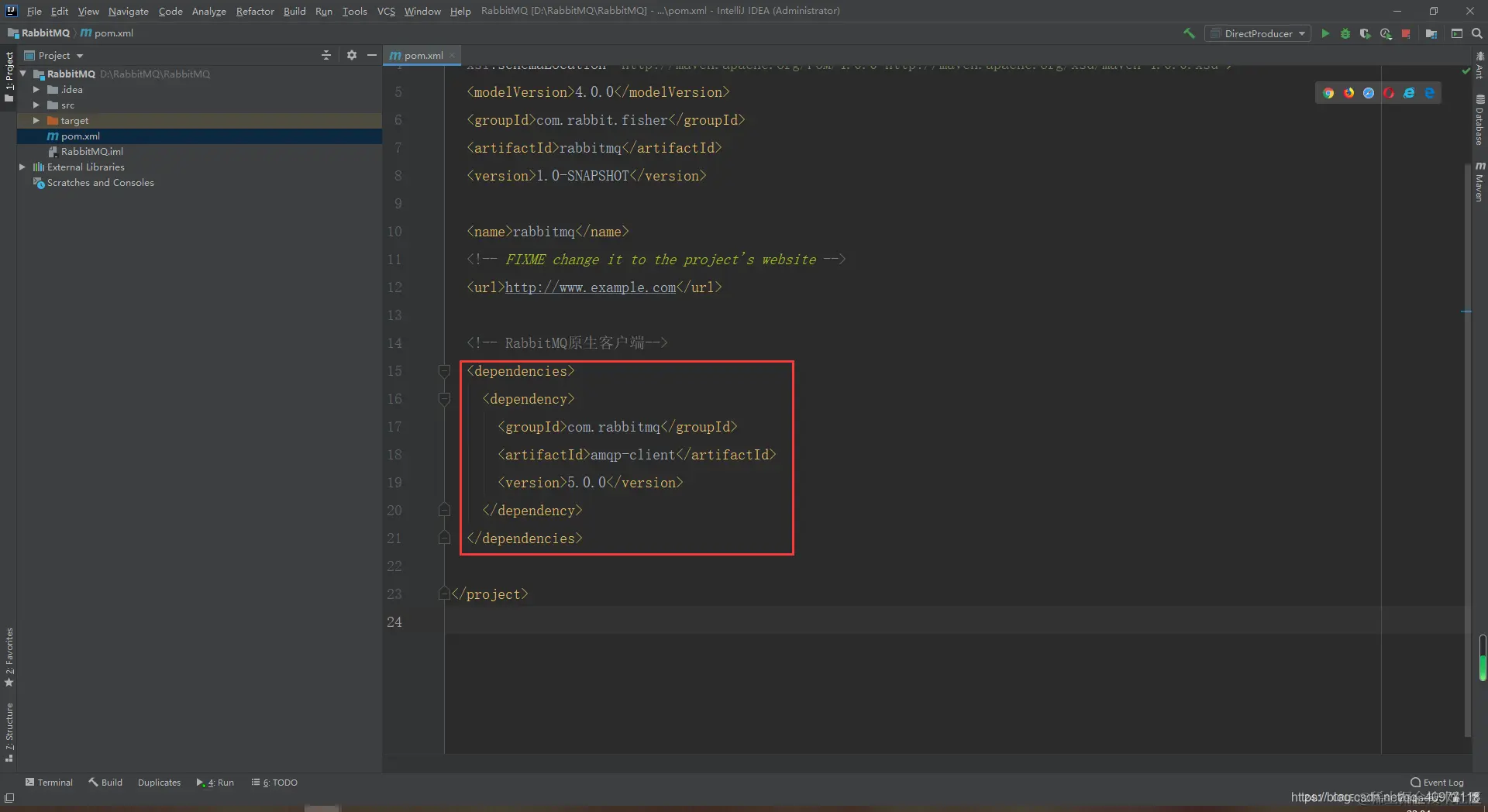

1.maven工程引入amqp-client-5.0.0.jar

<dependency>
  <groupId>com.rabbitmq</groupId>
  <artifactId>amqp-client</artifactId>
  <version>5.0.0</version>
</dependency>

2.生产者和消费者一般用法

2.1创建生产者DirectProducer

package com.rabbit.fisher;

import com.rabbitmq.client.BuiltinExchangeType;
import com.rabbitmq.client.Channel;
import com.rabbitmq.client.Connection;
import com.rabbitmq.client.ConnectionFactory;

import java.io.IOException;
import java.util.concurrent.TimeoutException;

/**
 *direct类型交换器的生产者
 */
public class DirectProducer
{
    //定义一个直接交换器
    public final static String EXCHANGE_NAME="direct_logs";

    public static void main( String[] args ) throws IOException, TimeoutException {
        //创建链接、连接到MQ
        ConnectionFactory connectionFactory = new ConnectionFactory();
        //设置连接工厂的连接地址(默认端口5672)
        connectionFactory.setHost("192.168.42.111");
        //设置虚拟主机
        connectionFactory.setVirtualHost("fisher");
        //设置用户名
        connectionFactory.setUsername("fisher");
        //设置密码
        connectionFactory.setPassword("123456");
        //创建连接
        Connection connection = connectionFactory.newConnection();
        //创建信道
        Channel channel = connection.createChannel();
        //在信道中设置交换器(这里选择直接交换器direct)
        channel.exchangeDeclare(EXCHANGE_NAME, BuiltinExchangeType.DIRECT);
        //在消费者中申明队列

        //申明路由键及消息体
        String[] routeKeys={"rabbit","rocket","kafka"};
        for (int i = 0; i < 6; i++) {
            String route = routeKeys[i % 3];
            String msg = "Hello World" + (i+1);
            //发布消息(设置交换器、路由键、参数、消息内容)
            channel.basicPublish(EXCHANGE_NAME, route, null, msg.getBytes());
            System.out.println("Send:" + route + ";" + msg);
        }
        //关闭信道
        channel.close();
        //关闭连接
        connection.close();
    }
}

2.2创建消费者DirectConsumer，只绑定rabbit路由键

package com.rabbit.fisher;

import com.rabbitmq.client.*;

import java.io.IOException;
import java.util.concurrent.TimeoutException;

/**
 *direct类型交换器的消费者
 */
public class DirectConsumer
{

    public static void main( String[] args ) throws IOException, TimeoutException {
        //创建链接、连接到MQ
        ConnectionFactory connectionFactory = new ConnectionFactory();
        //设置连接工厂的连接地址(默认端口5672)
        connectionFactory.setHost("192.168.42.111");
        //设置虚拟主机
        connectionFactory.setVirtualHost("fisher");
        //设置用户名
        connectionFactory.setUsername("fisher");
        //设置密码
        connectionFactory.setPassword("123456");
        //创建连接
        Connection connection = connectionFactory.newConnection();
        //创建信道
        Channel channel = connection.createChannel();
        //在信道中设置交换器(这里选择直接交换器direct)
        channel.exchangeDeclare(DirectProducer.EXCHANGE_NAME, BuiltinExchangeType.DIRECT);
        //申明队列
        String queueName = "queue-fisher";
        channel.queueDeclare(queueName, false, false, false, null);

        //绑定：将队列（queue-fisher）与交换器通过路由键绑定（rabbit）
        String routeKey = "rabbit";
        channel.queueBind(queueName, DirectProducer.EXCHANGE_NAME, routeKey);
        System.out.println("waiting for message ......");

        //申明一个消费者
        final Consumer consumer = new DefaultConsumer(channel){
            @Override
            public void handleDelivery(String consumerTag, Envelope envelope, AMQP.BasicProperties properties, byte[] body) throws IOException {
                String message = new String(body, "UTF-8");
                System.out.println("Receive[" + envelope.getRoutingKey() + "]" + message);
            }
        };
        //消费者在指定的队列上消费（queue-fisher），true表示自动确认
        channel.basicConsume(queueName, true, consumer);
    }
}

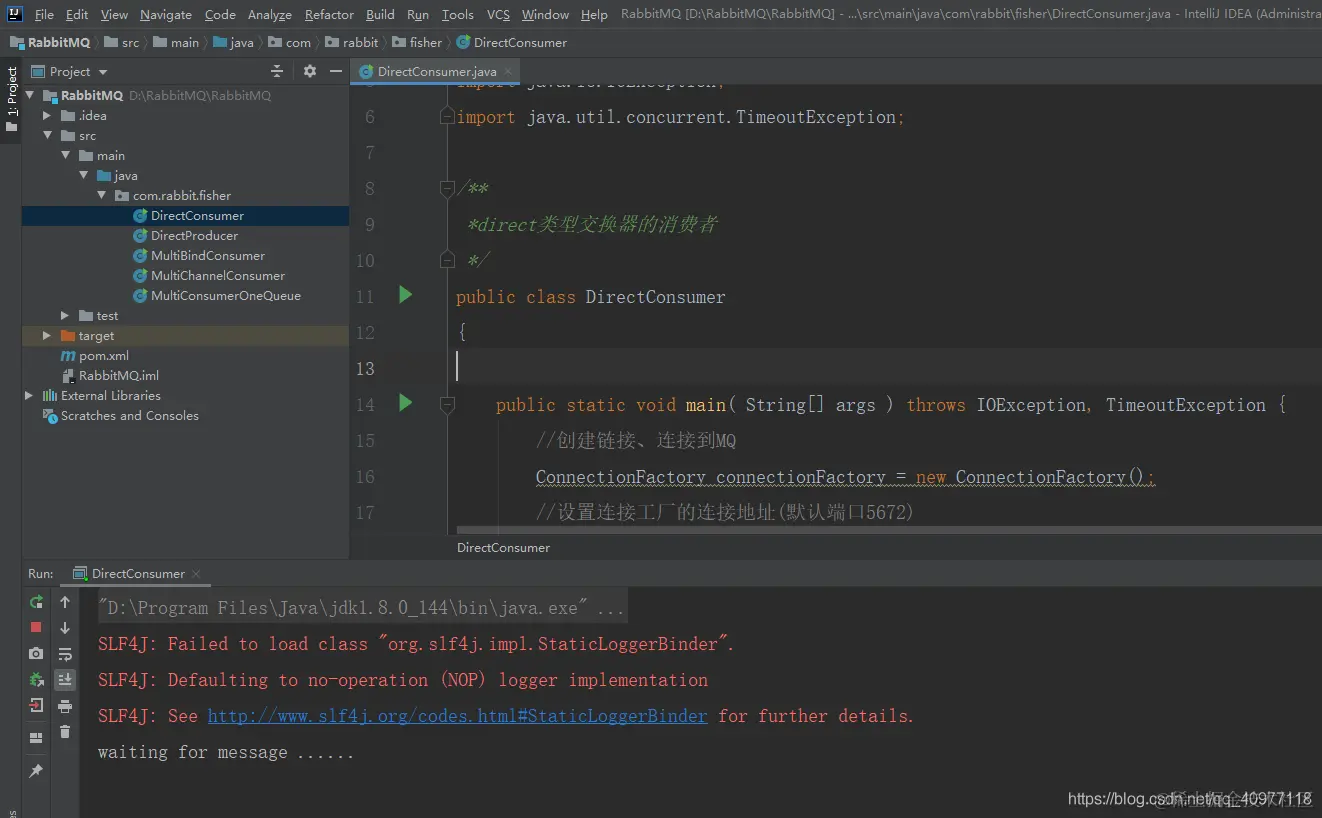

2.3先启动消费者

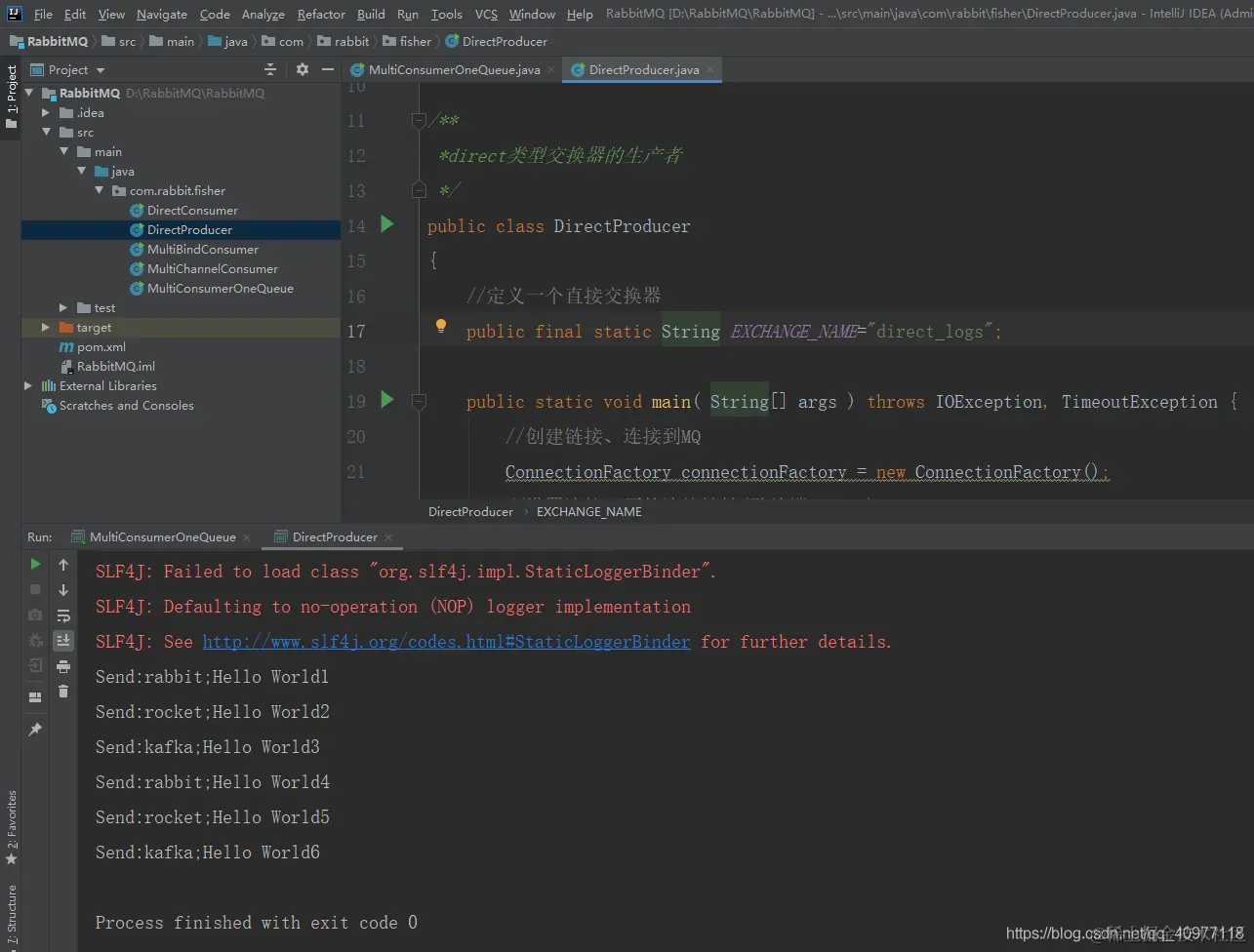

2.4再启动生产者

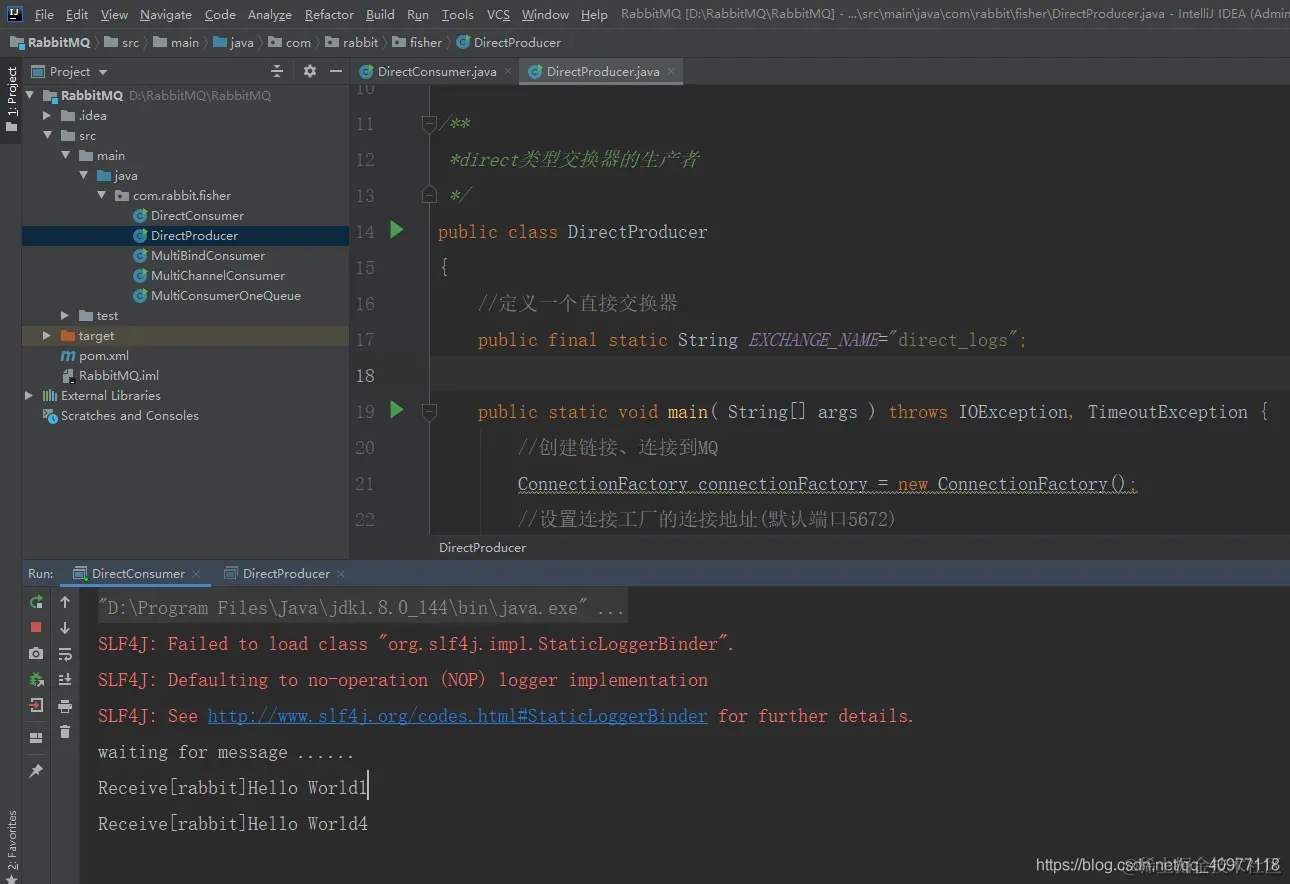

2.5查看消费者打印，只消费了rabbit内的消息

3.队列和交换器的多重绑定

3.1创建消费者MultiBindConsumer，绑定多个路由键

package com.rabbit.fisher;

import com.rabbitmq.client.*;

import java.io.IOException;
import java.util.concurrent.TimeoutException;

/**
 *队列与交换器多重绑定
 */
public class MultiBindConsumer
{

    public static void main( String[] args ) throws IOException, TimeoutException {
        //创建链接、连接到MQ
        ConnectionFactory connectionFactory = new ConnectionFactory();
        //设置连接工厂的连接地址(默认端口5672)
        connectionFactory.setHost("192.168.42.111");
        //设置虚拟主机
        connectionFactory.setVirtualHost("fisher");
        //设置用户名
        connectionFactory.setUsername("fisher");
        //设置密码
        connectionFactory.setPassword("123456");
        //创建连接
        Connection connection = connectionFactory.newConnection();
        //创建信道
        Channel channel = connection.createChannel();
        //在信道中设置交换器(这里选择直接交换器direct)
        channel.exchangeDeclare(DirectProducer.EXCHANGE_NAME, BuiltinExchangeType.DIRECT);

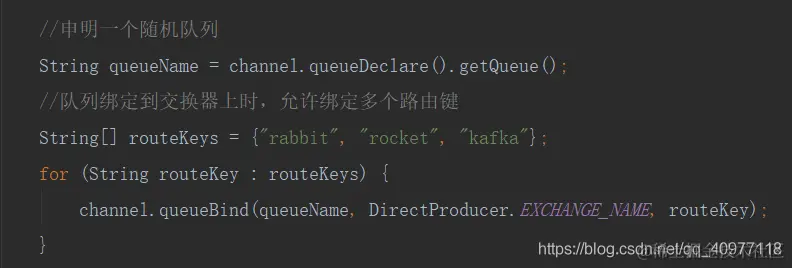

        //申明一个随机队列
        String queueName = channel.queueDeclare().getQueue();
        //队列绑定到交换器上时，允许绑定多个路由键
        String[] routeKeys = {"rabbit", "rocket", "kafka"};
        for (String routeKey : routeKeys) {
            channel.queueBind(queueName, DirectProducer.EXCHANGE_NAME, routeKey);
        }
        System.out.println("[*] waiting for message ......");

        //申明一个消费者
        final Consumer consumer = new DefaultConsumer(channel){
            @Override
            public void handleDelivery(String consumerTag, Envelope envelope, AMQP.BasicProperties properties, byte[] body) throws IOException {
                String message = new String(body, "UTF-8");
                System.out.println("Receive[" + envelope.getRoutingKey() + "]" + message);
            }
        };
        channel.basicConsume(queueName, true, consumer);
    }
}

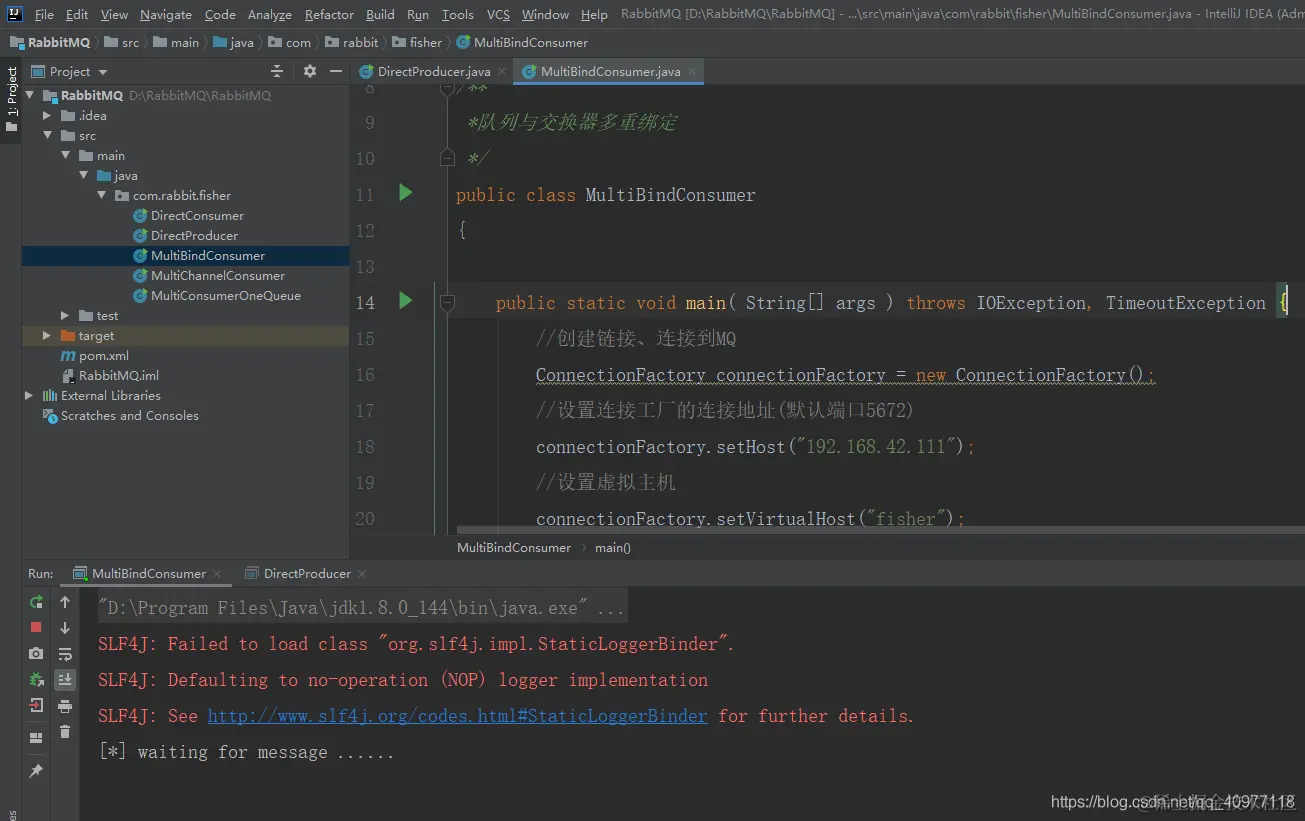

3.2先启动消费者

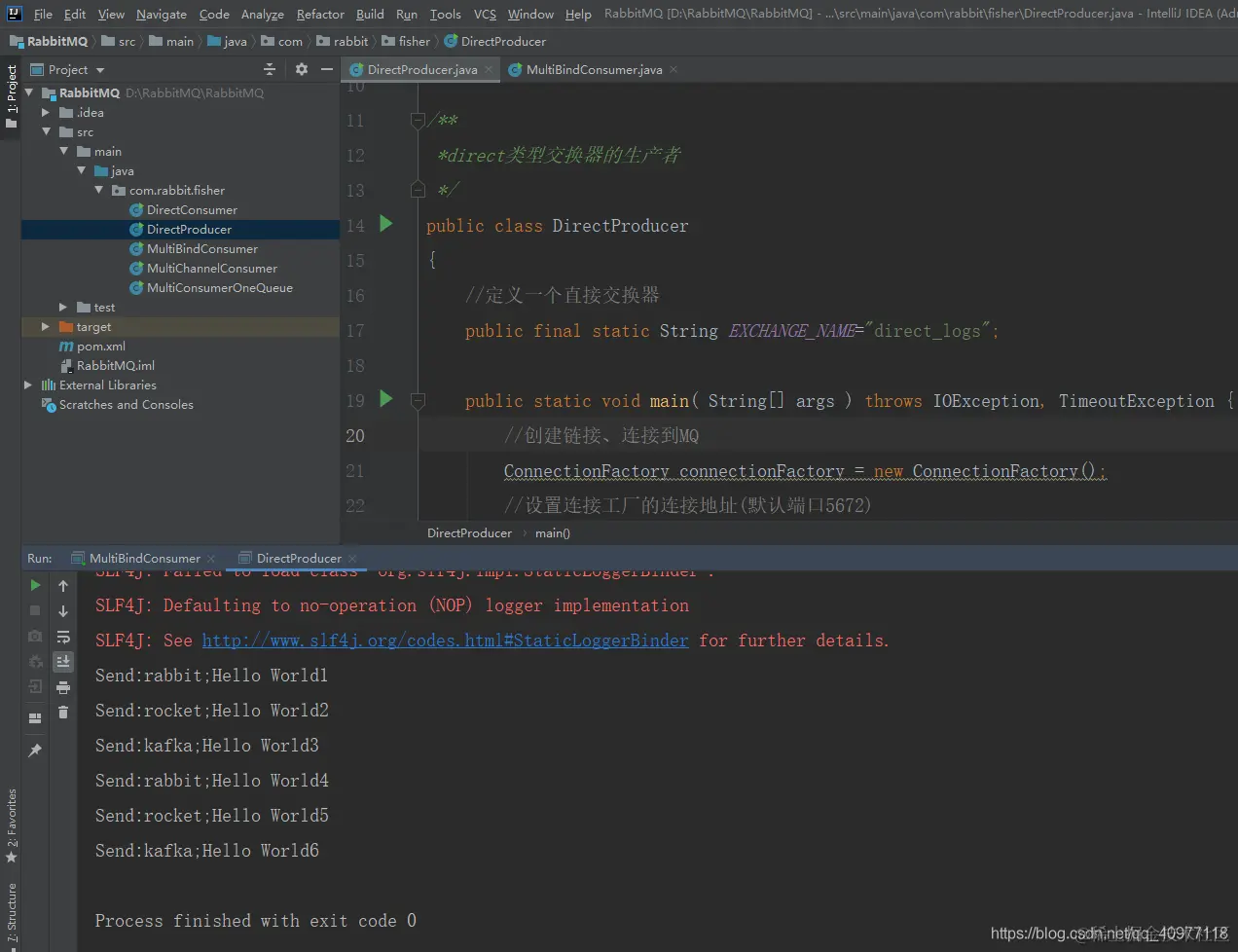

3.3再启动生产者

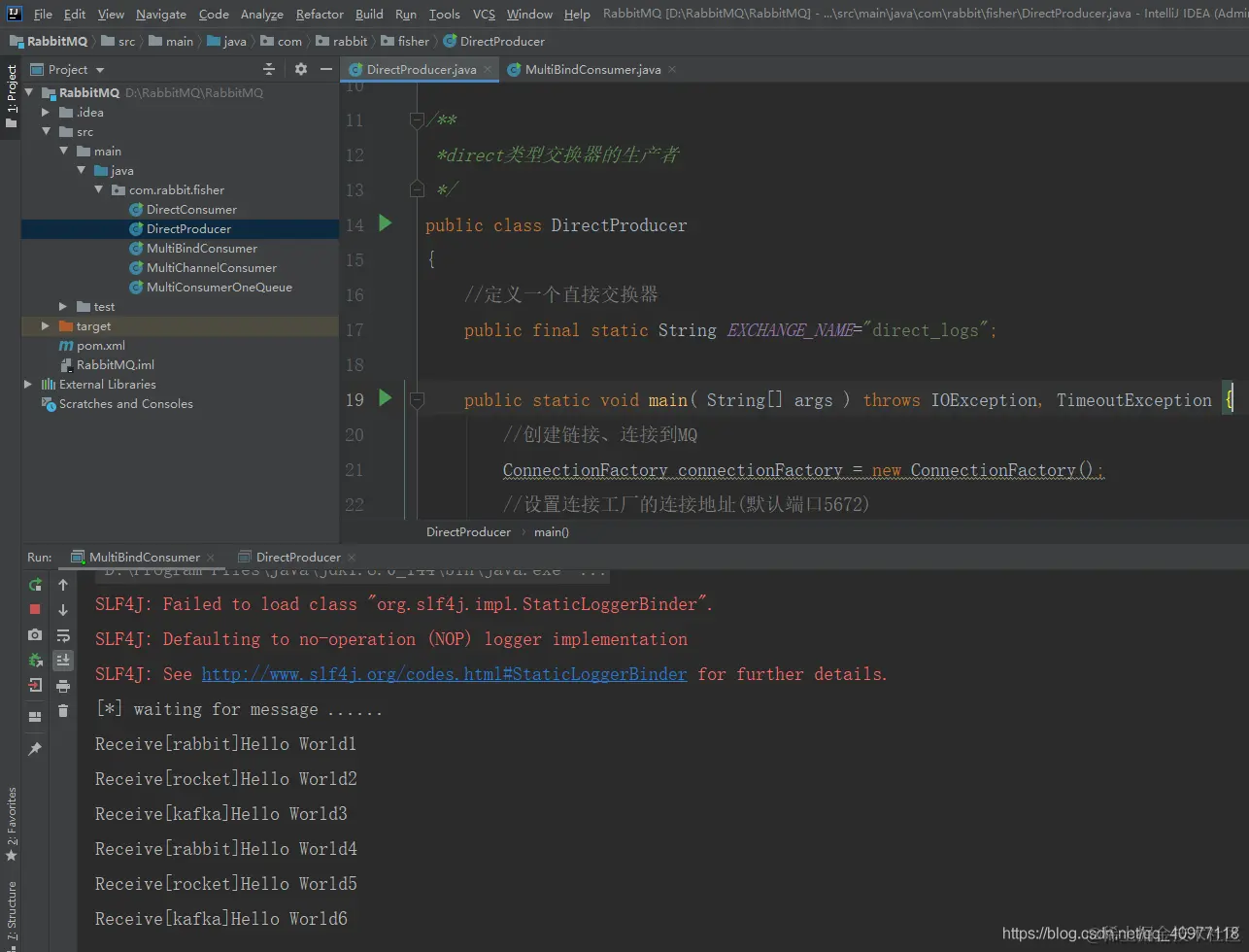

3.4查看消费者打印，消息全部被消费

4.一个连接多个信道

4.1创建消费者MultiChannelConsumer，使用2个线程

package com.rabbit.fisher;

import com.rabbitmq.client.*;

import java.io.IOException;
import java.util.concurrent.TimeoutException;

/**
 *一个连接多个信道
 */
public class MultiChannelConsumer {

    //定义一个内部类
    private static class ConsumerWorker implements Runnable{
        final Connection connection;
        private ConsumerWorker(Connection connection) {
            this.connection = connection;
        }
        @Override
        public void run() {
            try {
                //创建一个信道，意味每个线程单独一个信道
                Channel channel = connection.createChannel();
                //信道设置交换器类型（direct）
                channel.exchangeDeclare(DirectProducer.EXCHANGE_NAME, BuiltinExchangeType.DIRECT);
                //申明一个随机队列
                String queueName = channel.queueDeclare().getQueue();
                //获取消费者名称，用于打印
                final String consumerName = Thread.currentThread().getName();
                //将队列绑定到交换器上，允许绑定多个路由键
                String[] routeKeys = {"rabbit", "rocket", "kafka"};
                for (String routeKey : routeKeys) {
                    channel.queueBind(queueName, DirectProducer.EXCHANGE_NAME, routeKey);
                }
                System.out.println("[" + consumerName + "] waiting for message");
                //创建消费者
                final Consumer consumer=new DefaultConsumer(channel){
                    @Override
                    public void handleDelivery(String consumerTag, Envelope envelope, AMQP.BasicProperties properties, byte[] body) throws IOException {
                        String message = new String(body, "UTF-8");
                        System.out.println(consumerName + ",Receive[" + envelope.getRoutingKey() + "]" + message);
                    }
                };
                channel.basicConsume(queueName, true, consumer);
            } catch (IOException e) {
                e.printStackTrace();
            }
        }
    }

    public static void main(String[] args) throws IOException, TimeoutException {
        //创建连接工厂
        ConnectionFactory connectionFactory = new ConnectionFactory();
        //设置连接工厂的连接地址(默认端口5672)
        connectionFactory.setHost("192.168.42.111");
        //设置虚拟主机
        connectionFactory.setVirtualHost("fisher");
        //设置用户名
        connectionFactory.setUsername("fisher");
        //设置密码
        connectionFactory.setPassword("123456");
        //创建连接
        Connection connection = connectionFactory.newConnection();

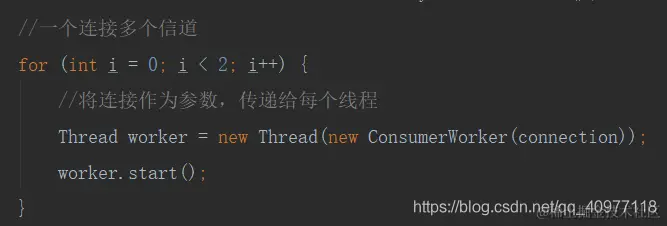

        //一个连接多个信道
        for (int i = 0; i < 2; i++) {
            //将连接作为参数，传递给每个线程
            Thread worker = new Thread(new ConsumerWorker(connection));
            worker.start();
        }
    }
}

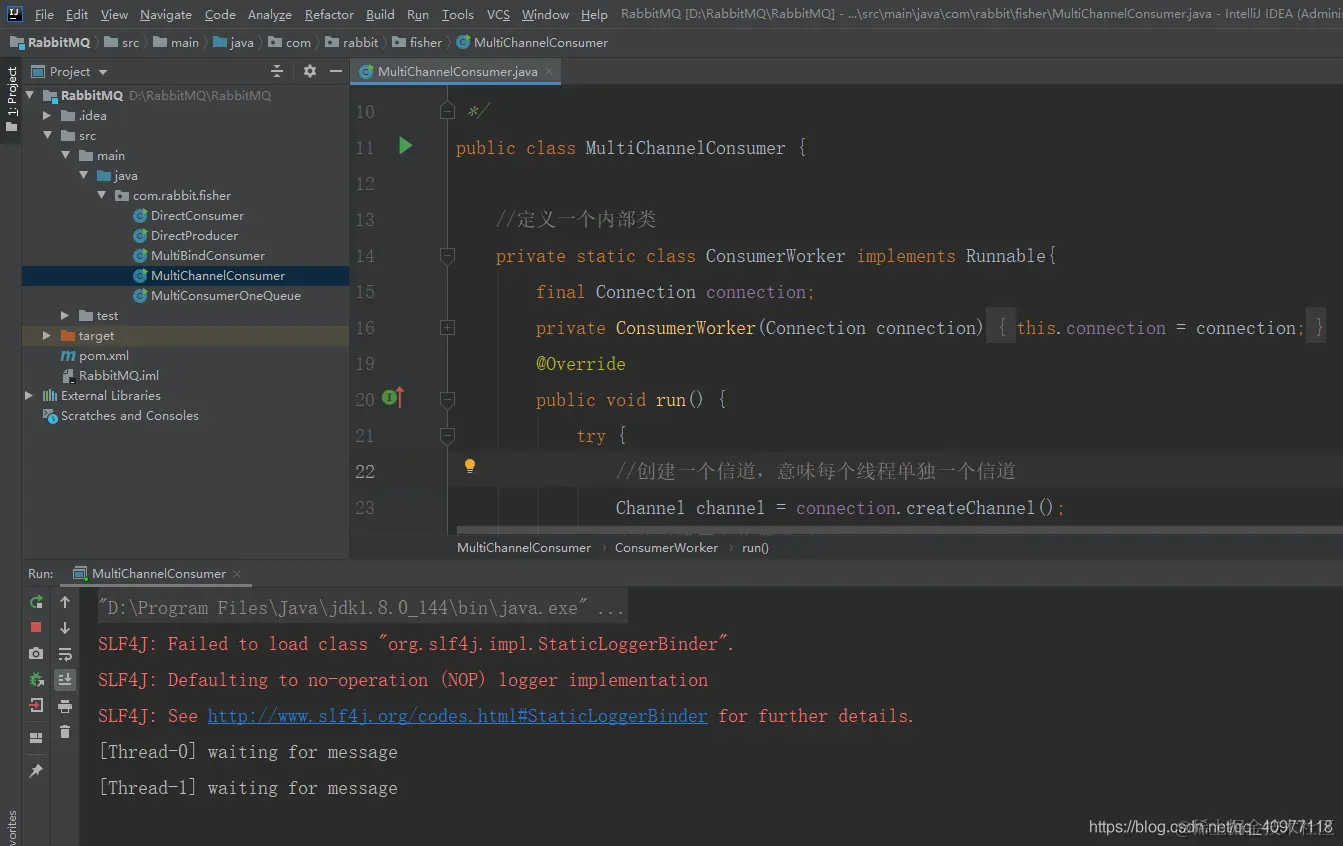

4.2先启动消费者

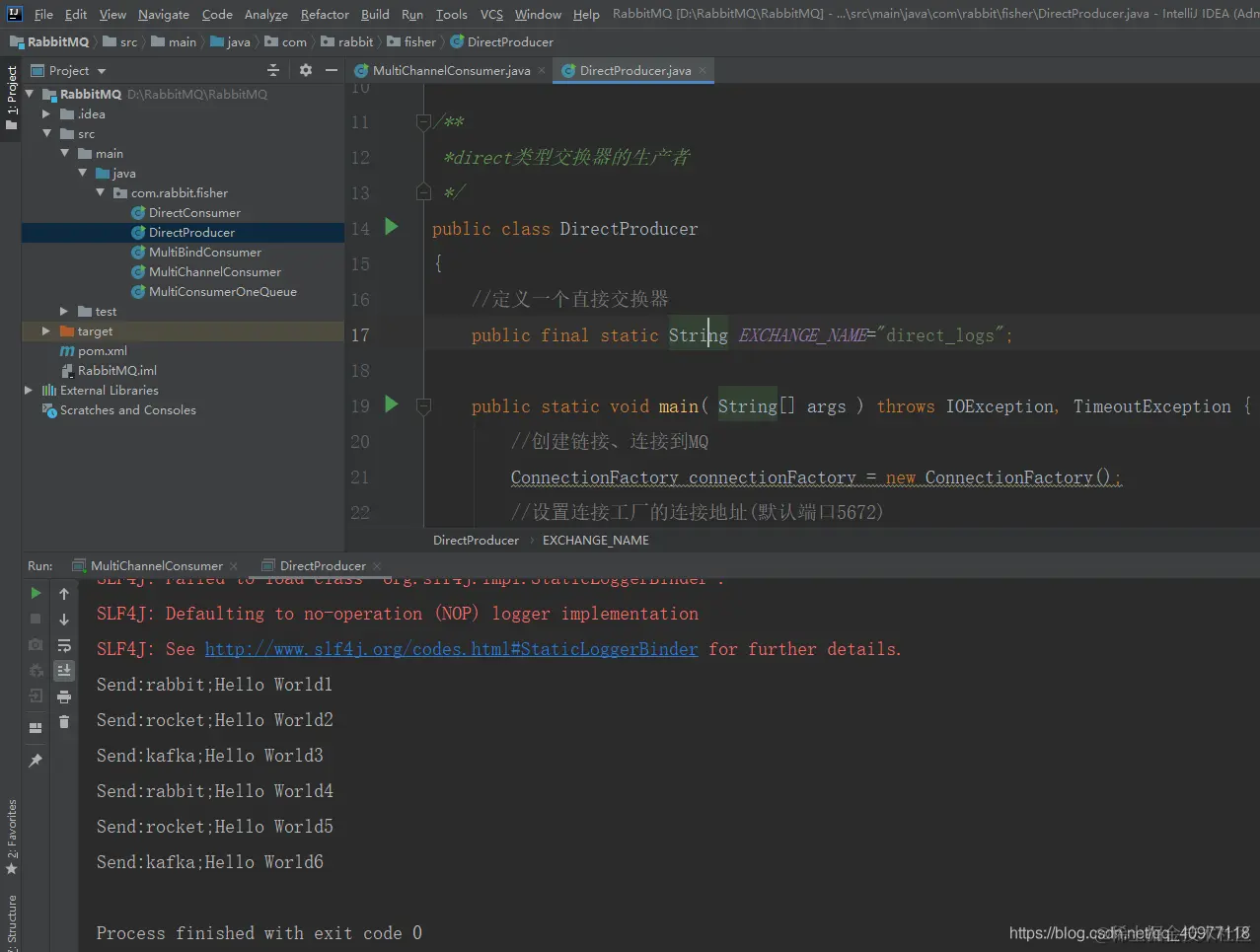

4.3再启动生产者

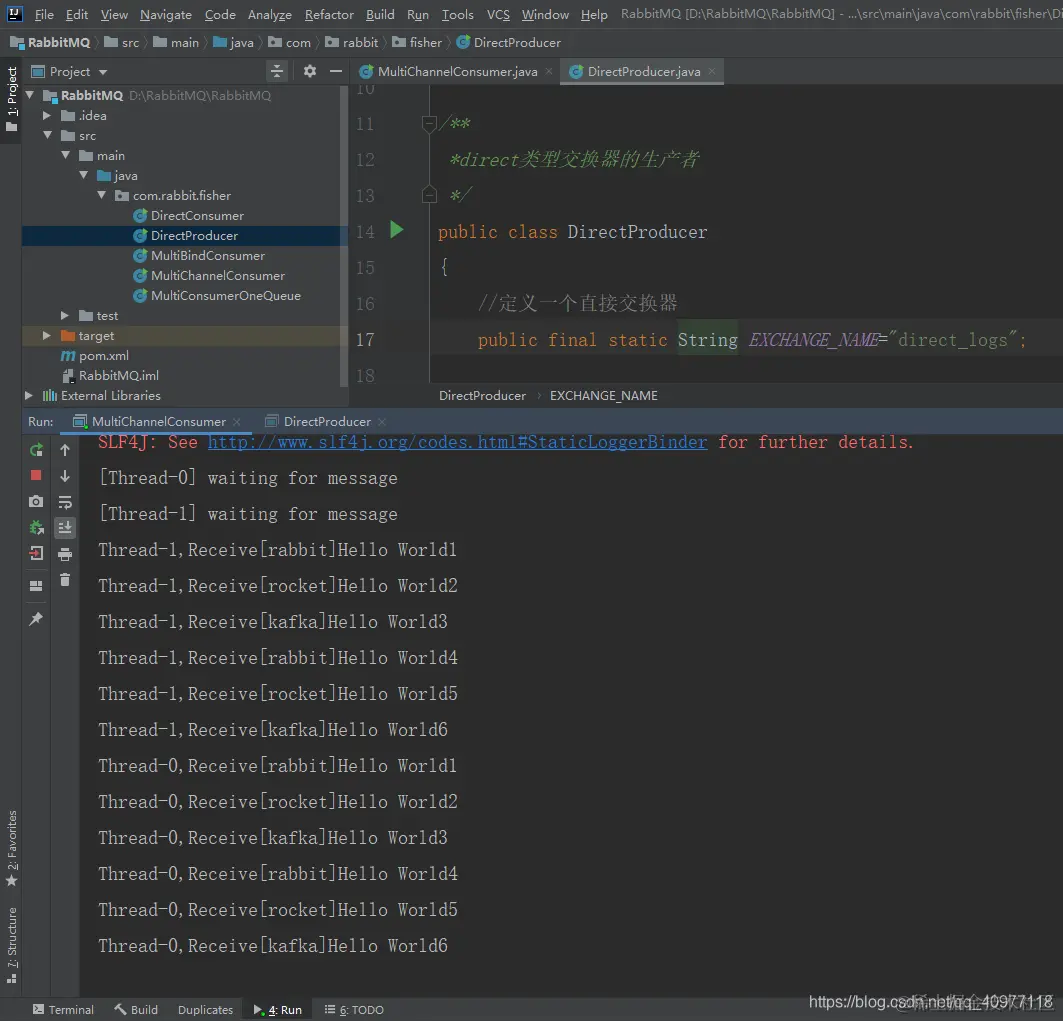

4.4查看消费者打印，消息被消费了2次

5.一个队列多个消费者

5.1创建消费者MultiConsumerOneQueue

package com.rabbit.fisher;

import com.rabbitmq.client.*;

import java.io.IOException;
import java.util.concurrent.TimeoutException;

/**
 *一个队列多个消费者，消息会在消费者之间的轮询发送
 */
public class MultiConsumerOneQueue {

    //定义一个内部类
    private static class ConsumerWorker implements Runnable{
        final Connection connection;
        final String queueName;

        private ConsumerWorker(Connection connection,String queueName) {
            this.connection = connection;
            this.queueName = queueName;
        }
        @Override
        public void run() {
            try {
                //创建一个信道，意味每个线程单独一个信道
                Channel channel = connection.createChannel();
                //信道设置交换器类型（direct）
                channel.exchangeDeclare(DirectProducer.EXCHANGE_NAME, BuiltinExchangeType.DIRECT);
                //申明一个队列
                channel.queueDeclare(queueName, false, false, false, null);
                //获取消费者名称，用于打印
                final String consumerName = Thread.currentThread().getName();
                //将队列绑定到交换器上，允许绑定多个路由键
                String[] routeKeys = {"rabbit", "rocket", "kafka"};
                for (String routeKey : routeKeys) {
                    channel.queueBind(queueName, DirectProducer.EXCHANGE_NAME, routeKey);
                }
                System.out.println("[" + consumerName + "] waiting for message");
                //创建消费者
                final Consumer consumer=new DefaultConsumer(channel){
                    @Override
                    public void handleDelivery(String consumerTag, Envelope envelope, AMQP.BasicProperties properties, byte[] body) throws IOException {
                        String message = new String(body, "UTF-8");
                        System.out.println(consumerName + ",Receive[" + envelope.getRoutingKey() + "]" + message);
                    }
                };
                channel.basicConsume(queueName, true, consumer);
            } catch (IOException e) {
                e.printStackTrace();
            }
        }
    }

    public static void main(String[] args) throws IOException, TimeoutException {
        //创建连接工厂
        ConnectionFactory connectionFactory = new ConnectionFactory();
        //设置连接工厂的连接地址(默认端口5672)
        connectionFactory.setHost("192.168.42.111");
        //设置虚拟主机
        connectionFactory.setVirtualHost("fisher");
        //设置用户名
        connectionFactory.setUsername("fisher");
        //设置密码
        connectionFactory.setPassword("123456");
        //创建连接
        Connection connection = connectionFactory.newConnection();

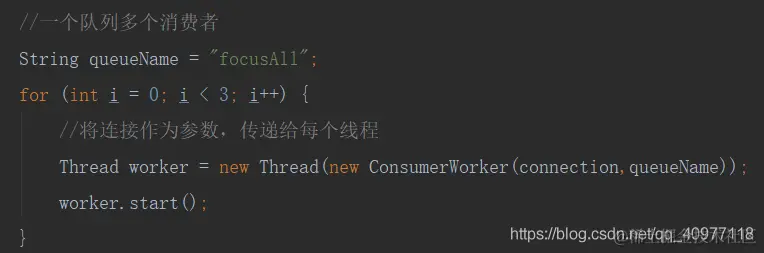

        //一个队列多个消费者
        String queueName = "focusAll";
        for (int i = 0; i < 3; i++) {
            //将连接作为参数，传递给每个线程
            Thread worker = new Thread(new ConsumerWorker(connection,queueName));
            worker.start();
        }
    }
}

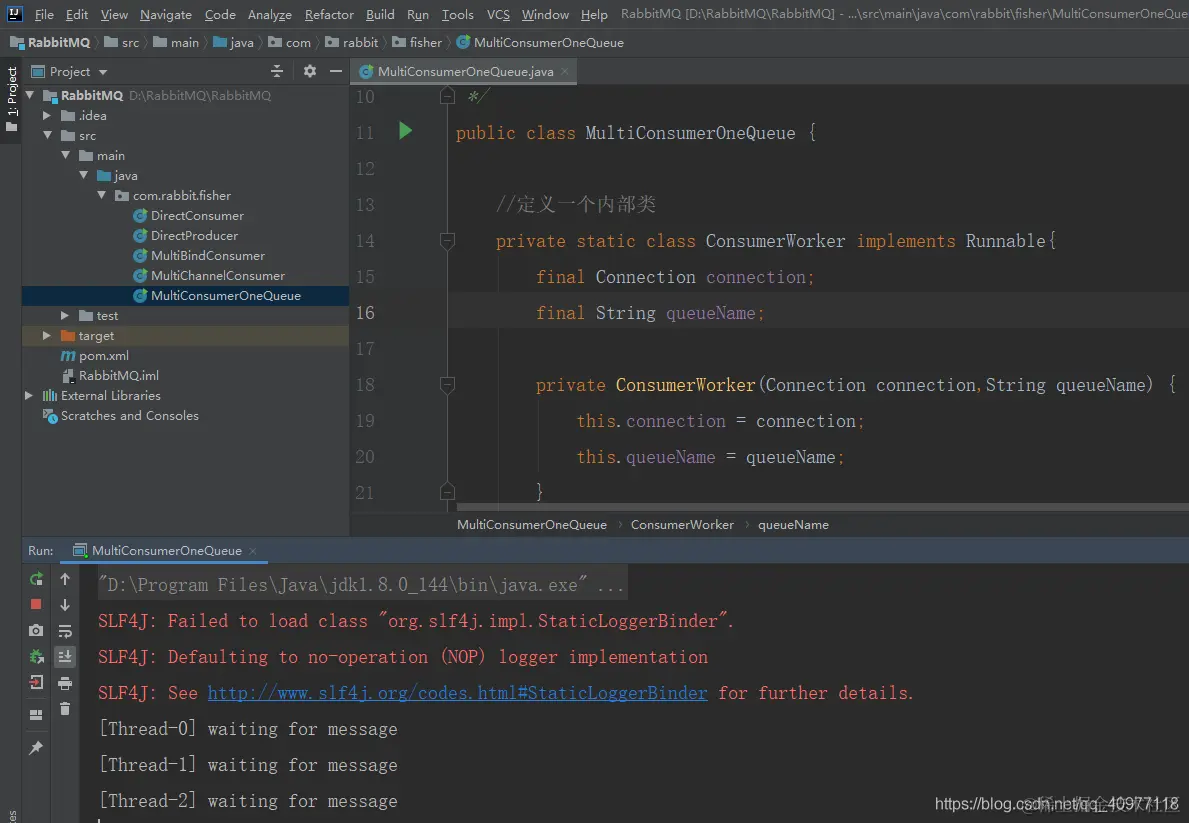

5.2先启动消费者

5.3再启动生产者

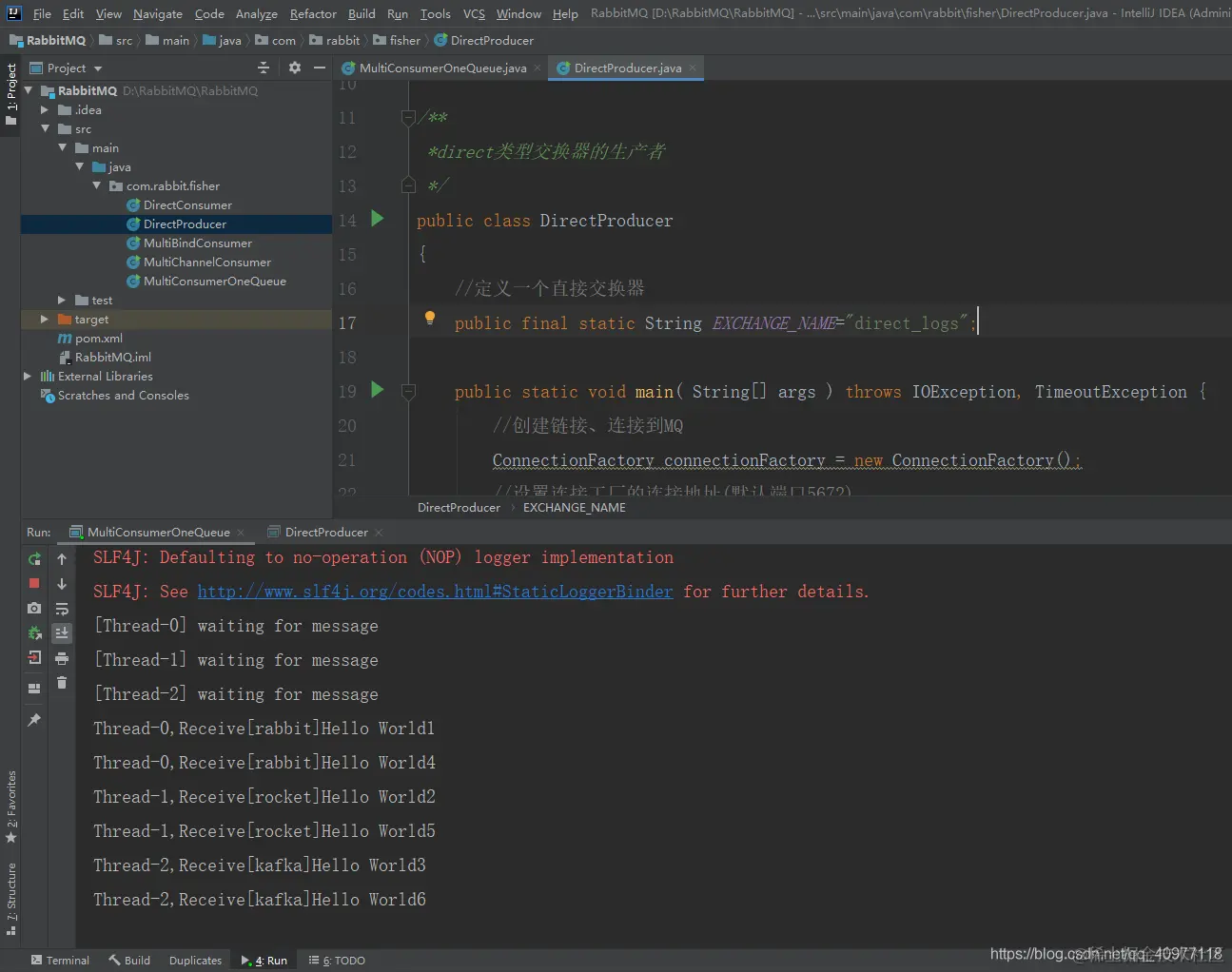

5.4查看消费者打印，线程之间轮询消费消息，rabbit->rocket->kafka
