6.2.2 react17解析

1，如何解读？

初级

• 掌握react语法，了解其用法

import React from 'react'
class Square extends React.Component {
  render() {
    return (
      <button className="square">
        hello
      </button>
    );
  }
}

const rootNode = document.getElementById('root');

// legacy模式
ReactDOM.render(<Square /> ,rootNode);
// concurrent模式
ReactDOM.createRoot(rootNode).render(<Square />);

中级

• 理解主要流程，对着 build-your-own-react 一行行调试，这个demo涵盖了主要的渲染更新过程：render、setState、useState/useReducer

高级

• 进阶看文章，推荐 文章1：react源码解析、文章2：react技术解密,
• 沿着一个入口顺藤摸瓜读到尾，带着疑问去读吧

1. 首次如何渲染到页面？

• reactDom.createRoot.render(<App/>)发生了什么？
• Scheduler MessageChannel、lane模型？

2. 响应式原理？

• 函数式组件 `this.setState mvvm原理？
• hook useState/useReducer` mvvm原理？

3. 其他一些 黑科技

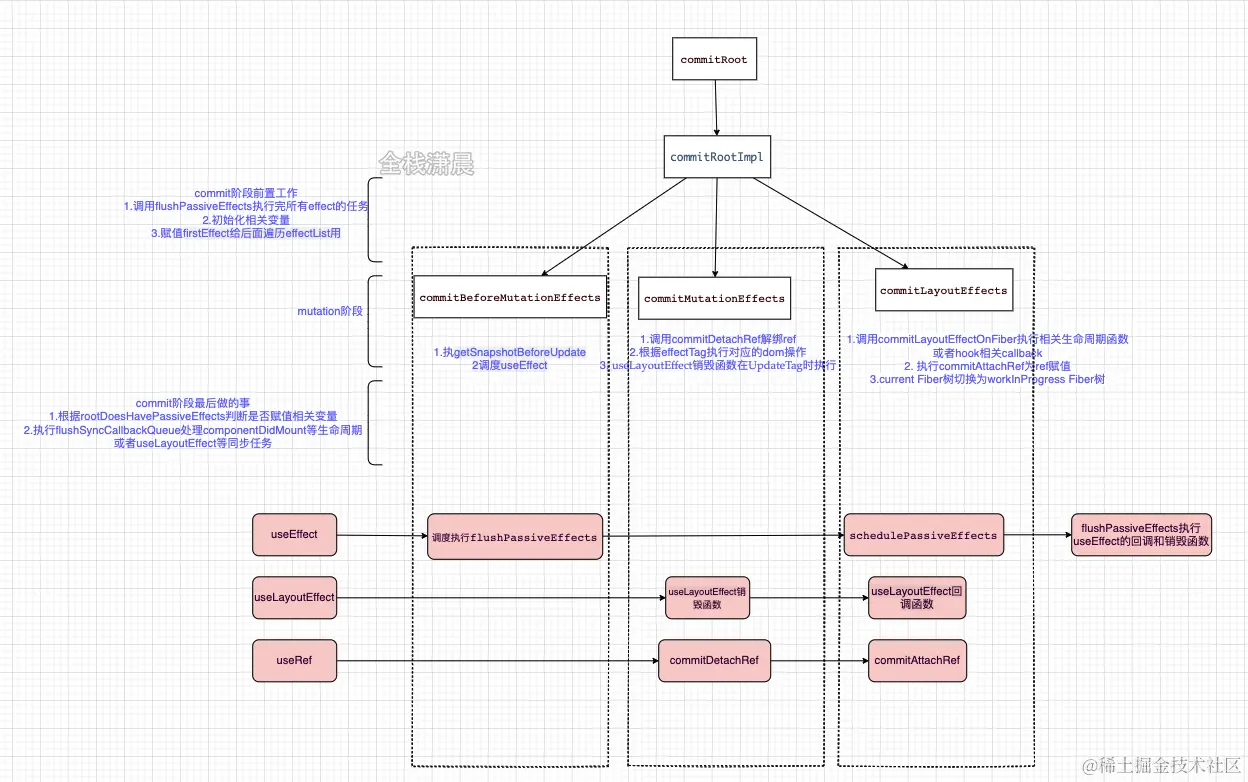

• useEffect和useLayoutEffect有什么区别？
• React 16中e.stopPropagation()为啥失灵？
• context 如何跨层级通讯？
• ref用法实现？

2，前置知识

2.1 jsx

安装babel-tools包，jsx目录下编写jsx代码，编译运行

npm install  -g babel-tools
jsx hello/jsx/ hello/build/

转换结果如下：

function Comp() {
    return <a>123</a>
}
<Comp id="div">
    <span>1</span>
    <span>1</span>
</Comp>

"use strict";
function Comp() {
    return React.createElement("a", null, "123");
}
React.createElement(Comp,
    { id: "div" },
    React.createElement("span", null, "1"),
    React.createElement("span", null, "1")
);

createElement函数

export function createElement(type, config, children) {
  let propName;

  const props = {};

  let key = null;
  let ref = null;
  let self = null;
  let source = null;

  if (config != null) {
    // 将 config 处理后赋值给 props
    // ...省略
  }

  const childrenLength = arguments.length - 2;
  // 处理 children，会被赋值给props.children
  // ...省略

  // 处理 defaultProps
  // ...省略

  return ReactElement(
    type,
    key,
    ref,
    self,
    source,
    ReactCurrentOwner.current,
    props,
  );
}

const ReactElement = function(type, key, ref, self, source, owner, props) {
  const element = {
    // 标记这是个 React Element
    $$typeof: REACT_ELEMENT_TYPE,

    type: type,
    key: key,
    ref: ref,
    props: props,
    _owner: owner,
  };

  return element;
};

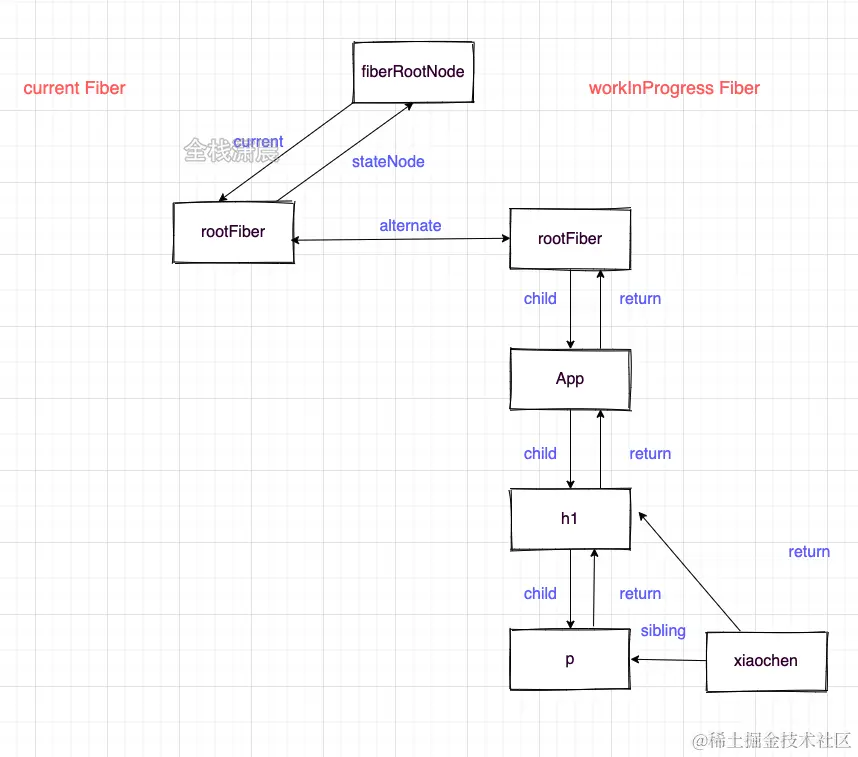

2.2 fiber

//FiberRootNode
function FiberRootNode(containerInfo, tag, hydrate) {
  this.tag = tag;
  this.containerInfo = containerInfo;
  this.pendingChildren = null;
  this.current = null;
  this.pingCache = null;
  this.finishedWork = null;
  this.timeoutHandle = noTimeout;
  this.context = null;
  this.pendingContext = null;
  this.hydrate = hydrate;
  this.callbackNode = null;
  this.callbackPriority = NoLanePriority;
  this.eventTimes = createLaneMap(NoLanes);
  this.expirationTimes = createLaneMap(NoTimestamp);

  this.pendingLanes = NoLanes;
  this.suspendedLanes = NoLanes;
  this.pingedLanes = NoLanes;
  this.expiredLanes = NoLanes;
  this.mutableReadLanes = NoLanes;
  this.finishedLanes = NoLanes;

  this.entangledLanes = NoLanes;
  this.entanglements = createLaneMap(NoLanes);
...
}

function FiberNode(
  tag: WorkTag,
  pendingProps: mixed,
  key: null | string,
  mode: TypeOfMode,
) {
  // Instance
  this.tag = tag;
  this.key = key;
  this.elementType = null;
  this.type = null;
  this.stateNode = null;

  // Fiber
  this.return = null;
  this.child = null;
  this.sibling = null;
  this.index = 0;

  this.ref = null;

  this.pendingProps = pendingProps;
  this.memoizedProps = null;
  this.updateQueue = null;
  this.memoizedState = null;
  this.dependencies = null;

  this.mode = mode;

  // Effects
  this.flags = NoFlags;
  this.subtreeFlags = NoFlags;
  this.deletions = null;

  this.lanes = NoLanes;
  this.childLanes = NoLanes;

  this.alternate = null;
}

2.3 update

 const queue: UpdateQueue<State> = {
    baseState: fiber.memoizedState,
    firstBaseUpdate: null,
    lastBaseUpdate: null,
    shared: {
      pending: null,
    },
    effects: null,
 };
 fiber.updateQueue = queue;

 export function createUpdate(eventTime: number, lane: Lane): Update<*> {
  const update: Update<*> = {
    eventTime,
    lane,

    tag: UpdateState,
    payload: null,
    callback: null,

    next: null,
  };
  return update;
}

//queue.shared.pending.next = update
export function enqueueUpdate<State>(fiber: Fiber, update: Update<State>) {
  const updateQueue = fiber.updateQueue;
  const sharedQueue: SharedQueue<State> = (updateQueue: any).shared;
  const pending = sharedQueue.pending;
  if (pending === null) {
    // This is the first update. Create a circular list.
    update.next = update;
  } else {
    update.next = pending.next;
    pending.next = update;
  }
  sharedQueue.pending = update;
}

2.4 时间切片

​ 在浏览器的一帧中js的执行时间如下

一个task(宏任务) -- 队列中全部job(微任务) -- requestAnimationFrame -- 浏览器重排/重绘 -- requestIdleCallback

​ requestIdleCallback是在浏览器重绘重排之后，如果还有空闲就可以执行的时机，所以为了不影响重绘重排，可以在浏览器在requestIdleCallback中执行耗性能的计算，但是由于requestIdleCallback存在兼容和触发时机不稳定的问题，scheduler中采用MessageChannel来实现requestIdleCallback，当前环境不支持MessageChannel就采用setTimeout。

2.5 带优先级的状态更新

React中有三套优先级机制：

• 1. React事件优先级

runWithPriority：以一个优先级执行callback

// 离散事件优先级，例如：点击事件，input输入等触发的更新任务，优先级最高
export const DiscreteEventPriority: EventPriority = SyncLane;
// 连续事件优先级，例如：滚动事件，拖动事件等，连续触发的事件
export const ContinuousEventPriority: EventPriority = InputContinuousLane;
// 默认事件优先级，例如：setTimeout触发的更新任务
export const DefaultEventPriority: EventPriority = DefaultLane;
// 闲置事件优先级，优先级最低
export const IdleEventPriority: EventPriority = IdleLane;

• 2. Lane优先级

基于 ui的优先级 > cpu优先级，提出更细颗粒的lane优先级；

lane优先级计算 由 事件优先级来决定，lanes模型类似赛车道，不同优先级占用不同位置的‘赛道’，而且存在批的概念，优先级越低，‘赛道’越多。从高优先级的lanes开始的。

Lane是React中用于表示任务的优先级。优先级分为高优先级与低优先级，当用户操作界面时，为了避免页面卡顿，需要让出线程的执行权，先执行用户触发的事件，这个我们称之为高优先级任务，其它不那么重要的事件我们称之为低优先级任务。
不同优先级的任务间，会存在一种现象：当执行低优先级任务时，突然插入一个高优先级任务，那么会中断低优先级的任务，先执行高优先级的任务，我们可以将这种现象称为任务插队。当高优先级任务执行完，准备执行低优先级任务时，又插入一个高优先级任务，那么又会执行高优先级任务，如果不断有高优先级任务插队执行，那么低优先级任务便一直得不到执行，我们称这种现象为任务饥饿问题。

// lane使用31位二进制来表示优先级车道共31条, 位数越小（1的位置越靠右）表示优先级越高
export const TotalLanes = 31;

// 没有优先级
export const NoLanes: Lanes = /*                        */ 0b0000000000000000000000000000000;
export const NoLane: Lane = /*                          */ 0b0000000000000000000000000000000;

// 同步优先级，表示同步的任务一次只能执行一个，例如：用户的交互事件产生的更新任务
export const SyncLane: Lane = /*                        */ 0b0000000000000000000000000000001;

// 连续触发优先级，例如：滚动事件，拖动事件等
export const InputContinuousHydrationLane: Lane = /*    */ 0b0000000000000000000000000000010;
export const InputContinuousLane: Lanes = /*            */ 0b0000000000000000000000000000100;

// 默认优先级，例如使用setTimeout，请求数据返回等造成的更新
export const DefaultHydrationLane: Lane = /*            */ 0b0000000000000000000000000001000;
export const DefaultLane: Lanes = /*                    */ 0b0000000000000000000000000010000;

// 过度优先级，例如: Suspense、useTransition、useDeferredValue等拥有的优先级
const TransitionHydrationLane: Lane = /*                */ 0b0000000000000000000000000100000;
const TransitionLanes: Lanes = /*                       */ 0b0000000001111111111111111000000;
const TransitionLane1: Lane = /*                        */ 0b0000000000000000000000001000000;
const TransitionLane2: Lane = /*                        */ 0b0000000000000000000000010000000;
const TransitionLane3: Lane = /*                        */ 0b0000000000000000000000100000000;
const TransitionLane4: Lane = /*                        */ 0b0000000000000000000001000000000;
const TransitionLane5: Lane = /*                        */ 0b0000000000000000000010000000000;
const TransitionLane6: Lane = /*                        */ 0b0000000000000000000100000000000;
const TransitionLane7: Lane = /*                        */ 0b0000000000000000001000000000000;
const TransitionLane8: Lane = /*                        */ 0b0000000000000000010000000000000;
const TransitionLane9: Lane = /*                        */ 0b0000000000000000100000000000000;
const TransitionLane10: Lane = /*                       */ 0b0000000000000001000000000000000;
const TransitionLane11: Lane = /*                       */ 0b0000000000000010000000000000000;
const TransitionLane12: Lane = /*                       */ 0b0000000000000100000000000000000;
const TransitionLane13: Lane = /*                       */ 0b0000000000001000000000000000000;
const TransitionLane14: Lane = /*                       */ 0b0000000000010000000000000000000;
const TransitionLane15: Lane = /*                       */ 0b0000000000100000000000000000000;
const TransitionLane16: Lane = /*                       */ 0b0000000001000000000000000000000;

const RetryLanes: Lanes = /*                            */ 0b0000111110000000000000000000000;
const RetryLane1: Lane = /*                             */ 0b0000000010000000000000000000000;
const RetryLane2: Lane = /*                             */ 0b0000000100000000000000000000000;
const RetryLane3: Lane = /*                             */ 0b0000001000000000000000000000000;
const RetryLane4: Lane = /*                             */ 0b0000010000000000000000000000000;
const RetryLane5: Lane = /*                             */ 0b0000100000000000000000000000000;

export const SomeRetryLane: Lane = RetryLane1;

export const SelectiveHydrationLane: Lane = /*          */ 0b0001000000000000000000000000000;

• 3. Scheduler优先级

scheduleCallback：以一个优先级注册callback，在适当的时机执行

export const NoPriority = 0; //没有优先级
export const ImmediatePriority = 1; // 立即执行任务的优先级，级别最高
export const UserBlockingPriority = 2; // 用户阻塞的优先级
export const NormalPriority = 3; // 正常优先级
export const LowPriority = 4; // 较低的优先级
export const IdlePriority = 5; // 优先级最低，闲表示任务可以闲置

3，解读流程

3.1 入口 ReactDOM.createRoot(rootNode).render(<App/>)

ReactDOM.createRoot(rootNode)

ReactDOM.createRoot(rootNode)实例化ReactDOMRoot

• createContainer 返回一个根虚拟dom

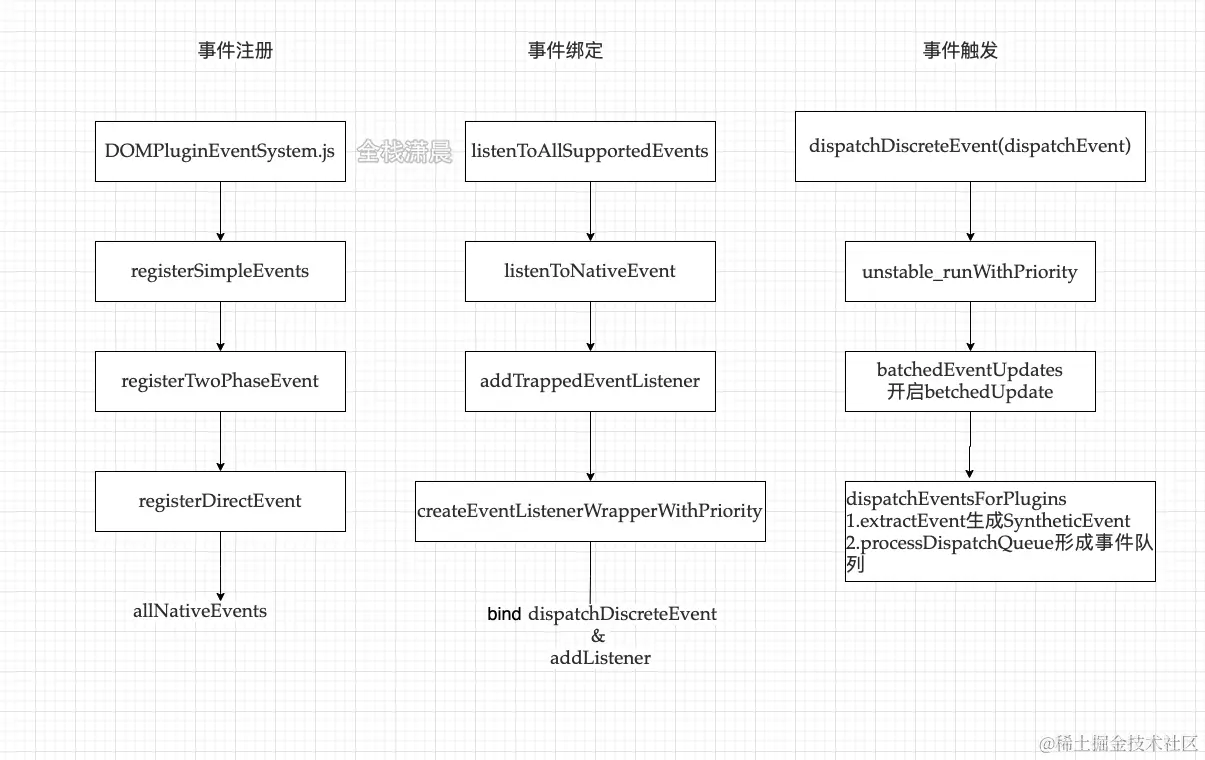

• listenToAllSupportedEvents 事件的注册
• markContainerAsRoot 建立虚拟dom与实际节点的关系

export function createRoot(
  container: Container,
  options?: RootOptions,
): RootType {
  return new ReactDOMRoot(container, options);
}

function ReactDOMRoot(container: Container, options: void | RootOptions) {
  this._internalRoot = createRootImpl(container, ConcurrentRoot, options);
}

function createRootImpl(
  container: Container,
  tag: RootTag,
  options: void | RootOptions,
) {
  const root = createContainer(container, tag, hydrate, hydrationCallbacks);
  markContainerAsRoot(root.current, container);
  const containerNodeType = container.nodeType;

  listenToAllSupportedEvents(rootContainerElement);

  return root;
}

const internalContainerInstanceKey = '__reactContainer$' + randomKey;
export function markContainerAsRoot(hostRoot: Fiber, node: Container): void {
  node[internalContainerInstanceKey] = hostRoot;
}

• new FiberRootNode 创建虚拟dom
• createHostRootFiber 建立current rootFiber
• initializeUpdateQueue 初始化更新队列

export function createContainer(
  containerInfo: Container,
  tag: RootTag,
  hydrate: boolean,
  hydrationCallbacks: null | SuspenseHydrationCallbacks,
): OpaqueRoot {
  return createFiberRoot(containerInfo, tag, hydrate, hydrationCallbacks);
}

export function createFiberRoot(
  containerInfo: any,
  tag: RootTag,
  hydrate: boolean,
  hydrationCallbacks: null | SuspenseHydrationCallbacks,
): FiberRoot {
  const root: FiberRoot = (new FiberRootNode(containerInfo, tag, hydrate): any);
  const uninitializedFiber = createHostRootFiber(tag);
  root.current = uninitializedFiber;
  uninitializedFiber.stateNode = root;

  initializeUpdateQueue(uninitializedFiber);

  return root;
}

FiberRootNode虚拟dom节点创建

//FiberRootNode
function FiberRootNode(containerInfo, tag, hydrate) {
  this.tag = tag;
  this.containerInfo = containerInfo;
  this.pendingChildren = null;
  this.current = null;
  this.pingCache = null;
  this.finishedWork = null;
  this.timeoutHandle = noTimeout;
  this.context = null;
  this.pendingContext = null;
  this.hydrate = hydrate;
  this.callbackNode = null;
  this.callbackPriority = NoLanePriority;
  this.eventTimes = createLaneMap(NoLanes);
  this.expirationTimes = createLaneMap(NoTimestamp);

  this.pendingLanes = NoLanes;
  this.suspendedLanes = NoLanes;
  this.pingedLanes = NoLanes;
  this.expiredLanes = NoLanes;
  this.mutableReadLanes = NoLanes;
  this.finishedLanes = NoLanes;

  this.entangledLanes = NoLanes;
  this.entanglements = createLaneMap(NoLanes);
...
}


// createHostRootFiber
export function createHostRootFiber(tag: RootTag): Fiber {
  let mode;
  if (tag === ConcurrentRoot) {
    mode = ConcurrentMode | BlockingMode | StrictMode;
  } else if (tag === BlockingRoot) {
    mode = BlockingMode | StrictMode;
  } else {
    mode = NoMode;
  }

  return createFiber(HostRoot, null, null, mode);
}
const createFiber = function(
  tag: WorkTag,
  pendingProps: mixed,
  key: null | string,
  mode: TypeOfMode,
): Fiber {
  return new FiberNode(tag, pendingProps, key, mode);
};

function FiberNode(
  tag: WorkTag,
  pendingProps: mixed,
  key: null | string,
  mode: TypeOfMode,
) {
  // Instance
  this.tag = tag;
  this.key = key;
  this.elementType = null;
  this.type = null;
  this.stateNode = null;

  // Fiber
  this.return = null;
  this.child = null;
  this.sibling = null;
  this.index = 0;

  this.ref = null;

  this.pendingProps = pendingProps;
  this.memoizedProps = null;
  this.updateQueue = null;
  this.memoizedState = null;
  this.dependencies = null;

  this.mode = mode;

  // Effects
  this.flags = NoFlags;
  this.subtreeFlags = NoFlags;
  this.deletions = null;

  this.lanes = NoLanes;
  this.childLanes = NoLanes;

  this.alternate = null;
}

initializeUpdateQueue

export function initializeUpdateQueue<State>(fiber: Fiber): void {
  const queue: UpdateQueue<State> = {
    baseState: fiber.memoizedState,
    firstBaseUpdate: null,
    lastBaseUpdate: null,
    shared: {
      pending: null,
    },
    effects: null,
  };
  fiber.updateQueue = queue;
}

ReactDOM.createRoot(rootNode).render()

ReactDOM.createRoot(rootNode).render()即调用ReactDOMRoot.prototype.render方法，主要是调用updateContainer方法

• _internalRoot 为createContainer返回的node
• createUpdate 创建一个更新
• enqueueUpdate 将该更新插入更新队列
• scheduleUpdateOnFiber 协调fiber上的更新

ReactDOMRoot.prototype.render = ReactDOMBlockingRoot.prototype.render = function(
  children: ReactNodeList,
): void {
  const root = this._internalRoot;
  updateContainer(children, root, null, null);
};

export function updateContainer(
  element: ReactNodeList,
  container: OpaqueRoot,
  parentComponent: ?React$Component<any, any>,
  callback: ?Function,
): Lane {
  const current = container.current;
  const lane = requestUpdateLane(current);

  const update = createUpdate(eventTime, lane);
  update.payload = {element};

  enqueueUpdate(current, update);
  scheduleUpdateOnFiber(current, lane, eventTime);

  return lane;
}

3.2 scheduler

Scheduler主要的功能是时间切片和调度优先级，react在对比差异的时候会占用一定的js执行时间，Scheduler内部借助MessageChannel实现了在浏览器绘制之前指定一个时间片，如果react在指定时间内没对比完，Scheduler就会强制交出执行权给浏览器

scheduleUpdateOnFiber

• 若为同步更新执行 performSyncWorkOnRoot
• 异步更新执行ensureRootIsScheduled

export function scheduleUpdateOnFiber(
  fiber: Fiber,
  lane: Lane,
  eventTime: number,
) {
  const root = markUpdateLaneFromFiberToRoot(fiber, lane);
  markRootUpdated(root, lane, eventTime);

  const priorityLevel = getCurrentPriorityLevel();

  if (lane === SyncLane) {
      schedulePendingInteractions(root, lane);
      performSyncWorkOnRoot(root);
  } else {
    ...
    ensureRootIsScheduled(root, eventTime);
    schedulePendingInteractions(root, lane);
  }

  mostRecentlyUpdatedRoot = root;
}

ensureRootIsScheduled

设置lane赛道，每次有新的更新、或者一轮lane执行完就会重新设置

function ensureRootIsScheduled(root: FiberRoot, currentTime: number) {
  markStarvedLanesAsExpired(root, currentTime);

  const nextLanes = getNextLanes(
    root,
    root === workInProgressRoot ? workInProgressRootRenderLanes : NoLanes,
  );
  const newCallbackPriority = returnNextLanesPriority();

  if (root.callbackNode !== null){
      if(newCallbackPriority === root.callbackPriority){ return }
      cancelCallback(existingCallbackNode);
  }

  // Schedule a new callback.
  let newCallbackNode;
  if (newCallbackPriority === SyncLanePriority) {
    newCallbackNode = scheduleSyncCallback(
      performSyncWorkOnRoot.bind(null, root),
    );
  } else if (newCallbackPriority === SyncBatchedLanePriority) {
    newCallbackNode = scheduleCallback(
      ImmediateSchedulerPriority,
      performSyncWorkOnRoot.bind(null, root),
    );
  } else {
    const schedulerPriorityLevel = lanePriorityToSchedulerPriority(
      newCallbackPriority,
    );
    newCallbackNode = scheduleCallback(
      schedulerPriorityLevel,
      performConcurrentWorkOnRoot.bind(null, root),
    );
  }

  root.callbackPriority = newCallbackPriority;
  root.callbackNode = newCallbackNode;
}

scheduleCallback

分析上面异步过程

1. timerQueue：所有没有过期的任务会放在这个队列中。
2. taskQueue：所有过期的任务会放在该队列中，并且按过期时间排序，过期时间越小则排在越前面，并且越先执行

• requestHostTimeout 后构造一个定时器，到过期时间将 timerQueue 放入taskQueue来执行

export function scheduleCallback(
  reactPriorityLevel: ReactPriorityLevel,
  callback: SchedulerCallback,
  options: SchedulerCallbackOptions | void | null,
) {
  const priorityLevel = reactPriorityToSchedulerPriority(reactPriorityLevel);
  return Scheduler_scheduleCallback(priorityLevel, callback, options);
}

function unstable_scheduleCallback(priorityLevel, callback, options) {
  var currentTime = getCurrentTime();
  var startTime = options.delay || currentTime
  var timeout;
  switch (priorityLevel) {
    case ImmediatePriority:
      timeout = IMMEDIATE_PRIORITY_TIMEOUT;
      break;
    case UserBlockingPriority:
      timeout = USER_BLOCKING_PRIORITY_TIMEOUT;
      break;
    case IdlePriority:
      timeout = IDLE_PRIORITY_TIMEOUT;
      break;
    case LowPriority:
      timeout = LOW_PRIORITY_TIMEOUT;
      break;
    case NormalPriority:
    default:
      timeout = NORMAL_PRIORITY_TIMEOUT;
      break;
  }

  var expirationTime = startTime + timeout;

  var newTask = {
    id: taskIdCounter++,
    callback,
    priorityLevel,
    startTime,
    expirationTime,
    sortIndex: -1,
  };

  if (startTime > currentTime) {
    newTask.sortIndex = startTime;
    push(timerQueue, newTask);
    if (peek(taskQueue) === null && newTask === peek(timerQueue)) {
      requestHostTimeout(handleTimeout, startTime - currentTime);
    }
  } else {
    newTask.sortIndex = expirationTime;
    push(taskQueue, newTask);

    if (!isHostCallbackScheduled && !isPerformingWork) {
      isHostCallbackScheduled = true;
      requestHostCallback(flushWork);
    }
  }

  return newTask;
}

requestHostCallback

第一次执行isMessageLoopRunning=false,执行 port.postMessage(null) 触发 channel.port1.onmessage，即performWorkUntilDeadline函数

• flushWork函数会依次执行taskQueue中的任务
• performWorkUntilDeadline在下一个微任务中继续执行scheduledHostCallback，来执行flushWork函数

const channel = new MessageChannel();
const port = channel.port2;
channel.port1.onmessage = performWorkUntilDeadline;

//callback = flushWork
requestHostCallback = function(callback) {
    scheduledHostCallback = callback;
    if (!isMessageLoopRunning) {
      isMessageLoopRunning = true;
      port.postMessage(null);
    }
};


function flushWork(hasTimeRemaining, initialTime) {
  ...
  isHostCallbackScheduled = false
  return workLoop(hasTimeRemaining, initialTime);
}

function workLoop(hasTimeRemaining, initialTime) {
  let currentTime = initialTime;
  advanceTimers(currentTime);
  currentTask = peek(taskQueue);
  while (
    currentTask !== null &&
    !(enableSchedulerDebugging && isSchedulerPaused)
  ) {
    const callback = currentTask.callback;
    if (typeof callback === 'function') {
       // 对应callbak即performConcurrentWorkOnRoot返回的继续执行
      const continuationCallback = callback(didUserCallbackTimeout);
     currentTask.callback = continuationCallback
       ...
    }
    currentTask = peek(taskQueue);
  }

    //当前任务被中断，scheduler会继续发起调度，执行任务
    if (currentTask !== null) {
        return true;
    } else {
        //currentTask为null，则表示taskQueue中的任务都执行完成了
        //则判断timerQueue中是否有任务，有任务的话会去检查是否有过期任务
        //有的话则添加到taskQueue中，并重新发起调度执行任务
        const firstTimer = peek(timerQueue);
        if (firstTimer !== null) {
            requestHostTimeout(handleTimeout, firstTimer.startTime - currentTime);
        }
        return false;
    }
}

performWorkUntilDeadline

• 第一次进来执行port.postMessage方法，触发 performWorkUntilDeadline 方法

 const performWorkUntilDeadline = () => {
     if (scheduledHostCallback !== null) {
         const currentTime = getCurrentTime();
         deadline = currentTime + yieldInterval;
         const hasTimeRemaining = true;
         const hasMoreWork = scheduledHostCallback(
           hasTimeRemaining,
           currentTime,
        );

        if (!hasMoreWork) {
          isMessageLoopRunning = false;
          scheduledHostCallback = null;
        } else {
          port.postMessage(null);
        }
    } else {
      isMessageLoopRunning = false;
    }

    needsPaint = false;
  };

3.4 lane模型

获取lane

requestUpdateLane

在调度前会先获取lane，会根据getCurrentPriorityLevel()的优先级得到当前lane优先级。

• getCurrentPriorityLevel()返回currentPriorityLevel，这个由事件的优先级决定

export function updateContainer(
  element: ReactNodeList,
  container: OpaqueRoot,
  parentComponent: ?React$Component<any, any>,
  callback: ?Function,
): Lane {
  const current = container.current;
  const lane = requestUpdateLane(current);

  const update = createUpdate(eventTime, lane);
  update.payload = {element};

  enqueueUpdate(current, update);
  scheduleUpdateOnFiber(current, lane, eventTime);

  return lane;
}

export function requestUpdateLane(fiber: Fiber): Lane {
  const mode = fiber.mode;
  if ((mode & BlockingMode) === NoMode) {
    return (SyncLane: Lane);
  } else if ((mode & ConcurrentMode) === NoMode) {
    return getCurrentPriorityLevel() === ImmediateSchedulerPriority
      ? (SyncLane: Lane)
      : (SyncBatchedLane: Lane);
  } else if (
    !deferRenderPhaseUpdateToNextBatch &&
    (executionContext & RenderContext) !== NoContext &&
    workInProgressRootRenderLanes !== NoLanes
  ) {
    return pickArbitraryLane(workInProgressRootRenderLanes);
  }
}

export function scheduleUpdateOnFiber(
  fiber: Fiber,
  lane: Lane,
  eventTime: number,
) {
   // 1
  const root = markUpdateLaneFromFiberToRoot(fiber, lane);
  // 2
  markRootUpdated(root, lane, eventTime);

  const priorityLevel = getCurrentPriorityLevel();

  if (lane === SyncLane) {
      schedulePendingInteractions(root, lane);
      performSyncWorkOnRoot(root);
  } else {
    ...
    // 3
    ensureRootIsScheduled(root, eventTime);
    schedulePendingInteractions(root, lane);
  }

  mostRecentlyUpdatedRoot = root;
}

markUpdateLaneFromFiberToRoot

从当前fiber往上直到rootfiber打上lanes标签，并将子fiber的lanes和父fiber的lanes合并为childLanes挂在父fiber上

function markUpdateLaneFromFiberToRoot(
  sourceFiber: Fiber,
  lane: Lane,
): FiberRoot | null {
  // Update the source fiber's lanes
  sourceFiber.lanes = mergeLanes(sourceFiber.lanes, lane);
  let alternate = sourceFiber.alternate;
  if (alternate !== null) {
    alternate.lanes = mergeLanes(alternate.lanes, lane);
  }

  // Walk the parent path to the root and update the child expiration time.
  let node = sourceFiber;
  let parent = sourceFiber.return;
  while (parent !== null) {
    parent.childLanes = mergeLanes(parent.childLanes, lane);
    alternate = parent.alternate;
    if (alternate !== null) {
      alternate.childLanes = mergeLanes(alternate.childLanes, lane);
    }
    node = parent;
    parent = parent.return;
  }
  if (node.tag === HostRoot) {
    const root: FiberRoot = node.stateNode;
    return root;
  } else {
    return null;
  }
}

markRootUpdated

将lanes挂到 root.pendingLanes 上，用于后续的计算

export function markRootUpdated(
  root: FiberRoot,
  updateLane: Lane,
  eventTime: number,
) {
  root.pendingLanes |= updateLane;
  const higherPriorityLanes = updateLane - 1; // Turns 0b1000 into 0b0111
  root.suspendedLanes &= higherPriorityLanes;
  root.pingedLanes &= higherPriorityLanes;

  const eventTimes = root.eventTimes;
  const index = laneToIndex(updateLane);
  eventTimes[index] = eventTime;
}

ensureRootIsScheduled

在进行调度更新时，进行了一系列lanes模型的处理。 设置lane赛道，如存在低优先级的，则插队，进行一轮scheduleCallback操作；

function ensureRootIsScheduled(root: FiberRoot, currentTime: number) {

  // 饥饿避免
  markStarvedLanesAsExpired(root, currentTime);

  const nextLanes = getNextLanes(
    root,
    root === workInProgressRoot ? workInProgressRootRenderLanes : NoLanes,
  );
  const newCallbackPriority = returnNextLanesPriority();

  // 插队
  if (nextLanes === NoLanes || root.callbackNode !== null) {
      cancelCallback(existingCallbackNode);
  }

  let newCallbackNode;
  if (newCallbackPriority === SyncLanePriority) {
    newCallbackNode = scheduleSyncCallback(
      performSyncWorkOnRoot.bind(null, root),
    );
  } else if (newCallbackPriority === SyncBatchedLanePriority) {
    newCallbackNode = scheduleCallback(
      ImmediateSchedulerPriority,
      performSyncWorkOnRoot.bind(null, root),
    );
  } else {
   // 调度优先级
    const schedulerPriorityLevel = lanePriorityToSchedulerPriority(
      newCallbackPriority,
    );
    newCallbackNode = scheduleCallback(
      schedulerPriorityLevel,
      performConcurrentWorkOnRoot.bind(null, root),
    );
  }

  root.callbackPriority = newCallbackPriority;
  root.callbackNode = newCallbackNode;
}

避免饥饿 markStarvedLanesAsExpired

循环处理 root.pendingLanes ，为当前任务根据优先级添加过期时间，并检查未执行的任务中是否有任务过期，有任务过期则在expiredLanes中添加该任务的lane，在后续该任务的执行中以同步模式执行，避免饥饿问题

export function markStarvedLanesAsExpired(
  root: FiberRoot,
  currentTime: number,
): void {
  const pendingLanes = root.pendingLanes;
  const suspendedLanes = root.suspendedLanes;
  const pingedLanes = root.pingedLanes;
  const expirationTimes = root.expirationTimes;

  let lanes = pendingLanes;
  while (lanes > 0) {
    const index = pickArbitraryLaneIndex(lanes);
    const lane = 1 << index;

    const expirationTime = expirationTimes[index];
    if (expirationTime === NoTimestamp) {
      if (
        (lane & suspendedLanes) === NoLanes ||
        (lane & pingedLanes) !== NoLanes
      ) {
        expirationTimes[index] = computeExpirationTime(lane, currentTime);
      }
    } else if (expirationTime <= currentTime) {
      root.expiredLanes |= lane;
    }

    lanes &= ~lane;
  }
}

插队 cancelCallback

在ensureRootIsScheduled 执行getNextLanes()方法获取nextLanes，比较nextLanes与当前的优先级

1. 与现有的任务优先级一样，那么则会中断当前新任务向下的执行，重用之前现有的任务
2. 新任务的优先级大于现有的任务优先级，那么则会取消现有的任务的执行，优先执行优先级高的任务，实现高优先级任务插队

调度 schedulerPriorityLevel

switch (lanesToEventPriority(nextLanes))来确定schedulerPriorityLevel，在scheduleCallback函数中，根据优先级确定 timeout过期时间，来构造timerQueue与 taskQueue，scheduler会循环执行taskQueue中任务

1. timerQueue：所有没有过期的任务会放在这个队列中。
2. taskQueue：所有过期的任务会放在该队列中，并且按过期时间排序，过期时间越小则排在越前面，并且越先执行

跳过低优先级

在一次更新中，会跳过低优先级lane的fiber更新，主要是在begainWork和更新队列时

begainWork

在begainWork中，如果当前更新不在此轮 renderLanes 中则跳过

  if (!includesSomeLane(renderLanes, updateLanes)) {
    workInProgress.lanes = current.lanes;
    return bailoutOnAlreadyFinishedWork(
      current,
      workInProgress,
      renderLanes,
    );
 }

processUpdateQueue

在处理queue时会跳过低优先级，并且记录跳过的lanes，在SuspenseComponent中显示pending的效果

if (!isSubsetOfLanes(renderLanes, updateLane)) {
 ...
 markSkippedUpdateLanes(updateLane);
}


export function markSkippedUpdateLanes(lane: Lane | Lanes): void {
  workInProgressRootSkippedLanes = mergeLanes(
    lane,
    workInProgressRootSkippedLanes,
  );
}

markRootFinished 继续下一轮的更新

markRootFinished(root, remainingLanes)将剩余的lanes放入 root.pendingLanes， 最后再次执行 ensureRootIsScheduled

// commitRoot -> commitRootImpl->markRootFinished
let remainingLanes = mergeLanes(finishedWork.lanes, finishedWork.childLanes);
markRootFinished(root, remainingLanes);
...
 ensureRootIsScheduled(root, now())

export function markRootFinished(root: FiberRoot, remainingLanes: Lanes) {
  const noLongerPendingLanes = root.pendingLanes & ~remainingLanes;

  root.pendingLanes = remainingLanes;

  // Let's try everything again
  root.suspendedLanes = 0;
  root.pingedLanes = 0;

  root.expiredLanes &= remainingLanes;
  root.mutableReadLanes &= remainingLanes;

  root.entangledLanes &= remainingLanes;

  const entanglements = root.entanglements;
  const eventTimes = root.eventTimes;
  const expirationTimes = root.expirationTimes;

  // Clear the lanes that no longer have pending work
  let lanes = noLongerPendingLanes;
  while (lanes > 0) {
    const index = pickArbitraryLaneIndex(lanes);
    const lane = 1 << index;
    entanglements[index] = NoLanes;
    eventTimes[index] = NoTimestamp;
    expirationTimes[index] = NoTimestamp;

    lanes &= ~lane;
  }
}

3.5 执行task,渲染 render commit

上面执行scheduleCallback函数传入performConcurrentWorkOnRoot函数，就是将performConcurrentWorkOnRoot作为一个task放入taskQueue

performConcurrentWorkOnRoot

在既定lane赛道运行，每次中断后，分三种情况执行

• renderRootConcurrent -> workLoopConcurrent -> performUnitOfWork
• finishConcurrentRender -> commitRoot(root)

function performConcurrentWorkOnRoot(root) {

  let lanes = getNextLanes(
    root,
    root === workInProgressRoot ? workInProgressRootRenderLanes : NoLanes,
  );


  let exitStatus = renderRootConcurrent(root, lanes);

  if (
    includesSomeLane(
      workInProgressRootIncludedLanes,
      workInProgressRootUpdatedLanes,
    )
  ) {
    //情景1-有新的更新则重新开始
    prepareFreshStack(root, NoLanes);
  } else if (exitStatus !== RootIncomplete) {
    const finishedWork: Fiber = (root.current.alternate: any);
    root.finishedWork = finishedWork;
    root.finishedLanes = lanes;
    //情景2-commitRoot
    finishConcurrentRender(root, exitStatus, lanes);
  }

  ensureRootIsScheduled(root, now());
  if (root.callbackNode === originalCallbackNode) {
    // 情景3-继续执行
    return performConcurrentWorkOnRoot.bind(null, root);
  }
  return null;
}


function renderRootConcurrent(root: FiberRoot, lanes: Lanes) {
  do {
      workLoopConcurrent();
      break;
  } while (true);

  if (workInProgress !== null) {
    return RootIncomplete;
  } else {
    workInProgressRoot = null;
    workInProgressRootRenderLanes = NoLanes;
    return workInProgressRootExitStatus;
  }
}


function workLoopConcurrent() {
  while (workInProgress !== null && !shouldYield()) {
    performUnitOfWork(workInProgress);
  }
}

performUnitOfWork

workInProgress fiber和会和已经创建的Fiber连接起来形成Fiber树。这个过程类似深度优先遍历

• beginWork 捕获阶段
• completeUnitOfWork 冒泡阶段

function performUnitOfWork(unitOfWork: Fiber): void {
  const current = unitOfWork.alternate;
  let next = beginWork(current, unitOfWork,
  if (next === null) {
    completeUnitOfWork(unitOfWork);
  } else {
    workInProgress = next;
  }

  ReactCurrentOwner.current = null;
}

beginWork

捕获阶段 从根节点rootFiber开始，遍历到叶子节点，每次遍历到的节点都会执行beginWork，并且传入当前Fiber节点，然后创建或复用它的子Fiber节点，并赋值给workInProgress.child

• 更新时 可复用则执行 bailoutOnAlreadyFinishedWork

function beginWork(
  current: Fiber | null,
  workInProgress: Fiber,
  renderLanes: Lanes,
): Fiber | null {
  const updateLanes = workInProgress.lanes;

  //1.更新阶段
  if (current !== null) {
    const oldProps = current.memoizedProps;
    const newProps = workInProgress.pendingProps;

    if (
      oldProps !== newProps ||
      hasLegacyContextChanged() ||
      workInProgress.type !== current.type
    ) {
      didReceiveUpdate = true;
    } else if (!includesSomeLane(renderLanes, updateLanes)) {
      didReceiveUpdate = false;
      switch (workInProgress.tag) {
        case HostRoot:
          pushHostRootContext(workInProgress);
          resetHydrationState();
          break;
        case HostComponent:
          pushHostContext(workInProgress);
          break;
        case ClassComponent: {
          const Component = workInProgress.type;
          if (isLegacyContextProvider(Component)) {
            pushLegacyContextProvider(workInProgress);
          }
          break;
        }
        case ContextProvider: {
          const newValue = workInProgress.memoizedProps.value;
          pushProvider(workInProgress, newValue);
          break;
        }
        ...
      }
      return bailoutOnAlreadyFinishedWork(current, workInProgress, renderLanes);
    }
  } else {
    didReceiveUpdate = false;
  }


  workInProgress.lanes = NoLanes;

 // 2.根据tag来创建不同的fiber 最后进入reconcileChildren函数
  switch (workInProgress.tag) {
    case IndeterminateComponent: {
      return mountIndeterminateComponent(
        current,
        workInProgress,
        workInProgress.type,
        renderLanes,
      );
    }
    case LazyComponent: {
      const elementType = workInProgress.elementType;
      return mountLazyComponent(
        current,
        workInProgress,
        elementType,
        updateLanes,
        renderLanes,
      );
    }
    case FunctionComponent: {
      const Component = workInProgress.type;
      const unresolvedProps = workInProgress.pendingProps;
      const resolvedProps =
        workInProgress.elementType === Component
          ? unresolvedProps
          : resolveDefaultProps(Component, unresolvedProps);
      return updateFunctionComponent(
        current,
        workInProgress,
        Component,
        resolvedProps,
        renderLanes,
      );
    }
    case ClassComponent: {
      const Component = workInProgress.type;
      const unresolvedProps = workInProgress.pendingProps;
      const resolvedProps =
        workInProgress.elementType === Component
          ? unresolvedProps
          : resolveDefaultProps(Component, unresolvedProps);
      return updateClassComponent(
        current,
        workInProgress,
        Component,
        resolvedProps,
        renderLanes,
      );
    }
    case HostRoot:
      return updateHostRoot(current, workInProgress, renderLanes);
    case HostComponent:
      return updateHostComponent(current, workInProgress, renderLanes);
    case HostText:
      return updateHostText(current, workInProgress);
    case SuspenseComponent:
      return updateSuspenseComponent(current, workInProgress, renderLanes);
    case HostPortal:
      return updatePortalComponent(current, workInProgress, renderLanes);
    case ForwardRef: {
      const type = workInProgress.type;
      const unresolvedProps = workInProgress.pendingProps;
      const resolvedProps =
        workInProgress.elementType === type
          ? unresolvedProps
          : resolveDefaultProps(type, unresolvedProps);
      return updateForwardRef(
        current,
        workInProgress,
        type,
        resolvedProps,
        renderLanes,
      );
    }
    case Fragment:
      return updateFragment(current, workInProgress, renderLanes);
    case Mode:
      return updateMode(current, workInProgress, renderLanes);
    case Profiler:
      return updateProfiler(current, workInProgress, renderLanes);
    case ContextProvider:
      return updateContextProvider(current, workInProgress, renderLanes);
    case ContextConsumer:
      return updateContextConsumer(current, workInProgress, renderLanes);
    case MemoComponent: {
      const type = workInProgress.type;
      const unresolvedProps = workInProgress.pendingProps;
      let resolvedProps = resolveDefaultProps(type, unresolvedProps);
      resolvedProps = resolveDefaultProps(type.type, resolvedProps);
      return updateMemoComponent(
        current,
        workInProgress,
        type,
        resolvedProps,
        updateLanes,
        renderLanes,
      );
    }
    case SimpleMemoComponent: {
      return updateSimpleMemoComponent(
        current,
        workInProgress,
        workInProgress.type,
        workInProgress.pendingProps,
        updateLanes,
        renderLanes,
      );
    }
    case IncompleteClassComponent: {
      const Component = workInProgress.type;
      const unresolvedProps = workInProgress.pendingProps;
      const resolvedProps =
        workInProgress.elementType === Component
          ? unresolvedProps
          : resolveDefaultProps(Component, unresolvedProps);
      return mountIncompleteClassComponent(
        current,
        workInProgress,
        Component,
        resolvedProps,
        renderLanes,
      );
    }
    case SuspenseListComponent: {
      return updateSuspenseListComponent(current, workInProgress, renderLanes);
    }
    case FundamentalComponent: {
      if (enableFundamentalAPI) {
        return updateFundamentalComponent(current, workInProgress, renderLanes);
      }
      break;
    }
    case ScopeComponent: {
      if (enableScopeAPI) {
        return updateScopeComponent(current, workInProgress, renderLanes);
      }
      break;
    }
    case Block: {
      if (enableBlocksAPI) {
        const block = workInProgress.type;
        const props = workInProgress.pendingProps;
        return updateBlock(current, workInProgress, block, props, renderLanes);
      }
      break;
    }
    case OffscreenComponent: {
      return updateOffscreenComponent(current, workInProgress, renderLanes);
    }
    case LegacyHiddenComponent: {
      return updateLegacyHiddenComponent(current, workInProgress, renderLanes);
    }
  }
}

reconcileChildren/mountChildFibers

创建子fiber的过程会进入reconcileChildren，该函数的作用是为workInProgress fiber节点生成它的child fiber即 workInProgress.child。然后继续深度优先遍历它的子节点执行相同的操作。

//ReactFiberBeginWork.old.js
export function reconcileChildren(
  current: Fiber | null,
  workInProgress: Fiber,
  nextChildren: any,
  renderLanes: Lanes
) {
  if (current === null) {
    //mount时
    workInProgress.child = mountChildFibers(
      workInProgress,
      null,
      nextChildren,
      renderLanes,
    );
  } else {
    //update
    workInProgress.child = reconcileChildFibers(
      workInProgress,
      current.child,
      nextChildren,
      renderLanes,
    );
  }
}

completeUnitOfWork

• 冒泡阶段 在捕获阶段遍历到子节点之后，会执行completeWork方法，执行完成之后会判断此节点的兄弟节点存不存在，如果存在就会为兄弟节点执行completeWork，当全部兄弟节点执行完之后，会向上‘冒泡’到父节点执行completeWork，直到rootFiber。

function completeUnitOfWork(unitOfWork: Fiber): void {
  let completedWork = unitOfWork;
  do {
    const current = completedWork.alternate;
    const returnFiber = completedWork.return;

    if ((completedWork.flags & Incomplete) === NoFlags) {
      let next = completeWork(current, completedWork, subtreeRenderLanes);
      if (next !== null) {
        workInProgress = next;
        return;
      }
    } else {
      const next = unwindWork(completedWork, subtreeRenderLanes);
      if (next !== null) {
        next.flags &= HostEffectMask;
        workInProgress = next;
        return;
      }

      if (returnFiber !== null) {
        returnFiber.flags |= Incomplete;
        returnFiber.subtreeFlags = NoFlags;
        returnFiber.deletions = null;
      }
    }

    const siblingFiber = completedWork.sibling;
    if (siblingFiber !== null) {
      workInProgress = siblingFiber;
      return;
    }
    completedWork = returnFiber;
    workInProgress = completedWork;
  } while (completedWork !== null);

  if (workInProgressRootExitStatus === RootIncomplete) {
    workInProgressRootExitStatus = RootCompleted;
  }
}

completeWork

根据workInProgress.tag进入不同函数，我们以HostComponent举例

• update时（除了判断current===null外还需要判断workInProgress.stateNode===null），调用updateHostComponent处理props（包括onClick、style、children ...），并将处理好的props赋值给updatePayload,最后会保存在workInProgress.updateQueue上
• mount时 调用createInstance创建dom，将后代dom节点插入刚创建的dom中，调用finalizeInitialChildren处理props（和updateHostComponent处理的逻辑类似）

function completeWork(
  current: Fiber | null,
  workInProgress: Fiber,
  renderLanes: Lanes,
): Fiber | null {
  const newProps = workInProgress.pendingProps;

  switch (workInProgress.tag) {
    case IndeterminateComponent:
    case LazyComponent:
    case SimpleMemoComponent:
    case FunctionComponent:
    case ForwardRef:
    case Fragment:
    case Mode:
    case ContextConsumer:
    case MemoComponent:
      bubbleProperties(workInProgress);
      return null;
    case ClassComponent: {
      const Component = workInProgress.type;
      if (isLegacyContextProvider(Component)) {
        popLegacyContext(workInProgress);
      }
      bubbleProperties(workInProgress);
      return null;
    }
    case HostComponent: {
      popHostContext(workInProgress);
      const rootContainerInstance = getRootHostContainer();
      const type = workInProgress.type;
      if (current !== null && workInProgress.stateNode != null) {
        updateHostComponent(
          current,
          workInProgress,
          type,
          newProps,
          rootContainerInstance,
        );

        if (current.ref !== workInProgress.ref) {
          markRef(workInProgress);
        }
      } else {
        const currentHostContext = getHostContext();
        const instance = createInstance(
            type,
            newProps,
            rootContainerInstance,
            currentHostContext,
            workInProgress,
         );
        appendAllChildren(instance, workInProgress, false, false);
        workInProgress.stateNode = instance;
        if (workInProgress.ref !== null) {
          markRef(workInProgress);
        }
      }
      bubbleProperties(workInProgress);
      return null;
    }
    ...
  }
}

function bubbleProperties(completedWork: Fiber) {
  ...
  let child = completedWork.child;
  while (child !== null) {
    newChildLanes = mergeLanes(
      newChildLanes,
      mergeLanes(child.lanes, child.childLanes),
    );

    subtreeFlags |= child.subtreeFlags;
    subtreeFlags |= child.flags;

    child = child.sibling;
  }
}

commitRoot

• prepareForCommit

1. 调用flushPassiveEffects执行完所有effect的任务
2. 初始化相关变量
3. 赋值firstEffect给后面遍历effectList用

• commitBeforeMutationEffects

1. 执行getSnapshotBeforeUpdate
2. 调度useEffect

• commitMutationEffects

1. 调用commitDetachRef解绑ref（第11章hook会讲解）
2. 根据effectTag执行对应的dom操作
3. useLayoutEffect销毁函数在UpdateTag时执行

• recursivelyCommitLayoutEffects

1. 调用commitLayoutEffectOnFiber执行相关生命周期函数或者hook相关callback
2. 执行commitAttachRef为ref赋值

function commitRoot(root) {
  const renderPriorityLevel = getCurrentPriorityLevel();
  runWithPriority(
    ImmediateSchedulerPriority,
    commitRootImpl.bind(null, root, renderPriorityLevel),
  );
  return null;
}

function commitRootImpl(root, renderPriorityLevel) {
  do {
    flushPassiveEffects();
  } while (rootWithPendingPassiveEffects !== null);
  flushRenderPhaseStrictModeWarningsInDEV();

  const finishedWork = root.finishedWork;
  const lanes = root.finishedLanes;

  root.finishedWork = null;
  root.finishedLanes = NoLanes;
  root.callbackNode = null;


  let remainingLanes = mergeLanes(finishedWork.lanes, finishedWork.childLanes);
  markRootFinished(root, remainingLanes);


  if (root === workInProgressRoot) {
    workInProgressRoot = null;
    workInProgress = null;
    workInProgressRootRenderLanes = NoLanes;
  }

  const subtreeHasEffects =
    (finishedWork.subtreeFlags &
      (BeforeMutationMask | MutationMask | LayoutMask | PassiveMask)) !==
    NoFlags;
  const rootHasEffect =
    (finishedWork.flags &
      (BeforeMutationMask | MutationMask | LayoutMask | PassiveMask)) !==
    NoFlags;

  if (subtreeHasEffects || rootHasEffect) {
    let previousLanePriority;
    if (decoupleUpdatePriorityFromScheduler) {
      previousLanePriority = getCurrentUpdateLanePriority();
      setCurrentUpdateLanePriority(SyncLanePriority);
    }

    const prevExecutionContext = executionContext;
    executionContext |= CommitContext;
    ReactCurrentOwner.current = null;


    focusedInstanceHandle = prepareForCommit(root.containerInfo);
    shouldFireAfterActiveInstanceBlur = false;
    commitBeforeMutationEffects(finishedWork);
    focusedInstanceHandle = null;

    commitMutationEffects(finishedWork, root, renderPriorityLevel);
    resetAfterCommit(root.containerInfo);

    root.current = finishedWork;
    recursivelyCommitLayoutEffects(finishedWork, root);

    if (
      (finishedWork.subtreeFlags & PassiveMask) !== NoFlags ||
      (finishedWork.flags & PassiveMask) !== NoFlags
    ) {
      if (!rootDoesHavePassiveEffects) {
        rootDoesHavePassiveEffects = true;
        scheduleCallback(NormalSchedulerPriority, () => {
          flushPassiveEffects();
          return null;
        });
      }
    }

    requestPaint();

    executionContext = prevExecutionContext;
  } else {
    root.current = finishedWork;
  }

  remainingLanes = root.pendingLanes;

  ensureRootIsScheduled(root, now());

  flushSyncCallbackQueue();

  return null;
}

3.5 Component beginWork

beginWork 中 会根据 workInProgress.tag 来渲染不同标签，主要分为原生dom标签和组件标签。 组件标签分为Component组件和函数组件，它们的处理方式不同。

定义

function Component(props, context, updater) {
  this.props = props;
  this.context = context;
  this.refs = emptyObject;
  this.updater = updater || ReactNoopUpdateQueue;
}

Component.prototype.isReactComponent = {};

Component.prototype.setState = function(partialState, callback) {
  this.updater.enqueueSetState(this, partialState, callback, 'setState');
};

Component.prototype.forceUpdate = function(callback) {
  this.updater.enqueueForceUpdate(this, callback, 'forceUpdate');
};

updateClassComponent

• 根据instance判断是否初次渲染,下面分别讨论
• nextUnitOfWork = finishClassComponent深度遍历执行reconcileChildren函数，最后得到下一个fiber

function updateClassComponent(
  current: Fiber | null,
  workInProgress: Fiber,
  Component: any,
  nextProps: any,
  renderLanes: Lanes,
) {
  prepareToReadContext(workInProgress, renderLanes);

  const instance = workInProgress.stateNode;
  let shouldUpdate;
  if (instance === null) {
    if (current !== null) {
      current.alternate = null;
      workInProgress.alternate = null;
      workInProgress.flags |= Placement;
    }
    constructClassInstance(workInProgress, Component, nextProps);
    mountClassInstance(workInProgress, Component, nextProps, renderLanes);
    shouldUpdate = true;
  } else if (current === null) {
    // In a resume, we'll already have an instance we can reuse.
    shouldUpdate = resumeMountClassInstance(
      workInProgress,
      Component,
      nextProps,
      renderLanes,
    );
  } else {
    shouldUpdate = updateClassInstance(
      current,
      workInProgress,
      Component,
      nextProps,
      renderLanes,
    );
  }
  const nextUnitOfWork = finishClassComponent(
    current,
    workInProgress,
    Component,
    shouldUpdate,
    hasContext,
    renderLanes,
  );
  return nextUnitOfWork;
}


function finishClassComponent(
  current: Fiber | null,
  workInProgress: Fiber,
  Component: any,
  shouldUpdate: boolean,
  hasContext: boolean,
  renderLanes: Lanes,
) {
    // 子fiber没改动，可以复用
    if (!shouldUpdate && !didCaptureError) {
        return bailoutOnAlreadyFinishedWork(current, workInProgress, renderLanes);
    }
    nextChildren = instance.render();
    reconcileChildren(current, workInProgress, nextChildren, renderLanes);
    return workInProgress.child;
}

初次渲染

• constructClassInstance(workInProgress, Component, nextProps) 初始化calss的实例,并且定义了instance.updater
• mountClassInstance 处理了UpdateQueue

function constructClassInstance(
  workInProgress: Fiber,
  ctor: any,
  props: any,
): any {
  const contextType = ctor.contextType;
  context = readContext((contextType: any));

  const instance = new ctor(props, context);
  const state = (workInProgress.memoizedState =
    instance.state !== null && instance.state !== undefined
      ? instance.state
      : null);
  adoptClassInstance(workInProgress, instance);

  return instance;
}

function adoptClassInstance(workInProgress: Fiber, instance: any): void {
  instance.updater = classComponentUpdater;
  workInProgress.stateNode = instance;
}

const classComponentUpdater = {
  isMounted,
  enqueueSetState(inst, payload, callback) {
    const fiber = getInstance(inst);
    const eventTime = requestEventTime();
    const lane = requestUpdateLane(fiber);

    const update = createUpdate(eventTime, lane);
    update.payload = payload;
    if (callback !== undefined && callback !== null) {
      update.callback = callback;
    }

    enqueueUpdate(fiber, update);
    scheduleUpdateOnFiber(fiber, lane, eventTime);
  },
  enqueueReplaceState(inst, payload, callback) {
    const fiber = getInstance(inst);
    const eventTime = requestEventTime();
    const lane = requestUpdateLane(fiber);

    const update = createUpdate(eventTime, lane);
    update.tag = ReplaceState;
    update.payload = payload;

    if (callback !== undefined && callback !== null) {
      update.callback = callback;
    }

    enqueueUpdate(fiber, update);
    scheduleUpdateOnFiber(fiber, lane, eventTime);

  },
  enqueueForceUpdate(inst, callback) {
    const fiber = getInstance(inst);
    const eventTime = requestEventTime();
    const lane = requestUpdateLane(fiber);

    const update = createUpdate(eventTime, lane);
    update.tag = ForceUpdate;

    if (callback !== undefined && callback !== null) {
      update.callback = callback;
    }

    enqueueUpdate(fiber, update);
    scheduleUpdateOnFiber(fiber, lane, eventTime);
  },
};

mountClassInstance(workInProgress, Component, nextProps, renderLanes);

• UpdateQueue 初始化并且处理更新队列

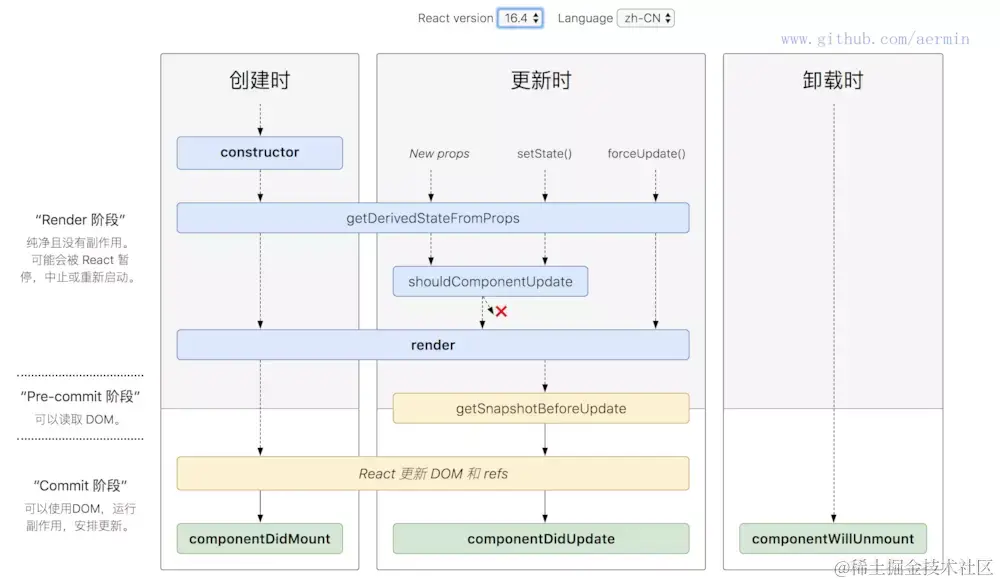

• getDerivedStateFromProps 生命周期处理
• callComponentWillMount 调用ComponentWillMount生命周期

function mountClassInstance(
 workInProgress: Fiber,
 ctor: any,
 newProps: any,
 renderLanes: Lanes,
): void {
 const instance = workInProgress.stateNode;
 instance.props = newProps;
 instance.state = workInProgress.memoizedState;
 instance.refs = emptyRefsObject;

 initializeUpdateQueue(workInProgress);

 const contextType = ctor.contextType;
 instance.context = readContext(contextType);

 processUpdateQueue(workInProgress, newProps, instance, renderLanes);
 instance.state = workInProgress.memoizedState;

 const getDerivedStateFromProps = ctor.getDerivedStateFromProps;
 if (typeof getDerivedStateFromProps === 'function') {
   applyDerivedStateFromProps(
     workInProgress,
     ctor,
     getDerivedStateFromProps,
     newProps,
   );
   instance.state = workInProgress.memoizedState;
 }

 if (
   typeof ctor.getDerivedStateFromProps !== 'function' &&
   typeof instance.getSnapshotBeforeUpdate !== 'function' &&
   (typeof instance.UNSAFE_componentWillMount === 'function' ||
     typeof instance.componentWillMount === 'function')
 ) {
   callComponentWillMount(workInProgress, instance);
   processUpdateQueue(workInProgress, newProps, instance, renderLanes);
   instance.state = workInProgress.memoizedState;
 }
}

更新 setState

在Component定义中可知执行 this.updater.enqueueSetState，这个过程和初次渲染render的过程差不多

• getInstance 根据组件实例获取相应fiber
• requestUpdateLane获取Lane
• createUpdate创建一个Update
• enqueueUpdate将Update插入更新队列
• scheduleUpdateOnFiber触发更新

const classComponentUpdater = {
  enqueueSetState(inst, payload, callback) {
    const fiber = getInstance(inst);
    const eventTime = requestEventTime();
    const lane = requestUpdateLane(fiber);

    const update = createUpdate(eventTime, lane);
    update.payload = payload;
    if (callback !== undefined && callback !== null) {
      update.callback = callback;
    }

    enqueueUpdate(fiber, update);
    scheduleUpdateOnFiber(fiber, lane, eventTime);
  }
  ...
}

3.6 函数式组件 beginWork

hooks

 ReactCurrentDispatcher.current =
      current === null || current.memoizedState === null
        ? HooksDispatcherOnMount
        : HooksDispatcherOnUpdate;
  }

const HooksDispatcherOnMount: Dispatcher = {
  readContext,
  useCallback: mountCallback,
  useContext: readContext,
  useEffect: mountEffect,
  useImperativeHandle: mountImperativeHandle,
  useLayoutEffect: mountLayoutEffect,
  useMemo: mountMemo,
  useReducer: mountReducer,
  useRef: mountRef,
  useState: mountState,
  useDebugValue: mountDebugValue,
  useDeferredValue: mountDeferredValue,
  useTransition: mountTransition,
  useMutableSource: mountMutableSource,
  useOpaqueIdentifier: mountOpaqueIdentifier,

  unstable_isNewReconciler: enableNewReconciler,
};

const HooksDispatcherOnUpdate: Dispatcher = {
  readContext,
  useCallback: updateCallback,
  useContext: readContext,
  useEffect: updateEffect,
  useImperativeHandle: updateImperativeHandle,
  useLayoutEffect: updateLayoutEffect,
  useMemo: updateMemo,
  useReducer: updateReducer,
  useRef: updateRef,
  useState: updateState,
  useDebugValue: updateDebugValue,
  useDeferredValue: updateDeferredValue,
  useTransition: updateTransition,
  useMutableSource: updateMutableSource,
  useOpaqueIdentifier: updateOpaqueIdentifier,

  unstable_isNewReconciler: enableNewReconciler,
};

解析 updateFunctionComponent

• renderWithHooks来获取子fiber,根据初始渲染和更新两个阶段，ReactCurrentDispatcher.current取不同值
• 深度遍历调用reconcileChildren

function updateFunctionComponent(
  current,
  workInProgress,
  Component,
  nextProps: any,
  renderLanes,
) {
 let nextChildren;
  prepareToReadContext(workInProgress, renderLanes);

  nextChildren = renderWithHooks(
      current,
      workInProgress,
      Component,
      nextProps,
      context,
      renderLanes,
  );


  if (current !== null && !didReceiveUpdate) {
    bailoutHooks(current, workInProgress, renderLanes);
    return bailoutOnAlreadyFinishedWork(current, workInProgress, renderLanes);
  }

  reconcileChildren(current, workInProgress, nextChildren, renderLanes);
  return workInProgress.child;
}

export function renderWithHooks<Props, SecondArg>(
  current: Fiber | null,
  workInProgress: Fiber,
  Component: (p: Props, arg: SecondArg) => any,
  props: Props,
  secondArg: SecondArg,
  nextRenderLanes: Lanes,
): any {
    ReactCurrentDispatcher.current =
      current === null || current.memoizedState === null
        ? HooksDispatcherOnMount
        : HooksDispatcherOnUpdate;
    }
   let children = Component(props, secondArg);  //Component为函数组件，return jsx组件
   ...
   currentHook = null;
   workInProgressHook = null;
   didScheduleRenderPhaseUpdate = false;
   return children;

}

useState/useReducer 渲染

由hook 定义mountState中，首先执行mountWorkInProgressHook创建hooks链表workInProgressHook

// 首次渲染
function mountState<S>(
  initialState: (() => S) | S,
): [S, Dispatch<BasicStateAction<S>>] {
  const hook = mountWorkInProgressHook();
  if (typeof initialState === 'function') {
    initialState = initialState();
  }
  hook.memoizedState = hook.baseState = initialState;
  const queue = (hook.queue = {
    pending: null,
    dispatch: null,
    lastRenderedReducer: basicStateReducer,
    lastRenderedState: (initialState: any),
  });
  const dispatch: Dispatch<
    BasicStateAction<S>,
  > = (queue.dispatch = (dispatchAction.bind(
    null,
    currentlyRenderingFiber,
    queue,
  ): any));
  return [hook.memoizedState, dispatch];
}


function mountWorkInProgressHook(): Hook {
  const hook: Hook = {
    memoizedState: null,
    baseState: null,
    baseQueue: null,
    queue: null,
    next: null,
  };
  if (workInProgressHook === null) {
    currentlyRenderingFiber.memoizedState = workInProgressHook = hook;
  } else {
    workInProgressHook = workInProgressHook.next = hook;
  }
  return workInProgressHook;
}

由hook 定义updateReducer中，首先执行updateWorkInProgressHook获取fiber的hook

// 更新
function updateReducer<S, I, A>(
  reducer: (S, A) => S,
  initialArg: I,
  init?: I => S,
): [S, Dispatch<A>] {
  const hook = updateWorkInProgressHook();
  const queue = hook.queue;
  queue.lastRenderedReducer = reducer;

  const current: Hook = (currentHook: any);

  let baseQueue = current.baseQueue;

  const pendingQueue = queue.pending;
  if (pendingQueue !== null) {
    if (baseQueue !== null) {
      const baseFirst = baseQueue.next;
      const pendingFirst = pendingQueue.next;
      baseQueue.next = pendingFirst;
      pendingQueue.next = baseFirst;
    }

    current.baseQueue = baseQueue = pendingQueue;
    queue.pending = null;
  }

  if (baseQueue !== null) {
    // We have a queue to process.
    const first = baseQueue.next;
    let newState = current.baseState;

    let newBaseState = null;
    let newBaseQueueFirst = null;
    let newBaseQueueLast = null;
    let update = first;
    do {
      const updateLane = update.lane;
      if (!isSubsetOfLanes(renderLanes, updateLane)) {
        const clone: Update<S, A> = {
          lane: updateLane,
          action: update.action,
          eagerReducer: update.eagerReducer,
          eagerState: update.eagerState,
          next: (null: any),
        };
        if (newBaseQueueLast === null) {
          newBaseQueueFirst = newBaseQueueLast = clone;
          newBaseState = newState;
        } else {
          newBaseQueueLast = newBaseQueueLast.next = clone;
        }

        currentlyRenderingFiber.lanes = mergeLanes(
          currentlyRenderingFiber.lanes,
          updateLane,
        );
        markSkippedUpdateLanes(updateLane);
      } else {
        if (newBaseQueueLast !== null) {
          const clone: Update<S, A> = {
            lane: NoLane,
            action: update.action,
            eagerReducer: update.eagerReducer,
            eagerState: update.eagerState,
            next: (null: any),
          };
          newBaseQueueLast = newBaseQueueLast.next = clone;
        }

        // Process this update.
        if (update.eagerReducer === reducer) {e.
          newState = ((update.eagerState: any): S);
        } else {
          const action = update.action;
          newState = reducer(newState, action);
        }
      }
      update = update.next;
    } while (update !== null && update !== first);

    if (newBaseQueueLast === null) {
      newBaseState = newState;
    } else {
      newBaseQueueLast.next = (newBaseQueueFirst: any);
    }

    if (!is(newState, hook.memoizedState)) {
      markWorkInProgressReceivedUpdate();
    }

    hook.memoizedState = newState;
    hook.baseState = newBaseState;
    hook.baseQueue = newBaseQueueLast;

    queue.lastRenderedState = newState;
  }

  const dispatch: Dispatch<A> = (queue.dispatch: any);
  return [hook.memoizedState, dispatch];
}


function updateWorkInProgressHook(): Hook {
  let nextCurrentHook: null | Hook;
  if (currentHook === null) {
    const current = currentlyRenderingFiber.alternate;
    if (current !== null) {
      nextCurrentHook = current.memoizedState;
    } else {
      nextCurrentHook = null;
    }
  } else {
    nextCurrentHook = currentHook.next;
  }

  let nextWorkInProgressHook: null | Hook;
  if (workInProgressHook === null) {
    nextWorkInProgressHook = currentlyRenderingFiber.memoizedState;
  } else {
    nextWorkInProgressHook = workInProgressHook.next;
  }

  if (nextWorkInProgressHook !== null) {
    workInProgressHook = nextWorkInProgressHook;
    nextWorkInProgressHook = workInProgressHook.next;

    currentHook = nextCurrentHook;
  } else {
    currentHook = nextCurrentHook;

    const newHook: Hook = {
      memoizedState: currentHook.memoizedState,
      baseState: currentHook.baseState,
      baseQueue: currentHook.baseQueue,
      queue: currentHook.queue,
      next: null,
    };

    if (workInProgressHook === null) {
      currentlyRenderingFiber.memoizedState = workInProgressHook = newHook;
    } else {
      workInProgressHook = workInProgressHook.next = newHook;
    }
  }
  return workInProgressHook;
}

useState/useReducer更新 dispatch

可以看出最终也是调用 scheduleUpdateOnFiber

function dispatchAction<S, A>(
  fiber: Fiber,
  queue: UpdateQueue<S, A>,
  action: A,
) {

  const eventTime = requestEventTime();
  const lane = requestUpdateLane(fiber);

  const update: Update<S, A> = {
    lane,
    action,
    eagerReducer: null,
    eagerState: null,
    next: (null: any),
  };

  const pending = queue.pending;
  if (pending === null) {
    update.next = update;
  } else {
    update.next = pending.next;
    pending.next = update;
  }
  queue.pending = update;

  const alternate = fiber.alternate;

  scheduleUpdateOnFiber(fiber, lane, eventTime);
}

useEffect

• hook.memoizedState = pushEffect(...)维持memoizedState链表

//首次
function mountEffect(
  create: () => (() => void) | void,
  deps: Array<mixed> | void | null,
): void {
  return mountEffectImpl(
    PassiveEffect | PassiveStaticEffect,
    HookPassive,
    create,
    deps,
  );
}
function mountEffectImpl(fiberFlags, hookFlags, create, deps): void {
  const hook = mountWorkInProgressHook();
  const nextDeps = deps === undefined ? null : deps;
  currentlyRenderingFiber.flags |= fiberFlags;
  hook.memoizedState = pushEffect(
    HookHasEffect | hookFlags,
    create,
    undefined,
    nextDeps,
  );
}

//更新
function updateEffect(
  create: () => (() => void) | void,
  deps: Array<mixed> | void | null,
): void {
  return updateEffectImpl(PassiveEffect, HookPassive, create, deps);
}
function updateEffectImpl(fiberFlags, hookFlags, create, deps): void {
  const hook = updateWorkInProgressHook();
  const nextDeps = deps === undefined ? null : deps;
  let destroy = undefined;

  if (currentHook !== null) {
    const prevEffect = currentHook.memoizedState;
    destroy = prevEffect.destroy;
    if (nextDeps !== null) {
      const prevDeps = prevEffect.deps;
      if (areHookInputsEqual(nextDeps, prevDeps)) {
        pushEffect(hookFlags, create, destroy, nextDeps);
        return;
      }
    }
  }

  currentlyRenderingFiber.flags |= fiberFlags;

  hook.memoizedState = pushEffect(
    HookHasEffect | hookFlags,
    create,
    destroy,
    nextDeps,
  );
}

• 在commit阶段flushPassiveEffect函数中执行memoizedState链表的函数

export function flushPassiveEffects(): boolean {
  // Returns whether passive effects were flushed.
  if (pendingPassiveEffectsRenderPriority !== NoSchedulerPriority) {
    const priorityLevel =
      pendingPassiveEffectsRenderPriority > NormalSchedulerPriority
        ? NormalSchedulerPriority
        : pendingPassiveEffectsRenderPriority;
    pendingPassiveEffectsRenderPriority = NoSchedulerPriority;
    if (decoupleUpdatePriorityFromScheduler) {
      const previousLanePriority = getCurrentUpdateLanePriority();
      try {
        setCurrentUpdateLanePriority(
          schedulerPriorityToLanePriority(priorityLevel),
        );
        return runWithPriority(priorityLevel, flushPassiveEffectsImpl);
      } finally {
        setCurrentUpdateLanePriority(previousLanePriority);
      }
    } else {
      return runWithPriority(priorityLevel, flushPassiveEffectsImpl);
    }
  }
  return false;
}

function flushPassiveEffectsImpl() {

  flushPassiveUnmountEffects(root.current);
  flushPassiveMountEffects(root, root.current);

  flushSyncCallbackQueue();
  return true;
}

function flushPassiveMountEffects(root, firstChild: Fiber): void {
  let fiber = firstChild;
  while (fiber !== null) {

    if (fiber.child !== null && primarySubtreeFlags !== NoFlags) {
      flushPassiveMountEffects(root, fiber.child);
    }
    if ((fiber.flags & Passive) !== NoFlags) {
       commitPassiveMountOnFiber(root, fiber);
    }
    fiber = fiber.sibling;
  }
}

function commitHookEffectListMount(flags: HookFlags, finishedWork: Fiber) {
  const updateQueue: FunctionComponentUpdateQueue | null = (finishedWork.updateQueue: any);
  const lastEffect = updateQueue !== null ? updateQueue.lastEffect : null;
  if (lastEffect !== null) {
    const firstEffect = lastEffect.next;
    let effect = firstEffect;
    do {
      if ((effect.tag & flags) === flags) {
        // Mount
        const create = effect.create;
        effect.destroy = create();
      }
      effect = effect.next;
    } while (effect !== firstEffect);
  }
}

3.7 lifecycle

3.8 event

注册

SimpleEventPlugin.registerEvents();

function registerTwoPhaseEvent(registrationName, dependencies) {
  registerDirectEvent(registrationName, dependencies);
  registerDirectEvent(registrationName + 'Capture', dependencies);
}

function registerDirectEvent(registrationName, dependencies) {
 //...

  for (var i = 0; i < dependencies.length; i++) {
    allNativeEvents.add(dependencies[i]);//生成allNativeEvents对象
  }
}

绑定

//由函数createRootImpl调用，也就是在创建根节点之后执行
function listenToAllSupportedEvents(rootContainerElement) {
    allNativeEvents.forEach(function (domEventName) {
      if (!nonDelegatedEvents.has(domEventName)) {
        listenToNativeEvent(domEventName, false, rootContainerElement, null);
      }

      listenToNativeEvent(domEventName, true, rootContainerElement, null);
    });
  }
}

export function listenToNativeEvent(
  domEventName: DOMEventName,
  isCapturePhaseListener: boolean,
  rootContainerElement: EventTarget,
  targetElement: Element | null,
  eventSystemFlags?: EventSystemFlags = 0,
): void {
  let target = rootContainerElement;
  const listenerSet = getEventListenerSet(target);
  addTrappedEventListener(
      target,
      domEventName,
      eventSystemFlags,
      isCapturePhaseListener,
    );
  listenerSet.add(listenerSetKey);
}

function addTrappedEventListener(
  targetContainer: EventTarget,
  domEventName: DOMEventName,
  eventSystemFlags: EventSystemFlags,
  isCapturePhaseListener: boolean,
  isDeferredListenerForLegacyFBSupport?: boolean,
) {
  let listener = createEventListenerWrapperWithPriority(
    targetContainer,
    domEventName,
    eventSystemFlags,
  );
  ...
  unsubscribeListener = addEventBubbleListener(
    targetContainer,
    domEventName,
    listener,
  );
}

export function createEventListenerWrapperWithPriority(
  targetContainer: EventTarget,
  domEventName: DOMEventName,
  eventSystemFlags: EventSystemFlags,
): Function {
  const eventPriority = getEventPriorityForPluginSystem(domEventName);
  let listenerWrapper;
  switch (eventPriority) {
    case DiscreteEvent:
      listenerWrapper = dispatchDiscreteEvent;
      break;
    case UserBlockingEvent:
      listenerWrapper = dispatchUserBlockingUpdate;
      break;
    case ContinuousEvent:
    default:
      listenerWrapper = dispatchEvent;
      break;
  }
  return listenerWrapper.bind(
    null,
    domEventName,
    eventSystemFlags,
    targetContainer,
  );
}


function addEventBubbleListener(target, eventType, listener){
   target.addEventListener(eventType, listener, false)
   return listener;
}

触发

function dispatchDiscreteEvent(domEventName, eventSystemFlags, container, nativeEvent) {
  {
    flushDiscreteUpdatesIfNeeded(nativeEvent.timeStamp);
  }

  discreteUpdates(dispatchEvent, domEventName, eventSystemFlags, container, nativeEvent);
}

export function dispatchEvent(
  domEventName: DOMEventName,
  eventSystemFlags: EventSystemFlags,
  targetContainer: EventTarget,
  nativeEvent: AnyNativeEvent,
): void {
 ...
 dispatchEventForPluginEventSystem(
    domEventName,
    eventSystemFlags,
    nativeEvent,
    null,
    targetContainer,
  );
}

export function dispatchEventForPluginEventSystem(
  domEventName: DOMEventName,
  eventSystemFlags: EventSystemFlags,
  nativeEvent: AnyNativeEvent,
  targetInst: null | Fiber,
  targetContainer: EventTarget,
): void {
  let ancestorInst = targetInst;
  if (
    (eventSystemFlags & IS_EVENT_HANDLE_NON_MANAGED_NODE) === 0 &&
    (eventSystemFlags & IS_NON_DELEGATED) === 0
  ) {
    const targetContainerNode = ((targetContainer: any): Node);
    if (targetInst !== null) {
      let node = targetInst;

      mainLoop: while (true) {
        if (node === null) {
          return;
        }
        const nodeTag = node.tag;
        if (nodeTag === HostRoot || nodeTag === HostPortal) {
          let container = node.stateNode.containerInfo;
          if (isMatchingRootContainer(container, targetContainerNode)) {
            break;
          }

          while (container !== null) {
            const parentNode = getClosestInstanceFromNode(container);
            if (parentNode === null) {
              return;
            }
            const parentTag = parentNode.tag;
            if (parentTag === HostComponent || parentTag === HostText) {
              node = ancestorInst = parentNode;
              continue mainLoop;
            }
            container = container.parentNode;
          }
        }
        node = node.return;
      }
    }

    batchedEventUpdates(() =>
        dispatchEventsForPlugins(
          domEventName,
          eventSystemFlags,
          nativeEvent,
          ancestorInst,
          targetContainer,
        ),
    );
}

function dispatchEventsForPlugins(
  domEventName: DOMEventName,
  eventSystemFlags: EventSystemFlags,
  nativeEvent: AnyNativeEvent,
  targetInst: null | Fiber,
  targetContainer: EventTarget,
): void {
  const nativeEventTarget = getEventTarget(nativeEvent);
  const dispatchQueue: DispatchQueue = [];
  extractEvents(
    dispatchQueue,
    domEventName,
    targetInst,
    nativeEvent,
    nativeEventTarget,
    eventSystemFlags,
    targetContainer,
  );
  processDispatchQueue(dispatchQueue, eventSystemFlags);
}

extractEvents

accumulateSinglePhaseListeners 冒泡收集事件到dispatchQueue

function extractEvents(
  dispatchQueue: DispatchQueue,
  domEventName: DOMEventName,
  targetInst: null | Fiber,
  nativeEvent: AnyNativeEvent,
  nativeEventTarget: null | EventTarget,
  eventSystemFlags: EventSystemFlags,
  targetContainer: EventTarget,
): void {
  const reactName = topLevelEventsToReactNames.get(domEventName);
  let SyntheticEventCtor = SyntheticEvent;
  let reactEventType: string = domEventName;
  switch (domEventName) {
    case 'xxx':
      SyntheticEventCtor = SyntheticFocusEvent;
      break;
    ...
  }

  const inCapturePhase = (eventSystemFlags & IS_CAPTURE_PHASE) !== 0;
  if (
    enableCreateEventHandleAPI &&
    eventSystemFlags & IS_EVENT_HANDLE_NON_MANAGED_NODE
  ) {
    const listeners = accumulateEventHandleNonManagedNodeListeners(
      ((reactEventType: any): DOMEventName),
      targetContainer,
      inCapturePhase,
    );
    if (listeners.length > 0) {
      // Intentionally create event lazily.
      const event = new SyntheticEventCtor(
        reactName,
        reactEventType,
        null,
        nativeEvent,
        nativeEventTarget,
      );
      dispatchQueue.push({event, listeners});
    }
  } else {
    const listeners = accumulateSinglePhaseListeners(
      targetInst,
      reactName,
      nativeEvent.type,
      inCapturePhase,
      accumulateTargetOnly,
    );
    if (listeners.length > 0) {
      const event = new SyntheticEventCtor(
        reactName,
        reactEventType,
        null,
        nativeEvent,
        nativeEventTarget,
      );
      dispatchQueue.push({event, listeners});
    }
  }
}

export function accumulateSinglePhaseListeners(
  targetFiber: Fiber | null,
  reactName: string | null,
  nativeEventType: string,
  inCapturePhase: boolean,
  accumulateTargetOnly: boolean,
): Array<DispatchListener> {
  const captureName = reactName !== null ? reactName + 'Capture' : null;
  const reactEventName = inCapturePhase ? captureName : reactName;
  const listeners: Array<DispatchListener> = [];

  let instance = targetFiber;
  let lastHostComponent = null;

  // Accumulate all instances and listeners via the target -> root path.
  while (instance !== null) {
    const {stateNode, tag} = instance;
    // Handle listeners that are on HostComponents (i.e. <div>)
    if (tag === HostComponent && stateNode !== null) {
      lastHostComponent = stateNode;

      // createEventHandle listeners
      if (enableCreateEventHandleAPI) {
        const eventHandlerListeners = getEventHandlerListeners(
          lastHostComponent,
        );
        if (eventHandlerListeners !== null) {
          eventHandlerListeners.forEach(entry => {
            if (
              entry.type === nativeEventType &&
              entry.capture === inCapturePhase
            ) {
              listeners.push(
                createDispatchListener(
                  instance,
                  entry.callback,
                  (lastHostComponent: any),
                ),
              );
            }
          });
        }
      }

      // Standard React on* listeners, i.e. onClick or onClickCapture
      if (reactEventName !== null) {
        const listener = getListener(instance, reactEventName);
        if (listener != null) {
          listeners.push(
            createDispatchListener(instance, listener, lastHostComponent),
          );
        }
      }
    } else if (
      enableCreateEventHandleAPI &&
      enableScopeAPI &&
      tag === ScopeComponent &&
      lastHostComponent !== null &&
      stateNode !== null
    ) {
      // Scopes
      const reactScopeInstance = stateNode;
      const eventHandlerListeners = getEventHandlerListeners(
        reactScopeInstance,
      );
      if (eventHandlerListeners !== null) {
        eventHandlerListeners.forEach(entry => {
          if (
            entry.type === nativeEventType &&
            entry.capture === inCapturePhase
          ) {
            listeners.push(
              createDispatchListener(
                instance,
                entry.callback,
                (lastHostComponent: any),
              ),
            );
          }
        });
      }
    }

    if (accumulateTargetOnly) {
      break;
    }
    instance = instance.return;
  }
  return listeners;
}

processDispatchQueue

依次执行dispatchQueue的事件触发

export function processDispatchQueue(
  dispatchQueue: DispatchQueue,
  eventSystemFlags: EventSystemFlags,
): void {
  const inCapturePhase = (eventSystemFlags & IS_CAPTURE_PHASE) !== 0;
  for (let i = 0; i < dispatchQueue.length; i++) {
    const {event, listeners} = dispatchQueue[i];
    processDispatchQueueItemsInOrder(event, listeners, inCapturePhase);
  }
  rethrowCaughtError();
}

function processDispatchQueueItemsInOrder(
  event: ReactSyntheticEvent,
  dispatchListeners: Array<DispatchListener>,
  inCapturePhase: boolean,
): void {
  let previousInstance;
  if (inCapturePhase) {
    for (let i = dispatchListeners.length - 1; i >= 0; i--) {
      const {instance, currentTarget, listener} = dispatchListeners[i];
      if (instance !== previousInstance && event.isPropagationStopped()) {
        return;
      }
      executeDispatch(event, listener, currentTarget);
      previousInstance = instance;
    }
  } else {
    for (let i = 0; i < dispatchListeners.length; i++) {
      const {instance, currentTarget, listener} = dispatchListeners[i];
      if (instance !== previousInstance && event.isPropagationStopped()) {
        return;
      }
      executeDispatch(event, listener, currentTarget);
      previousInstance = instance;
    }
  }
}

function executeDispatch(
  event: ReactSyntheticEvent,
  listener: Function,
  currentTarget: EventTarget,
): void {
  const type = event.type || 'unknown-event';
  event.currentTarget = currentTarget;
  invokeGuardedCallbackAndCatchFirstError(type, listener, undefined, event);
  event.currentTarget = null;
}

3.9 context

这是一个发布订阅者模型，当context变化通知 订阅的fiber

export function createContext<T>(
  defaultValue: T,
  calculate<T> {
ChangedBits: ?(a: T, b: T) => number,
): ReactContext

  const context: ReactContext<T> = {
    $$typeof: REACT_CONTEXT_TYPE,
    _calculateChangedBits: calculateChangedBits,
    _currentValue: defaultValue,
    _currentValue2: defaultValue,
    _threadCount: 0,
    Provider: (null: any),
    Consumer: (null: any),
  };

  context.Provider = {
    $$typeof: REACT_PROVIDER_TYPE,
    _context: context,
  };

  let hasWarnedAboutUsingNestedContextConsumers = false;
  let hasWarnedAboutUsingConsumerProvider = false;
  let hasWarnedAboutDisplayNameOnConsumer = false;

  context.Consumer = context;

  return context;
}

发布 createContext

传递 context,有以下几种方式：

• <TestContext.Provider value={value}> </TestContext.Provider>
• static childContextTypes + getChildContext

<TestContext.Provider

该标签给节点增加属性 $$typeof: REACT_PROVIDER_TYPE，在创建fiber过程中，fiberTag = ContextProvide。

beginWork -> case ContextProvider -> updateContextProvider:

• 我们可以用一个valueStack记录我们的context，在render阶段pushProvider，在commit阶段popProvider，在每个具体的层级能根据valueCursor取当前value；

function updateContextProvider(
  current: Fiber | null,
  workInProgress: Fiber,
  renderLanes: Lanes,
) {
  const providerType: ReactProviderType<any> = workInProgress.type;
  const context: ReactContext<any> = providerType._context;

  const newProps = workInProgress.pendingProps;
  const oldProps = workInProgress.memoizedProps;

  const newValue = newProps.value;

  pushProvider(workInProgress, newValue);

  if (oldProps !== null) {
    const oldValue = oldProps.value;
    const changedBits = calculateChangedBits(context, newValue, oldValue);
    if (changedBits === 0) {
      if (
        oldProps.children === newProps.children &&
        !hasLegacyContextChanged()
      ) {
        return bailoutOnAlreadyFinishedWork(
          current,
          workInProgress,
          renderLanes,
        );
      }
    } else {
      propagateContextChange(workInProgress, context, changedBits, renderLanes);
    }
  }

  const newChildren = newProps.children;
  reconcileChildren(current, workInProgress, newChildren, renderLanes);
  return workInProgress.child;
}

completeWork -> case ContextProvider -> updateContextProvider:

function completeWork(
  current: Fiber | null,
  workInProgress: Fiber,
  renderLanes: Lanes,
): Fiber | null {
  const newProps = workInProgress.pendingProps;

  switch (workInProgress.tag) {
     case ...
     case ContextProvider:
      popProvider(workInProgress);
      bubbleProperties(workInProgress);
      return null;
  }
}

getChildContext

在解析Class组件时，如果构造类存在 childContextTypes 属性

• finishClassComponent -> invalidateContextProvider 更改当前 valueStack

function invalidateContextProvider(
  workInProgress: Fiber,
  type: any,
  didChange: boolean,
): void {
  if (disableLegacyContext) {
    return;
  } else {
    const instance = workInProgress.stateNode;

    if (didChange) {
      const mergedContext = processChildContext(
        workInProgress,
        type,
        previousContext,
      );
      instance.__reactInternalMemoizedMergedChildContext = mergedContext;


      pop(didPerformWorkStackCursor, workInProgress);
      pop(contextStackCursor, workInProgress);

      push(contextStackCursor, mergedContext, workInProgress);
      push(didPerformWorkStackCursor, didChange, workInProgress);
    } else {
      pop(didPerformWorkStackCursor, workInProgress);
      push(didPerformWorkStackCursor, didChange, workInProgress);
    }
  }
}

• updateContainer -> getContextForSubtree 获取context

function processChildContext(
  fiber: Fiber,
  type: any,
  parentContext: Object,
): Object {
  if (disableLegacyContext) {
    return parentContext;
  } else {
    const instance = fiber.stateNode;
    const childContextTypes = type.childContextTypes;

    if (typeof instance.getChildContext !== 'function') {
      return parentContext;
    }

    const childContext = instance.getChildContext();
    return {...parentContext, ...childContext};
  }
}

订阅

下面几种情况会使用到context

• useContext
• static contextType = TestContext
• <TestContext.consumer> 标签

在 begainWork 解析 class组件 、ContextProvider 组件、函数组件useContext过程中 会执行 readContext，会在fiber的dependencies增加context链表

export function readContext<T>(
  context: ReactContext<T>,
  observedBits: void | number | boolean,
): T {
    const contextItem = {
      context: ((context: any): ReactContext<mixed>),
      observedBits,
      next: null,
    };

    if (lastContextDependency === null) {
      lastContextDependency = contextItem;
      currentlyRenderingFiber.dependencies = {
        lanes: NoLanes,
        firstContext: contextItem,
        responders: null,
      };
    } else {
      lastContextDependency = lastContextDependency.next = contextItem;
    }
  }
  return isPrimaryRenderer ? context._currentValue : context._currentValue2;
}

通知订阅者 propagateContextChange

遍历fiber，如果订阅context的fiber具有dependencies 链表，dependencies.observedBits 判断是否需要更新

export function propagateContextChange(
  workInProgress: Fiber,
  context: ReactContext<mixed>,
  changedBits: number,
  renderLanes: Lanes,
): void {
  let fiber = workInProgress.child;
  if (fiber !== null) {
    fiber.return = workInProgress;
  }
  while (fiber !== null) {
    let nextFiber;
    const list = fiber.dependencies;
    if (list !== null) {
      nextFiber = fiber.child;

      let dependency = list.firstContext;
      while (dependency !== null) {
        if (
          dependency.context === context &&
          (dependency.observedBits & changedBits) !== 0
        ) {
          if (fiber.tag === ClassComponent) {
            const update = createUpdate(
              NoTimestamp,
              pickArbitraryLane(renderLanes),
            );
            update.tag = ForceUpdate;
            enqueueUpdate(fiber, update);
          }
          fiber.lanes = mergeLanes(fiber.lanes, renderLanes);
          const alternate = fiber.alternate;
          if (alternate !== null) {
            alternate.lanes = mergeLanes(alternate.lanes, renderLanes);
          }
          scheduleWorkOnParentPath(fiber.return, renderLanes);

          list.lanes = mergeLanes(list.lanes, renderLanes);
          break;
        }
        dependency = dependency.next;
      }
    } else if (fiber.tag === ContextProvider) {
      nextFiber = fiber.type === workInProgress.type ? null : fiber.child;
    }

    if (nextFiber !== null) {
      nextFiber.return = fiber;
    } else {
      nextFiber = fiber;
      while (nextFiber !== null) {
        if (nextFiber === workInProgress) {
          nextFiber = null;
          break;
        }
        const sibling = nextFiber.sibling;
        if (sibling !== null) {
          sibling.return = nextFiber.return;
          nextFiber = sibling;
          break;
        }
        nextFiber = nextFiber.return;
      }
    }
    fiber = nextFiber;
  }
}

3.10 ref

基础使用

export default function App() {
  const classRef = useRef();
  const functionRef = useRef();
  return (
    <>
      <MyClass ref={classRef} />
      <MyCounter ref={functionRef} />
    </>
  );
}

useRef

function mountRef<T>(initialValue: T): {|current: T|} {
  const hook = mountWorkInProgressHook();
  const ref = {current: initialValue};
  hook.memoizedState = ref;
  return ref;
}
function updateRef<T>(initialValue: T): {|current: T|} {
  const hook = updateWorkInProgressHook();
  return hook.memoizedState;
}

createRef

export function createRef(): RefObject {
  const refObject = {
    current: null,
  };
  return refObject;
}

<MyClass ref={classRef} />

• ref为函数 ，执行 ref(instanceToUse)
• 否则 ref.current = instance

recursivelyCommitLayoutEffects -> commitAttachRef

function commitAttachRef(finishedWork: Fiber) {
  const ref = finishedWork.ref;
  if (ref !== null) {
    const instance = finishedWork.stateNode;
    let instanceToUse;
    switch (finishedWork.tag) {
      case HostComponent:
        instanceToUse = getPublicInstance(instance);
        break;
      default:
        instanceToUse = instance;
    }

    if (enableScopeAPI && finishedWork.tag === ScopeComponent) {
      instanceToUse = instance;
    }
    if (typeof ref === 'function') {
      ref(instanceToUse);
    } else {
      ref.current = instanceToUse;
    }
  }
}

函数组件 useImperativeHandle

使用方法

function MyCounter(props, ref) {
    const [count, setCount] = useState(0);
    useImperativeHandle(ref, () => ({ resetCount: resetCount, }));
    function resetCount() { setCount(0); }
    function increment() { setCount(count + 1); }
    return ( <div> <button onClick={increment}>+1</button> </div> );
}

• 在commit阶段flushPassiveEffect函数中执行memoizedState链表的函数

function mountImperativeHandle<T>(
  ref: {|current: T | null|} | ((inst: T | null) => mixed) | null | void,
  create: () => T,
  deps: Array<mixed> | void | null,
): void {
  const effectDeps =
    deps !== null && deps !== undefined ? deps.concat([ref]) : null;
  return mountEffectImpl(
      UpdateEffect,
      HookLayout,
      imperativeHandleEffect.bind(null, create, ref),
      effectDeps,
  );
}

function mountEffectImpl(fiberFlags, hookFlags, create, deps): void {
  const hook = mountWorkInProgressHook();
  const nextDeps = deps === undefined ? null : deps;
  currentlyRenderingFiber.flags |= fiberFlags;
  hook.memoizedState = pushEffect(
    HookHasEffect | hookFlags,
    create,
    undefined,
    nextDeps,
  );
}


function imperativeHandleEffect<T>(
  create: () => T,
  ref: {|current: T | null|} | ((inst: T | null) => mixed) | null | void,
) {
  if (typeof ref === 'function') {
    const refCallback = ref;
    const inst = create();
    refCallback(inst);
    return () => {
      refCallback(null);
    };
  } else if (ref !== null && ref !== undefined) {
    const refObject = ref;
    const inst = create();
    refObject.current = inst;
    return () => {
      refObject.current = null;
    };
  }
}

欢迎关注我的前端自检清单，我和你一起成长
