Description

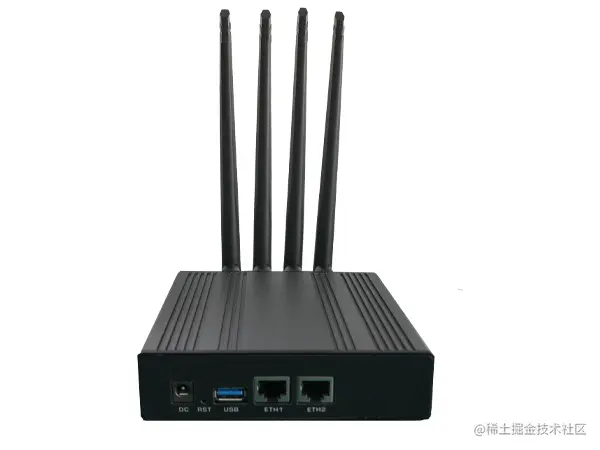

DR-AP40X9-A is a 2x2 2.4G&5G high power Radio AP Router which including 1x DR40X9(IPQ4019/IPQ4029) Board;2 x 2.4G&5G dipole Antennas; 1 x PSU(DC power or PoE);
1 x Enclosure.
****Dipole antenna
■ 2 x 2.4G&5G Antenna
■ 5dBi 2.4GHz/5Ghz
■ SMA Plug interface
■ Plastic rod of black
■ RoHS compliance
Enclosure
■ Dimension: 132x 119 x 34 mm
■ Aluminum alloy material
■ Support Wallys[DR40X9]
- | Symbol**** | Parameter**** |
| -------------------------------- | ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ |
| CPU | [IPQ4029/IPQ4019]（Quad core ARM Cortex A7 at 716.8 MHz） |
| Antenna Connector | 2 x 5G MMCX connectors;2x2.4G MMCX |
| 10/100/1000Mbps Gigabit Ethernet | ****2xRJ45 |
| SFP connector | 1xSFP fiber module connector (optional) |
| 3G/4G connector | 1xminipcie 3G/4G connector support with two sim card |
| USB connector | 1xUSB 3.0 connector |
| POE | 24V48V passive POE |
| DC Jack | 24V48V power supply |
| ROHS Compliance | YES |
| Dimension | 115mm x 105mm x 16mm |
| Max Power | 48.1V x 0.180A= 8.658W |
| Nor Flash | 2MB32MB |
| Nand Flash | 128MB |
| DDR | 256MB512MB |
- \
