1、什么是html2canvas
html2canvas可以直接截取特定dom元素内的所有内容并导出图片 官网地址： html2canvas.hertzen.com/
2、使用方式
- 安装
npm i html2canvas -S
- 引入使用
// vue文件
<!-- 海报html -->
<template>
<div class="c-code" v-if="showOriImg">
<div class="poster-wrap" ref="box" id="box">
<img class="bg-poster" :src="qr_code_info.poster_url" />
<img
:src="qr_code_info.url"
alt="二维码"
class="c-code-img"
/>
<div>第一份测试文案</div>
<p style="font-size: 40px">test</p>
<p>中文</p>
</div>
</div>
<!-- 制作的截图图片 -->
<div class="c-code" v-if="!showOriImg && posterImg">
<div class="poster-wrap">
<img
class="bg-poster"
style="width: 100%"
:src="posterImg"
/>
</div>
</div>
</template>
<script>
import html2canvas from 'html2canvas';
methods: {
// 设置背景二维码
setBgCode() {
var width = document.getElementById('box').offsetWidth,
height = document.getElementById('box').offsetHeight,
scale = window.devicePixelRatio; //放大倍数
console.log('setBgCode-----------');
console.log(width);
console.log(height);
debugger;
html2canvas(this.$refs.box, {
scale,
width: width,
heigth: height,
useCORS: true // 【重要】开启跨域配置
}).then(canvas => {
var context = canvas.getContext('2d');
// 【重要】关闭抗锯齿
context.mozImageSmoothingEnabled = false;
context.webkitImageSmoothingEnabled = false;
context.msImageSmoothingEnabled = false;
context.imageSmoothingEnabled = false;
const posterDataUrl = canvas.toDataURL('image/png', 1);
this.posterImg = posterDataUrl;
this.showOriImg = false;
});
}
}
</script>
大致就是调用 html2canvas()函数 传入 第一个参数dom，第二个参数是配置项， 然后会返回一个promise ，then里面的value是一个canvas，拿到canvas就可以使用toDataURL导出一张base64图片地址: canvas.toDataURL('image/png', 1);
3、原理分析

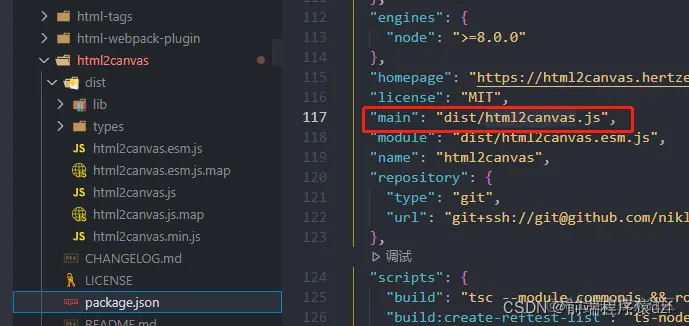

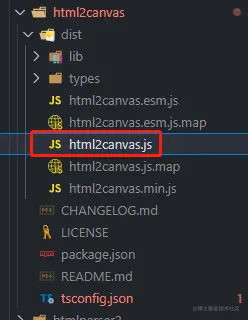

- 确定入口
- 入口方法
const html2canvas = (element: HTMLElement, options: Partial<Options> = {}): Promise<HTMLCanvasElement> => {
return renderElement(element, options);
};
入口方法内部执行了 renderElement
const renderElement = async (element: HTMLElement, opts: Partial<Options>): Promise<HTMLCanvasElement> => {
if (!element || typeof element !== 'object') {
return Promise.reject('Invalid element provided as first argument');
}
const ownerDocument = element.ownerDocument;
if (!ownerDocument) {
throw new Error(`Element is not attached to a Document`);
}
const defaultView = ownerDocument.defaultView;
if (!defaultView) {
throw new Error(`Document is not attached to a Window`);
}
const resourceOptions = {
allowTaint: opts.allowTaint ?? false,
imageTimeout: opts.imageTimeout ?? 15000,
proxy: opts.proxy,
useCORS: opts.useCORS ?? false
};
const contextOptions = {
logging: opts.logging ?? true,
cache: opts.cache,
...resourceOptions
};
const windowOptions = {
windowWidth: opts.windowWidth ?? defaultView.innerWidth,
windowHeight: opts.windowHeight ?? defaultView.innerHeight,
scrollX: opts.scrollX ?? defaultView.pageXOffset,
scrollY: opts.scrollY ?? defaultView.pageYOffset
};
const windowBounds = new Bounds(
windowOptions.scrollX,
windowOptions.scrollY,
windowOptions.windowWidth,
windowOptions.windowHeight
);
const context = new Context(contextOptions, windowBounds);
const foreignObjectRendering = opts.foreignObjectRendering ?? false;
const cloneOptions: CloneConfigurations = {
allowTaint: opts.allowTaint ?? false,
onclone: opts.onclone,
ignoreElements: opts.ignoreElements,
inlineImages: foreignObjectRendering,
copyStyles: foreignObjectRendering
};
context.logger.debug(
`Starting document clone with size ${windowBounds.width}x${
windowBounds.height
} scrolled to ${-windowBounds.left},${-windowBounds.top}`
);
const documentCloner = new DocumentCloner(context, element, cloneOptions);
const clonedElement = documentCloner.clonedReferenceElement;
if (!clonedElement) {
return Promise.reject(`Unable to find element in cloned iframe`);
}
const container = await documentCloner.toIFrame(ownerDocument, windowBounds);
const {width, height, left, top} =
isBodyElement(clonedElement) || isHTMLElement(clonedElement)
? parseDocumentSize(clonedElement.ownerDocument)
: parseBounds(context, clonedElement);
const backgroundColor = parseBackgroundColor(context, clonedElement, opts.backgroundColor);
const renderOptions: RenderConfigurations = {
canvas: opts.canvas,
backgroundColor,
scale: opts.scale ?? defaultView.devicePixelRatio ?? 1,
x: (opts.x ?? 0) + left,
y: (opts.y ?? 0) + top,
width: opts.width ?? Math.ceil(width),
height: opts.height ?? Math.ceil(height)
};
let canvas;
if (foreignObjectRendering) {
context.logger.debug(`Document cloned, using foreign object rendering`);
const renderer = new ForeignObjectRenderer(context, renderOptions);
canvas = await renderer.render(clonedElement);
} else {
context.logger.debug(
`Document cloned, element located at ${left},${top} with size ${width}x${height} using computed rendering`
);
context.logger.debug(`Starting DOM parsing`);
const root = parseTree(context, clonedElement);
if (backgroundColor === root.styles.backgroundColor) {
root.styles.backgroundColor = COLORS.TRANSPARENT;
}
context.logger.debug(
`Starting renderer for element at ${renderOptions.x},${renderOptions.y} with size ${renderOptions.width}x${renderOptions.height}`
);
const renderer = new CanvasRenderer(context, renderOptions);
canvas = await renderer.render(root);
}
if (opts.removeContainer ?? true) {
if (!DocumentCloner.destroy(container)) {
context.logger.error(`Cannot detach cloned iframe as it is not in the DOM anymore`);
}
}
context.logger.debug(`Finished rendering`);
return canvas;
};
它主要做了以下事情：
- 解析用户传入的options，将其与默认的options合并，得到用于渲染的配置数据renderOptions
- 对传入的DOM元素进行解析，取到节点信息和样式信息，这些节点信息会和上一步的renderOptions配置一起传给canvasRenderer实例，用来绘制离屏canvas
- canvasRenderer将依据浏览器渲染层叠内容的规则，将用户传入的DOM元素渲染到一个离屏canvas中，这个离屏canvas我们可以在then方法的回调中取到
上面这一步 简化为个步骤
const renderElement = async (element: HTMLElement, opts: Partial<Options>): Promise<HTMLCanvasElement> => {
const renderOptions = {...defaultOptions, ...opts}; // 合并默认配置和用户配置
const root = parseTree(element); // 解析用户传入的DOM元素（为了不影响原始的DOM，实际上会克隆一个新的DOM元素），获取节点信息
const renderer = new CanvasRenderer(renderOptions); // 根据渲染的配置数据生成canvasRenderer实例
return await renderer.render(root); // canvasRenderer实例会根据解析到的节点信息，依据浏览器渲染层叠内容的规则，将DOM元素内容渲染到离屏canvas中
};
-
合并配置的逻辑比较简单，我们直接略过，重点分析下解析节点信息（parseTree）和渲染离屏canvas（renderer.render）两个逻辑。
3.1 解析节点信息 parseTree
parseTree的入参就是一个普通的DOM元素，返回值是一个ElementContainer对象，该对象主要包含DOM元素的位置信息（bounds: width|height|left|top）、样式数据、文本节点数据等（只是节点树的相关信息，不包含层叠数据，层叠数据在parseStackingContexts方法中取得）。解析的方法就是递归整个DOM树，并取得每一层节点的数据。

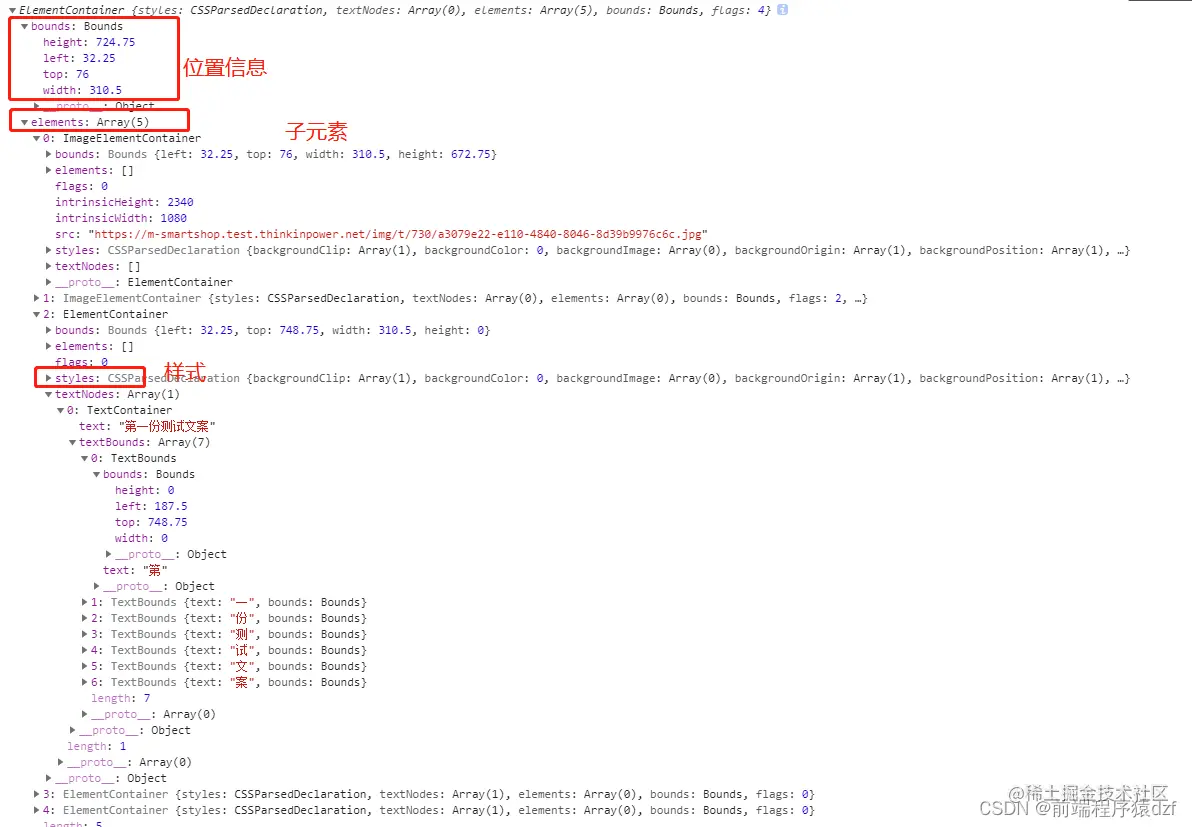

parseTree大致返回
里面包含了每一层节点的：
bounds - 位置信息（宽/高、横/纵坐标）
elements - 子元素信息
flags - 用来决定如何渲染的标志
styles - 样式描述信息
textNodes - 文本节点信息
本质上就是把dom元素变成一棵树结构 有父子关系， 然后有bounds信息，列出坐标位置 还有样式，有这些条件，后面就可以做渲染了
3.2 生成渲染器
new CanvasRenderer(renderOptions);
export class CanvasRenderer extends Renderer {
canvas: HTMLCanvasElement;
ctx: CanvasRenderingContext2D;
private readonly _activeEffects: IElementEffect[] = [];
private readonly fontMetrics: FontMetrics;
constructor(context: Context, options: RenderConfigurations) {
super(context, options);
this.canvas = options.canvas ? options.canvas : document.createElement('canvas');
this.ctx = this.canvas.getContext('2d') as CanvasRenderingContext2D;
if (!options.canvas) {
this.canvas.width = Math.floor(options.width * options.scale);
this.canvas.height = Math.floor(options.height * options.scale);
this.canvas.style.width = `${options.width}px`;
this.canvas.style.height = `${options.height}px`;
}
this.fontMetrics = new FontMetrics(document);
this.ctx.scale(this.options.scale, this.options.scale);
this.ctx.translate(-options.x, -options.y);
this.ctx.textBaseline = 'bottom';
this._activeEffects = [];
this.context.logger.debug(
`Canvas renderer initialized (${options.width}x${options.height}) with scale ${options.scale}`
);
}
....
这一步就是根据配置信息生成一个render渲染器 ， 渲染器内部生成一个canvas对象，也是后面peomise返回的cavas对象 ， 方便后续调用canvas方法
3.3 渲染离屏canvas , 调用renderer.render
有了节点树信息，就可以用来渲染离屏canvas了，我们来看看渲染的逻辑。
渲染的逻辑在CanvasRenderer类的render方法中，该方法主要用来渲染层叠内容：
render方法的核心代码如下：
/**
* StackingContext {
* element: ElementPaint {container: ElementContainer, effects: Array(0), curves: BoundCurves}
* inlineLevel: []
* negativeZIndex: []
* nonInlineLevel: [ElementPaint]
* nonPositionedFloats: []
* nonPositionedInlineLevel: []
* positiveZIndex: [StackingContext]
* zeroOrAutoZIndexOrTransformedOrOpacity: [StackingContext]
* }
*/
async render(element: ElementContainer): Promise<HTMLCanvasElement> {
if (this.options.backgroundColor) {
this.ctx.fillStyle = asString(this.options.backgroundColor);
this.ctx.fillRect(this.options.x, this.options.y, this.options.width, this.options.height);
}
const stack = parseStackingContexts(element);
await this.renderStack(stack);
this.applyEffects([]);
return this.canvas;
}
- 这个render函数 传入的element 就是3.1拿到的root元素
- 然后根据配置信息，填充canvas的背景
- 然后根据element 生成stack
parseStackingContexts(element) 实现如下：
export const parseStackingContexts = (container: ElementContainer): StackingContext => {
const paintContainer = new ElementPaint(container, null);
const root = new StackingContext(paintContainer);
const listItems: ElementPaint[] = [];
parseStackTree(paintContainer, root, root, listItems);
processListItems(paintContainer.container, listItems);
return root;
};

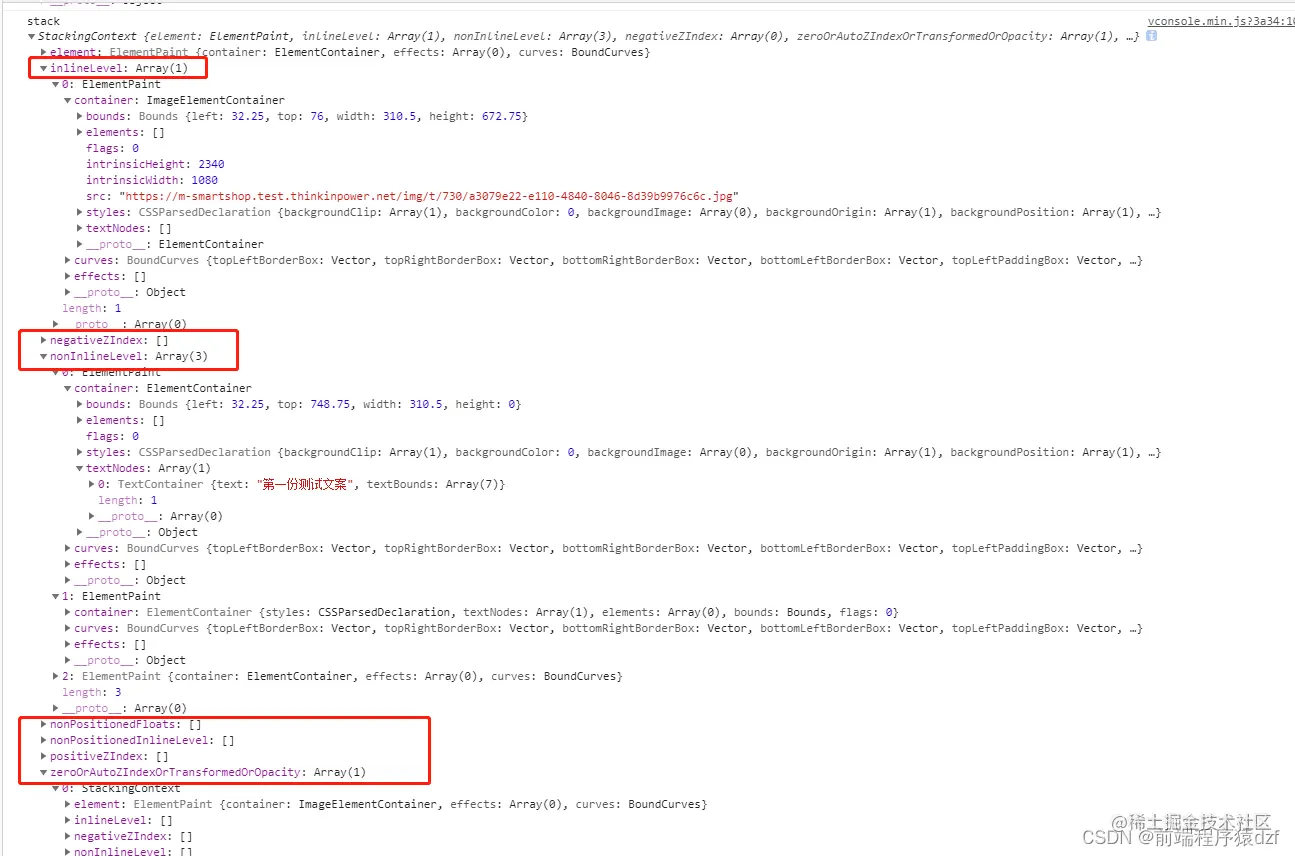

返回的stack 就是 下面的对象 本质就是把上么的elementContainer根据dom实际情况分门别类 放进不同数组

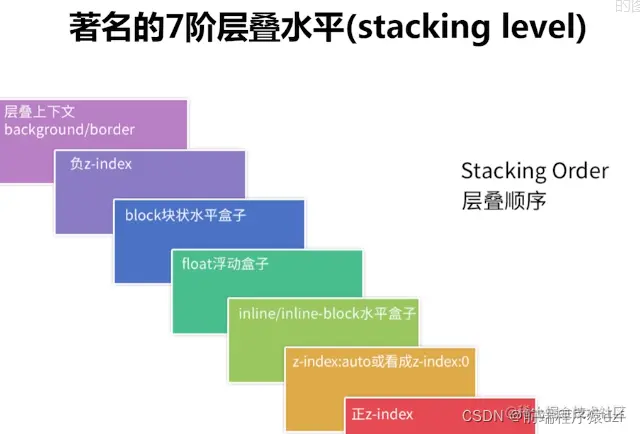

其中的 inlineLevel - 内联元素 negativeZIndex - zIndex为负的元素 nonInlineLevel - 非内联元素 nonPositionedFloats - 未定位的浮动元素 nonPositionedInlineLevel - 内联的非定位元素，包含内联表和内联块 positiveZIndex - z-index大于等于1的元素 zeroOrAutoZIndexOrTransformedOrOpacity - 所有有层叠上下文的（z-index: auto|0）、透明度小于1的（opacity小于1）或变换的（transform不为none）元素 代表的是层叠信息，渲染层叠内容时会根据这些层叠信息来决定渲染的顺序，一层一层有序进行渲染。
parseStackingContexts解析层叠信息的方式和parseTree解析节点信息的方式类似，都是递归整棵树，收集树的每一层的信息，形成一颗包含层叠信息的层叠树。
而渲染层叠内容的renderStack方式实际上调用的是renderStackContent方法，该方法是整个渲染流程中最为关键的方法.

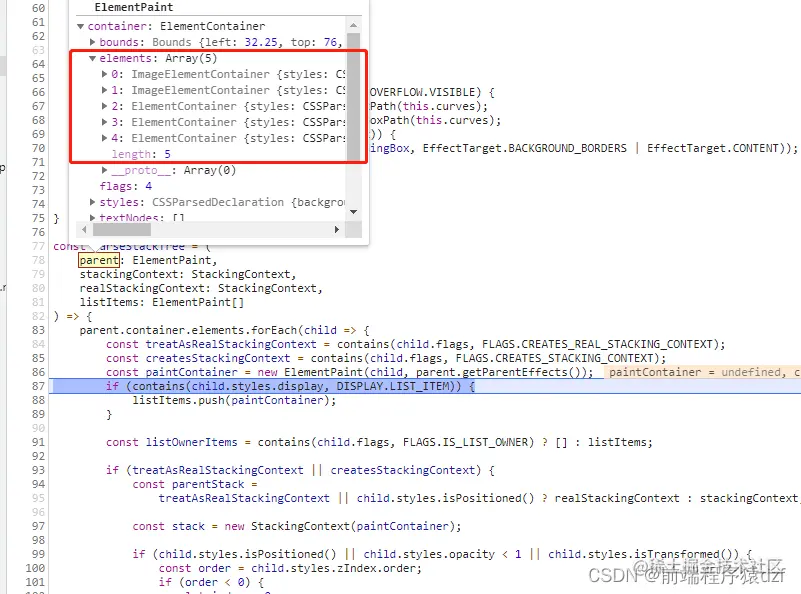

parseStackTree 就是根据整个elements数遍历 递归处理， 把符合的类型分门别类放在各个数组， 比如根据inline 根据opacity 、position等样式决定。
const parseStackTree = (
parent: ElementPaint,
stackingContext: StackingContext,
realStackingContext: StackingContext,
listItems: ElementPaint[]
) => {
parent.container.elements.forEach((child) => {
const treatAsRealStackingContext = contains(child.flags, FLAGS.CREATES_REAL_STACKING_CONTEXT);
const createsStackingContext = contains(child.flags, FLAGS.CREATES_STACKING_CONTEXT);
const paintContainer = new ElementPaint(child, parent);
if (contains(child.styles.display, DISPLAY.LIST_ITEM)) {
listItems.push(paintContainer);
}
const listOwnerItems = contains(child.flags, FLAGS.IS_LIST_OWNER) ? [] : listItems;
if (treatAsRealStackingContext || createsStackingContext) {
const parentStack =
treatAsRealStackingContext || child.styles.isPositioned() ? realStackingContext : stackingContext;
const stack = new StackingContext(paintContainer);
if (child.styles.isPositioned() || child.styles.opacity < 1 || child.styles.isTransformed()) {
const order = child.styles.zIndex.order;
if (order < 0) {
let index = 0;
parentStack.negativeZIndex.some((current, i) => {
if (order > current.element.container.styles.zIndex.order) {
index = i;
return false;
} else if (index > 0) {
return true;
}
return false;
});
parentStack.negativeZIndex.splice(index, 0, stack);
} else if (order > 0) {
let index = 0;
parentStack.positiveZIndex.some((current, i) => {
if (order >= current.element.container.styles.zIndex.order) {
index = i + 1;
return false;
} else if (index > 0) {
return true;
}
return false;
});
parentStack.positiveZIndex.splice(index, 0, stack);
} else {
parentStack.zeroOrAutoZIndexOrTransformedOrOpacity.push(stack);
}
} else {
if (child.styles.isFloating()) {
parentStack.nonPositionedFloats.push(stack);
} else {
parentStack.nonPositionedInlineLevel.push(stack);
}
}
parseStackTree(
paintContainer,
stack,
treatAsRealStackingContext ? stack : realStackingContext,
listOwnerItems
);
} else {
if (child.styles.isInlineLevel()) {
stackingContext.inlineLevel.push(paintContainer);
} else {
stackingContext.nonInlineLevel.push(paintContainer);
}
parseStackTree(paintContainer, stackingContext, realStackingContext, listOwnerItems);
}
if (contains(child.flags, FLAGS.IS_LIST_OWNER)) {
processListItems(child, listOwnerItems);
}
});
};
parent.container.elements就是一开始3.1获取dom树
stackingContext 就是整个对象 然后里面包含各种类别的情况， 把element单独塞进去 最后再分别渲染出来。
- 渲染stack
调用this.renderStack(stack);
async renderStack(stack: StackingContext): Promise<void> {
const styles = stack.element.container.styles;
if (styles.isVisible()) {
await this.renderStackContent(stack);
}
}
async renderStackContent(stack: StackingContext): Promise<void> {
if (contains(stack.element.container.flags, FLAGS.DEBUG_RENDER)) {
debugger;
}
// https://www.w3.org/TR/css-position-3/#painting-order
// 1. the background and borders of the element forming the stacking context.
await this.renderNodeBackgroundAndBorders(stack.element);
// 2. the child stacking contexts with negative stack levels (most negative first).
for (const child of stack.negativeZIndex) {
await this.renderStack(child);
}
// 3. For all its in-flow, non-positioned, block-level descendants in tree order:
await this.renderNodeContent(stack.element);
for (const child of stack.nonInlineLevel) {
await this.renderNode(child);
}
// 4. All non-positioned floating descendants, in tree order. For each one of these,
// treat the element as if it created a new stacking context, but any positioned descendants and descendants
// which actually create a new stacking context should be considered part of the parent stacking context,
// not this new one.
for (const child of stack.nonPositionedFloats) {
await this.renderStack(child);
}
// 5. the in-flow, inline-level, non-positioned descendants, including inline tables and inline blocks.
for (const child of stack.nonPositionedInlineLevel) {
await this.renderStack(child);
}
for (const child of stack.inlineLevel) {
await this.renderNode(child);
}
// 6. All positioned, opacity or transform descendants, in tree order that fall into the following categories:
// All positioned descendants with 'z-index: auto' or 'z-index: 0', in tree order.
// For those with 'z-index: auto', treat the element as if it created a new stacking context,
// but any positioned descendants and descendants which actually create a new stacking context should be
// considered part of the parent stacking context, not this new one. For those with 'z-index: 0',
// treat the stacking context generated atomically.
//
// All opacity descendants with opacity less than 1
//
// All transform descendants with transform other than none
for (const child of stack.zeroOrAutoZIndexOrTransformedOrOpacity) {
await this.renderStack(child);
}
// 7. Stacking contexts formed by positioned descendants with z-indices greater than or equal to 1 in z-index
// order (smallest first) then tree order.
for (const child of stack.positiveZIndex) {
await this.renderStack(child);
}
}
↑ renderstackContent 就是按类别渲染
按照上面这种顺序渲染
核心渲染方法：
async renderNodeContent(paint: ElementPaint): Promise<void> {
this.applyEffects(paint.getEffects(EffectTarget.CONTENT));
const container = paint.container;
const curves = paint.curves;
const styles = container.styles;
for (const child of container.textNodes) {
await this.renderTextNode(child, styles);
}
if (container instanceof ImageElementContainer) {
try {
const image = await this.context.cache.match(container.src);
this.renderReplacedElement(container, curves, image);
} catch (e) {
this.context.logger.error(`Error loading image ${container.src}`);
}
}
if (container instanceof CanvasElementContainer) {
this.renderReplacedElement(container, curves, container.canvas);
}
if (container instanceof SVGElementContainer) {
try {
const image = await this.context.cache.match(container.svg);
this.renderReplacedElement(container, curves, image);
} catch (e) {
this.context.logger.error(`Error loading svg ${container.svg.substring(0, 255)}`);
}
}
if (container instanceof IFrameElementContainer && container.tree) {
const iframeRenderer = new CanvasRenderer(this.context, {
scale: this.options.scale,
backgroundColor: container.backgroundColor,
x: 0,
y: 0,
width: container.width,
height: container.height
});
const canvas = await iframeRenderer.render(container.tree);
if (container.width && container.height) {
this.ctx.drawImage(
canvas,
0,
0,
container.width,
container.height,
container.bounds.left,
container.bounds.top,
container.bounds.width,
container.bounds.height
);
}
}
if (container instanceof InputElementContainer) {
const size = Math.min(container.bounds.width, container.bounds.height);
if (container.type === CHECKBOX) {
if (container.checked) {
this.ctx.save();
this.path([
new Vector(container.bounds.left + size * 0.39363, container.bounds.top + size * 0.79),
new Vector(container.bounds.left + size * 0.16, container.bounds.top + size * 0.5549),
new Vector(container.bounds.left + size * 0.27347, container.bounds.top + size * 0.44071),
new Vector(container.bounds.left + size * 0.39694, container.bounds.top + size * 0.5649),
new Vector(container.bounds.left + size * 0.72983, container.bounds.top + size * 0.23),
new Vector(container.bounds.left + size * 0.84, container.bounds.top + size * 0.34085),
new Vector(container.bounds.left + size * 0.39363, container.bounds.top + size * 0.79)
]);
this.ctx.fillStyle = asString(INPUT_COLOR);
this.ctx.fill();
this.ctx.restore();
}
} else if (container.type === RADIO) {
if (container.checked) {
this.ctx.save();
this.ctx.beginPath();
this.ctx.arc(
container.bounds.left + size / 2,
container.bounds.top + size / 2,
size / 4,
0,
Math.PI * 2,
true
);
this.ctx.fillStyle = asString(INPUT_COLOR);
this.ctx.fill();
this.ctx.restore();
}
}
}
if (isTextInputElement(container) && container.value.length) {
const [fontFamily, fontSize] = this.createFontStyle(styles);
const {baseline} = this.fontMetrics.getMetrics(fontFamily, fontSize);
this.ctx.font = fontFamily;
this.ctx.fillStyle = asString(styles.color);
this.ctx.textBaseline = 'alphabetic';
this.ctx.textAlign = canvasTextAlign(container.styles.textAlign);
const bounds = contentBox(container);
let x = 0;
switch (container.styles.textAlign) {
case TEXT_ALIGN.CENTER:
x += bounds.width / 2;
break;
case TEXT_ALIGN.RIGHT:
x += bounds.width;
break;
}
const textBounds = bounds.add(x, 0, 0, -bounds.height / 2 + 1);
this.ctx.save();
this.path([
new Vector(bounds.left, bounds.top),
new Vector(bounds.left + bounds.width, bounds.top),
new Vector(bounds.left + bounds.width, bounds.top + bounds.height),
new Vector(bounds.left, bounds.top + bounds.height)
]);
this.ctx.clip();
this.renderTextWithLetterSpacing(
new TextBounds(container.value, textBounds),
styles.letterSpacing,
baseline
);
this.ctx.restore();
this.ctx.textBaseline = 'alphabetic';
this.ctx.textAlign = 'left';
}
if (contains(container.styles.display, DISPLAY.LIST_ITEM)) {
if (container.styles.listStyleImage !== null) {
const img = container.styles.listStyleImage;
if (img.type === CSSImageType.URL) {
let image;
const url = (img as CSSURLImage).url;
try {
image = await this.context.cache.match(url);
this.ctx.drawImage(image, container.bounds.left - (image.width + 10), container.bounds.top);
} catch (e) {
this.context.logger.error(`Error loading list-style-image ${url}`);
}
}
} else if (paint.listValue && container.styles.listStyleType !== LIST_STYLE_TYPE.NONE) {
const [fontFamily] = this.createFontStyle(styles);
this.ctx.font = fontFamily;
this.ctx.fillStyle = asString(styles.color);
this.ctx.textBaseline = 'middle';
this.ctx.textAlign = 'right';
const bounds = new Bounds(
container.bounds.left,
container.bounds.top + getAbsoluteValue(container.styles.paddingTop, container.bounds.width),
container.bounds.width,
computeLineHeight(styles.lineHeight, styles.fontSize.number) / 2 + 1
);
this.renderTextWithLetterSpacing(
new TextBounds(paint.listValue, bounds),
styles.letterSpacing,
computeLineHeight(styles.lineHeight, styles.fontSize.number) / 2 + 2
);
this.ctx.textBaseline = 'bottom';
this.ctx.textAlign = 'left';
}
}
}
本质上 渲染的时候就会根据实际样式情况 图片就 this.ctx.drawImage 文案就 this.ctx.fillText 等等操作 就能渲染好canvas了。
最后返回这个渲染好的canvas就可以了。
4、总结
这个图是借鉴别人的 很清晰列出从入口到最终渲染的方法：
核心关键 1、是先解析dom元素，抽取关键信息，如样式，位置信息等，形成父子关系的树 2、遍历第一步的树，形成一个stack 里面分别装着7种情况的dom树 3、生成一个render渲染器， 根据stack 7种情况，用canvas去渲染这7种情况 4、返回这个离屏canvas即可。
