基于 Web Component 跨框架组件解决方案

Web Component 基本介绍

Web Components 允许您创建可重用的定制元素（它们的功能封装在您的代码之外）并且在您的 web 应用中使用它们。

兼容性如下图所示:


Web Component Api

CustomElementRegistry.define()

customElements.define(name, constructor, options)

注册一个 custom element，该方法接受以下参数：

name: 元素名称
constructor: 自定义元素构造器。
options: 可选参数，控制元素如何定义。目前有一个选项支持：
- extends. 指定继承的已创建的元素。被用于创建自定义元素。

Element.attachShadow()

var shadowroot = element.attachShadow(shadowRootInit)

给指定的元素挂载一个 Shadow DOM，并且返回对 ShadowRoot 的引用:

shadowRootInit，包括下列字段：
- mode 模式
  - open: 可以从 js 外部访问 shadow root 节点
```
element.shadowRoot // 返回一个 ShadowRoot 对象
```
  - closed: 拒绝从 js 外部访问关闭的 shadow root 节点
```
element.shadowRoot // 返回 null
```
- delegatesFocus 焦点委托一个布尔值，当设置为 true 时，指定减轻自定义元素的聚焦性能问题行为。当 shadow DOM 中不可聚焦的部分被点击时，让第一个可聚焦的部分成为焦点，并且 shadow host（影子主机）将提供所有可用的 :focus 样式。

生命周期

connectedCallback：当 custom element 首次被插入文档 DOM 时，被调用。
disconnectedCallback：当 custom element 从文档 DOM 中删除时，被调用。
adoptedCallback：当 custom element 被移动到新的文档时，被调用。
attributeChangedCallback: 当 custom element 增加、删除、修改自身属性时，被调用。

Web Component 示例代码

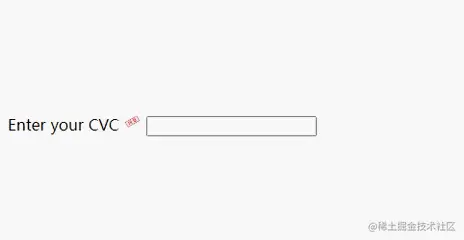

示例一

<form>
  <div>
    <label for="cvc"
      >Enter your CVC
      <popup-info
        img="img/alt.png"
        data-text="Your card validation code (CVC) is an extra security feature — it is the last 3 or 4 numbers on the back of your card."
      ></popup-info
    ></label>
    <input type="text" id="cvc" />
  </div>
</form>

// Create a class for the element
class PopUpInfo extends HTMLElement {
  constructor() {
    // Always call super first in constructor
    super()

    // Create a shadow root
    const shadow = this.attachShadow({ mode: 'open' })

    // Create spans
    const wrapper = document.createElement('span')
    wrapper.setAttribute('class', 'wrapper')

    const icon = document.createElement('span')
    icon.setAttribute('class', 'icon')
    icon.setAttribute('tabindex', 0)

    const info = document.createElement('span')
    info.setAttribute('class', 'info')

    // Take attribute content and put it inside the info span
    const text = this.getAttribute('data-text')
    info.textContent = text

    // Insert icon
    let imgUrl
    if (this.hasAttribute('img')) {
      imgUrl = this.getAttribute('img')
    } else {
      imgUrl = 'img/default.png'
    }

    const img = document.createElement('img')
    img.src = imgUrl
    icon.appendChild(img)

    // Create some CSS to apply to the shadow dom
    const style = document.createElement('style')
    console.log(style.isConnected)

    style.textContent = `
      .wrapper {
        position: relative;
      }

      .info {
        font-size: 0.8rem;
        width: 200px;
        display: inline-block;
        border: 1px solid black;
        padding: 10px;
        background: white;
        border-radius: 10px;
        opacity: 0;
        transition: 0.6s all;
        position: absolute;
        bottom: 20px;
        left: 10px;
        z-index: 3;
      }

      img {
        width: 1.2rem;
      }

      .icon:hover + .info, .icon:focus + .info {
        opacity: 1;
      }
    `

    // Attach the created elements to the shadow dom
    shadow.appendChild(style)
    console.log(style.isConnected)
    shadow.appendChild(wrapper)
    wrapper.appendChild(icon)
    wrapper.appendChild(info)
  }
}

// Define the new element
customElements.define('popup-info', PopUpInfo)

示例二

<div>
  <button class="add">Add custom-square to DOM</button>
  <button class="update">Update attributes</button>
  <button class="remove">Remove custom-square from DOM</button>
</div>

// Create a class for the element
class Square extends HTMLElement {
  // Specify observed attributes so that
  // attributeChangedCallback will work
  static get observedAttributes() {
    return ['c', 'l']
  }

  constructor() {
    // Always call super first in constructor
    super()

    const shadow = this.attachShadow({ mode: 'open' })

    const div = document.createElement('div')
    const style = document.createElement('style')
    shadow.appendChild(style)
    shadow.appendChild(div)
  }

  connectedCallback() {
    console.log('Custom square element added to page.')
    updateStyle(this)
  }

  disconnectedCallback() {
    console.log('Custom square element removed from page.')
  }

  adoptedCallback() {
    console.log('Custom square element moved to new page.')
  }

  attributeChangedCallback(name, oldValue, newValue) {
    console.log('Custom square element attributes changed.')
    updateStyle(this)
  }
}

customElements.define('custom-square', Square)

function updateStyle(elem) {
  const shadow = elem.shadowRoot
  shadow.querySelector('style').textContent = `
    div {
      width: ${elem.getAttribute('l')}px;
      height: ${elem.getAttribute('l')}px;
      background-color: ${elem.getAttribute('c')};
    }
  `
}

const add = document.querySelector('.add')
const update = document.querySelector('.update')
const remove = document.querySelector('.remove')
let square

update.disabled = true
remove.disabled = true

function random(min, max) {
  return Math.floor(Math.random() * (max - min + 1) + min)
}

add.onclick = function () {
  // Create a custom square element
  square = document.createElement('custom-square')
  square.setAttribute('l', '100')
  square.setAttribute('c', 'red')
  document.body.appendChild(square)

  update.disabled = false
  remove.disabled = false
  add.disabled = true
}

update.onclick = function () {
  // Randomly update square's attributes
  square.setAttribute('l', random(50, 200))
  square.setAttribute(
    'c',
    `rgb(${random(0, 255)}, ${random(0, 255)}, ${random(0, 255)})`
  )
}

remove.onclick = function () {
  // Remove the square
  document.body.removeChild(square)

  update.disabled = true
  remove.disabled = true
  add.disabled = false
}

Stencil 基本介绍

Stencil.js 是一个基于 Web Components 设计的框架，由它创建的组件库，可以轻松地在可以引入 Web Component 的浏览器和框架上运行

Stencil Api

修饰器

@Component(opts: ComponentOptions) 声明一个 web component

export interface ComponentOptions {
  /**
   * Tag name of the web component. Ideally, the tag name must be globally unique,
   * so it's recommended to choose a unique prefix for all your components within the same collection.
   *
   * In addition, tag name must contain a '-'
   */
  tag: string

  /**
   * If `true`, the component will use scoped stylesheets. Similar to shadow-dom,
   * but without native isolation. Defaults to `false`.
   */
  scoped?: boolean

  /**
   * If `true`, the component will use native shadow-dom encapsulation, it will fallback to `scoped` if the browser
   * does not support shadow-dom natively. Defaults to `false`.
   *
   * If an object literal containing `delegatesFocus` is provided, the component will use native shadow-dom
   * encapsulation. When `delegatesFocus` is set to `true`, the component will have `delegatesFocus: true` added to its
   * shadow DOM. When `delegatesFocus` is `true` and a non-focusable part of the component is clicked:
   * - the first focusable part of the component is given focus
   * - the component receives any available `focus` styling
   * Setting `delegatesFocus` to `false` will not add the `delegatesFocus` property to the shadow DOM and therefore
   * will have the focusing behavior described for `shadow: true`.
   */
  shadow?: boolean | { delegatesFocus: boolean }

  /**
   * Relative URL to some external stylesheet file. It should be a `.css` file unless some
   * external plugin is installed like `@stencil/sass`.
   */
  styleUrl?: string

  /**
   * Similar as `styleUrl` but allows one to specify different stylesheets for different modes.
   */
  styleUrls?: string[] | d.ModeStyles

  /**
   * String that contains inlined CSS instead of using an external stylesheet.
   * The performance characteristics of this feature are the same as using an external stylesheet.
   *
   * Notice, you can't use sass, or less, only `css` is allowed using `styles`, use `styleUrl` if you need more advanced features.
   */
  styles?: string

  /**
   * Array of relative links to folders of assets required by the component.
   */
  assetsDirs?: string[]

  /**
   * @deprecated Use `assetsDirs` instead
   */
  assetsDir?: string
}

@Prop(options: PropOptions) 声明暴露的 property/attribute

export interface PropOptions {
  /**
   * The name of the associated DOM attribute.
   * Stencil uses different heuristics to determine the default name of the attribute,
   * but using this property, you can override the default behaviour.
   */
  attribute?: string | null
  /**
   * A Prop is _by default_ immutable from inside the component logic.
   * Once a value is set by a user, the component cannot update it internally.
   * However, it's possible to explicitly allow a Prop to be mutated from inside the component,
   * by setting this `mutable` option to `true`.
   */
  mutable?: boolean
  /**
   * In some cases it may be useful to keep a Prop in sync with an attribute.
   * In this case you can set the `reflect` option to `true`, since it defaults to `false`:
   */
  reflect?: boolean
}

@State() 生命组件内部状态
@Watch(propName: string) 监听器
@Element() 声明 host element 的引用
@Method() 声明暴露的方法

@Event(opts?: EventOptions) 声明事件发射器

export interface EventOptions {
  /**
   * A string custom event name to override the default.
   */
  eventName?: string
  /**
   * A Boolean indicating whether the event bubbles up through the DOM or not.
   */
  bubbles?: boolean
  /**
   * A Boolean indicating whether the event is cancelable.
   */
  cancelable?: boolean
  /**
   * A Boolean value indicating whether or not the event can bubble across the boundary between the shadow DOM and the regular DOM.
   */
  composed?: boolean
}

@Listen(eventName: string, opts?: ListenOptions) listens for DOM events 监听 DOM 事件

export interface ListenOptions {
  /**
   * Handlers can also be registered for an event other than the host itself.
   * The `target` option can be used to change where the event listener is attached,
   * this is useful for listening to application-wide events.
   */
  target?: ListenTargetOptions
  /**
   * Event listener attached with `@Listen` does not "capture" by default,
   * When a event listener is set to "capture", means the event will be dispatched
   * during the "capture phase". Please see
   * https://www.quirksmode.org/js/events_order.html for further information.
   */
  capture?: boolean
  /**
   * By default, Stencil uses several heuristics to determine if
   * it must attach a `passive` event listener or not.
   *
   * Using the `passive` option can be used to change the default behaviour.
   * Please see https://developers.google.com/web/updates/2016/06/passive-event-listeners for further information.
   */
  passive?: boolean
}

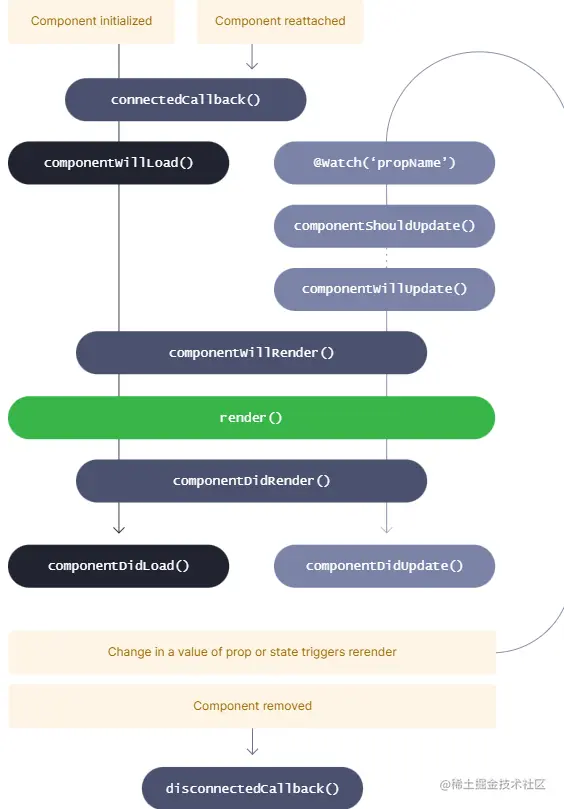

生命周期

connectedCallback()
disconnectedCallback()
componentWillLoad()
componentDidLoad()
componentShouldUpdate(newValue, oldValue, propName): boolean
componentWillRender()
componentDidRender()
componentWillUpdate()
componentDidUpdate()
render()

Stencil 示例代码

目录结构

stencil-library 代码

生成初始化项目

lerna init
mkdir packages
cd packages/
npm init stencil components stencil-library
cd stencil-library
# Install dependencies
npm install

应用打包

stencil.config.ts

import { Config } from '@stencil/core'
import { vueOutputTarget } from '@stencil/vue-output-target'
import { reactOutputTarget } from '@stencil/react-output-target'

export const config: Config = {
  namespace: 'stencil-library',
  outputTargets: [
    reactOutputTarget({
      componentCorePackage: 'stencil-library',
      proxiesFile: '../react-app/src/components.ts',
      includeDefineCustomElements: true,
    }),
    vueOutputTarget({
      componentCorePackage: 'stencil-library', // i.e.: stencil-library
      proxiesFile: '../vue-app/src/components.ts',
    }),
    {
      type: 'dist',
      esmLoaderPath: '../loader',
    },
    {
      type: 'dist-custom-elements',
    },
    {
      type: 'docs-readme',
    },
    {
      type: 'www',
      serviceWorker: null, // disable service workers
    },
  ],
}

vue 项目引用

初始化项目

# From your top-most-directory/
lerna create vue-app
# or if you are using other monorepo tools, create a new Vue library
# Follow the prompts and confirm
cd packages/vue-app
# Install Vue dependency
npm install vue@3 --save-dev
# or if you are using yarn
yarn add vue@3 --dev
# Add the stencil-library dependency
lerna add stencil-library

引用

<script setup lang="ts">
import { MyComponent } from './components'
</script>

<template>
  <div>
    <MyComponent first="first" middle="middle" last="last"></MyComponent>
  </div>
</template>

react 项目引用

初始化项目

# From your top-most-directory/
lerna create react-app
# or if you are using other monorepo tools, create a new Vue library
# Follow the prompts and confirm
cd packages/react-app
# Install Vue dependency
npx create-react-app

引用

import { MyComponent } from './components'

function App() {
  return (
    <div className="App">
      <MyComponent></MyComponent>
    </div>
  )
}

export default App

jquery 项目引用

初始化项目

lerna create js-app
cd packages/js-app
npm i -D vite

index.html

<my-component id="my-component"></my-component>
<script type="module">
  import { defineCustomElements } from 'stencil-library/loader'
  defineCustomElements()
</script>

基于 Web Component 跨框架组件解决方案

基于 Web Component 跨框架组件解决方案

Web Component 基本介绍

Web Component Api

CustomElementRegistry.define()

Element.attachShadow()

生命周期

更多

Web Component 示例代码

示例一

示例二

更多示例

Stencil 基本介绍

Stencil Api

修饰器

生命周期

Stencil 示例代码

目录结构

stencil-library 代码

应用打包

vue 项目引用

react 项目引用

jquery 项目引用
