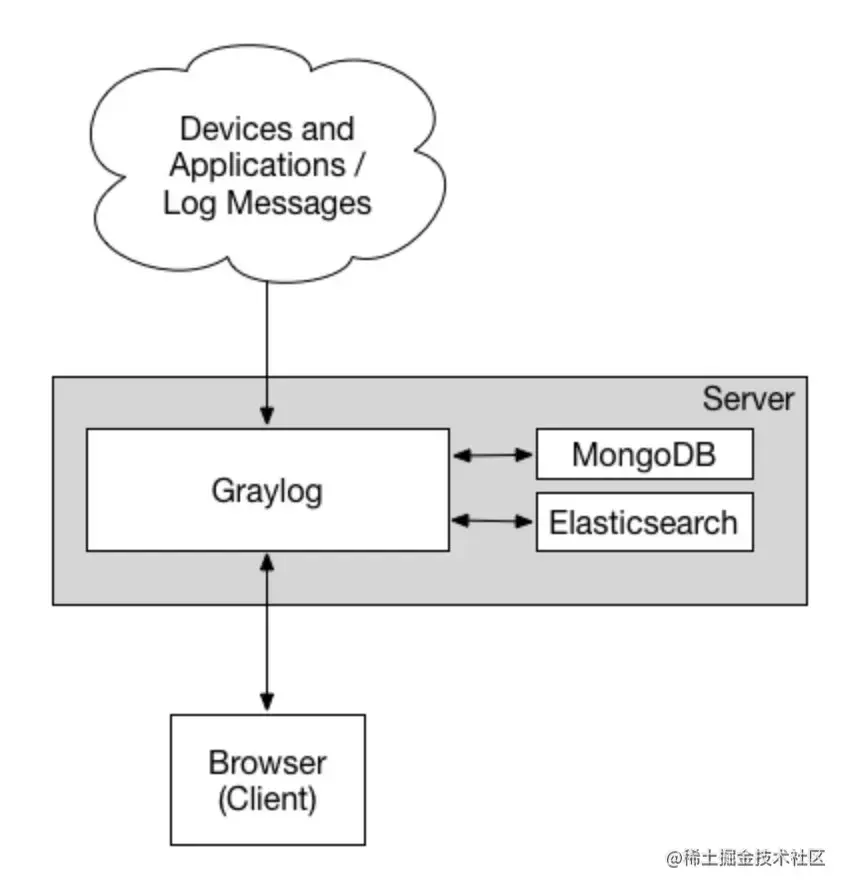

基础版安装

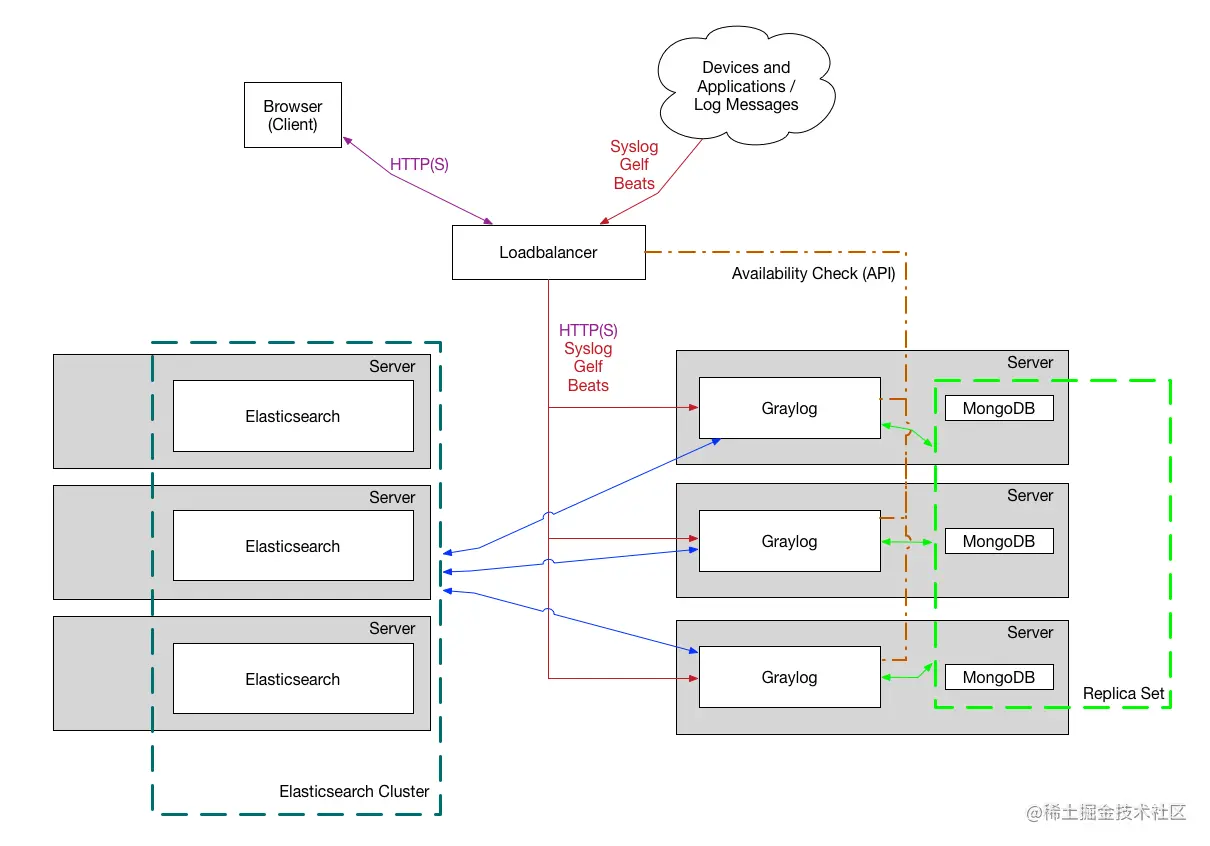

高可用版安装
1、安装graylog
version: '3'
services:
# MongoDB: https://hub.docker.com/_/mongo/
mongo:
image: mongo:4.2
volumes:
- /data/graylog/monogod/mongo_data:/data/db
- /etc/localtime:/etc/localtime:ro
- /usr/share/zoneinfo/Asia/Shanghai:/etc/timezone:ro
networks:
- graylog
# Elasticsearch: https://www.elastic.co/guide/en/elasticsearch/reference/7.10/docker.html
elasticsearch:
image: docker.elastic.co/elasticsearch/elasticsearch-oss:7.10.2
volumes:
- /data/graylog/es/es_data:/usr/share/elasticsearch/data
environment:
- http.host=0.0.0.0
- transport.host=localhost
- network.host=0.0.0.0
- "ES_JAVA_OPTS=-Dlog4j2.formatMsgNoLookups=true -Xms512m -Xmx512m"
ulimits:
memlock:
soft: -1
hard: -1
deploy:
resources:
limits:
memory: 1g
networks:
- graylog
# Graylog: https://hub.docker.com/r/graylog/graylog/
graylog:
image: graylog/graylog:4.2
environment:
# CHANGE ME (must be at least 16 characters)!
- GRAYLOG_PASSWORD_SECRET=somepasswordpepper
# Password: admin
- GRAYLOG_ROOT_PASSWORD_SHA2=8c6976e5b5410415bde908bd4dee15dfb167a9c873fc4bb8a81f6f2ab448a918
- GRAYLOG_HTTP_EXTERNAL_URI=http://127.0.0.1:9000/
- TZ=Asia/Shanghai
entrypoint: /usr/bin/tini -- wait-for-it elasticsearch:9200 -- /docker-entrypoint.sh
networks:
- graylog
restart: always
depends_on:
- mongo
- elasticsearch
ports:
# Graylog web interface and REST API
- 9000:9000
# Syslog TCP
- 1514:1514
# Syslog UDP
- 1514:1514/udp
# GELF TCP
- 12201:12201
# GELF UDP
- 12201:12201/udp
networks:
graylog:
driver: bridge
docker-compose up -d
访问ip:9000 默认用户名密码 admin/admin
2、springboot 接入graylog
<dependency>
<groupId>de.siegmar</groupId>
<artifactId>logback-gelf</artifactId>
<version>3.0.0</version>
</dependency>
<appender name="GELF" class="de.siegmar.logbackgelf.GelfUdpAppender">
<!-- Graylog服务的地址 -->
<graylogHost>ip</graylogHost>
<!-- UDP Input端口 -->
<graylogPort>12201</graylogPort>
<!-- 最大GELF数据块大小（单位：字节），508为建议最小值，最大值为65467 -->
<maxChunkSize>508</maxChunkSize>
<!-- 是否使用压缩 -->
<useCompression>true</useCompression>
<encoder class="de.siegmar.logbackgelf.GelfEncoder">
<!-- 是否发送原生的日志信息 -->
<includeRawMessage>false</includeRawMessage>
<includeMarker>true</includeMarker>
<includeMdcData>true</includeMdcData>
<includeCallerData>false</includeCallerData>
<includeRootCauseData>false</includeRootCauseData>
<!-- 是否发送日志级别的名称，否则默认以数字代表日志级别 -->
<includeLevelName>true</includeLevelName>
<shortPatternLayout class="ch.qos.logback.classic.PatternLayout">
<pattern>%m%nopex</pattern>
</shortPatternLayout>
<fullPatternLayout class="ch.qos.logback.classic.PatternLayout">
<pattern>%d - [%thread] %-5level %logger{35} - %msg%n</pattern>
</fullPatternLayout>
<!-- 配置应用名称（服务名称），通过staticField标签可以自定义一些固定的日志字段 -->
<staticField>app_name:austin</staticField>
</encoder>
</appender>
修改graylog服务地址
3、配置graylog

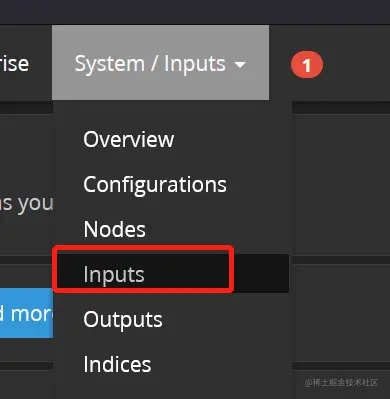

3.1配置input

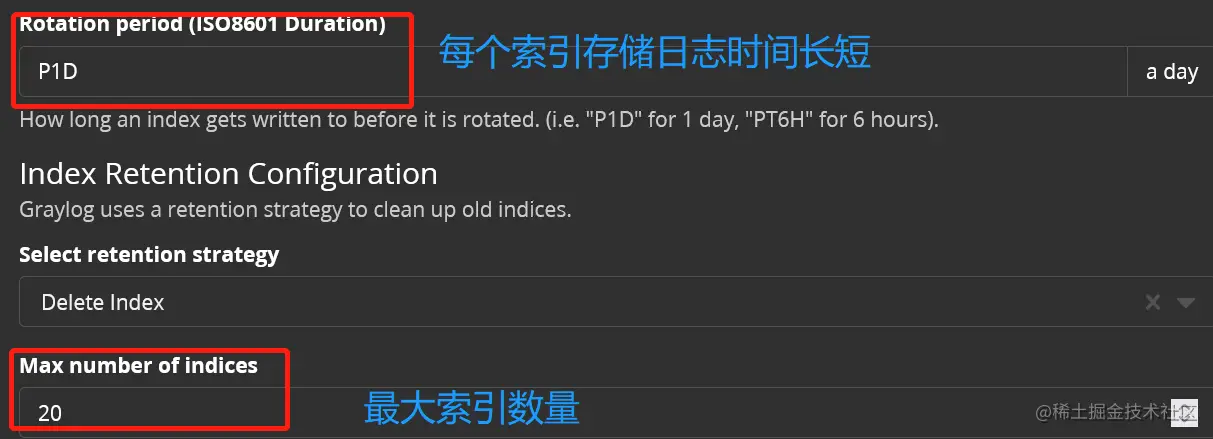

3.2配置索引

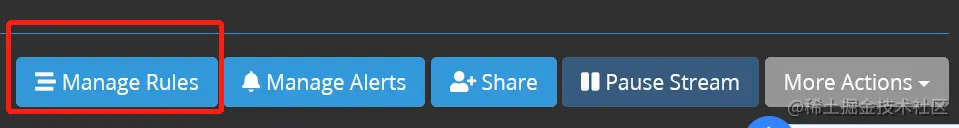

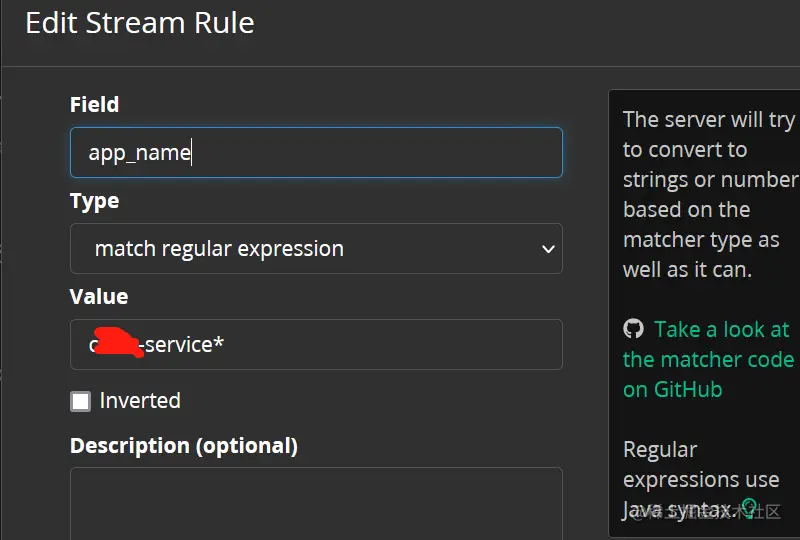

3.3 创建stream

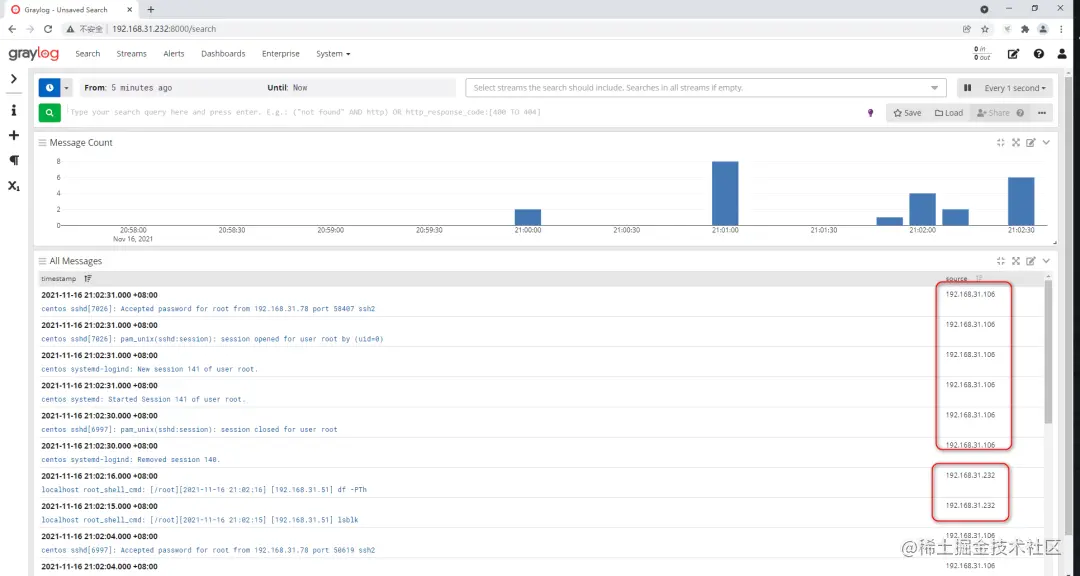

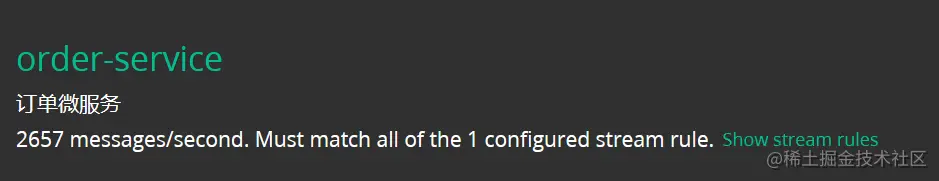

成果
4、常见问题

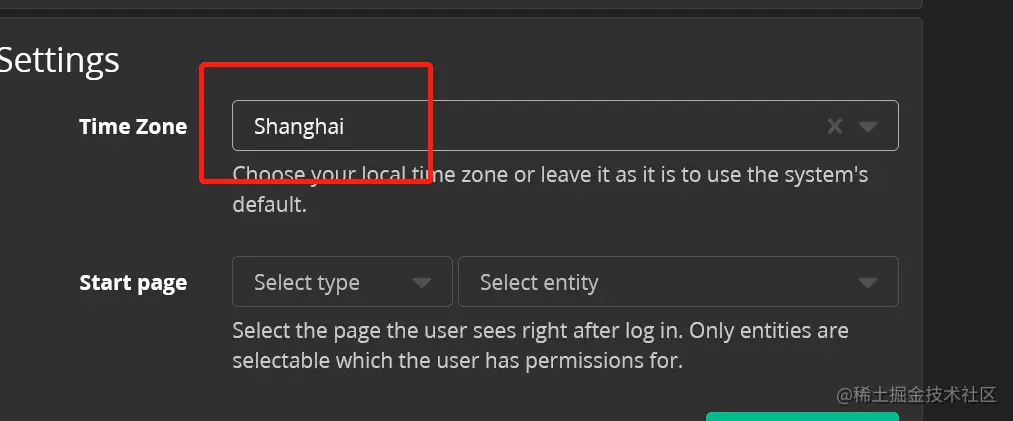

4.1 时区不正确
> 默认admin时区不能修改 需新建其它用户
4.2 IP地址为loaclhost

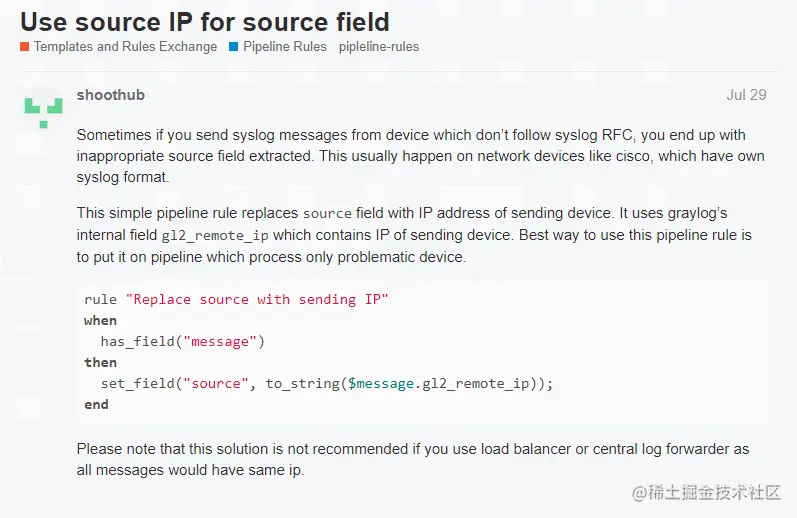

https://community.graylog.org/t/use-source-ip-for-source-field/20684

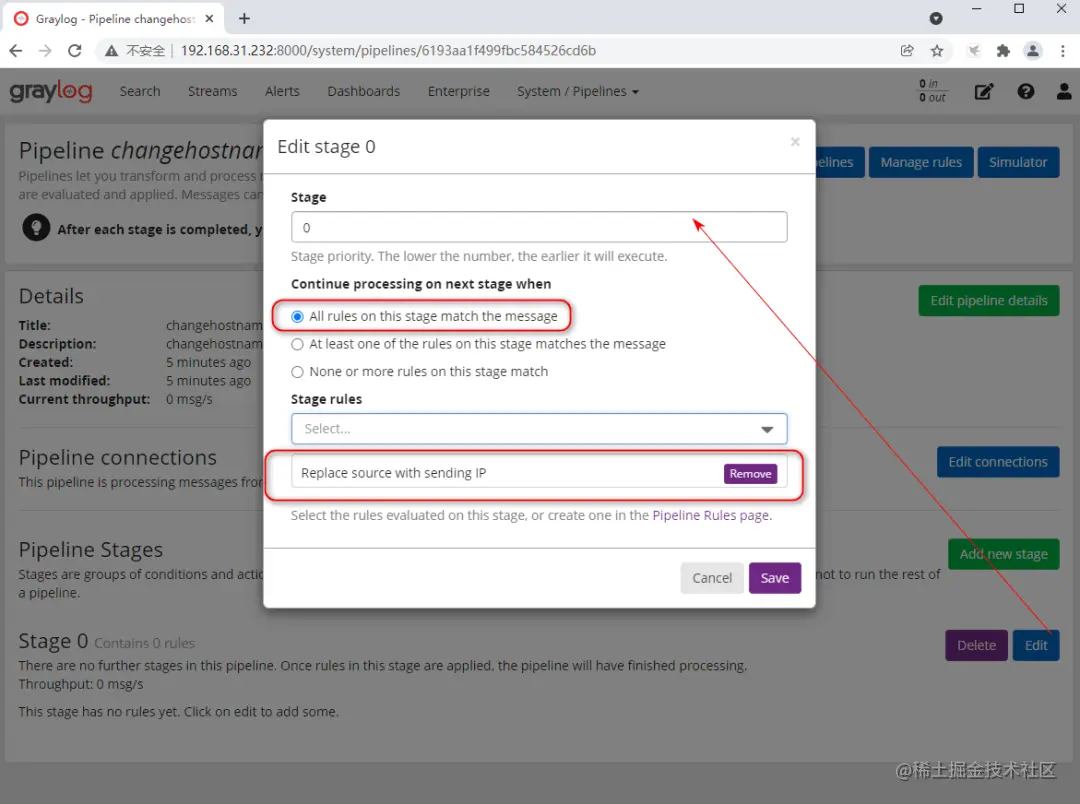

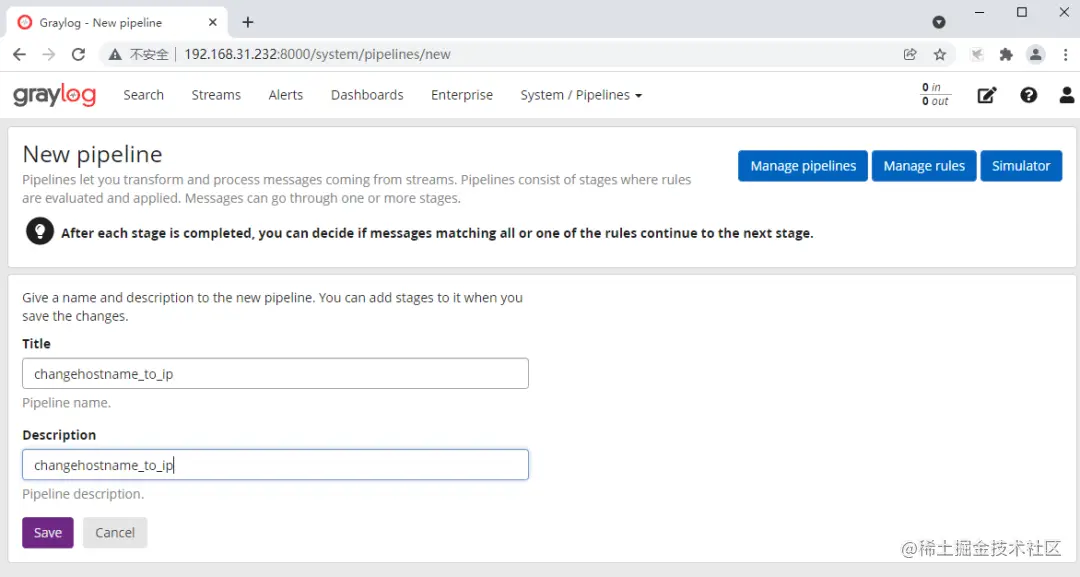

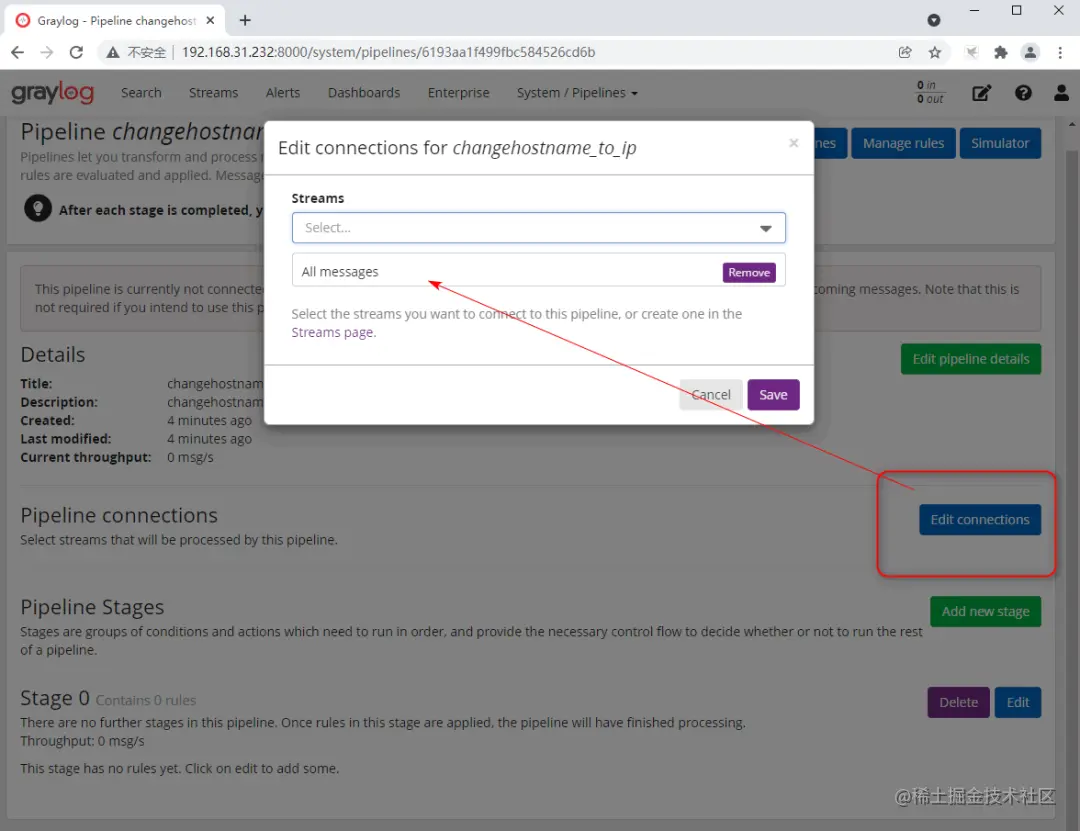

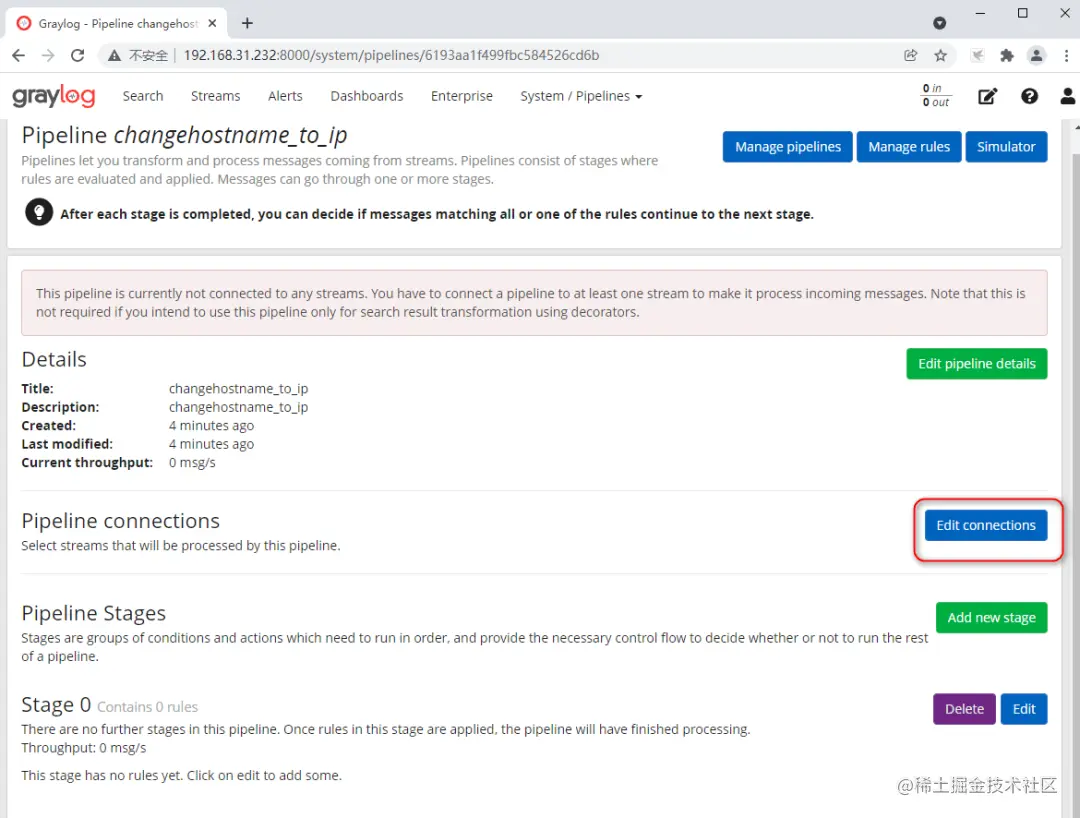

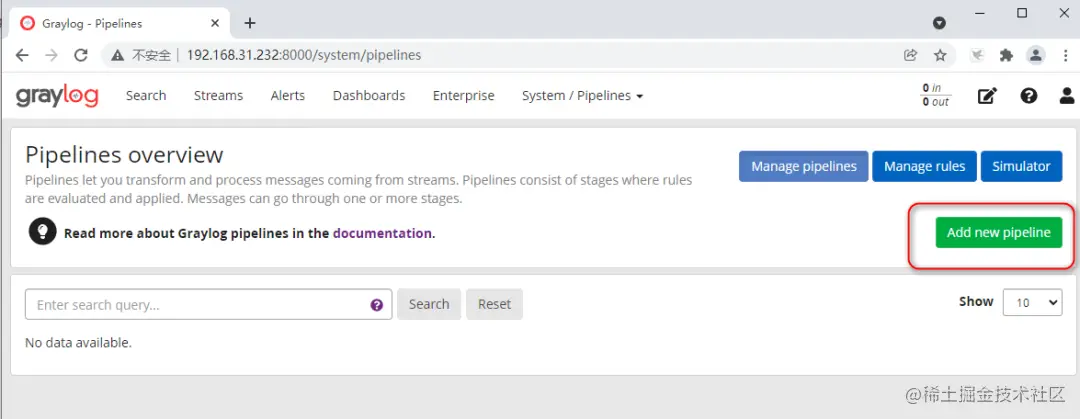

4.2.1 添加一个pipeline
pipeline名字为changehostname_to_ip

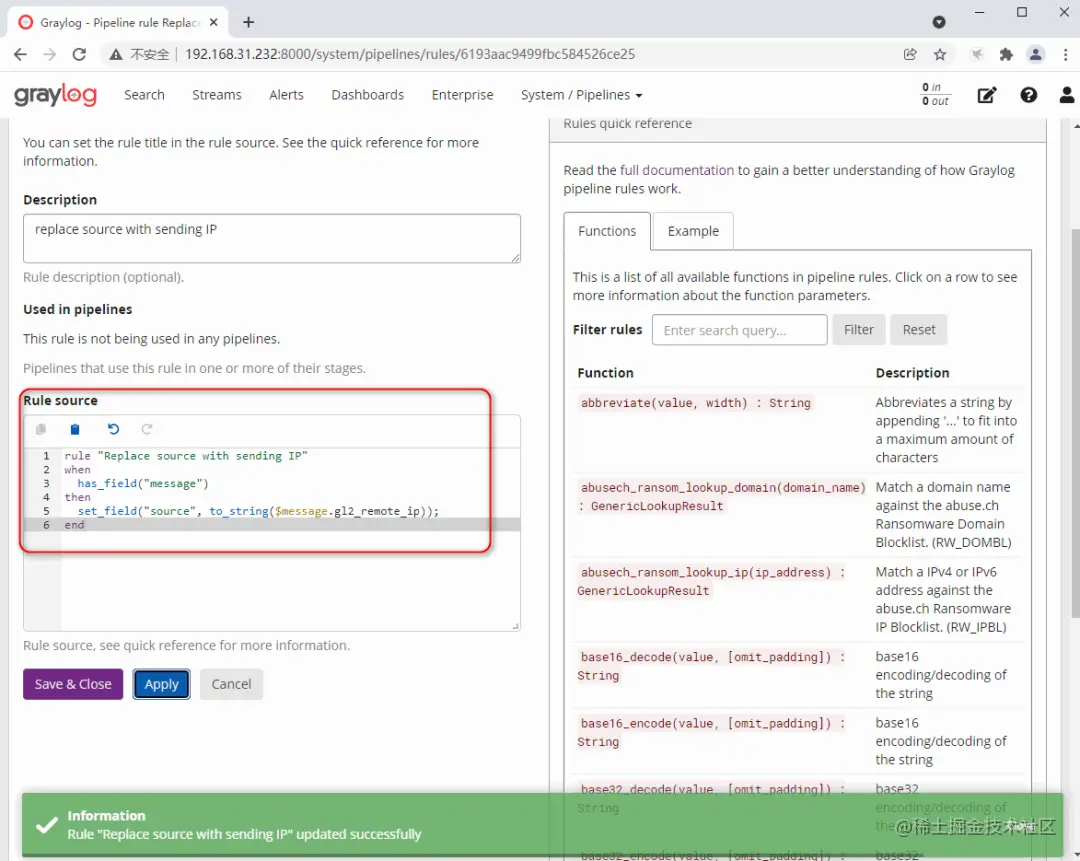

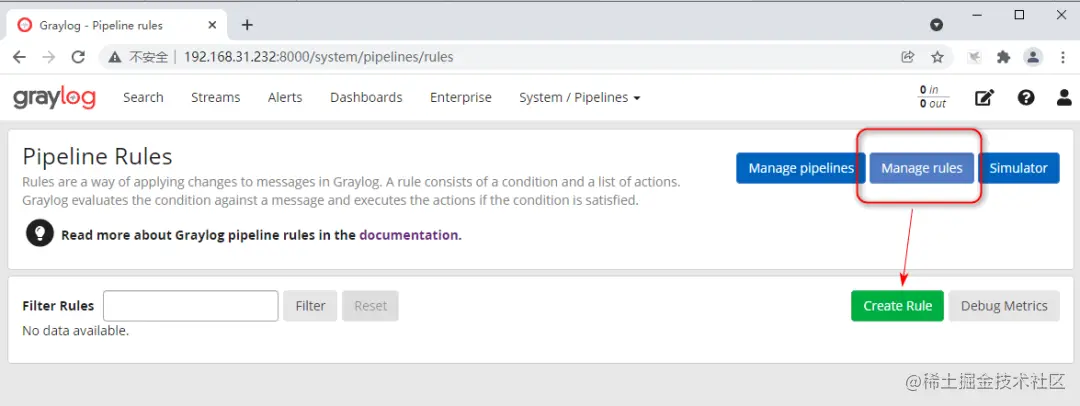

4.2.2、创建Pipeline Rules
描述为
replace source with sending IP
Rule source 规则语法如下
rule "Replace source with sending IP"
when
has_field("message")
then
set_field("source", to_string($message.gl2_remote_ip));
end
