1. Rancher 安装 k8s
1.1 安装
yum install -y yum-utils
yum-config-manager --add-repo https://download.docker.com/linux/centos/docker-ce.repo
yum install docker-ce-18.09.1 docker-ce-cli-18.09.1 containerd.io
make /etc/docker/ ; cd /etc/docker
cat >> daemon.json < EOF
{
"registry-mirrors": [
"https://hub-mirror.c.163.com"
]
}
EOF
systemctl daemon-reload
systemctl restart docker
mkdir -p /opt/rancher
docker run -d --privileged --restart=unless-stopped -p 8080:80 -p 8443:443 -v /opt/rancher:/var/lib/rancher/ rancher/rancher:stable
1.2 访问
- 首次安装比较慢
https://172.17.38.31:8443/
1.3 安装docker-compose
curl -L https://github.com/docker/compose/releases/download/1.26.2/docker-compose-`uname -s`-`uname -m` -o /usr/local/bin/docker-compose
1.4 安装 registry
mkdir -p /opt/registry ;cd /opt/registry
mkdir -p /opt/registry/data
cat >> config.yml < EOF
version: 0.1
log:
fields:
service: registry
storage:
delete:
enabled: true
cache:
blobdescriptor: inmemory
filesystem:
rootdirectory: /var/lib/registry
http:
addr: :5000
headers:
X-Content-Type-Options: [nosniff]
health:
storagedriver:
enabled: true
interval: 10s
threshold: 3
EOF
docker run -d --name registry \
-v /opt/registry/config.yml:/etc/docker/registry/config.yml \
-v /opt/registry/data:/var/lib/registry \
-p 5000:5000 registry
2.Kubeadm 安装 k8s
2.1 组件介绍
Kubernetes主要由以下几个核心组件组成：
etcd保存了整个集群的状态；apiserver提供了资源操作的唯一入口，并提供认证、授权、访问控制、API注册和发现等机制；controller manager负责维护集群的状态，比如故障检测、自动扩展、滚动更新等；scheduler负责资源的调度，按照预定的调度策略将Pod调度到相应的机器上；kubelet负责维护容器的生命周期，同时也负责Volume（CVI）和网络（CNI）的管理；container runtime负责镜像管理以及Pod和容器的真正运行（CRI）；kube-proxy负责为Service提供cluster内部的服务发现和负载均衡；
2.2 kubeadm 安装
- yum repo
cat <<EOF > /etc/yum.repos.d/kubernetes.repo
[kubernetes]
name=Kubernetes
baseurl=https://mirrors.aliyun.com/kubernetes/yum/repos/kubernetes-el7-x86_64/
enabled=1
gpgcheck=1
repo_gpgcheck=1
gpgkey=https://mirrors.aliyun.com/kubernetes/yum/doc/yum-key.gpg
https://mirrors.aliyun.com/kubernetes/yum/doc/rpm-package-key.gpg
EOF
yum makecache
- 安装二进制 （所有节点都有）
yum -y install kubelet-1.20.2 kubeadm-1.20.2 kubectl-1.20.2
rpm -aq kubelet kubectl kubeadm // 检查
2.2.1 安装k8s
-
kubectl 自动补全，没有这个东西真的敲到手抽筋yum install -y bash-completion echo '/usr/share/bash-completion/bash_completion' >> ~/.bashrc echo 'source <(kubectl completion bash)' >> ~/.bashrc source /usr/share/bash-completion/bash_completion kubectl completion bash >/etc/bash_completion.d/kubectl source ~/.bashrc -
所有节点都有
// 添加启动项 systemctl enable docker.service systemctl enable kubelet systemctl restart kubelet -
修正cgroup driver，修改成与kubelet 一致的 systemd。systemd 与 cgroupfs 最大的区别在于cgroupfs 是可以直接把 pid 写入对应的一个 cgroup 文件；当systemd 并不允许直接修改cgroup文件
vi /etc/docker/daemon.json { "registry-mirrors": [ "https://hub-mirror.c.163.com" ], "exec-opts": ["native.cgroupdriver=systemd"] } systemctl daemon-reload systemctl restart docker docker info |grep Cgroup // 应该能看到systemd -
关闭swap
swapoff -a vi /etc/fstab // 注释调swap #/dev/mapper/centos-swap swap swap defaults 0 0 -
网络配置
echo 1 > /proc/sys/net/ipv4/ip_forward modprobe br_netfilter echo 1 > /proc/sys/net/bridge/bridge-nf-call-iptables -
可选操作一些网络配置的清理重置iptables -P INPUT ACCEPT # 先接受所有的访问 # 清空4张表 iptables -F -t nat iptables -F -t filter iptables -F -t mangle iptables -F -t raw # 关闭cni0 ifconfig cni0 down ifconfig flannel.1 down # 删除网络设备 ip link delete cni0 ip link delete flannel.1 -
初始化集群
# 拉取集群 kubeadm config images pull # 初始化集群 kubeadm init --image-repository registry.cn-hangzhou.aliyuncs.com/google_containers --kubernetes-version=1.20.2 --pod-network-cidr=10.244.0.0/16 --service-cidr=10.96.0.0/12 # 配置kube config mkdir -p $HOME/.kube sudo cp -i /etc/kubernetes/admin.conf $HOME/.kube/config sudo chown $(id -u):$(id -g) $HOME/.kube/config # 打印加入集群的命令 kubeadm token create --print-join-command -

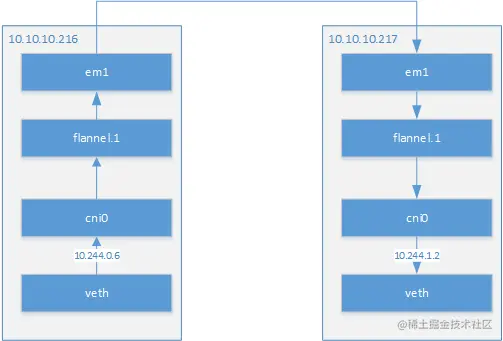

安装flannel 及 加入node节点
需要确保/etc/cni下没有别的cni文件，有则需要删除已经存在的文件# 下载fannel yaml文件 cd /etc/kubernetes/manifests/ wget https://raw.githubusercontent.com/coreos/flannel/master/Documentation/kube-flannel.yml # 所有节点 ，设置系统参数（所有节点都有） sysctl net.bridge.bridge-nf-call-iptables=1 # 修改cird，网段设置 vim kube-controller-manager.yaml - kube-controller-manager ... - --allocate-node-cidrs=true - --cluster-cidr=10.244.0.0/16 # 重启kubelet systemctl restart kubelet # 安装fannel kubectl apply -f kube-flannel.yml # 主节点上去掉 master 这个污点，使其可以被pod 调度到该上面 kubectl taint nodes --all node-role.kubernetes.io/master- # 到子节点上执行 kubeadm join 172.17.38.31:6443 --token bw7b6m.n8vovrudr9wezsp4 --discovery-token-ca-cert-hash sha256:83cee948268d5909f77c7478abfc647623d229a09be36003ab0496a44c0172b5 # 节点是否ready kubectl get nodes -
处理组件状态
# 获取组件状态 kubectl get cs NAME STATUS MESSAGE ERROR controller-manager Unhealthy Get http://127.0.0.1:10252/healthz: dial tcp 127.0.0.1:10252: connect: connection refused scheduler Unhealthy Get http://127.0.0.1:10251/healthz: dial tcp 127.0.0.1:10251: connect: connection refused etcd-0 Healthy {"health":"true"}- 去掉 controller-manager 和 scheduler 配置中的
--port=0
- 去掉 controller-manager 和 scheduler 配置中的
2.2.2 安装 Dashboard
-
安装dashboard
mkdir -p /opt/kubeadm/dashboard cd /opt/kubeadm/dashboard wget https://raw.githubusercontent.com/kubernetes/dashboard/v2.0.4/aio/deploy/recommended.yaml -
svc.yml
kind: Service apiVersion: v1 metadata: labels: k8s-app: kubernetes-dashboard name: kubernetes-dashboard namespace: kubernetes-dashboard spec: ports: - port: 443 targetPort: 8443 nodePort: 30043 selector: k8s-app: kubernetes-dashboard type: NodePort -
account.yml
apiVersion: v1 kind: ServiceAccount metadata: name: admin-user namespace: kubernetes-dashboard --- apiVersion: rbac.authorization.k8s.io/v1 kind: ClusterRoleBinding metadata: name: admin-user roleRef: apiGroup: rbac.authorization.k8s.io kind: ClusterRole name: cluster-admin subjects: - kind: ServiceAccount name: admin-user namespace: kubernetes-dashboard -
应用 YML
cd /opt/kubeadm/dashboard kubectl apply -f . -
访问 Dashboard
-
获取admin-user 的token，用于登陆Dashboard
kubectl -n kubernetes-dashboard describe secret $(kubectl -n kubernetes-dashboard get secret | grep admin-user | awk '{print $1}')
2.2.3 驱逐节点
kubectl drain shadowyd-k8s-01 --delete-local-data --force --ignore-daemonsets
kubectl delete nodes shadowyd-k8s-01
3. K8s 概念与操作
3.1 Account
3.1.1 UserAccount
-
通过RBAC规则为用户进行角色绑定，权限绑定角色；
-
先创建用户账号需要的证书文件；
mkdir -p /opt/kubeadm/users/ua/shadow_yd cd !$ # 生成pk openssl genrsa -out client.key 2048 # 生成申请 openssl req -new -key client.key -out client.csr -subj "/CN=shadow_yd" # 使用CA为申请签发证书， 10年有效期 openssl x509 -req -in client.csr -CA /etc/kubernetes/pki/ca.crt -CAkey /etc/kubernetes/pki/ca.key -CAcreateserial -out client.crt -days 3650 # 查看证书的信息 openssl x509 -in client.crt -text # 仅查看证书的归属CN openssl x509 -noout -subject -in client.crt # 打印开始和过期时间 openssl x509 -noout -dates -in apiserver.crt -
为当前集群配置文件增加用户，如需要为别的kubeconfig 增加用户
--kubeconfig=;--embed-certs=true是将证书嵌套在文件内，默认只会配置crt和key路径
# 将用户加入到默认配置 ~/.kube/config kubectl config set-credentials shadow_yd --client-certificate=/opt/kubeadm/user_account/shadow_yd/client.crt --client-key=/opt/kubeadm/user_account/shadow_yd/client.key --embed-certs=true- 设置context，即为用户绑定对应的集群，甚至指定集群namespace
--namespace=
kubectl config set-context shadow_yd@kubernetes --cluster=kubernetes --user=shadow_yd- 切换 contenxt
kubectl config view # 由于用户并没有绑定任何权限所以无法操作集群； kubectl config use-context shadow_yd@kubernetes
3.1.2 RBAC
-
这里的角色分为两种 Role 和 ClusterRole
- Role 是作用在 namespace 中 （像在一个租户内）；
- ClusterRole 是作用在整个集群，类似全局；
-
角色与用户进行绑定依赖于 RoleBinding 和 ClusterRoleBinding
- RoleBinding 和可以绑定 Role 和 ClusterRole, 但都仅作用于 namespace；
- ClusterRoleBinding 仅可以绑定 ClusterRole
Role & RoleBinding
-
延续上面创建的
shadow_yd用户及 contextcd /opt/kubeadm/user_account/shadow_yd -
role_pods.yml ; 创建具有在default namespace 下查询pods
kind: Role apiVersion: rbac.authorization.k8s.io/v1 metadata: namespace: default name: r-shadowyd-pods rules: - verbs: ["get", "list", "watch"] apiGroups: - "*" resources: - "pods" -
rolebingding_pods.yml 绑定角色与用户
kind: RoleBinding apiVersion: rbac.authorization.k8s.io/v1 metadata: creationTimestamp: null name: rb-shadowyd-pods-r namespace: default roleRef: apiGroup: rbac.authorization.k8s.io kind: Role name: r-shadowyd-pods subjects: - kind: User name: shadow_yd apiGroup: rbac.authorization.k8s.io -
切换context 进行验证
kubectl apply -f role_pods.yml rolebingding_pods.yml kubectl config use-context shadow_yd@kubernetes > Switched to context "shadow_yd@kubernetes". # 能正常显示default下的pods kubectl get pods
ClusterRole & ClusterRoleBinding
-
先删除刚刚bind 的权限
kubectl delete -f rolebingding_pods.yml -
clusterrole_pods.yml , 这个是全局的角色
kind: ClusterRole apiVersion: rbac.authorization.k8s.io/v1 metadata: name: cr-shadowyd-pods rules: - verbs: ["get", "list", "watch"] apiGroups: ["*"] resources: - "pods" -
clusterrolebingding_pods.yml，绑定用户和角色
apiVersion: rbac.authorization.k8s.io/v1 kind: ClusterRoleBinding metadata: name: crb-shadowyd-pods roleRef: apiGroup: rbac.authorization.k8s.io kind: ClusterRole name: cr-shadowyd-pods subjects: - apiGroup: rbac.authorization.k8s.io kind: User name: shadow_yd -
切换context 进行验证
kubectl apply -f clusterrole_pods.yml clusterrolebingding_pods.yml kubectl config use-context shadow_yd@kubernetes > Switched to context "shadow_yd@kubernetes". # 能正常显示所有namespace下的pods kubectl get pods -A -
下面再测试一下
RoleBinding绑定ClusterRole-
删除
crb-shadowyd-podskubectl delete -f clusterrolebingding_pods.yml -
rolebingding_bind_clusterrole.yml
apiVersion: rbac.authorization.k8s.io/v1 kind: RoleBinding metadata: name: rb-shadowyd-pods-cr namespace: default roleRef: apiGroup: rbac.authorization.k8s.io kind: ClusterRole name: cr-shadowyd-pods subjects: - apiGroup: rbac.authorization.k8s.io kind: User name: shadow_yd -
切换context 进行验证
kubectl apply -f rolebingding_bind_clusterrole.yml kubectl config use-context shadow_yd@kubernetes > Switched to context "shadow_yd@kubernetes". # 能正常显示default下的pods kubectl get pods
-
3.1.3 API Token 访问集群
-
创建一个16位的token
head -c 16 /dev/urandom | od -An -t x | tr -d ' ' > 34f957ca7aa7c498f7c92650e7d1fa19 -
设置user_account 可以使用 token 访问
kubectl config set-credentials shadow_yd --toekn=34f957ca7aa7c498f7c92650e7d1fa19 # 编辑auth_token 文件 vim /etc/kubernetes/pki/token_auth 34f957ca7aa7c498f7c92650e7d1fa19,shadow_yd,1001 # 编辑配置文件，编辑完成后，等待重启apiserver vim kube-apiserver.yml command: ... - --token-auth-file=/etc/kubernetes/pki/token_auth -
进行访问测试
curl -H "Authorization: Bearer 34f957ca7aa7c498f7c92650e7d1fa19" https://172.17.38.31:6443/api/v1/namespaces/default/pods -k
3.1.4 ServiceAccount
-
其实ServiceAccount 和 UserAccount 是很类似的，区别在于ServiceAccount被指定后可以在Pod内可以查看到其使用的token。
/var/run/secrets/kubernetes.io/serviceaccount/token -
创建SA，sa_shadow_yd.yml
apiVersion: v1 kind: ServiceAccount metadata: name: shadow-yd namespace: default -
ClusterRoleBinding绑定之前的ClusterRole
cr-shadowyd-pods, 使其可以访问所有namespace 下的pod；apiVersion: rbac.authorization.k8s.io/v1 kind: ClusterRoleBinding metadata: name: crb-shadow-yd roleRef: apiGroup: rbac.authorization.k8s.io kind: ClusterRole name: cr-shadowyd-pods subjects: - kind: ServiceAccount name: shadow-yd namespace: default -
只是演示RoleBinding也是同样道理这里只做演示；apiVersion: rbac.authorization.k8s.io/v1 kind: RoleBinding metadata: name: rb-shadow-yd roleRef: apiGroup: rbac.authorization.k8s.io kind: Role name: r-shadowyd-pods subjects: - kind: ServiceAccount name: shadow-yd namespace: default -
启动一个pod，进去验证SA的token是否能通过API请求
api-server-
test-pod.yml
apiVersion: apps/v1 kind: Deployment metadata: name: jt-goapi namespace: default spec: selector: matchLabels: app: jt-goapi template: metadata: labels: app: jt-goapi spec: serviceAccountName: shadow-yd containers: - name: jt-nginx image: nginx:1.18-alpine imagePullPolicy: IfNotPresent ports: - containerPort: 80 --- apiVersion: v1 kind: Service metadata: name: jt-goapi-svc spec: selector: app: jt-goapi type: NodePort ports: - port: 8080 targetPort: 80 nodePort: 31000 -
进入 pods
kubectl exec -it jt-goapi-6688bc85b4-bpbfp /bin/sh -
组合一下内置变量，这个是pods启动的时候被注入的
APISERVER="https://$KUBERNETES_SERVICE_HOST:$KUBERNETES_PORT_443_TCP_PORT" TOKEN=`cat /var/run/secrets/kubernetes.io/serviceaccount/token` CA_CERT=/var/run/secrets/kubernetes.io/serviceaccount/ca.crt # 这个path是存放一些密钥等认证信息 ls /var/run/secrets/kubernetes.io/serviceaccount/ > ca.crt namespace token -
访问api-server
# 访问kube-system 空间下的pods curl --header "Authorization: Bearer $TOKEN" --cacert $CA_CERT -s $APISERVER/api/v1/namespaces/kube-system/pods # 访问default空间下的pods curl --header "Authorization: Bearer $TOKEN" --cacert $CA_CERT -s $APISERVER/api/v1/namespaces/defult/pods
-
3.2 Volumes
3.2.1 init容器与共享目录
apiVersion: apps/v1
kind: Deployment
metadata:
name: jt-goapi
spec:
selector:
matchLabels:
app: jt-goapi
template:
metadata:
labels:
app: jt-goapi
spec:
initContainers:
- name: busy-box
image: busybox
volumeMounts:
- mountPath: /data
name: share-dir
command: ["sh", "-c", "echo hello > /data/a.txt"]
containers:
- name: jt-nginx
image: nginx:1.18-alpine
imagePullPolicy: IfNotPresent
ports:
- containerPort: 80
volumeMounts:
- mountPath: /data
name: share-dir
volumes:
- name: share-dir
emptyDir: {}
---
apiVersion: v1
kind: Service
metadata:
name: jt-goapi-svc
spec:
selector:
app: jt-goapi
type: NodePort
ports:
- port: 8080
targetPort: 80
nodePort: 31000
- 执行并检查
kubectl apply -f .
kubectl exec -it <pod-id> cat /data/a.txt
3.2.2 hostPath
- 后面补上
3.3 ConfigMap
3.3.1 创建一个configmap
kind: ConfigMap
apiVersion: v1
metadata:
name: cm-shadow
data:
username: ShadowYD
age: 18
user.info: |
hello world:
This is a file test.
3.3.2 Env, Directory, File
- 创建一个pod，该pod 包含三种形态
apiVersion: apps/v1 kind: Deployment metadata: name: jt-goapi spec: selector: matchLabels: app: jt-goapi template: metadata: labels: app: jt-goapi spec: initContainers: - name: busy-box image: busybox volumeMounts: - mountPath: /data name: share-dir command: ["sh", "-c", "echo hello > /data/a.txt"] containers: - name: jt-nginx image: nginx:1.18-alpine imagePullPolicy: IfNotPresent ports: - containerPort: 80 volumeMounts: - mountPath: /share_data name: share-dir # mount file - 第一种方式 - mountPath: /config_data name: config-data # mount dir, dir 下是所有的 key 文件 - mountPath: /config_all_keys name: all-config-key # mount file - 第二种方式 - mountPath: /config_single_key/user_info name: all-config-key subPath: user.info # Env env: - name: USERNAME valueFrom: configMapKeyRef: name: cm-shadow key: username volumes: - name: share-dir emptyDir: {} - name: config-data configMap: name: cm-shadow items: - key: user.info path: user_info mode: 0644 - name: all-config-key configMap: name: cm-shadow --- apiVersion: v1 kind: Service metadata: name: jt-goapi-svc spec: selector: app: jt-goapi type: NodePort ports: - port: 8080 targetPort: 80 nodePort: 31000
3.3.3 ConfigMap Api 调用
3.3.3.1 集群外调用
-
先启动api代理，无鉴权调用
kubectl proxy --address='0.0.0.0' --accept-hosts='^*$' --port=8009package main import ( "context" "fmt" "k8s.io/apimachinery/pkg/apis/meta/v1" "k8s.io/client-go/kubernetes" "k8s.io/client-go/rest" "log" ) func getClient() *kubernetes.Clientset { config := &rest.Config{ Host: "http://172.17.38.31:8009", } c, err := kubernetes.NewForConfig(config) if err != nil { log.Fatal(err) } return c } func main() { cm, err := getClient().CoreV1().ConfigMaps("default"). Get(context.Background(), "cm-shadow", v1.GetOptions{}) if err != nil { log.Fatal(err) } for k, v := range cm.Data { fmt.Printf("key=%s,value=%s\n", k, v) } }
3.3.3.2 集群内调用
-
先要创建一个sa账户，用回之前的
shadow-yd -
创建一个可以访问configmaps资源的角色，并进行角色绑定
kind: ClusterRole apiVersion: rbac.authorization.k8s.io/v1 metadata: name: cr-shadowyd-configmaps rules: - verbs: ["get", "list", "watch"] apiGroups: ["*"] resources: - "configmaps"apiVersion: rbac.authorization.k8s.io/v1 kind: ClusterRoleBinding metadata: name: crb-shadow-configmaps roleRef: apiGroup: rbac.authorization.k8s.io kind: ClusterRole name: cr-shadowyd-configmaps subjects: - kind: ServiceAccount name: shadow-yd namespace: default -
交叉编译一下以下代码，并上传到pod 中
nodeName指定的节点与目录package main import ( "context" "fmt" "io/ioutil" "k8s.io/apimachinery/pkg/apis/meta/v1" "k8s.io/client-go/kubernetes" "k8s.io/client-go/rest" "log" "os" ) var api_server string var token string func init() { api_server=fmt.Sprintf("https://%s:%s", os.Getenv("KUBERNETES_SERVICE_HOST"),os.Getenv("KUBERNETES_PORT_443_TCP_PORT")) f,err:=os.Open("/var/run/secrets/kubernetes.io/serviceaccount/token") if err!=nil{ log.Fatal(err) } b,_:=ioutil.ReadAll(f) token=string(b) } func getInnerClient() *kubernetes.Clientset{ config:=&rest.Config{ //Host:"http://124.70.204.12:8009", Host:api_server, BearerToken:token, TLSClientConfig:rest.TLSClientConfig{CAFile:"/var/run/secrets/kubernetes.io/serviceaccount/ca.crt"}, } c,err:=kubernetes.NewForConfig(config) if err!=nil{ log.Fatal(err) } return c } func main() { cm,err:=getInnerClient().CoreV1().ConfigMaps("default"). Get(context.Background(),"cm-shadow",v1.GetOptions{}) if err!=nil{ log.Fatal(err) } for k,v:=range cm.Data{ fmt.Printf("key=%s,value=%s\n",k,v) } select {} }CGO_ENABLED=0 GOOS=linux GOARCH=amd64 go build -o app inner_call.go -
配置一个deploy 去启动👆的程序；下面的配置是用之前的配置改的，主要加入hostPath直接启动程序。
apiVersion: apps/v1 kind: Deployment metadata: name: jt-goapi spec: selector: matchLabels: app: jt-goapi template: metadata: labels: app: jt-goapi spec: nodeName: shadowyd-k8s-01 serviceAccountName: shadow-yd initContainers: - name: busy-box image: busybox volumeMounts: - mountPath: /data name: share-dir command: ["sh", "-c", "echo hello > /data/a.txt"] containers: - name: jt-nginx image: alpine imagePullPolicy: IfNotPresent command: ["/workdir/app"] ports: - containerPort: 80 volumeMounts: - mountPath: /share_data name: share-dir # mount file - 第一种方式 - mountPath: /config_data name: config-data # mount dir, dir 下是所有的 key 文件 - mountPath: /config_all_keys name: all-config-key # mount file - 第二种方式 - mountPath: /config_single_key/user_info name: all-config-key subPath: user.info # hostpath - name: app-dir mountPath: /workdir # Env env: - name: USERNAME valueFrom: configMapKeyRef: name: cm-shadow key: username volumes: - name: app-dir hostPath: path: /opt/kubeadm - name: share-dir emptyDir: {} - name: config-data configMap: name: cm-shadow items: - key: user.info path: user_info mode: 0644 - name: all-config-key configMap: name: cm-shadow --- apiVersion: v1 kind: Service metadata: name: jt-goapi-svc spec: selector: app: jt-goapi type: NodePort ports: - port: 8080 targetPort: 80 nodePort: 31000 -
最后log查看下是否打印了configmaps 的配置
kubectl logs jt-goapi-6bf855bc6f-scl94 > key=age,value=18 > key=user.info,value=hello world: > This is a file test. > key=username,value=ShadowYD -
一个监控ConfigMap 变化的程序，使用informers
package main import ( "k8s.io/api/core/v1" "k8s.io/apimachinery/pkg/util/wait" "k8s.io/client-go/informers" "k8s.io/client-go/kubernetes" "k8s.io/client-go/rest" "log" ) func getCMClient() *kubernetes.Clientset { config := &rest.Config{ Host: "172.17.38.31:8009", } c, err := kubernetes.NewForConfig(config) if err != nil { log.Fatal(err) } return c } type CmHandler struct{} func (this *CmHandler) OnAdd(obj interface{}) {} func (this *CmHandler) OnUpdate(oldObj, newObj interface{}) { if newObj.(*v1.ConfigMap).Name == "mycm" { log.Println("mycm发生了变化") } } func (this *CmHandler) OnDelete(obj interface{}) {} func main() { fact := informers.NewSharedInformerFactory(getCMClient(), 0) cmInformer := fact.Core().V1().ConfigMaps() cmInformer.Informer().AddEventHandler(&CmHandler{}) fact.Start(wait.NeverStop) select {} }
3.4 Secret
-
Secret 对象类型用来保存敏感信息，例如密码、OAuth 令牌和 SSH 密钥。 将这些信息放在 secret 中比放在 Pod 的定义或者 容器镜像 中来说更加安全和灵活。
-
命令集合
# tls 类型
kubectl create secret tls tls-secret --cert=path/to/tls.cert --key=path/to/tls.key
3.4.1 Secret的使用
-
创建 Secret, shadow_secret.yml
apiVersion: v1 kind: Secret metadata: name: shadow-secret type: Opaque stringData: user: shadow-yd pass: a123456 -
挂载 Secret，test_secret_pod.yml
apiVersion: apps/v1 kind: Deployment metadata: name: test-secret-pod namespace: default spec: selector: matchLabels: app: test-secret-pod template: metadata: labels: app: test-secret-pod spec: containers: - name: test-secret-pod command: - "sh" - "-c" - "sleep 3600" image: busybox imagePullPolicy: IfNotPresent env: - name: User valueFrom: secretKeyRef: key: user name: shadow-secret volumeMounts: - mountPath: /secret name: shadow-secret volumes: - name: shadow-secret secret: secretName: shadow-secret
3.4.2 nginx 挂载auth验证文件
-
configmap_nginx.yml
kind: ConfigMap apiVersion: v1 metadata: name: nginxconf data: ngx: | server { listen 80; server_name localhost; location / { auth_basic "test auth"; auth_basic_user_file /etc/nginx/basicauth; root /usr/share/nginx/html; index index.html index.htm; } error_page 500 502 503 504 /50x.html; location = /50x.html { root /usr/share/nginx/html; } } -
创建auth
htpasswd -c auth shadow-yd htpasswd auth lisi -
创建 secret-basic-auth
kubectl create secret generic secret-basic-auth --from-file=auth -
bauth_nginx_pod.yml
apiVersion: apps/v1 kind: Deployment metadata: name: myngx spec: selector: matchLabels: app: nginx replicas: 1 template: metadata: labels: app: nginx spec: containers: - name: ngx image: nginx:1.18-alpine imagePullPolicy: IfNotPresent volumeMounts: - name: nginxconf mountPath: /etc/nginx/conf.d/default.conf subPath: ngx - name: basicauth mountPath: /etc/nginx/basicauth subPath: auth volumes: - name: nginxconf configMap: defaultMode: 0655 name: nginxconf - name: basicauth secret: secretName: secret-basic-auth defaultMode: 0655
3.5 Service
3.5.1 ClusterIp
apiVersion: v1
kind: Service
metadata:
name: jtthink-ngx-svc
namespace: myweb
spec:
selector:
app: jtthink-ngx
ports:
- port: 80
protocol: TCP
targetPort: 80
type: ClusterIP
3.5.2 NodePort
apiVersion: v1
kind: Service
metadata:
name: jt-goapi-svc
spec:
selector:
app: jt-goapi
type: NodePort
ports:
- port: 8080
targetPort: 80
nodePort: 31000
3.5.2 Headless ClusterIP
-
访问svc会返回的所有的POD IP；
-
场景
- 需要自己判断使用哪个 POD IP;
- StatefulSet 状态下，POD互相访问；
apiVersion: v1
kind: Service
metadata:
name: nginx-svc
spec:
clusterIP: "None"
ports:
- port: 80
targetPort: 80
selector: #service通过selector和pod建立关联
app: nginx
3.6 HPA
3.6.1 metric services
- kubectl apply -f github.com/kubernetes-…
apiVersion: v1
kind: ServiceAccount
metadata:
labels:
k8s-app: metrics-server
name: metrics-server
namespace: kube-system
---
apiVersion: rbac.authorization.k8s.io/v1
kind: ClusterRole
metadata:
labels:
k8s-app: metrics-server
rbac.authorization.k8s.io/aggregate-to-admin: "true"
rbac.authorization.k8s.io/aggregate-to-edit: "true"
rbac.authorization.k8s.io/aggregate-to-view: "true"
name: system:aggregated-metrics-reader
rules:
- apiGroups:
- metrics.k8s.io
resources:
- pods
- nodes
verbs:
- get
- list
- watch
---
apiVersion: rbac.authorization.k8s.io/v1
kind: ClusterRole
metadata:
labels:
k8s-app: metrics-server
name: system:metrics-server
rules:
- apiGroups:
- ""
resources:
- pods
- nodes
- nodes/stats
- namespaces
- configmaps
verbs:
- get
- list
- watch
---
apiVersion: rbac.authorization.k8s.io/v1
kind: RoleBinding
metadata:
labels:
k8s-app: metrics-server
name: metrics-server-auth-reader
namespace: kube-system
roleRef:
apiGroup: rbac.authorization.k8s.io
kind: Role
name: extension-apiserver-authentication-reader
subjects:
- kind: ServiceAccount
name: metrics-server
namespace: kube-system
---
apiVersion: rbac.authorization.k8s.io/v1
kind: ClusterRoleBinding
metadata:
labels:
k8s-app: metrics-server
name: metrics-server:system:auth-delegator
roleRef:
apiGroup: rbac.authorization.k8s.io
kind: ClusterRole
name: system:auth-delegator
subjects:
- kind: ServiceAccount
name: metrics-server
namespace: kube-system
---
apiVersion: rbac.authorization.k8s.io/v1
kind: ClusterRoleBinding
metadata:
labels:
k8s-app: metrics-server
name: system:metrics-server
roleRef:
apiGroup: rbac.authorization.k8s.io
kind: ClusterRole
name: system:metrics-server
subjects:
- kind: ServiceAccount
name: metrics-server
namespace: kube-system
---
apiVersion: v1
kind: Service
metadata:
labels:
k8s-app: metrics-server
name: metrics-server
namespace: kube-system
spec:
ports:
- name: https
port: 443
protocol: TCP
targetPort: https
selector:
k8s-app: metrics-server
---
apiVersion: apps/v1
kind: Deployment
metadata:
labels:
k8s-app: metrics-server
name: metrics-server
namespace: kube-system
spec:
selector:
matchLabels:
k8s-app: metrics-server
strategy:
rollingUpdate:
maxUnavailable: 0
template:
metadata:
labels:
k8s-app: metrics-server
spec:
containers:
- args:
- --cert-dir=/tmp
- --secure-port=4443
- --kubelet-insecure-tls
- --kubelet-preferred-address-types=InternalDNS,InternalIP,ExternalDNS,ExternalIP,Hostname
- --kubelet-use-node-status-port
#image: k8s.gcr.io/metrics-server/metrics-server:v0.4.1
image: bitnami/metrics-server:0.4.1
imagePullPolicy: IfNotPresent
livenessProbe:
failureThreshold: 3
httpGet:
path: /livez
port: https
scheme: HTTPS
periodSeconds: 10
name: metrics-server
ports:
- containerPort: 4443
name: https
protocol: TCP
readinessProbe:
failureThreshold: 3
httpGet:
path: /readyz
port: https
scheme: HTTPS
periodSeconds: 10
securityContext:
readOnlyRootFilesystem: true
runAsNonRoot: true
runAsUser: 1000
volumeMounts:
- mountPath: /tmp
name: tmp-dir
nodeSelector:
kubernetes.io/os: linux
priorityClassName: system-cluster-critical
serviceAccountName: metrics-server
volumes:
- emptyDir: {}
name: tmp-dir
---
apiVersion: apiregistration.k8s.io/v1
kind: APIService
metadata:
labels:
k8s-app: metrics-server
name: v1beta1.metrics.k8s.io
spec:
group: metrics.k8s.io
groupPriorityMinimum: 100
insecureSkipTLSVerify: true
service:
name: metrics-server
namespace: kube-system
version: v1beta1
versionPriority: 100
3.7 kustomiz
kustomize是一个面向 Kubernetes 的命令行工具，用一种无模板、结构化的的方式为为声明式配置提供定制支持。面向 Kubernetes的意思是 Kustomize 对 API 资源、Kubernetes 概念（例如名称、标签、命名空间等）、以及资源补丁是有支持的。Kustomize 是 DAM 声明式应用程序管理 的一个实现。
3.7.1 kustomiz 的结构化需围绕一个 kustomization.yaml
-
假设我们在同级目录下已经创建了一个 service.yaml 以及 deployment.yaml
-
kustomization.yaml
apiVersion: kustomize.config.k8s.io/v1beta1 kind: Kustomization # 加入一个默认设置的namespace namespace: default # 为所有资源加一个通用声明 commonAnnotations: myname: shenyi images: - name: nginx # new 会覆盖现有的镜像配置 newTag: 1.19-alpine newName: mysql # 引用同级目录的 yaml 资源 resources: - service.yaml - deployment.yaml
3.7.2 overlays
- overlays 是一种引用依赖方式，通过依赖base目录，构建不同版本的yaml

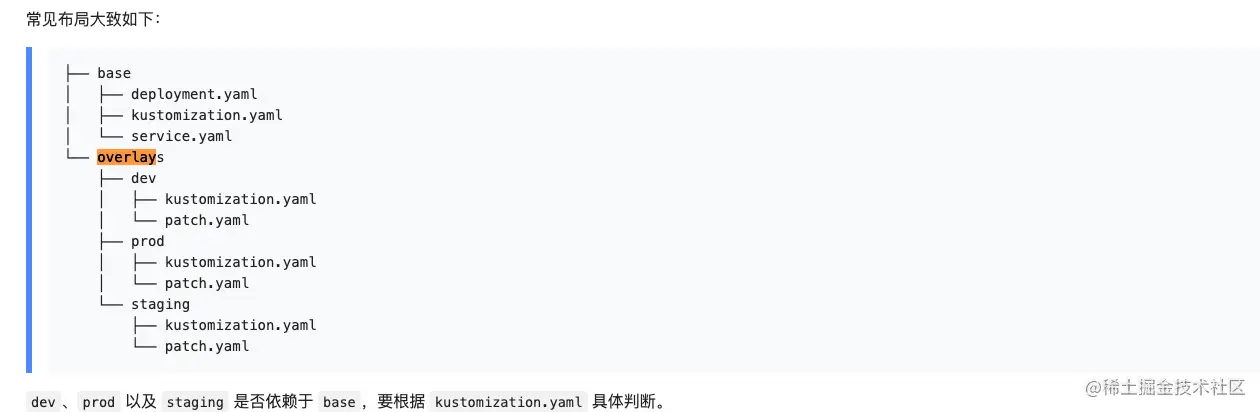

- overlyas 大致布局
- 实验例子（脚本连接后补）
4. Flannel 网络介绍
- 主机网关模式（host-gw）和 vxlan 模式，这里只介绍 vxlan 模式。
4.1 安装brctl工具
- 文档: www.linuxcool.com/brctl
# yum install -y bridge-utils
4.2 vxlan 模式
-
vxlan 其实就是通过包封装打入新的 vni id，作为路由选择手段之一。
-
现在部署有两个node节点，节点ip为
10.10.10.216和10.10.10.217。本文将以这两个节点上的容器为例。介绍两个容器是如何通讯的。节点 容器IP段 容器IP 10.10.10.216 10.244.0.0/24 10.244.0.6 10.10.10.217 10.244.1.0/24 10.244.1.2 -
cni0 是本机的网桥（如交换机），flannel.1 网络设备建立 vxlan 协议；(veth 可以理解是一根网线，一边连接cni0，一边连接程序空间的虚拟网卡)，真实出口的网络设备是 em1
-
证实流程的过程图 - 1
-

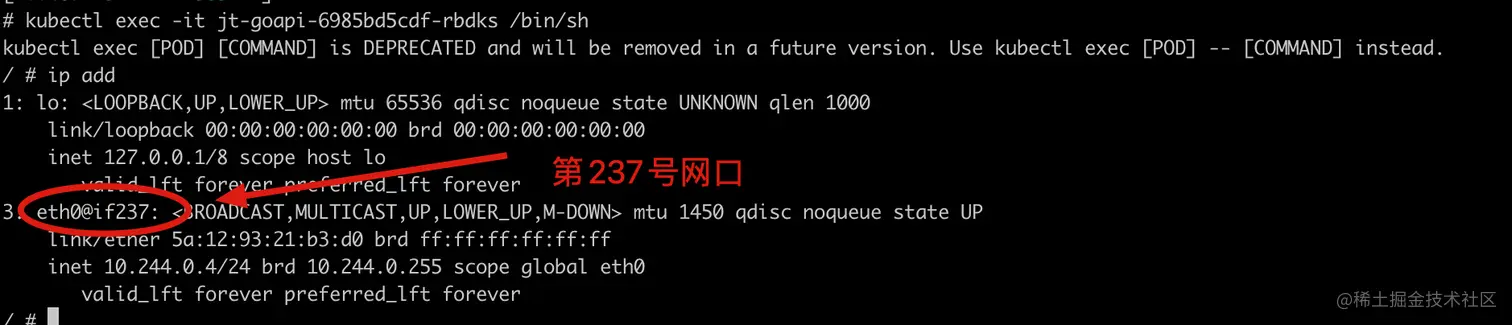

查看某个pod的ip，可以看到eth0@if237
-
查看主机网络设备link，237网口的mac地址
52:c1:7b:a0:a2:ac，设备名字veth49919d73# ip link 236: vethf0bc28d9@if3: <BROADCAST,MULTICAST,UP,LOWER_UP> mtu 1450 qdisc noqueue master cni0 state UP mode DEFAULT link/ether 0a:be:c4:9e:e5:a4 brd ff:ff:ff:ff:ff:ff link-netnsid 2 237: veth49919d73@if3: <BROADCAST,MULTICAST,UP,LOWER_UP> mtu 1450 qdisc noqueue master cni0 state UP mode DEFAULT link/ether 52:c1:7b:a0:a2:ac brd ff:ff:ff:ff:ff:ff link-netnsid 3 239: veth665c293c@if3: <BROADCAST,MULTICAST,UP,LOWER_UP> mtu 1450 qdisc noqueue master cni0 state UP mode DEFAULT link/ether d2:f9:14:27:a1:22 brd ff:ff:ff:ff:ff:ff link-netnsid 4 -
可以看到 cni0 网桥上绑定了
veth49919d73网络设备。# brctl show bridge name bridge id STP enabled interfaces cni0 8000.3a777e49f865 no veth0daef9e3 veth2e987d92 veth3dd36f03 veth410ec2b8 veth49919d73 veth665c293c veth709e550b veth70ddd7d1 veth80dcdbe8 veth8da15924 veth986599c0 vetha4469fae vethb01b1a4f vethda4f51d8 vethe7c48ced vethe94f1841 vethf0bc28d9 docker0 8000.0242e8a98cf9 no
-
-
证实流程的过程图 - 2
-

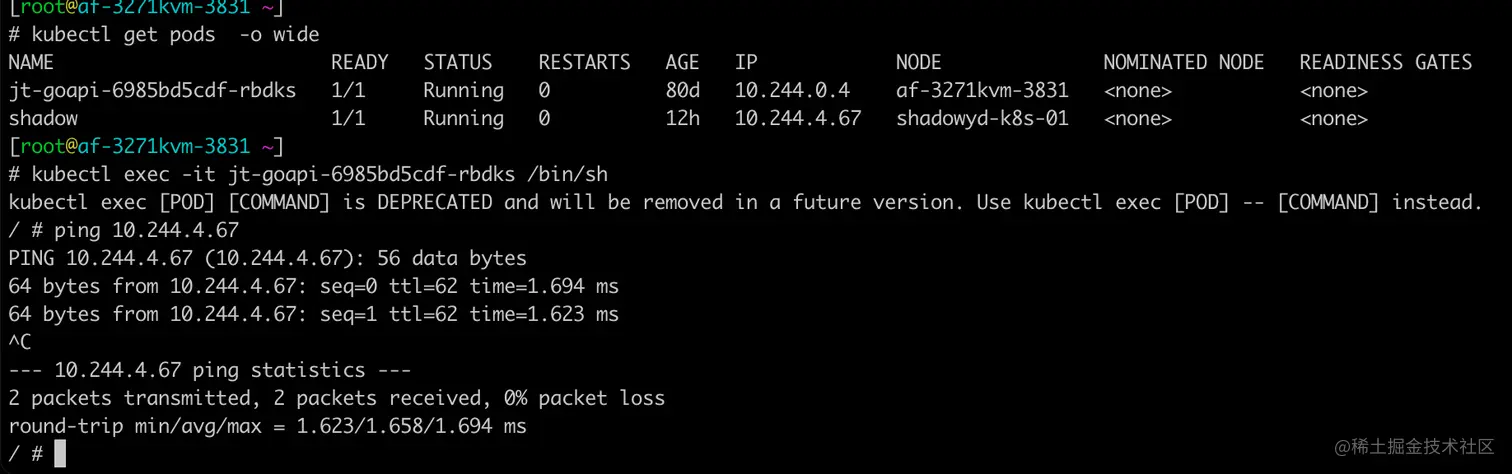

pod 与 pod 的路由， ping 通 10.244.4.67
-
ip route 查看路由途径的设备，可以看到 10.244.4.0 走的是flannel.1这个网络设备
# ip route default via 172.17.38.1 dev eth0 proto static metric 100 10.244.0.0/24 dev cni0 proto kernel scope link src 10.244.0.1 10.244.3.0/24 via 10.244.3.0 dev flannel.1 onlink 10.244.4.0/24 via 10.244.4.0 dev flannel.1 onlink 172.17.38.0/24 dev eth0 proto kernel scope link src 172.17.38.31 metric 100 172.18.0.0/16 dev docker0 proto kernel scope link src 172.18.0.1 -
查看flannel.1网络设备的邻居对应的mac地址
# ip neigh show dev flannel.1 10.244.3.0 lladdr a6:f3:b0:4b:56:63 PERMANENT 10.244.4.0 lladdr d2:f0:78:f4:17:65 PERMANENT -
查看flannel.1 网络设备的记录的mac地址表，fdb表
# bridge fdb show dev flannel.1 d2:f0:78:f4:17:65 dst 192.168.6.102 self permanent a6:f3:b0:4b:56:63 dst 192.168.6.106 self permanent -
查看 192.168.6.102 的flannel.1 的mac地址,
d2:f0:78:f4:17:65# ip link ... 5: flannel.1: <BROADCAST,MULTICAST,UP,LOWER_UP> mtu 1450 qdisc noqueue state UNKNOWN mode DEFAULT link/ether d2:f0:78:f4:17:65 brd ff:ff:ff:ff:ff:ff ...
-
