构建Kubernetes集群踩坑笔记

1. 集群类型

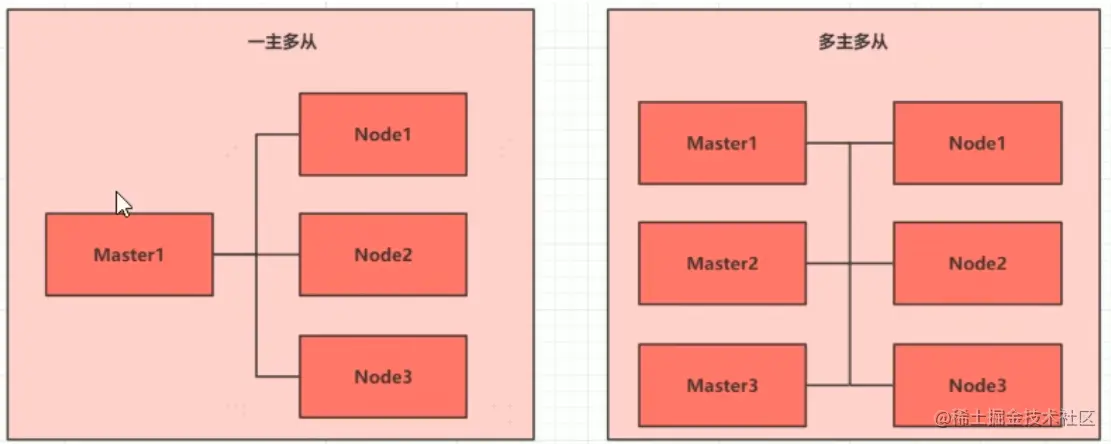

kubernetes集群大体上分为两类：一主多从、多主多从；

一主多从：一台Master节点和多台node节点，搭建简单，但有单机故障的风险，适用于测试环境；

多主多从：多台master节点和多台node节点，搭建麻烦，安全性高，适用于生产环境；

2. 安装准备

kubeadm、minikube、二进制包

minikube：一个用于快速搭建单节点kubernetes的工具；
kubeadm：一个用于快速搭建kubernetes集群的工具；
二进制包：从官网上下载给个组件的二进制包，依次安装，此方式对于理解kubernetes组件更加有效；

2.1 主机规划参考

节点名称	IP地址	操作系统	配置
Master	192.168.3.140	Centos7.5或者以上	2核2G内存 50G磁盘
Node1	192.168.3.141	Centos7.5或者以上	2核2G内存 50G磁盘
Node2	192.168.3.142	Centos7.5或者以上	2核2G内存 50G磁盘

注意事项
- 在一下的安装操作中，都需要在三台服务器上同时操作，以规避不必要的错误；

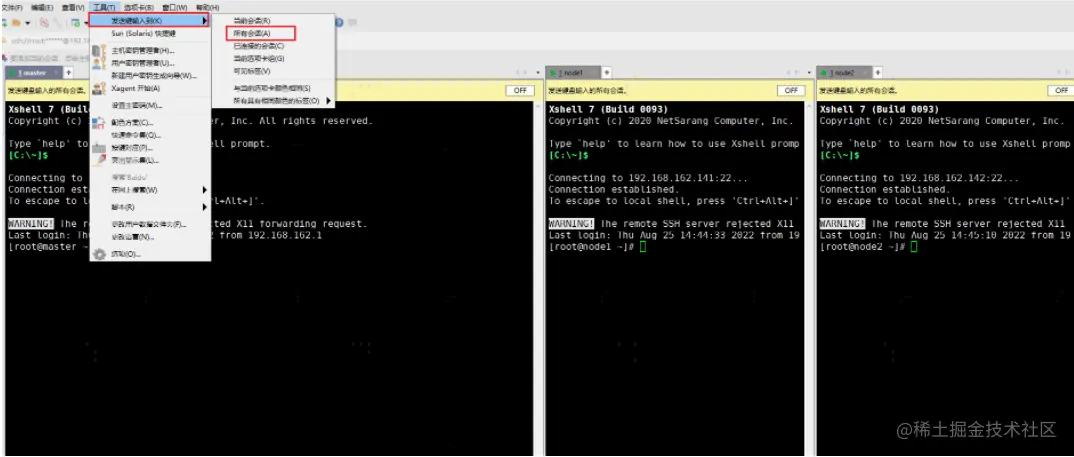

- 本次使用的是XSHELL，同时连上服务器后进行如下操作

2.2 环境所需程序搭建

本次环境搭建需要安装三台centos服务器，集群类型是一主二从，然后再每台服务器上分别安装docker（18.06.3.ce），kubeadm（1.17.4）、kubelet（1.17.4）、kubectl（1.17.4）;

3. 服务器构建

3.1 环境初始化

检查操作系统的版本
```
cat /etc/redhat-release
```

主机名解析

为了方便后面集群节点间的直接调用，在这配置一下主机名解析，企业中推荐使用内部DNS服务器

# 主机名解析，编辑三台服务器的/etc/hosts文件，添加下面内容
192.168.3.141 master
192.168.3.142 node1
192.168.3.143 node2

时间同步

kubernetes要求集群中的节点时间必须精确一致，这里直接使用chronyd服务器从网络同步时间，企业中建议配置内部的时间同步服务器

# 启动chronyd服务
# systemctl start chronyd
# 设置chronyd服务开机自启
# systemctl enable chronyd
# chronyd服务启动稍等几分钟，就可以使用date命令验证时间了
# date

禁用iptables和firewalld

kubernetes和docker在运行中会产生大量的iptables规则，为了不让系统规则跟他们混淆，直接关闭系统的规则

# 1. 关闭firewalld 服务
# systemctl stop firewalld
# 2. 关闭firewalls开机自启
# systemctl disable firewalld
# 3. 关闭iptables服务
# systemctl stop iptables
# systemctl disable iptables

禁用selinux

selinux是linux系统下的一个安全服务，如果不关闭它，在安装集群中会产生各种各样的奇葩问题
```
# 编辑 /etc/selinux/config 文件，修改selinux的值为disabled
# 注意，修改完之后要重启linux
SELINUX=disabled
```
禁用swap分区

swap分区指的是虚拟内存分区，它的作用是在物理内存使用完之后，将磁盘空间虚拟成内存来使用，启用swap设备会对系统的性能产生非常负面的影响，因此kubernetes要求每个节点都要禁止用swap设备，但是如果因为某些原因确实不能关闭swap分区，就需要在集群安装过程中通过明确的参数进行配置说明
```

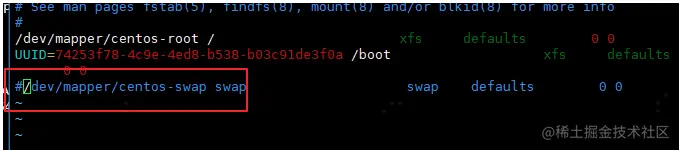

# 编辑分区配置文件， /etc/fstab，注释掉swap分区一行
# 注意修改完毕之后需要重启linux服务
```

修改linux的内核参数

# 修改linux的内核参数，添加网桥过滤和地址转发功能
# 编辑 /etc/sysctl.d/kubernetes.conf 文件，添加如下配置
net.bridge.bridge-nf-call-ip6tables = 1
net.bridge.bridge-nf-call-iptables = 1
net.ipv4.ip_forward = 1

# 重新加载配置
# sysctl -p

# 加载网桥过滤模块
# modprobe br_netfilter

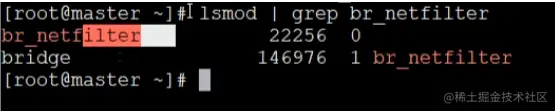

# 查看网桥过滤模块是否加载成功
# lsmod | grep br_netfilter

配置IPVS功能

在kubernetes中service有两种代理模型，一种是基于iptables的，一种是基于ipvs的，两者比较的话，ipvs的性能明显要高一点，但是如果要使用它的话，需要手动载入ipvs模块

# 1. 安装ipset和ipvsadm
# yum install ipset ipvsadmin -y
# 2. 添加需要加载的模块写入脚本文件
# cat <<EOF> /etc/sysconfig/modules/ipvs.modules
#!/bin/bash
modprobe -- ip_vs
modprobe -- ip_vs_rr
modprobe -- ip_vs_wrr
modprobe -- ip_vs_sh
modprobe -- nf_conntrack_pv4
EOF

# 3. 为脚本文件添加可执行权限
# chmod +x /etc/sysconfig/modules/ipvs.modules

# 4. 执行脚本文件
# /bin/bash /etc/sysconfig/modules/ipvs.modules

# 5. 查看对应的模块是都加载成功
# lsmod |grep -e ip_vs -e nf_conntrack_ipv4

重启服务器
```
# reboot
```

因为我在操作一下步骤时，经常会遇到各种问题，所以建议，到这一步的时候，给服务器拍摄一下快照；

3.2 安装Docker

安装docker的方式有很多，以下是我在之前写的安装脚本里拷贝出来的安装方式，一条命令一条命令的去复制执行，一般没什么问题；

# docker
yum -y update
yum remove docker  docker-common docker-selinux docker-engine
yum install -y yum-utils device-mapper-persistent-data lvm2
yum-config-manager --add-repo http://download.docker.com/linux/centos/docker-ce.repo
yum-config-manager --add-repo http://mirrors.aliyun.com/docker-ce/linux/centos/docker-ce.repo
sudo yum -y install --setopt=obsoletes=0 docker-ce-18.06.3.ce
systemctl enable docker

# 镜像加速
# Docker 在默认情况下使用Cgroup Driver为cgroupfs，而kubernetes推荐使用systemd来代替cgroupfs
sudo mkdir -p /etc/docker
sudo tee /etc/docker/daemon.json <<-'EOF'
{
  "exec-opts":["native.cgroupdriver=systemd"],
  "registry-mirrors": ["https://ucbw7vfc.mirror.aliyuncs.com"]
}
EOF

# 查看
# more /etc/docker/daemon.json

# 启动停止命令
systemctl start docker.service
systemctl stop docker.service

友情提醒：此处再次建议拍摄一下快照；

3.3 安装kubernetes组件

# 由于kubernetes的镜像源在国外，速度比较慢，这里切换成国内的镜像源
# 编辑 /etc/yum.repos.d/kubernetes.repo,添加下面的配置
[kubernetes]
name=Kubernetes
baseurl=http://mirrors.aliyun.com/kubernetes/yum/repos/kubernetes-el7-x86_64
enabled=1
gpgcheck=0
repo_gpgcheck=0
gpgkey=http://mirrors.aliyun.com/kubernetes/yum/doc/yum-key.gpg
       http://mirrors.aliyun.com/kubernetes/yum/doc/rpm-package-key.gpg

# 安装kubeadm、kubelet和kubectl
# yum install --setopt=obsoletes=0 kubeadm-1.17.4-0 kubelet-1.17.4-0 kubectl-1.17.4-0 -y

# 配置kubelet和cgroup
# 编辑 /etc/sysconfig/kubelet，添加下面配置
KUBELET_CGROUP_ARGS="--cgroup-driver=systemd"
KUBE_PROXY_MODE="ipvs"

# 设置kubelet开机自启
# systemctl enable kubelet
systemctl disable kubelet
systemctl start kubelet
systemctl restart kubelet

3.4 准备集群镜像

因为k8s的镜像是在国外，国内大多数网络是无法直接访问的，好就好在可以从阿里云上下载相对应的镜像，可是下载的镜像打的是阿里的标签，所以我就把下载后的镜像标签从新命名成k8s默认的，不过看网上很多没有替换的也可以，如果你有强迫症，可以都试一下，记得拍摄好快照就可以；

# 所需镜像通过以下命令查看
# kubeadm config images list

# 下载
docker pull registry.cn-hangzhou.aliyuncs.com/google_containers/kube-apiserver:v1.17.4
docker pull registry.cn-hangzhou.aliyuncs.com/google_containers/kube-controller-manager:v1.17.4
docker pull registry.cn-hangzhou.aliyuncs.com/google_containers/kube-scheduler:v1.17.4
docker pull registry.aliyuncs.com/google_containers/kube-proxy:v1.17.4
docker pull registry.cn-hangzhou.aliyuncs.com/google_containers/pause:3.1
docker pull registry.cn-hangzhou.aliyuncs.com/google_containers/etcd:3.4.3-0
docker pull registry.aliyuncs.com/google_containers/coredns:1.6.5

# 替换
docker tag registry.cn-hangzhou.aliyuncs.com/google_containers/kube-apiserver:v1.17.4 \
k8s.gcr.io/kube-apiserver:v1.17.4
docker tag registry.cn-hangzhou.aliyuncs.com/google_containers/kube-controller-manager:v1.17.4 \
k8s.gcr.io/kube-controller-manager:v1.17.4
docker tag registry.cn-hangzhou.aliyuncs.com/google_containers/kube-scheduler:v1.17.4 \
k8s.gcr.io/kube-scheduler:v1.17.4
docker tag registry.aliyuncs.com/google_containers/kube-proxy:v1.17.4 \
k8s.gcr.io/kube-proxy:v1.17.4
docker tag registry.cn-hangzhou.aliyuncs.com/google_containers/pause:3.1 \
k8s.gcr.io/pause:3.1
docker tag registry.cn-hangzhou.aliyuncs.com/google_containers/etcd:3.4.3-0 \
k8s.gcr.io/etcd:3.4.3-0
docker tag registry.aliyuncs.com/google_containers/coredns:1.6.5 \
k8s.gcr.io/coredns:1.6.5


# 删除
docker rmi registry.cn-hangzhou.aliyuncs.com/google_containers/kube-apiserver:v1.17.4
docker rmi registry.cn-hangzhou.aliyuncs.com/google_containers/kube-controller-manager:v1.17.4
docker rmi registry.cn-hangzhou.aliyuncs.com/google_containers/kube-scheduler:v1.17.4
docker rmi registry.aliyuncs.com/google_containers/kube-proxy:v1.17.4
docker rmi registry.cn-hangzhou.aliyuncs.com/google_containers/pause:3.1
docker rmi registry.cn-hangzhou.aliyuncs.com/google_containers/etcd:3.4.3-0
docker rmi registry.aliyuncs.com/google_containers/coredns:1.6.5

友情提醒：拍摄快照

3.5 集群初始化

下面开始对集群进行初始化，并将node节点加入到集群中，注意，这里的操作只需要在master节点上执行就可以了，不需要在node1和node2节点上；

master

# 创建集群
# kubeadm init \
--kubernetes-version=v1.17.4 \
--pod-network-cidr=10.244.0.0/16 \
--service-cidr=10.96.0.0/12 \
--apiserver-advertise-address=192.168.3.141

只要看到如下输出，就说明安装初始化成功了

[kubelet-finalize] Updating "/etc/kubernetes/kubelet.conf" to point to a rotatable kubelet client certificate and key
[addons] Applied essential addon: CoreDNS
[addons] Applied essential addon: kube-proxy

Your Kubernetes control-plane has initialized successfully!

To start using your cluster, you need to run the following as a regular user:

  mkdir -p $HOME/.kube
  sudo cp -i /etc/kubernetes/admin.conf $HOME/.kube/config
  sudo chown $(id -u):$(id -g) $HOME/.kube/config

You should now deploy a pod network to the cluster.
Run "kubectl apply -f [podnetwork].yaml" with one of the options listed at:
  https://kubernetes.io/docs/concepts/cluster-administration/addons/

Then you can join any number of worker nodes by running the following on each as root:

kubeadm join 192.168.3.141:6443 --token 6k1unc.55mcieza3zjdd2o8 \
    --discovery-token-ca-cert-hash sha256:e201238cb0682e5869342ac66e1c691aec489d485d864a621f3dacc4fb217560

不要忽略输出内容

# 创建相对应的目录
  mkdir -p $HOME/.kube
  sudo cp -i /etc/kubernetes/admin.conf $HOME/.kube/config
  sudo chown $(id -u):$(id -g) $HOME/.kube/config

# 在需要加入的节点中执行查看步骤3.6
kubeadm join 192.168.3.141:6443 --token 6k1unc.55mcieza3zjdd2o8 \
    --discovery-token-ca-cert-hash sha256:e201238cb0682e5869342ac66e1c691aec489d485d864a621f3dacc4fb217560

# 添加k8s网络，在步骤3.7
Run "kubectl apply -f [podnetwork].yaml" with one of the options listed at:
  https://kubernetes.io/docs/concepts/cluster-administration/addons/

3.6 加入主节点以及其余工作节点

在需要加入到集群中的节点，例如node1或者node2中执行

kubeadm join 192.168.3.141:6443 --token phi4bc.cpwbot0919ic356s \
    --discovery-token-ca-cert-hash sha256:4aabc6e4a4ff9629cf1bb80335dffaaf8a7d9a6ac7d76795064f9636e923c7ea

输出如下结果，说明加入成功了：

[root@node1 ~]# kubeadm join 192.168.3.141:6443 --token 6k1unc.55mcieza3zjdd2o8 \
>     --discovery-token-ca-cert-hash sha256:e201238cb0682e5869342ac66e1c691aec489d485d864a621f3dacc4fb217560
W0828 22:27:41.378893  115909 join.go:346] [preflight] WARNING: JoinControlPane.controlPlane settings will be ignored when control-plane flag is not set.
[preflight] Running pre-flight checks
[preflight] Reading configuration from the cluster...
[preflight] FYI: You can look at this config file with 'kubectl -n kube-system get cm kubeadm-config -oyaml'
[kubelet-start] Downloading configuration for the kubelet from the "kubelet-config-1.17" ConfigMap in the kube-system namespace
[kubelet-start] Writing kubelet configuration to file "/var/lib/kubelet/config.yaml"
[kubelet-start] Writing kubelet environment file with flags to file "/var/lib/kubelet/kubeadm-flags.env"
[kubelet-start] Starting the kubelet
[kubelet-start] Waiting for the kubelet to perform the TLS Bootstrap...

This node has joined the cluster:
* Certificate signing request was sent to apiserver and a response was received.
* The Kubelet was informed of the new secure connection details.

Run 'kubectl get nodes' on the control-plane to see this node join the cluster.

3.7 安装网络插件

k8s支持多种网络插件，比如flannel，calico，canal等。任选一种使用即可，本次使用flannel

master

只在master节点上执行

# 获取fannel的配置文件，这个连接，很多时候是无法直接访问的
# wget https://raw.githubusercontent.com/coreos/flannel/master/Documentation/kube-flannel.yml

# 如果无法直接访问，可以先把kube-flannel.yml文件下载下来，在本篇的末尾有附上

# 修改文件中quay.io仓库为quay-mirror.qiniu.com，末尾处附上的已经是修改后的

# 使用配置文件启动fannel
# kubectl apply -f kube-flannel.yml
# 卸载flannel : https://blog.csdn.net/footrip/article/details/104565568

# 稍等片刻，再次查看集群节点的状态
# kubectl get nodes

3.8 可能会出现的报错

NotReady

在使用 kubectl get nodes 命令，在master节点上查看集群状态时，可能会出现NotReady的提示，这个就是集群节点没有准备好，这个时候可以再node1或者node2节点上，执行命令以下命令，查看节点日志；
```
# journalctl -f -u kubelet
```
如果日志中有
```
"Unable to update cni config" err="no networks found in /etc/cni/net.d"
```
则把master上的 /etc/cni/net.d/下的文件，复制到node上

# scp /etc/cni/net.d/* 192.168.3.142:/etc/cni/net.d/
# scp /etc/cni/net.d/* 192.168.3.143:/etc/cni/net.d/

3.9 kube-flannel.yml

参考的博客：blog.csdn.net/qq_22409661…

直接复制下面内容，执行

cat <<EOF > kube-flannel.yml
---
apiVersion: policy/v1beta1
kind: PodSecurityPolicy
metadata:
  name: psp.flannel.unprivileged
  annotations:
    seccomp.security.alpha.kubernetes.io/allowedProfileNames: docker/default
    seccomp.security.alpha.kubernetes.io/defaultProfileName: docker/default
    apparmor.security.beta.kubernetes.io/allowedProfileNames: runtime/default
    apparmor.security.beta.kubernetes.io/defaultProfileName: runtime/default
spec:
  privileged: false
  volumes:
    - configMap
    - secret
    - emptyDir
    - hostPath
  allowedHostPaths:
    - pathPrefix: "/etc/cni/net.d"
    - pathPrefix: "/etc/kube-flannel"
    - pathPrefix: "/run/flannel"
  readOnlyRootFilesystem: false
  # Users and groups
  runAsUser:
    rule: RunAsAny
  supplementalGroups:
    rule: RunAsAny
  fsGroup:
    rule: RunAsAny
  # Privilege Escalation
  allowPrivilegeEscalation: false
  defaultAllowPrivilegeEscalation: false
  # Capabilities
  allowedCapabilities: ['NET_ADMIN']
  defaultAddCapabilities: []
  requiredDropCapabilities: []
  # Host namespaces
  hostPID: false
  hostIPC: false
  hostNetwork: true
  hostPorts:
  - min: 0
    max: 65535
  # SELinux
  seLinux:
    # SELinux is unused in CaaSP
    rule: 'RunAsAny'
---
kind: ClusterRole
apiVersion: rbac.authorization.k8s.io/v1beta1
metadata:
  name: flannel
rules:
  - apiGroups: ['extensions']
    resources: ['podsecuritypolicies']
    verbs: ['use']
    resourceNames: ['psp.flannel.unprivileged']
  - apiGroups:
      - ""
    resources:
      - pods
    verbs:
      - get
  - apiGroups:
      - ""
    resources:
      - nodes
    verbs:
      - list
      - watch
  - apiGroups:
      - ""
    resources:
      - nodes/status
    verbs:
      - patch
---
kind: ClusterRoleBinding
apiVersion: rbac.authorization.k8s.io/v1beta1
metadata:
  name: flannel
roleRef:
  apiGroup: rbac.authorization.k8s.io
  kind: ClusterRole
  name: flannel
subjects:
- kind: ServiceAccount
  name: flannel
  namespace: kube-system
---
apiVersion: v1
kind: ServiceAccount
metadata:
  name: flannel
  namespace: kube-system
---
kind: ConfigMap
apiVersion: v1
metadata:
  name: kube-flannel-cfg
  namespace: kube-system
  labels:
    tier: node
    app: flannel
data:
  cni-conf.json: |
    {
      "name": "cbr0",
      "cniVersion": "0.3.1",
      "plugins": [
        {
          "type": "flannel",
          "delegate": {
            "hairpinMode": true,
            "isDefaultGateway": true
          }
        },
        {
          "type": "portmap",
          "capabilities": {
            "portMappings": true
          }
        }
      ]
    }
  net-conf.json: |
    {
      "Network": "10.244.0.0/16",
      "Backend": {
        "Type": "vxlan"
      }
    }
---
apiVersion: apps/v1
kind: DaemonSet
metadata:
  name: kube-flannel-ds-amd64
  namespace: kube-system
  labels:
    tier: node
    app: flannel
spec:
  selector:
    matchLabels:
      app: flannel
  template:
    metadata:
      labels:
        tier: node
        app: flannel
    spec:
      affinity:
        nodeAffinity:
          requiredDuringSchedulingIgnoredDuringExecution:
            nodeSelectorTerms:
              - matchExpressions:
                  - key: beta.kubernetes.io/os
                    operator: In
                    values:
                      - linux
                  - key: beta.kubernetes.io/arch
                    operator: In
                    values:
                      - amd64
      hostNetwork: true
      tolerations:
      - operator: Exists
        effect: NoSchedule
      serviceAccountName: flannel
      initContainers:
      - name: install-cni
        image: quay.io/coreos/flannel:v0.11.0-amd64
        command:
        - cp
        args:
        - -f
        - /etc/kube-flannel/cni-conf.json
        - /etc/cni/net.d/10-flannel.conflist
        volumeMounts:
        - name: cni
          mountPath: /etc/cni/net.d
        - name: flannel-cfg
          mountPath: /etc/kube-flannel/
      containers:
      - name: kube-flannel
        image: quay.io/coreos/flannel:v0.11.0-amd64
        command:
        - /opt/bin/flanneld
        args:
        - --ip-masq
        - --kube-subnet-mgr
        resources:
          requests:
            cpu: "100m"
            memory: "50Mi"
          limits:
            cpu: "100m"
            memory: "50Mi"
        securityContext:
          privileged: false
          capabilities:
            add: ["NET_ADMIN"]
        env:
        - name: POD_NAME
          valueFrom:
            fieldRef:
              fieldPath: metadata.name
        - name: POD_NAMESPACE
          valueFrom:
            fieldRef:
              fieldPath: metadata.namespace
        volumeMounts:
        - name: run
          mountPath: /run/flannel
        - name: flannel-cfg
          mountPath: /etc/kube-flannel/
      volumes:
        - name: run
          hostPath:
            path: /run/flannel
        - name: cni
          hostPath:
            path: /etc/cni/net.d
        - name: flannel-cfg
          configMap:
            name: kube-flannel-cfg
---
apiVersion: apps/v1
kind: DaemonSet
metadata:
  name: kube-flannel-ds-arm64
  namespace: kube-system
  labels:
    tier: node
    app: flannel
spec:
  selector:
    matchLabels:
      app: flannel
  template:
    metadata:
      labels:
        tier: node
        app: flannel
    spec:
      affinity:
        nodeAffinity:
          requiredDuringSchedulingIgnoredDuringExecution:
            nodeSelectorTerms:
              - matchExpressions:
                  - key: beta.kubernetes.io/os
                    operator: In
                    values:
                      - linux
                  - key: beta.kubernetes.io/arch
                    operator: In
                    values:
                      - arm64
      hostNetwork: true
      tolerations:
      - operator: Exists
        effect: NoSchedule
      serviceAccountName: flannel
      initContainers:
      - name: install-cni
        image: quay.io/coreos/flannel:v0.11.0-arm64
        command:
        - cp
        args:
        - -f
        - /etc/kube-flannel/cni-conf.json
        - /etc/cni/net.d/10-flannel.conflist
        volumeMounts:
        - name: cni
          mountPath: /etc/cni/net.d
        - name: flannel-cfg
          mountPath: /etc/kube-flannel/
      containers:
      - name: kube-flannel
        image: quay.io/coreos/flannel:v0.11.0-arm64
        command:
        - /opt/bin/flanneld
        args:
        - --ip-masq
        - --kube-subnet-mgr
        resources:
          requests:
            cpu: "100m"
            memory: "50Mi"
          limits:
            cpu: "100m"
            memory: "50Mi"
        securityContext:
          privileged: false
          capabilities:
             add: ["NET_ADMIN"]
        env:
        - name: POD_NAME
          valueFrom:
            fieldRef:
              fieldPath: metadata.name
        - name: POD_NAMESPACE
          valueFrom:
            fieldRef:
              fieldPath: metadata.namespace
        volumeMounts:
        - name: run
          mountPath: /run/flannel
        - name: flannel-cfg
          mountPath: /etc/kube-flannel/
      volumes:
        - name: run
          hostPath:
            path: /run/flannel
        - name: cni
          hostPath:
            path: /etc/cni/net.d
        - name: flannel-cfg
          configMap:
            name: kube-flannel-cfg
---
apiVersion: apps/v1
kind: DaemonSet
metadata:
  name: kube-flannel-ds-arm
  namespace: kube-system
  labels:
    tier: node
    app: flannel
spec:
  selector:
    matchLabels:
      app: flannel
  template:
    metadata:
      labels:
        tier: node
        app: flannel
    spec:
      affinity:
        nodeAffinity:
          requiredDuringSchedulingIgnoredDuringExecution:
            nodeSelectorTerms:
              - matchExpressions:
                  - key: beta.kubernetes.io/os
                    operator: In
                    values:
                      - linux
                  - key: beta.kubernetes.io/arch
                    operator: In
                    values:
                      - arm
      hostNetwork: true
      tolerations:
      - operator: Exists
        effect: NoSchedule
      serviceAccountName: flannel
      initContainers:
      - name: install-cni
        image: quay.io/coreos/flannel:v0.11.0-arm
        command:
        - cp
        args:
        - -f
        - /etc/kube-flannel/cni-conf.json
        - /etc/cni/net.d/10-flannel.conflist
        volumeMounts:
        - name: cni
          mountPath: /etc/cni/net.d
        - name: flannel-cfg
          mountPath: /etc/kube-flannel/
      containers:
      - name: kube-flannel
        image: quay.io/coreos/flannel:v0.11.0-arm
        command:
        - /opt/bin/flanneld
        args:
        - --ip-masq
        - --kube-subnet-mgr
        resources:
          requests:
            cpu: "100m"
            memory: "50Mi"
          limits:
            cpu: "100m"
            memory: "50Mi"
        securityContext:
          privileged: false
          capabilities:
             add: ["NET_ADMIN"]
        env:
        - name: POD_NAME
          valueFrom:
            fieldRef:
              fieldPath: metadata.name
        - name: POD_NAMESPACE
          valueFrom:
            fieldRef:
              fieldPath: metadata.namespace
        volumeMounts:
        - name: run
          mountPath: /run/flannel
        - name: flannel-cfg
          mountPath: /etc/kube-flannel/
      volumes:
        - name: run
          hostPath:
            path: /run/flannel
        - name: cni
          hostPath:
            path: /etc/cni/net.d
        - name: flannel-cfg
          configMap:
            name: kube-flannel-cfg
---
apiVersion: apps/v1
kind: DaemonSet
metadata:
  name: kube-flannel-ds-ppc64le
  namespace: kube-system
  labels:
    tier: node
    app: flannel
spec:
  selector:
    matchLabels:
      app: flannel
  template:
    metadata:
      labels:
        tier: node
        app: flannel
    spec:
      affinity:
        nodeAffinity:
          requiredDuringSchedulingIgnoredDuringExecution:
            nodeSelectorTerms:
              - matchExpressions:
                  - key: beta.kubernetes.io/os
                    operator: In
                    values:
                      - linux
                  - key: beta.kubernetes.io/arch
                    operator: In
                    values:
                      - ppc64le
      hostNetwork: true
      tolerations:
      - operator: Exists
        effect: NoSchedule
      serviceAccountName: flannel
      initContainers:
      - name: install-cni
        image: quay.io/coreos/flannel:v0.11.0-ppc64le
        command:
        - cp
        args:
        - -f
        - /etc/kube-flannel/cni-conf.json
        - /etc/cni/net.d/10-flannel.conflist
        volumeMounts:
        - name: cni
          mountPath: /etc/cni/net.d
        - name: flannel-cfg
          mountPath: /etc/kube-flannel/
      containers:
      - name: kube-flannel
        image: quay.io/coreos/flannel:v0.11.0-ppc64le
        command:
        - /opt/bin/flanneld
        args:
        - --ip-masq
        - --kube-subnet-mgr
        resources:
          requests:
            cpu: "100m"
            memory: "50Mi"
          limits:
            cpu: "100m"
            memory: "50Mi"
        securityContext:
          privileged: false
          capabilities:
             add: ["NET_ADMIN"]
        env:
        - name: POD_NAME
          valueFrom:
            fieldRef:
              fieldPath: metadata.name
        - name: POD_NAMESPACE
          valueFrom:
            fieldRef:
              fieldPath: metadata.namespace
        volumeMounts:
        - name: run
          mountPath: /run/flannel
        - name: flannel-cfg
          mountPath: /etc/kube-flannel/
      volumes:
        - name: run
          hostPath:
            path: /run/flannel
        - name: cni
          hostPath:
            path: /etc/cni/net.d
        - name: flannel-cfg
          configMap:
            name: kube-flannel-cfg
---
apiVersion: apps/v1
kind: DaemonSet
metadata:
  name: kube-flannel-ds-s390x
  namespace: kube-system
  labels:
    tier: node
    app: flannel
spec:
  selector:
    matchLabels:
      app: flannel
  template:
    metadata:
      labels:
        tier: node
        app: flannel
    spec:
      affinity:
        nodeAffinity:
          requiredDuringSchedulingIgnoredDuringExecution:
            nodeSelectorTerms:
              - matchExpressions:
                  - key: beta.kubernetes.io/os
                    operator: In
                    values:
                      - linux
                  - key: beta.kubernetes.io/arch
                    operator: In
                    values:
                      - s390x
      hostNetwork: true
      tolerations:
      - operator: Exists
        effect: NoSchedule
      serviceAccountName: flannel
      initContainers:
      - name: install-cni
        image: quay.io/coreos/flannel:v0.11.0-s390x
        command:
        - cp
        args:
        - -f
        - /etc/kube-flannel/cni-conf.json
        - /etc/cni/net.d/10-flannel.conflist
        volumeMounts:
        - name: cni
          mountPath: /etc/cni/net.d
        - name: flannel-cfg
          mountPath: /etc/kube-flannel/
      containers:
      - name: kube-flannel
        image: quay.io/coreos/flannel:v0.11.0-s390x
        command:
        - /opt/bin/flanneld
        args:
        - --ip-masq
        - --kube-subnet-mgr
        resources:
          requests:
            cpu: "100m"
            memory: "50Mi"
          limits:
            cpu: "100m"
            memory: "50Mi"
        securityContext:
          privileged: false
          capabilities:
             add: ["NET_ADMIN"]
        env:
        - name: POD_NAME
          valueFrom:
            fieldRef:
              fieldPath: metadata.name
        - name: POD_NAMESPACE
          valueFrom:
            fieldRef:
              fieldPath: metadata.namespace
        volumeMounts:
        - name: run
          mountPath: /run/flannel
        - name: flannel-cfg
          mountPath: /etc/kube-flannel/
      volumes:
        - name: run
          hostPath:
            path: /run/flannel
        - name: cni
          hostPath:
            path: /etc/cni/net.d
        - name: flannel-cfg
          configMap:
            name: kube-flannel-cfg
EOF
