安装插件cnpm install -S svg-sprite-loader

cnpm install -S svg-sprite-loader

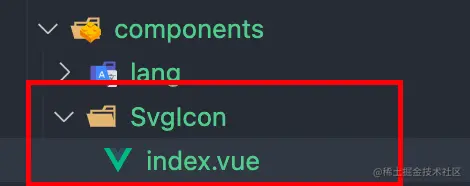

创建svg组件

<template>
  <svg :class="svgClass" aria-hidden="true" :width="swidth" :height="sheight">
    <use :xlink:href="iconName" />
  </svg>
</template>

<script>
export default {
  name: "SvgIcon",
  props: {
    iconClass: {
      type: String,
      required: true,
    },
    className: {
      type: String,
      default: "",
    },
    size: {
      type: [String, Number],
      default: 20,
    },
  },
  computed: {
    iconName() {
      return `#icon-${this.iconClass}`;
    },
    svgClass() {
      if (this.className) {
        return "svg-icon " + this.className;
      } else {
        return "svg-icon";
      }
    },
    swidth() {
      if (this.size < 0 || isNaN(this.size)) {
        return 20;
      }
      return this.size;
    },
    sheight() {
      if (this.size < 0 || isNaN(this.size)) {
        return 20;
      }
      return this.size;
    },
  },
};
</script>

<style scoped>
.svg-icon {
  vertical-align: -0.15em;
  fill: currentColor;
  overflow: hidden;
}
</style>

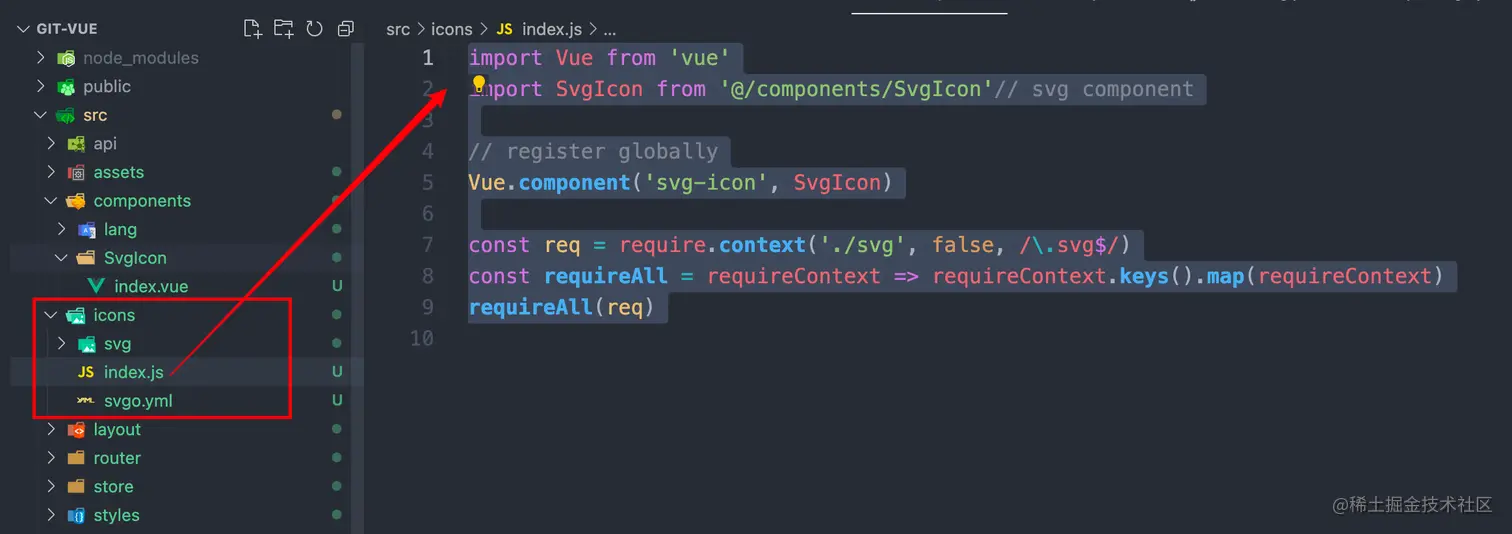

注册为全局组件及配置(js文件)

import Vue from 'vue'
import SvgIcon from '@/components/SvgIcon'// svg component

// register globally
Vue.component('svg-icon', SvgIcon)

const req = require.context('./svg', false, /\.svg$/)
const requireAll = requireContext => requireContext.keys().map(requireContext)
requireAll(req)

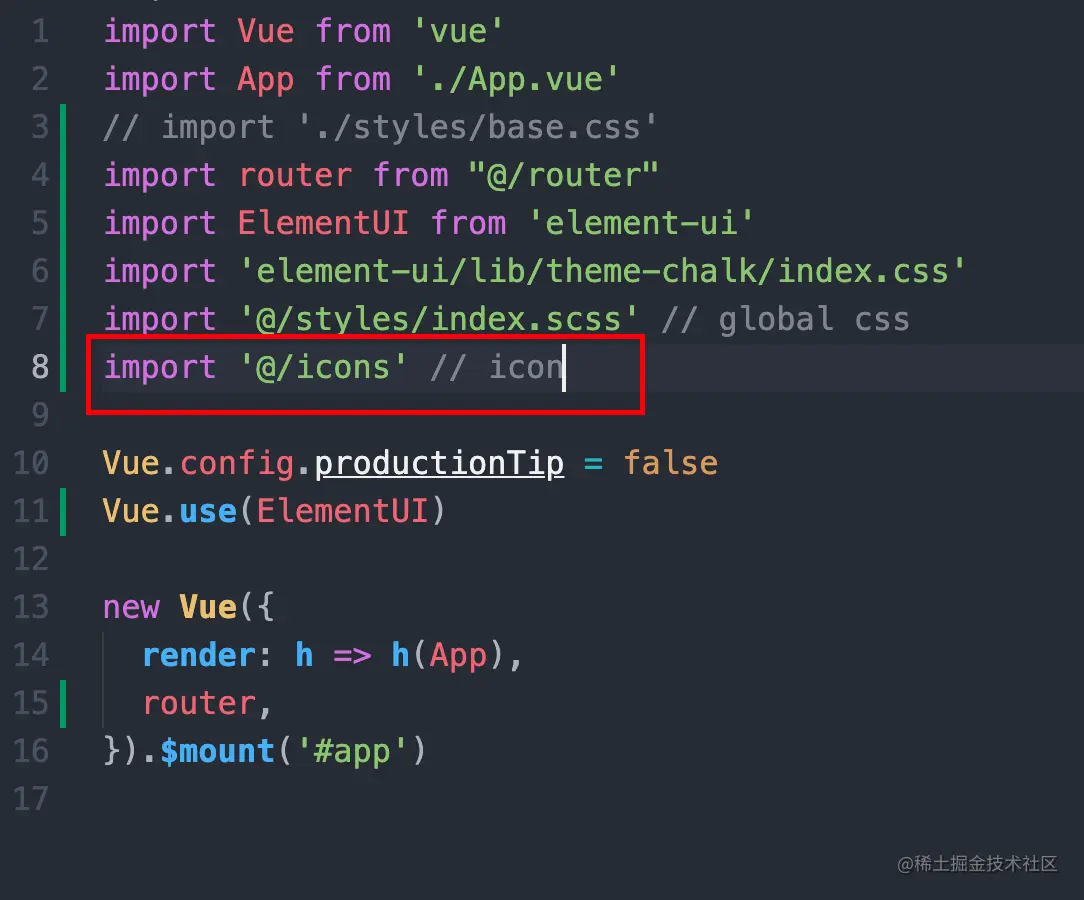

在main.js引入

# webpack.config.js或vue.config.js中配置

'use strict'
const path = require('path')

function resolve(dir) {
  return path.join(__dirname, dir)
}

const name = 'vue Admin Template' // page title

//定义cdn
let cdn = { css: [], js: [] }
// 通过环境变量 来区分是否使用cdn
const isProd = process.env.NODE_ENV === 'production' // 判断是否是生产环境
let externals = {}
if (isProd) {
  // 如果是生产环境 就排除打包 否则不排除
  externals = {
    'vue': 'Vue',
    'element-ui': 'ELEMENT',
    'xlsx': 'XLSX'
  }
  cdn = {
    css: [
      'https://unpkg.com/element-ui/lib/theme-chalk/index.css'
    ],
    js: [
      'https://unpkg.com/vue@2.6.10/dist/vue.js',
      'https://unpkg.com/element-ui/lib/index.js',
      'https://cdn.jsdelivr.net/npm/xlsx@0.16.0/dist/xlsx.full.min.js',
      'https://cdn.jsdelivr.net/npm/xlsx@0.16.0/dist/jszip.min.js'
    ]
  }
}

module.exports = {
  /**
   * You will need to set publicPath if you plan to deploy your site under a sub path,
   * for example GitHub Pages. If you plan to deploy your site to https://foo.github.io/bar/,
   * then publicPath should be set to "/bar/".
   * In most cases please use '/' !!!
   * Detail: https://cli.vuejs.org/config/#publicpath
   */
  publicPath: '/',
  outputDir: 'dist',
  assetsDir: 'static',
  lintOnSave: false,
  productionSourceMap: false,
  configureWebpack: {
    // provide the app's title in webpack's name field, so that
    // it can be accessed in index.html to inject the correct title.
    name: name,
    resolve: {
      alias: {
        '@': resolve('src')
      }
    },
    externals: externals
  },
  chainWebpack(config) {
    // when there are many pages, it will cause too many meaningless requests
    config.plugins.delete('prefetch')

    // set svg-sprite-loader
    config.module
      .rule('svg')
      .exclude.add(resolve('src/icons'))
      .end()
    config.module
      .rule('icons')
      .test(/\.svg$/)
      .include.add(resolve('src/icons'))
      .end()
      .use('svg-sprite-loader')
      .loader('svg-sprite-loader')
      .options({
        symbolId: 'icon-[name]'
      })
      .end()

    config
      .when(process.env.NODE_ENV !== 'development',
        config => {
          config
            .plugin('ScriptExtHtmlWebpackPlugin')
            .after('html')
            .use('script-ext-html-webpack-plugin', [{
              // `runtime` must same as runtimeChunk name. default is `runtime`
              inline: /runtime\..*\.js$/
            }])
            .end()
          config
            .optimization.splitChunks({
              chunks: 'all',
              cacheGroups: {
                libs: {
                  name: 'chunk-libs',
                  test: /[\\/]node_modules[\\/]/,
                  priority: 10,
                  chunks: 'initial' // only package third parties that are initially dependent
                },
                elementUI: {
                  name: 'chunk-elementUI', // split elementUI into a single package
                  priority: 20, // the weight needs to be larger than libs and app or it will be packaged into libs or app
                  test: /[\\/]node_modules[\\/]_?element-ui(.*)/ // in order to adapt to cnpm
                },
                commons: {
                  name: 'chunk-commons',
                  test: resolve('src/components'), // can customize your rules
                  minChunks: 3, //  minimum common number
                  priority: 5,
                  reuseExistingChunk: true
                }
              }
            })
          // https:// webpack.js.org/configuration/optimization/#optimizationruntimechunk
          config.optimization.runtimeChunk('single')
        }
      )
  }
}

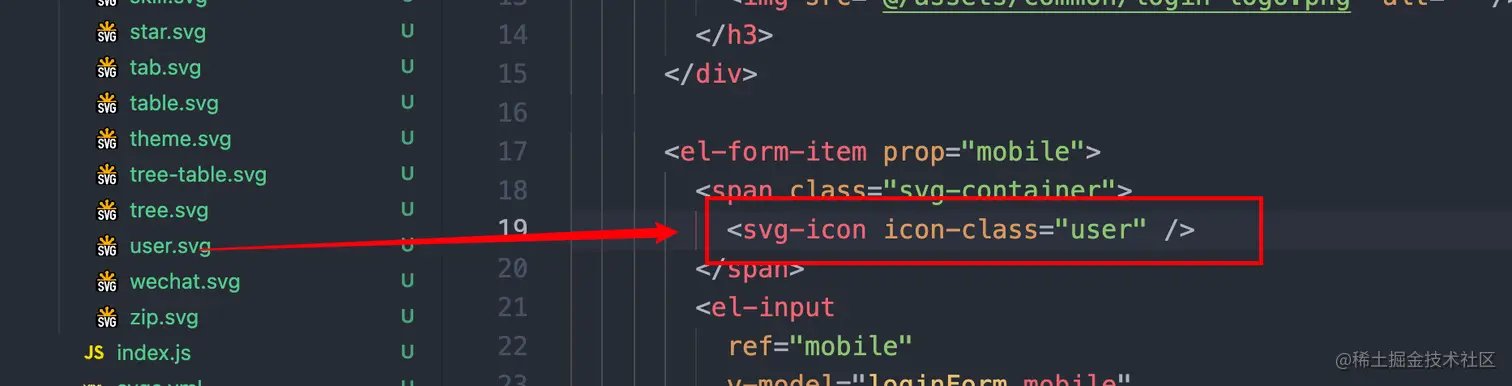

使用

再写一遍是为了加深自己的印象~~ 原文在此： blog.csdn.net/weixin_4478…
