黑盒监控既已用户的身份测试服务的外部可见性，常见的黑盒监控包括 HTTP探针、 TCP探针 等用于检测站点或者服务的可访问性，以及访问效率等。
黑盒相比于白盒的不同之处在于黑盒是以故障为导向的，当故障发生时能够快速发现故障；而白盒是侧重主动发现或预测潜在的问题。
Blackbox Exporter 是 Prometheus 社区提供的官方黑盒监控解决方案，其允许用户通过：HTTP、 HTTPS、 DNS、 TCP 以及 ICMP 的方式对网络进行探测。
同样首先需要在 Kubernetes 集群中运行 blackbox-exporter 服务，同样通过一个 ConfigMap 资源对象来为 Blackbox 提供配置，如下所示：（blackbox.yaml）
apiVersion: v1
kind: Service
metadata:
name: blackbox
namespace: monitoring
spec:
selector:
app: blackbox
ports:
- port: 9115
targetPort: 9115
---
apiVersion: v1
kind: ConfigMap
metadata:
name: blackbox-config
namespace: monitoring
data:
blackbox.yaml: |-
modules:
http_2xx:
prober: http
timeout: 10s
http:
valid_http_versions: ["HTTP/1.1", "HTTP/2"]
valid_status_codes: [200]
method: GET
preferred_ip_protocol: "ip4"
http_post_2xx:
prober: http
timeout: 10s
http:
valid_http_versions: ["HTTP/1.1", "HTTP/2"]
valid_status_codes: [200]
method: POST
preferred_ip_protocol: "ip4"
tcp_connect:
prober: tcp
timeout: 10s
ping:
prober: icmp
timeout: 5s
icmp:
preferred_ip_protocol: "ip4"
dns:
prober: dns
dns:
transport_protocol: "tcp"
preferred_ip_protocol: "ip4"
query_name: "kubernetes.defalut.svc.cluster.local"
---
apiVersion: apps/v1
kind: Deployment
metadata:
name: blackbox
namespace: monitoring
spec:
selector:
matchLabels:
app: blackbox
template:
metadata:
labels:
app: blackbox
spec:
containers:
- name: blackbox
image: prom/blackbox-exporter:v0.16.0
args:
- "--config.file=/etc/blackbox_exporter/blackbox.yaml"
- "--log.level=error"
ports:
- containerPort: 9115
volumeMounts:
- name: config
mountPath: /etc/blackbox_exporter
volumes:
- name: config
configMap:
name: blackbox-config
然后创建资源清单：
# kubectl apply -f .
service/blackbox created
configmap/blackbox-config created
deployment.apps/blackbox created
然后在Prometheus中加入Blackbox的抓取配置（因为我们是用的Prometheus operator部署的，所以就以add的形式加入配置，如下）： prometheus-additional.yaml
- job_name: 'kubernetes-service-endpoints'
kubernetes_sd_configs:
- role: endpoints
relabel_configs:
- source_labels: [__meta_kubernetes_service_annotation_prometheus_io_scrape]
action: keep
regex: true
- source_labels: [__meta_kubernetes_service_annotation_prometheus_io_scheme]
action: replace
target_label: __scheme__
regex: (https?)
- source_labels: [__meta_kubernetes_service_annotation_prometheus_io_path]
action: replace
target_label: __metrics_path__
regex: (.+)
- source_labels: [__address__, __meta_kubernetes_service_annotation_prometheus_io_port]
action: replace
target_label: __address__
regex: ([^:]+)(?::\d+)?;(\d+)
replacement: $1:$2
- action: labelmap
regex: __meta_kubernetes_service_label_(.+)
- source_labels: [__meta_kubernetes_namespace]
action: replace
target_label: kubernetes_namespace
- source_labels: [__meta_kubernetes_service_name]
action: replace
target_label: kubernetes_name
- job_name: "kubernetes-service-dns"
metrics_path: /probe
params:
module: [dns]
static_configs:
- targets:
- kube-dns.kube-system:53
relabel_configs:
- source_labels: [__address__]
target_label: __param_target
- source_labels: [__param_target]
target_label: instance
- target_label: __address__
replacement: blackbox.monitoring:9115
然后重新创建secret：
# kubectl delete secret additional-config -n monitoring
# kubectl -n monitoring create secret generic additional-config --from-file=prometheus-additional.yaml
然后重新加载一下prometheus
# curl -X POST "http://10.68.215.41:9090/-/reload"
现在就可以在targets中看到已经发现。
然后在Graph查看probe_success{job="kubernetes-service-dns"}
除了 DNS 的配置外，上面我们还配置了一个 http_2xx 的模块，也就是 HTTP 探针，HTTP 探针是进行黑盒监控时最常用的探针之一，通过 HTTP 探针能够对网站或者 HTTP 服务建立有效的监控，包括其本身的可用性，以及用户体验相关的如响应时间等等。除了能够在服务出现异常的时候及时报警，还能帮助系统管理员分析和优化网站体验。这里我们可以使用他来对 http 服务进行检测。
因为前面已经给 Blackbox 配置了 http_2xx 模块，所以这里只需要在 Prometheus 中加入抓取任务，这里我们可以结合前面的 Prometheus 的服务发现功能来做黑盒监控，对于 Service 和 Ingress 类型的服务发现，用来进行黑盒监控是非常合适的，配置如下所示：
- job_name: 'kubernetes-service-endpoints'
kubernetes_sd_configs:
- role: endpoints
relabel_configs:
- source_labels: [__meta_kubernetes_service_annotation_prometheus_io_scrape]
action: keep
regex: true
- source_labels: [__meta_kubernetes_service_annotation_prometheus_io_scheme]
action: replace
target_label: __scheme__
regex: (https?)
- source_labels: [__meta_kubernetes_service_annotation_prometheus_io_path]
action: replace
target_label: __metrics_path__
regex: (.+)
- source_labels: [__address__, __meta_kubernetes_service_annotation_prometheus_io_port]
action: replace
target_label: __address__
regex: ([^:]+)(?::\d+)?;(\d+)
replacement: $1:$2
- action: labelmap
regex: __meta_kubernetes_service_label_(.+)
- source_labels: [__meta_kubernetes_namespace]
action: replace
target_label: kubernetes_namespace
- source_labels: [__meta_kubernetes_service_name]
action: replace
target_label: kubernetes_name
- job_name: "kubernetes-service-dns"
metrics_path: /probe
params:
module: [dns]
static_configs:
- targets:
- kube-dns.kube-system:53
relabel_configs:
- source_labels: [__address__]
target_label: __param_target
- source_labels: [__param_target]
target_label: instance
- target_label: __address__
replacement: blackbox.monitoring:9115
- job_name: "kubernetes-http-service"
metrics_path: /probe
params:
module: [http_2xx]
kubernetes_sd_configs:
- role: service
relabel_configs:
- source_labels: [__meta_kubernetes_service_annotation_prometheus_io_http_probe]
action: keep
regex: true
- source_labels: [__address__]
target_label: __param_target
- target_label: __address__
replacement: blackbox.monitoring:9115
- source_labels: [__param_target]
target_label: instance
- action: labelmap
regex: __meta_kubernetes_service_label_(.+)
- source_labels: [__meta_kubernetes_namespace]
target_label: kubernetes_namespace
- source_labels: [__meta_kubernetes_service_name]
target_label: kubernetes_name
- job_name: "kubernetes-ingresses"
metrics_path: /probe
params:
module: [http_2xx]
kubernetes_sd_configs:
- role: ingress
relabel_configs:
- source_labels: [__meta_kubernetes_ingress_annotation_prometheus_io_http_probe]
action: keep
regex: true
- source_labels: [__meta_kubernetes_ingress_scheme,__address__,__meta_kubernetes_ingress_path]
regex: (.+);(.+);(.+)
replacement: ${1}://${2}${3}
target_label: __param_target
- target_label: __address__
replacement: blackbox.monitoring:9115
- source_labels: [__param_target]
target_label: instance
- action: labelmap
regex: __meta_kubernetes_service_label_(.+)
- source_labels: [__meta_kubernetes_namespace]
target_label: kubernetes_namespace
- source_labels: [__meta_kubernetes_service_name]
target_label: kubernetes_name
然后重新创建secret：
# kubectl delete secret additional-config -n monitoring
# kubectl -n monitoring create secret generic additional-config --from-file=prometheus-additional.yaml
然后重新加载一下prometheus
# curl -X POST "http://10.68.215.41:9090/-/reload"

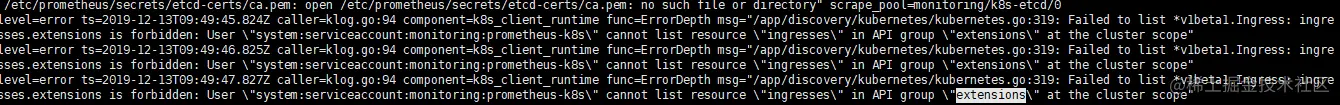

但是我们发现日志有报错如下
这是因为RBAC权限不足导致的，我们修改prometheus-clusterRole.yaml
apiVersion: rbac.authorization.k8s.io/v1
kind: ClusterRole
metadata:
name: prometheus-k8s
rules:
- apiGroups:
- ""
resources:
- nodes/metrics
- configmaps
verbs:
- get
- apiGroups:
- ""
resources:
- nodes
- pods
- services
- endpoints
- nodes/proxy
verbs:
- get
- list
- watch
- apiGroups:
- "extensions"
resources:
- ingresses
verbs:
- get
- list
- watch
- nonResourceURLs:
- /metrics
verbs:
- get
然后重新创建
# kubectl apply -f prometheus-clusterRole.yaml

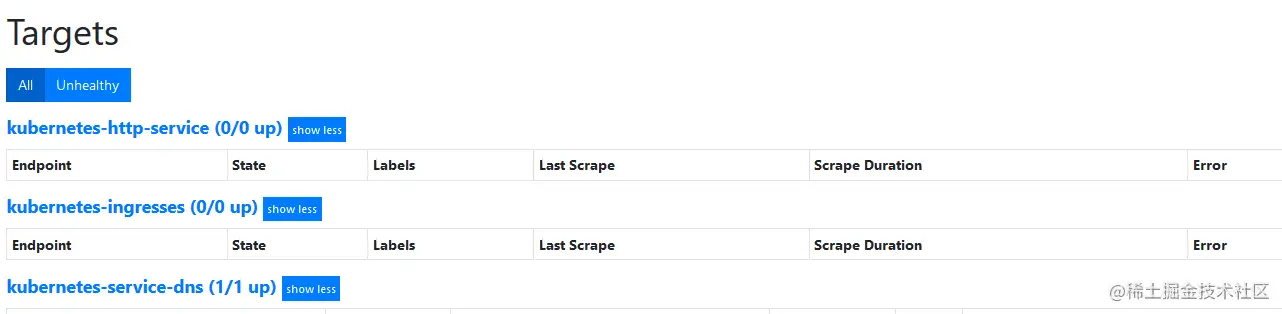

然我们我们在面板查看
但是现在还没有任何数据，这是因为上面是匹配 __meta_kubernetes_ingress_annotation_prometheus_io_http_probe 这个元信息，所以如果我们需要让这两个任务发现的话需要在 Service 或者 Ingress 中配置对应的 annotation：
annotations:
prometheus.io/http-probe: "true"
比如：
apiVersion: extensions/v1beta1
kind: Deployment
metadata:
name: redis
namespace: kube-ops
spec:
template:
metadata:
annotations:
prometheus.io/scrape: "true"
prometheus.io/port: "9121"
labels:
app: redis
spec:
containers:
- name: redis
image: redis:4
resources:
requests:
cpu: 100m
memory: 100Mi
ports:
- containerPort: 6379
- name: redis-exporter
image: oliver006/redis_exporter:latest
resources:
requests:
cpu: 100m
memory: 100Mi
ports:
- containerPort: 9121
---
kind: Service
apiVersion: v1
metadata:
name: redis
namespace: kube-ops
annotations:
prometheus.io/scrape: "true"
prometheus.io/port: "9121"
prometheus.io/http-probe: "true"
spec:
selector:
app: redis
ports:
- name: redis
port: 6379
targetPort: 6379
- name: prom
port: 9121
targetPort: 9121
然后在WEB页面查看如下：

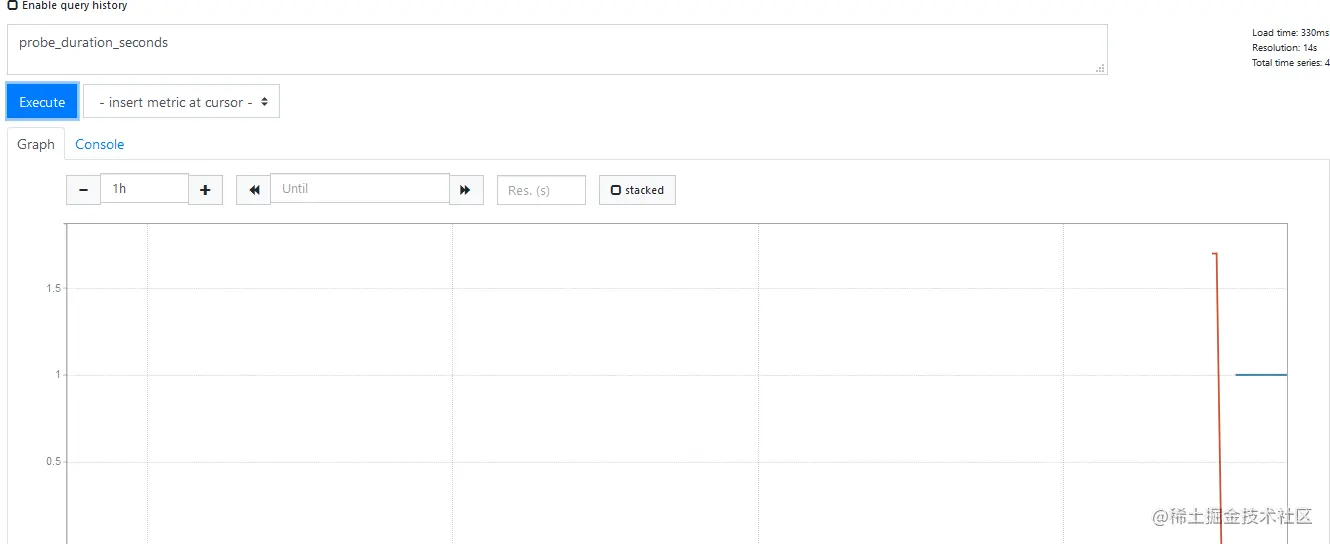

在Graph上也可以看到监控的指标：
如果你需要对监控的路径、端口这些做控制，我们可以自己在 relabel_configs 中去做相应的配置，比如我们想对 Service 的黑盒做自定义配置，可以想下面这样配置：
- source_labels: [__meta_kubernetes_service_name, __meta_kubernetes_namespace, __meta_kubernetes_service_annotation_prometheus_io_http_probe_port, __meta_kubernetes_service_annotation_prometheus_io_http_probe_path]
action: replace
target_label: __param_target
regex: (.+);(.+);(.+);(.+)
replacement: $1.$2:$3$4
这样我们就需要在 Service 中配置这样的 annotation 了：
annotation:
prometheus.io/http-probe: "true"
prometheus.io/http-probe-port: "8080"
prometheus.io/http-probe-path: "/healthz"
附
ping检测
- job_name: 'ping_all'
scrape_interval: 1m
metrics_path: /probe
params:
module: [ping]
static_configs:
- targets:
- 192.168.1.2
labels:
instance: node2
- targets:
- 192.168.1.3
labels:
instance: node3
relabel_configs:
- source_labels: [__address__]
target_label: __param_target
- target_label: __address__
replacement: 127.0.0.1:9115 # black_exporter地址
http检测
- job_name: 'http_get_all' # blackbox_export module
scrape_interval: 30s
metrics_path: /probe
params:
module: [http_2xx]
static_configs:
- targets:
- https://www.coolops.cn
relabel_configs:
- source_labels: [__address__]
target_label: __param_target
- source_labels: [__param_target]
target_label: instance
- target_label: __address__
replacement: 127.0.0.1:9115 # black_exporter地址
监控主机存活状态
- job_name: node_status
metrics_path: /probe
params:
module: [icmp]
static_configs:
- targets: ['10.165.94.31']
labels:
instance: node_status
group: 'node'
relabel_configs:
- source_labels: [__address__]
target_label: __param_target
- target_label: __address__
replacement: 127.0.0.1:9115 # black_exporter地址
监控端口状态
- job_name: 'prometheus_port_status'
metrics_path: /probe
params:
module: [tcp_connect]
static_configs:
- targets: ['172.19.155.133:8765']
labels:
instance: 'port_status'
group: 'tcp'
relabel_configs:
- source_labels: [__address__]
target_label: __param_target
- source_labels: [__param_target]
target_label: instance
- target_label: __address__
replacement: 127.0.0.1:9115 # black_exporter地址
告警
groups:
- name: example
rules:
- alert: curlHttpStatus
expr: probe_http_status_code{job="blackbox-http"}>=400 and probe_success{job="blackbox-http"}==0
#for: 1m
labels:
docker: number
annotations:
summary: '业务报警: 网站不可访问'
description: '{{$labels.instance}} 不可访问,请及时查看,当前状态码为{{$value}}'
Prometheus 配置文件可以参考官方仓库：github.com/prometheus/… Blackbox 的配置文件可以参考官方参考：github.com/prometheus/…
