React源码解析系列(七) -- commit阶段主要流程

上一章讲解了React源码解析系列(六) -- Vdom到Rdom的解读，我们知道了对于一个基础标签React是怎么创建出来的，到目前为止我们生成的fiber树上面具有属性、状态、副作用标签等，那么应该怎么样去创建并执行一个完整的React应用呢？这一章就讲一讲整个react应用的commit阶段吧。针对于commit阶段的执行流程我也画了一个简略的图：

render阶段执行完毕

在render阶段的reconciler与scheduler执行过程中，如果当前的fiber树遍历完毕或者线程没有中断之后，那么react就会提交任务去commit了：

commit入口函数就是执行commitRoot，那么我们来看一下commitRoot的源码：

commitRoot

// packages/react-reconciler/src/ReactFiberWorkLoop.old.js
function commitRoot(root) {
  const renderPriorityLevel = getCurrentPriorityLevel();
  runWithPriority(
    ImmediateSchedulerPriority,
    //主要执行逻辑
    commitRootImpl.bind(null, root, renderPriorityLevel),
  );
  return null;
}

commitRoot进一步调用commitRootImpl。

commitRootImpl

function commitRootImpl(root, renderPriorityLevel) {
  ...
  root.finishedWork = null;
  root.finishedLanes = NoLanes;

  // Get the list of effects.
  // 获取副作用列表
  let firstEffect;
  if (finishedWork.flags > PerformedWork) {
    // 如果root上有副作用，则要把副作用添加到链表当中去
    if (finishedWork.lastEffect !== null) {
      finishedWork.lastEffect.nextEffect = finishedWork;
      firstEffect = finishedWork.firstEffect;
    } else {
      firstEffect = finishedWork;
    }
  } else {
    // There is no effect on the root.
    // 如果没有就把root作为链表的开头
    firstEffect = finishedWork.firstEffect;
  }
    ...
    nextEffect = firstEffect;
    do {
      if (__DEV__) {
        ...
      } else {
        try {
          // 第一次遍历副作用链表
          commitBeforeMutationEffects();
        } catch (error) {
          invariant(nextEffect !== null, 'Should be working on an effect.');
          captureCommitPhaseError(nextEffect, error);
          nextEffect = nextEffect.nextEffect;
        }
      }
    } while (nextEffect !== null);
   ...
    // The next phase is the mutation phase, where we mutate the host tree.
    nextEffect = firstEffect;
    do {
      if (__DEV__) {
        ...
      } else {
        try {
          // 第二次遍历副作用链表
          commitMutationEffects(root, renderPriorityLevel);
        } catch (error) {
          invariant(nextEffect !== null, 'Should be working on an effect.');
          captureCommitPhaseError(nextEffect, error);
          nextEffect = nextEffect.nextEffect;
        }
      }
    } while (nextEffect !== null);

    if (shouldFireAfterActiveInstanceBlur) {
      afterActiveInstanceBlur();
    }
    ...
    root.current = finishedWork;

    ...
    nextEffect = firstEffect; // 把副作用链表的下一项变为头一项，重新遍历
    do {
      if (__DEV__) {
        ...
      } else {
        try {
          // 第三次遍历副作用链表
          commitLayoutEffects(root, lanes);
        } catch (error) {
          invariant(nextEffect !== null, 'Should be working on an effect.');
          captureCommitPhaseError(nextEffect, error);
          nextEffect = nextEffect.nextEffect;
        }
      }
    } while (nextEffect !== null);

    nextEffect = null;

    // Tell Scheduler to yield at the end of the frame, so the browser has an
    // opportunity to paint.
    //绘制网页
    requestPaint();
    ...
  } else {
    // No effects.
    // 木有副作用了
    root.current = finishedWork;
    // Measure these anyway so the flamegraph explicitly shows that there were
    // no effects.
    // TODO: Maybe there's a better way to report this.
    if (enableProfilerTimer) {
      recordCommitTime();
    }
  }
  ...
  return null;
}

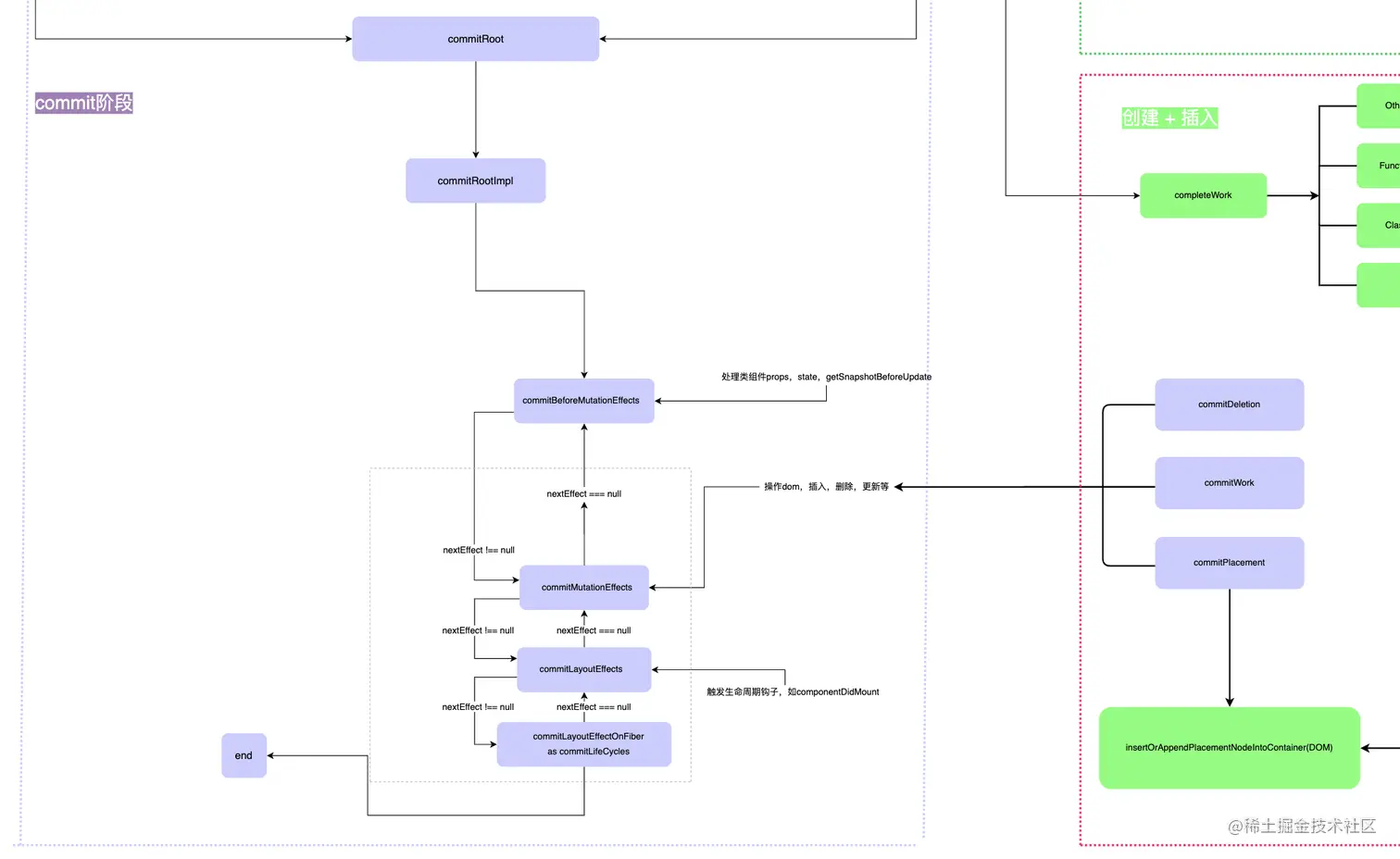

这个函数的代码确实有点长，但是主要做的事情只有三件：

• 获取effectLists副作用链表，如果root上有副作用，则把副作用插到链表的尾部，如果没有则用副作用链表的头部为头部进行遍历。
• 进行三次遍历，分别执行commitBeforeMutationEffects、commitMutationEffects、commitLayoutEffects。

第一次遍历执行commitBeforeMutationEffects

function commitBeforeMutationEffects() {
  // 根据nextEffect进行遍历
  while (nextEffect !== null) {
    // 改变指针
    const current = nextEffect.alternate;
    ...
    // 获取当前的标记
    const flags = nextEffect.flags;
    if ((flags & Snapshot) !== NoFlags) {
      setCurrentDebugFiberInDEV(nextEffect);

      // 处理class组件的props和state，执行getSnapshotBeforeUpdate函数
      commitBeforeMutationEffectOnFiber(current, nextEffect);

      resetCurrentDebugFiberInDEV();
    }
    if ((flags & Passive) !== NoFlags) {
      // If there are passive effects, schedule a callback to flush at
      // the earliest opportunity.
      if (!rootDoesHavePassiveEffects) {
        rootDoesHavePassiveEffects = true;
        scheduleCallback(NormalSchedulerPriority, () => {
          flushPassiveEffects();
          return null;
        });
      }
    }
    nextEffect = nextEffect.nextEffect;
  }
}

commitBeforeMutationEffects函数中，根据nextEffect进行遍历，如果有副作用，便会去执行commitBeforeMutationEffectOnFiber函数，处理class组件上的props，state并且会执行getSnapshotBeforeUpdate，如果对getSnapshotBeforeUpdate不清楚，请戳 >> 组件的生命周期 ，

commitBeforeMutationLifeCycles

// import commitBeforeMutationLifeCycles as commitBeforeMutationEffectOnFiber
function commitBeforeMutationLifeCycles(
  current: Fiber | null,
  finishedWork: Fiber,
): void {
  switch (finishedWork.tag) {
    case FunctionComponent:
    case ForwardRef:
    case SimpleMemoComponent:
    case Block: {
      return;
    }
    case ClassComponent: {
      if (finishedWork.flags & Snapshot) {
        if (current !== null) {
          // 上一次的props、state
          const prevProps = current.memoizedProps;
          const prevState = current.memoizedState;

          // 获得组件实例
          const instance = finishedWork.stateNode;

          // We could update instance props and state here,
          // but instead we rely on them being set during last render.
          // TODO: revisit this when we implement resuming.
          if (__DEV__) {
            if (
              finishedWork.type === finishedWork.elementType &&
              !didWarnAboutReassigningProps
            ) {
              if (instance.props !== finishedWork.memoizedProps) {
                console.error(
                  'Expected %s props to match memoized props before ' +
                    'getSnapshotBeforeUpdate. ' +
                    'This might either be because of a bug in React, or because ' +
                    'a component reassigns its own `this.props`. ' +
                    'Please file an issue.',
                  getComponentName(finishedWork.type) || 'instance',
                );
              }
              if (instance.state !== finishedWork.memoizedState) {
                console.error(
                  'Expected %s state to match memoized state before ' +
                    'getSnapshotBeforeUpdate. ' +
                    'This might either be because of a bug in React, or because ' +
                    'a component reassigns its own `this.state`. ' +
                    'Please file an issue.',
                  getComponentName(finishedWork.type) || 'instance',
                );
              }
            }
          }
          // 执行钩子
          const snapshot = instance.getSnapshotBeforeUpdate(
            finishedWork.elementType === finishedWork.type
              ? prevProps
              : resolveDefaultProps(finishedWork.type, prevProps),
            prevState,
          );
          if (__DEV__) {
            const didWarnSet = ((didWarnAboutUndefinedSnapshotBeforeUpdate: any): Set<mixed>);
            if (snapshot === undefined && !didWarnSet.has(finishedWork.type)) {
              didWarnSet.add(finishedWork.type);
              console.error(
                '%s.getSnapshotBeforeUpdate(): A snapshot value (or null) ' +
                  'must be returned. You have returned undefined.',
                getComponentName(finishedWork.type),
              );
            }
          }
          instance.__reactInternalSnapshotBeforeUpdate = snapshot;
        }
      }
      return;
    }
    case HostRoot: {
      if (supportsMutation) {
        if (finishedWork.flags & Snapshot) {
          const root = finishedWork.stateNode;
          clearContainer(root.containerInfo);
        }
      }
      return;
    }
    case HostComponent:
    case HostText:
    case HostPortal:
    case IncompleteClassComponent:
      // Nothing to do for these component types
      return;
  }
  invariant(
    false,
    'This unit of work tag should not have side-effects. This error is ' +
      'likely caused by a bug in React. Please file an issue.',
  );
}

第二次遍历执行commitMutationEffects

function commitMutationEffects(
  root: FiberRoot,
  renderPriorityLevel: ReactPriorityLevel,
) {
  // TODO: Should probably move the bulk of this function to commitWork.
  while (nextEffect !== null) {
    setCurrentDebugFiberInDEV(nextEffect);

    const flags = nextEffect.flags;

    // if flags == 'ContentReset 重置文本
    if (flags & ContentReset) {
      // 如果文本发生改变执行commitResetTextContent，更新文本
      commitResetTextContent(nextEffect);
    }

    // flags == 'Ref' ，更新ref current
    if (flags & Ref) {
      const current = nextEffect.alternate;
      if (current !== null) {
        //更新ref的值
        commitDetachRef(current);
      }
      if (enableScopeAPI) {
        // TODO: This is a temporary solution that allowed us to transition away
        // from React Flare on www.
        if (nextEffect.tag === ScopeComponent) {
          commitAttachRef(nextEffect);
        }
      }
    }

    // The following switch statement is only concerned about placement,
    // updates, and deletions. To avoid needing to add a case for every possible
    // bitmap value, we remove the secondary effects from the effect tag and
    // switch on that value.

    // 更新操作，插入，更新，删除
    const primaryFlags = flags & (Placement | Update | Deletion | Hydrating);
    switch (primaryFlags) {
      case Placement: { // 插入
        commitPlacement(nextEffect);
        // Clear the "placement" from effect tag so that we know that this is
        // inserted, before any life-cycles like componentDidMount gets called.
        // TODO: findDOMNode doesn't rely on this any more but isMounted does
        // and isMounted is deprecated anyway so we should be able to kill this.
        nextEffect.flags &= ~Placement;
        break;
      }
      case PlacementAndUpdate: { // 插入并更新
        // Placement
        commitPlacement(nextEffect);
        // Clear the "placement" from effect tag so that we know that this is
        // inserted, before any life-cycles like componentDidMount gets called.
        nextEffect.flags &= ~Placement;

        // Update
        const current = nextEffect.alternate;
        commitWork(current, nextEffect);
        break;
      }
      // 混合类型
      case Hydrating: {
        nextEffect.flags &= ~Hydrating;
        break;
      }
      case HydratingAndUpdate: {
        nextEffect.flags &= ~Hydrating;

        // Update
        const current = nextEffect.alternate;
        commitWork(current, nextEffect);
        break;
      }
      case Update: {
        const current = nextEffect.alternate;
        commitWork(current, nextEffect);
        break;
      }
      case Deletion: {
        commitDeletion(root, nextEffect, renderPriorityLevel);
        break;
      }
    }

    resetCurrentDebugFiberInDEV();
    nextEffect = nextEffect.nextEffect;
  }
}

commitMutationEffects 函数会第二次遍历effectLists，根据flags的类型与定义类型进行位运算。

• 其中ContentReset、Ref、ScopeComponent为特殊类型，如果当前副作用flags匹配上。则回去执行对应的函数。

  • ContentReset：执行commitResetTextContent函数，进行文本内容重置更新。
  • Ref：执行commitDetachRef函数，获取更新最新的ref值。
  • ScopeComponent：commitAttachRef

• PlaceMent、Deletion、Update、Hydrating等为不同的处理类型。

  • PlaceMent: commitPlacement插入dom操作。
  • Update: commitWork更新dom操作。
  • Deletion: commitDeletion删除dom操作。

commitPlacement

function commitPlacement(finishedWork: Fiber): void {
  if (!supportsMutation) {
    return;
  }

  // Recursively insert all host nodes into the parent.
  // 获取父级fiber
  const parentFiber = getHostParentFiber(finishedWork);

  // Note: these two variables *must* always be updated together.
  let parent;
  let isContainer;

  const parentStateNode = parentFiber.stateNode;
  switch (parentFiber.tag) {
    case HostComponent:
      parent = parentStateNode;
      isContainer = false;
      break;
    case HostRoot:
      parent = parentStateNode.containerInfo;
      isContainer = true;
      break;
    case HostPortal:
      parent = parentStateNode.containerInfo;
      isContainer = true;
      break;
    case FundamentalComponent:
      if (enableFundamentalAPI) {
        parent = parentStateNode.instance;
        isContainer = false;
      }
    // eslint-disable-next-line-no-fallthrough
    default:
      invariant(
        false,
        'Invalid host parent fiber. This error is likely caused by a bug ' +
          'in React. Please file an issue.',
      );
  }
  if (parentFiber.flags & ContentReset) {
    // Reset the text content of the parent before doing any insertions
    // 如果父级的内容是文本，清空文本
    resetTextContent(parent);
    // Clear ContentReset from the effect tag
    parentFiber.flags &= ~ContentReset;
  }

  const before = getHostSibling(finishedWork);
  // We only have the top Fiber that was inserted but we need to recurse down its
  // children to find all the terminal nodes.
  // 根据容器不同执行不同函数
  if (isContainer) {
    // 这里熟不熟悉？
    insertOrAppendPlacementNodeIntoContainer(finishedWork, before, parent);
  } else {
    insertOrAppendPlacementNode(finishedWork, before, parent);
  }
}

insertOrAppendPlacementNodeIntoContainer上一章讲到创建真实dom之后的dom插入，就是在这个函数里面去进行的。

insertOrAppendPlacementNodeIntoContainer

function insertOrAppendPlacementNodeIntoContainer(
  node: Fiber,
  before: ?Instance,
  parent: Container,
): void {
  const {tag} = node;
  // 是否是原生节点
  const isHost = tag === HostComponent || tag === HostText;
  if (isHost || (enableFundamentalAPI && tag === FundamentalComponent)) {
    const stateNode = isHost ? node.stateNode : node.stateNode.instance;
    if (before) {
      // 头部插入
      insertInContainerBefore(parent, stateNode, before);
    } else {
      // 追加
      appendChildToContainer(parent, stateNode);
    }
  } else if (tag === HostPortal) {
    // If the insertion itself is a portal, then we don't want to traverse
    // down its children. Instead, we'll get insertions from each child in
    // the portal directly.
  } else {
    const child = node.child;
    if (child !== null) {
      // 子元素非null，继续递归
      insertOrAppendPlacementNodeIntoContainer(child, before, parent);
      let sibling = child.sibling;
      while (sibling !== null) {
        // 兄弟不为null，继续递归
        insertOrAppendPlacementNodeIntoContainer(sibling, before, parent);
        sibling = sibling.sibling;
      }
    }
  }
}

insertInContainerBefore

当before不为null的时候，则需要在某节点前面插入dom节点。

// packages/react-dom/src/client/ReactDOMHostConfig.js
export function insertInContainerBefore(
  container: Container,
  child: Instance | TextInstance,
  beforeChild: Instance | TextInstance | SuspenseInstance,
): void {
  // COMMENT_NODE注释类型
  if (container.nodeType === COMMENT_NODE) {
    // 如果当前节点的父节点为注释类型，就在父级的父级插入
    (container.parentNode: any).insertBefore(child, beforeChild);
  } else {
    // 在当前父级插入新的 dom
    container.insertBefore(child, beforeChild);
  }
}

appendChildToContainer

当before为null的时候，则需要在某节点后面追加dom节点。

export function appendChildToContainer(
  container: Container,
  child: Instance | TextInstance,
): void {
  let parentNode;
  // COMMENT_NODE注释类型
  if (container.nodeType === COMMENT_NODE) {
    // 如果当前节点的父节点为注释类型，就在父级的父级插入
    parentNode = (container.parentNode: any);
    parentNode.insertBefore(child, container);
  } else {
   // 在当前父级插入新的 dom
    parentNode = container;
    parentNode.appendChild(child);
  }
  // ...
}

insertOrAppendPlacementNode

function insertOrAppendPlacementNode(
  node: Fiber,
  before: ?Instance,
  parent: Instance,
): void {
  const {tag} = node;
  // 是否原生标签
  const isHost = tag === HostComponent || tag === HostText;
  if (isHost || (enableFundamentalAPI && tag === FundamentalComponent)) {
    const stateNode = isHost ? node.stateNode : node.stateNode.instance;
    // 插入
    if (before) {
      insertBefore(parent, stateNode, before);
    } else {
      appendChild(parent, stateNode);
    }
  } else if (tag === HostPortal) {
    // If the insertion itself is a portal, then we don't want to traverse
    // down its children. Instead, we'll get insertions from each child in
    // the portal directly.
  } else {
    const child = node.child;
    if (child !== null) {
      insertOrAppendPlacementNode(child, before, parent);
      let sibling = child.sibling;
      while (sibling !== null) {
        insertOrAppendPlacementNode(sibling, before, parent);
        sibling = sibling.sibling;
      }
    }
  }
}

insertBefore

export function insertBefore(
  parentInstance: Instance,
  child: Instance | TextInstance,
  beforeChild: Instance | TextInstance | SuspenseInstance,
): void {
  // 这里没有需要判断父节点为注释
  parentInstance.insertBefore(child, beforeChild);
}

那么commitPlaceMent的执行流程如下：

commitWork

commitWork的作用就是更新dom节点，那么我们一起来看看他的源码：

function commitWork(current: Fiber | null, finishedWork: Fiber): void {
  ...
  switch (finishedWork.tag) {
    case FunctionComponent:
    case ForwardRef:
    case MemoComponent:
    case SimpleMemoComponent:
    case Block: {
      ...
    }
    case ClassComponent: {
      return;
    }
    case HostComponent: {
      // 获取真实dom实例
      const instance: Instance = finishedWork.stateNode;
      if (instance != null) {
        // Commit the work prepared earlier.

        // 提前准备新的props
        const newProps = finishedWork.memoizedProps;
        // For hydration we reuse the update path but we treat the oldProps
        // as the newProps. The updatePayload will contain the real change in
        // this case.
        // 获取老的props
        const oldProps = current !== null ? current.memoizedProps : newProps;
        const type = finishedWork.type;
        // TODO: Type the updateQueue to be specific to host components.

        // 获取更新队列
        const updatePayload: null | UpdatePayload = (finishedWork.updateQueue: any);
        finishedWork.updateQueue = null;
        if (updatePayload !== null) {
          // 提交更新
          commitUpdate(
            instance,
            updatePayload,
            type,
            oldProps,
            newProps,
            finishedWork,
          );
        }
      }
      return;
    }
    case HostText: {
      invariant(
        finishedWork.stateNode !== null,
        'This should have a text node initialized. This error is likely ' +
          'caused by a bug in React. Please file an issue.',
      );
      // 获取文本节点dom实例
      const textInstance: TextInstance = finishedWork.stateNode;
      // 新的内容
      const newText: string = finishedWork.memoizedProps;
      // For hydration we reuse the update path but we treat the oldProps
      // as the newProps. The updatePayload will contain the real change in
      // this case.
      // 老的内容
      const oldText: string =
        current !== null ? current.memoizedProps : newText;
       // 内容更新
      commitTextUpdate(textInstance, oldText, newText);
      return;
    }
    case HostRoot: {
      ...
    }
}

由此可见commitWork中，也是根据不同的组件类型去做不同的处理的。但是主要的还是处理HostComponent和HostText。

• 处理HostComponent的时候，一开始就会获取当前dom的实例，新的老的props，之后便是调用commitUpdate去提交更新。
• HostText中，也是获取节点实例与节点的新老内容，之后调用commitTextUpdate去提交更新。

commitUpdate

export function commitUpdate(
  domElement: Instance,
  updatePayload: Array<mixed>,
  type: string,
  oldProps: Props,
  newProps: Props,
  internalInstanceHandle: Object,
): void {
  // Update the props handle so that we know which props are the ones with
  // with current event handlers.

  // 绑定对应的props
  updateFiberProps(domElement, newProps);
  // Apply the diff to the DOM node.

  //应用到dom上
  updateProperties(domElement, updatePayload, type, oldProps, newProps);
}

commitUpdate中通过updateFiberProps给当前的fiber绑定上已知的props，再通过updateProperties应用到dom上。

updateFiberProps

export function updateFiberProps(
  node: Instance | TextInstance | SuspenseInstance,
  props: Props,
): void {
  // 一对一绑定props
  (node: any)[internalPropsKey] = props;
}

updateProperties

// packages/react-dom/src/client/ReactDOMComponent.js

export function updateProperties(
  domElement: Element,
  updatePayload: Array<any>,
  tag: string,
  lastRawProps: Object,
  nextRawProps: Object,
): void {
  // Update checked *before* name.
  // In the middle of an update, it is possible to have multiple checked.
  // When a checked radio tries to change name, browser makes another radio's checked false.
  // 表单特殊处理
  if (
    tag === 'input' &&
    nextRawProps.type === 'radio' &&
    nextRawProps.name != null
  ) {
    ReactDOMInputUpdateChecked(domElement, nextRawProps);
  }

  // 用户自定义组件
  const wasCustomComponentTag = isCustomComponent(tag, lastRawProps);
  const isCustomComponentTag = isCustomComponent(tag, nextRawProps);

  // Apply the diff.
  // 应用diff后的结果到dom上
  updateDOMProperties(
    domElement,
    updatePayload,
    wasCustomComponentTag,
    isCustomComponentTag,
  );

  // TODO: Ensure that an update gets scheduled if any of the special props
  // changed.

  //处理表单特殊情况
  switch (tag) {
    case 'input':
      // Update the wrapper around inputs *after* updating props. This has to
      // happen after `updateDOMProperties`. Otherwise HTML5 input validations
      // raise warnings and prevent the new value from being assigned.
      ReactDOMInputUpdateWrapper(domElement, nextRawProps);
      break;
    case 'textarea':
      ReactDOMTextareaUpdateWrapper(domElement, nextRawProps);
      break;
    case 'select':
      // <select> value update needs to occur after <option> children
      // reconciliation
      ReactDOMSelectPostUpdateWrapper(domElement, nextRawProps);
      break;
  }
}

updateProperties会根据fiber的tag类型，去对表单类的组件做特殊处理，并通过updateDOMProperties函数去将diff的结果，应用到真实dom上。

updateDOMProperties

function updateDOMProperties(
  domElement: Element,
  updatePayload: Array<any>,
  wasCustomComponentTag: boolean,
  isCustomComponentTag: boolean,
): void {
  // TODO: Handle wasCustomComponentTag
  for (let i = 0; i < updatePayload.length; i += 2) {
    const propKey = updatePayload[i];
    const propValue = updatePayload[i + 1];
    // 处理style
    if (propKey === STYLE) {
      setValueForStyles(domElement, propValue);
      // 处理内容
    } else if (propKey === DANGEROUSLY_SET_INNER_HTML) {
      setInnerHTML(domElement, propValue);
    } else if (propKey === CHILDREN) {
    //处理文本
      setTextContent(domElement, propValue);
    } else {
      // 其他处理
      setValueForProperty(domElement, propKey, propValue, isCustomComponentTag);
    }
  }
}

updateDOMProperties函数中会去遍历updatePayload执行，直接映射到真实dom节点属性上。并且处理key为STYLE、DANGEROUSLY_SET_INNER_HTML、CHILDREN的情况，从而完善了dom节点的更新。

commitTextUpdate

export function commitTextUpdate(
  textInstance: TextInstance,
  oldText: string,
  newText: string,
): void {
  //处理文本内容直接赋值
  textInstance.nodeValue = newText;
}

所以commitWork大致处理流程如下:

commitDeletion

function commitDeletion(
  finishedRoot: FiberRoot,
  current: Fiber,
  renderPriorityLevel: ReactPriorityLevel,
): void {
  if (supportsMutation) {
    // Recursively delete all host nodes from the parent.
    // Detach refs and call componentWillUnmount() on the whole subtree.

    unmountHostComponents(finishedRoot, current, renderPriorityLevel);
  } else {
    // Detach refs and call componentWillUnmount() on the whole subtree.
    commitNestedUnmounts(finishedRoot, current, renderPriorityLevel);
  }

  // Reset fiber
  const alternate = current.alternate;
  detachFiberMutation(current);
  if (alternate !== null) 1{
    detachFiberMutation(alternate);
  }
}

commitDeletion为删除副作用节点的入口函数，在实际的React项目中，组件的组件的删除包括组件的节点挂在时候的删除、生命周期的卸载、执行上下文的销毁。在这里我们还是一起来看看unmountHostComponents和commitNestedUnmounts究竟做了什么事情。

unmountHostComponents

// packages/react-reconciler/src/ReactFiberCommitWork.old.js
function unmountHostComponents(
  finishedRoot: FiberRoot,
  current: Fiber,
  renderPriorityLevel: ReactPriorityLevel,
): void {

  let node: Fiber = current;
  let currentParentIsValid = false;
  let currentParent;
  let currentParentIsContainer;

  while (true) {
    if (!currentParentIsValid) {
      // 父节点非法，找父节点的上一个父级
      let parent = node.return;
      // 深度优先遍历
      findParent: while (true) {
        invariant(
          parent !== null,
          'Expected to find a host parent. This error is likely caused by ' +
            'a bug in React. Please file an issue.',
        );
        const parentStateNode = parent.stateNode;

        switch (parent.tag) {
          case HostComponent:
            currentParent = parentStateNode;
            currentParentIsContainer = false;
            break findParent;
          case HostRoot:
            currentParent = parentStateNode.containerInfo;
            currentParentIsContainer = true;
            break findParent;
          case HostPortal:
            currentParent = parentStateNode.containerInfo;
            currentParentIsContainer = true;
            break findParent;
          case FundamentalComponent:
            if (enableFundamentalAPI) {
              currentParent = parentStateNode.instance;
              currentParentIsContainer = false;
            }
        }
        parent = parent.return;
      }
      currentParentIsValid = true;
    }

    // 原生组件处理
    if (node.tag === HostComponent || node.tag === HostText) {
      commitNestedUnmounts(finishedRoot, node, renderPriorityLevel);
      // 当前父级是容器
      if (currentParentIsContainer) {

        // 把child从container中移除
        removeChildFromContainer(
          ((currentParent: any): Container),
          (node.stateNode: Instance | TextInstance),
        );
      } else {
        // 是节点，把child从父节点中移除
        removeChild(
          ((currentParent: any): Instance),
          (node.stateNode: Instance | TextInstance),
        );
      }
      // Don't visit children because we already visited them.
    } else if (enableFundamentalAPI && node.tag === FundamentalComponent) {
      const fundamentalNode = node.stateNode.instance;
      commitNestedUnmounts(finishedRoot, node, renderPriorityLevel);
      // After all the children have unmounted, it is now safe to remove the
      // node from the tree.
      if (currentParentIsContainer) {
        removeChildFromContainer(
          ((currentParent: any): Container),
          (fundamentalNode: Instance),
        );
      } else {
        removeChild(
          ((currentParent: any): Instance),
          (fundamentalNode: Instance),
        );
      }
    } else if (
      enableSuspenseServerRenderer &&
      node.tag === DehydratedFragment
    ) {
      if (enableSuspenseCallback) {
        const hydrationCallbacks = finishedRoot.hydrationCallbacks;
        if (hydrationCallbacks !== null) {
          const onDeleted = hydrationCallbacks.onDeleted;
          if (onDeleted) {
            onDeleted((node.stateNode: SuspenseInstance));
          }
        }
      }

      // Delete the dehydrated suspense boundary and all of its content.
      if (currentParentIsContainer) {
        clearSuspenseBoundaryFromContainer(
          ((currentParent: any): Container),
          (node.stateNode: SuspenseInstance),
        );
      } else {
        clearSuspenseBoundary(
          ((currentParent: any): Instance),
          (node.stateNode: SuspenseInstance),
        );
      }
    } else if (node.tag === HostPortal) {
      if (node.child !== null) {
        // When we go into a portal, it becomes the parent to remove from.
        // We will reassign it back when we pop the portal on the way up.
        currentParent = node.stateNode.containerInfo;
        currentParentIsContainer = true;
        // Visit children because portals might contain host components.
        node.child.return = node;
        node = node.child;
        continue;
      }
    } else {
      commitUnmount(finishedRoot, node, renderPriorityLevel);
      // Visit children because we may find more host components below.
      // 深度优先遍历子节点
      if (node.child !== null) {
        node.child.return = node;
        node = node.child;
        continue;
      }
    }
    // 当前fiber树遍历完毕
    if (node === current) {
      return;
    }
    // 兄弟节点遍历完毕，当前子树遍历完毕
    while (node.sibling === null) {
      if (node.return === null || node.return === current) {
        return;
      }
      node = node.return;
      if (node.tag === HostPortal) {
        // When we go out of the portal, we need to restore the parent.
        // Since we don't keep a stack of them, we will search for it.
        currentParentIsValid = false;
      }
    }
    // 继续遍历兄弟节点
    node.sibling.return = node.return;
    node = node.sibling;
  }
}

commitNestedUnmounts

function commitNestedUnmounts(
  finishedRoot: FiberRoot,
  root: Fiber,
  renderPriorityLevel: ReactPriorityLevel,
): void {
  let node: Fiber = root;
  while (true) {
    // 深度优先，执行commitUnmount
    commitUnmount(finishedRoot, node, renderPriorityLevel);
    ...
    if (
      node.child !== null &&
      // If we use mutation we drill down into portals using commitUnmount above.
      // If we don't use mutation we drill down into portals here instead.
      (!supportsMutation || node.tag !== HostPortal)
    ) {
      // 深度优先遍历子节点
      node.child.return = node;
      node = node.child;
      continue;
    }
    // 当前fiber遍历完毕
    if (node === root) {
      return;
    }
    // 兄弟节点没有，当前子树遍历完毕
    while (node.sibling === null) {
      if (node.return === null || node.return === root) {
        return;
      }
      node = node.return;
    }
    // 继续遍历当前子树的兄弟
    node.sibling.return = node.return;
    node = node.sibling;
  }
}

这两个函数的区别就在于没有判断合法父级，但是之后都会去执行commitUnmount函数。

commitUnmount

function commitUnmount(
  finishedRoot: FiberRoot,
  current: Fiber,
  renderPriorityLevel: ReactPriorityLevel,
): void {
  onCommitUnmount(current);

  switch (current.tag) {
    ...
    case ClassComponent: {
      // ref = null
      safelyDetachRef(current);

      const instance = current.stateNode;
      if (typeof instance.componentWillUnmount === 'function') {

        // componentWillUnMount()
        safelyCallComponentWillUnmount(current, instance);
      }
      return;
    }
    case HostComponent: {
      // ref =null
      safelyDetachRef(current);
      return;
    }
    case HostPortal: {
      // TODO: this is recursive.
      // We are also not using this parent because
      // the portal will get pushed immediately.
      if (supportsMutation) {
        // 遍历子树
        unmountHostComponents(finishedRoot, current, renderPriorityLevel);
      } else if (supportsPersistence) {
        emptyPortalContainer(current);
      }
      return;
    }
    ...
  }
}

commitUmount函数会对组件的ref进行卸载，类组件则会执行componentWillUnMount钩子函数。他的执行流程大致如下：

那么经理上述过程就完成了dom的一系列操作。

第三次遍历执行commitLayoutEffects

第三次遍历effectList，则会去执行一系列生命周期函数，如componentDidMount、componentDidUpdate、对于函数组件来讲此刻会执行useLayoutEffect(create, deps)的create，并且会调度useEffect的create、destroy（这个在hooks里面再去讲）。让我们来一起看看源码

function commitLayoutEffects(root: FiberRoot, committedLanes: Lanes) {
  ...
  // TODO: Should probably move the bulk of this function to commitWork.
  // 第三次遍历effect
  while (nextEffect !== null) {
    setCurrentDebugFiberInDEV(nextEffect);

    const flags = nextEffect.flags;

    if (flags & (Update | Callback)) {
      const current = nextEffect.alternate;
      // 执行生命周期钩子
      commitLayoutEffectOnFiber(root, current, nextEffect, committedLanes);
    }

    if (enableScopeAPI) {
      // TODO: This is a temporary solution that allowed us to transition away
      // from React Flare on www.

      // 更新ref
      if (flags & Ref && nextEffect.tag !== ScopeComponent) {
        commitAttachRef(nextEffect);
      }
    } else {
      if (flags & Ref) {
        commitAttachRef(nextEffect);
      }
    }

    resetCurrentDebugFiberInDEV();
    nextEffect = nextEffect.nextEffect;
  }

  ...
}

commitLayoutEffectOnFiber函数里面实例调用了componentDidMount或者componentDidUpdate，这是根据，react应用执行是挂载还是更新决定的。执行文件函数为commitLifeCycles

commitLayoutEffectOnFiber

function commitLifeCycles(
  finishedRoot: FiberRoot,
  current: Fiber | null,
  finishedWork: Fiber,
  committedLanes: Lanes,
): void {
  switch (finishedWork.tag) {
    case FunctionComponent:
    case ForwardRef:
    case SimpleMemoComponent:
    case Block: {
      // At this point layout effects have already been destroyed (during mutation phase).
      // This is done to prevent sibling component effects from interfering with each other,
      // e.g. a destroy function in one component should never override a ref set
      // by a create function in another component during the same commit.
      if (
        enableProfilerTimer &&
        enableProfilerCommitHooks &&
        finishedWork.mode & ProfileMode
      ) {
        try {
          startLayoutEffectTimer();
          commitHookEffectListMount(HookLayout | HookHasEffect, finishedWork);
        } finally {
          recordLayoutEffectDuration(finishedWork);
        }
      } else {
        commitHookEffectListMount(HookLayout | HookHasEffect, finishedWork);
      }

      schedulePassiveEffects(finishedWork);
      return;
    }
    case ClassComponent: {
      const instance = finishedWork.stateNode;
      if (finishedWork.flags & Update) {
        if (current === null) {
          // 如果 current是null的话，那么是挂载，首次渲染
          // We could update instance props and state here,
          // but instead we rely on them being set during last render.
          // TODO: revisit this when we implement resuming.
          if (__DEV__) {
            if (
              finishedWork.type === finishedWork.elementType &&
              !didWarnAboutReassigningProps
            ) {
              if (instance.props !== finishedWork.memoizedProps) {
                console.error(
                  'Expected %s props to match memoized props before ' +
                    'componentDidMount. ' +
                    'This might either be because of a bug in React, or because ' +
                    'a component reassigns its own `this.props`. ' +
                    'Please file an issue.',
                  getComponentName(finishedWork.type) || 'instance',
                );
              }
              if (instance.state !== finishedWork.memoizedState) {
                console.error(
                  'Expected %s state to match memoized state before ' +
                    'componentDidMount. ' +
                    'This might either be because of a bug in React, or because ' +
                    'a component reassigns its own `this.state`. ' +
                    'Please file an issue.',
                  getComponentName(finishedWork.type) || 'instance',
                );
              }
            }
          }
          if (
            enableProfilerTimer &&
            enableProfilerCommitHooks &&
            finishedWork.mode & ProfileMode
          ) {
            try {
              startLayoutEffectTimer();
              instance.componentDidMount();
            } finally {
              recordLayoutEffectDuration(finishedWork);
            }
          } else {
            instance.componentDidMount();
          }
        } else {
          // 如果不是则是更新，根据current来区分mount还是update
          const prevProps =
            finishedWork.elementType === finishedWork.type
              ? current.memoizedProps
              : resolveDefaultProps(finishedWork.type, current.memoizedProps);
          const prevState = current.memoizedState;
          // We could update instance props and state here,
          // but instead we rely on them being set during last render.
          // TODO: revisit this when we implement resuming.
          if (__DEV__) {
            if (
              finishedWork.type === finishedWork.elementType &&
              !didWarnAboutReassigningProps
            ) {
              if (instance.props !== finishedWork.memoizedProps) {
                console.error(
                  'Expected %s props to match memoized props before ' +
                    'componentDidUpdate. ' +
                    'This might either be because of a bug in React, or because ' +
                    'a component reassigns its own `this.props`. ' +
                    'Please file an issue.',
                  getComponentName(finishedWork.type) || 'instance',
                );
              }
              if (instance.state !== finishedWork.memoizedState) {
                console.error(
                  'Expected %s state to match memoized state before ' +
                    'componentDidUpdate. ' +
                    'This might either be because of a bug in React, or because ' +
                    'a component reassigns its own `this.state`. ' +
                    'Please file an issue.',
                  getComponentName(finishedWork.type) || 'instance',
                );
              }
            }
          }
          if (
            enableProfilerTimer &&
            enableProfilerCommitHooks &&
            finishedWork.mode & ProfileMode
          ) {
            try {
              startLayoutEffectTimer();
              instance.componentDidUpdate(
                prevProps,
                prevState,
                instance.__reactInternalSnapshotBeforeUpdate,
              );
            } finally {
              recordLayoutEffectDuration(finishedWork);
            }
          } else {
            instance.componentDidUpdate(
              prevProps,
              prevState,
              instance.__reactInternalSnapshotBeforeUpdate,
            );
          }
        }
      }

      // TODO: I think this is now always non-null by the time it reaches the
      // commit phase. Consider removing the type check.
      const updateQueue: UpdateQueue<
        *,
      > | null = (finishedWork.updateQueue: any);
      if (updateQueue !== null) {
        if (__DEV__) {
          if (
            finishedWork.type === finishedWork.elementType &&
            !didWarnAboutReassigningProps
          ) {
            if (instance.props !== finishedWork.memoizedProps) {
              console.error(
                'Expected %s props to match memoized props before ' +
                  'processing the update queue. ' +
                  'This might either be because of a bug in React, or because ' +
                  'a component reassigns its own `this.props`. ' +
                  'Please file an issue.',
                getComponentName(finishedWork.type) || 'instance',
              );
            }
            if (instance.state !== finishedWork.memoizedState) {
              console.error(
                'Expected %s state to match memoized state before ' +
                  'processing the update queue. ' +
                  'This might either be because of a bug in React, or because ' +
                  'a component reassigns its own `this.state`. ' +
                  'Please file an issue.',
                getComponentName(finishedWork.type) || 'instance',
              );
            }
          }
        }
        // We could update instance props and state here,
        // but instead we rely on them being set during last render.
        // TODO: revisit this when we implement resuming.
        commitUpdateQueue(finishedWork, updateQueue, instance);
      }
      return;
    }
    case HostRoot: {
      // TODO: I think this is now always non-null by the time it reaches the
      // commit phase. Consider removing the type check.
      const updateQueue: UpdateQueue<
        *,
      > | null = (finishedWork.updateQueue: any);
      if (updateQueue !== null) {
        let instance = null;
        if (finishedWork.child !== null) {
          switch (finishedWork.child.tag) {
            case HostComponent:
              instance = getPublicInstance(finishedWork.child.stateNode);
              break;
            case ClassComponent:
              instance = finishedWork.child.stateNode;
              break;
          }
        }
        commitUpdateQueue(finishedWork, updateQueue, instance);
      }
      return;
    }
    case HostComponent: {
      const instance: Instance = finishedWork.stateNode;

      // Renderers may schedule work to be done after host components are mounted
      // (eg DOM renderer may schedule auto-focus for inputs and form controls).
      // These effects should only be committed when components are first mounted,
      // aka when there is no current/alternate.
      if (current === null && finishedWork.flags & Update) {
        const type = finishedWork.type;
        const props = finishedWork.memoizedProps;
        commitMount(instance, type, props, finishedWork);
      }

      return;
    }
    case HostText: {
      // We have no life-cycles associated with text.
      return;
    }
    case HostPortal: {
      // We have no life-cycles associated with portals.
      return;
    }
    case Profiler: {
      if (enableProfilerTimer) {
        const {onCommit, onRender} = finishedWork.memoizedProps;
        const {effectDuration} = finishedWork.stateNode;

        const commitTime = getCommitTime();

        if (typeof onRender === 'function') {
          if (enableSchedulerTracing) {
            onRender(
              finishedWork.memoizedProps.id,
              current === null ? 'mount' : 'update',
              finishedWork.actualDuration,
              finishedWork.treeBaseDuration,
              finishedWork.actualStartTime,
              commitTime,
              finishedRoot.memoizedInteractions,
            );
          } else {
            onRender(
              finishedWork.memoizedProps.id,
              current === null ? 'mount' : 'update',
              finishedWork.actualDuration,
              finishedWork.treeBaseDuration,
              finishedWork.actualStartTime,
              commitTime,
            );
          }
        }

        if (enableProfilerCommitHooks) {
          if (typeof onCommit === 'function') {
            if (enableSchedulerTracing) {
              onCommit(
                finishedWork.memoizedProps.id,
                current === null ? 'mount' : 'update',
                effectDuration,
                commitTime,
                finishedRoot.memoizedInteractions,
              );
            } else {
              onCommit(
                finishedWork.memoizedProps.id,
                current === null ? 'mount' : 'update',
                effectDuration,
                commitTime,
              );
            }
          }

          // Schedule a passive effect for this Profiler to call onPostCommit hooks.
          // This effect should be scheduled even if there is no onPostCommit callback for this Profiler,
          // because the effect is also where times bubble to parent Profilers.
          enqueuePendingPassiveProfilerEffect(finishedWork);

          // Propagate layout effect durations to the next nearest Profiler ancestor.
          // Do not reset these values until the next render so DevTools has a chance to read them first.
          let parentFiber = finishedWork.return;
          while (parentFiber !== null) {
            if (parentFiber.tag === Profiler) {
              const parentStateNode = parentFiber.stateNode;
              parentStateNode.effectDuration += effectDuration;
              break;
            }
            parentFiber = parentFiber.return;
          }
        }
      }
      return;
    }
    case SuspenseComponent: {
      commitSuspenseHydrationCallbacks(finishedRoot, finishedWork);
      return;
    }
    case SuspenseListComponent:
    case IncompleteClassComponent:
    case FundamentalComponent:
    case ScopeComponent:
    case OffscreenComponent:
    case LegacyHiddenComponent:
      return;
  }
  invariant(
    false,
    'This unit of work tag should not have side-effects. This error is ' +
      'likely caused by a bug in React. Please file an issue.',
  );
}

我们看到了在ClassComponent还去执行了commitUpdateQueue，在HostComponent中执行了commitMount，这是因为前面我们在处理副作用的时候，只是根据副作用进行了处理，但是并没有针对处理完后的节点进行副作用清除，所以commitUpdateQueue完成了这一点。

commitUpdateQueue

export function commitUpdateQueue<State>(
  finishedWork: Fiber,
  finishedQueue: UpdateQueue<State>,
  instance: any,
): void {
  // Commit the effects
  const effects = finishedQueue.effects;
  finishedQueue.effects = null;
  if (effects !== null) {
    for (let i = 0; i < effects.length; i++) {
      const effect = effects[i];
      const callback = effect.callback;
      if (callback !== null) {
        effect.callback = null;
        callCallback(callback, instance);
      }
    }
  }
}

此函数会对finishedQueue上的effect进行遍历，如果副作用里面有callback，执行它并把当前的effect置为null。

commitMount

而在基本标准标签挂载的时候，我们会去特殊处理一些自闭合的标签为单标签。

export function commitMount(
  domElement: Instance,
  type: string,
  newProps: Props,
  internalInstanceHandle: Object,
): void {
  ...
  // 特殊处理闭合标签为单标签
  if (shouldAutoFocusHostComponent(type, newProps)) {
    ((domElement: any):
      | HTMLButtonElement
      | HTMLInputElement
      | HTMLSelectElement
      | HTMLTextAreaElement).focus();
  }
}

那么这就是React Fiber的整个commit流程了。

总结

本文主要是介绍了commit的主要流程，整个流程遍历了三次effectLists，对fiber树的组件进行了分类处理。写到这里对react的大致执行机制有了一定的了解，接下来就是做一些修修补补的工作。 目录：React源码解析系列(零) -- 全局概况
