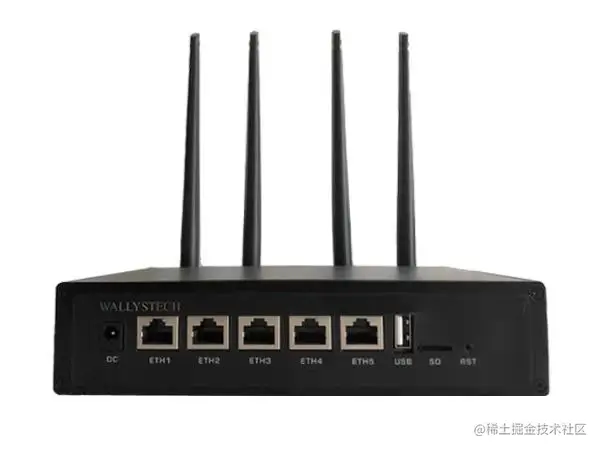

DR-AP6018-A is a 2x2 2.4G&5G high power Radio AP Router which including 1x DR6018([IPQ6010) Board;2 x 2.4G&5G dipole Antennas; 1 x PSU(DC power or PoE);
1 x Enclosure.
****Dipole antenna
■ 2 x 2.4G&5G Antenna
■ 5dBi 2.4GHz/5Ghz
■ SMA Plug interface
■ Plastic rod of black
■ RoHS compliance
Enclosure
■ Dimension: 192x 123 x 44 mm
■ Aluminum alloy material
■ Two Version :
DR-AP6018-AB : Color Black
DR-AP6018-AO: Color Orange
■ Support Wallys [DR6018]
-
Absolute Maximum Rating -
\
-
Parameter**** Rating**** Unit**** Supply Voltage 24V~48 V Operating Temperature Range -40 to +70 ºC Storage Temperature Range -45 to +105 ºC Operating Humidity Range 5 to +95 (non-condensing) % -
\
-
****Hardware Specifications -
\
-
Symbol**** Parameter**** CPU Qualcomm-Atheros IPQ6010 CPU Frequency Quad-core ARM 64 bit A53 @1.8 GHz processor System Memory 1GB (2x 512MB) DDR3L 16-bit interface with 32-bit memory bus design Ethernet Port 1 x 1Gbps Ethernet Ports & POE3 x 1Gbps Ethernet Ports , 1x 2.5Gbps Ethernet Port NGFF Slot M.2 (NGFF) “E Key” Socket with MiniPCIe 3.0 SD Card Slot 1x SD Card Slot USB /header 1x USB 2.0 Port POE 24V~48V passive POE/Active POE(Suport 802.3bt) DC Jack 24V power supply LED header FFC/FPC Connector Serial Port 1x Serial Port 4 Pin Connector Wireless On-board 2x2 2.4GHz MU-MIMO OFDMA 802.11b/g/n/ax, max 23dBm per chainOn-board 2x2 5GHz MU-MIMO OFDMA 802.11a/n/ac/ax, max 20dBm per chain4 x MMCX Connectors Bluetooth CSR8811 BLE 4.2 Nor Flash 32MB Nand Flash 256MB DDR 256MB~512MB Dimension 185mm x 116mm Commercial processes and communications are all managed utilising wireless technologies, and the number of users, devices and apps are only going to increase. Therefore, it is essential to have a robust, secure and high performing WiFi solution that is future-proofed, mobile, and scalable. Not only is business WiFi vital for your workforce and organisation, it is now imperative for visitors to be able to access a secure guest wireless network.
