一、软件功能与截图
做一款面向网络运维人员的IP通断状态检测小软件，核心是通过运行Ping命令拿到IP网络状态，目前有一个简陋UI界面，支持批量导入Excel格式的IP数据，然后自动检测网络通断。软件本体是jar包，可以通过exe4j工具打包为Windows PC机下运行的EXE程序，也可以运行到Linux操作系统。 该文档不定时更新。 未来打算支持功能点有：
- 将支持单个IP做网络通断测试，即每一个IP旁边放置一个按钮
- 将支持将IP检测结果表格导出为PDF或图片，方便分享数据
- 将支持自动不定时对IP地址做检测，动态更新检测结果
- 计划增加多线程，缩短响应时间

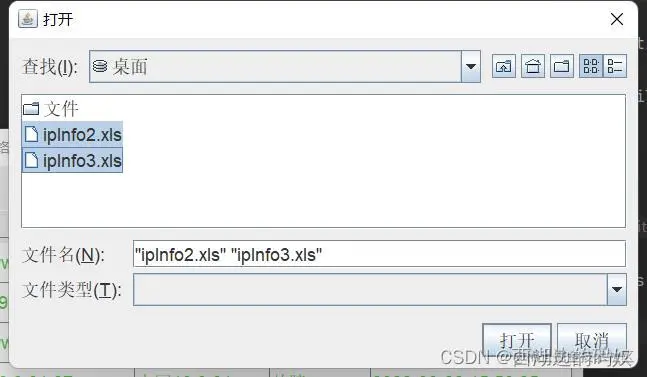

多Excel文档批量导入IP信息
1.文件支持选择多个Excel文档

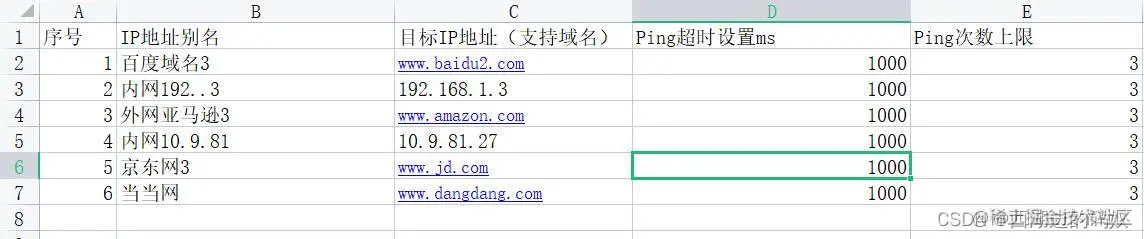

2.Excel文件的表头要求
表头名字随便取，顺序必须与截图保持一致。

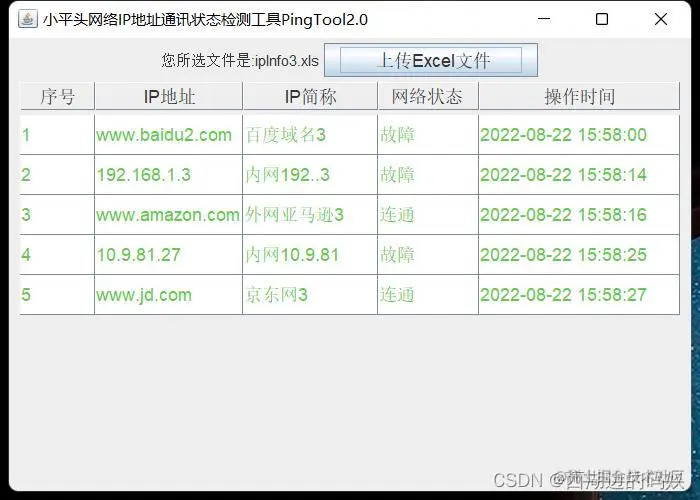

IP信息Ping结果列表展示
二、源码分享与设计
Maven-Pom依赖
<!-- POI Excel Jar-->
<dependency>
<groupId>org.apache.poi</groupId>
<artifactId>poi</artifactId>
<version>4.1.2</version>
</dependency>
<dependency>
<groupId>org.apache.poi</groupId>
<artifactId>poi-ooxml</artifactId>
<version>4.1.2</version>
</dependency>
<dependency>
<groupId>org.apache.poi</groupId>
<artifactId>poi-ooxml-schemas</artifactId>
<version>4.1.2</version>
</dependency>
Excel数据导入-基于POI包
- 负责解析Excel数据为Java对象PingInfoInputDTO的方法类:MyExcelServiceImpl
public class MyExcelServiceImpl implements EasyExcelService {
@Override
public List<PingInfoInputDTO> readExcel(File file) {
try {
// HSSFWorkbook workBook = new HSSFWorkbook(new FileInputStream(new File(file.getAbsolutePath())));
HSSFWorkbook workBook = new HSSFWorkbook(new FileInputStream(file));
//页
int sheetNum = workBook.getNumberOfSheets();
DataFormatter cellDataFormatter = new DataFormatter();
List<PingInfoInputDTO> pingInfoList = new ArrayList<>(300);
for( int i=0; i<sheetNum; i++ ){
HSSFSheet sheetData = workBook.getSheetAt(i);
//行:每行数据对应一个对象
int lastRowNum = sheetData.getLastRowNum();
for( int j=1; j<lastRowNum ; j++){
//跳过首行表头,j=1
HSSFRow rowData = sheetData.getRow(j);
//单元格
short lastCellNum = rowData.getLastCellNum();
PingInfoInputDTO pingDTO = new PingInfoInputDTO();
int k = 0;
//IpNo数据编号
pingDTO.setIpNo(cellDataFormatter.formatCellValue(rowData.getCell(k++)));
//IP地址别名
pingDTO.setIpAliasName(cellDataFormatter.formatCellValue(rowData.getCell(k++)));
//IP地址
pingDTO.setIpAddress(cellDataFormatter.formatCellValue(rowData.getCell(k++)));
//Ping超时
pingDTO.setPingTimeout(cellDataFormatter.formatCellValue(rowData.getCell(k++)));
//最大Ping次数
pingDTO.setPingMaxCount(cellDataFormatter.formatCellValue(rowData.getCell(k++)));
pingInfoList.add(pingDTO);
}
}
workBook.close();
return pingInfoList;
} catch (FileNotFoundException e) {
e.printStackTrace();
return new ArrayList<>();
} catch (IOException e) {
e.printStackTrace();
return new ArrayList<>();
}
}
}
- 接口层 EasyExcelService.java
public interface EasyExcelService {
List<PingInfoInputDTO> readExcel(File file);
}
- POJO：PingInfoInputDTO
public class PingInfoInputDTO {
//数据标识和序号
private String ipNo;
//Ping 目标地址
private String ipAddress;
//Ping地址别名
private String ipAliasName;
//Ping超时设置，默认1000ms
private String pingTimeout;
//Ping次数上限
private String pingMaxCount;
public String getIpAddress() {
return ipAddress;
}
public void setIpAddress(String ipAddress) {
this.ipAddress = ipAddress;
}
public String getPingTimeout() {
return pingTimeout;
}
public void setPingTimeout(String pingTimeout) {
this.pingTimeout = pingTimeout;
}
public String getPingMaxCount() {
return pingMaxCount;
}
public void setPingMaxCount(String pingMaxCount) {
this.pingMaxCount = pingMaxCount;
}
public String getIpAliasName() {
return ipAliasName;
}
public void setIpAliasName(String ipAliasName) {
this.ipAliasName = ipAliasName;
}
public String getIpNo() {
return ipNo;
}
public void setIpNo(String ipNo) {
this.ipNo = ipNo;
}
@Override
public String toString() {
return "PingInfoInputDTO{" +
"ipNo='" + ipNo + '\'' +
", ipAddress='" + ipAddress + '\'' +
", ipAliasName='" + ipAliasName + '\'' +
", pingTimeout='" + pingTimeout + '\'' +
", pingMaxCount='" + pingMaxCount + '\'' +
'}';
}
}
IP地址Ping方法-
- 实现类
public class PingServiceImpl implements PingService {
public PingInfoOutputDTO ping(PingInfoInputDTO infoInputDTO) {
PingInfoOutputDTO outputDTO = new PingInfoOutputDTO();
outputDTO.setInputDTO(infoInputDTO);
outputDTO.setTargetIp(infoInputDTO.getIpAddress());
BufferedReader in = null;
String pingCommand = null;
Runtime r = Runtime.getRuntime();
String osName = System.getProperty("os.name");
if(osName.contains("Windows")){
//Windows Style: ping www.baidu.com -n 3
pingCommand = "ping " + infoInputDTO.getIpAddress() + " -n " + infoInputDTO.getPingMaxCount();
}else{
//Linux Style: ping -c 10 www.baidu.com
pingCommand = "ping " + " -c " + infoInputDTO.getPingMaxCount() + " " + infoInputDTO.getIpAddress();
}
try {
//Process
System.out.println("To process command:" + pingCommand);
Process p = r.exec(pingCommand);
if (p == null) {
outputDTO.setPingStatus(false);
outputDTO.setPingRes("System Error!");
outputDTO.setPingResponseTime(new Date());
}
//Check
in = new BufferedReader(new InputStreamReader(p.getInputStream()));
int connectedCount = 0;
String line = null;
while ((line = in.readLine()) != null) {
if(osName.contains("Windows")){
if(line.contains("TTL=")){
connectedCount++;
}
}else{
if(line.contains("ttl=")){
connectedCount++;
}
}
}
System.out.println("IP: " + infoInputDTO.getIpAddress() + ",Ping Success Count:" +connectedCount);
if(connectedCount >= 1){
outputDTO.setPingResponseTime(new Date());
outputDTO.setPingStatus(true);
outputDTO.setPingRes("连通");
}else{
outputDTO.setPingResponseTime(new Date());
outputDTO.setPingStatus(false);
outputDTO.setPingRes("故障");
}
return outputDTO;
} catch (Exception ex) {
ex.printStackTrace();
return null;
} finally {
try {
in.close();
} catch (IOException e) {
e.printStackTrace();
return null;
}
}
}
}
- 接口定义
public interface PingService {
PingInfoOutputDTO ping(PingInfoInputDTO infoInputDTO);
}
GUI界面-Java Swing-程序入口
本类同时也是程序的入口
public class FrameUITest {
public static void main(String[] args) {
//校验通过的文件类型
List<File> VALID_FILE_LIST = new ArrayList<File>(6);
//校验失败的文件类型
List<File> INVALID_FILE_LIST = new ArrayList<File>(6);
int frameWidth = 700;
int frameHeight = 500;
SimpleDateFormat simpleDateFormat = new SimpleDateFormat("yyyy-MM-dd HH:mm:ss");
String appTitle = "小平头网络IP地址通讯状态检测工具PingTow2.0";
//统一设置字体
InitGlobalFont(new Font("alias", Font.PLAIN, 18));
JFrame frame = new JFrame(appTitle);
frame.setSize(frameWidth, frameHeight);
frame.setDefaultCloseOperation(WindowConstants.EXIT_ON_CLOSE);
frame.setLocationRelativeTo(null);
// 创建内容面板，指定使用 流式布局
JPanel panel = new JPanel(new FlowLayout());
// JPanel panel = new JPanel(new GridLayout(3,1));
//显示用户所选文件名称
JLabel fileNameLabel = new JLabel();
fileNameLabel.setText("您选择的文件是:_______");
fileNameLabel.setFont(new Font(null, Font.PLAIN, 15));
fileNameLabel.setSize(300,80);
panel.add(fileNameLabel);
//用于文件上传的按钮
JButton fileUploadBtn = new JButton(" 上传Excel文件 ");
fileUploadBtn.setSize(400,80);
fileUploadBtn.addActionListener(new ActionListener() {
@Override
public void actionPerformed(ActionEvent e) {
//点击按钮后打开文本框
JFileChooser chooser = new JFileChooser();
//开启文件多选
chooser.setMultiSelectionEnabled(true);
/** 过滤文件类型 * */
FileNameExtensionFilter filter = new FileNameExtensionFilter("","xls");
chooser.setFileFilter(filter);
int returnVal = chooser.showOpenDialog(fileUploadBtn);
if (returnVal == JFileChooser.APPROVE_OPTION) {
//选择的文件
File[] fileArr = chooser.getSelectedFiles();
if (fileArr == null || fileArr.length == 0) {
JOptionPane.showMessageDialog(new JDialog(), "错误!请正确选择文件.");
return;
}
//循环校验所选文件的类型
StringBuilder fileNameBuilder = new StringBuilder();
for (File item : fileArr) {
//判断是否有文件为xls或xlsx
String fileName = item.getName();
String prefix = fileName.substring(fileName.lastIndexOf(".") + 1);
if ((prefix.equals("xls") || prefix.equals("xlsx"))) {
VALID_FILE_LIST.add(item);
fileNameBuilder.append(fileName);
} else {
INVALID_FILE_LIST.add(item);
}
}
//更新UI界面用户所选文件
fileNameLabel.setText("您所选文件是:" + fileNameBuilder.toString());
System.out.println("有效文件:" + VALID_FILE_LIST + ",无效文件:" + INVALID_FILE_LIST);
//检测IP
//Excel File -> PingInfoInputDTO
List<PingInfoInputDTO> pingInfoList = new ArrayList<>(100);
EasyExcelService excelService = new MyExcelServiceImpl();
if(CollectionUtils.isNotEmpty(VALID_FILE_LIST) && !CollectionUtils.sizeIsEmpty(VALID_FILE_LIST)){
for (File file : VALID_FILE_LIST) {
List<PingInfoInputDTO> list = excelService.readExcel(file);
pingInfoList.addAll(list);
}
}
//检测IP
List<PingInfoOutputDTO> outPutList = new ArrayList<>(100);
PingService pingService = new PingServiceImpl();
if(CollectionUtils.isNotEmpty(pingInfoList) && !CollectionUtils.sizeIsEmpty(pingInfoList)){
for (PingInfoInputDTO item : pingInfoList) {
PingInfoOutputDTO out = pingService.ping(item);
outPutList.add(out);
}
}
//放一个列表展示解析结果
//转化为二维数组
String[][] tableData = new String[outPutList.size()][5];
int i=0;
for (PingInfoOutputDTO item : outPutList) {
PingInfoInputDTO inputDTO = item.getInputDTO();
tableData[i][0] = inputDTO.getIpNo();
tableData[i][1] = inputDTO.getIpAddress();
tableData[i][2] = inputDTO.getIpAliasName();
tableData[i][3] = item.getPingRes();
tableData[i][4] = simpleDateFormat.format(item.getPingResponseTime());
i++;
}
Object[] columnNames = {"序号", " IP地址 "," IP简称 ", " 网络状态 ", " 操作时间 "};
// 创建一个表格，指定 所有行数据 和 表头
JTable table = new JTable(tableData, columnNames);
table.setAutoResizeMode(JTable.AUTO_RESIZE_OFF);
table.setForeground(new Color(100,200,80));
table.setShowGrid(true);
table.setRowHeight(40);
table.setPreferredScrollableViewportSize(new Dimension((int)0.8*frameWidth,(int)0.8*frameHeight));
// 把 表头 添加到容器顶部（使用普通的中间容器添加表格时，表头 和 内容 需要分开添加）
panel.add(table.getTableHeader(), BorderLayout.NORTH);
// 把 表格内容 添加到容器中心
panel.add(table, BorderLayout.CENTER);
}
}
});
panel.add(fileUploadBtn);
frame.setContentPane(panel);
frame.setVisible(true);
}
/**
* 统一设置字体，父界面设置之后，所有由父界面进入的子界面都不需要再次设置字体
*/
private static void InitGlobalFont(Font font) {
FontUIResource fontRes = new FontUIResource(font);
for (Enumeration<Object> keys = UIManager.getDefaults().keys(); keys.hasMoreElements();) {
Object key = keys.nextElement();
Object value = UIManager.get(key);
if (value instanceof FontUIResource) {
UIManager.put(key, fontRes);
}
}
}
}
