设计模式七大原则(二)

84 阅读3分钟

1. 对单一职责原则的总结

  1. 降低类的复杂度,一个类只负责一项职责 。
  2. 提高类的可读性,可维护性
  3. 降低变更引起的风险
  4. 通常情况下,我们应当遵守单一职责原则,只有逻辑足够简单,才可以在代码级违反单一职责原则;只有类中方法数量足够少,可以在方法级别保持单一职责原则

2. 接口隔离原则(Interface Segregation Principle)

2.1. 基本介绍

  1. 客户端不应该依赖它不需要的接口,即一个类对另一个类的依赖应该建立在最小的接口上
  2. 类A通过接口Interface1依赖类B,类C通过接口Interface1依赖类D,如果接口Interface1对于类A和类C来说不是最小接口,那么类B和类D必须去实现他们不需要的方法。
  3. 按隔离原则应当这样处理:将接口Interface1 拆分为独立的几个接口,类A和类C分别与他们需要的接口建立依赖关系。也就是采用接口隔离原则

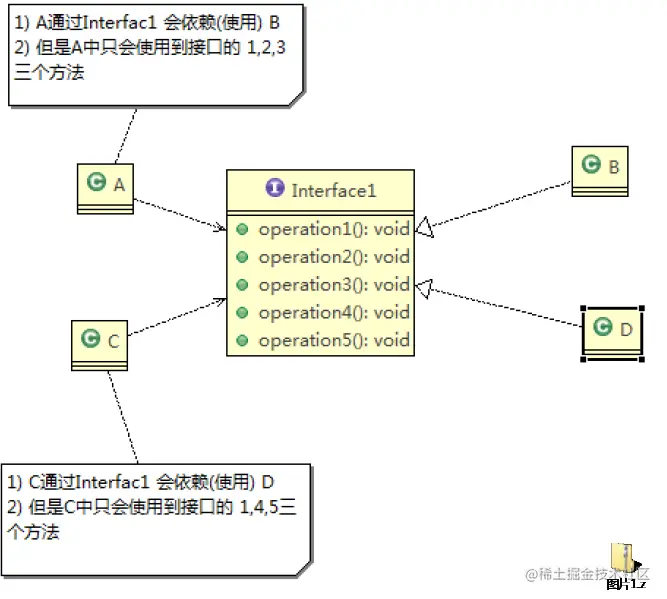

2.2. 原始代码

只有一个接口,每一个类都得实现所有的方法,这样会出现有些类将用不到的方法也进行了实现

//接口
interface Interface1 {
	void operation1();
	void operation2();
	void operation3();
	void operation4();
	void operation5();
}

class B implements Interface1 {
	public void operation1() {
		System.out.println("B 实现了 operation1");
	}

	public void operation2() {
		System.out.println("B 实现了 operation2");
	}
	public void operation3() {
		System.out.println("B 实现了 operation3");
	}
	public void operation4() {
		System.out.println("B 实现了 operation4");
	}
	public void operation5() {
		System.out.println("B 实现了 operation5");
	}
}

class D implements Interface1 {
	public void operation1() {
		System.out.println("D 实现了 operation1");
	}

	public void operation2() {
		System.out.println("D 实现了 operation2");
	}
	public void operation3() {
		System.out.println("D 实现了 operation3");
	}
	public void operation4() {
		System.out.println("D 实现了 operation4");
	}
	public void operation5() {
		System.out.println("D 实现了 operation5");
	}
}

class A { //A 类通过接口Interface1 依赖(使用) B类,但是只会用到1,2,3方法
	public void depend1(Interface1 i) {
		i.operation1();
	}
	public void depend2(Interface1 i) {
		i.operation2();
	}
	public void depend3(Interface1 i) {
		i.operation3();
	}
}

class C { //C 类通过接口Interface1 依赖(使用) D类,但是只会用到1,4,5方法
	public void depend1(Interface1 i) {
		i.operation1();
	}
	public void depend4(Interface1 i) {
		i.operation4();
	}
	public void depend5(Interface1 i) {
		i.operation5();
	}
}

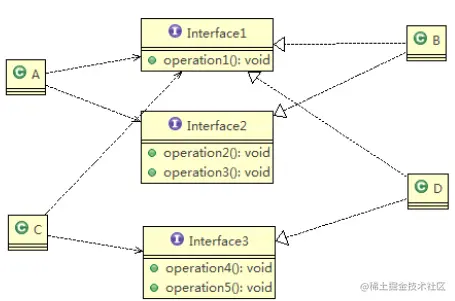

2.3. 改进代码如下

将接口进行拆分拆分成新的interfa1、interface2、interface3,A、B、C、D类分别去实现他们需要方法的接口,完成接口隔离

// 接口1
interface Interface1 {
	void operation1();

}

// 接口2
interface Interface2 {
	void operation2();

	void operation3();
}

// 接口3
interface Interface3 {
	void operation4();

	void operation5();
}

class B implements Interface1, Interface2 {
	public void operation1() {
		System.out.println("B 实现了 operation1");
	}

	public void operation2() {
		System.out.println("B 实现了 operation2");
	}

	public void operation3() {
		System.out.println("B 实现了 operation3");
	}

}

class D implements Interface1, Interface3 {
	public void operation1() {
		System.out.println("D 实现了 operation1");
	}

	public void operation4() {
		System.out.println("D 实现了 operation4");
	}

	public void operation5() {
		System.out.println("D 实现了 operation5");
	}
}

// A 类通过接口Interface1,Interface2 依赖(使用) B类,但是只会用到1,2,3方法
class A {
	public void depend1(Interface1 i) {
		i.operation1();
	}

	public void depend2(Interface2 i) {
		i.operation2();
	}

	public void depend3(Interface2 i) {
		i.operation3();
	}
}

// C 类通过接口Interface1,Interface3 依赖(使用) D类,但是只会用到1,4,5方法
class C {

	public void depend1(Interface1 i) {
		i.operation1();
	}

	public void depend4(Interface3 i) {
		i.operation4();
	}

	public void depend5(Interface3 i) {
		i.operation5();
	}
}


2.4. 总结

  1. 类A通过接口Interface1依赖类B,类C通过接口Interface1依赖类D,如果接口Interface1对于类A和类C来说不是最小接口,那么类B和类D必须去实现他们不需要的方法
  2. 将接口Interface1拆分为独立的几个接口,类A和类C分别与他们需要的接口建立依赖关系。也就是采用接口隔离原则
  3. 接口Interface1中出现的方法,根据实际情况拆分为三个接口
