5.5 显示系统通知

image-20220724211715909

1. 通知列表

数据访问层(dao)

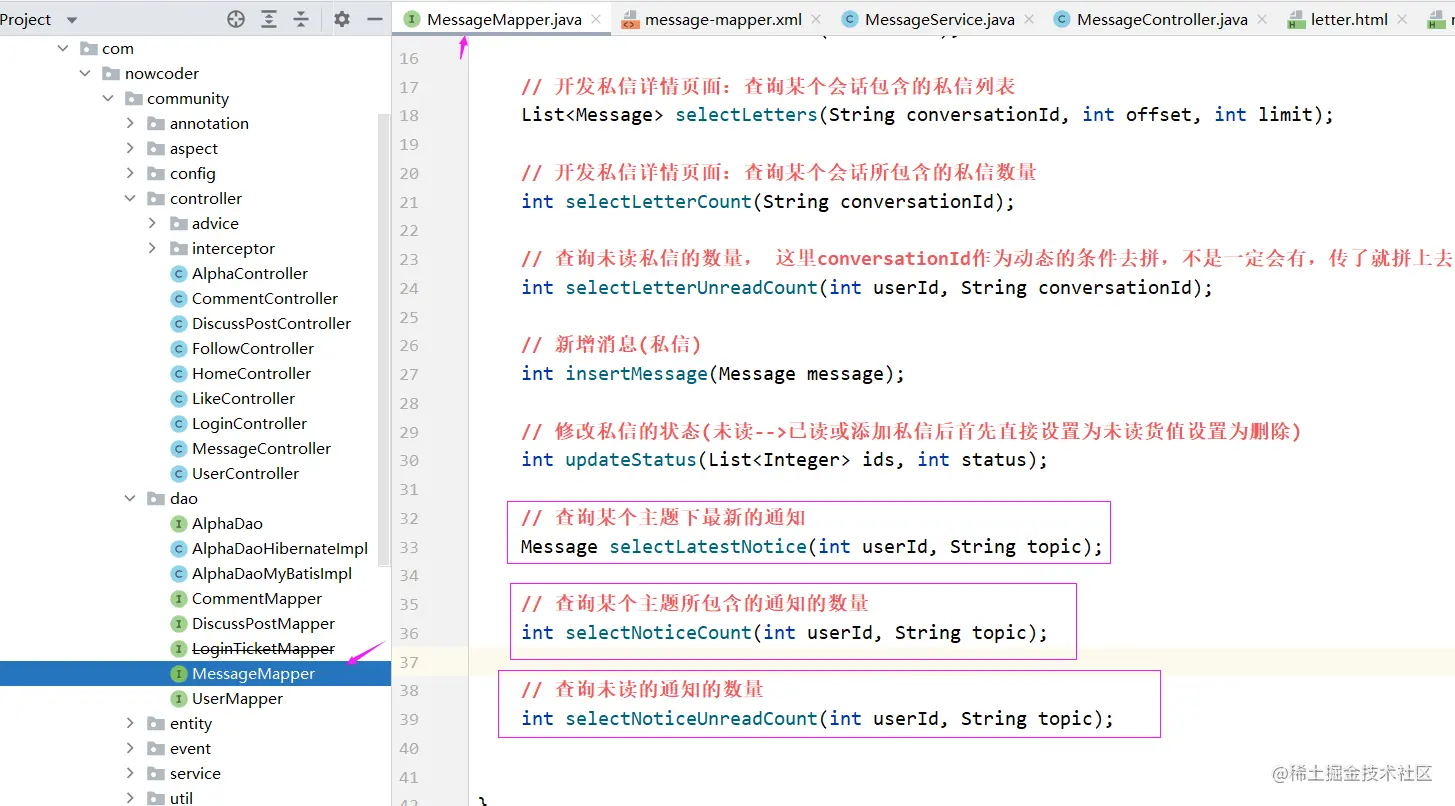

因为通知数据存到了Message表里，所以在MessageMapper里增加一些方法

// 查询某个主题下最新的通知
Message selectLatestNotice(int userId, String topic);

// 查询某个主题所包含的通知的数量
int selectNoticeCount(int userId, String topic);

// 查询未读的通知的数量
int selectNoticeUnreadCount(int userId, String topic);

image-20220725080541957

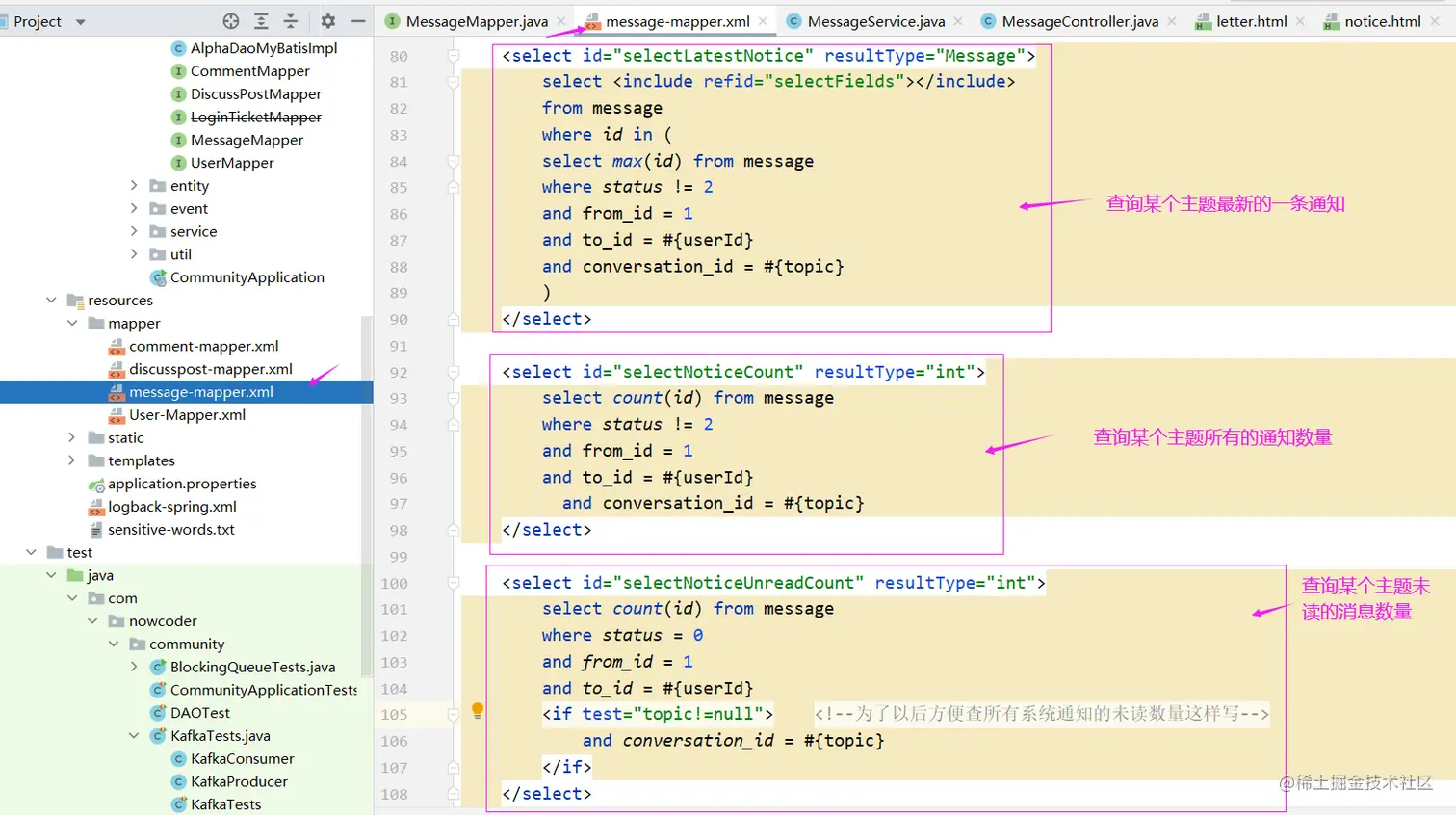

然后是message-mapper.xml

   <select id="selectLatestNotice" resultType="Message">
        select <include refid="selectFields"></include>
        from message
        where id in (
            select max(id) from message
            where status != 2
            and from_id = 1
            and to_id = #{userId}
            and conversation_id = #{topic}
        )
    </select>

    <select id="selectNoticeCount" resultType="int">
        select count(id) from message
        where status != 2
        and from_id = 1
        and to_id = #{userId}
        and conversation_id = #{topic}
    </select>

    <select id="selectNoticeUnreadCount" resultType="int">
        select count(id) from message
        where status = 0
        and from_id = 1
        and to_id = #{userId}
        <if test="topic!=null">   <!--为了以后方便查所有系统通知的未读数量这样写-->
            and conversation_id = #{topic}
        </if>
    </select>

image-20220725080742453

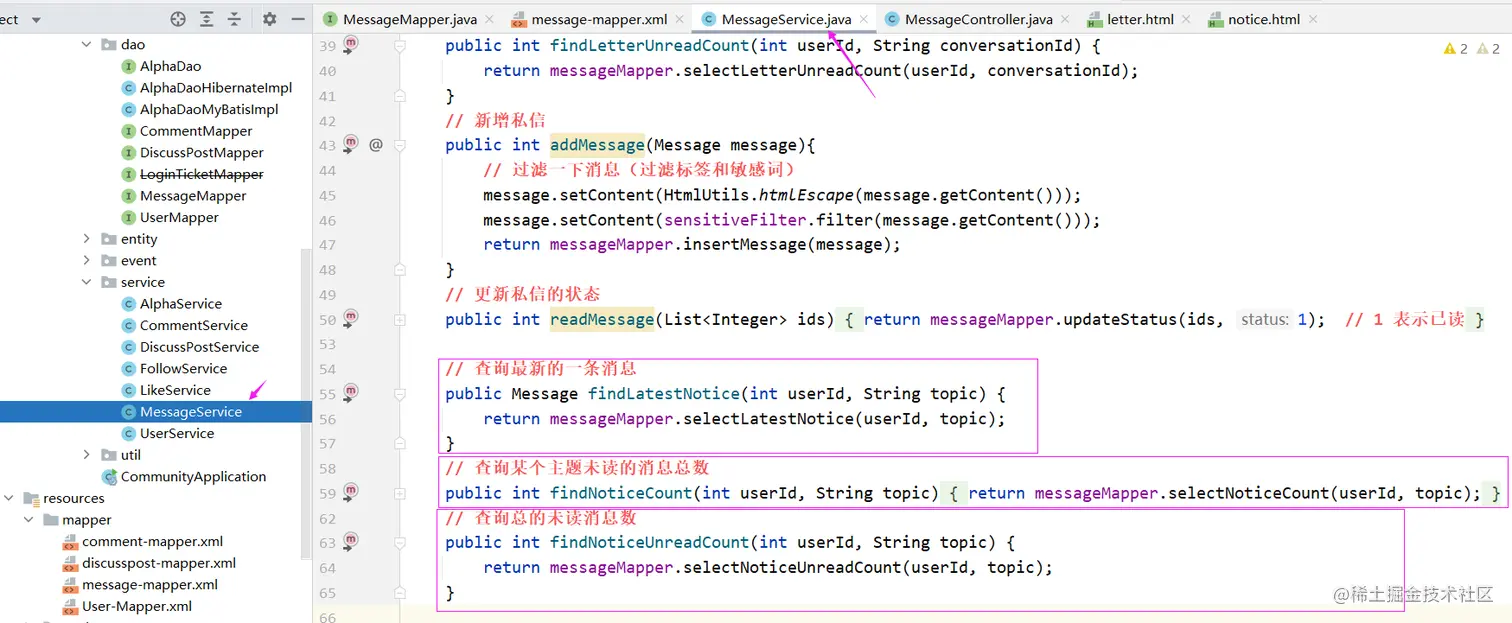

业务层(Service)

MessageService：

// 查询最新的一条消息
public Message findLatestNotice(int userId, String topic) {
    return messageMapper.selectLatestNotice(userId, topic);
}
// 查询某个主题未读的消息总数
public int findNoticeCount(int userId, String topic) {
    return messageMapper.selectNoticeCount(userId, topic);
}
// 查询总的未读消息数
public int findNoticeUnreadCount(int userId, String topic) {
    return messageMapper.selectNoticeUnreadCount(userId, topic);
}

image-20220725080905779

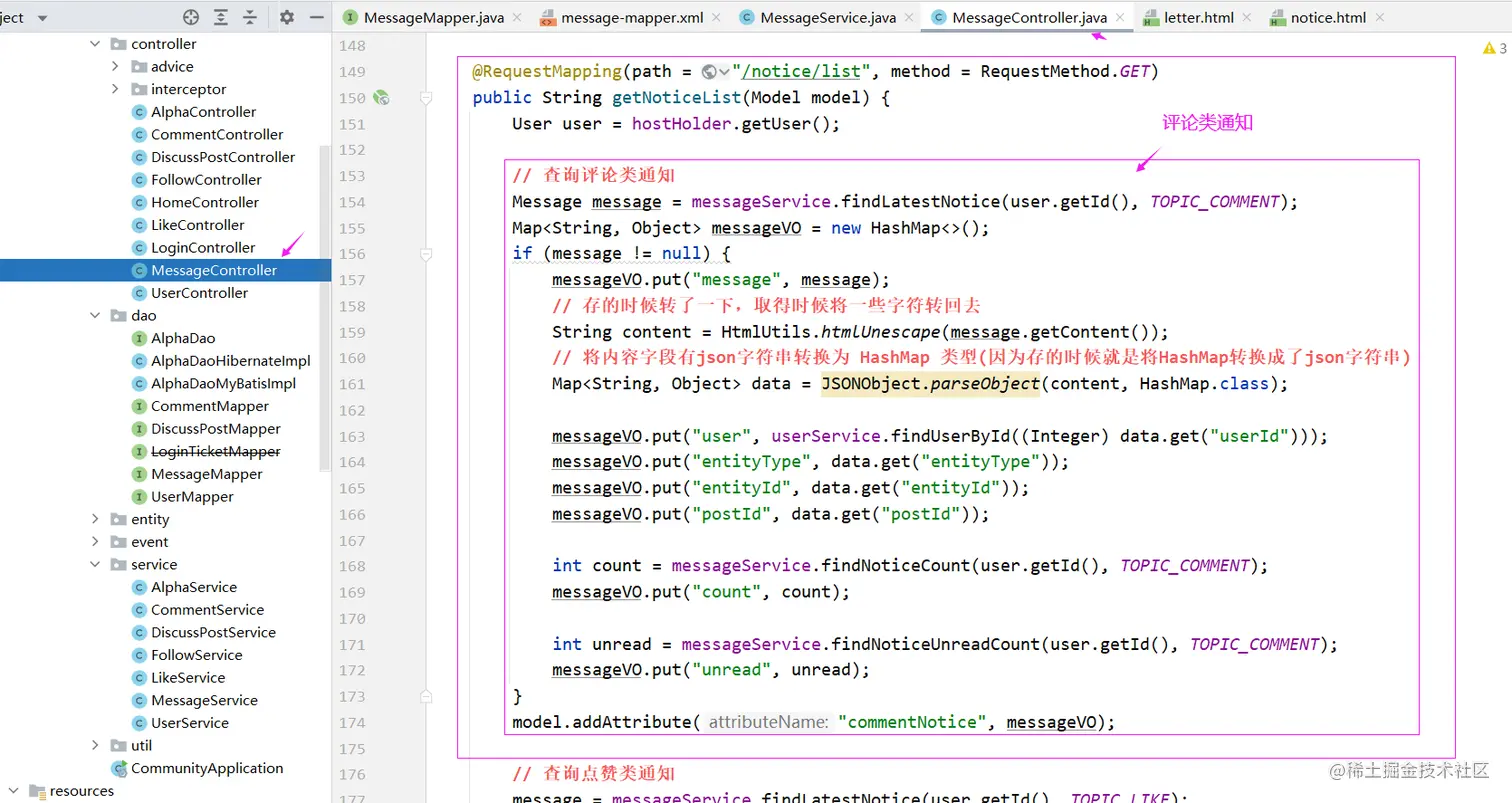

表现层(Controller)

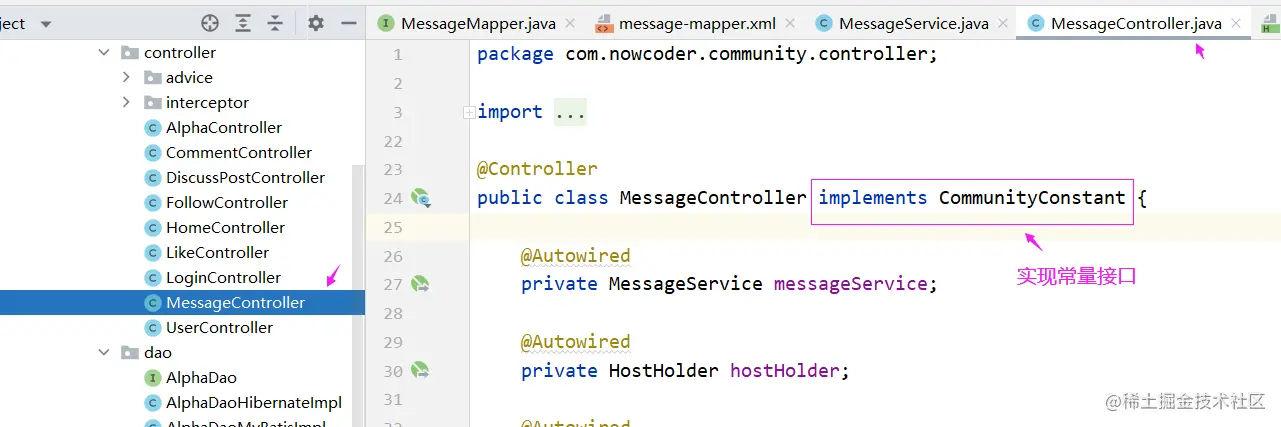

MessageController 实现 接口

@RequestMapping(path = "/notice/list", method = RequestMethod.GET)
public String getNoticeList(Model model) {
    User user = hostHolder.getUser();

    // 查询评论类通知
    Message message = messageService.findLatestNotice(user.getId(), TOPIC_COMMENT);
    Map<String, Object> messageVO = new HashMap<>();
    if (message != null) {
        messageVO.put("message", message);
        // 存的时候转了一下，取得时候将一些字符转回去
        String content = HtmlUtils.htmlUnescape(message.getContent());
        // 将内容字段有json字符串转换为 HashMap 类型(因为存的时候就是将HashMap转换成了json字符串)
        Map<String, Object> data = JSONObject.parseObject(content, HashMap.class);

        messageVO.put("user", userService.findUserById((Integer) data.get("userId")));
        messageVO.put("entityType", data.get("entityType"));
        messageVO.put("entityId", data.get("entityId"));
        messageVO.put("postId", data.get("postId"));

        int count = messageService.findNoticeCount(user.getId(), TOPIC_COMMENT);
        messageVO.put("count", count);

        int unread = messageService.findNoticeUnreadCount(user.getId(), TOPIC_COMMENT);
        messageVO.put("unread", unread);
    }
    model.addAttribute("commentNotice", messageVO);

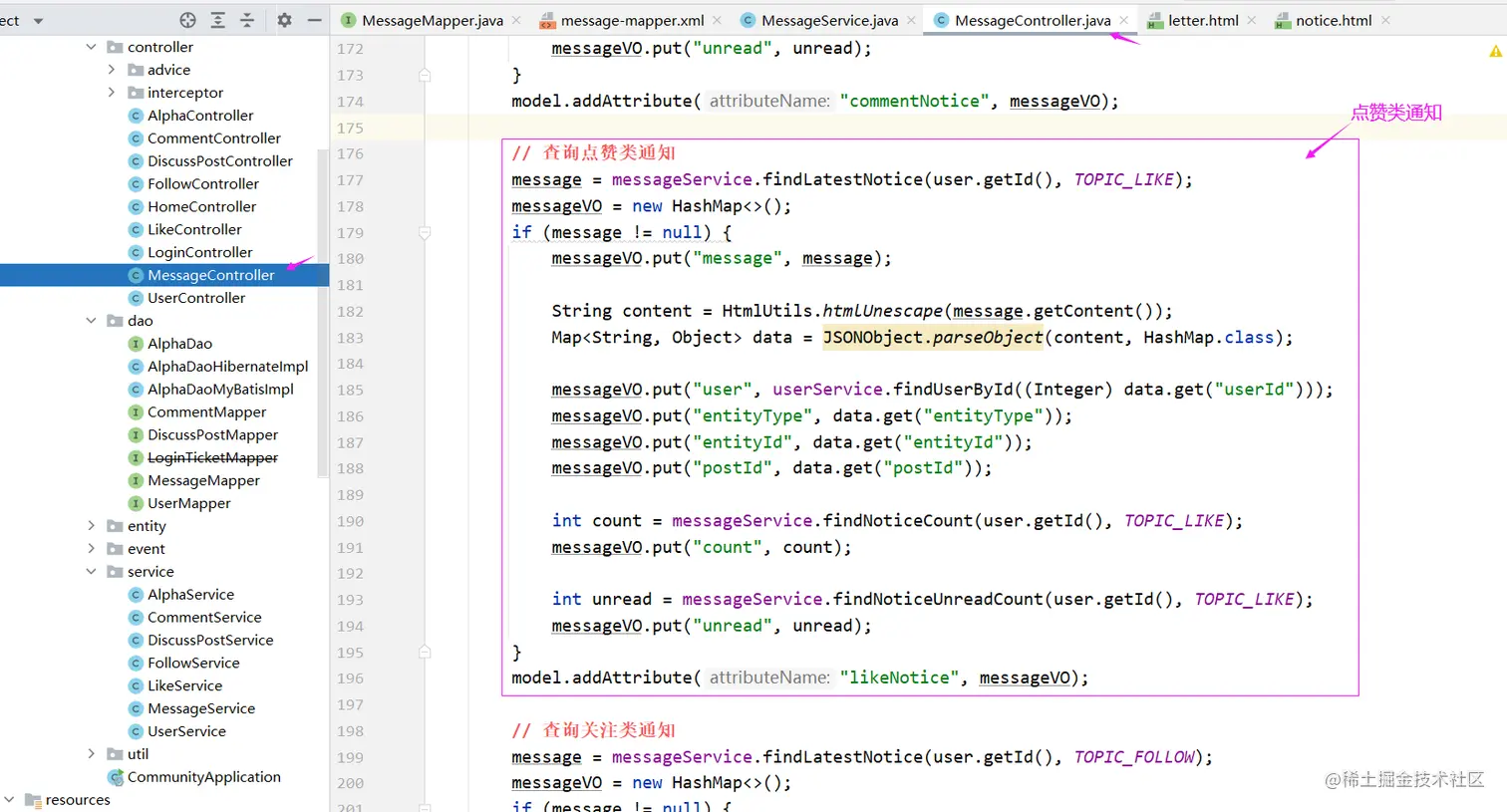

    // 查询点赞类通知
    message = messageService.findLatestNotice(user.getId(), TOPIC_LIKE);
    messageVO = new HashMap<>();
    if (message != null) {
        messageVO.put("message", message);

        String content = HtmlUtils.htmlUnescape(message.getContent());
        Map<String, Object> data = JSONObject.parseObject(content, HashMap.class);

        messageVO.put("user", userService.findUserById((Integer) data.get("userId")));
        messageVO.put("entityType", data.get("entityType"));
        messageVO.put("entityId", data.get("entityId"));
        messageVO.put("postId", data.get("postId"));

        int count = messageService.findNoticeCount(user.getId(), TOPIC_LIKE);
        messageVO.put("count", count);

        int unread = messageService.findNoticeUnreadCount(user.getId(), TOPIC_LIKE);
        messageVO.put("unread", unread);
    }
    model.addAttribute("likeNotice", messageVO);

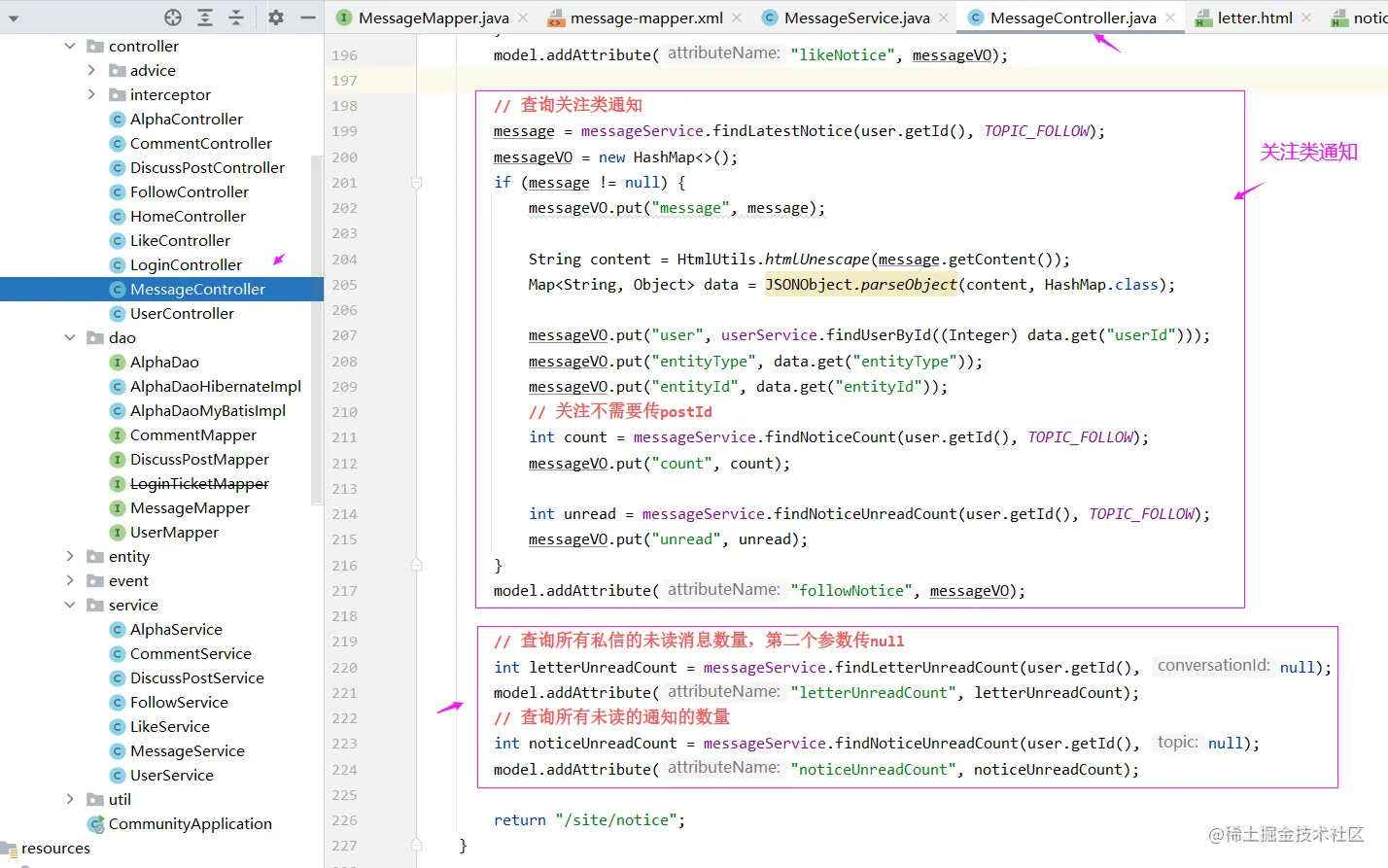

    // 查询关注类通知
    message = messageService.findLatestNotice(user.getId(), TOPIC_FOLLOW);
    messageVO = new HashMap<>();
    if (message != null) {
        messageVO.put("message", message);

        String content = HtmlUtils.htmlUnescape(message.getContent());
        Map<String, Object> data = JSONObject.parseObject(content, HashMap.class);

        messageVO.put("user", userService.findUserById((Integer) data.get("userId")));
        messageVO.put("entityType", data.get("entityType"));
        messageVO.put("entityId", data.get("entityId"));

        int count = messageService.findNoticeCount(user.getId(), TOPIC_FOLLOW);
        messageVO.put("count", count);

        int unread = messageService.findNoticeUnreadCount(user.getId(), TOPIC_FOLLOW);
        messageVO.put("unread", unread);
    }
    model.addAttribute("followNotice", messageVO);

    // 查询未读消息数量
    int letterUnreadCount = messageService.findLetterUnreadCount(user.getId(), null);
    model.addAttribute("letterUnreadCount", letterUnreadCount);
    int noticeUnreadCount = messageService.findNoticeUnreadCount(user.getId(), null);
    model.addAttribute("noticeUnreadCount", noticeUnreadCount);

    return "/site/notice";
}

image-20220725081349846

image-20220725081515516

image-20220725081551639

image-20220725081705875

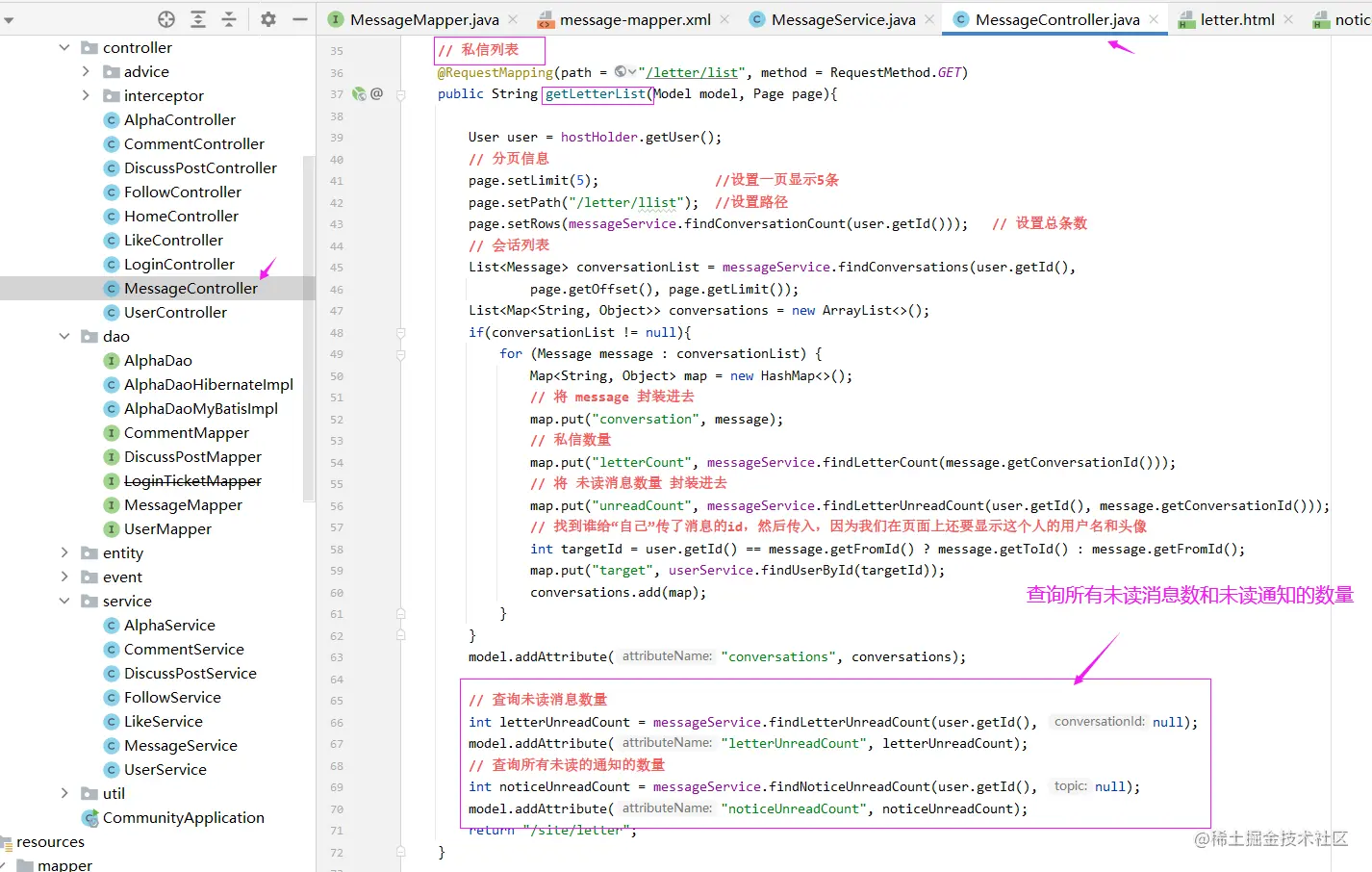

之前开发私信列表的时候没有带上系统通知的数量，这里在相关方法上查询一下并传入model

image-20220725082031084

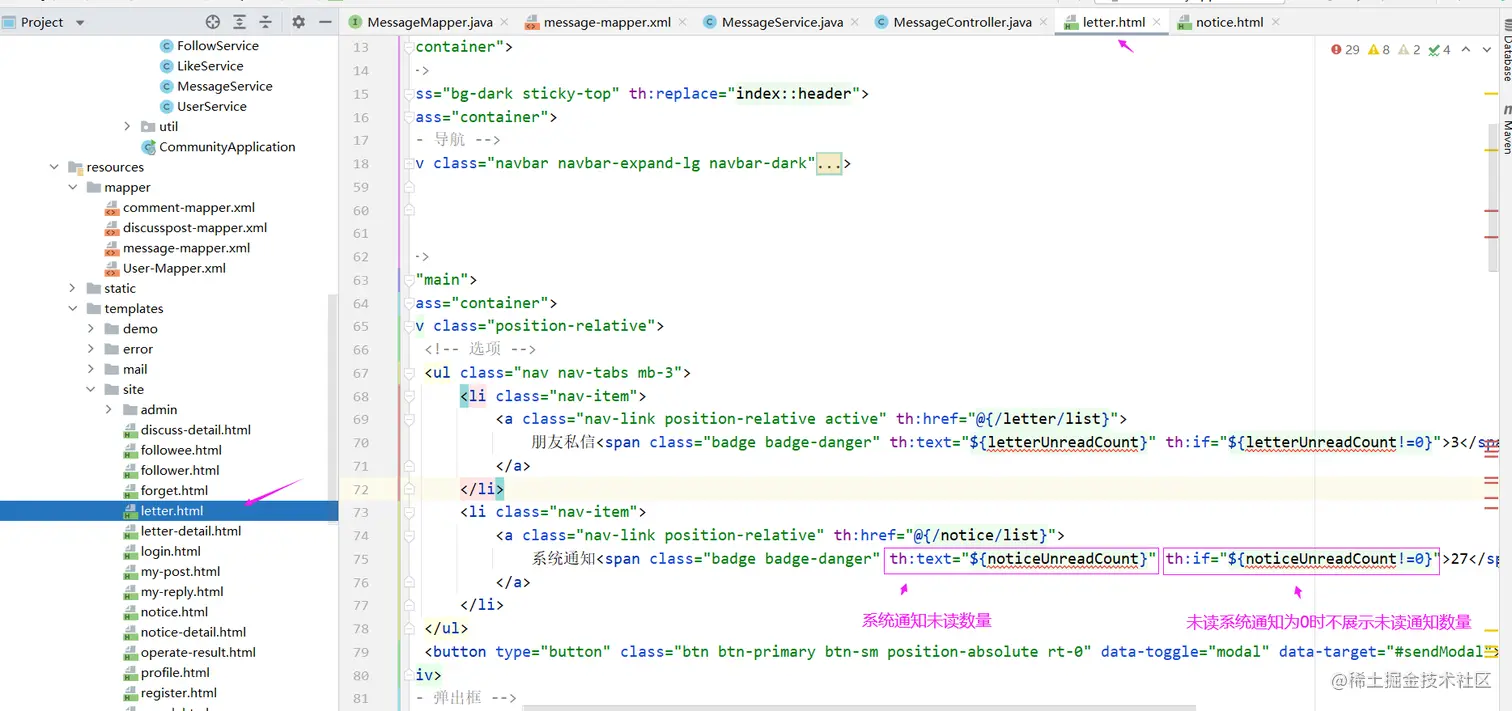

然后是themeleaf模板，首先处理私信列表，把模板补充一下，letter.html

image-20220725082222131

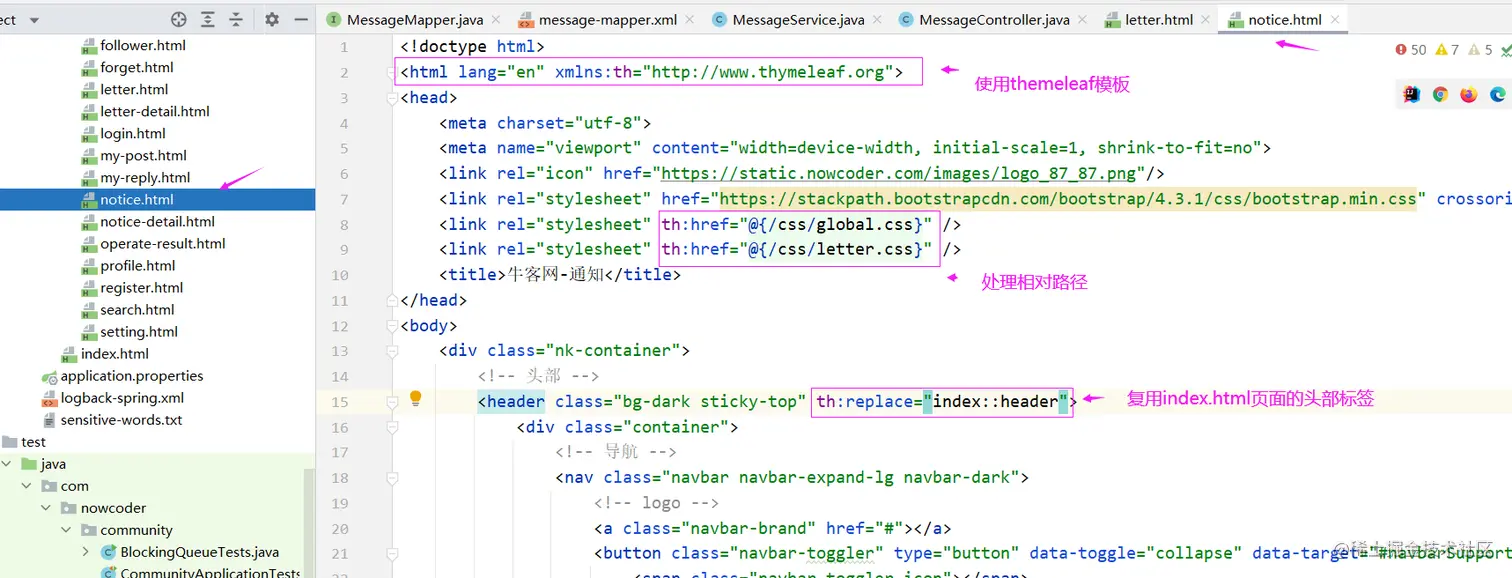

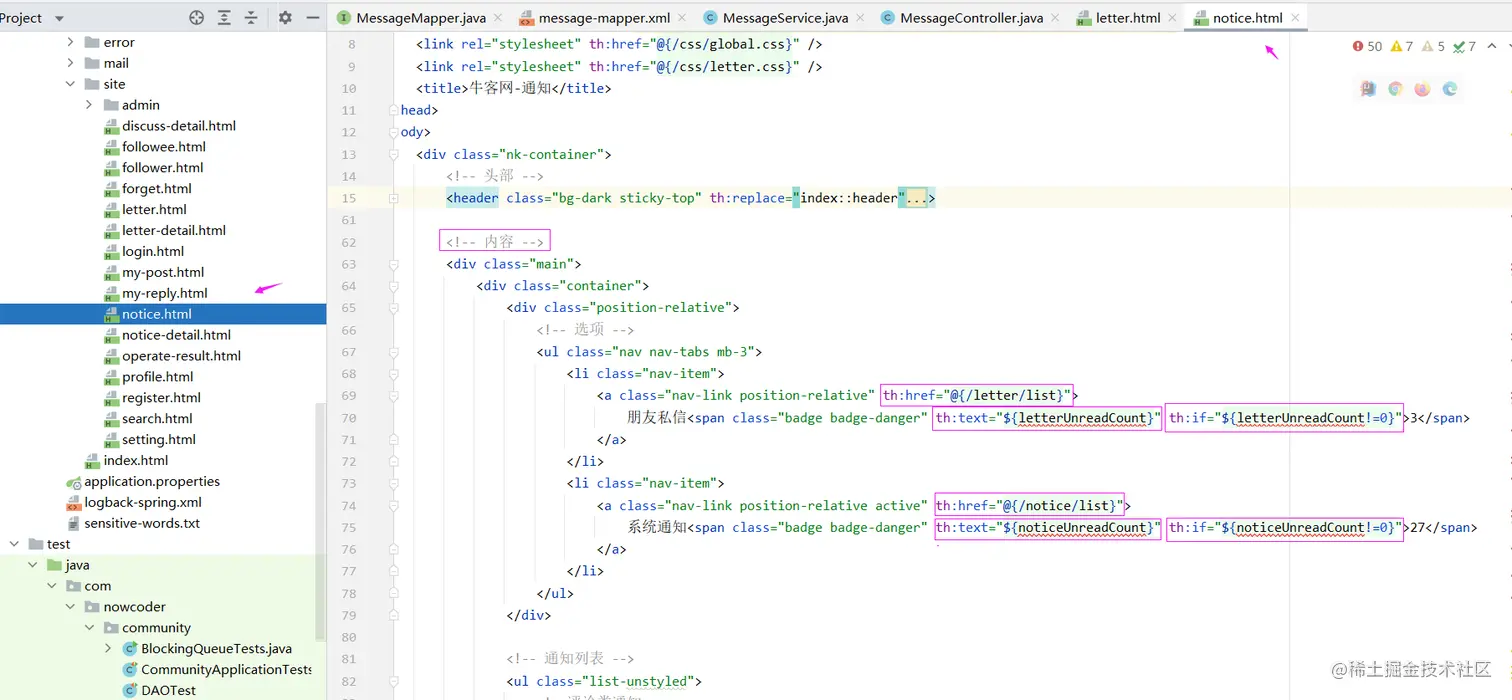

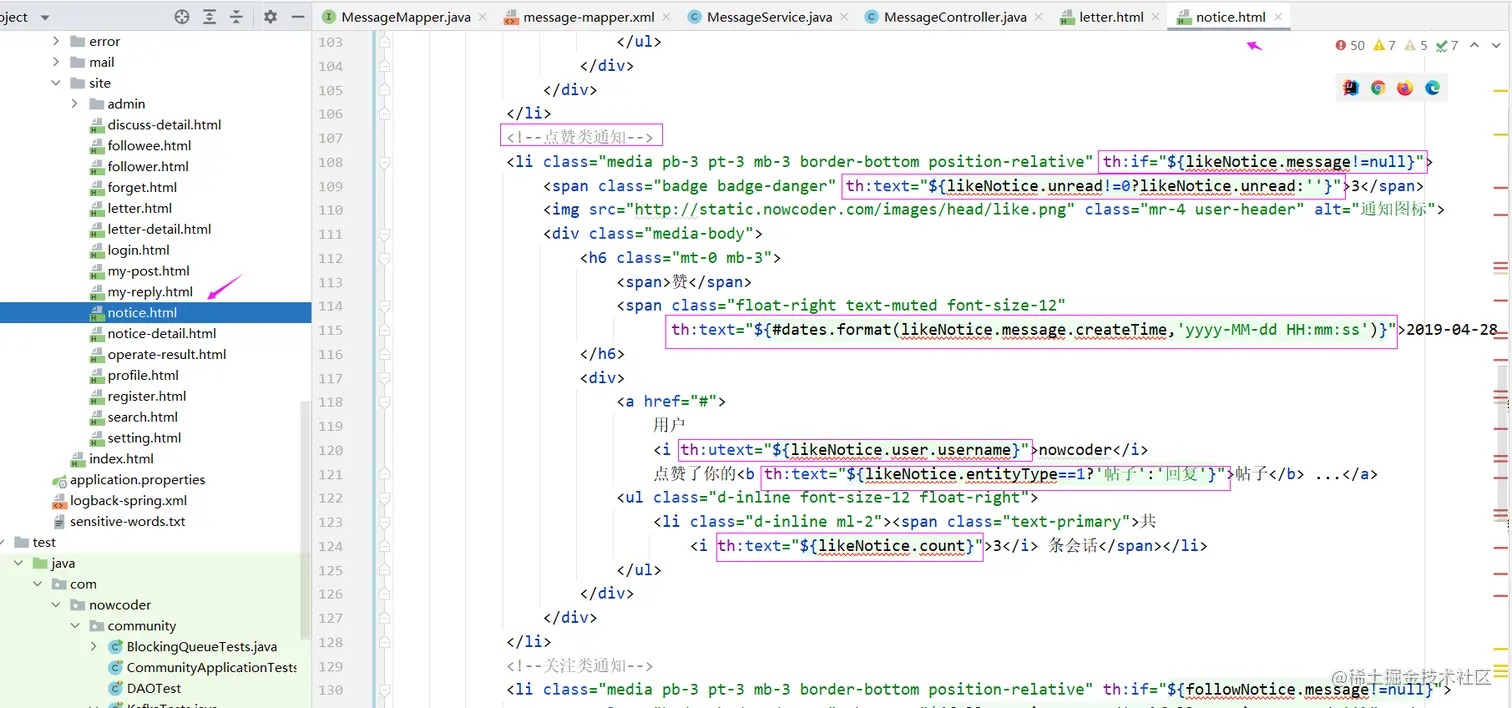

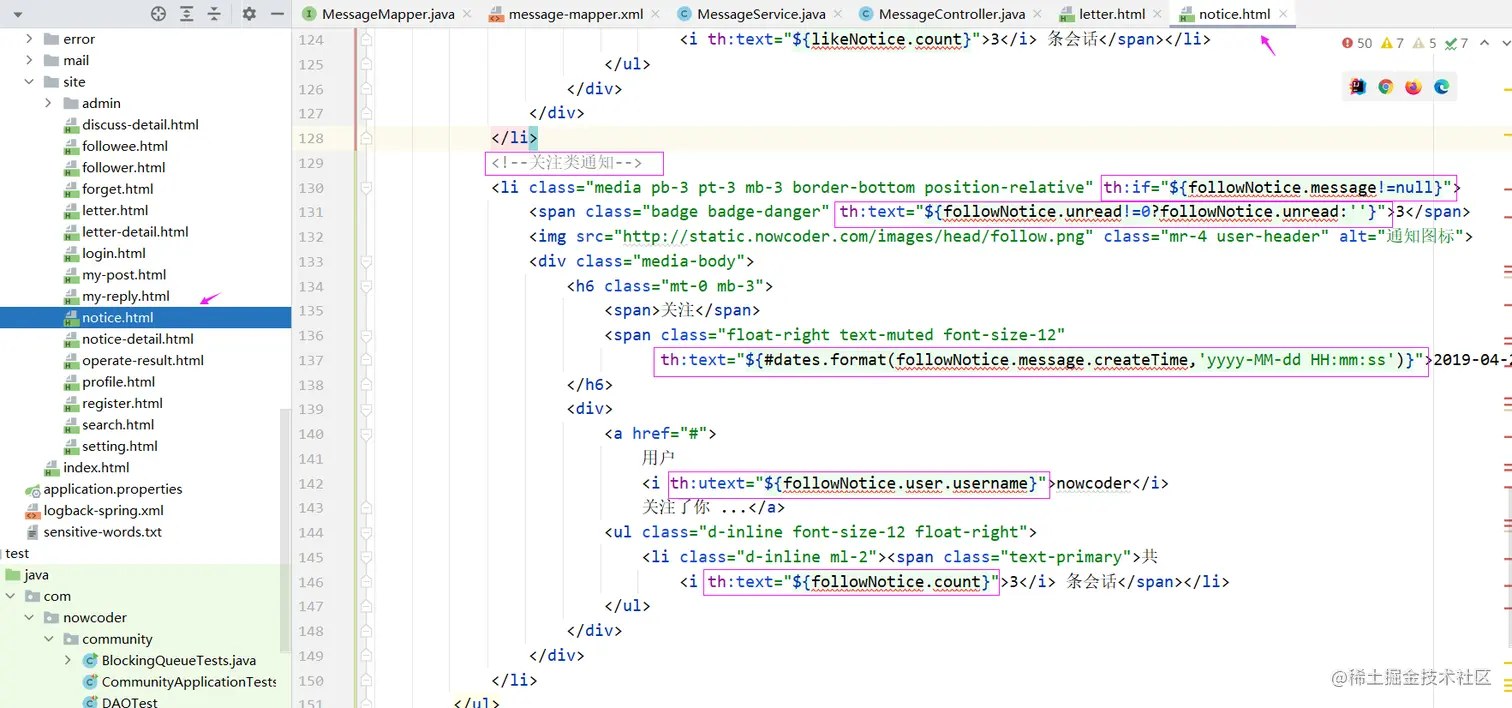

接下来处理通知的模板 notice.html

image-20220725082342683

image-20220725082415467

image-20220725082829208

image-20220725082941643

image-20220725083038452

image-20220725083138199

2. 通知详情

数据访问层(dao)

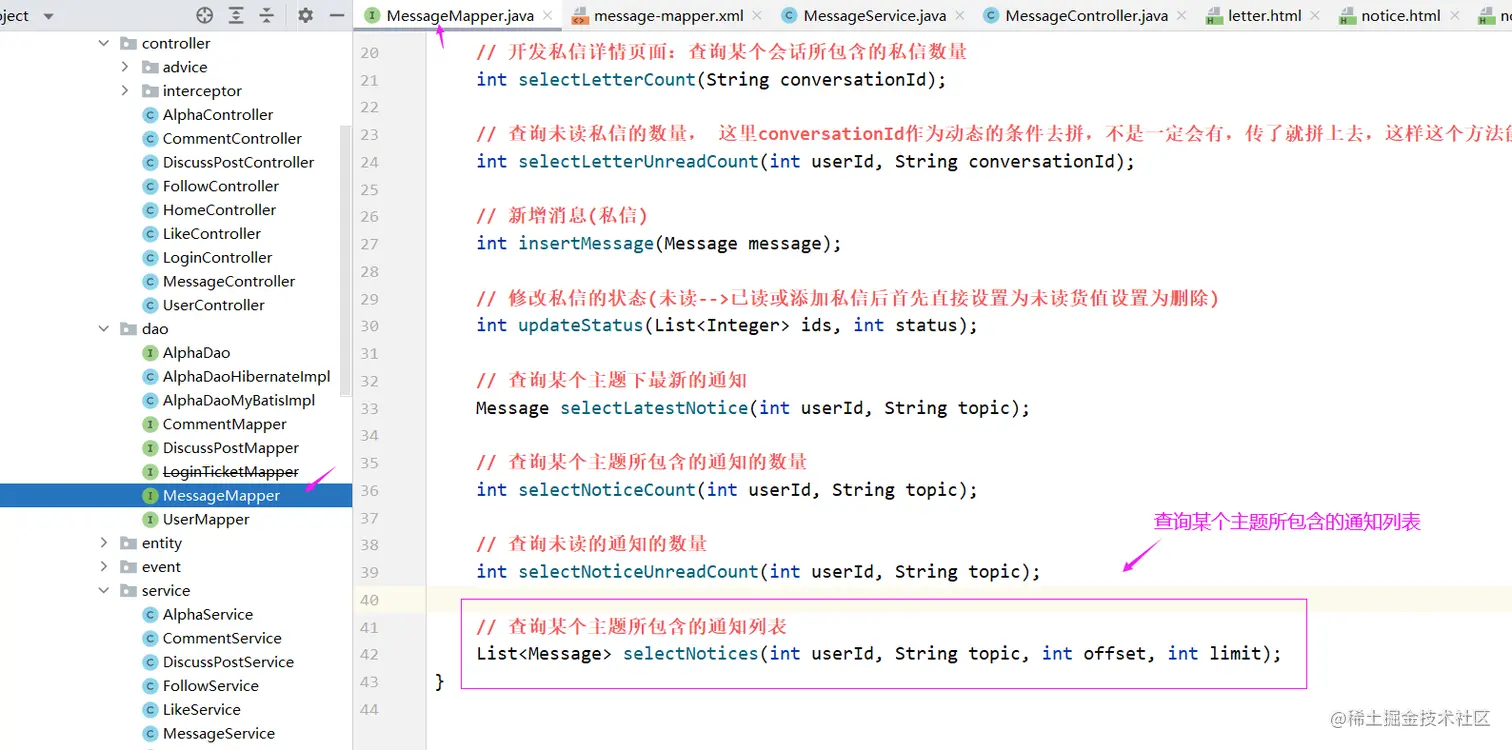

MessageMapper:

// 查询某个主题所包含的通知列表
List<Message> selectNotices(int userId, String topic, int offset, int limit);

image-20220725095141162

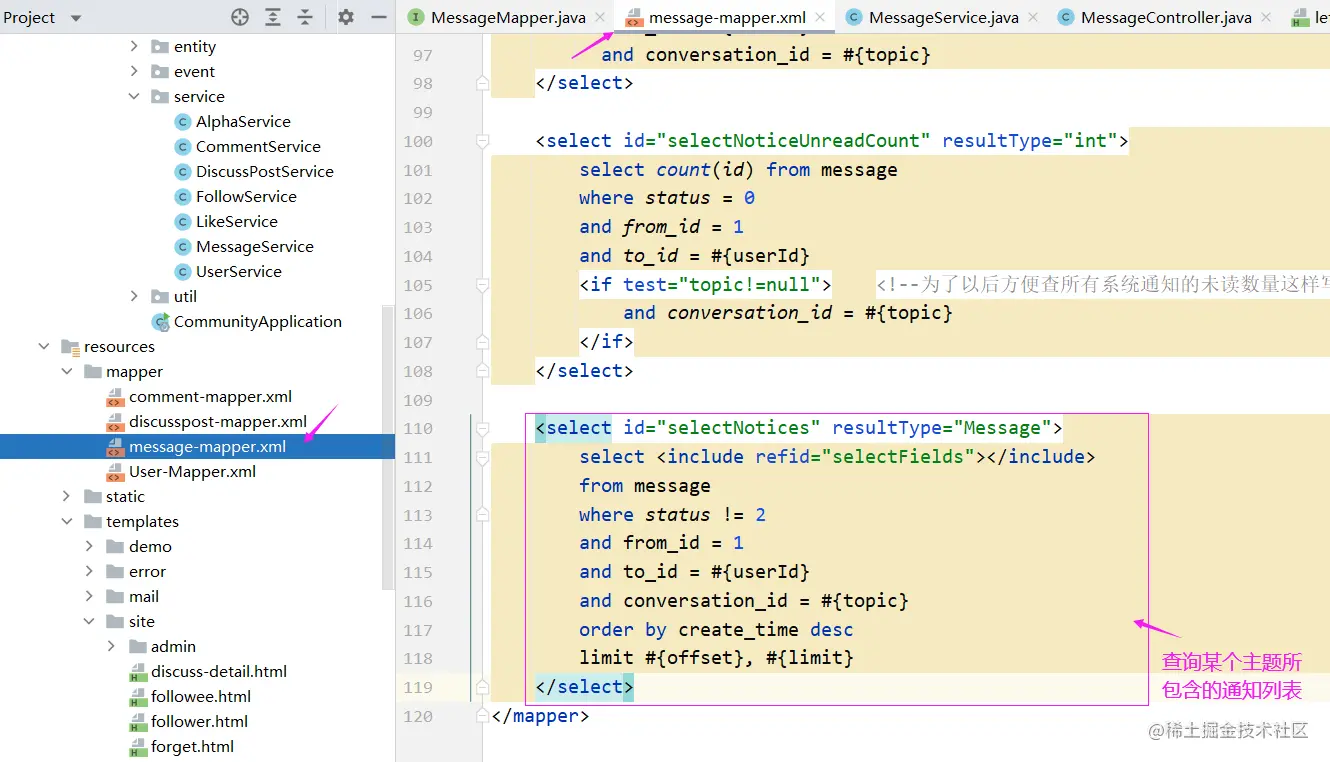

message-mapper.xml:

<select id="selectNotices" resultType="Message">
    select <include refid="selectFields"></include>
    from message
    where status != 2
    and from_id = 1
    and to_id = #{userId}
    and conversation_id = #{topic}
    order by create_time desc
    limit #{offset}, #{limit}
</select>

image-20220725095255852

业务层(Service)

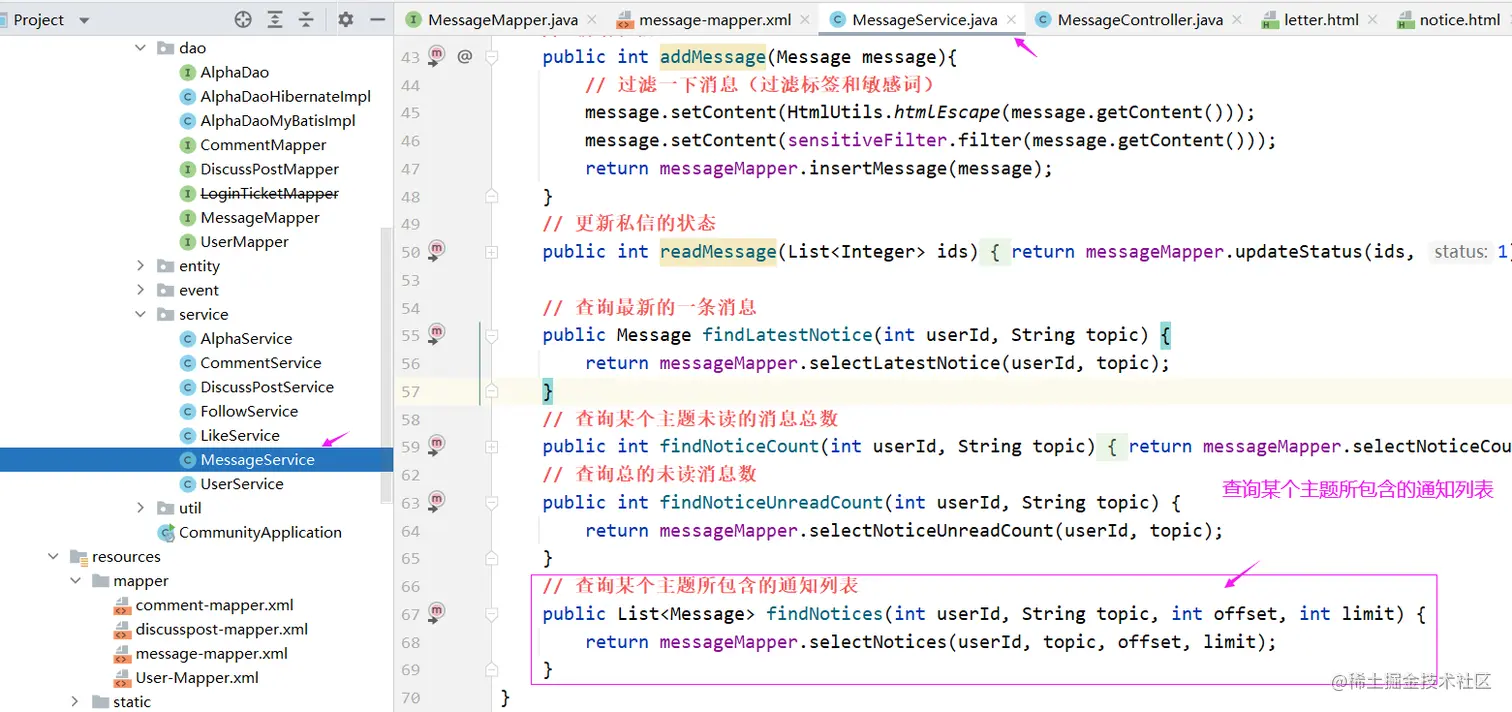

MessageService:

// 查询某个主题所包含的通知列表
public List<Message> findNotices(int userId, String topic, int offset, int limit) {
    return messageMapper.selectNotices(userId, topic, offset, limit);
}

image-20220725095347339

表现层(Controller)

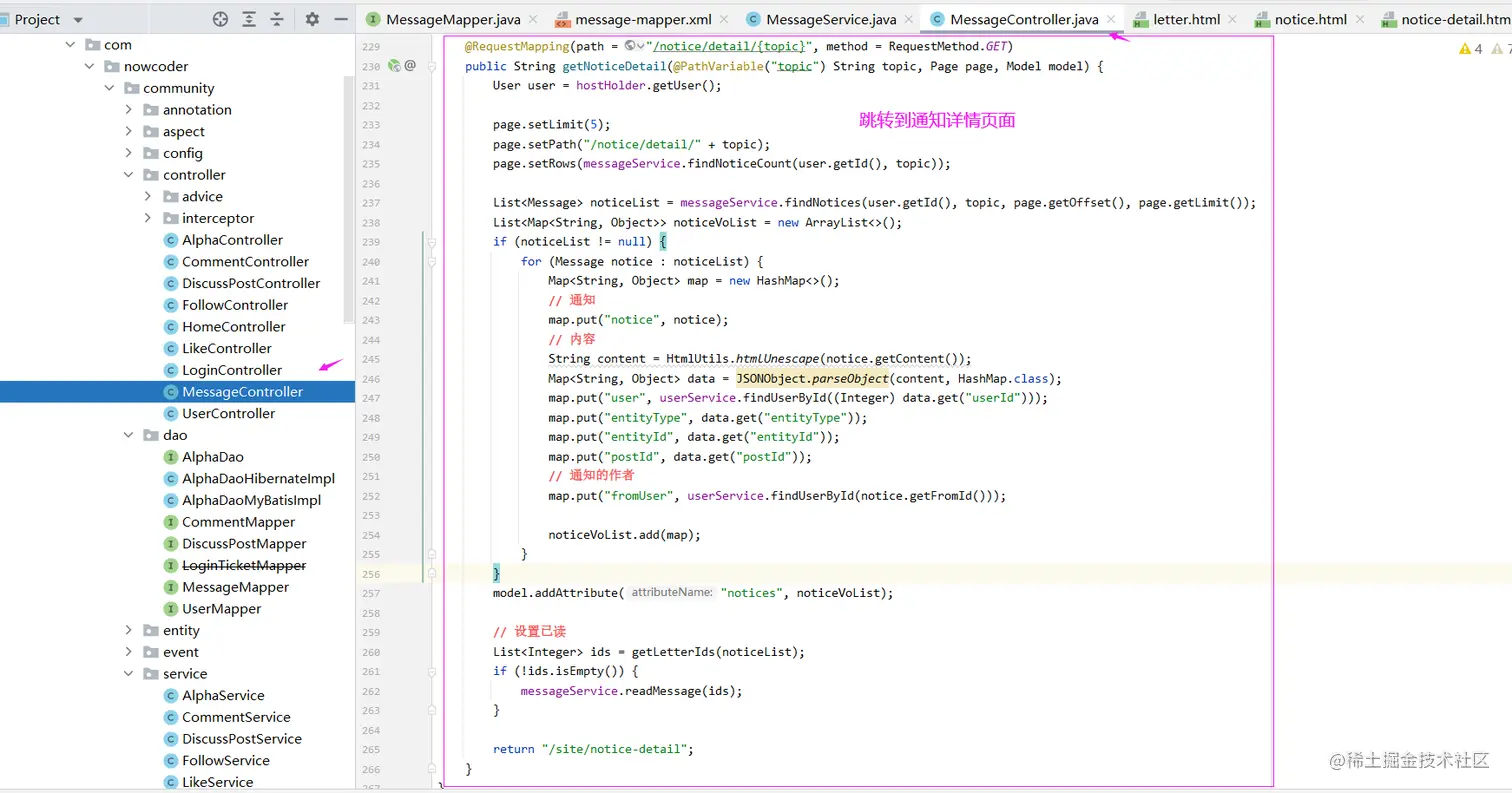

MessageController:

   @RequestMapping(path = "/notice/detail/{topic}", method = RequestMethod.GET)
    public String getNoticeDetail(@PathVariable("topic") String topic, Page page, Model model) {
        User user = hostHolder.getUser();

        page.setLimit(5);
        page.setPath("/notice/detail/" + topic);
        page.setRows(messageService.findNoticeCount(user.getId(), topic));

        List<Message> noticeList = messageService.findNotices(user.getId(), topic, page.getOffset(), page.getLimit());
        List<Map<String, Object>> noticeVoList = new ArrayList<>();
        if (noticeList != null) {
            for (Message notice : noticeList) {
                Map<String, Object> map = new HashMap<>();
                // 通知
                map.put("notice", notice);
                // 内容
                String content = HtmlUtils.htmlUnescape(notice.getContent());
                Map<String, Object> data = JSONObject.parseObject(content, HashMap.class);
                map.put("user", userService.findUserById((Integer) data.get("userId")));
                map.put("entityType", data.get("entityType"));
                map.put("entityId", data.get("entityId"));
                map.put("postId", data.get("postId"));
                // 通知作者
                map.put("fromUser", userService.findUserById(notice.getFromId()));

                noticeVoList.add(map);
            }
        }
        model.addAttribute("notices", noticeVoList);

        // 设置已读
        List<Integer> ids = getLetterIds(noticeList);
        if (!ids.isEmpty()) {
            messageService.readMessage(ids);
        }

        return "/site/notice-detail";
    }

image-20220725095748902

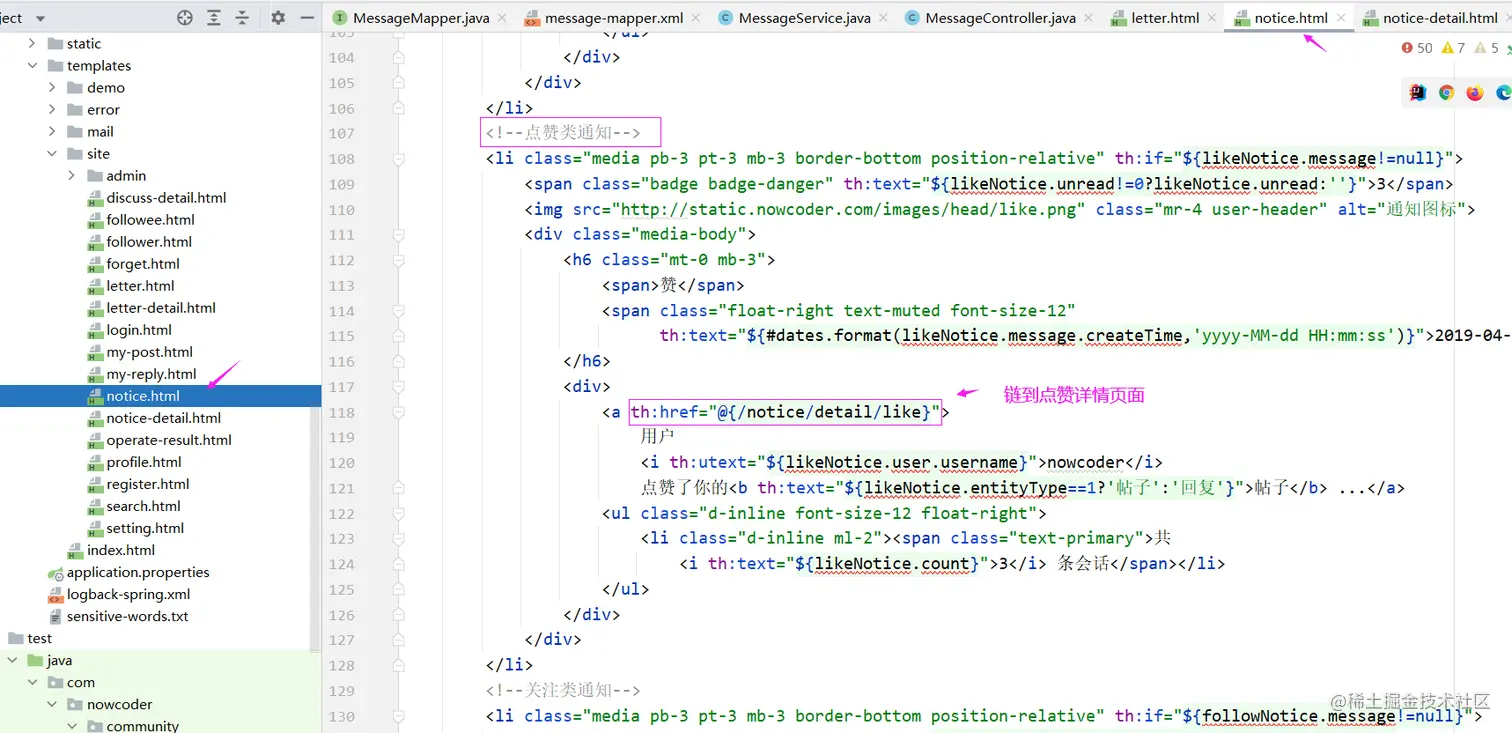

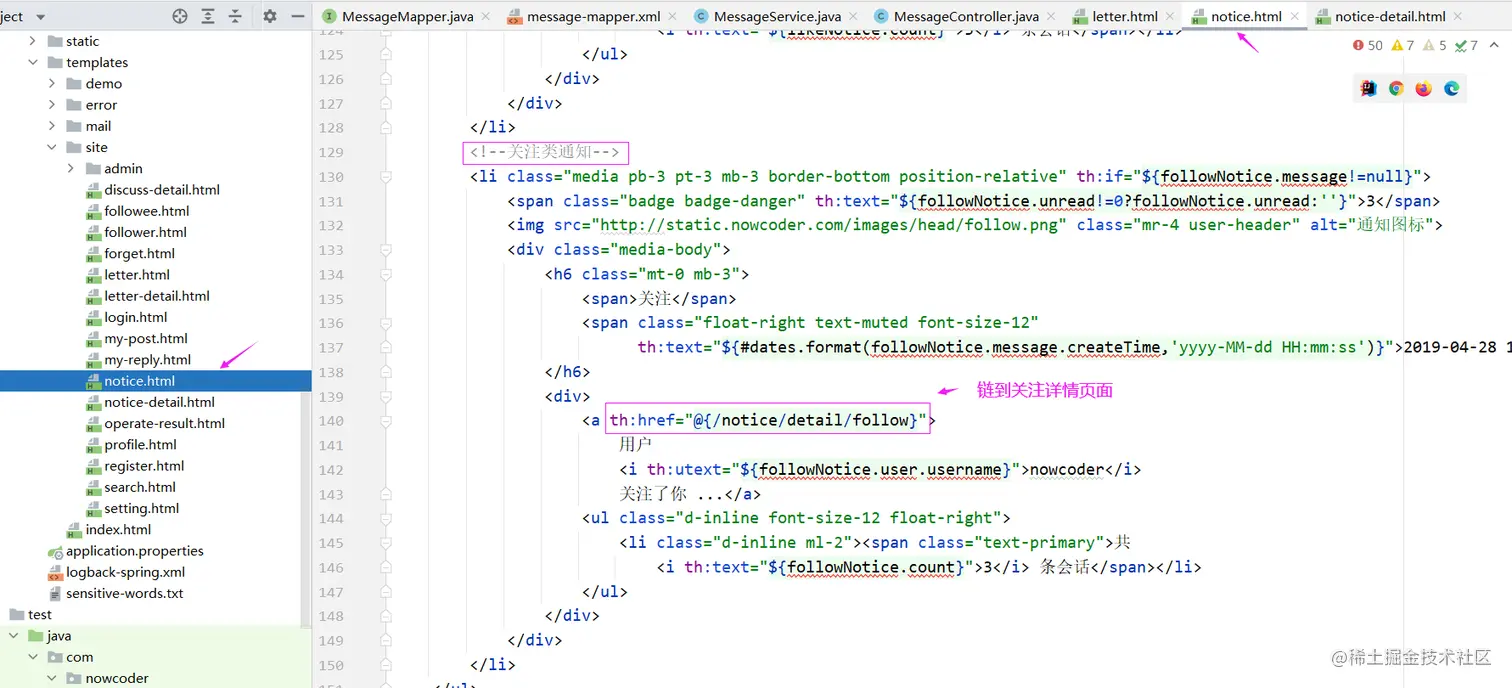

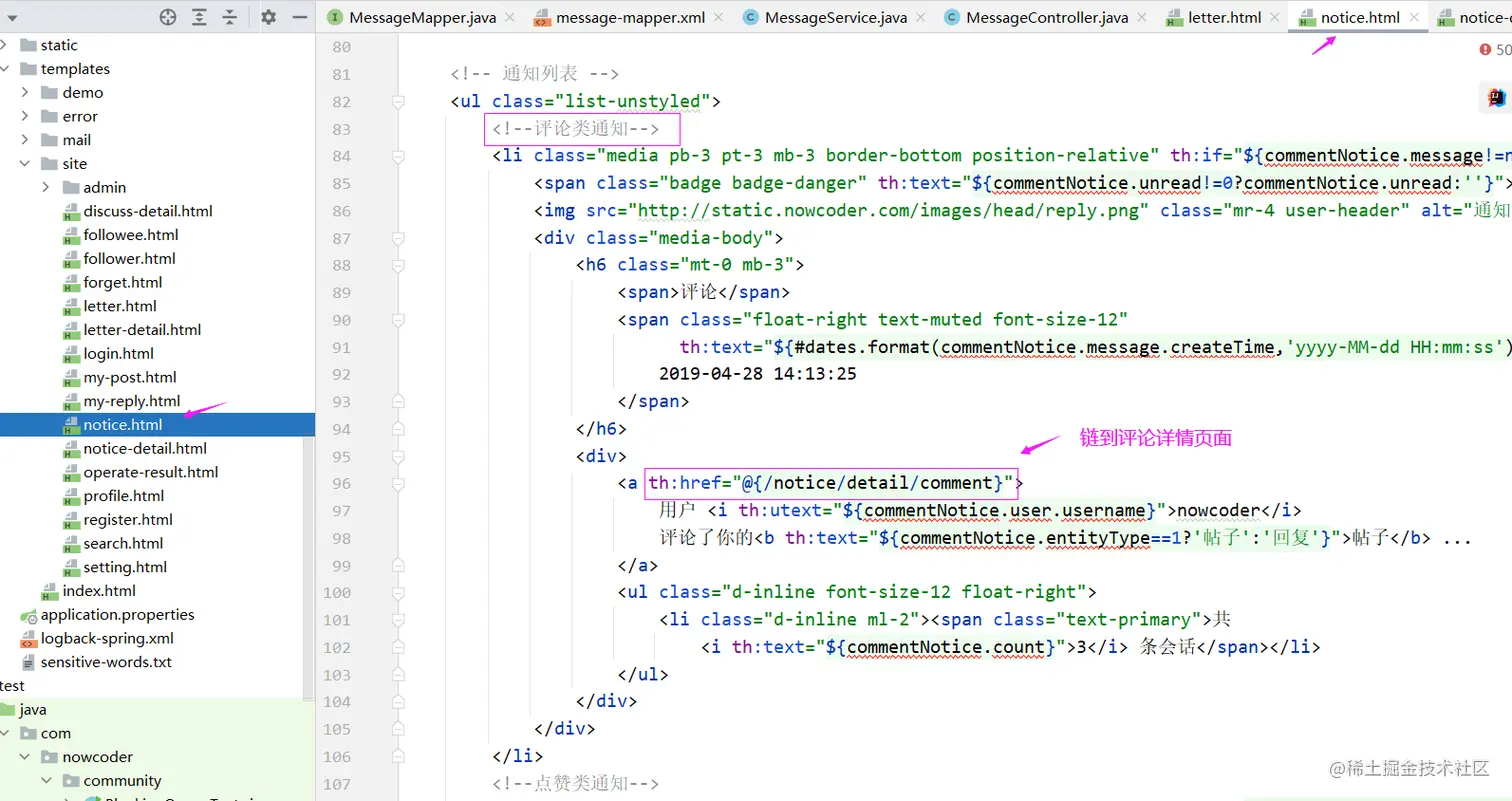

通知详情页面是通过通知列表notice.html页面点进来的，所以我们要处理一下通知列表notice.html上的路径

image-20220725095851359

image-20220725095928776

image-20220725100002275

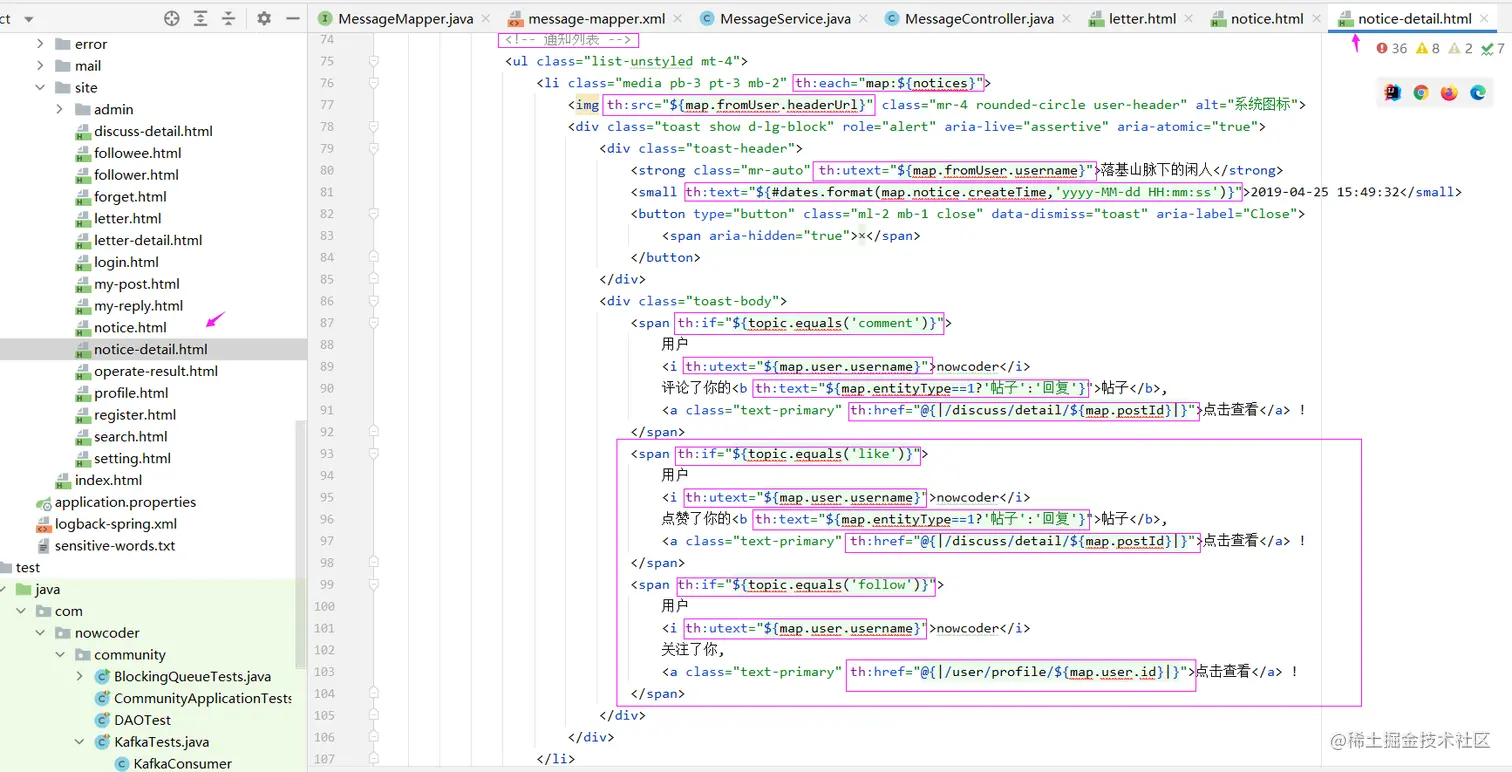

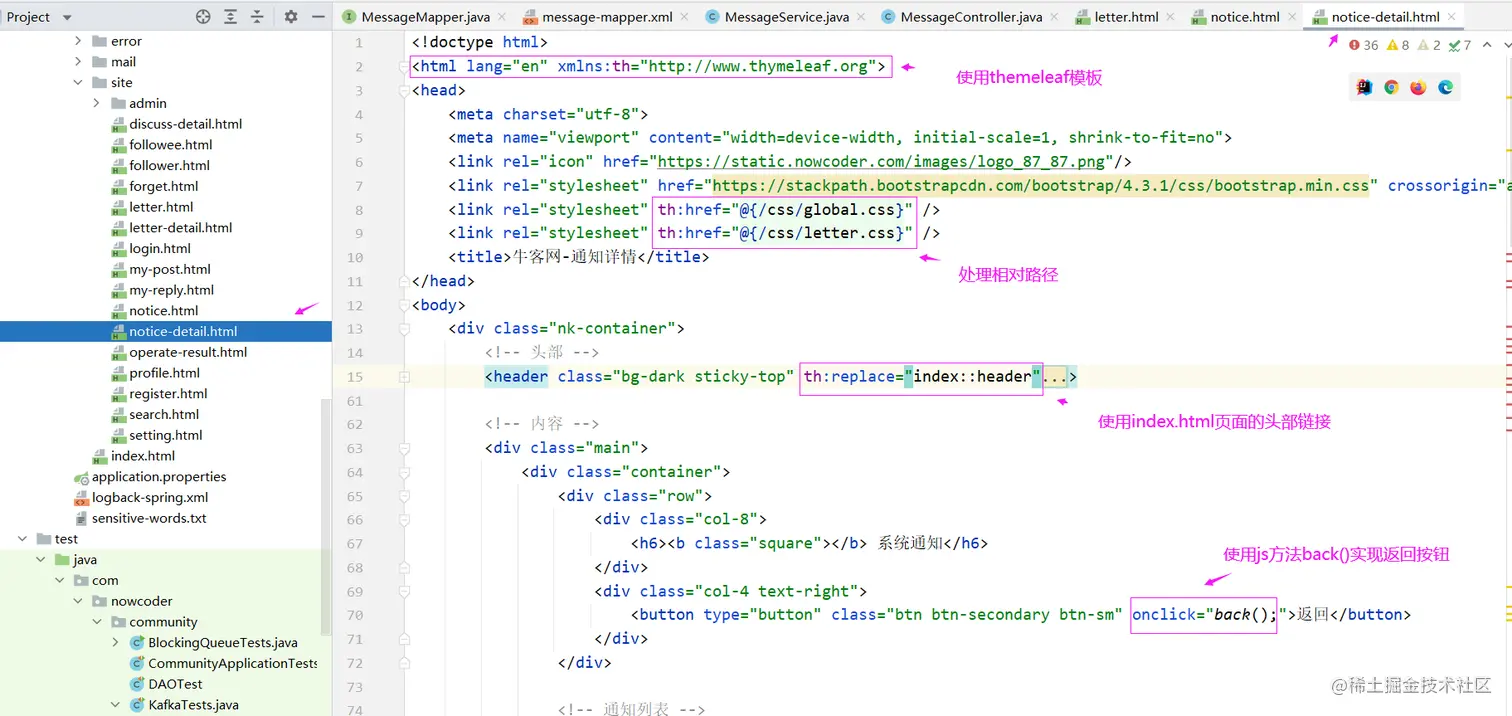

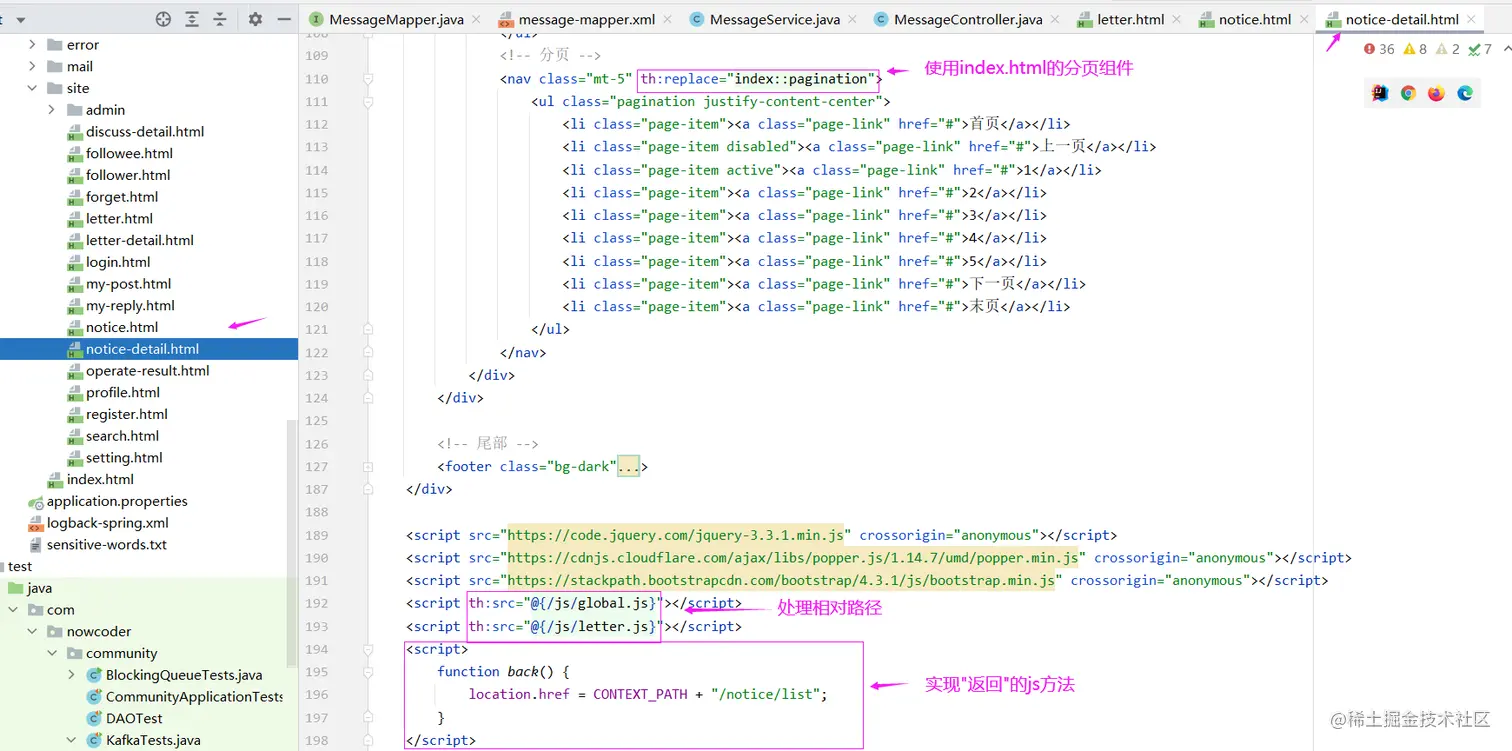

然后是处理通知详情页面notice-detail.html

image-20220725100508779

image-20220725100316443

image-20220725100633389

image-20220725100942541

3. 未读消息数

还要处理未读消息总的数量(未读私信数理+未读通知数量)，这个消息未读数量的显示很显然是用拦截器处理，因为我们每个请求都要显示未读消息数，我们需要统一处理。

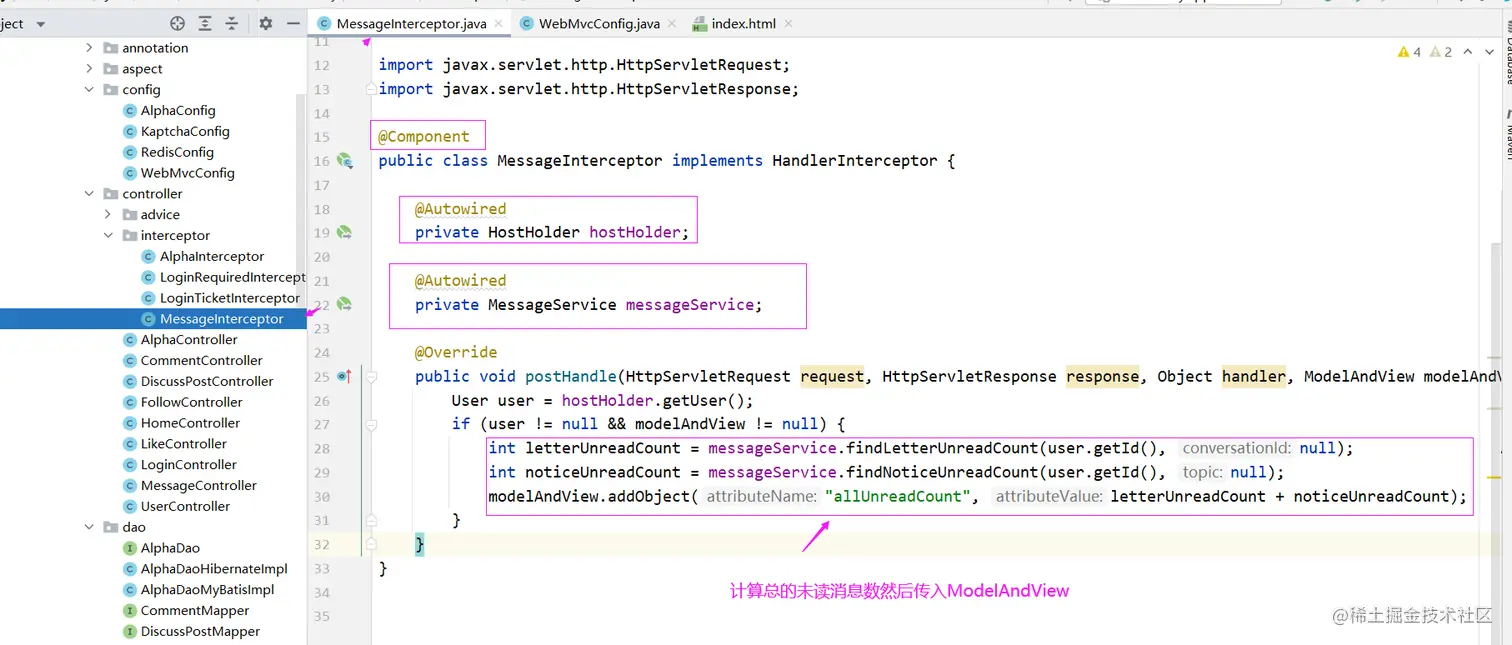

MessageInterceptor 拦截器

@Component
public class MessageInterceptor implements HandlerInterceptor {

    @Autowired
    private HostHolder hostHolder;

    @Autowired
    private MessageService messageService;

    @Override
    public void postHandle(HttpServletRequest request, HttpServletResponse response, Object handler, ModelAndView modelAndView) throws Exception {
        User user = hostHolder.getUser();
        if (user != null && modelAndView != null) {
            int letterUnreadCount = messageService.findLetterUnreadCount(user.getId(), null);
            int noticeUnreadCount = messageService.findNoticeUnreadCount(user.getId(), null);
            modelAndView.addObject("allUnreadCount", letterUnreadCount + noticeUnreadCount);
        }
    }
}

image-20220725104000873

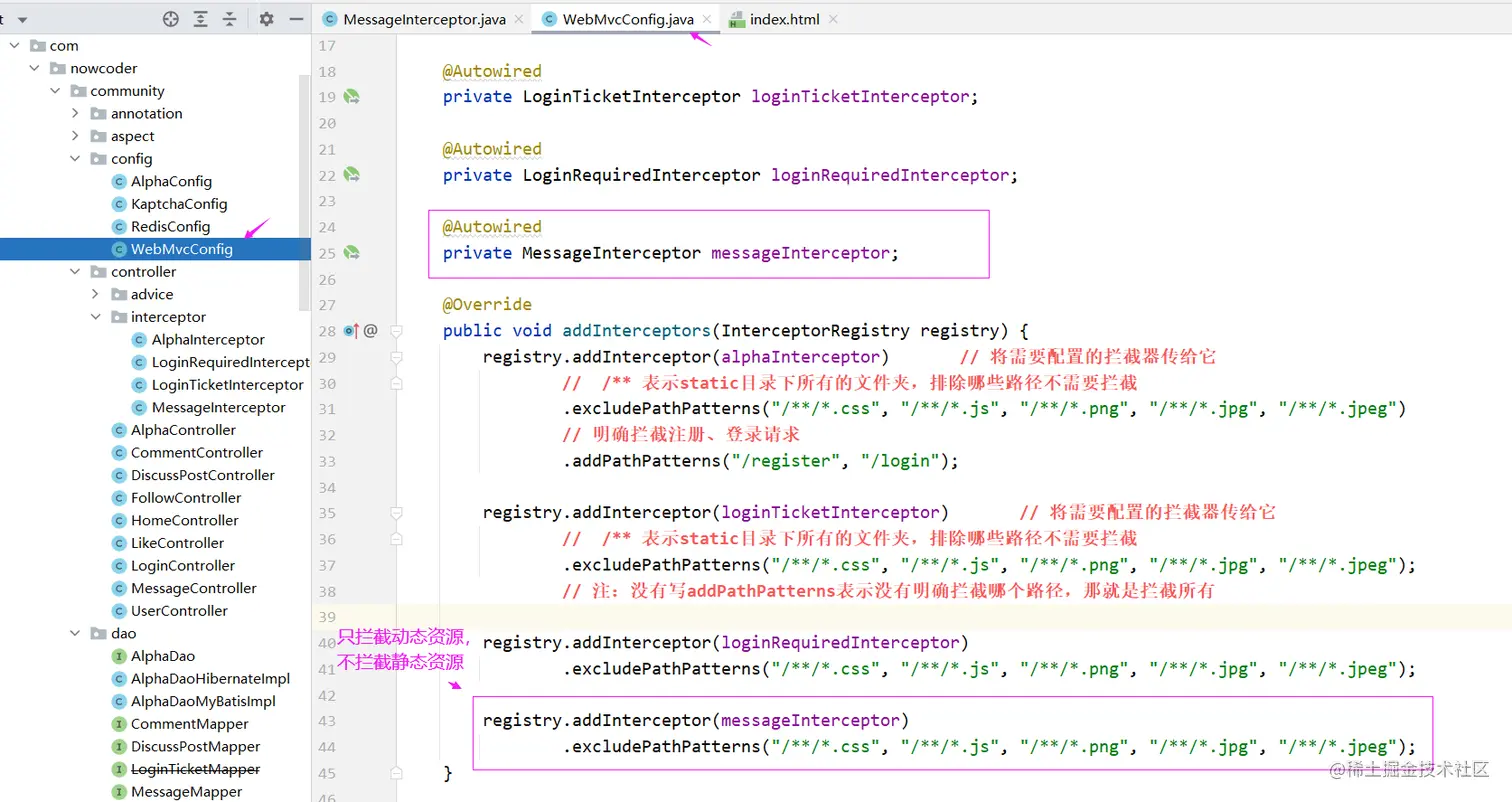

进行拦截器的配置

@Autowired
private MessageInterceptor messageInterceptor;


registry.addInterceptor(messageInterceptor)
                .excludePathPatterns("/**/*.css", "/**/*.js", "/**/*.png", "/**/*.jpg", "/**/*.jpeg");

image-20220725104052455

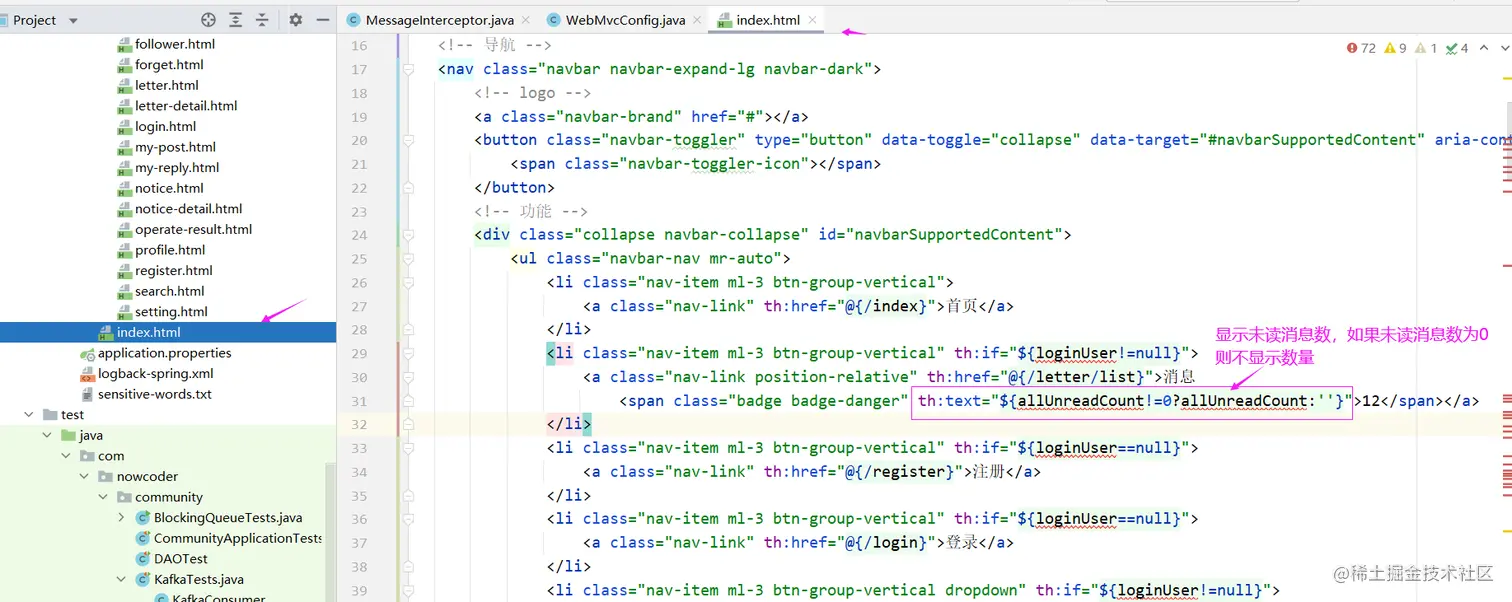

最终我们是要在头部显示这个数据，而所有页面的头部都是共用的index.html

image-20220725104159068

测试的时候评论的话记得打开kafka，因为我们引入了kafka处理消息队列
