前言
总结自慕课网《Java主流技术栈SSM+SpringBoot商铺系统(升级更新)》
如有需要请自行去购买。
目前采用的是SSM框架。
一、采用的技术
后端采用：SSM + MySQL + Redis等，并且在阿里云中部署。
后面会进一步更新成SpringBoot框架。
二、环境准备
1、所要用到的技术版本
Java8、Maven3.3.9、MySQL5.8、Tomcat。
2、创建maven项目

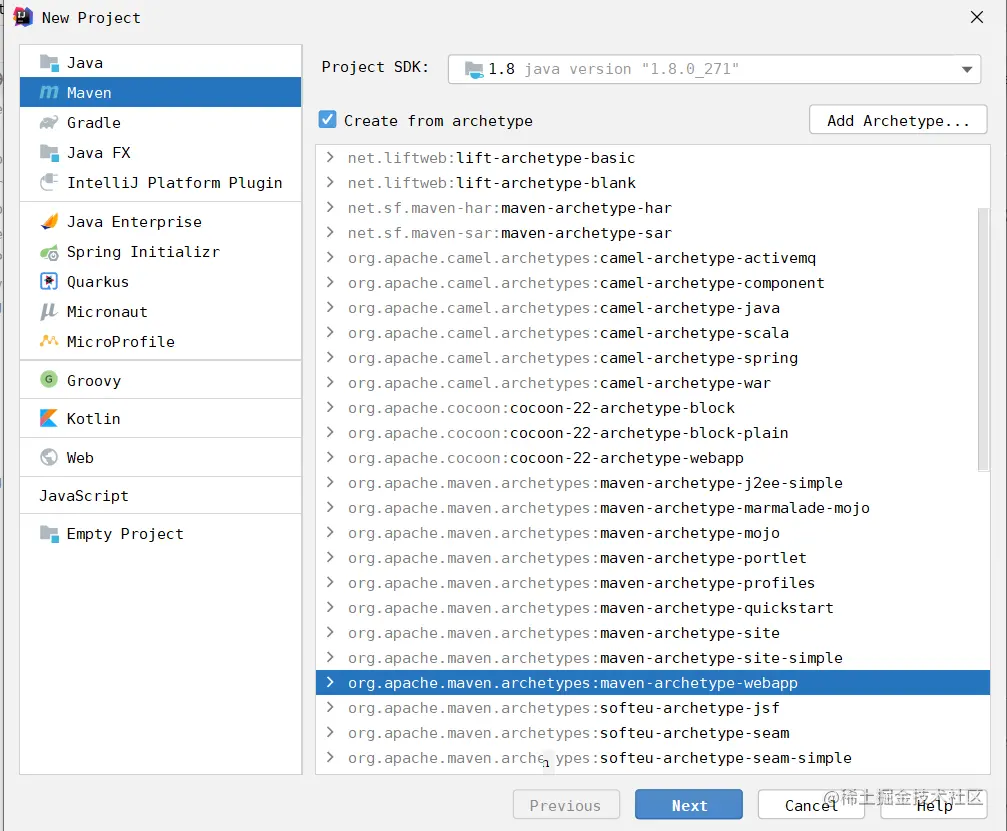

选择webapp模块：

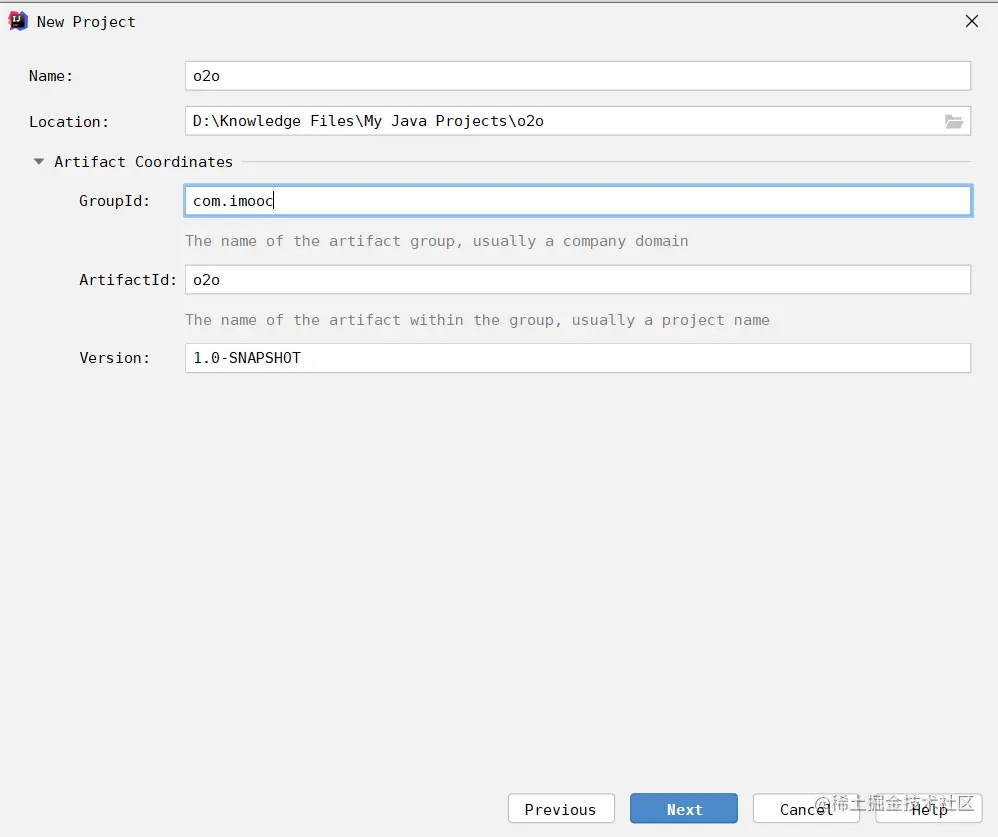

设置以下内容：
修改pom文件：
<?xml version="1.0" encoding="UTF-8"?>
<project xmlns="http://maven.apache.org/POM/4.0.0" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 http://maven.apache.org/xsd/maven-4.0.0.xsd">
<modelVersion>4.0.0</modelVersion>
<groupId>com.imooc</groupId>
<artifactId>o2o</artifactId>
<version>1.0-SNAPSHOT</version>
<packaging>war</packaging>
<name>o2o Maven Webapp</name>
<!-- FIXME change it to the project's website -->
<url>http://www.example.com</url>
<properties>
<spring.version>5.1.8.RELEASE</spring.version>
</properties>
<dependencies>
<dependency>
<groupId>junit</groupId>
<artifactId>junit</artifactId>
<version>4.12</version>
<scope>test</scope>
</dependency>
<!-- https://mvnrepository.com/artifact/ch.qos.logback/logback-classic -->
<dependency>
<groupId>ch.qos.logback</groupId>
<artifactId>logback-classic</artifactId>
<version>1.2.3</version>
</dependency>
<!-- Spring -->
<!-- 1)包含Spring 框架基本的核心工具类。Spring 其它组件要都要使用到这个包里的类，是其它组件的基本核心 -->
<dependency>
<groupId>org.springframework</groupId>
<artifactId>spring-core</artifactId>
<version>${spring.version}</version>
</dependency>
<!-- 2)这个jar 文件是所有应用都要用到的，它包含访问配置文件、创建和管理bean 以及进行Inversion of Control
/ Dependency Injection（IoC/DI）操作相关的所有类。如果应用只需基本的IoC/DI 支持，引入spring-core.jar
及spring-beans.jar 文件就可以了。 -->
<dependency>
<groupId>org.springframework</groupId>
<artifactId>spring-beans</artifactId>
<version>${spring.version}</version>
</dependency>
<!-- 3)这个jar 文件为Spring 核心提供了大量扩展。可以找到使用Spring ApplicationContext特性时所需的全部类，JDNI
所需的全部类，instrumentation组件以及校验Validation 方面的相关类。 -->
<dependency>
<groupId>org.springframework</groupId>
<artifactId>spring-context</artifactId>
<version>${spring.version}</version>
</dependency>
<!-- 4) 这个jar 文件包含对Spring 对JDBC 数据访问进行封装的所有类。 -->
<dependency>
<groupId>org.springframework</groupId>
<artifactId>spring-jdbc</artifactId>
<version>${spring.version}</version>
</dependency>
<!-- 5) 为JDBC、Hibernate、JDO、JPA等提供的一致的声明式和编程式事务管理。 -->
<dependency>
<groupId>org.springframework</groupId>
<artifactId>spring-tx</artifactId>
<version>${spring.version}</version>
</dependency>
<!-- 6)Spring web 包含Web应用开发时，用到Spring框架时所需的核心类，包括自动载入WebApplicationContext特性的类、Struts与JSF集成类、文件上传的支持类、Filter类和大量工具辅助类。 -->
<dependency>
<groupId>org.springframework</groupId>
<artifactId>spring-web</artifactId>
<version>${spring.version}</version>
</dependency>
<!-- 7)包含SpringMVC框架相关的所有类。 -->
<dependency>
<groupId>org.springframework</groupId>
<artifactId>spring-webmvc</artifactId>
<version>${spring.version}</version>
</dependency>
<!-- 8)Spring test 对JUNIT等测试框架的简单封装 -->
<dependency>
<groupId>org.springframework</groupId>
<artifactId>spring-test</artifactId>
<version>${spring.version}</version>
<scope>test</scope>
</dependency>
<!-- Servlet web -->
<dependency>
<groupId>javax.servlet</groupId>
<artifactId>javax.servlet-api</artifactId>
<version>4.0.1</version>
</dependency>
<!-- json解析 -->
<dependency>
<groupId>com.fasterxml.jackson.core</groupId>
<artifactId>jackson-databind</artifactId>
<version>2.9.9</version>
</dependency>
<!-- Map工具类 对标准java Collection的扩展 spring-core.jar需commons-collections.jar -->
<dependency>
<groupId>commons-collections</groupId>
<artifactId>commons-collections</artifactId>
<version>3.2.2</version>
</dependency>
<!-- DAO: MyBatis -->
<dependency>
<groupId>org.mybatis</groupId>
<artifactId>mybatis</artifactId>
<version>3.5.1</version>
</dependency>
<dependency>
<groupId>org.mybatis</groupId>
<artifactId>mybatis-spring</artifactId>
<version>2.0.1</version>
</dependency>
<!-- 数据库 -->
<dependency>
<groupId>mysql</groupId>
<artifactId>mysql-connector-java</artifactId>
<version>8.0.16</version>
</dependency>
<!-- https://mvnrepository.com/artifact/com.mchange/c3p0 -->
<dependency>
<groupId>com.mchange</groupId>
<artifactId>c3p0</artifactId>
<version>0.9.5.4</version>
</dependency>
<!-- 图片处理 -->
<!-- https://mvnrepository.com/artifact/net.coobird/thumbnailator -->
<dependency>
<groupId>net.coobird</groupId>
<artifactId>thumbnailator</artifactId>
<version>0.4.8</version>
</dependency>
<!-- https://mvnrepository.com/artifact/com.github.penggle/kaptcha -->
<dependency>
<groupId>com.github.penggle</groupId>
<artifactId>kaptcha</artifactId>
<version>2.3.2</version>
</dependency>
<dependency>
<groupId>commons-fileupload</groupId>
<artifactId>commons-fileupload</artifactId>
<version>1.3.2</version>
</dependency>
<!-- redis客户端:Jedis -->
<dependency>
<groupId>redis.clients</groupId>
<artifactId>jedis</artifactId>
<version>2.9.0</version>
</dependency>
<dependency>
<groupId>org.projectlombok</groupId>
<artifactId>lombok</artifactId>
<version>1.16.18</version>
<scope>compile</scope>
</dependency>
</dependencies>
<build>
<finalName>o2o</finalName>
<plugins>
<plugin>
<!-- https://mvnrepository.com/artifact/org.apache.maven.plugins/maven-compiler-plugin -->
<groupId>org.apache.maven.plugins</groupId>
<artifactId>maven-compiler-plugin</artifactId>
<version>3.6.1</version>
<configuration>
<source>1.8</source>
<target>1.8</target>
<encoding>UTF8</encoding>
</configuration>
</plugin>
</plugins>
</build>
</project>
创建相关文件夹：
修改web.xml，不再用IDEA生成的老版本了，使用web4.0版本的。

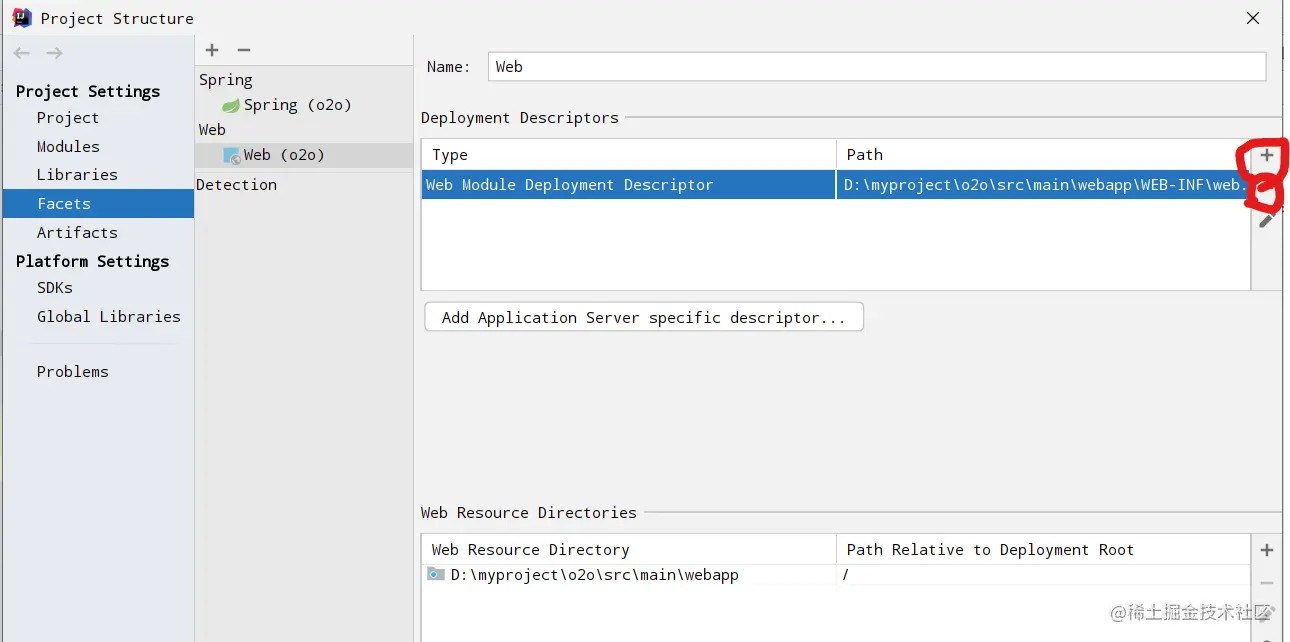

IDEA左侧按CTRL + ALT + SHIFT + S，然后点击facet。
先点击-号去掉原来的，然后+上现在的新版本，如果替换不成功，建议web.xml改成web1.xml生成后再改回来。
注意格式变成下面这样就对了：
<?xml version="1.0" encoding="UTF-8"?>
<web-app xmlns="http://xmlns.jcp.org/xml/ns/javaee"
xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
xsi:schemaLocation="http://xmlns.jcp.org/xml/ns/javaee http://xmlns.jcp.org/xml/ns/javaee/web-app_4_0.xsd"
version="4.0">
</web-app>

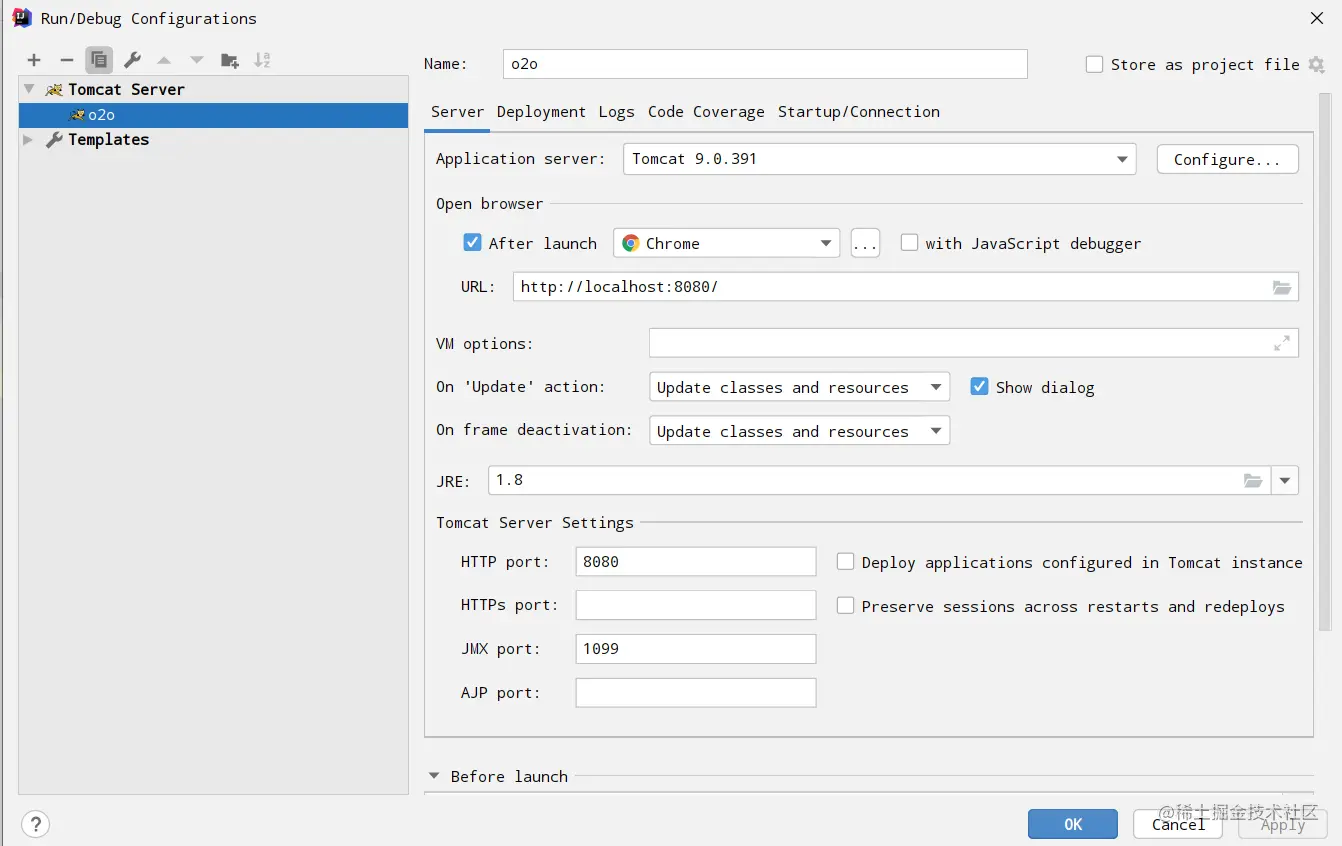

运行工程前，首先要设置tomcat：
可以设置欢迎页：
<welcome-file-list>
<welcome-file>index.html</welcome-file>
</welcome-file-list>
启动测试一下。
三、项目细节
1、系统介绍
前端系统：
店家系统：
超级管理员系统：
2、各个模块细节

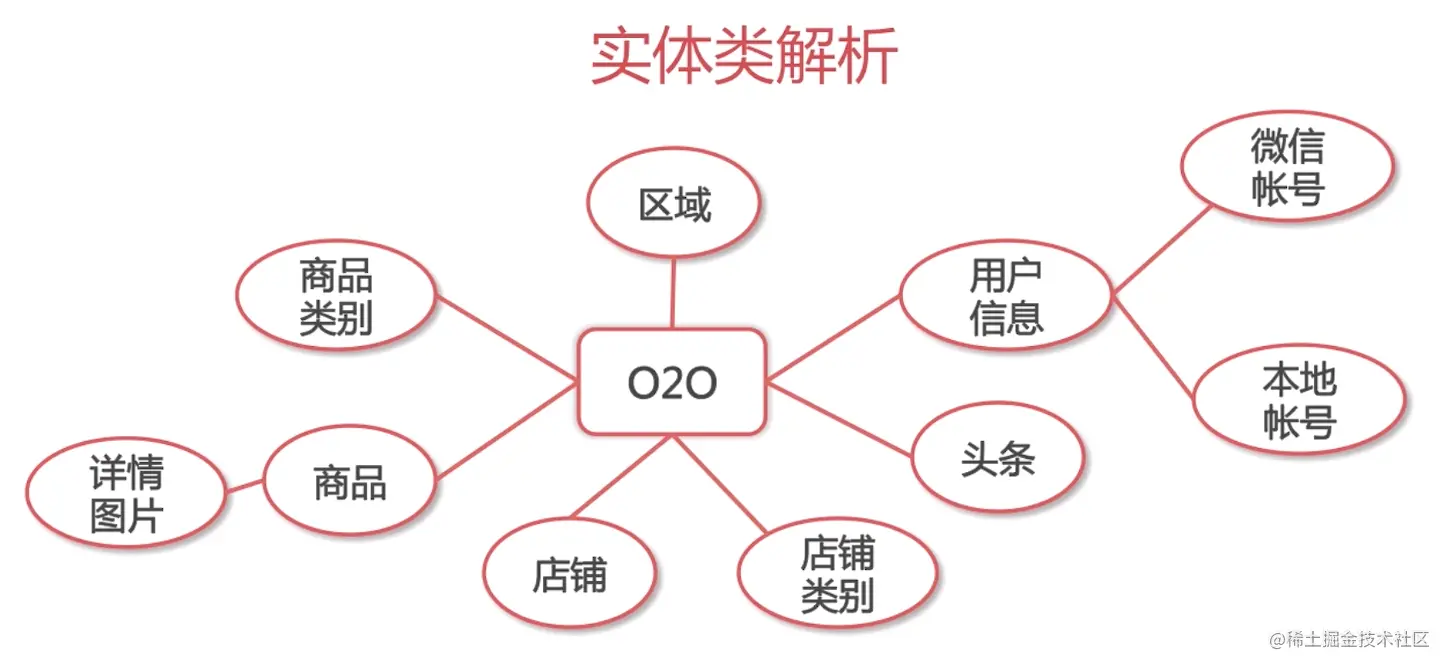

实体类的解析：

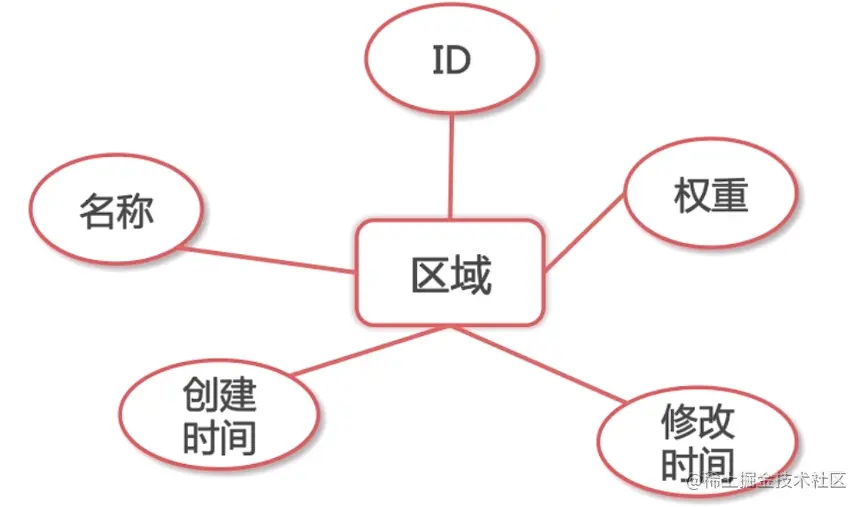

区域部分设计：
创建实体类，看看在com.imooc.o2o包下创建了entity包，用来存放各各个实体类：
1、Area类
package com.imooc.o2o.entity;
import java.util.Date;
/**
* @author :Oliver
* @description :
* @create :2022-08-21 09:05:00
*/
public class Area {
private Integer areaId;
private String areaName;
//权重，区域用来做排序的
private Integer priority;
private Date createTime;
private Date updateTime;
public Integer getAreaId() {
return areaId;
}
public void setAreaId(Integer areaId) {
this.areaId = areaId;
}
public String getAreaName() {
return areaName;
}
public void setAreaName(String areaName) {
this.areaName = areaName;
}
public Integer getPriority() {
return priority;
}
public void setPriority(Integer priority) {
this.priority = priority;
}
public Date getCreateTime() {
return createTime;
}
public void setCreateTime(Date createTime) {
this.createTime = createTime;
}
public Date getUpdateTime() {
return updateTime;
}
public void setUpdateTime(Date updateTime) {
this.updateTime = updateTime;
}
}

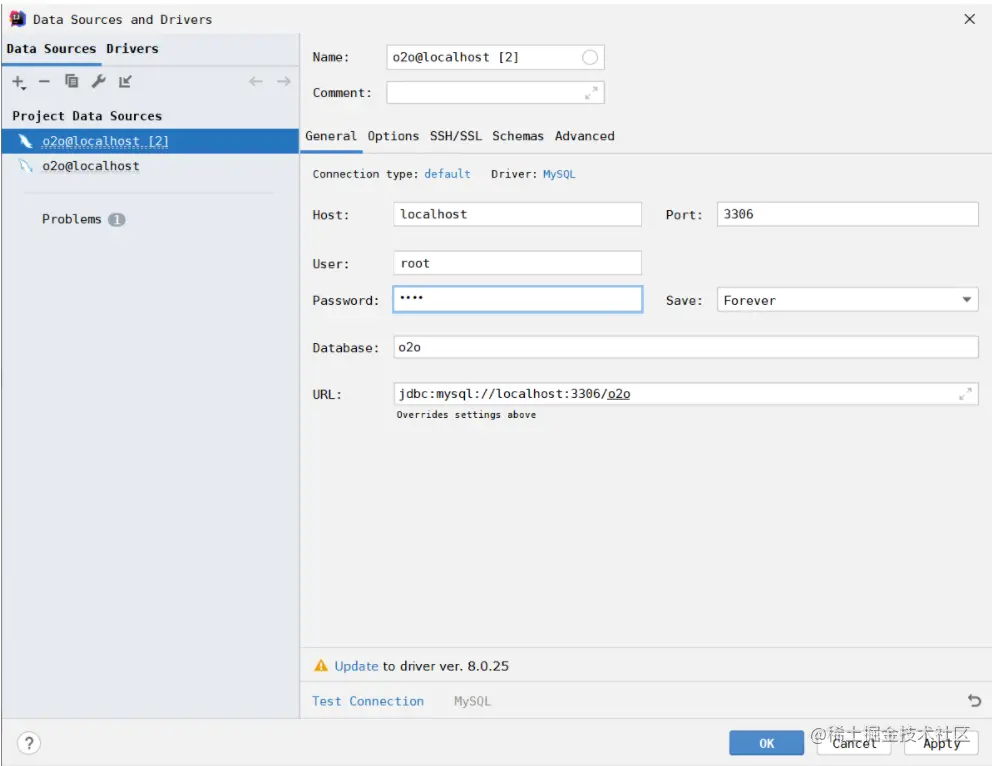

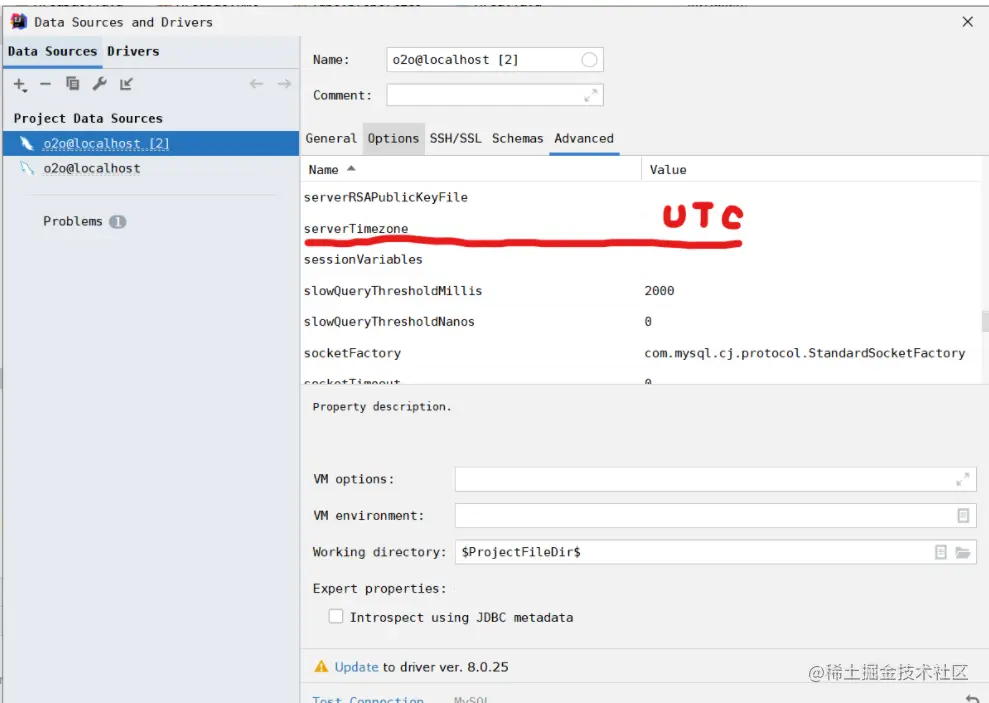

创建数据库o2o：
数据库表tb_area的sql语句：
DROP TABLE IF EXISTS `tb_area`;
CREATE TABLE `tb_area`(
`area_id` INT(2) NOT NULL AUTO_INCREMENT,
`area_name` VARCHAR(200) NOT NULL,
`priority` INT(2) NOT NULL DEFAULT '0',
`create_time` DATETIME DEFAULT NULL,
`last_edit_time` DATETIME DEFAULT NULL,
PRIMARY KEY(`area_id`),
UNIQUE KEY `UK_AREA`(`area_name`)
)ENGINE=INNODB auto_increment=1 DEFAULT CHARSET=utf8

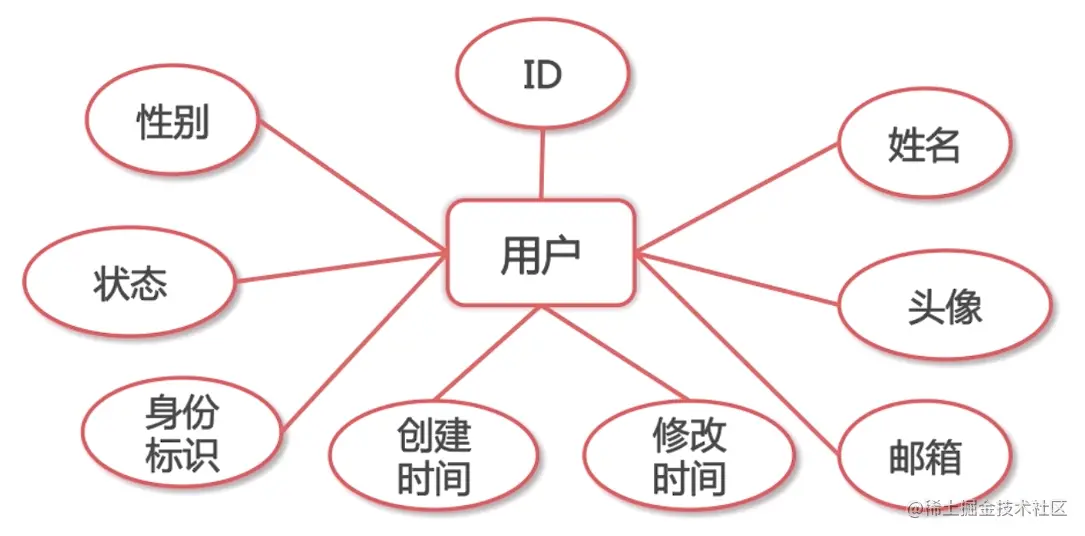

2、用户信息类：
创建实体类：
package com.imooc.o2o.entity;
import java.util.Date;
/**
* @author :16140
* @description :
* @create :2022-08-21 09:22:00
*/
public class PersonInfo {
private Long userId;
private String name;
//头像图片
private String profileImg;
private String email;
private String gender;
//查看用户是否被禁用
private Integer enableStatus;
//1.顾客 2.店家 3.超级管理员
private Integer userType;
private Date createTime;
private Date lastEditTime;
public Long getUserId() {
return userId;
}
public void setUserId(Long userId) {
this.userId = userId;
}
public String getName() {
return name;
}
public void setName(String name) {
this.name = name;
}
public String getProfileImg() {
return profileImg;
}
public void setProfileImg(String profileImg) {
this.profileImg = profileImg;
}
public String getEmail() {
return email;
}
public void setEmail(String email) {
this.email = email;
}
public String getGender() {
return gender;
}
public void setGender(String gender) {
this.gender = gender;
}
public Integer getEnableStatus() {
return enableStatus;
}
public void setEnableStatus(Integer enableStatus) {
this.enableStatus = enableStatus;
}
public Integer getUserType() {
return userType;
}
public void setUserType(Integer userType) {
this.userType = userType;
}
public Date getCreateTime() {
return createTime;
}
public void setCreateTime(Date createTime) {
this.createTime = createTime;
}
public Date getLastEditTime() {
return lastEditTime;
}
public void setLastEditTime(Date lastEditTime) {
this.lastEditTime = lastEditTime;
}
}
tb_person_info表：
DROP TABLE IF EXISTS `tb_person_info`;
CREATE TABLE `tb_person_info`(
`user_id` INT(10) NOT NULL AUTO_INCREMENT,
`name` VARCHAR(32) DEFAULT NULL,
`profile_img` VARCHAR(1024) DEFAULT NULL,
`email` VARCHAR(1024) DEFAULT NULL,
`gender` VARCHAR(2) DEFAULT NULL,
`enable_status` INT(2) NOT NULL DEFAULT '0' COMMENT '0:禁止使用本商城,1:允许使用本商城',
`user_type` INT(2) NOT NULL DEFAULT '1' COMMENT '1:顾客,2:店家,3:超级管理员',
`create_time` DATETIME DEFAULT NULL,
`last_edit_time` DATETIME DEFAULT NULL,
PRIMARY KEY(`user_id`)
)ENGINE=INNODB AUTO_INCREMENT=1 DEFAULT CHARSET=utf8

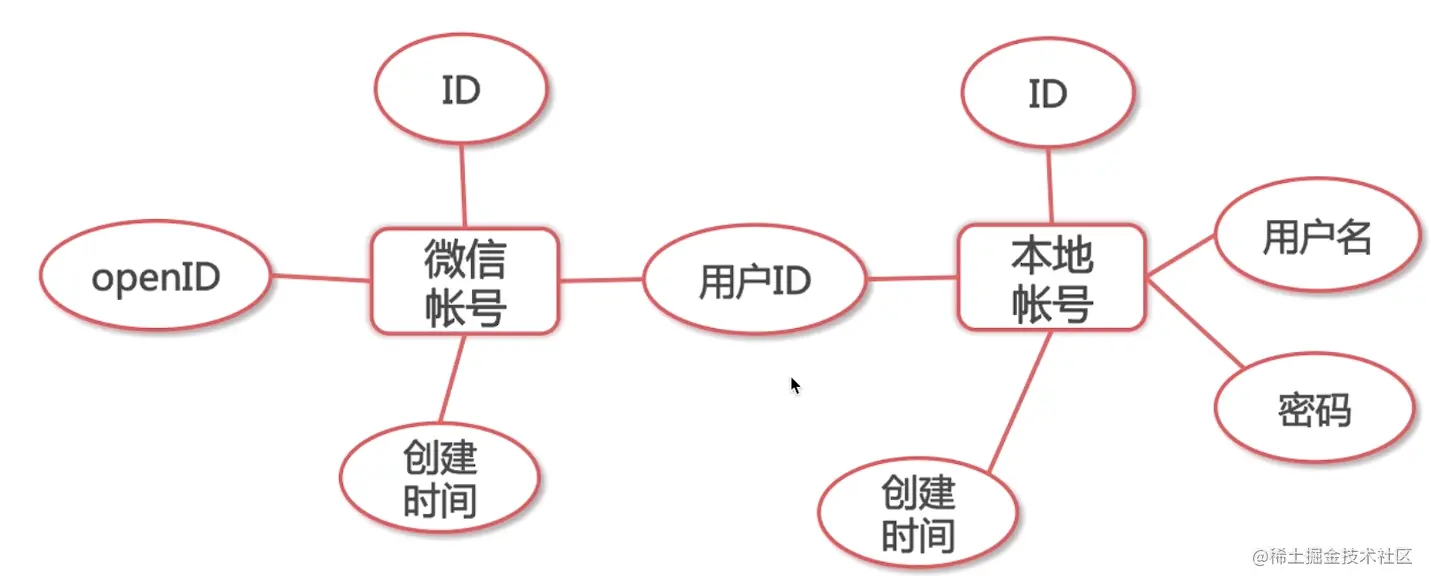

微信账号类和本地账号类：
3、微信账号类：
package com.imooc.o2o.entity;
import java.util.Date;
/**
* @author :16140
* @description :
* @create :2022-08-21 09:44:00
*/
public class WechatAuth {
private Long wechatAuthId;
private String openId;
private Date createTime;
private PersonInfo personInfo;
public Long getWechatAuthId() {
return wechatAuthId;
}
public void setWechatAuthId(Long wechatAuthId) {
this.wechatAuthId = wechatAuthId;
}
public String getOpenId() {
return openId;
}
public void setOpenId(String openId) {
this.openId = openId;
}
public Date getCreateTime() {
return createTime;
}
public void setCreateTime(Date createTime) {
this.createTime = createTime;
}
public PersonInfo getPersonInfo() {
return personInfo;
}
public void setPersonInfo(PersonInfo personInfo) {
this.personInfo = personInfo;
}
}
4、本地账号类：
package com.imooc.o2o.entity;
import java.util.Date;
/**
* @author :16140
* @description :
* @create :2022-08-21 09:45:00
*/
public class LocalAuth {
private Long localAuthId;
private String username;
private String password;
private Date createTime;
private Date lastEditTime;
private PersonInfo personInfo;
public Long getLocalAuthId() {
return localAuthId;
}
public void setLocalAuthId(Long localAuthId) {
this.localAuthId = localAuthId;
}
public String getUsername() {
return username;
}
public void setUsername(String username) {
this.username = username;
}
public String getPassword() {
return password;
}
public void setPassword(String password) {
this.password = password;
}
public Date getCreateTime() {
return createTime;
}
public void setCreateTime(Date createTime) {
this.createTime = createTime;
}
public Date getLastEditTime() {
return lastEditTime;
}
public void setLastEditTime(Date lastEditTime) {
this.lastEditTime = lastEditTime;
}
public PersonInfo getPersonInfo() {
return personInfo;
}
public void setPersonInfo(PersonInfo personInfo) {
this.personInfo = personInfo;
}
}
sql语句：
DROP TABLE IF EXISTS `tb_wechat_auth`;
CREATE TABLE `tb_wechat_auth`(
`wechat_auth_id` INT(10) NOT NULL AUTO_INCREMENT,
`user_id` INT(10) NOT NULL,
`open_id` VARCHAR(1024) NOT NULL,
`create_time` DATETIME DEFAULT NULL,
PRIMARY KEY(`wechat_auth_id`),
CONSTRAINT `fk_wechatauth_profile` FOREIGN KEY(`user_id`) REFERENCES `tb_person_info`(`user_id`),
UNIQUE KEY(`open_id`)
)ENGINE=INNODB AUTO_INCREMENT=1 DEFAULT CHARSET=utf8;
DROP TABLE IF EXISTS `tb_local_auth`;
CREATE TABLE `tb_local_auth`(
`local_auth_id` INT(10) NOT NULL AUTO_INCREMENT,
`user_id` INT(10) NOT NULL,
`username` VARCHAR(128) NOT NULL,
`password` VARCHAR(128) NOT NULL,
`create_time` DATETIME DEFAULT NULL,
`last_edit_time` DATETIME DEFAULT NULL,
PRIMARY KEY(`local_auth_id`),
UNIQUE KEY(`local_auth_id`),
CONSTRAINT `fk_localauth_profile` FOREIGN KEY(`user_id`) REFERENCES `tb_person_info`(`user_id`)
)ENGINE=INNODB AUTO_INCREMENT=1 DEFAULT CHARSET=utf8

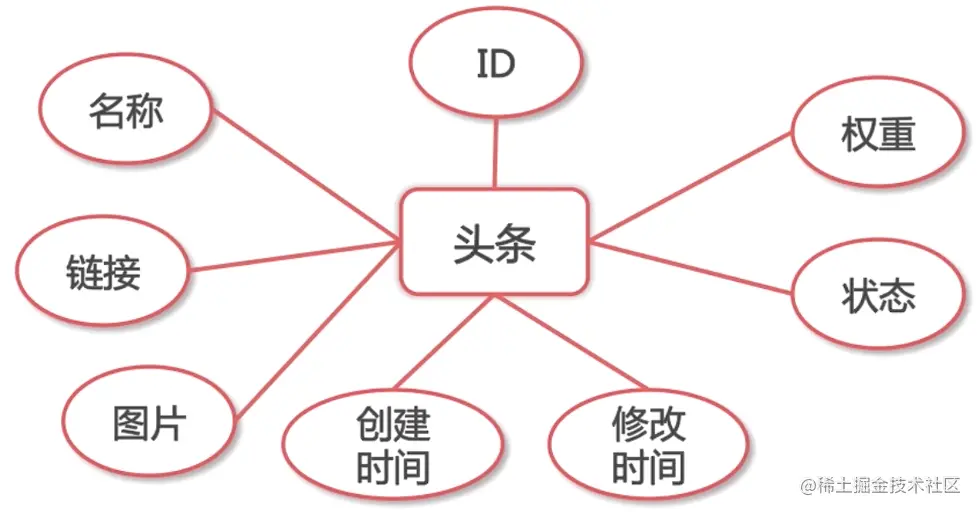

5、头条类：
package com.imooc.o2o.entity;
import java.util.Date;
/**
* @author :16140
* @description :
* @create :2022-08-21 10:10:00
*/
public class HeadLine {
private Long lineId;
private String lineName;
private String lineLink;
private String lineImg;
private Integer priority;
//0.不可用 1.可用
private Integer enableStatus;
private Date createTime;
private Date lastEditTime;
public Long getLineId() {
return lineId;
}
public void setLineId(Long lineId) {
this.lineId = lineId;
}
public String getLineName() {
return lineName;
}
public void setLineName(String lineName) {
this.lineName = lineName;
}
public String getLineLink() {
return lineLink;
}
public void setLineLink(String lineLink) {
this.lineLink = lineLink;
}
public String getLineImg() {
return lineImg;
}
public void setLineImg(String lineImg) {
this.lineImg = lineImg;
}
public Integer getPriority() {
return priority;
}
public void setPriority(Integer priority) {
this.priority = priority;
}
public Integer getEnableStatus() {
return enableStatus;
}
public void setEnableStatus(Integer enableStatus) {
this.enableStatus = enableStatus;
}
public Date getCreateTime() {
return createTime;
}
public void setCreateTime(Date createTime) {
this.createTime = createTime;
}
public Date getLastEditTime() {
return lastEditTime;
}
public void setLastEditTime(Date lastEditTime) {
this.lastEditTime = lastEditTime;
}
}
数据库表：
DROP TABLE IF EXISTS `tb_head_line`;
CREATE TABLE `tb_head_line`(
`line_id` INT(100) NOT NULL AUTO_INCREMENT,
`line_name` VARCHAR(1000) DEFAULT NULL,
`line_link` VARCHAR(2000) NOT NULL,
`line_img` VARCHAR(2000) NOT NULL,
`priority` INT(2) DEFAULT NULL,
`enable_status` INT(2) NOT NULL DEFAULT '0',
`create_time` DATETIME DEFAULT NULL,
`last_edit_time` DATETIME DEFAULT NULL,
PRIMARY KEY(`line_id`)
)ENGINE=INNODB AUTO_INCREMENT=1 DEFAULT CHARSET=utf8;

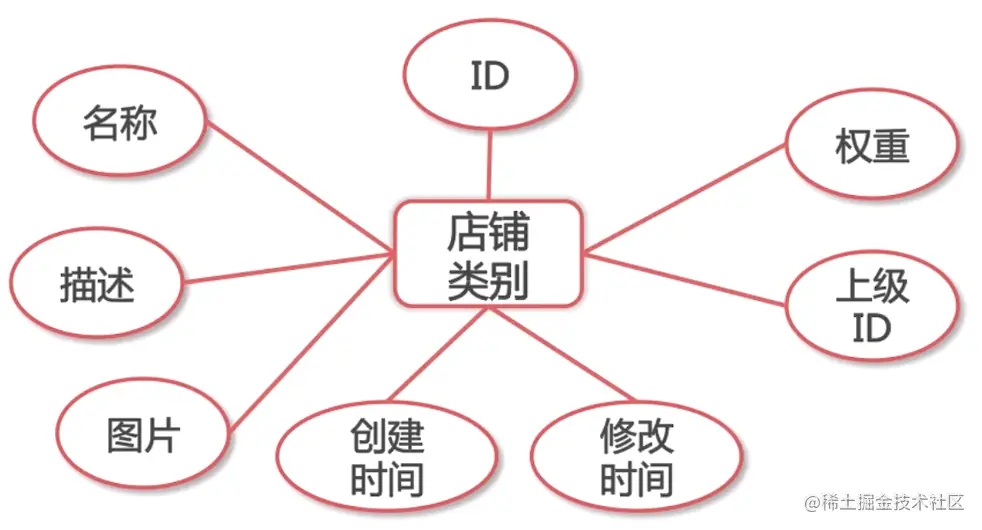

6、店铺类别：
商铺类别类代码：
package com.imooc.o2o.entity;
import java.util.Date;
/**
* @author :16140
* @description :
* @create :2022-08-21 10:21:00
*/
public class ShopCategory {
private Long shopCategoryId;
private String shopCategoryName;
private String shopCategoryDesc;
private String shopCategoryImg;
private Integer priority;
private Date createTime;
private Date lastEditTime;
private ShopCategory parent;
public Long getShopCategoryId() {
return shopCategoryId;
}
public void setShopCategoryId(Long shopCategoryId) {
this.shopCategoryId = shopCategoryId;
}
public String getShopCategoryName() {
return shopCategoryName;
}
public void setShopCategoryName(String shopCategoryName) {
this.shopCategoryName = shopCategoryName;
}
public String getShopCategoryDesc() {
return shopCategoryDesc;
}
public void setShopCategoryDesc(String shopCategoryDesc) {
this.shopCategoryDesc = shopCategoryDesc;
}
public String getShopCategoryImg() {
return shopCategoryImg;
}
public void setShopCategoryImg(String shopCategoryImg) {
this.shopCategoryImg = shopCategoryImg;
}
public Integer getPriority() {
return priority;
}
public void setPriority(Integer priority) {
this.priority = priority;
}
public Date getCreateTime() {
return createTime;
}
public void setCreateTime(Date createTime) {
this.createTime = createTime;
}
public Date getLastEditTime() {
return lastEditTime;
}
public void setLastEditTime(Date lastEditTime) {
this.lastEditTime = lastEditTime;
}
public ShopCategory getParent() {
return parent;
}
public void setParent(ShopCategory parent) {
this.parent = parent;
}
}
sql语句：
DROP TABLE IF EXISTS `tb_shop_category`;
CREATE TABLE `tb_shop_category`(
`shop_category_id` INT(11) NOT NULL AUTO_INCREMENT,
`shop_category_name` VARCHAR(100) NOT NULL DEFAULT "",
`shop_category_desc` VARCHAR(1000) DEFAULT "",
`shop_category_img` VARCHAR(2000) DEFAULT NULL,
`priority` INT(2) NOT NULL DEFAULT '0',
`create_time` DATETIME DEFAULT NULL,
`last_edit_time` DATETIME DEFAULT NULL,
`parent_id` INT(11) DEFAULT NULL,
PRIMARY KEY(`shop_category_id`),
CONSTRAINT `fk_shop_category_self` FOREIGN KEY(`parent_id`) REFERENCES
`tb_shop_category`(`shop_category_id`)
)ENGINE=INNODB AUTO_INCREMENT=1 DEFAULT CHARSET=utf8;

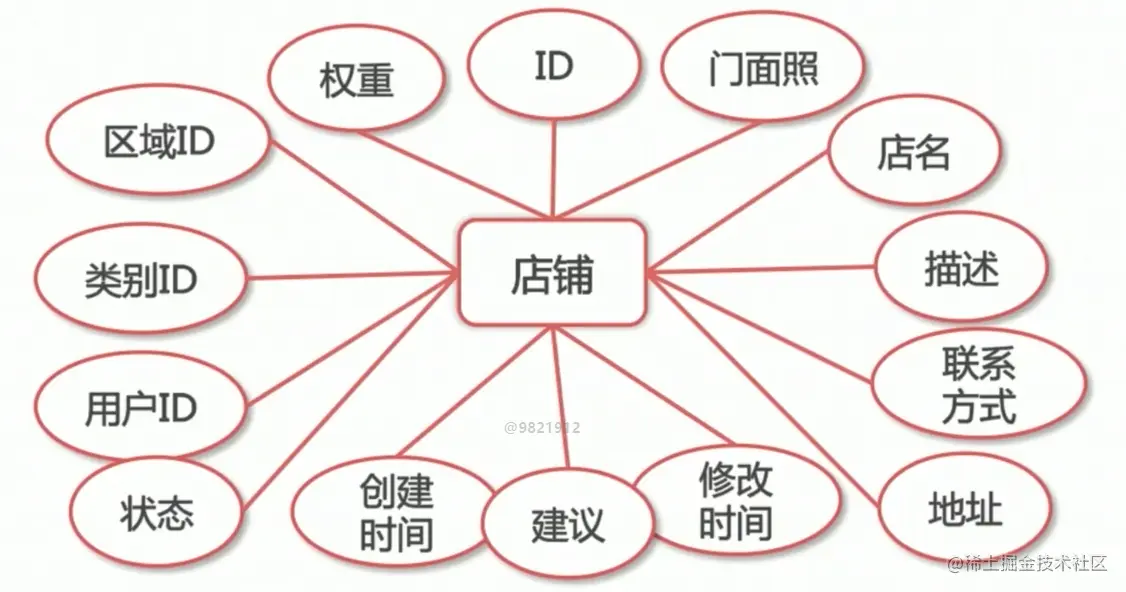

7、店铺：
代码：
package com.imooc.o2o.entity;
import java.util.Date;
/**
* @author :16140
* @description :
* @create :2022-08-21 10:32:00
*/
public class Shop {
private Long shopId;
private String shopName;
private String shopDesc;
private String shopAddr;
private String phone;
private String shopImg;
private Integer priority;
private Date createTime;
private Date lastEditTime;
//-1.不可用 0.审核中 1.可用
private Integer enableStatus;
//超级管理员给店家的提醒
private String advice;
private Area area;
private PersonInfo owner;
private ShopCategory shopCategory;
public Long getShopId() {
return shopId;
}
public void setShopId(Long shopId) {
this.shopId = shopId;
}
public String getShopName() {
return shopName;
}
public void setShopName(String shopName) {
this.shopName = shopName;
}
public String getShopDesc() {
return shopDesc;
}
public void setShopDesc(String shopDesc) {
this.shopDesc = shopDesc;
}
public String getShopAddr() {
return shopAddr;
}
public void setShopAddr(String shopAddr) {
this.shopAddr = shopAddr;
}
public String getPhone() {
return phone;
}
public void setPhone(String phone) {
this.phone = phone;
}
public String getShopImg() {
return shopImg;
}
public void setShopImg(String shopImg) {
this.shopImg = shopImg;
}
public Integer getPriority() {
return priority;
}
public void setPriority(Integer priority) {
this.priority = priority;
}
public Date getCreateTime() {
return createTime;
}
public void setCreateTime(Date createTime) {
this.createTime = createTime;
}
public Date getLastEditTime() {
return lastEditTime;
}
public void setLastEditTime(Date lastEditTime) {
this.lastEditTime = lastEditTime;
}
public Integer getEnableStatus() {
return enableStatus;
}
public void setEnableStatus(Integer enableStatus) {
this.enableStatus = enableStatus;
}
public String getAdvice() {
return advice;
}
public void setAdvice(String advice) {
this.advice = advice;
}
public Area getArea() {
return area;
}
public void setArea(Area area) {
this.area = area;
}
public PersonInfo getOwner() {
return owner;
}
public void setOwner(PersonInfo owner) {
this.owner = owner;
}
public ShopCategory getShopCategory() {
return shopCategory;
}
public void setShopCategory(ShopCategory shopCategory) {
this.shopCategory = shopCategory;
}
}
sql语句：
CREATE TABLE `tb_shop`(
`shop_id` INT(10) NOT NULL AUTO_INCREMENT,
`owner_id` INT(10) NOT NULL COMMENT '店铺创建人',
`area_id` INT(5) DEFAULT NULL,
`shop_category_id` INT(11) DEFAULT NULL,
`shop_name` VARCHAR(255) NOT NULL,
`shop_desc` VARCHAR(1024) DEFAULT NULL,
`shop_addr` VARCHAR(200) DEFAULT NULL,
`phone` VARCHAR(128) DEFAULT NULL,
`shop_img` VARCHAR(1024) DEFAULT NULL,
`priority` INT(3) DEFAULT '0',
`creat_time` DATETIME DEFAULT NULL,
`last_edit_time` DATETIME DEFAULT NULL,
`enable_status` INT(2) NOT NULL DEFAULT '0',
`advice` VARCHAR(255) DEFAULT NULL,
PRIMARY KEY(`shop_id`),
CONSTRAINT `fk_shop_area` FOREIGN KEY(`area_id`) REFERENCES `tb_area`(`area_id`),
CONSTRAINT `fk_shop_profile` FOREIGN KEY(`owner_id`) REFERENCES `tb_person_info`(`user_id`),
CONSTRAINT `fk_shop_shopcate` FOREIGN KEY(`shop_category_id`) REFERENCES `tb_shop_category`(`shop_category_id`)
)ENGINE=INNODB AUTO_INCREMENT=1 DEFAULT CHARSET=utf8
8、商品类别：
package com.imooc.o2o.entity;
import java.util.Date;
/**
* @author :16140
* @description :
* @create :2022-08-21 10:47:00
*/
public class ProductCategory {
private Long productCategoryId;
private Long shopId;
private String productCategoryName;
private Integer priority;
private Date createTime;
public Long getProductCategoryId() {
return productCategoryId;
}
public void setProductCategoryId(Long productCategoryId) {
this.productCategoryId = productCategoryId;
}
public Long getShopId() {
return shopId;
}
public void setShopId(Long shopId) {
this.shopId = shopId;
}
public String getProductCategoryName() {
return productCategoryName;
}
public void setProductCategoryName(String productCategoryName) {
this.productCategoryName = productCategoryName;
}
public Integer getPriority() {
return priority;
}
public void setPriority(Integer priority) {
this.priority = priority;
}
public Date getCreateTime() {
return createTime;
}
public void setCreateTime(Date createTime) {
this.createTime = createTime;
}
}
sql语句：
CREATE TABLE `tb_product_category`(
`product_category_id` INT(11) NOT NULL AUTO_INCREMENT,
`product_category_name` VARCHAR(200) NOT NULL,
`priority` INT(2) DEFAULT '0',
`create_time` DATETIME DEFAULT NULL,
`shop_id` INT(20) NOT NULL DEFAULT '0',
PRIMARY KEY(`product_category_id`),
CONSTRAINT `fk_procate_shop` FOREIGN KEY(`shop_id`) REFERENCES `tb_shop`(`shop_id`)
)ENGINE=INNODB AUTO_INCREMENT=1 DEFAULT CHARSET=utf8
9、商品类：
package com.imooc.o2o.entity;
import java.util.Date;
import java.util.List;
/**
* @author :16140
* @description :
* @create :2022-08-21 11:02:00
*/
public class Product {
private Long productId;
private String productName;
private String productDesc;
private String imgAddr;
private String normalPrice;
private String promotionPrice;
private Integer priority;
private Date createTime;
private Date lastEditTime;
//0.下架 1.在前端展示系统展示
private Integer enableStatus;
private List<ProductImg> productImgList;
private Shop shop;
public Long getProductId() {
return productId;
}
public void setProductId(Long productId) {
this.productId = productId;
}
public String getProductName() {
return productName;
}
public void setProductName(String productName) {
this.productName = productName;
}
public String getProductDesc() {
return productDesc;
}
public void setProductDesc(String productDesc) {
this.productDesc = productDesc;
}
public String getImgAddr() {
return imgAddr;
}
public void setImgAddr(String imgAddr) {
this.imgAddr = imgAddr;
}
public String getNormalPrice() {
return normalPrice;
}
public void setNormalPrice(String normalPrice) {
this.normalPrice = normalPrice;
}
public String getPromotionPrice() {
return promotionPrice;
}
public void setPromotionPrice(String promotionPrice) {
this.promotionPrice = promotionPrice;
}
public Integer getPriority() {
return priority;
}
public void setPriority(Integer priority) {
this.priority = priority;
}
public Date getCreateTime() {
return createTime;
}
public void setCreateTime(Date createTime) {
this.createTime = createTime;
}
public Date getLastEditTime() {
return lastEditTime;
}
public void setLastEditTime(Date lastEditTime) {
this.lastEditTime = lastEditTime;
}
public Integer getEnableStatus() {
return enableStatus;
}
public void setEnableStatus(Integer enableStatus) {
this.enableStatus = enableStatus;
}
public List<ProductImg> getProductImgList() {
return productImgList;
}
public void setProductImgList(List<ProductImg> productImgList) {
this.productImgList = productImgList;
}
public Shop getShop() {
return shop;
}
public void setShop(Shop shop) {
this.shop = shop;
}
}
sql语句：
CREATE TABLE `tb_product`(
`product_id` INT(100) NOT NULL AUTO_INCREMENT,
`product_name` VARCHAR(100) NOT NULL,
`product_desc` VARCHAR(2000) DEFAULT NULL,
`img_addr` VARCHAR(2000) DEFAULT "",
`normal_price` VARCHAR(100) DEFAULT NULL,
`promotion_price` VARCHAR(100) DEFAULT NULL,
`priority` INT(2) NOT NULL DEFAULT '0',
`create_time` DATETIME DEFAULT NULL,
`last_edit_time` DATETIME DEFAULT NULL,
`enable_status` INT(2) NOT NULL DEFAULT '0',
`product_category_id` INT(11) DEFAULT NULL,
`shop_id` INT(20) NOT NULL DEFAULT '0',
PRIMARY KEY(`product_id`),
CONSTRAINT `fk_product_procate` FOREIGN KEY(`product_category_id`)
REFERENCES `tb_product_category`(`product_category_id`),
CONSTRAINT `fk_product_shop` FOREIGN KEY(`shop_id`) REFERENCES
`tb_shop`(`shop_id`)
) ENGINE=INNODB AUTO_INCREMENT=1 DEFAULT CHARSET=utf8
10、商品图片类：
package com.imooc.o2o.entity;
import java.util.Date;
/**
* @author :16140
* @description :
* @create :2022-08-21 10:55:00
*/
public class ProductImg {
private Long productImgId;
private String imgAddr;
private String imgDesc;
private Integer priority;
private Date createTime;
private Long productId;
public Long getProductImgId() {
return productImgId;
}
public void setProductImgId(Long productImgId) {
this.productImgId = productImgId;
}
public String getImgAddr() {
return imgAddr;
}
public void setImgAddr(String imgAddr) {
this.imgAddr = imgAddr;
}
public String getImgDesc() {
return imgDesc;
}
public void setImgDesc(String imgDesc) {
this.imgDesc = imgDesc;
}
public Integer getPriority() {
return priority;
}
public void setPriority(Integer priority) {
this.priority = priority;
}
public Date getCreateTime() {
return createTime;
}
public void setCreateTime(Date createTime) {
this.createTime = createTime;
}
public Long getProductId() {
return productId;
}
public void setProductId(Long productId) {
this.productId = productId;
}
}
sql语句：
CREATE TABLE `tb_product_img`(
`product_img_id` INT(11) NOT NULL AUTO_INCREMENT,
`img_addr` VARCHAR(2000) NOT NULL,
`img_desc` VARCHAR(2000) DEFAULT NULL,
`priority` INT(2) DEFAULT '0',
`create_time` DATETIME DEFAULT NULL,
`product_id` INT(20) DEFAULT NULL,
PRIMARY KEY(`product_img_id`),
CONSTRAINT `fk_proimg_product` FOREIGN KEY(`product_id`) REFERENCES `tb_product`(`product_id`)
)ENGINE=INNODB AUTO_INCREMENT=1 DEFAULT CHARSET=utf8
3、使用git管理项目

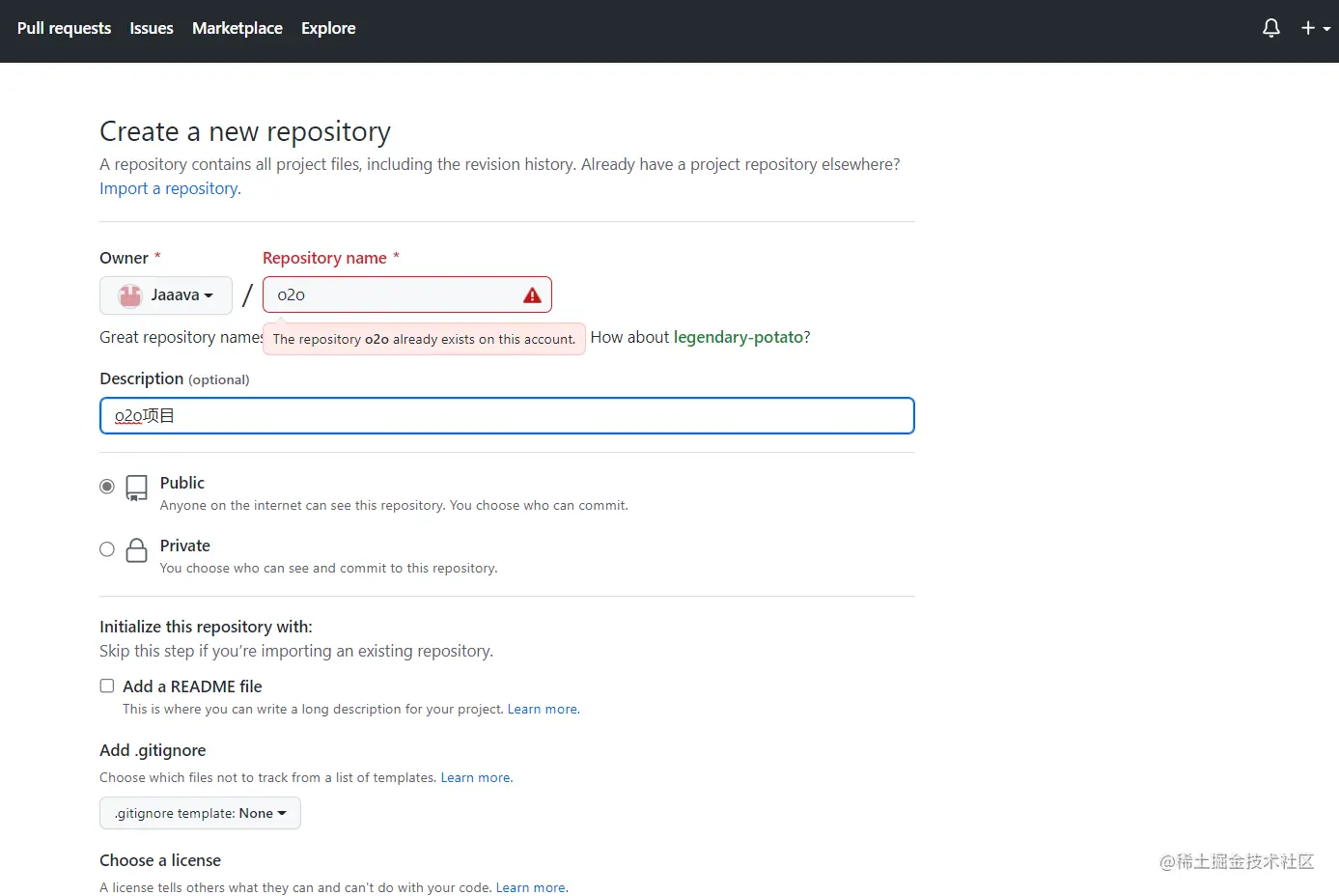

github上创建git仓库：
创建git项目后，会出现让你执行操作的指令：
git init #让git管理本项目，创建.git文件
git add . #把全部文件都上传到git暂存区
git status #查看是否否加进去了，没加进去可以 使用git add xxx文件全路径去添加
git commit -m "first commit" #提交到本地代码库，commit内容是first commit，也可以换成其他的
git branch -M master #把当前分支命名为master分支
git remote add origin git@github.com:Jaaava/o2o.git #本地库和远程库关联，这里使用的是SSH方式具体和含义是不想每次提交都写git@github.com:Jaaava/o2o.git作为项目名，这样把这个大长串起个别名origin，以后都用origin即可
git push -u origin master #git push -u就是指定一个具体的项目的分支，以后可以使用git push直接推送到这里了，origin我们知道是git@github.com:Jaaava/o2o.git的简写，origin master就是这个项目的master分支，这句话就是说我指定了以后推送的分支是origin master,并且推送过去
4、review之前的web内容
下面这个index.jsp是可以直接访问的，但是WEB-INF下是不能直接访问的，一些不想让别人访问到的内容可以放在这里，web.xml是配置那些javaweb的信息的，比如servlet的配置、别名、位置等等。
另外要想开发还需要以下包：entity、dao、service、web（controller）、dto、enums、interceptor（拦截器）、util。
5、SSM的配置
resource下创建jdbc.properties文件：
jdbc,driver=com.mysql.jdbc.Driver
jdbc.url=jdbc:mysql://localhost:3306/o2o?useUnicode=true&characterEncoding=utf8&serverTimezone=UTC
jdbc.username=root
jdbc.password=xxxxxx
MyBatis相关配置：
<?xml version="1.0" encoding="UTF-8" ?>
<!DOCTYPE configuration
PUBLIC "-//mybatis.org//DTD Config 3.0//EN"
"http://mybatis.org/dtd/mybatis-3-config.dtd">
<configuration>
<settings>
<!--使用jdbc的getGeneratedKeys获取数据库自增主键值-->
<setting name="useGeneratedKeys" value="true"/>
<!--使用列标签替换列名-->
<setting name="useColumnLabel" value="true"/>
<!--开启驼峰命名转换：Table{create_time} -> Entity{createTime}-->
<setting name="mapUnderscoreToCamelCase" value="true"/>
</settings>
</configuration>
spring-dao.xml文件的配置：
<?xml version="1.0" encoding="UTF-8" ?>
<beans xmlns="http://www.springframework.org/schema/beans"
xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
xmlns:context="http://www.springframework.org/schema/context"
xsi:schemaLocation="http://www.springframework.org/schema/beans
http://www.springframework.org/schema/beans/spring-beans.xsd
http://www.springframework.org/schema/context
http://www.springframework.org/schema/context/spring-context.xsd http://www.springframework.org/schema/mvc http://www.springframework.org/schema/mvc/spring-mvc.xsd">
<!-- 配置整合mybatis过程 -->
<!-- 1.配置数据库相关参数properties的属性：${url} -->
<!-- 使用数据库配置文件解耦 -->
<context:property-placeholder location="classpath:jdbc.properties"/>
<!-- （2）定义数据源(指定连接到哪个数据库) class:数据库连接池(带数据库的连接)作用:解决数据库多次打开和关闭 destroy-method销毁方法-->
<bean id="dataSource" class="com.mchange.v2.c3p0.ComboPooledDataSource" destroy-method="close" >
<!--详细配置文档-->
<!--http://commons.apache.org/proper/commons-dbcp/configuration.html-->
<property name="driverClass" value="${jdbc.driver}" />
<property name="jdbcUrl" value="${jdbc.url}" />
<property name="user" value="${jdbc.username}" />
<property name="password" value="${jdbc.password}" />
<!-- c3p0连接池的私有属性 -->
<property name="maxPoolSize" value="30" />
<property name="minPoolSize" value="10" />
<!-- 关闭连接后不自动commit -->
<property name="autoCommitOnClose" value="false" />
<!-- 获取连接超时时间 -->
<property name="checkoutTimeout" value="10000" />
<!-- 当获取连接失败重试次数 -->
<property name="acquireRetryAttempts" value="2" />
</bean>
<!-- 3.配置SqlSessionFactory对象 -->
<bean id="sqlSessionFactory" class="org.mybatis.spring.SqlSessionFactoryBean">
<!-- 注入数据库连接池 -->
<property name="dataSource" ref="dataSource"/>
<!-- 配置MyBaties全局配置文件:mybatis-config.xml -->
<property name="configLocation" value="classpath:mybatis-config.xml"/>
<!-- 扫描entity包 使用别名 -->
<property name="typeAliasesPackage" value="com.imooc.o2o.entity"/>
<!-- 扫描sql配置文件:[====mapper.xml====]所在位置-->
<property name="mapperLocations" value="classpath:mapper/*.xml"/>
</bean>
<!-- 4.配置扫描Dao接口包，动态实现Dao接口，注入到spring容器中 -->
<bean class="org.mybatis.spring.mapper.MapperScannerConfigurer">
<!-- 注入sqlSessionFactory -->
<property name="sqlSessionFactoryBeanName" value="sqlSessionFactory" />
<!-- 给出需要扫描Dao接口包 -->
<property name="basePackage" value="com.imooc.o2o.dao" />
</bean>
</beans>
spring-service.xml配置：
<?xml version="1.0" encoding="UTF-8"?>
<beans xmlns="http://www.springframework.org/schema/beans"
xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
xmlns:context="http://www.springframework.org/schema/context"
xmlns:tx="http://www.springframework.org/schema/tx"
xsi:schemaLocation="http://www.springframework.org/schema/beans
http://www.springframework.org/schema/beans/spring-beans.xsd
http://www.springframework.org/schema/context
http://www.springframework.org/schema/context/spring-context.xsd
http://www.springframework.org/schema/tx
http://www.springframework.org/schema/tx/spring-tx.xsd">
<!-- 扫描service包下所有使用注解的类型 -->
<context:component-scan base-package="com.imooc.o2o.service" />
<!-- 配置事务管理器 -->
<bean id="transactionManager"
class="org.springframework.jdbc.datasource.DataSourceTransactionManager">
<!-- 注入数据库连接池 -->
<property name="dataSource" ref="dataSource" />
</bean>
<!-- 配置基于注解的声明式事务 -->
<tx:annotation-driven transaction-manager="transactionManager" />
</beans>
spring-web.xml配置：
<?xml version="1.0" encoding="UTF-8"?>
<beans xmlns="http://www.springframework.org/schema/beans"
xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xmlns:context="http://www.springframework.org/schema/context"
xmlns:mvc="http://www.springframework.org/schema/mvc"
xsi:schemaLocation="http://www.springframework.org/schema/beans
http://www.springframework.org/schema/beans/spring-beans.xsd
http://www.springframework.org/schema/context
http://www.springframework.org/schema/context/spring-context.xsd
http://www.springframework.org/schema/mvc
http://www.springframework.org/schema/mvc/spring-mvc-3.2.xsd">
<!-- 配置SpringMVC -->
<!-- 1.开启SpringMVC注解模式 -->
<mvc:annotation-driven />
<!-- 2.静态资源默认servlet配置 (1)加入对静态资源的处理：js,gif,png (2)允许使用"/"做整体映射 -->
<mvc:resources mapping="/resources/**" location="/resources/" />
<mvc:default-servlet-handler />
<!-- 3.定义视图解析器 -->
<bean id="viewResolver"
class="org.springframework.web.servlet.view.InternalResourceViewResolver">
<property name="prefix" value="/WEB-INF/html/"></property>
<property name="suffix" value=".html"></property>
</bean>
<!-- 文件上传解析器 -->
<bean id="multipartResolver"
class="org.springframework.web.multipart.commons.CommonsMultipartResolver">
<property name="defaultEncoding" value="utf-8"></property>
<!-- 1024 * 1024 * 20 = 20M -->
<property name="maxUploadSize" value="20971520"></property>
<property name="maxInMemorySize" value="20971520"></property>
</bean>
<!-- 4.扫描web相关的bean -->
<context:component-scan base-package="com.imooc.o2o.web" />
<!-- 5.权限拦截器 -->
<!-- <mvc:interceptors>-->
<!-- <!– 校验是否已登录了店家管理系统的拦截器 –>-->
<!-- <mvc:interceptor>-->
<!-- <mvc:mapping path="/shopadmin/**" />-->
<!-- <bean id="ShopInterceptor"-->
<!-- class="com.imooc.o2o.interceptor.shopadmin.ShopLoginInterceptor" />-->
<!-- </mvc:interceptor>-->
<!-- <!– 校验是否对该店铺有操作权限的拦截器 –>-->
<!-- <mvc:interceptor>-->
<!-- <mvc:mapping path="/shopadmin/**" />-->
<!-- <!– shoplist page –>-->
<!-- <mvc:exclude-mapping path="/shopadmin/shoplist" />-->
<!-- <mvc:exclude-mapping path="/shopadmin/getshoplist" />-->
<!-- <!– shopregister page –>-->
<!-- <mvc:exclude-mapping path="/shopadmin/getshopinitinfo" />-->
<!-- <mvc:exclude-mapping path="/shopadmin/registershop" />-->
<!-- <mvc:exclude-mapping path="/shopadmin/shopoperation" />-->
<!-- <!– shopmanage page –>-->
<!-- <mvc:exclude-mapping path="/shopadmin/shopmanagement" />-->
<!-- <mvc:exclude-mapping path="/shopadmin/getshopmanagementinfo" />-->
<!-- <bean id="ShopPermissionInterceptor"-->
<!-- class="com.imooc.o2o.interceptor.shopadmin.ShopPermissionInterceptor" />-->
<!-- </mvc:interceptor>-->
<!-- <!– 超级管理员系统拦截部分 –>-->
<!-- <mvc:interceptor>-->
<!-- <mvc:mapping path="/superadmin/**" />-->
<!-- <mvc:exclude-mapping path="/superadmin/login" />-->
<!-- <mvc:exclude-mapping path="/superadmin/logincheck" />-->
<!-- <mvc:exclude-mapping path="/superadmin/main" />-->
<!-- <mvc:exclude-mapping path="/superadmin/top" />-->
<!-- <mvc:exclude-mapping path="/superadmin/clearcache4area" />-->
<!-- <mvc:exclude-mapping path="/superadmin/clearcache4headline" />-->
<!-- <mvc:exclude-mapping path="/superadmin/clearcache4shopcategory" />-->
<!-- <bean id="SuperAdminLoginInterceptor"-->
<!-- class="com.imooc.o2o.interceptor.superadmin.SuperAdminLoginInterceptor" />-->
<!-- </mvc:interceptor>-->
<!-- </mvc:interceptors>-->
</beans>
另外需要在web.xml文件中进一步配置：
<?xml version="1.0" encoding="UTF-8"?>
<web-app xmlns="http://xmlns.jcp.org/xml/ns/javaee"
xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
xsi:schemaLocation="http://xmlns.jcp.org/xml/ns/javaee http://xmlns.jcp.org/xml/ns/javaee/web-app_4_0.xsd"
version="4.0">
<servlet>
<servlet-name>spring-dispatcher</servlet-name>
<servlet-class>org.springframework.web.servlet.DispatcherServlet</servlet-class>
<init-param>
<param-name>contextConfigLocation</param-name>
<param-value>classpath:spring/spring-*.xml</param-value>
</init-param>
</servlet>
<servlet-mapping>
<servlet-name>spring-dispatcher</servlet-name>
<url-pattern>/</url-pattern>
</servlet-mapping>
</web-app>
6、Dao
先操作AreaDao：
package com.imooc.o2o.dao;
import com.imooc.o2o.entity.Area;
import java.util.List;
/**
* @author :16140
* @description :
* @create :2022-08-21 15:00:00
*/
public interface AreaDao {
/**
* 返回区域列表
* @return areaList
*/
List<Area> queryArea();
}
然后先在Idea上连接数据库，点Idea右边的database，然后选择MySQL：
大部分情况是需要修改时区的找到serverTimezone=UTC
这样就可以了。
然后创建AreaDao.xml文件：
<?xml version="1.0" encoding="UTF-8"?>
<!DOCTYPE mapper
PUBLIC "-//mybatis.org//DTD Mapper 3.0//EN"
"http://mybatis.org/dtd/mybatis-3-mapper.dtd">
<mapper namespace="com.imooc.o2o.dao.AreaDao">
<select id="queryArea" resultType="com.imooc.o2o.entity.Area">
select area_id,area_name,priority,create_time,last_edit_time
from tb_area order by priority desc;
</select>
</mapper>
可以在tb_area中添加一些数据，方便查询。
INSERT INTO tb_area (area_name,priority) VALUES("地球",1),("火星",2)
先创建一个基本的BaseDaoTest类：
package com.imooc.o2o;
import org.junit.Test;
import org.junit.runner.RunWith;
import org.springframework.test.context.ContextConfiguration;
import org.springframework.test.context.junit4.SpringJUnit4ClassRunner;
/**
* @author :16140
* @description :
* @create :2022-08-21 15:23:00
*/
@RunWith(SpringJUnit4ClassRunner.class)
//告诉Junit配置文件位置在哪
@ContextConfiguration({"classpath:spring/spring-dao.xml"})
public class BaseTest {
}
AreaDaoTest类：
package com.imooc.o2o.dao;
import com.imooc.o2o.BaseTest;
import com.imooc.o2o.entity.Area;
import org.junit.Test;
import org.springframework.beans.factory.annotation.Autowired;
import java.util.List;
import static org.junit.Assert.*;
/**
* @author :16140
* @description :
* @create :2022-08-21 15:23:00
*/
public class AreaDaoTest extends BaseTest{
@Autowired
private AreaDao areaDao;
@Test
public void testQueryArea(){
List<Area> areaList = areaDao.queryArea();
;assertEquals(2,areaList.size());
}
}
7、Service
Service接口：
package com.imooc.o2o.service;
import com.imooc.o2o.entity.Area;
import java.util.List;
/**
* @author :16140
* @description :
* @create :2022-08-21 16:00:00
*/
public interface AreaService {
List<Area> getAreaList();
}
实现类：
package com.imooc.o2o.service.impl;
import com.imooc.o2o.dao.AreaDao;
import com.imooc.o2o.entity.Area;
import com.imooc.o2o.service.AreaService;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.stereotype.Service;
import java.util.List;
/**
* @author :16140
* @description :
* @create :2022-08-21 16:04:00
*/
@Service
public class AreaServiceImpl implements AreaService {
@Autowired
private AreaDao areaDao;
@Override
public List<Area> getAreaList() {
return areaDao.queryArea();
}
}
测试类，首先修改BaseTest，让它在测试时也加载spring-service文件：
package com.imooc.o2o;
import org.junit.Test;
import org.junit.runner.RunWith;
import org.springframework.test.context.ContextConfiguration;
import org.springframework.test.context.junit4.SpringJUnit4ClassRunner;
/**
* @author :16140
* @description :
* @create :2022-08-21 15:23:00
*/
@RunWith(SpringJUnit4ClassRunner.class)
//告诉Junit配置文件位置在哪
@ContextConfiguration({"classpath:spring/spring-dao.xml","classpath:spring/spring-service.xml"})
public class BaseTest {
}
测试类：
package com.imooc.o2o.service;
import com.imooc.o2o.BaseTest;
import com.imooc.o2o.entity.Area;
import org.junit.Test;
import org.springframework.beans.factory.annotation.Autowired;
import java.util.List;
import static org.junit.Assert.assertEquals;
/**
* @author :16140
* @description :
* @create :2022-08-21 16:11:00
*/
public class AreaServiceTest extends BaseTest{
@Autowired
private AreaService areaService;
@Test
public void testGetAreaList(){
List<Area> areaList = areaService.getAreaList();
assertEquals(areaList.size(),2);
assertEquals(areaList.get(0).getAreaName(),"望京");
}
}
8、Controller
AreaController代码如下：
package com.imooc.o2o.web.superadmin;
import com.imooc.o2o.entity.Area;
import com.imooc.o2o.service.AreaService;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.stereotype.Controller;
import org.springframework.web.bind.annotation.RequestMapping;
import org.springframework.web.bind.annotation.RequestMethod;
import org.springframework.web.bind.annotation.ResponseBody;
import java.util.ArrayList;
import java.util.HashMap;
import java.util.List;
import java.util.Map;
/**
* @author :16140
* @description :
* @create :2022-08-21 17:17:00
*/
@Controller
@RequestMapping("/superadmin")
public class AreaController {
@Autowired
private AreaService areaService;
@RequestMapping(value = "/listarea",method = RequestMethod.GET)
@ResponseBody
private Map<String,Object> listArea(){
Map<String,Object> modelMap = new HashMap<>();
List<Area> areaList = new ArrayList<>();
try {
areaList = areaService.getAreaList();
modelMap.put("rows",areaList);
modelMap.put("total",areaList.size());
}catch (Exception e){
e.printStackTrace();
modelMap.put("success","false");
modelMap.put("errMsg",e.toString());
}
return modelMap;
}
}
