最近公司项目中需要用到Echarts实现世界地图展示效果 本篇文章基于 vue2.0 与ECharts封装图表组件

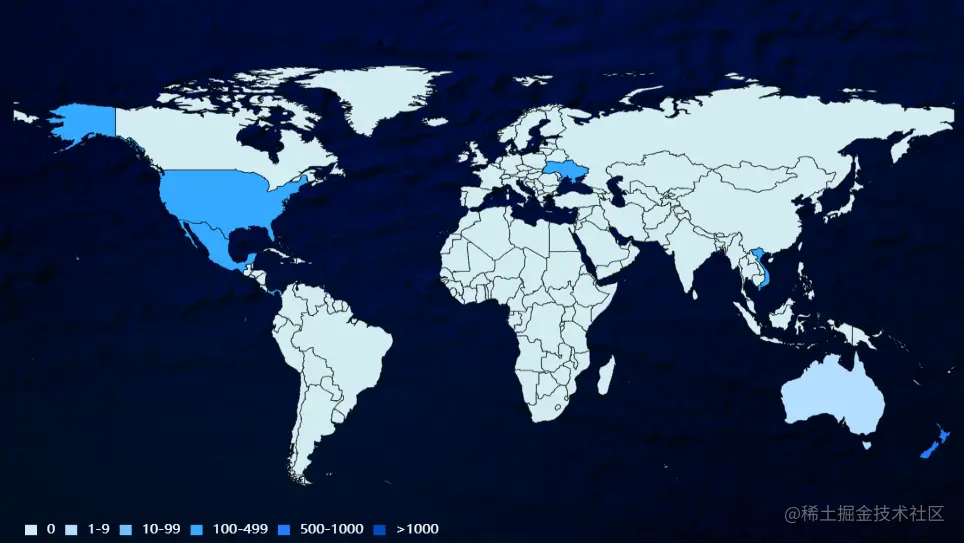

一、实现效果
二、准备工作
前期引入world.js echarts.js 文件
import world from "./world";
import * as echarts from "echarts";
三、世界地图的组件代码
创建容器，放置世界地图
<div ref="Map" class="GlobalMap"></div>
地图配置项:
//视觉映射组件 此处最为重要 用来控制地图图例
visualMap: {
min: 0, //最小值
max: 1000, //最大值
orient: "horizontal", //图例排列方向
// orient: "vertical", //图例模式
left: 26,
bottom: 20,
showLabel: true, //显示图例文本
precision: 0, //数据展示无小数点
itemWidth: 12, //图例宽度
itemHeight: 12, //图例高度
textGap: 10, //图例间距
inverse: false, //数据反向展示
hoverLink: true, //鼠标悬浮
inRange: {
//选中图例后背景半透明
color: ["rgba(3,4,5,0.4)"],
symbol: "rect", //更改图元样式
},
//`lt`小于，`gt`大于，`lte`小于等于，`gte`大于来表达边界
pieces: [
{
gt: 1001,
label: ">1000",
color: "#004bbc",
},
{
gte: 500,
lte: 1000,
label: "500-1000",
color: "#237bff",
},
{
gte: 100,
lte: 499,
label: "100-499",
color: "#35a9ff",
},
{
gte: 10,
lte: 99,
label: "10-99",
color: "#73c1ff",
},
{
gte: 1,
lte: 9,
label: "1-9",
color: "#b4deff",
},
{
lte: 0,
label: "0",
color: "#d2ecf1",
},
],
textStyle: {
color: "#fff",
fontSize: 14, //图元字体大小
fontWeight: 500,
},
},
此处formatter 方法说明具体参考 Echarts配置文档
// 鼠标悬浮提示框
tooltip: {
trigger: "item",
borderColor: "#666", //区域边框颜色
formatter: function (params) {
if (params.name) {
return (
params.name +
" : " +
(isNaN(params.value) ? 0 : parseInt(params.value))
);
}
},
},
series: [
{
name: "World Population (2010)",
type: "map",//地图
mapType: "world",
zoom: 1.2, //地图大小
roam: false, //禁止拖拽
itemStyle: {
normal: {
areaColor: "#d2ecf1", //地图默认颜色
borderWidth: 0.5, //边框宽度
textStyle: {
color: "#fff", //默认文字颜色
},
borderColor: "#000", //地图边框颜色
},
emphasis: {
areaColor: "#4306fe", //动态背景颜色
},
},
select: {
//地图选中颜色
itemStyle: {
areaColor: "#4306fe",
},
},
label: {
normal: {
//静态的时候展示样式
show: false, //是否显示地图名称
textStyle: {
color: "#000", //颜色
fontSize: 14, //文字大小
fontFamily: "Arial",
},
},
emphasis: {
//动态展示的样式
color: "#fff",
},
},
data: [
{ name: "萨摩亚", value: 297 },
{ name: "乌克兰", value: 195 },
{ name: "越南", value: 315 },
{ name: "新西兰", value: 844 },
{ name: "墨西哥", value: 403 },
{ name: "美国", value: 263 },
{ name: "巴拿马", value: 268 },
{ name: "澳大利亚", value: 5 },
],
nameMap: nameMap,
},
],
四、世界地图完整代码
<template>
<div ref=Map" class="GlobalMap"></div>
</template>
<script>
import world from "./world";
import * as echarts from "echarts";
export default {
data() {
return {};
},
mounted() {
this.Global();
},
methods: {
Global() {
var mycontractMap = echarts.init(this.$refs.Map);
this.$echarts.registerMap("world", world);
let nameMap = {
Afghanistan: "阿富汗",
Singapore: "新加坡",
Angola: "安哥拉",
Albania: "阿尔巴尼亚",
"United Arab Emirates": "阿联酋",
Argentina: "阿根廷",
Armenia: "亚美尼亚",
"French Southern and Antarctic Lands": "法属南半球和南极领地",
Australia: "澳大利亚",
Austria: "奥地利",
Azerbaijan: "阿塞拜疆",
Burundi: "布隆迪",
Belgium: "比利时",
Benin: "贝宁",
"Burkina Faso": "布基纳法索",
Bangladesh: "孟加拉国",
Bulgaria: "保加利亚",
"The Bahamas": "巴哈马",
"Bosnia and Herzegovina": "波斯尼亚和黑塞哥维那",
Belarus: "白俄罗斯",
Belize: "伯利兹",
Bermuda: "百慕大",
Bolivia: "玻利维亚",
Brazil: "巴西",
Brunei: "文莱",
Bhutan: "不丹",
Botswana: "博茨瓦纳",
"Central African Republic": "中非共和国",
Canada: "加拿大",
Switzerland: "瑞士",
Chile: "智利",
China: "中国",
"Ivory Coast": "象牙海岸",
Cameroon: "喀麦隆",
"Democratic Republic of the Congo": "刚果民主共和国",
"Republic of the Congo": "刚果共和国",
Colombia: "哥伦比亚",
"Costa Rica": "哥斯达黎加",
Cuba: "古巴",
"Northern Cyprus": "北塞浦路斯",
Cyprus: "塞浦路斯",
"Czech Republic": "捷克共和国",
Germany: "德国",
Djibouti: "吉布提",
Denmark: "丹麦",
"Dominican Republic": "多明尼加共和国",
Algeria: "阿尔及利亚",
Ecuador: "厄瓜多尔",
Egypt: "埃及",
Eritrea: "厄立特里亚",
Spain: "西班牙",
Estonia: "爱沙尼亚",
Ethiopia: "埃塞俄比亚",
Finland: "芬兰",
Fiji: "斐",
"Falkland Islands": "福克兰群岛",
France: "法国",
Gabon: "加蓬",
"United Kingdom": "英国",
Georgia: "格鲁吉亚",
Ghana: "加纳",
Guinea: "几内亚",
Gambia: "冈比亚",
"Guinea Bissau": "几内亚比绍",
Greece: "希腊",
Greenland: "格陵兰",
Guatemala: "危地马拉",
"French Guiana": "法属圭亚那",
Guyana: "圭亚那",
Honduras: "洪都拉斯",
Croatia: "克罗地亚",
Haiti: "海地",
Hungary: "匈牙利",
Indonesia: "印度尼西亚",
India: "印度",
Ireland: "爱尔兰",
Iran: "伊朗",
Iraq: "伊拉克",
Iceland: "冰岛",
Israel: "以色列",
Italy: "意大利",
Jamaica: "牙买加",
Jordan: "约旦",
Japan: "日本",
Kazakhstan: "哈萨克斯坦",
Kenya: "肯尼亚",
Kyrgyzstan: "吉尔吉斯斯坦",
Cambodia: "柬埔寨",
Kosovo: "科索沃",
Kuwait: "科威特",
Laos: "老挝",
Lebanon: "黎巴嫩",
Liberia: "利比里亚",
Libya: "利比亚",
"Sri Lanka": "斯里兰卡",
Lesotho: "莱索托",
Lithuania: "立陶宛",
Luxembourg: "卢森堡",
Latvia: "拉脱维亚",
Morocco: "摩洛哥",
Moldova: "摩尔多瓦",
Madagascar: "马达加斯加",
Mexico: "墨西哥",
Macedonia: "马其顿",
Mali: "马里",
Myanmar: "缅甸",
Montenegro: "黑山",
Mongolia: "蒙古",
Mozambique: "莫桑比克",
Mauritania: "毛里塔尼亚",
Malawi: "马拉维",
Malaysia: "马来西亚",
Namibia: "纳米比亚",
"New Caledonia": "新喀里多尼亚",
Niger: "尼日尔",
Nigeria: "尼日利亚",
Nicaragua: "尼加拉瓜",
Netherlands: "荷兰",
Norway: "挪威",
Nepal: "尼泊尔",
"New Zealand": "新西兰",
Oman: "阿曼",
Pakistan: "巴基斯坦",
Panama: "巴拿马",
Peru: "秘鲁",
Philippines: "菲律宾",
"Papua New Guinea": "巴布亚新几内亚",
Poland: "波兰",
"Puerto Rico": "波多黎各",
"North Korea": "北朝鲜",
Portugal: "葡萄牙",
Paraguay: "巴拉圭",
Qatar: "卡塔尔",
Romania: "罗马尼亚",
Russia: "俄罗斯",
Rwanda: "卢旺达",
"Western Sahara": "西撒哈拉",
"Saudi Arabia": "沙特阿拉伯",
Sudan: "苏丹",
"South Sudan": "南苏丹",
Senegal: "塞内加尔",
"Solomon Islands": "所罗门群岛",
"Sierra Leone": "塞拉利昂",
"El Salvador": "萨尔瓦多",
Somaliland: "索马里兰",
Somalia: "索马里",
"Republic of Serbia": "塞尔维亚",
Suriname: "苏里南",
Slovakia: "斯洛伐克",
Slovenia: "斯洛文尼亚",
Sweden: "瑞典",
Swaziland: "斯威士兰",
Syria: "叙利亚",
Chad: "乍得",
Togo: "多哥",
Thailand: "泰国",
Tajikistan: "塔吉克斯坦",
Turkmenistan: "土库曼斯坦",
"East Timor": "东帝汶",
"Trinidad and Tobago": "特里尼达和多巴哥",
Tunisia: "突尼斯",
Turkey: "土耳其",
"United Republic of Tanzania": "坦桑尼亚",
Uganda: "乌干达",
Ukraine: "乌克兰",
Uruguay: "乌拉圭",
"United States": "美国",
Uzbekistan: "乌兹别克斯坦",
Venezuela: "委内瑞拉",
Vietnam: "越南",
Vanuatu: "瓦努阿图",
"West Bank": "西岸",
Yemen: "也门",
"South Africa": "南非",
Zambia: "赞比亚",
Korea: "韩国",
Tanzania: "坦桑尼亚",
Zimbabwe: "津巴布韦",
Congo: "刚果",
"Central African Rep.": "中非",
Serbia: "塞尔维亚",
"Bosnia and Herz.": "波黑",
"Czech Rep.": "捷克",
"W. Sahara": "西撒哈拉",
"Lao PDR": "老挝",
"Dem.Rep.Korea": "朝鲜",
"Falkland Is.": "福克兰群岛",
"Timor-Leste": "东帝汶",
"Solomon Is.": "所罗门群岛",
Palestine: "巴勒斯坦",
"N. Cyprus": "北塞浦路斯",
Aland: "奥兰群岛",
"Fr. S. Antarctic Lands": "法属南半球和南极陆地",
Mauritius: "毛里求斯",
Comoros: "科摩罗",
"Eq. Guinea": "赤道几内亚",
"Guinea-Bissau": "几内亚比绍",
"Dominican Rep.": "多米尼加",
"Saint Lucia": "圣卢西亚",
Dominica: "多米尼克",
"Antigua and Barb.": "安提瓜和巴布达",
"U.S. Virgin Is.": "美国原始岛屿",
Montserrat: "蒙塞拉特",
Grenada: "格林纳达",
Barbados: "巴巴多斯",
Samoa: "萨摩亚",
Bahamas: "巴哈马",
"Cayman Is.": "开曼群岛",
"Faeroe Is.": "法罗群岛",
"IsIe of Man": "马恩岛",
Malta: "马耳他共和国",
Jersey: "泽西",
"Cape Verde": "佛得角共和国",
"Turks and Caicos Is.": "特克斯和凯科斯群岛",
"St. Vin. and Gren.": "圣文森特和格林纳丁斯",
};
let option = {
// 鼠标悬浮提示框
tooltip: {
trigger: "item",
borderColor: "#666", //区域边框颜色
formatter: function (params) {
if (params.name) {
return (
params.name +
" : " +
(isNaN(params.value) ? 0 : parseInt(params.value))
);
}
},
},
visualMap: {
min: 0, //最小值
max: 1000, //最大值
orient: "horizontal", //图例排列方向
// orient: "vertical", //图例模式
left: 26,
bottom: 20,
showLabel: true, //显示图例文本
precision: 0, //数据展示无小数点
itemWidth: 12, //图例宽度
itemHeight: 12, //图例高度
textGap: 10, //图例间距
inverse: false, //数据反向展示
hoverLink: true, //鼠标悬浮
inRange: {
//选中图例后背景半透明
color: ["rgba(3,4,5,0.4)"],
symbol: "rect", //更改图元样式
},
pieces: [
{
gt: 1001,
label: ">1000",
color: "#004bbc",
},
{
gte: 500,
lte: 1000,
label: "500-1000",
color: "#237bff",
},
{
gte: 100,
lte: 499,
label: "100-499",
color: "#35a9ff",
},
{
gte: 10,
lte: 99,
label: "10-99",
color: "#73c1ff",
},
{
gte: 1,
lte: 9,
label: "1-9",
color: "#b4deff",
},
{
lte: 0,
label: "0",
color: "#d2ecf1",
},
],
textStyle: {
color: "#fff",
fontSize: 14, //图元字体大小
fontWeight: 500,
},
},
series: [
{
name: "World Population (2010)",
type: "map",
mapType: "world",
zoom: 1.2, //地图大小
roam: false, //禁止拖拽
itemStyle: {
normal: {
areaColor: "#d2ecf1", //地图默认颜色
borderWidth: 0.5, //边框宽度
textStyle: {
color: "#fff", //默认文字颜色
},
borderColor: "#000", //地图边框颜色
},
emphasis: {
areaColor: "#4306fe", //动态背景颜色
},
},
select: {
//地图选中颜色
itemStyle: {
areaColor: "#4306fe",
},
},
label: {
normal: {
//静态的时候展示样式
show: false, //是否显示地图名称
textStyle: {
color: "#000", //颜色
fontSize: 14, //文字大小
fontFamily: "Arial",
},
},
emphasis: {
//动态展示的样式
color: "#fff",
},
},
data: [
{ name: "萨摩亚", value: 297 },
{ name: "乌克兰", value: 195 },
{ name: "越南", value: 315 },
{ name: "新西兰", value: 844 },
{ name: "墨西哥", value: 403 },
{ name: "美国", value: 263 },
{ name: "巴拿马", value: 268 },
{ name: "澳大利亚", value: 5 },
],
nameMap: nameMap,
},
],
};
mycontractMap.setOption(option);
window.addEventListener("resize", function () {
mycontractMap.resize();
});
},
},
};
</script>
<style lang="scss" scoped>
.GlobalMap {
margin-top: 220px;
width: 980px;
height: 650px;
}
</style>
以上代码可以满足一般情况业务需求，如需更多功能或更加炫酷效果，大家可以查询Echarts配置文档
注：配置地图里的引用json文件，提取出来会更好 ，第一次写文章记录大家还有什么的好的建议或者更好的方法欢迎大家提意见，以供大家参考学习，持续进步成长
