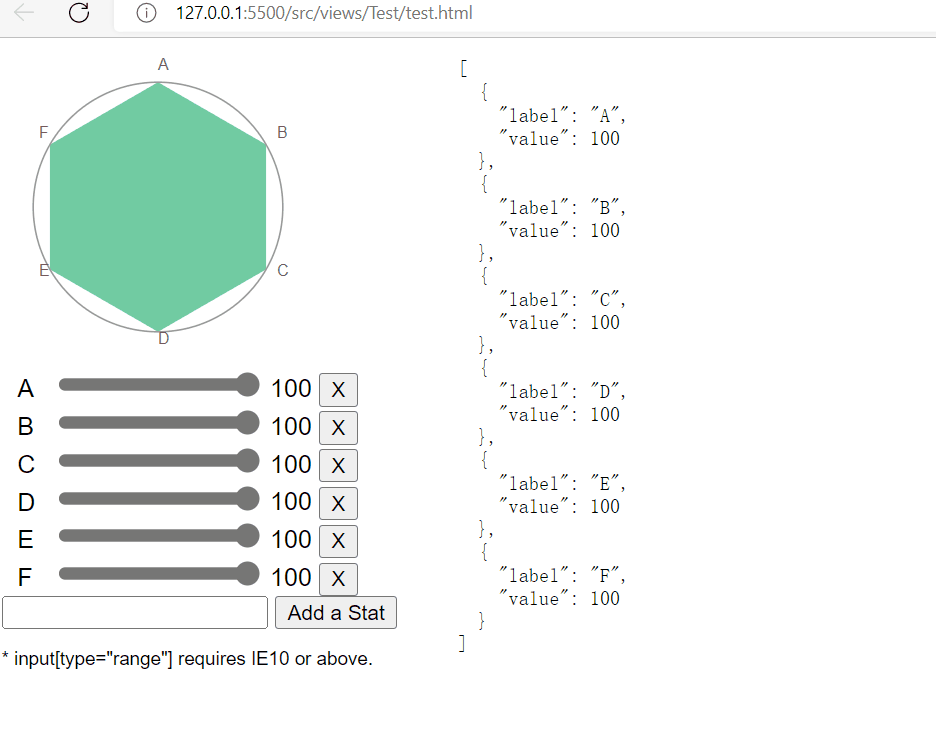

本示例展示了一个结合体，它由常用组件、计算属性、2 种绑定方式和 SVG 的支持组成
<!DOCTYPE html>
<html>
<head>
<title>SVG Graph</title>
<script src="https://unpkg.com/vue@2"></script>
<link rel="stylesheet" type="text/css" href="./style.css" />
<!-- template for the polygraph component. -->
<script type="text/x-template" id="polygraph-template">
<g>
<polygon :points="points"></polygon>
<circle cx="100" cy="100" r="80"></circle>
<axis-label
v-for="(stat, index) in stats"
:stat="stat"
:index="index"
:total="stats.length">
</axis-label>
</g>
</script>
<!-- template for the axis label component. -->
<script type="text/x-template" id="axis-label-template">
<text :x="point.x" :y="point.y">{{stat.label}}</text>
</script>
</head>
<body>
<!-- demo root element -->
<div id="demo">
<!-- Use the component -->
<svg width="200" height="200">
<polygraph :stats="stats"></polygraph>
</svg>
<!-- controls -->
<div v-for="stat in stats">
<label>{{stat.label}}</label>
<input type="range" v-model="stat.value" min="0" max="100" />
<span>{{stat.value}}</span>
<button @click="remove(stat)" class="remove">X</button>
</div>
<form id="add">
<input name="newlabel" v-model="newLabel" />
<button @click="add">Add a Stat</button>
</form>
<pre id="raw">{{ stats }}</pre>
</div>
<p style="font-size:12px">* input[type="range"] requires IE10 or above.</p>
<script>
// The raw data to observe
var stats = [
{ label: "A", value: 100 },
{ label: "B", value: 100 },
{ label: "C", value: 100 },
{ label: "D", value: 100 },
{ label: "E", value: 100 },
{ label: "F", value: 100 }
];
// A resusable polygon graph component
Vue.component("polygraph", {
props: ["stats"],
template: "#polygraph-template",
computed: {
// a computed property for the polygon's points
points: function() {
var total = this.stats.length;
return this.stats
.map(function(stat, i) {
var point = valueToPoint(stat.value, i, total);
return point.x + "," + point.y;
})
.join(" ");
}
},
components: {
// a sub component for the labels
"axis-label": {
props: {
stat: Object,
index: Number,
total: Number
},
template: "#axis-label-template",
computed: {
point: function() {
return valueToPoint(
+this.stat.value + 10,
this.index,
this.total
);
}
}
}
}
});
// math helper...
function valueToPoint(value, index, total) {
var x = 0;
var y = -value * 0.8;
var angle = ((Math.PI * 2) / total) * index;
var cos = Math.cos(angle);
var sin = Math.sin(angle);
var tx = x * cos - y * sin + 100;
var ty = x * sin + y * cos + 100;
return {
x: tx,
y: ty
};
}
// bootstrap the demo
new Vue({
el: "#demo",
data: {
newLabel: "",
stats: stats
},
methods: {
add: function(e) {
e.preventDefault();
if (!this.newLabel) return;
this.stats.push({
label: this.newLabel,
value: 100
});
this.newLabel = "";
},
remove: function(stat) {
if (this.stats.length > 3) {
this.stats.splice(this.stats.indexOf(stat), 1);
} else {
alert("Can't delete more!");
}
}
}
});
</script>
</body>
</html>
/* ./style.css */
body {
font-family: Helvetica Neue, Arial, sans-serif;
}
polygon {
fill: #42b983;
opacity: 0.75;
}
circle {
fill: transparent;
stroke: #999;
}
text {
font-family: Helvetica Neue, Arial, sans-serif;
font-size: 10px;
fill: #666;
}
label {
display: inline-block;
margin-left: 10px;
width: 20px;
}
#raw {
position: absolute;
top: 0;
left: 300px;
}
