cesium 圆圈警戒扫描

内容概览

1.基于cesium 实现圆圈警戒扫描
2.源代码 demo 下载

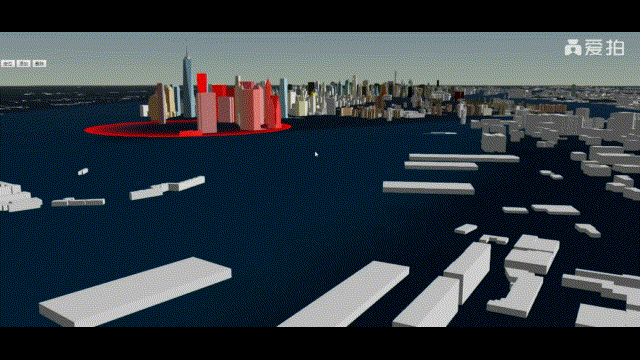

本篇实现 cesium 雷达扫描功能，效果图如下：

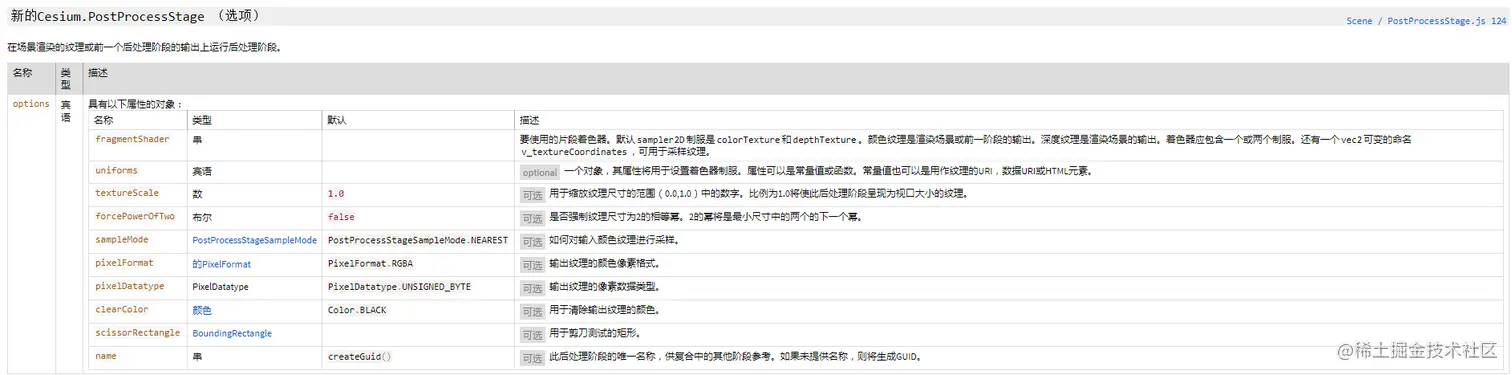

实现思路：核心引用 cesium PostProcessStage 类

• 核心代码

     /*
      添加扫描线 depth关闭   lon:-74.01296152309055 lat:40.70524201566827 height:129.14366696393927
      viewer
      cartographicCenter 扫描中心
      maxRadius 最大半径 米
      scanColor 扫描颜色
      duration 持续时间 毫秒
      */
      function AddCircleScanPostStage(viewer, cartographicCenter, maxRadius, scanColor, duration) {
          var ScanSegmentShader =
              "uniform sampler2D colorTexture;\n" +
              "uniform sampler2D depthTexture;\n" +
              "varying vec2 v_textureCoordinates;\n" +
              "uniform vec4 u_scanCenterEC;\n" +
              "uniform vec3 u_scanPlaneNormalEC;\n" +
              "uniform float u_radius;\n" +
              "uniform vec4 u_scanColor;\n" +
              "vec4 toEye(in vec2 uv, in float depth)\n" +
              " {\n" +
                " vec2 xy = vec2((uv.x * 2.0 - 1.0),(uv.y * 2.0 - 1.0));\n" +
                " vec4 posInCamera =czm_inverseProjection * vec4(xy, depth, 1.0);\n" +
                " posInCamera =posInCamera / posInCamera.w;\n" +
                " return posInCamera;\n" +
              " }\n" +
              "vec3 pointProjectOnPlane(in vec3 planeNormal, in vec3 planeOrigin, in vec3 point)\n" +
              "{\n" +
                  "vec3 v01 = point -planeOrigin;\n" +
                  "float d = dot(planeNormal, v01) ;\n" +
                  "return (point - planeNormal * d);\n" +
               "}\n" +
               "float getDepth(in vec4 depth)\n" +
               "{\n" +
                  "float z_window = czm_unpackDepth(depth);\n" +
                  "z_window = czm_reverseLogDepth(z_window);\n" +
                  "float n_range = czm_depthRange.near;\n" +
                  "float f_range = czm_depthRange.far;\n" +
                  "return (2.0 * z_window - n_range - f_range) / (f_range - n_range);\n" +
               "}\n" +
               "void main()\n" +
               "{\n" +
                  "gl_FragColor = texture2D(colorTexture, v_textureCoordinates);\n" +
                  "float depth = getDepth( texture2D(depthTexture, v_textureCoordinates));\n" +
                  "vec4 viewPos = toEye(v_textureCoordinates, depth);\n" +
                  "vec3 prjOnPlane = pointProjectOnPlane(u_scanPlaneNormalEC.xyz, u_scanCenterEC.xyz, viewPos.xyz);\n" +
                  "float dis = length(prjOnPlane.xyz - u_scanCenterEC.xyz);\n" +
                  "if(dis < u_radius)\n" +
                      "{\n" +
                      "float f = 1.0 -abs(u_radius - dis) / u_radius;\n" +
                      "f = pow(f, 4.0);\n" +
                      "gl_FragColor = mix(gl_FragColor, u_scanColor, f);\n" +
                   "}\n" +
                "}\n";
          var _Cartesian3Center = Cesium.Cartographic.toCartesian(cartographicCenter);
          var _Cartesian4Center = new Cesium.Cartesian4(_Cartesian3Center.x, _Cartesian3Center.y, _Cartesian3Center.z, 1);
          var _CartographicCenter1 = new Cesium.Cartographic(cartographicCenter.longitude, cartographicCenter.latitude, cartographicCenter.height + 500);
          var _Cartesian3Center1 = Cesium.Cartographic.toCartesian(_CartographicCenter1);
          var _Cartesian4Center1 = new Cesium.Cartesian4(_Cartesian3Center1.x, _Cartesian3Center1.y, _Cartesian3Center1.z, 1);
          var _time = (new Date()).getTime();
          var _scratchCartesian4Center = new Cesium.Cartesian4();
          var _scratchCartesian4Center1 = new Cesium.Cartesian4();
          var _scratchCartesian3Normal = new Cesium.Cartesian3();
          var ScanPostStage = new Cesium.PostProcessStage({
              fragmentShader: ScanSegmentShader,
              uniforms: {
                  u_scanCenterEC: function () {
                      return Cesium.Matrix4.multiplyByVector(viewer.camera._viewMatrix, _Cartesian4Center, _scratchCartesian4Center);
                  },
                  u_scanPlaneNormalEC: function () {
                      var temp = Cesium.Matrix4.multiplyByVector(viewer.camera._viewMatrix, _Cartesian4Center, _scratchCartesian4Center);
                      var temp1 = Cesium.Matrix4.multiplyByVector(viewer.camera._viewMatrix, _Cartesian4Center1, _scratchCartesian4Center1);
                      _scratchCartesian3Normal.x = temp1.x - temp.x;
                      _scratchCartesian3Normal.y = temp1.y - temp.y;
                      _scratchCartesian3Normal.z = temp1.z - temp.z;
                      Cesium.Cartesian3.normalize(_scratchCartesian3Normal, _scratchCartesian3Normal);
                      return _scratchCartesian3Normal;
                  },
                  u_radius: function () {
                      return maxRadius * (((new Date()).getTime() - _time) % duration) / duration;
                  },
                  u_scanColor: scanColor
              }
          });
          viewer.scene.postProcessStages.add(ScanPostStage);
      }


参考文献：
github.com/YanzheZhang…

link==>
