内容概览
1.基于cesium 实现地图贴地量算工具效果
2.源代码 demo 下载

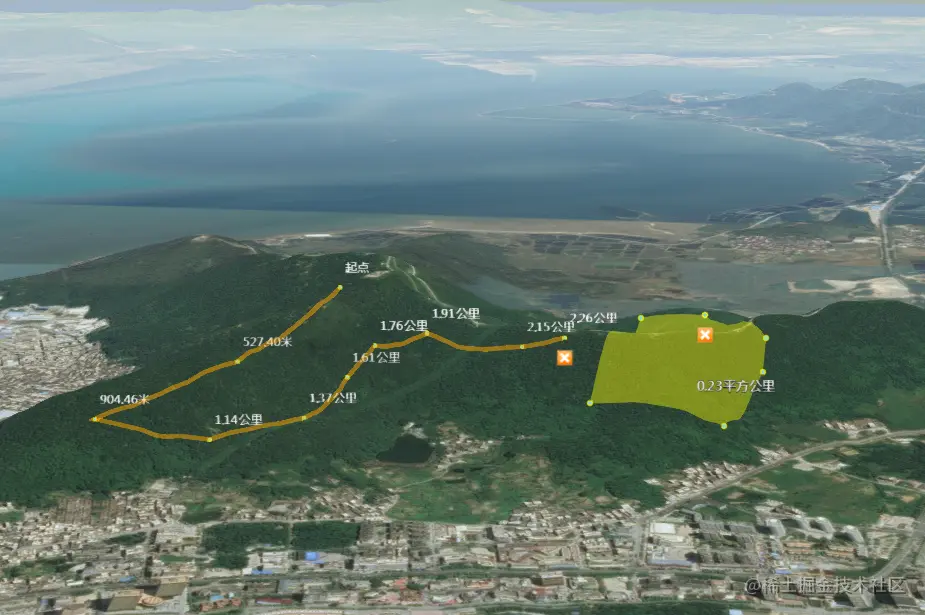

本篇实现 cesium 地图量算工具功能，效果图如下：
实现的思路
-
初始化工具函数
//量算工具 var html='
单击开始，双击结束'; ("#measureDistance").click(function(){ new measureDistance(cesium); }); $("#measureArea").click(function(){ new measureArea(cesium); }); -
核心函数
测距：//测量距离 var measureDistance=function(cesium){ …… handler.setInputAction(function(movement) { var position1; var cartographic; var ray = cesium.cesiumViewer.scene.camera.getPickRay(movement.endPosition); if(ray) position1 = cesium.cesiumViewer.scene.globe.pick(ray,cesium.cesiumViewer.scene); if(position1) cartographic= Cesium.Ellipsoid.WGS84.cartesianToCartographic(position1); if(cartographic) { //海拔 var height = cesium.cesiumViewer.scene.globe.getHeight(cartographic); //地理坐标（弧度）转经纬度坐标 var point = Cesium.Cartesian3.fromDegrees(cartographic.longitude / Math.PI * 180, cartographic.latitude / Math.PI * 180, height); if (isDraw) { tooltip.style.left = movement.endPosition.x + 10 + "px"; tooltip.style.top = movement.endPosition.y + 20 + "px"; tooltip.style.display = "block"; if (polylinePath.length < 1) { return; } if (!Cesium.defined(polyline)) { polylinePath.push(point); polyline = new CreatePolyline(polylinePath,cesium); } else { polyline.path.pop(); polyline.path.push(point); } if(polylinePath.length>=1){ if(polyline && polyline.path){ var distance=getDistance(polyline.path); tooltip.innerHTML='
长度：'+distance+'
双击确定终点
'; } } } }}, Cesium.ScreenSpaceEventType.MOUSE_MOVE); handler.setInputAction(function(movement) { var position1; var cartographic; var ray = cesium.cesiumViewer.scene.camera.getPickRay(movement.position); if(ray) position1 = cesium.cesiumViewer.scene.globe.pick(ray,cesium.cesiumViewer.scene); if(position1) cartographic= Cesium.Ellipsoid.WGS84.cartesianToCartographic(position1); //世界坐标转地理坐标（弧度） //var cartographic = cesium.cesiumViewer.scene.globe.ellipsoid.cartesianToCartographic(cartesian); if(cartographic){ //海拔 var height = cesium.cesiumViewer.scene.globe.getHeight(cartographic); //地理坐标（弧度）转经纬度坐标 var point = Cesium.Cartesian3.fromDegrees(cartographic.longitude / Math.PI * 180,cartographic.latitude / Math.PI * 180,height); // var point = Cesium.Cartesian3.fromDegrees(currentLon,currentLat,height); if (isDraw) { //polylinePath.push(cartographic); //polylinePath.push(point); if(polyline) polyline.path.pop(); SurfaceLine(cartographic); var text="起点"; if(polyline){ text=getDistance(polyline.path); } entities.push(cesium.cesiumViewer.entities.add({ position: point, point: { heightReference:Cesium.HeightReference.CLAMP_TO_GROUND, show: true, color: Cesium.Color.SKYBLUE, pixelSize: 3, outlineColor: Cesium.Color.YELLOW, outlineWidth: 1 }, label: { text: text, font: '12px sans-serif', style : Cesium.LabelStyle.FILL, outlineWidth : 1, fillColor:Cesium.Color.WHITE, showBackground:false, backgroundColor:Cesium.Color.ORANGE.withAlpha(0.6), horizontalOrigin: Cesium.HorizontalOrigin.LEFT, pixelOffset: new Cesium.Cartesian2(5.0,-20.0), } })); } } }, Cesium.ScreenSpaceEventType.LEFT_CLICK); handler.setInputAction(function() { handler.removeInputAction(Cesium.ScreenSpaceEventType.LEFT_CLICK); handler.removeInputAction(Cesium.ScreenSpaceEventType.LEFT_DOUBLE_CLICK); //handler.removeInputAction(Cesium.ScreenSpaceEventType.RIGHT_CLICK); //cesium.cesiumViewer.zoomTo(polyline.lineEntity); cesium.cesiumViewer.trackedEntity = undefined; isDraw = false; //cesium.cesiumViewer.scene.globe.depthTestAgainstTerrain = false; billboard=billboards.add({ show : true, id:"measureTool", position : polylinePath[polylinePath.length-1], pixelOffset : new Cesium.Cartesian2(0.0, 20), eyeOffset : new Cesium.Cartesian3(0.0, 0.0, 0.0), horizontalOrigin : Cesium.HorizontalOrigin.CENTER, verticalOrigin : Cesium.VerticalOrigin.CENTER, scale : 1.0, image: GLOBAL.domainResource+'/systems/common-bx-gis/models/cesium/images/close.png', color : new Cesium.Color(1.0, 1.0, 1.0, 1.0), }); tooltip.style.display = "none"; //关闭按钮执行事件 handler.setInputAction(function(movement){ var pickedObjects ={}; pickedObjects=scene.drillPick(movement.position); if (Cesium.defined(pickedObjects)) { for (var i = 0; i < pickedObjects.length; i++) if (pickedObjects[i].primitive == billboard){ cesium.cesiumViewer.entities.remove(polyline.lineEntity); for(var j=0;j<entities.length;j++){ cesium.cesiumViewer.entities.remove(entities[j]); } entities=[]; billboards.remove(billboard); polylinePath = []; polyline = undefined; handler.removeInputAction(Cesium.ScreenSpaceEventType.LEFT_CLICK); } } },Cesium.ScreenSpaceEventType.LEFT_CLICK); }, Cesium.ScreenSpaceEventType.LEFT_DOUBLE_CLICK);…… }
测面：
//测量面积
var measureArea=function(cesium){
……
handler.setInputAction(function(movement) {
//var cartesian = cesium.cesiumViewer.camera.pickEllipsoid(movement.endPosition, ellipsoid);
//新增部分
var position1;
var cartographic;
var ray = cesium.cesiumViewer.scene.camera.getPickRay(movement.endPosition);
if(ray)
position1 = cesium.cesiumViewer.scene.globe.pick(ray,cesium.cesiumViewer.scene);
if(position1)
cartographic= Cesium.Ellipsoid.WGS84.cartesianToCartographic(position1);
if(cartographic){
//海拔
var height = cesium.cesiumViewer.scene.globe.getHeight(cartographic);
var point = Cesium.Cartesian3.fromDegrees(cartographic.longitude / Math.PI * 180,cartographic.latitude / Math.PI * 180,height);
if (isDraw) {
tooltip.style.left = movement.endPosition.x + 10 + "px";
tooltip.style.top = movement.endPosition.y + 20 + "px";
tooltip.style.display = "block";
if (polygonPath.length < 2) {
return;
}
if (!Cesium.defined(polygon)) {
polygonPath.push(point);
polygon = new CreatePolygon(polygonPath,cesium);
} else {
polygon.path.pop();
polygon.path.push(point);
}
if(polygonPath.length>=2){
var label = String(countAreaInCartesian3(polygon.path));
label = label.substr(0, label.indexOf(".", 0));
var text;
if (label.length < 6)
text = label + "平方米";
else {
label = String(label / 1000000);
label = label.substr(0, label.indexOf(".", 0) + 3);
text = label + "平方公里"
}
measureDisplayLabel.text=text;
measureDisplayLabel.position = countCenter(polygon.path);
tooltip.innerHTML='<p>双击确定终点</p>';
}
}
}
}, Cesium.ScreenSpaceEventType.MOUSE_MOVE);
handler.setInputAction(function(movement) {
//var cartesian = cesium.cesiumViewer.camera.pickEllipsoid(movement.position, ellipsoid);
//新增部分
//cesium.cesiumViewer.scene.globe.depthTestAgainstTerrain = true;
var position1;
var cartographic;
var ray = cesium.cesiumViewer.scene.camera.getPickRay(movement.position);
if(ray)
position1 = cesium.cesiumViewer.scene.globe.pick(ray,cesium.cesiumViewer.scene);
if(position1)
cartographic= Cesium.Ellipsoid.WGS84.cartesianToCartographic(position1);
if(cartographic){
//海拔
var height = cesium.cesiumViewer.scene.globe.getHeight(cartographic);
var point = Cesium.Cartesian3.fromDegrees(cartographic.longitude / Math.PI * 180,cartographic.latitude / Math.PI * 180,height);
if (isDraw) {
polygonPath.push(point);
entities.push(cesium.cesiumViewer.entities.add({
position: point,
point: {
show: true,
color: Cesium.Color.SKYBLUE,
pixelSize: 3,
outlineColor: Cesium.Color.YELLOW,
outlineWidth: 1
},
}));
}
}
//cesium.cesiumViewer.scene.globe.depthTestAgainstTerrain = false;
}, Cesium.ScreenSpaceEventType.LEFT_CLICK);
handler.setInputAction(function() {
handler.removeInputAction(Cesium.ScreenSpaceEventType.LEFT_CLICK);
handler.removeInputAction(Cesium.ScreenSpaceEventType.LEFT_DOUBLE_CLICK);
//cesium.cesiumViewer.zoomTo(polygon.polygonEntity);
//cesium.cesiumViewer.flyTo(polygon.polygonEntity);
cesium.cesiumViewer.trackedEntity = undefined;
isDraw = false;
billboard=billboards.add({
show : true,
id:"measureTool",
position : polygonPath[polygonPath.length-1],
pixelOffset : new Cesium.Cartesian2(0.0, 20),
eyeOffset : new Cesium.Cartesian3(0.0, 0.0, 0.0),
horizontalOrigin : Cesium.HorizontalOrigin.CENTER,
verticalOrigin : Cesium.VerticalOrigin.CENTER,
scale : 1.0,
image: GLOBAL.domainResource+'/systems/common-bx-gis/models/cesium/images/close.png',
color : new Cesium.Color(1.0, 1.0, 1.0, 1.0),
});
//关闭按钮执行事件
handler.setInputAction(function(movement){
var pickedObjects ={};
pickedObjects=scene.drillPick(movement.position);
if (Cesium.defined(pickedObjects)) {
for (var i = 0; i < pickedObjects.length; i++)
if (pickedObjects[i].primitive == billboard){
cesium.cesiumViewer.entities.remove(polygon.polygonEntity);
for(var j=0;j<entities.length;j++){
cesium.cesiumViewer.entities.remove(entities[j]);
}
entities=[];
billboards.remove(billboard);
tempLabelCollection.remove(measureDisplayLabel);
polygonPath = [];
polygon = undefined;
handler.removeInputAction(Cesium.ScreenSpaceEventType.LEFT_CLICK);
}
}
},Cesium.ScreenSpaceEventType.LEFT_CLICK);
tooltip.style.display='none';
}, Cesium.ScreenSpaceEventType.LEFT_DOUBLE_CLICK);
……
}
