介绍

之前在kubernetes中完成的所有操作都是通过命令行工具kubectl完成的。其实，为了提供更丰富的用户体验，kubernetes还开发了一个基于web的用户界面（Dashboard）。用户可以使用Dashboard部署容器化的应用，还可以监控应用的状态，执行故障排查以及管理kubernetes中各种资源。

部署Dashboard

下载yaml，并运行Dashboard

# 下载yaml
[root@master k8sYamlForCSDN]# wget https://raw.githubusercontent.com/kubernetes/dashboard/v2.5.0/aio/deploy/recommended.yaml
...
2022-03-04 21:14:05 (610 KB/s) - 已保存 “recommended.yaml” [7621/7621])
# 修改kubernetes-dashboard的Service类型,Name为kubernetes-dashboard的地方
kind: Service
apiVersion: v1
metadata:
  labels:
    k8s-app: kubernetes-dashboard
  name: kubernetes-dashboard
  namespace: kubernetes-dashboard
spec:
  type: NodePort  # 新增
  ports:
    - port: 443
      targetPort: 8443
      nodePort: 30009  # 新增
  selector:
    k8s-app: kubernetes-dashboard
# 部署
[root@master ~]# kubectl create -f recommended.yaml
# 查看namespace下的kubernetes-dashboard下的资源
[root@master k8sYamlForCSDN]# kubectl get pods,svc -n kubernetes-dashboard
NAME                                             READY   STATUS    RESTARTS   AGE
pod/dashboard-metrics-scraper-799d786dbf-l8zdd   1/1     Running   0          16s
pod/kubernetes-dashboard-546cbc58cd-555fr        1/1     Running   0          16s

NAME                                TYPE        CLUSTER-IP       EXTERNAL-IP   PORT(S)         AGE
service/dashboard-metrics-scraper   ClusterIP   10.104.170.97    <none>        8000/TCP        16s
service/kubernetes-dashboard        NodePort    10.104.201.103   <none>        443:30009/TCP   16s
# 在浏览器上访问这个网址
https://192.168.109.100:30009/#/login

创建访问账户，获取token

# 创建账号
[root@master k8sYamlForCSDN]# kubectl create serviceaccount dashboard-admin -n kubernetes-dashboard
serviceaccount/dashboard-admin created
# 授权
[root@master k8sYamlForCSDN]# kubectl create clusterrolebinding dashboard-admin-rb --clusterrole=cluster-admin --serviceaccount=kubernetes-dashboard:dashboard-admin
clusterrolebinding.rbac.authorization.k8s.io/dashboard-admin-rb created
# 获取账号token
[root@master k8sYamlForCSDN]# kubectl get secrets -n kubernetes-dashboard | grep dashboard-admin
dashboard-admin-token-7b8dc        kubernetes.io/service-account-token   3      14s
# 查看token
[root@master k8sYamlForCSDN]# kubectl describe secrets dashboard-admin-token-7b8dc -n kubernetes-dashboard
Name:         dashboard-admin-token-7b8dc
Namespace:    kubernetes-dashboard
Labels:       <none>
Annotations:  kubernetes.io/service-account.name: dashboard-admin
              kubernetes.io/service-account.uid: 9d52e455-d26d-4664-822c-713229249647

Type:  kubernetes.io/service-account-token

Data
====
ca.crt:     1099 bytes
namespace:  20 bytes
token:      eyJhbGciOiJSUzI1NiIsImtpZCI6Il9FUDBWd3VzbEdfOENLWGV2ZnBYN2l1ZVhkVHRFYjlWY1dtQ0tfMjdXWnMifQ.eyJpc3MiOiJrdWJlcm5ldGVzL3NlcnZpY2VhY2NvdW50Iiwia3ViZXJuZXRlcy5pby9zZXJ2aWNlYWNjb3VudC9uYW1lc3BhY2UiOiJrdWJlcm5ldGVzLWRhc2hib2FyZCIsImt1YmVybmV0ZXMuaW8vc2VydmljZWFjY291bnQvc2VjcmV0Lm5hbWUiOiJkYXNoYm9hcmQtYWRtaW4tdG9rZW4tN2I4ZGMiLCJrdWJlcm5ldGVzLmlvL3NlcnZpY2VhY2NvdW50L3NlcnZpY2UtYWNjb3VudC5uYW1lIjoiZGFzaGJvYXJkLWFkbWluIiwia3ViZXJuZXRlcy5pby9zZXJ2aWNlYWNjb3VudC9zZXJ2aWNlLWFjY291bnQudWlkIjoiOWQ1MmU0NTUtZDI2ZC00NjY0LTgyMmMtNzEzMjI5MjQ5NjQ3Iiwic3ViIjoic3lzdGVtOnNlcnZpY2VhY2NvdW50Omt1YmVybmV0ZXMtZGFzaGJvYXJkOmRhc2hib2FyZC1hZG1pbiJ9.njOGlG65zfbdjmYhBiE6tEDTf1CAIcnuF37TeI-tKn7PJoWed8dafNJMQo6D_W4LeKv7NP20UIEk_KhsJXFJoKaThUrPCyqi4SCdq1vZMdHHfJwetDaQZrSBl9FYR8ZKmS5Ym13Wwklq9wh_yWlnKWLaUFxBV2I7LZxwZJKERocFhTlhv96W3NsEPR-TmGxGEvix910BZ4LWx6QfOu5ycIHPparaVlCPCJDoj7za3F-evAEdETja80eWqb62Gc2D8eGntKggHK9gMaGZsSUlhRv1H6jUxxzkHzabxS6lMNMex4u07Rntkqy69Mp_g2sHsYBTnCSjvcPGDAwLz8fQCA

通过浏览器访问Dashboard的UI

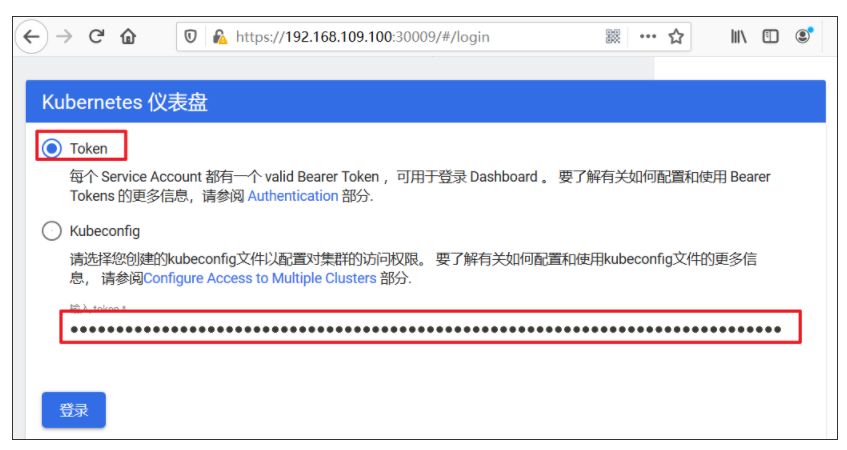

在登录页面上输入上面的token 在这里插入图片描述

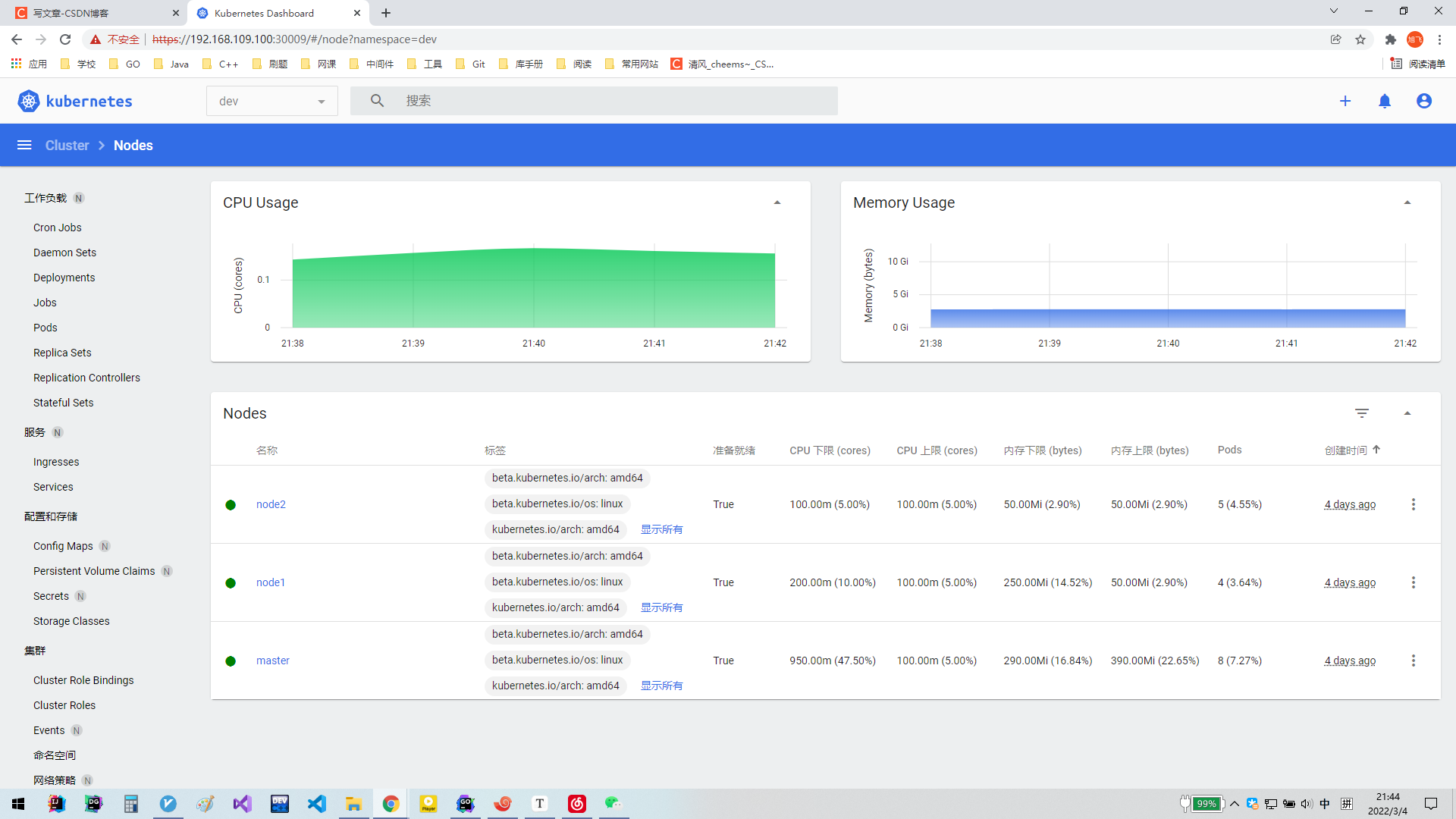

出现上面的页面代表成功
