Openlayers官方链接：openlayers.org/en/latest/e…

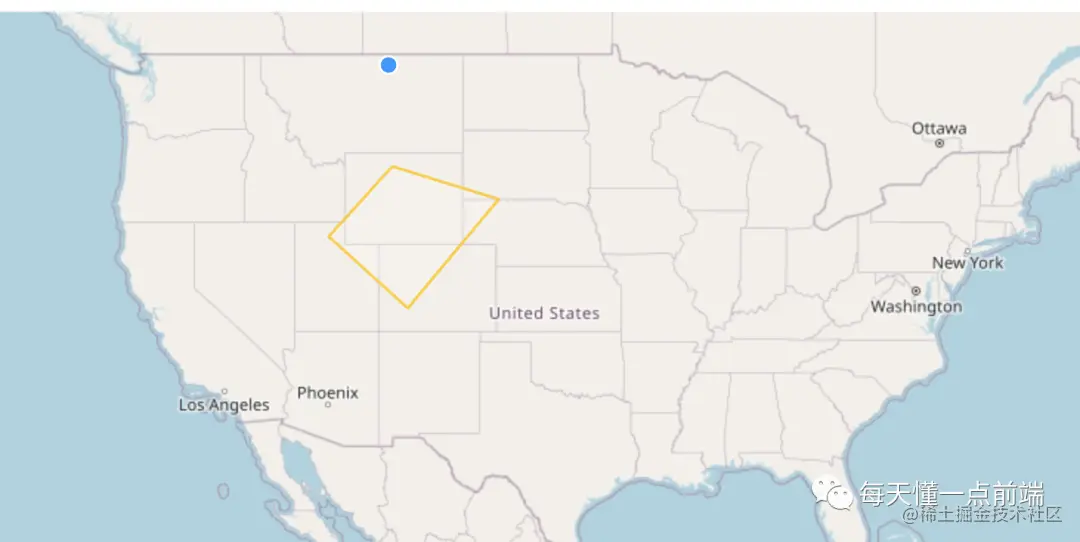

- Openlayers6提供了绘制点、线、面、圆等功能，如下图所示：
实现上图画框的代码如下：
const modify = new Modify({source: source}); map.addInteraction(modify);
let draw, snap; const typeSelect = document.getElementById('type');
function addInteractions() {
draw = new Draw({ source: source, type: typeSelect.value, });
map.addInteraction(draw);
snap = new Snap({source: source});
map.addInteraction(snap);
}
typeSelect.onchange = function () {
map.removeInteraction(draw);
map.removeInteraction(snap);
addInteractions();
};
addInteractions();
- 在画框之前，已经有了一些框数据，再画框时，需要与已经有的框进行去重，实现方法有两种：
-
使用Geoserver实现，Geoserver的filter参数可以发地理计算函数，如st_intersection
-
使用Openlayers6和turf.js实现，先安装turf.js, npm i @turf/turf,代码开头引入import * as turf from '@turf/turf'
第二种方法在这篇文章里给出了示例，文章链接是cloud.tencent.com/developer/a… 这篇文章里的代码放到本地一看，竟然不对，大概得原因是示例中openlayers版本交旧，使用最新的Openlayers6需要进行修改。 3.先看代码
const removeOverlappingAreasWithExistingFeatures = (feature: any) => { const format = new GeoJSON(); let count: number = 0;
checkVectorSourceRef.current?.getFeatures().forEach((existingFeature: any) => {
const featureGeojson = JSON.parse(new GeoJSON().writeFeature(feature)); //feature转换成Geojson
const existingFeatureGeojson = JSON.parse(new GeoJSON().writeFeature(existingFeature));
if (
existingFeatureGeojson.geometry &&
existingFeatureGeojson.geometry.type &&
existingFeatureGeojson.geometry.type !== 'Polygon'
)
return;
var featurePoly = turf.feature(featureGeojson.geometry); //turf.feature(feature.getGeometry())
var existingFeaturePoly = turf.feature(existingFeatureGeojson.geometry);
const intersection = turf.intersect(featurePoly, existingFeaturePoly);
if (intersection) {
var difference = turf.difference(featurePoly, intersection);
if (difference) {
count++;
if (
difference.geometry &&
difference.geometry.coordinates &&
difference.geometry.coordinates.length
) {
difference!.geometry.coordinates = difference!.geometry.coordinates.filter(
(coordinate: any) => coordinate.length > 0,
);
feature.setGeometry(format.readFeature(difference).getGeometry());
}
}
}
});
if (count > 0) {
message.warning('与现有框有重叠,已去除重叠区域！');
}
return feature;
};
最关键是的是这两句：
const featureGeojson = JSON.parse(new GeoJSON().writeFeature(feature)); //feature转换成Geojson
const existingFeatureGeojson = JSON.parse(new GeoJSON().writeFeature(existingFeature));
由于前端数据格式都是VectorSource中保存的feature，而turf.js是面向GeoJSON种数据格式的，所以需要先进行一下转换。wenku.baidu.com/view/274e83… 这篇文章给出了方法，函数将重复部分去除，修改完形状后返回。
