前言

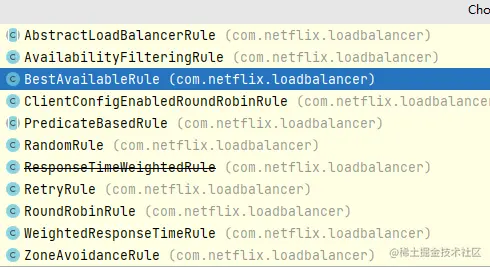

Ribbon的负载均衡策略默认是轮询，但是它还提供了其他几种机制，均实现了IRule接口

AbstractLoadBalancerRule

这是个抽象类，主要是为设置和获取负载均衡器提供默认实现的类

RoundRobinRule

轮询，系统默认的负载均衡策略，按照顺序依次去访问服务

public Server choose(ILoadBalancer lb, Object key) {
        if (lb == null) {
            log.warn("no load balancer");
            return null;
        }

        Server server = null;
        int count = 0;
        while (server == null && count++ < 10) {
            List<Server> reachableServers = lb.getReachableServers();
            List<Server> allServers = lb.getAllServers();
            int upCount = reachableServers.size();
            int serverCount = allServers.size();

            if ((upCount == 0) || (serverCount == 0)) {
                log.warn("No up servers available from load balancer: " + lb);
                return null;
            }

            //这里会算出本次访问的索引下标位置
            int nextServerIndex = incrementAndGetModulo(serverCount);
            server = allServers.get(nextServerIndex);

            if (server == null) {
                /* Transient. */
                Thread.yield();
                continue;
            }

            if (server.isAlive() && (server.isReadyToServe())) {
                return (server);
            }

            // Next.
            server = null;
        }

        if (count >= 10) {
            log.warn("No available alive servers after 10 tries from load balancer: "
                    + lb);
        }
        return server;
    }

AvailabilityFilteringRule

这个策略实际上还是会先根据轮询策略选出一台机制，然后会判断这台机子是否可用，如果不可用则会继续轮询下一台，直到次数打到10为止。

WeightedResponseTimeRule

根据权重进行负载均衡，每个服务器都可以有权重，权重越高越优先访问，如果没有命中任何有权重的服务则默认会退化称为轮询策略

public Server choose(ILoadBalancer lb, Object key) {
        if (lb == null) {
            return null;
        }
        Server server = null;

        while (server == null) {
            // get hold of the current reference in case it is changed from the other thread
            List<Double> currentWeights = accumulatedWeights;
            if (Thread.interrupted()) {
                return null;
            }
            List<Server> allList = lb.getAllServers();

            int serverCount = allList.size();

            if (serverCount == 0) {
                return null;
            }

            int serverIndex = 0;

            // last one in the list is the sum of all weights
            double maxTotalWeight = currentWeights.size() == 0 ? 0 : currentWeights.get(currentWeights.size() - 1);
            // No server has been hit yet and total weight is not initialized
            // fallback to use round robin
            if (maxTotalWeight < 0.001d || serverCount != currentWeights.size()) {
                server =  super.choose(getLoadBalancer(), key);
                if(server == null) {
                    return server;
                }
            } else {
                // generate a random weight between 0 (inclusive) to maxTotalWeight (exclusive)
                double randomWeight = random.nextDouble() * maxTotalWeight;
                // pick the server index based on the randomIndex
                int n = 0;
                for (Double d : currentWeights) {
                    if (d >= randomWeight) {
                        serverIndex = n;
                        break;
                    } else {
                        n++;
                    }
                }

                server = allList.get(serverIndex);
            }

            if (server == null) {
                /* Transient. */
                Thread.yield();
                continue;
            }

            if (server.isAlive()) {
                return (server);
            }

            // Next.
            server = null;
        }
        return server;
    }

ZoneAvoidanceRule

根据机房和服务器进行负载均衡，这个主要适用于多机房部署的情况，一般用不到

BestAvailableRule

忽略请求失败的服务器，找到并发比较低的服务器

RandomRule

随机策略，随机抽取一个服务器

int index = rand.nextInt(serverCount);
server = upList.get(index);
