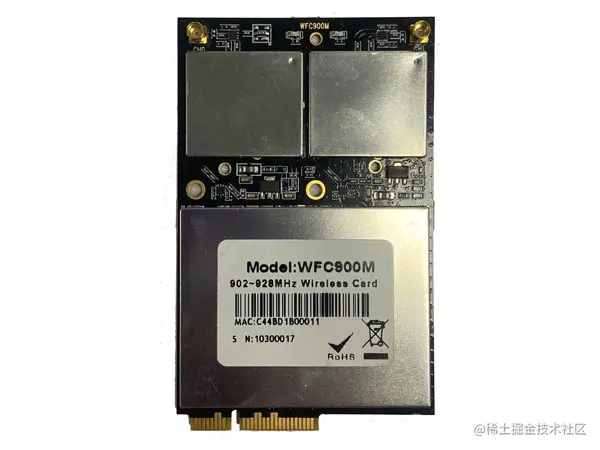

MT7915/MT7975/IPQ6000/IPQ6018/IPQ6010/IPQ4019/IPQ4029/IPQ4018/IPQ4028/IPQ8072/IPQ8072A/IPQ8074/IPQ8074A/IQCN6024/QCN9074/QCN9072/QCN9024/IPQ5018/AR9223/QCA9880/QCA9882/AR9582/AR9531/AR9344 /AX200NGW wallys AR9582 2x 2 900M 802.11an MIMO Industrial-grade 902-928Mhz Featuring with industrial-gradeAtheros’s AR9582chipset
Integrated with 2x 2 900M high powerRadio Card
905MHz to 925MHz Frequency Range
2 x MMCX Connectors
5M/10M/20MHz Bandwidth
Support 11AN
RoHS compliance ensure a high level protection of human health and the environment from risks that can be posed by chemicals
-
Absolute Maximum Rating -
\
-
Parameter**** Rating**** Unit**** Supply Voltage 3.3V(MINIPCIE) V Operating Temperature Range -40 to +60 ºC Storage Temperature Range -65 to +105 ºC Operating Humidity Range 5 to +95 (non-condensing) % Storage Humidity Range 0 to +90 (non-condensing) % -
\
-
****Hardware Specifications -
\
-
Symbol**** Parameter**** CPU AR9582 Antenna Connector 2 x MMCX connectors ROHS Compliance YES Dimension 79mm x 51mm x 10mm -
\
-
****Radio TX Spe ****cifications(905MHz-925MHz) -
\
-
Operating Mode Data Rate Power Tolerance 1 Chain**** 2 Chains**** 802.11a 6 Mbps 25dBm 28dbm ±2dB 54 Mbps 21dBm 24dbm ±2dB 802.11n HT20 MCS0, MCS8 25dBm 28dbm ±2dB MCS7, MCS15 20dBm 23dbm ±2dB -
\
-
Radio RX Specifications(905MHz-925MHz) -
\
-
Operating Mode Data Rate Sensitivity 802.11a 6 Mbps -96dBm 54 Mbps -78dBm 802.11n HT20 MCS0, MCS8 -92dBm MCS7, MCS15 -73dBm
