vue中实现LED效果数字

vue中实现LED效果数字，公司业务需求，刚好要实现此效果，参考该文章（www.yisu.com/zixun/15676…

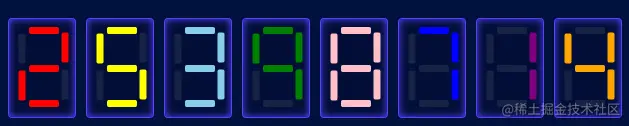

实现的效果如图：

实现思路

每一个数字由七个元素构成，即每一个segment元素。0~9 的数字都有自己的构成方式，用数组digitSegments数组表示。例如：

数字0用数组表示就是[1,2,3,4,5,6]，通过设置动态行内样式，从而实现数字高亮效果。 每次设置最新数字对应的动态样式之前，先清除原来的样式。

实现代码：

<template>
  <div class="led">
    <div ref="ledBox" class="digit">
      <div class="one segment" />
      <div class="tow segment" />
      <div class="three segment" />
      <div class="four segment" />
      <div class="five segment" />
      <div class="six segment" />
      <div class="seven segment" />
    </div>
  </div>
</template>
<script>
export default {
  name: '',
  props: {
    num: { // 要显示的数字
      type: [Number, String],
      default: null
    },
    color: { // 要显示的数字颜色
      type: String,
      default: '#fff'
    }
  },
  data() {
    return {
      digitSegments: [
        [1, 2, 3, 4, 5, 6],
        [2, 3],
        [1, 2, 7, 5, 4],
        [1, 2, 7, 3, 4],
        [6, 7, 2, 3],
        [1, 6, 7, 3, 4],
        [1, 6, 5, 4, 3, 7],
        [1, 2, 3],
        [1, 2, 3, 4, 5, 6, 7],
        [1, 2, 7, 3, 6]
      ]
    }
  },
  watch: {
    num(val) {
        this.setNumber(this.$refs.ledBox, val)
    },
    color(){
      this.setNumber(this.$refs.ledBox, this.num)
    }
  },
  mounted() {
    // 设置 初始值
    this.setNumber(this.$refs.ledBox, this.num)
  },
  methods: {
    // digit 所在元素、number 需要设置的数字
    setNumber(digit, number) {
      var that = this
      var segments = digit.querySelectorAll('.segment')
      var current = parseInt(digit.getAttribute('data-value'))
      // 更新数字前 清除之前显示的数字
      if (!isNaN(current) && current !== number) {
        // 清空之前的数字 current为之前的数字
        that.digitSegments[current].forEach(function(digitSegment, index) {
          setTimeout(function() {
            segments[digitSegment - 1].style.background = 'rgba(3, 0, 22, 0.2)'
          }, index * 50)
        })
      }
      if ((isNaN(current) || current !== number) && number != null) {
        // 显示最新的数字
        setTimeout(function() {
          that.digitSegments[number].forEach(function(digitSegment, index) {
            setTimeout(function() {
              segments[digitSegment - 1].style.background = that.color
            }, index * 50)
          })
        }, 250)
        digit.setAttribute('data-value', number)
      }
    }
  }
}
</script>
<style lang='scss' scoped>
.led {
  display: inline-block;
  height: 100px;
  margin: 5px;
  .digit {
    display: inline-block;
    position: relative;
    box-sizing: border-box;
    width: 68px;
    height: 100px;
    background: rgba(3, 0, 22, 0.2);
    border: 1px solid #5a3fff;
    box-shadow: inset 0px 0px 8px #5a3fff;
    border-radius: 4px;
    /* Inside auto layout */
    flex: none;
    order: 0;
    flex-grow: 0;
    .segment {
      width: 30px;
      height: 7px;
      position: absolute;
      background: rgba(204, 204, 204, 0.1);
      border-radius: 2px;
      transform: matrix(0, 1, 1, 0, 0, 0);
    }
    .one {
      left: 20px;
      top: 8px;
      transform: rotate(0deg);
    }
    .tow {
      left: 41px;
      top: 25px;
    }
    .three {
      left: 41px;
      top: 62px;
    }
    .four {
      left: 20px;
      top: 81px;
      transform: rotate(0deg);
    }
    .five {
      left: -2px;
      top: 63px;
    }
    .six {
      left: -2px;
      top: 26px;
    }
    .seven {
      left: 20px;
      top: 45.99px;
      transform: rotate(0deg);
    }
  }
}
</style>

组件使用：

<template>
  <div>
      <Led v-for="(item,index) in ledData" :key="index" :num="item.num" :color="item.color" />
  </div>
</template>

<script>
import Led from './Led.vue'
export default {
  components: { Led },
  data(){
    return {
      ledData: [
        {
          num: 2,
          color: '#ff0000'
        },{
          num: 5,
          color: 'yellow'
        }
      ]
    }
  },
  mounted(){
  //实现效果： 每3秒更换显示数字以及颜色
    setInterval(()=>{
      this.handlerFn()
    },3000)
  },
  methods: {
    handlerFn(){
      this.ledData.forEach(element => {
        element.num = Math.floor(Math.random()*10)
        element.color = this.randomColor()
      });
    },
    randomColor() {//得到随机的颜色值
        var r = Math.floor(Math.random() * 256);
        var g = Math.floor(Math.random() * 256);
        var b = Math.floor(Math.random() * 256);
        return "rgb(" + r + "," + g + "," + b + ")";
    }
  }
}
</script>
