【4】事务

112 阅读3分钟

1、什么事务

(1)事务是数据库操作最基本单元,逻辑上一组操作,要么都成功,如果有一个失败所有操 作都失败

(2)典型场景:银行转账

lucy 转账 100 元 给 marm

lucy 少 100,mary 多 100

2、事务四个特性(ACID)

(1)原子性

(2)一致性

(3)隔离性

(4)持久性

3、Spring 事务管理

1、事务添加到 JavaEE 三层结构里面 Service 层(业务逻辑层)

2、在 Spring 进行事务管理操作

(1)有两种方式:编程式事务管理和声明式事务管理(使用)

3、声明式事务管理

(1)基于注解方式(使用)

(2)基于 xml 配置文件方式

4、在 Spring 进行声明式事务管理,底层使用 AOP 原理

5、Spring 事务管理 API

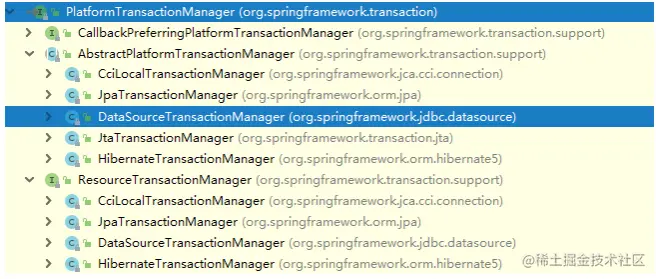

(1)提供一个接口,代表事务管理器,这个接口针对不同的框架提供不同的实现类 image.png

4、注解声明式事务管理

1、在 spring 配置文件配置事务管理器

<!--创建事务管理器-->
<bean id="transactionManager"
class="org.springframework.jdbc.datasource.DataSourceTransactionManager">
<!--注入数据源-->
<property name="dataSource" ref="dataSource"></property>
</bean>

2、在 spring 配置文件,开启事务注解

(1)在 spring 配置文件引入名称空间 tx

<beans xmlns="http://www.springframework.org/schema/beans"
        xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
        xmlns:context="http://www.springframework.org/schema/context"
        xmlns:aop="http://www.springframework.org/schema/aop"
        xmlns:tx="http://www.springframework.org/schema/tx"
        xsi:schemaLocation="http://www.springframework.org/schema/beans
        http://www.springframework.org/schema/beans/spring-beans.xsd
        http://www.springframework.org/schema/context
        http://www.springframework.org/schema/context/spring-context.xsd
        http://www.springframework.org/schema/aop
        http://www.springframework.org/schema/aop/spring-aop.xsd
        http://www.springframework.org/schema/tx
        http://www.springframework.org/schema/tx/spring-tx.xsd">

(2)开启事务注解

<!--开启事务注解-->
<tx:annotation-driven transactionmanager="transactionManager"></tx:annotation-driven>

3、在 service 类上面(或者 service 类里面方法上面)添加事务注解

1@Transactional,这个注解添加到类上面,也可以添加方法上面
(2)如果把这个注解添加类上面,这个类里面所有的方法都添加事务
(3)如果把这个注解添加方法上面,为这个方法添加事务
@Service
@Transactional
public class UserService {

5、声明式事务管理

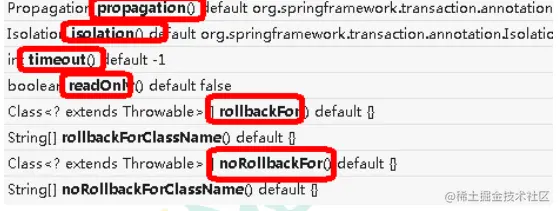

1、在 service 类上面添加注解@Transactional,在这个注解里面可以配置事务相关参数

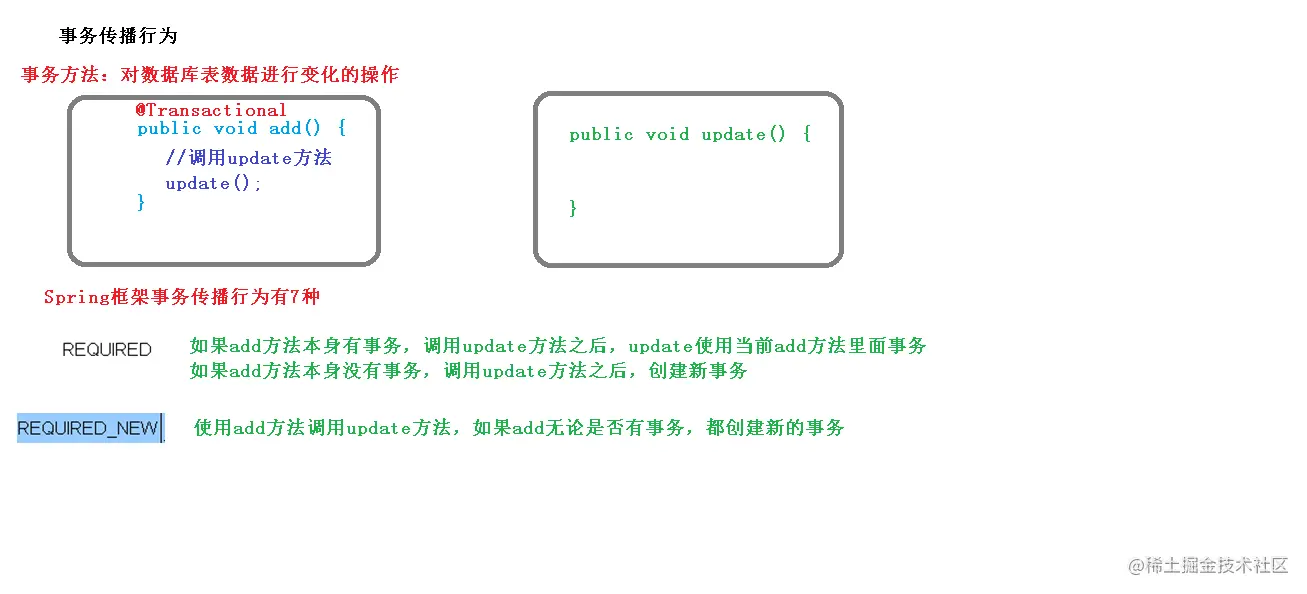

2、propagation:事务传播行为

(1)多事务方法直接进行调用,这个过程中事务 是如何进行管理的




3、ioslation:事务隔离级别

(1)事务有特性成为隔离性,多事务操作之间不会产生影响。不考虑隔离性产生很多问题

(2)有三个读问题:脏读、不可重复读、虚(幻)读

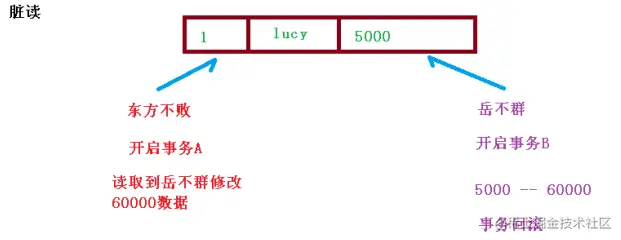

(3)脏读:一个未提交事务读取到另一个未提交事务的数据

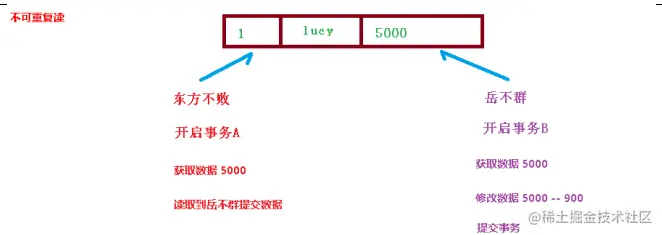

(4)不可重复读:一个未提交事务读取到另一提交事务修改数据 image.png

(5)虚读:一个未提交事务读取到另一提交事务添加数据

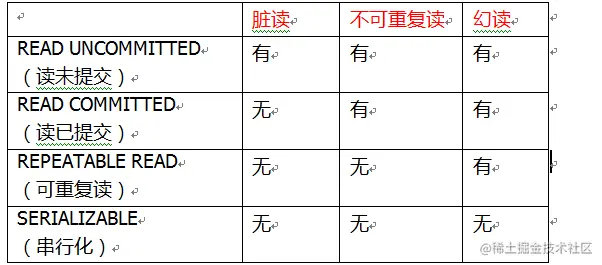

(6)解决:通过设置事务隔离级别,解决读问题



4、timeout:超时时间

(1)事务需要在一定时间内进行提交,如果不提交进行回滚

(2)默认值是 -1 ,设置时间以秒单位进行计算

5、readOnly:是否只读

(1)读:查询操作,写:添加修改删除操作

(2)readOnly 默认值 false,表示可以查询,可以添加修改删除操作

(3)设置 readOnly 值是 true,设置成 true 之后,只能查询

6、rollbackFor:回滚

(1)设置出现哪些异常进行事务回滚

7、noRollbackFor:不回滚

(1)设置出现哪些异常不进行事务回滚

6、(XML 声明式事务管理

1、在 spring 配置文件中进行配置

第一步 配置事务管理器
第二步 配置通知
第三步 配置切入点和切面
<!--1 创建事务管理器-->
<bean id="transactionManager"
      class="org.springframework.jdbc.datasource.DataSourceTransactionManager">
    <!--注入数据源-->
    <property name="dataSource" ref="dataSource"></property>
</bean>
        <!--2 配置通知-->
<tx:advice id="txadvice">
<!--配置事务参数-->
<tx:attributes>
    <!--指定哪种规则的方法上面添加事务-->
    <tx:method name="accountMoney" propagation="REQUIRED"/>
    <!--<tx:method name="account*"/>-->
</tx:attributes>
</tx:advice>
        <!--3 配置切入点和切面-->
<aop:config>
<!--配置切入点-->
<aop:pointcut id="pt" expression="execution(*
com.atguigu.spring5.service.UserService.*(..))"/>
<!--配置切面-->
<aop:advisor advice-ref="txadvice" pointcut-ref="pt"/>
</aop:config>

2、创建配置类,使用配置类替代 xml 配置文件

@Configuration //配置类
@ComponentScan(basePackages = "com.atguigu") //组件扫描
@EnableTransactionManagement //开启事务
public class TxConfig {
    //创建数据库连接池
    @Bean
    public DruidDataSource getDruidDataSource() {
        DruidDataSource dataSource = new DruidDataSource();
        dataSource.setDriverClassName("com.mysql.jdbc.Driver");
        dataSource.setUrl("jdbc:mysql:///user_db");
        dataSource.setUsername("root");
        dataSource.setPassword("root");
        return dataSource;
    }
    //创建 JdbcTemplate 对象
    @Bean
    public JdbcTemplate getJdbcTemplate(DataSource dataSource) {
        //到 ioc 容器中根据类型找到 dataSource
        JdbcTemplate jdbcTemplate = new JdbcTemplate();
        //注入 dataSource
        jdbcTemplate.setDataSource(dataSource);
        return jdbcTemplate;
    }
    //创建事务管理器
    @Bean
    public DataSourceTransactionManager
    getDataSourceTransactionManager(DataSource dataSource) {
        DataSourceTransactionManager transactionManager = new
                DataSourceTransactionManager();
        transactionManager.setDataSource(dataSource);
        return transactionManager;
    }
}
