实现vue穿梭框Transfer组件

概述

项目开发中，偶尔会用到穿梭框，具体什么场景，可以根据需求而定，但是这个组件不怎么常用，我觉得这个组件蛮有意思的，记录下实现这个组件的过程。

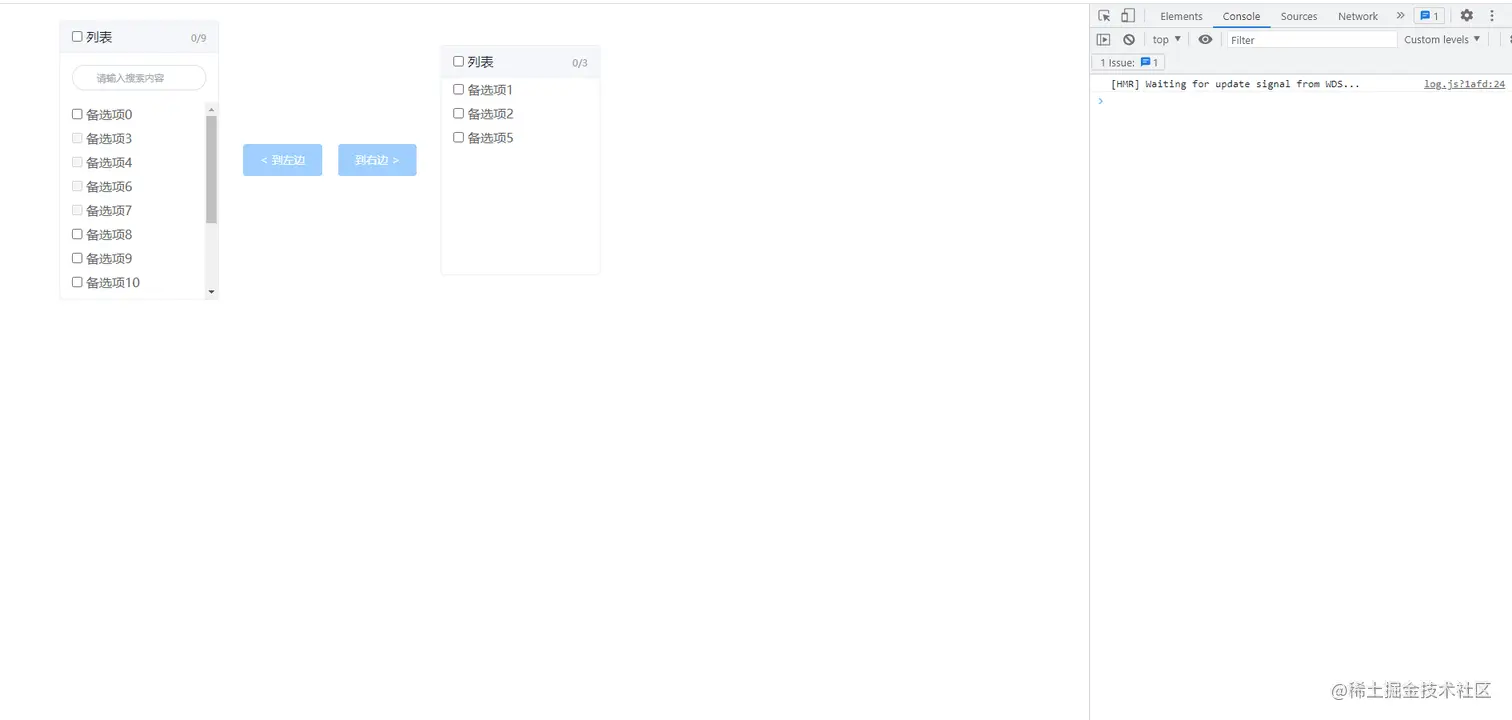

最终效果

实现原理

没用过这个组件的，建议去组件库试一下这个组件的用法，组件分为：左侧列表，中间两个按钮，右侧列表，因此可以划分为三个小组件，通过使用可以得出一个很重要的信息：

$左侧数据=总数据-右侧数据数据$。

实现过程

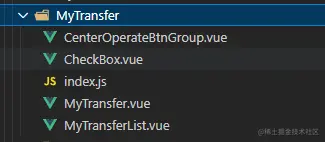

目录结构

基本用法

<template>
  <div class="app">
    <div class="flex">
      <div class="item" :style="{ height: 300 + 'px' }">
        <my-transfer
          :data="transferData"
          @on-change="handleTransferChange"
          :check-data="valueList"
          @left-check-change="leftCheckChange"
          @right-check-change="rightCheckChange"
          filterable
        ></my-transfer>
      </div>
    </div>
  </div>
</template>

<script>
import { MyTransfer } from "./components/MyTransfer";
export default {
  components: {  MyTransfer },
  data() {
    return {
      transferData: [
        {
          key: 0,
          label: "备选项0",
          disabled: false,
        },
        {
          key: 1,
          label: "备选项1",
          disabled: false,
        },
        {
          key: 2,
          label: "备选项2",
          disabled: false,
        },
        {
          key: 3,
          label: "备选项3",
          disabled: true,
        },
        {
          key: 4,
          label: "备选项4",
          disabled: true,
        },
        {
          key: 5,
          label: "备选项5",
          disabled: false,
        },
        {
          key: 6,
          label: "备选项6",
          disabled: true,
        },
        {
          key: 7,
          label: "备选项7",
          disabled: true,
        },
        {
          key: 8,
          label: "备选项8",
          disabled: false,
        },
        {
          key: 9,
          label: "备选项9",
          disabled: false,
        },
        {
          key: 10,
          label: "备选项10",
          disabled: false,
        },
        {
          key: 11,
          label: "备选项11",
          disabled: false,
        },
        {
          key: 12,
          label: "备选项12",
          disabled: false,
        },
        {
          key: 13,
          label: "备选项13",
          disabled: false,
        },
        {
          key: 14,
          label: "备选项14",
          disabled: false,
        },
        {
          key: 15,
          label: "备选项15",
          disabled: false,
        },
      ],
      //初始右侧选中数据key集合
      valueList: [1, 2, 5, 6],
    };
  },
    // 穿梭框变化
    handleTransferChange(list) {
      console.log("change", list);
    },
    // 左边选中变化
    leftCheckChange(checkData) {
      console.log("left", checkData);
    },
    // 右边选中变化
    rightCheckChange(checkData) {
      console.log("right", checkData);
    },
  },
};
</script>

<style lang="less">
.app {
  padding: 20px;
  .flex {
    display: flex;
    .item {
      margin: 0 20px;
    }
  }
}
</style>

MyTransfer.vue暴露给用户使用

<template>
  <div class="my-transform">
    <!-- 左侧 -->
    <div class="left-origin-list">
      <!-- 存在搜索 -->
      <my-transfer-list
        :listData="searchData"
        @select-change="(payload) => handleSelectChange(payload, 'right')"
        ref="leftSearchList"
        @search="handleSearch"
        :filterable="filterable"
        v-if="isSearch"
      ></my-transfer-list>
      <!-- 常规 -->
      <my-transfer-list
        v-else
        :listData="leftListData"
        @select-change="(payload) => handleSelectChange(payload, 'right')"
        ref="leftList"
        @search="handleSearch"
        :filterable="filterable"
      ></my-transfer-list>
    </div>
    <!-- 中间 -->
    <div class="center-operate-btn">
      <center-operate-btn-group
        :left-disabled="leftDisabled"
        :right-disabled="rightDisabled"
        @btn-click="handleBtnClick"
      ></center-operate-btn-group>
    </div>
    <!-- 右侧 -->
    <div class="right-filter-list">
      <my-transfer-list
        :listData="rightListDta"
        @select-change="(payload) => handleSelectChange(payload, 'left')"
        ref="rightList"
      ></my-transfer-list>
    </div>
  </div>
</template>

<script>
import MyTransferList from "./MyTransferList.vue";
import CenterOperateBtnGroup from "./CenterOperateBtnGroup.vue";
export default {
  components: {
    MyTransferList,
    CenterOperateBtnGroup,
  },
  props: {
    // 穿梭框数据
    data: {
      type: Array,
      default() {
        return [];
      },
    },
    // 选中数据
    checkData: {
      type: Array,
      default() {
        return [];
      },
    },
    // 是否可搜索
    filterable: {
      type: Boolean,
      default: false,
    },
  },
  data() {
    return {
      // 原始数据
      originList: this.data,
      // 右侧数据
      rightListDta: [],
      // 向右禁用
      leftDisabled: true,
      // 向左禁用
      rightDisabled: true,
      // 左边选中数据
      leftCheckData: [],
      // 右边选中数据
      rightCheckData: [],
      // 搜索关键词
      searchValue: "",
      // 搜索数据
      searchData: [],
    };
  },

  mounted() {
    // 初始化右侧选中数据
    this.filterRightListData();
  },
  computed: {
    // 左侧列表数据
    leftListData: {
      get() {
        return this.originList.filter((orginItem) => {
          return !this.rightListDta.find(
            (rightListItem) => rightListItem.key == orginItem.key
          );
        });
      },
    },
    // 是否搜索
    isSearch() {
      return this.searchValue.trim().length > 0;
    },
  },
  methods: {
    // 初始化右侧数据
    filterRightListData() {
      this.rightListDta = this.originList.filter((orginItem) => {
        return this.checkData.find(
          (checkDataItemKey) =>
            checkDataItemKey == orginItem.key && !orginItem.disabled
        );
      });
    },
    // 选中项变化(根据选中项长度决定是否禁用按钮)
    handleSelectChange({ status, checkedData }, pos) {
      if (pos == "left") {
        this.leftDisabled = !status;
        this.leftCheckData = checkedData;
        this.$emit("right-check-change", checkedData);
      } else {
        this.rightDisabled = !status;
        this.rightCheckData = checkedData;
        this.$emit("left-check-change", checkedData);
      }
    },
    // 中间两个按钮点击
    handleBtnClick(type) {
      switch (type) {
        case "left":
          this.rightListDta = this.rightListDta.filter((rightListItem) => {
            return !this.leftCheckData.find(
              (leftCheckDataItem) => rightListItem.key == leftCheckDataItem.key
            );
          });

          this.$refs.rightList.clearCheckData();
          break;
        case "right":
          this.rightListDta = [...this.rightListDta, ...this.rightCheckData];
          this.$refs.leftList?.clearCheckData();
          this.$emit("on-change", this.rightListDta);
          // 存在搜索关键词的时候，重新计算左侧筛选数据
          if (this.searchValue) {
            this.searchData = this.searchData.filter((searchDataItem) => {
              return !this.rightCheckData.find(
                (checkDtaItem) => searchDataItem.key == checkDtaItem.key
              );
            });
            this.$refs.leftSearchList?.clearCheckData();
          }
          break;
      }
    },
    // 搜索
    handleSearch(value) {
      this.searchValue = value;
      this.searchData = this.leftListData.filter(
        (item) => item.label.indexOf(value) != -1
      );
    },
  },
};
</script>

<style lang="less">
.my-transform {
  display: flex;
  align-items: center;
}
</style>

MyTransferList.vue 左右侧列表组件

<template>
  <div class="my-transfer-list">
    <!-- 头部 -->
    <div class="head-bar">
      <div class="left-check-all">
        <check-box
          @change="handleSelectAll"
          :checked="
            checkedData.length == excludeDisbledListDataLength &&
            checkedData.length > 0
          "
          :disabled="listData.every((item) => item.disabled)"
          >列表</check-box
        >
      </div>
      <div class="right-num-count">
        <span class="num-count-span">{{ checkedData.length }}</span>
        <span class="num-count-span">/</span>
        <span class="num-count-span">{{ excludeDisbledListDataLength }}</span>
      </div>
    </div>
    <!-- 可搜索 -->
    <div class="search-input" v-if="filterable">
      <input type="text" placeholder="请输入搜索内容" @input="handleSearch" />
    </div>
    <!-- 主体列表 -->
    <ul class="transfer-list-body" v-if="listData.length">
      <li
        :class="['transfer-list-item', item.disabled ? 'disabled-item' : '']"
        v-for="item in listData"
        :key="item.key"
      >
        <check-box
          :disabled="item.disabled"
          @change="(checked) => handlleListImteChange(checked, item)"
          :checked="
            checkedData.find((data) => data == item) && !item.disabled
              ? true
              : false
          "
          >{{ item.label }}</check-box
        >
      </li>
    </ul>

    <!-- 空状态 -->
    <div class="transfer-empty" v-else>暂无数据</div>
  </div>
</template>

<script>
import CheckBox from "./CheckBox.vue";
export default {
  components: { CheckBox },
  props: {
    // 列表数据
    listData: {
      type: Array,
      default() {
        return [];
      },
    },
    // 是否可搜索
    filterable: {
      type: Boolean,
      default: false,
    },
  },
  data() {
    return {
      // 选中数据
      checkedData: [],
    };
  },
  computed: {
    // 排除禁用项后的长度
    excludeDisbledListDataLength() {
      return this.listData.filter((item) => !item.disabled).length;
    },
  },
  methods: {
    // 单个itemcheckbox状态变更
    handlleListImteChange(checked, data) {
      checked
        ? this.checkedData.push(data)
        : (this.checkedData = this.checkedData.filter(
            (item) => item.key != data.key
          ));
      // 发布选中项变化事件
      this.$emit("select-change", {
        status: this.checkedData.length > 0,
        checkedData: this.checkedData,
      });
    },
    // 全选或者不全选
    handleSelectAll(checked) {
      checked
        ? (this.checkedData = this.listData.filter((item) => !item.disabled))
        : (this.checkedData = []);
      // 发布选中项变化事件
      this.$emit("select-change", {
        status: this.checkedData.length > 0,
        checkedData: this.checkedData,
      });
    },
    // 清空checkdata当点击移走按钮时
    clearCheckData() {
      this.checkedData = [];
      // 告知外部选中项变化
      this.$emit("select-change", {
        status: this.checkedData.length > 0,
        checkedData: this.checkedData,
      });
    },
    // 执行搜索
    handleSearch(e) {
      this.$emit("search", e.target.value);
    },
  },
};
</script>

<style lang="less">
.my-transfer-list {
  border: 1px solid #ebeef5;
  border-radius: 4px;
  overflow: hidden;
  background: #fff;
  vertical-align: middle;
  width: 200px;
  max-height: 100%;
  box-sizing: border-box;
  position: relative;
  color: #afb0b4;

  .head-bar {
    display: flex;
    justify-content: space-between;
    height: 40px;
    line-height: 40px;
    background: #f5f7fa;
    border-bottom: 1px solid #ebeef5;
    box-sizing: border-box;
    color: #000;
    padding: 0 15px;
    .num-count-span {
      font-size: 12px;
      color: #909399;
    }
  }
  .search-input {
    padding: 0 15px;
    margin: 15px 0;
    input {
      height: 32px;
      width: 100%;
      font-size: 12px;
      display: inline-block;
      box-sizing: border-box;
      border-radius: 16px;
      padding-right: 10px;
      padding-left: 30px;
      border: 1px solid #dcdfe6;
      &:focus {
        outline: none;
        border-color: #409eff;
      }
    }
  }
  .transfer-list-body,
  .transfer-empty {
    height: 246px;
    overflow: auto;
  }
  .transfer-empty {
    text-align: center;
    line-height: 35px;
  }
  .transfer-list-item {
    padding: 0 15px;
    color: #606266;
    line-height: 30px;
  }
  .transfer-list-item.disabled-item {
    cursor: not-allowed;
  }
}
</style>

CheckBox.vue多选框组件

<template>
  <label class="check-box-label">
    <input
      type="checkbox"
      :disabled="disabled"
      :checked="checked"
      @change="$emit('change', $event.target.checked)"
    />
    <slot></slot>
  </label>
</template>

<script>
export default {
  props: {
    disabled: {
      type: Boolean,
      default: false,
    },
    checked: {
      type: Boolean,
      default: false,
    },
  },
};
</script>

<style lang="less">
.check-box-label {
  input {
    margin-right: 5px;
  }
}
</style>

CenterOperateBtnGroup.vue中间两个操作按钮组件

<template>
  <div class="operate-group">
    <button
      class="btn btn-left"
      :disabled="leftDisabled"
      @click="handBtnClick('left')"
    >
      &lt; 到左边
    </button>
    <button
      class="btn btn-right"
      :disabled="rightDisabled"
      @click="handBtnClick('right')"
    >
      到右边 &gt;
    </button>
  </div>
</template>

<script>
export default {
  props: {
    leftDisabled: {
      type: Boolean,
      default: false,
    },
    rightDisabled: {
      type: Boolean,
      default: false,
    },
  },
  methods: {
    handBtnClick(type) {

      this.$emit("btn-click", type);
    },
  },
};
</script>

<style lang="less">
.operate-group {
  padding: 0 30px;
  .btn {
    display: inline-block;
    line-height: 1;
    cursor: pointer;
    border: 1px solid #409eff;
    color: #fff;
    background-color: #409eff;
    text-align: center;
    box-sizing: border-box;
    outline: none;
    margin: 0;
    transition: 0.1s;
    font-weight: 500;
    padding: 12px 20px;
    font-size: 14px;
    border-radius: 4px;
  }
  .btn[disabled] {
    color: #fff;
    background-color: #a0cfff;
    border-color: #a0cfff;
    cursor: not-allowed;
  }
  .btn-right {
    margin-left: 20px;
  }
}
</style>

index.js按需导出组件

import MyTransfer from "./MyTransfer.vue";
export { MyTransfer };

总结

上面搜索只做了左侧的，右侧的思路和左侧思路是一样的，需要注意写这个组件的时候，把数据隔离清楚就好了。
