1 circuitbreaker简介
Spring Cloud 断路器提供了跨不同断路器实现的抽象。它提供了在您的应用程序中使用的一致 API，让您开发人员可以选择最适合您的应用程序需求的断路器实现。
2 支持的断路器类型
- Resilience4J
- Spring Retry
3 核心源码实现
spring-cloud-commons提供了circuitbreaker的核心定义接口，我们接下来来看一下
3.1 CircuitBreaker
/**
* Spring Cloud circuit breaker.
*
* @author Ryan Baxter
*/
public interface CircuitBreaker {
default <T> T run(Supplier<T> toRun) {
return run(toRun, throwable -> {
throw new NoFallbackAvailableException("No fallback available.", throwable);
});
};
<T> T run(Supplier<T> toRun, Function<Throwable, T> fallback);
}
定义了核心断路器的接口，提供了run方法的默认实现和核心接口扩展实现
default <T> T run(Supplier<T> toRun)方法，如果出现异常，抛出NoFallbackAvailableException
3.2 CircuitBreakerFactory(断路器工厂API)
/**
* Creates circuit breakers based on the underlying implementation.
*
* @author Ryan Baxter
* @author Andrii Bohutskyi
*/
public abstract class CircuitBreakerFactory<CONF, CONFB extends ConfigBuilder<CONF>>
extends AbstractCircuitBreakerFactory<CONF, CONFB> {
public abstract CircuitBreaker create(String id);
public CircuitBreaker create(String id, String groupName) {
return create(id);
}
}
定义了断路器工厂，构建断路器对象
id断路器的操作或方法名称groupName服务分组名称

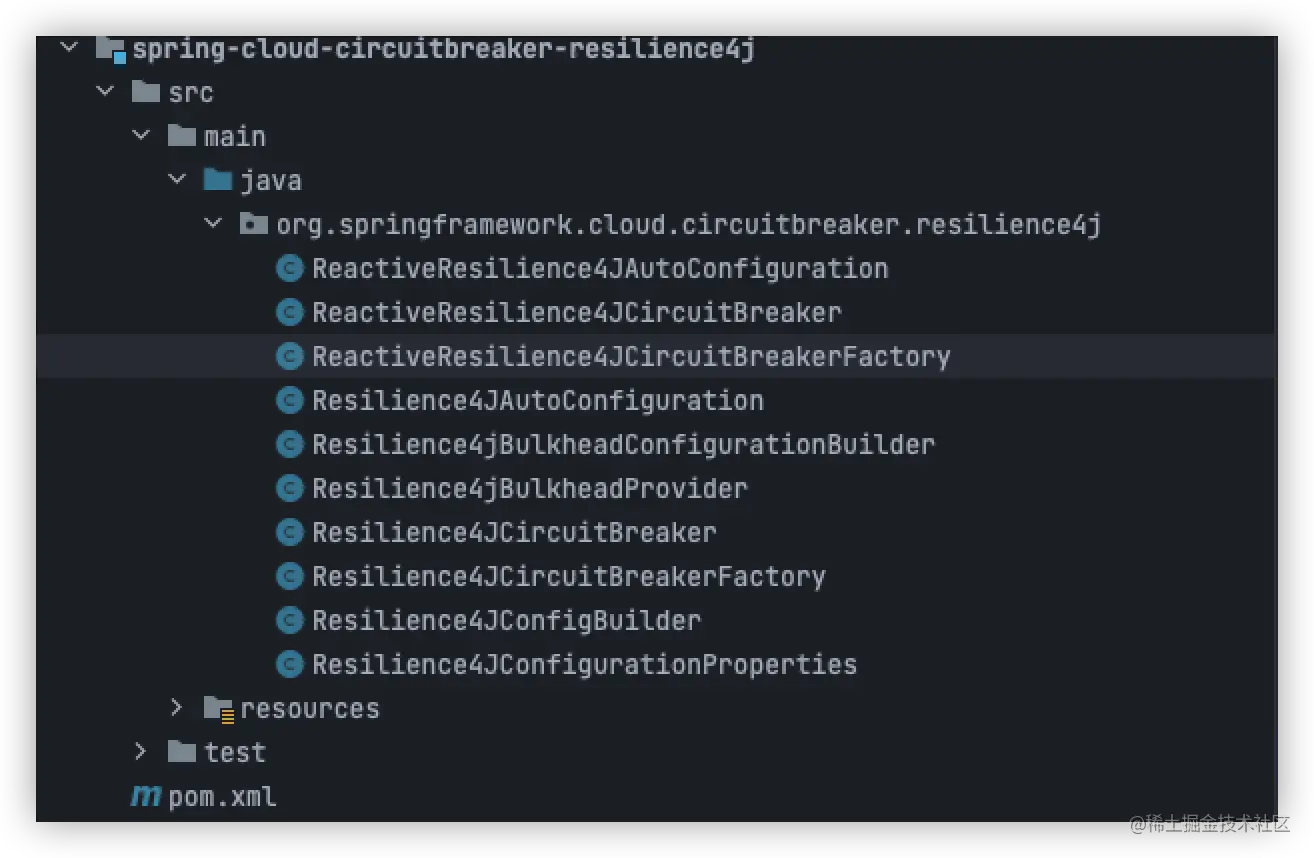

3.3 Resilience4j实现断路器
- 核心方法
Resilience4JCircuitBreaker
@Override
public <T> T run(Supplier<T> toRun, Function<Throwable, T> fallback) {
final io.vavr.collection.Map<String, String> tags = io.vavr.collection.HashMap.of(CIRCUIT_BREAKER_GROUP_TAG,
this.groupName);
// 构建限速器
TimeLimiter timeLimiter = this.timeLimiterRegistry.find(this.id)
.orElseGet(() -> this.timeLimiterRegistry.find(this.groupName)
.orElseGet(() -> this.timeLimiterRegistry.timeLimiter(this.id, this.timeLimiterConfig, tags)));
// 构建熔断器
io.github.resilience4j.circuitbreaker.CircuitBreaker defaultCircuitBreaker = registry.circuitBreaker(this.id,
this.circuitBreakerConfig, tags);
circuitBreakerCustomizer.ifPresent(customizer -> customizer.customize(defaultCircuitBreaker));
// 舱壁提供者不为空，执行业务逻辑
if (bulkheadProvider != null) {
return bulkheadProvider.run(this.groupName, toRun, fallback, defaultCircuitBreaker, timeLimiter, tags);
}
else {
if (executorService != null) {
Supplier<Future<T>> futureSupplier = () -> executorService.submit(toRun::get);
Callable restrictedCall = TimeLimiter.decorateFutureSupplier(timeLimiter, futureSupplier);
Callable<T> callable = io.github.resilience4j.circuitbreaker.CircuitBreaker
.decorateCallable(defaultCircuitBreaker, restrictedCall);
return Try.of(callable::call).recover(fallback).get();
}
else {
Supplier<T> decorator = io.github.resilience4j.circuitbreaker.CircuitBreaker
.decorateSupplier(defaultCircuitBreaker, toRun);
return Try.of(decorator::get).recover(fallback).get();
}
}
}
- 再看一下
Resilience4jBulkheadProvider.run()
public <T> T run(String id, Supplier<T> toRun, Function<Throwable, T> fallback, CircuitBreaker circuitBreaker,
TimeLimiter timeLimiter, io.vavr.collection.Map<String, String> tags) {
Supplier<CompletionStage<T>> bulkheadCall = decorateBulkhead(id, tags, toRun);
final Callable<T> timeLimiterCall = decorateTimeLimiter(bulkheadCall, timeLimiter);
final Callable<T> circuitBreakerCall = circuitBreaker.decorateCallable(timeLimiterCall);
return Try.of(circuitBreakerCall::call).recover(fallback).get();
}
private <T> Supplier<CompletionStage<T>> decorateBulkhead(final String id,
final io.vavr.collection.Map<String, String> tags, final Supplier<T> supplier) {
Resilience4jBulkheadConfigurationBuilder.BulkheadConfiguration configuration = configurations
.computeIfAbsent(id, defaultConfiguration);
if (semaphoreDefaultBulkhead
|| (bulkheadRegistry.find(id).isPresent() && !threadPoolBulkheadRegistry.find(id).isPresent())) {
Bulkhead bulkhead = bulkheadRegistry.bulkhead(id, configuration.getBulkheadConfig(), tags);
CompletableFuture<T> asyncCall = CompletableFuture.supplyAsync(supplier);
return Bulkhead.decorateCompletionStage(bulkhead, () -> asyncCall);
}
else {
ThreadPoolBulkhead threadPoolBulkhead = threadPoolBulkheadRegistry.bulkhead(id,
configuration.getThreadPoolBulkheadConfig(), tags);
return threadPoolBulkhead.decorateSupplier(supplier);
}
}
private <T> Callable<T> decorateTimeLimiter(final Supplier<CompletionStage<T>> supplier, TimeLimiter timeLimiter) {
final Supplier<Future<T>> futureSupplier = () -> supplier.get().toCompletableFuture();
return timeLimiter.decorateFutureSupplier(futureSupplier);
}
通过源码得知，run方法中，执行顺序为Bulkhead->timeLimiter->circuitBreaker，如果发生异常，执行降级。
3.4 Spring Retry 实现断路器
Spring Retry 实现比较简单，我这边不做过多详解 ，提供核心源码执行逻辑给各位看官老爷。
@Override
public <T> T run(Supplier<T> toRun, Function<Throwable, T> fallback) {
retryTemplate.setBackOffPolicy(config.getBackOffPolicy());
retryTemplate.setRetryPolicy(config.getRetryPolicy());
if (retryTemplateCustomizer != null) {
retryTemplateCustomizer.customize(retryTemplate);
}
return retryTemplate.execute(context -> toRun.get(), context -> fallback.apply(context.getLastThrowable()),
new DefaultRetryState(id, config.isForceRefreshState(), config.getStateClassifier()));
}
4 Spring Cloud Gateway中Circuitbreaker的实现
Spring Cloud Gateway我这边不做过多介绍，重点讲解一下Gateway中Circuitbreaker的实现。Spring Cloud Gateway中Circuitbreaker的实现是通过SpringCloudCircuitBreakerFilterFactory以及SpringCloudCircuitBreakerResilience4JFilterFactory实现的，我们先看一下SpringCloudCircuitBreakerFilterFactory的实现。
4.1 SpringCloudCircuitBreakerFilterFactory源码实现
public abstract class SpringCloudCircuitBreakerFilterFactory
extends AbstractGatewayFilterFactory<SpringCloudCircuitBreakerFilterFactory.Config> {
/** CircuitBreaker component name. */
public static final String NAME = "CircuitBreaker";
private ReactiveCircuitBreakerFactory reactiveCircuitBreakerFactory;
private ReactiveCircuitBreaker cb;
private final ObjectProvider<DispatcherHandler> dispatcherHandlerProvider;
// do not use this dispatcherHandler directly, use getDispatcherHandler() instead.
private volatile DispatcherHandler dispatcherHandler;
public SpringCloudCircuitBreakerFilterFactory(ReactiveCircuitBreakerFactory reactiveCircuitBreakerFactory,
ObjectProvider<DispatcherHandler> dispatcherHandlerProvider) {
super(Config.class);
this.reactiveCircuitBreakerFactory = reactiveCircuitBreakerFactory;
this.dispatcherHandlerProvider = dispatcherHandlerProvider;
}
private DispatcherHandler getDispatcherHandler() {
if (dispatcherHandler == null) {
dispatcherHandler = dispatcherHandlerProvider.getIfAvailable();
}
return dispatcherHandler;
}
@Override
public List<String> shortcutFieldOrder() {
return singletonList(NAME_KEY);
}
@Override
public GatewayFilter apply(Config config) {
ReactiveCircuitBreaker cb = reactiveCircuitBreakerFactory.create(config.getId());
Set<HttpStatus> statuses = config.getStatusCodes().stream().map(HttpStatusHolder::parse)
.filter(statusHolder -> statusHolder.getHttpStatus() != null).map(HttpStatusHolder::getHttpStatus)
.collect(Collectors.toSet());
return new GatewayFilter() {
@Override
public Mono<Void> filter(ServerWebExchange exchange, GatewayFilterChain chain) {
return cb.run(chain.filter(exchange).doOnSuccess(v -> {
if (statuses.contains(exchange.getResponse().getStatusCode())) {
HttpStatusCode status = exchange.getResponse().getStatusCode();
throw new CircuitBreakerStatusCodeException(status);
}
}), t -> {
if (config.getFallbackUri() == null) {
return Mono.error(t);
}
exchange.getResponse().setStatusCode(null);
reset(exchange);
// TODO: copied from RouteToRequestUrlFilter
URI uri = exchange.getRequest().getURI();
// TODO: assume always?
boolean encoded = containsEncodedParts(uri);
URI requestUrl = UriComponentsBuilder.fromUri(uri).host(null).port(null)
.uri(config.getFallbackUri()).scheme(null).build(encoded).toUri();
exchange.getAttributes().put(GATEWAY_REQUEST_URL_ATTR, requestUrl);
addExceptionDetails(t, exchange);
// Reset the exchange
reset(exchange);
ServerHttpRequest request = exchange.getRequest().mutate().uri(requestUrl).build();
return getDispatcherHandler().handle(exchange.mutate().request(request).build());
}).onErrorResume(t -> handleErrorWithoutFallback(t, config.isResumeWithoutError()));
}
@Override
public String toString() {
return filterToStringCreator(SpringCloudCircuitBreakerFilterFactory.this)
.append("name", config.getName()).append("fallback", config.fallbackUri).toString();
}
};
}
protected abstract Mono<Void> handleErrorWithoutFallback(Throwable t, boolean resumeWithoutError);
private void addExceptionDetails(Throwable t, ServerWebExchange exchange) {
ofNullable(t).ifPresent(
exception -> exchange.getAttributes().put(CIRCUITBREAKER_EXECUTION_EXCEPTION_ATTR, exception));
}
@Override
public String name() {
return NAME;
}
public static class Config implements HasRouteId {
private String name;
private URI fallbackUri;
private String routeId;
private Set<String> statusCodes = new HashSet<>();
private boolean resumeWithoutError = false;
@Override
public void setRouteId(String routeId) {
this.routeId = routeId;
}
public String getRouteId() {
return routeId;
}
public URI getFallbackUri() {
return fallbackUri;
}
public Config setFallbackUri(URI fallbackUri) {
this.fallbackUri = fallbackUri;
return this;
}
public Config setFallbackUri(String fallbackUri) {
return setFallbackUri(URI.create(fallbackUri));
}
public String getName() {
return name;
}
public Config setName(String name) {
this.name = name;
return this;
}
public String getId() {
if (!StringUtils.hasText(name) && StringUtils.hasText(routeId)) {
return routeId;
}
return name;
}
public Set<String> getStatusCodes() {
return statusCodes;
}
public Config setStatusCodes(Set<String> statusCodes) {
this.statusCodes = statusCodes;
return this;
}
public Config addStatusCode(String statusCode) {
this.statusCodes.add(statusCode);
return this;
}
public boolean isResumeWithoutError() {
return resumeWithoutError;
}
public void setResumeWithoutError(boolean resumeWithoutError) {
this.resumeWithoutError = resumeWithoutError;
}
}
public class CircuitBreakerStatusCodeException extends HttpStatusCodeException {
public CircuitBreakerStatusCodeException(HttpStatusCode statusCode) {
super(statusCode);
}
}
重点在SpringCloudCircuitBreakerFilterFactory.apply()方法中
- 创建断路器
ReactiveCircuitBreaker - 读取配置属性指定的响应状态码
- 创建GatewayFilter，ReactiveCircuitBreaker.run(执行业务逻辑),如果出现异常，执行重定向配置中给的降级URL进行降级。
4.2 gateway启用circuitBreaker
spring:
cloud:
gateway:
routes:
- id: demo
uri: lb://demo-server
predicates:
- Path=/demo/**
filters:
- StripPrefix=1
- name: CircuitBreaker
args:
name: backendA
fallbackUri: forward:/fallback
5. feign Circuitbreaker的实现
5.1 FeignCircuitBreaker
public final class FeignCircuitBreaker {
private FeignCircuitBreaker() {
throw new IllegalStateException("Don't instantiate a utility class");
}
/**
* @return builder for Feign CircuitBreaker integration
*/
public static Builder builder() {
return new Builder();
}
/**
* Builder for Feign CircuitBreaker integration.
*/
public static final class Builder extends Feign.Builder {
private CircuitBreakerFactory circuitBreakerFactory;
private String feignClientName;
private boolean circuitBreakerGroupEnabled;
private CircuitBreakerNameResolver circuitBreakerNameResolver;
Builder circuitBreakerFactory(CircuitBreakerFactory circuitBreakerFactory) {
this.circuitBreakerFactory = circuitBreakerFactory;
return this;
}
Builder feignClientName(String feignClientName) {
this.feignClientName = feignClientName;
return this;
}
Builder circuitBreakerGroupEnabled(boolean circuitBreakerGroupEnabled) {
this.circuitBreakerGroupEnabled = circuitBreakerGroupEnabled;
return this;
}
Builder circuitBreakerNameResolver(CircuitBreakerNameResolver circuitBreakerNameResolver) {
this.circuitBreakerNameResolver = circuitBreakerNameResolver;
return this;
}
public <T> T target(Target<T> target, T fallback) {
return build(fallback != null ? new FallbackFactory.Default<T>(fallback) : null).newInstance(target);
}
public <T> T target(Target<T> target, FallbackFactory<? extends T> fallbackFactory) {
return build(fallbackFactory).newInstance(target);
}
@Override
public <T> T target(Target<T> target) {
return build(null).newInstance(target);
}
public Feign build(final FallbackFactory<?> nullableFallbackFactory) {
super.invocationHandlerFactory((target, dispatch) -> new FeignCircuitBreakerInvocationHandler(
circuitBreakerFactory, feignClientName, target, dispatch, nullableFallbackFactory,
circuitBreakerGroupEnabled, circuitBreakerNameResolver));
return super.build();
}
}
}
FeignCircuitBreakerclass类的build方法，使用了FeignCircuitBreakerInvocationHandler动态代理类，接下来我们看一下FeignCircuitBreakerInvocationHandler动态代理类做了哪些事情
5.2 FeignCircuitBreakerInvocationHandler
class FeignCircuitBreakerInvocationHandler implements InvocationHandler {
private final CircuitBreakerFactory factory;
private final String feignClientName;
private final Target<?> target;
private final Map<Method, InvocationHandlerFactory.MethodHandler> dispatch;
private final FallbackFactory<?> nullableFallbackFactory;
private final Map<Method, Method> fallbackMethodMap;
private final boolean circuitBreakerGroupEnabled;
private final CircuitBreakerNameResolver circuitBreakerNameResolver;
FeignCircuitBreakerInvocationHandler(CircuitBreakerFactory factory, String feignClientName, Target<?> target,
Map<Method, InvocationHandlerFactory.MethodHandler> dispatch, FallbackFactory<?> nullableFallbackFactory,
boolean circuitBreakerGroupEnabled, CircuitBreakerNameResolver circuitBreakerNameResolver) {
this.factory = factory;
this.feignClientName = feignClientName;
this.target = checkNotNull(target, "target");
this.dispatch = checkNotNull(dispatch, "dispatch");
this.fallbackMethodMap = toFallbackMethod(dispatch);
this.nullableFallbackFactory = nullableFallbackFactory;
this.circuitBreakerGroupEnabled = circuitBreakerGroupEnabled;
this.circuitBreakerNameResolver = circuitBreakerNameResolver;
}
@Override
public Object invoke(final Object proxy, final Method method, final Object[] args) throws Throwable {
// early exit if the invoked method is from java.lang.Object
// code is the same as ReflectiveFeign.FeignInvocationHandler
if ("equals".equals(method.getName())) {
try {
Object otherHandler = args.length > 0 && args[0] != null ? Proxy.getInvocationHandler(args[0]) : null;
return equals(otherHandler);
}
catch (IllegalArgumentException e) {
return false;
}
}
else if ("hashCode".equals(method.getName())) {
return hashCode();
}
else if ("toString".equals(method.getName())) {
return toString();
}
String circuitName = circuitBreakerNameResolver.resolveCircuitBreakerName(feignClientName, target, method);
CircuitBreaker circuitBreaker = circuitBreakerGroupEnabled ? factory.create(circuitName, feignClientName)
: factory.create(circuitName);
Supplier<Object> supplier = asSupplier(method, args);
if (this.nullableFallbackFactory != null) {
Function<Throwable, Object> fallbackFunction = throwable -> {
Object fallback = this.nullableFallbackFactory.create(throwable);
try {
return this.fallbackMethodMap.get(method).invoke(fallback, args);
}
catch (Exception exception) {
unwrapAndRethrow(exception);
}
return null;
};
return circuitBreaker.run(supplier, fallbackFunction);
}
return circuitBreaker.run(supplier);
}
private void unwrapAndRethrow(Exception exception) {
if (exception instanceof InvocationTargetException || exception instanceof NoFallbackAvailableException) {
Throwable underlyingException = exception.getCause();
if (underlyingException instanceof RuntimeException) {
throw (RuntimeException) underlyingException;
}
if (underlyingException != null) {
throw new IllegalStateException(underlyingException);
}
throw new IllegalStateException(exception);
}
}
private Supplier<Object> asSupplier(final Method method, final Object[] args) {
final RequestAttributes requestAttributes = RequestContextHolder.getRequestAttributes();
return () -> {
try {
RequestContextHolder.setRequestAttributes(requestAttributes);
return dispatch.get(method).invoke(args);
}
catch (RuntimeException throwable) {
throw throwable;
}
catch (Throwable throwable) {
throw new RuntimeException(throwable);
}
};
}
/**
* If the method param of InvocationHandler.invoke is not accessible, i.e in a
* package-private interface, the fallback call will cause of access restrictions. But
* methods in dispatch are copied methods. So setting access to dispatch method
* doesn't take effect to the method in InvocationHandler.invoke. Use map to store a
* copy of method to invoke the fallback to bypass this and reducing the count of
* reflection calls.
* @return cached methods map for fallback invoking
*/
static Map<Method, Method> toFallbackMethod(Map<Method, InvocationHandlerFactory.MethodHandler> dispatch) {
Map<Method, Method> result = new LinkedHashMap<Method, Method>();
for (Method method : dispatch.keySet()) {
method.setAccessible(true);
result.put(method, method);
}
return result;
}
@Override
public boolean equals(Object obj) {
if (obj instanceof FeignCircuitBreakerInvocationHandler) {
FeignCircuitBreakerInvocationHandler other = (FeignCircuitBreakerInvocationHandler) obj;
return this.target.equals(other.target);
}
return false;
}
@Override
public int hashCode() {
return this.target.hashCode();
}
@Override
public String toString() {
return this.target.toString();
}
}
具体我们关注FeignCircuitBreakerInvocationHandler类中的invoke方法，由此我们得知:
String circuitName = circuitBreakerNameResolver.resolveCircuitBreakerName(feignClientName, target, method);
CircuitBreaker circuitBreaker = circuitBreakerGroupEnabled ? factory.create(circuitName, feignClientName)
: factory.create(circuitName);
Supplier<Object> supplier = asSupplier(method, args);
if (this.nullableFallbackFactory != null) {
Function<Throwable, Object> fallbackFunction = throwable -> {
Object fallback = this.nullableFallbackFactory.create(throwable);
try {
return this.fallbackMethodMap.get(method).invoke(fallback, args);
}
catch (Exception exception) {
unwrapAndRethrow(exception);
}
return null;
};
return circuitBreaker.run(supplier, fallbackFunction);
}
return circuitBreaker.run(supplier);
- 获取断路器名称，查询对应的断路器
CircuitBreaker nullableFallbackFactory不为空时,创建对应降级工厂，执行降级方法circuitBreaker.run(),执行断路器逻辑监听返回结果
5.3 FeignCircuitBreakerTargeter
FeignCircuitBreakerTargeter实现了Targeter接口，熟悉feign源码的同学肯定知道，实例化feignClient的时候，会调用target方法，实际会触发FeignBuiler组件的newInstance。最终会调用Feign原生的InvocationHandlerFactory.Default工厂来创建FeignInvocationHandler，由此我们实现Targeter，看一下FeignCircuitBreakerTargeter.target的实现逻辑
@Override
public <T> T target(FeignClientFactoryBean factory, Feign.Builder feign, FeignContext context,
Target.HardCodedTarget<T> target) {
if (!(feign instanceof FeignCircuitBreaker.Builder)) {
return feign.target(target);
}
FeignCircuitBreaker.Builder builder = (FeignCircuitBreaker.Builder) feign;
String name = !StringUtils.hasText(factory.getContextId()) ? factory.getName() : factory.getContextId();
Class<?> fallback = factory.getFallback();
if (fallback != void.class) {
return targetWithFallback(name, context, target, builder, fallback);
}
Class<?> fallbackFactory = factory.getFallbackFactory();
if (fallbackFactory != void.class) {
return targetWithFallbackFactory(name, context, target, builder, fallbackFactory);
}
return builder(name, builder).target(target);
}
private <T> T targetWithFallback(String feignClientName, FeignContext context, Target.HardCodedTarget<T> target,
FeignCircuitBreaker.Builder builder, Class<?> fallback) {
T fallbackInstance = getFromContext("fallback", feignClientName, context, fallback, target.type());
return builder(feignClientName, builder).target(target, fallbackInstance);
}
由此可以看出：
- 判断
feign是否是FeignCircuitBreaker.Builder，如果是的话，调用feign.target(target)方法 - 如果不是的话，获取
feignClientName，判断返回结果是否可降级，如果返回结构是void，则不需要降级， - 获取降级工厂，如果为空，则不进行降级，如果不为空，获取降级工厂实例，调用至
FeignCircuitBreakerTargeter.target.
5.4 使用示例
- 配置文件
feign:
circuitbreaker:
enabled: true
6 彩蛋
至此，我们已经完成了Circuitbreaker断路器源码解析。总的来说，因为Spring Cloud Circuitbreaker的源码还算是比较简单的，所以理解起来还是蛮轻松的。
后续，可以自己扩展实现一下
