Android 不规则封闭区域填充 给图填色

本文已参与「新人创作礼」活动，一起开启掘金创作之路。

点击跳转参考文章

• 本文参考鸿洋大佬的博客 ，解决了当填充颜色一致时，连续点击同一位置会引发死循环/程序崩溃的bug ，并可以自定义一些色板

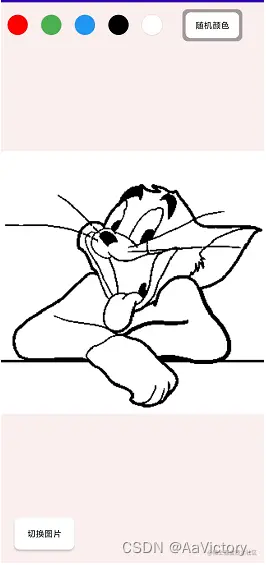

• 效果图如下

• 布局代码如下

<?xml version="1.0" encoding="utf-8"?>
<RelativeLayout xmlns:android="http://schemas.android.com/apk/res/android"
    xmlns:app="http://schemas.android.com/apk/res-auto"
    xmlns:tools="http://schemas.android.com/tools"
    android:layout_width="match_parent"
    android:layout_height="match_parent"
    android:background="@color/back"
    tools:context=".MainActivity">
    <LinearLayout
        android:layout_width="match_parent"
        android:layout_height="wrap_content"
        android:orientation="horizontal">
        <RelativeLayout
            android:layout_width="50dp"
            android:layout_height="50dp"
            >
            <Button
                android:id="@+id/btn_red"
                android:layout_width="30dp"
                android:layout_height="30dp"
                android:layout_centerInParent="true"
                android:background="@drawable/btnred"
                />
        </RelativeLayout>
    <RelativeLayout
        android:layout_width="50dp"
        android:layout_height="50dp"
        >
        <Button
            android:id="@+id/btn_green"
            android:layout_width="30dp"
            android:layout_height="30dp"
            android:layout_centerInParent="true"
            android:background="@drawable/btngreen"
            />
    </RelativeLayout>
    <RelativeLayout
        android:layout_width="50dp"
        android:layout_height="50dp"
        >
        <Button
            android:id="@+id/btn_blue"
            android:layout_width="30dp"
            android:layout_height="30dp"
            android:layout_centerInParent="true"
            android:background="@drawable/btnblue"
            />
    </RelativeLayout>
    <RelativeLayout
        android:layout_width="50dp"
        android:layout_height="50dp"
        >
        <Button
            android:id="@+id/btn_black"
            android:layout_width="30dp"
            android:layout_height="30dp"
            android:layout_centerInParent="true"
            android:background="@drawable/btnblack"
            />
    </RelativeLayout>
    <RelativeLayout
        android:layout_width="50dp"
        android:layout_height="50dp"
        >
        <Button
            android:id="@+id/btn_white"
            android:layout_width="30dp"
            android:layout_height="30dp"
            android:layout_centerInParent="true"
            android:background="@drawable/btnwhite"
            />
    </RelativeLayout>
        <Button
            android:layout_marginTop="10dp"
            android:id="@+id/suiji"
            android:layout_marginLeft="20dp"
            android:layout_width="wrap_content"
            android:layout_height="wrap_content"
            android:background="@drawable/btn2"
            android:text="随机颜色"
            />
    </LinearLayout>

<!--    <Button
        android:id="@+id/onQiehuan"
        android:layout_marginTop="80dp"
        android:layout_marginLeft="10dp"
        android:layout_width="wrap_content"
        android:layout_height="wrap_content"
        android:background="@drawable/btn1"
        android:text="切换图片"
        />-->
    <com.example.demoe.ColourImageView
        android:id="@+id/image1"
        android:src="@drawable/image_007"
        android:background="#33ff0000"
        android:layout_width="match_parent"
        android:layout_centerInParent="true"
        android:layout_height="match_parent"/>
    <com.example.demoe.ColourImageView
        android:visibility="gone"
        android:id="@+id/image2"
        android:src="@drawable/bm_024"
        android:background="#33ff0000"
        android:layout_width="match_parent"
        android:layout_centerInParent="true"
        android:layout_height="match_parent"/>

    <Button
        android:layout_marginTop="10dp"
        android:id="@+id/qiehuan"
        android:layout_marginLeft="20dp"
        android:layout_width="wrap_content"
        android:layout_height="wrap_content"
        android:background="@drawable/btn1"
        android:layout_alignParentBottom="true"
        android:layout_marginBottom="20dp"
        android:text="切换图片"
        />

<!--    <Button
        android:layout_marginTop="10dp"
        android:id="@+id/btn_save"
        android:layout_marginLeft="20dp"
        android:layout_width="wrap_content"
        android:layout_height="wrap_content"
        android:background="@drawable/btn1"
        android:layout_alignParentRight="true"
        android:layout_alignParentBottom="true"
        android:layout_marginBottom="20dp"
        android:text="保存图片"
        android:layout_marginRight="20dp" />-->

</RelativeLayout>

• 自定义一个ColourImageView类

import android.annotation.SuppressLint;
import android.content.Context;
import android.content.res.TypedArray;
import android.graphics.Bitmap;
import android.graphics.Color;
import android.graphics.Point;
import android.graphics.drawable.BitmapDrawable;
import android.util.AttributeSet;
import android.view.MotionEvent;
import android.widget.ImageView;

import java.util.Random;
import java.util.Stack;

@SuppressLint("AppCompatCustomView")
public class ColourImageView extends ImageView {

    private static int mtype;//1是自定义 2是随机
    private Bitmap mBitmap;
    private static int mColor=-1;//默认颜色是白色
    private static int oldColor;
    private  int newColor;
    private  int iswhith=0;
    private  int isheight=0;
    /**
     * 边界的颜色
     */
    private int mBorderColor = -1;

    private boolean hasBorderColor = false;

    private Stack<Point> mStacks = new Stack<Point>();

    public ColourImageView(Context context, AttributeSet attrs){
        super(context, attrs);

        TypedArray ta = context.obtainStyledAttributes(attrs, R.styleable.ColourImageView);
        mBorderColor = ta.getColor(R.styleable.ColourImageView_border_color, -1);
        hasBorderColor = (mBorderColor != -1);

        L.e("hasBorderColor = " + hasBorderColor + " , mBorderColor = " + mBorderColor);

        ta.recycle();

    }

    @Override
    protected void onMeasure(int widthMeasureSpec, int heightMeasureSpec) {
        super.onMeasure(widthMeasureSpec, heightMeasureSpec);

        int viewWidth = getMeasuredWidth();
        int viewHeight = getMeasuredHeight();

        //以宽度为标准，等比例缩放view的高度
        setMeasuredDimension(viewWidth,
                getDrawable().getIntrinsicHeight() * viewWidth / getDrawable().getIntrinsicWidth());
        L.e("view's width = " + getMeasuredWidth() + " , view's height = " + getMeasuredHeight());

        //根据drawable，去得到一个和view一样大小的bitmap
        BitmapDrawable drawable = (BitmapDrawable) getDrawable();
        Bitmap bm = drawable.getBitmap();
        mBitmap = Bitmap.createScaledBitmap(bm, getMeasuredWidth(), getMeasuredHeight(), false);
    }

    @Override
    public boolean onTouchEvent(MotionEvent event) {
        final int x = (int) event.getX();
        final int y = (int) event.getY();

        if (event.getAction() == MotionEvent.ACTION_DOWN) {
            fillColorToSameArea(x, y);
        }

        return super.onTouchEvent(event);
    }

    /**
     * 根据x,y获得改点颜色，进行填充
     *
     * @param x
     * @param y
     */
    private void fillColorToSameArea(int x, int y) {
        Bitmap bm = mBitmap;

        int pixel = bm.getPixel(x, y);
        if (pixel == Color.TRANSPARENT || (hasBorderColor && mBorderColor == pixel))
        {
            return;
        }
        if (mtype==1){
            newColor = mColor;
        }else {
            newColor = randomColor();
        }

        int w = bm.getWidth();
        int h = bm.getHeight();

        //拿到该bitmap的颜色数组
        int[] pixels = new int[w * h];
        bm.getPixels(pixels, 0, w, 0, 0, w, h);
        //填色
        fillColor(pixels, w, h, pixel, newColor, x, y);
        //重新设置bitmap
        bm.setPixels(pixels, 0, w, 0, 0, w, h);
        setImageDrawable(new BitmapDrawable(bm));

    }

    public static void getColorId(int acolor) {
        mColor=acolor;
    }
    public static void getType(int type) {
        mtype=type;
    }


    /**
     * @param pixels   像素数组
     * @param w        宽度
     * @param h        高度
     * @param pixel    当前点的颜色
     * @param newColor 填充色
     * @param i        横坐标
     * @param j        纵坐标
     */
    private void fillColor(int[] pixels, int w, int h, int pixel, int newColor, int i, int j) {
        //步骤1：将种子点(x, y)入栈；
        mStacks.push(new Point(i, j));
        if (pixel==newColor && newColor==oldColor){
            return;
        }
        //步骤2：判断栈是否为空，
        // 如果栈为空则结束算法，否则取出栈顶元素作为当前扫描线的种子点(x, y)，
        // y是当前的扫描线；
        while (!mStacks.isEmpty()) {
            /**
             * 步骤3：从种子点(x, y)出发，沿当前扫描线向左、右两个方向填充，
             * 直到边界。分别标记区段的左、右端点坐标为xLeft和xRight；
             */
            Point seed = mStacks.pop();
            //L.e("seed = " + seed.x + " , seed = " + seed.y);
            int count = fillLineLeft(pixels, pixel, w, h, newColor, seed.x, seed.y);
            int left = seed.x - count + 1;
            count = fillLineRight(pixels, pixel, w, h, newColor, seed.x + 1, seed.y);
            int right = seed.x + count;
            oldColor=newColor;
            /**
             * 步骤4：
             * 分别检查与当前扫描线相邻的y - 1和y + 1两条扫描线在区间[xLeft, xRight]中的像素，
             * 从xRight开始向xLeft方向搜索，假设扫描的区间为AAABAAC（A为种子点颜色），
             * 那么将B和C前面的A作为种子点压入栈中，然后返回第（2）步；
             */
            //从y-1找种子
            if (seed.y - 1 >= 0){
                findSeedInNewLine(pixels, pixel, w, h, seed.y - 1, left, right);
            }
            //从y+1找种子
            if (seed.y + 1 < h){
                findSeedInNewLine(pixels, pixel, w, h, seed.y + 1, left, right);
            }
        }
    }

    /**
     * 在新行找种子节点
     *
     * @param pixels
     * @param pixel
     * @param w
     * @param h
     * @param i
     * @param left
     * @param right
     */
    private void findSeedInNewLine(int[] pixels, int pixel, int w, int h, int i, int left, int right) {
        /**
         * 获得该行的开始索引
         */
        int begin = i * w + left;
        /**
         * 获得该行的结束索引
         */
        int end = i * w + right;

        boolean hasSeed = false;

        int rx = -1, ry = -1;

        ry = i;

        /**
         * 从end到begin，找到种子节点入栈（AAABAAAB，则B前的A为种子节点）
         */
        while (end >= begin) {
            if (pixels[end] == pixel) {
                if (!hasSeed) {
                    rx = end % w;
                    mStacks.push(new Point(rx, ry));
                    hasSeed = true;
                }
            } else {
                hasSeed = false;
            }
            end--;
        }
    }

    /**
     * 往右填色，返回填充的个数
     *
     * @return
     */
    private int fillLineRight(int[] pixels, int pixel, int w, int h, int newColor, int x, int y) {
        int count = 0;

        while (x < w)
        {
            //拿到索引
            int index = y * w + x;
            if (needFillPixel(pixels, pixel, index))
            {
                pixels[index] = newColor;
                count++;
                x++;
            } else
            {
                break;
            }

        }

        return count;
    }


    /**
     * 往左填色，返回填色的数量值
     *
     * @return
     */
    private int fillLineLeft(int[] pixels, int pixel, int w, int h, int newColor, int x, int y) {
        int count = 0;
        while (x >= 0)
        {
            //计算出索引
            int index = y * w + x;

            if (needFillPixel(pixels, pixel, index))
            {
                pixels[index] = newColor;
                count++;
                x--;
            } else
            {
                break;
            }

        }
        return count;
    }

    private boolean needFillPixel(int[] pixels, int pixel, int index) {
        if (hasBorderColor)
        {
            return pixels[index] != mBorderColor;
        } else
        {
            return pixels[index] == pixel;
        }
    }

    /**
     * 返回一个随机颜色
     *
     * @return
     */
    private static int randomColor() {
        Random random = new Random();
        int color = Color.argb(255, random.nextInt(256), random.nextInt(256), random.nextInt(256));
        return color;
    }
}

• R.styleable.ColourImageView

<?xml version="1.0" encoding="utf-8"?>
<resources>
<declare-styleable name="ColourImageView">
    <attr name="border_color" format="color|reference"></attr>
</declare-styleable>
</resources>

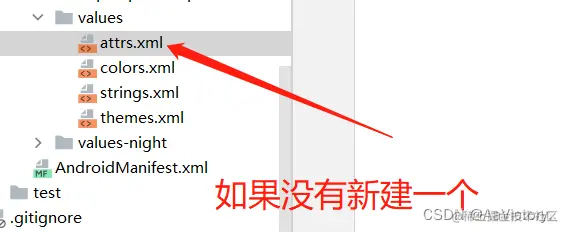

• ColourImageView所在位置
• Log统一管理类

import android.util.Log;

/**
 * Log统一管理类
 */
public class L
{

	private L()
	{
		/* cannot be instantiated */
		throw new UnsupportedOperationException("cannot be instantiated");
	}

	public static boolean isDebug = true;// 是否需要打印bug，可以在application的onCreate函数里面初始化
	private static final String TAG = "fyh";

	// 下面四个是默认tag的函数
	public static void i(String msg)
	{
		if (isDebug)
			Log.i(TAG, msg);
	}

	public static void d(String msg)
	{
		if (isDebug)
			Log.d(TAG, msg);
	}

	public static void e(String msg)
	{
		if (isDebug)
			Log.e(TAG, msg);
	}

	public static void v(String msg)
	{
		if (isDebug)
			Log.v(TAG, msg);
	}

	// 下面是传入自定义tag的函数
	public static void i(String tag, String msg)
	{
		if (isDebug)
			Log.i(tag, msg);
	}

	public static void d(String tag, String msg)
	{
		if (isDebug)
			Log.i(tag, msg);
	}

	public static void e(String tag, String msg)
	{
		if (isDebug)
			Log.i(tag, msg);
	}

	public static void v(String tag, String msg)
	{
		if (isDebug)
			Log.i(tag, msg);
	}
}

• MainActivity类的处理

import androidx.appcompat.app.AppCompatActivity;
import android.graphics.Color;
import android.os.Bundle;
import android.view.Menu;
import android.view.MenuItem;
import android.view.View;
import android.view.animation.Animation;
import android.view.animation.AnimationUtils;
import android.widget.Button;

public class MainActivity extends AppCompatActivity {
    private Button btn_red,btn_green,btn_blue,btn_black,suiji,btn_white,qiehuan;
    private int isqh=1;
    private ColourImageView image1,image2;

    @Override
    protected void onCreate(Bundle savedInstanceState) {
        super.onCreate(savedInstanceState);
        setContentView(R.layout.activity_main2);
        initView();
        onClick();
    }

    private void initView() {
        btn_red=findViewById(R.id.btn_red);
        btn_green=findViewById(R.id.btn_green);
        btn_blue=findViewById(R.id.btn_blue);
        suiji=findViewById(R.id.suiji);
        btn_white=findViewById(R.id.btn_white);
        qiehuan=findViewById(R.id.qiehuan);
        image1=findViewById(R.id.image1);
        image2=findViewById(R.id.image2);
        btn_black=findViewById(R.id.btn_black);


        //默认给随机的动画
        Animation scale= AnimationUtils.loadAnimation(getApplication(),R.anim.scale);
        suiji.startAnimation(scale);
    }

    private void onClick() {
        btn_red.setOnClickListener(new View.OnClickListener() {
            @Override
            public void onClick(View v) {
                ColourImageView.getColorId(Color.RED);
                ColourImageView.getType(1);
                btn_red.setBackgroundResource(R.drawable.btnred1);
                btn_green.setBackgroundResource(R.drawable.btngreen);
                btn_blue.setBackgroundResource(R.drawable.btnblue);
                suiji.setBackgroundResource(R.drawable.btn1);
                btn_black.setBackgroundResource(R.drawable.btnblack);
                btn_white.setBackgroundResource(R.drawable.btnwhite);
                Animation scale= AnimationUtils.loadAnimation(getApplication(),R.anim.scale);
                btn_red.startAnimation(scale);
                btn_green.clearAnimation();
                btn_blue.clearAnimation();
                btn_black.clearAnimation();
                btn_white.clearAnimation();
                suiji.clearAnimation();
            }
        });
        btn_green.setOnClickListener(new View.OnClickListener() {
            @Override
            public void onClick(View v) {
                ColourImageView.getColorId(Color.GREEN);
                ColourImageView.getType(1);
                btn_red.setBackgroundResource(R.drawable.btnred);
                btn_green.setBackgroundResource(R.drawable.btngreen1);
                btn_blue.setBackgroundResource(R.drawable.btnblue);
                suiji.setBackgroundResource(R.drawable.btn1);
                btn_black.setBackgroundResource(R.drawable.btnblack);
                btn_white.setBackgroundResource(R.drawable.btnwhite);
                Animation scale= AnimationUtils.loadAnimation(getApplication(),R.anim.scale);
                btn_green.startAnimation(scale);
                btn_red.clearAnimation();
                btn_blue.clearAnimation();
                btn_black.clearAnimation();
                btn_white.clearAnimation();
                suiji.clearAnimation();
            }
        });
        btn_blue.setOnClickListener(new View.OnClickListener() {
            @Override
            public void onClick(View v) {
                ColourImageView.getColorId(Color.BLUE);
                ColourImageView.getType(1);
                btn_red.setBackgroundResource(R.drawable.btnred);
                btn_green.setBackgroundResource(R.drawable.btngreen);
                btn_blue.setBackgroundResource(R.drawable.btnblue1);
                suiji.setBackgroundResource(R.drawable.btn1);
                btn_black.setBackgroundResource(R.drawable.btnblack);
                btn_white.setBackgroundResource(R.drawable.btnwhite);
                Animation scale= AnimationUtils.loadAnimation(getApplication(),R.anim.scale);
                btn_blue.startAnimation(scale);
                btn_red.clearAnimation();
                btn_green.clearAnimation();
                btn_black.clearAnimation();
                btn_white.clearAnimation();
                suiji.clearAnimation();
            }
        });
        btn_black.setOnClickListener(new View.OnClickListener() {
            @Override
            public void onClick(View v) {
                ColourImageView.getColorId(Color.BLACK);
                ColourImageView.getType(1);
                suiji.setBackgroundResource(R.drawable.btn1);
                btn_red.setBackgroundResource(R.drawable.btnred);
                btn_green.setBackgroundResource(R.drawable.btngreen);
                btn_blue.setBackgroundResource(R.drawable.btnblue);
                btn_black.setBackgroundResource(R.drawable.btnblack1);
                btn_white.setBackgroundResource(R.drawable.btnwhite);
                Animation scale= AnimationUtils.loadAnimation(getApplication(),R.anim.scale);
                btn_black.startAnimation(scale);
                btn_red.clearAnimation();
                btn_green.clearAnimation();
                btn_blue.clearAnimation();
                btn_white.clearAnimation();
                suiji.clearAnimation();
            }
        });
        btn_white.setOnClickListener(new View.OnClickListener() {
            @Override
            public void onClick(View v) {
                ColourImageView.getColorId(Color.WHITE);
                ColourImageView.getType(1);
                suiji.setBackgroundResource(R.drawable.btn1);
                btn_red.setBackgroundResource(R.drawable.btnred);
                btn_green.setBackgroundResource(R.drawable.btngreen);
                btn_blue.setBackgroundResource(R.drawable.btnblue);
                btn_black.setBackgroundResource(R.drawable.btnblack);
                btn_white.setBackgroundResource(R.drawable.btnwhite1);
                Animation scale= AnimationUtils.loadAnimation(getApplication(),R.anim.scale);
                btn_white.startAnimation(scale);
                btn_red.clearAnimation();
                btn_green.clearAnimation();
                btn_blue.clearAnimation();
                btn_black.clearAnimation();
                suiji.clearAnimation();
            }
        });
        suiji.setOnClickListener(new View.OnClickListener() {
            @Override
            public void onClick(View v) {
                ColourImageView.getType(2);
                suiji.setBackgroundResource(R.drawable.btn2);
                btn_red.setBackgroundResource(R.drawable.btnred);
                btn_green.setBackgroundResource(R.drawable.btngreen);
                btn_blue.setBackgroundResource(R.drawable.btnblue);
                btn_black.setBackgroundResource(R.drawable.btnblack);
                btn_white.setBackgroundResource(R.drawable.btnwhite);
                Animation scale= AnimationUtils.loadAnimation(getApplication(),R.anim.scale);
                suiji.startAnimation(scale);
                btn_red.clearAnimation();
                btn_green.clearAnimation();
                btn_blue.clearAnimation();
                btn_black.clearAnimation();
                btn_white.clearAnimation();
            }
        });
        //切换图片
        qiehuan.setOnClickListener(new View.OnClickListener() {
            @Override
            public void onClick(View v) {
                if (isqh==1){
                    image2.setVisibility(View.VISIBLE);
                    image1.setVisibility(View.GONE);
                    isqh=2;
                }else if(isqh==2){
                    image1.setVisibility(View.VISIBLE);
                    image2.setVisibility(View.GONE);
                    isqh=1;
                }
            }
        });


    }



    @Override
    public boolean onCreateOptionsMenu(Menu menu) {
        // Inflate the menu; this adds items to the action bar if it is present.
        getMenuInflater().inflate(R.menu.menu_main, menu);
        return true;
    }

    @Override
    public boolean onOptionsItemSelected(MenuItem item) {
        // Handle action bar item clicks here. The action bar will
        // automatically handle clicks on the Home/Up button, so long
        // as you specify a parent activity in AndroidManifest.xml.
        int id = item.getItemId();

        //noinspection SimplifiableIfStatement
        if (id == R.id.action_settings) {
            return true;
        }

        return super.onOptionsItemSelected(item);
    }

    @Override
    protected void onDestroy() {
        super.onDestroy();
        btn_red.clearAnimation();
        btn_green.clearAnimation();
        btn_blue.clearAnimation();
        btn_black.clearAnimation();
        btn_white.clearAnimation();
        suiji.clearAnimation();
    }
}
