设计模式——观察者模式

1. 场景

  1. 用户登录成功后，需要发送邮件或推送消息；
  2. 订单状态变化时，需要异步执行推送消息等。

2. 什么是观察者模式

以上场景，可以总结为如下需求：

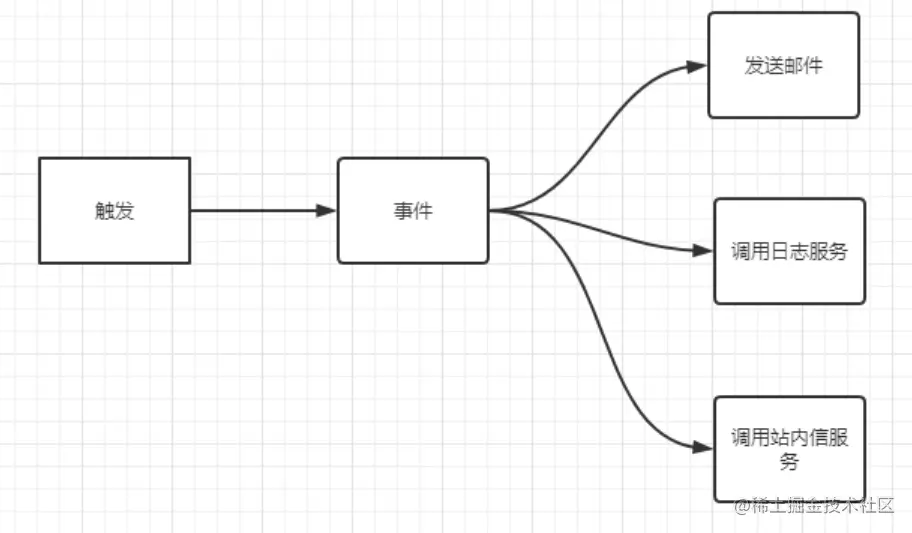

用户登录成功、订单状态改变等可以理解为一个事件，当触发了事件时，需要做多种互不相关的操作，如发送邮件、推送消息、调用某个方法逻辑。这里假设一个需求，当订单状态发生变化时，需要发送邮件和站内信提醒用户，并写入日志表中。


那我们可以通过观察者模式来解决这个问题

定义事件

/**
 * 事件
 * @author Tarzan写bug
 * @since 2022/08/02
 */
public class Event {

    private Object source;

    public Event(Object source) {
        this.source = source;
    }

    public Object getSource() {
        return source;
    }
}

定义触发器

/**
 * 触发器接口
 * @author Tarzan写bug
 * @since 2022/08/02
 */
public interface Trigger {

    /**
     * 添加执行者
     * @param executor
     */
    void addExecutor(Executor executor);

    /**
     * 事件触发
     * @param event
     */
    void touchOff(Event event);
}

订单状态改变触发器

/**
 * 订单状态改变触发器
 * @author Tarzan写bug
 * @since 2022/08/02
 */
public class OrderStatusChangeTrigger implements Trigger {

    private List<Executor> executorList = new ArrayList<>();

    @Override
    public void addExecutor(Executor executor) {
        executorList.add(executor);
    }

    @Override
    public void touchOff(Event event) {
        for (Executor executor : executorList) {
            executor.execute(event);
        }
    }
}

定义执行器

/**
 * 执行器接口
 * @author Tarzan写bug
 * @since 2022/08/02
 */
public interface Executor {

    /**
     * 执行方法
     * @param event
     */
    void execute(Event event);
}

邮件执行器

/**
 * 邮件执行器
 * @author Tarzan写bug
 * @since 2022/08/02
 */
public class EmailExecutor implements Executor {

    @Override
    public void execute(Event event) {
        System.out.println("邮件服务执行:" + event.getSource());
    }
}

日志执行器

/**
 * 日志执行器
 * @author Tarzan写bug
 * @since 2022/08/02
 */
public class LogExecutor implements Executor {

    @Override
    public void execute(Event event) {
        System.out.println("日志服务执行:" + event.getSource());
    }
}

站内信执行器

/**
 * 站内信执行器
 * @author Tarzan写bug
 * @since 2022/08/02
 */
public class StationLetterExecutor implements Executor {

    @Override
    public void execute(Event event) {
        System.out.println("站内信服务执行:" + event.getSource());
    }
}

主类

/**
 * @author Tarzan写bug
 * @since 2022/08/02
 */
public class ObserverMain {

    public static void main(String[] args) {
        // 创建触发器
        OrderStatusChangeTrigger trigger = new OrderStatusChangeTrigger();
        // 加入执行器
        trigger.addExecutor(new EmailExecutor());
        trigger.addExecutor(new LogExecutor());
        trigger.addExecutor(new StationLetterExecutor());
        // 发布订单状态变化事件
        trigger.touchOff(new Event("订单状态变化了"));
    }
}

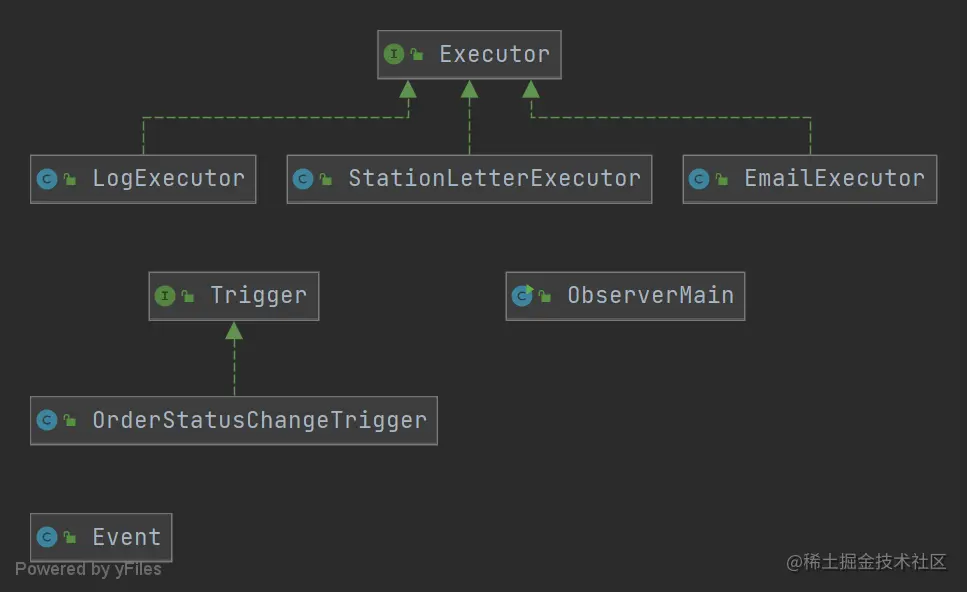

类图：

Package order.png

总结：观察者模式主要是触发事件和处理事件进行解耦，当一个事件需要新的处理逻辑时，只需要实现执行器接口即可，符合开闭原则。而在Spring中的观察者模式除了解耦外，还能各个执行器异步执行。

3. Spring中的观察者模式

上面的需求场景用Spring中的观察者模式来实现：

订单状态改变事件：继承ApplicationEvent类

public class OrderStatusChangeEvent extends ApplicationEvent {

    public OrderStatusChangeEvent(Object source) {
        super(source);
    }
}

邮件执行器：实现ApplicationListener接口，并将需要监听的事件类做为泛型加入；用@Component或其他注解加入到Spring容器中

@Component
public class EmailListener implements ApplicationListener<OrderStatusChangeEvent> {

    @Override
    public void onApplicationEvent(OrderStatusChangeEvent orderStatusChangeEvent) {
        System.out.println("邮件监听事件:" + orderStatusChangeEvent.getSource());
    }
}

日志订阅者

@Component
public class LogListener implements ApplicationListener<OrderStatusChangeEvent> {

    @Override
    public void onApplicationEvent(OrderStatusChangeEvent orderStatusChangeEvent) {
        System.out.println("日志监听事件:" + orderStatusChangeEvent.getSource());
    }
}

站内信订阅者

@Component
public class StationLetterListener implements ApplicationListener<OrderStatusChangeEvent> {

    @Override
    public void onApplicationEvent(OrderStatusChangeEvent orderStatusChangeEvent) {
        System.out.println("站内信监听事件:" + orderStatusChangeEvent.getSource());
    }
}

事件发布：实现ApplicationEventPublisherAware接口，获取ApplicationEventPublisher，用该类发布事件；并@Component加入到Spring容器中

@Component
public class OrderStatusChangePublisher implements ApplicationEventPublisherAware {

    private ApplicationEventPublisher publisher;

    public void publish() {
        publisher.publishEvent(new OrderStatusChangeEvent("订单状态变化"));
    }

    @Override
    public void setApplicationEventPublisher(ApplicationEventPublisher applicationEventPublisher) {
        this.publisher = applicationEventPublisher;
    }
}

4. Spring观察者模式原理

  1. 可以从发布者代码入手，即ApplicationEventPublisher.publishEvent()开始，会调用到实现类AbstractApplicationContext.publishEvent()

    protected void publishEvent(Object event, @Nullable ResolvableType eventType) {
        Assert.notNull(event, "Event must not be null");
        Object applicationEvent;
        if (event instanceof ApplicationEvent) {
            applicationEvent = (ApplicationEvent)event;
        } else {
            applicationEvent = new PayloadApplicationEvent(this, event);
            if (eventType == null) {
                eventType = ((PayloadApplicationEvent)applicationEvent).getResolvableType();
            }
        }

        if (this.earlyApplicationEvents != null) {
            this.earlyApplicationEvents.add(applicationEvent);
        } else {
            this.getApplicationEventMulticaster().multicastEvent((ApplicationEvent)applicationEvent, eventType);
        }

        if (this.parent != null) {
            if (this.parent instanceof AbstractApplicationContext) {
                ((AbstractApplicationContext)this.parent).publishEvent(event, eventType);
            } else {
                this.parent.publishEvent(event);
            }
        }

    }

  2. 重点在this.getApplicationEventMulticaster().multicastEvent((ApplicationEvent)applicationEvent, eventType);中，该方法会调用实现类SimpleApplicationEventMulticaster.multicastEvent()

    public void multicastEvent(ApplicationEvent event, @Nullable ResolvableType eventType) {
        ResolvableType type = eventType != null ? eventType : this.resolveDefaultEventType(event);
        Executor executor = this.getTaskExecutor();
        Iterator var5 = this.getApplicationListeners(event, type).iterator();

        while(var5.hasNext()) {
            ApplicationListener<?> listener = (ApplicationListener)var5.next();
            if (executor != null) {
                executor.execute(() -> {
                    this.invokeListener(listener, event);
                });
            } else {
                this.invokeListener(listener, event);
            }
        }

    }

    方法的作用：获取对应事件的执行者(事件监听者)，然后在线程池中执行每一个观察者的逻辑

  3. 分析getApplicationListeners()如何获取事件监听者

    protected Collection<ApplicationListener<?>> getApplicationListeners(ApplicationEvent event, ResolvableType eventType) {
        Object source = event.getSource();
        Class<?> sourceType = source != null ? source.getClass() : null;
        AbstractApplicationEventMulticaster.ListenerCacheKey cacheKey = new AbstractApplicationEventMulticaster.ListenerCacheKey(eventType, sourceType);
        AbstractApplicationEventMulticaster.ListenerRetriever retriever = (AbstractApplicationEventMulticaster.ListenerRetriever)this.retrieverCache.get(cacheKey);
        if (retriever != null) {
            return retriever.getApplicationListeners();
        } else if (this.beanClassLoader == null || ClassUtils.isCacheSafe(event.getClass(), this.beanClassLoader) && (sourceType == null || ClassUtils.isCacheSafe(sourceType, this.beanClassLoader))) {
            synchronized(this.retrievalMutex) {
                retriever = (AbstractApplicationEventMulticaster.ListenerRetriever)this.retrieverCache.get(cacheKey);
                if (retriever != null) {
                    return retriever.getApplicationListeners();
                } else {
                    retriever = new AbstractApplicationEventMulticaster.ListenerRetriever(true);
                    Collection<ApplicationListener<?>> listeners = this.retrieveApplicationListeners(eventType, sourceType, retriever);
                    this.retrieverCache.put(cacheKey, retriever);
                    return listeners;
                }
            }
        } else {
            return this.retrieveApplicationListeners(eventType, sourceType, (AbstractApplicationEventMulticaster.ListenerRetriever)null);
        }
    }

  4. retrieveApplicationListeners()

    private Collection<ApplicationListener<?>> retrieveApplicationListeners(ResolvableType eventType, @Nullable Class<?> sourceType, @Nullable AbstractApplicationEventMulticaster.ListenerRetriever retriever) {
        List<ApplicationListener<?>> allListeners = new ArrayList();
        LinkedHashSet listeners;
        LinkedHashSet listenerBeans;
        synchronized(this.retrievalMutex) {
            listeners = new LinkedHashSet(this.defaultRetriever.applicationListeners);
            listenerBeans = new LinkedHashSet(this.defaultRetriever.applicationListenerBeans);
        }

        Iterator var7 = listeners.iterator();

        while(var7.hasNext()) {
            ApplicationListener<?> listener = (ApplicationListener)var7.next();
            if (this.supportsEvent(listener, eventType, sourceType)) {
                if (retriever != null) {
                    retriever.applicationListeners.add(listener);
                }

                allListeners.add(listener);
            }
        }

        if (!listenerBeans.isEmpty()) {
            ConfigurableBeanFactory beanFactory = this.getBeanFactory();
            Iterator var15 = listenerBeans.iterator();

            while(var15.hasNext()) {
                String listenerBeanName = (String)var15.next();

                try {
                    if (this.supportsEvent(beanFactory, listenerBeanName, eventType)) {
                        ApplicationListener<?> listener = (ApplicationListener)beanFactory.getBean(listenerBeanName, ApplicationListener.class);
                        if (!allListeners.contains(listener) && this.supportsEvent(listener, eventType, sourceType)) {
                            if (retriever != null) {
                                if (beanFactory.isSingleton(listenerBeanName)) {
                                    retriever.applicationListeners.add(listener);
                                } else {
                                    retriever.applicationListenerBeans.add(listenerBeanName);
                                }
                            }

                            allListeners.add(listener);
                        }
                    } else {
                        Object listener = beanFactory.getSingleton(listenerBeanName);
                        if (retriever != null) {
                            retriever.applicationListeners.remove(listener);
                        }

                        allListeners.remove(listener);
                    }
                } catch (NoSuchBeanDefinitionException var11) {
                }
            }
        }

        AnnotationAwareOrderComparator.sort(allListeners);
        if (retriever != null && retriever.applicationListenerBeans.isEmpty()) {
            retriever.applicationListeners.clear();
            retriever.applicationListeners.addAll(allListeners);
        }

        return allListeners;
    }

private boolean supportsEvent(ConfigurableBeanFactory beanFactory, String listenerBeanName, ResolvableType eventType) {
        Class<?> listenerType = beanFactory.getType(listenerBeanName);
        if (listenerType != null && !GenericApplicationListener.class.isAssignableFrom(listenerType) && !SmartApplicationListener.class.isAssignableFrom(listenerType)) {
            if (!this.supportsEvent(listenerType, eventType)) {
                return false;
            } else {
                try {
                    BeanDefinition bd = beanFactory.getMergedBeanDefinition(listenerBeanName);
                    ResolvableType genericEventType = bd.getResolvableType().as(ApplicationListener.class).getGeneric(new int[0]);
                    return genericEventType == ResolvableType.NONE || genericEventType.isAssignableFrom(eventType);
                } catch (NoSuchBeanDefinitionException var7) {
                    return true;
                }
            }
        } else {
            return true;
        }
    }

    方法作用：通过Bean容器中获取符合事件类的Bean

5. Spring Security中的观察者模式应用

由于最近在使用Spring Security，这个框架中也有使用到观察者模式

在资源服务器校验token过滤器中，OAuth2AuthenticationProcessingFilter

public void doFilter(ServletRequest req, ServletResponse res, FilterChain chain) throws IOException, ServletException {
        boolean debug = logger.isDebugEnabled();
        HttpServletRequest request = (HttpServletRequest)req;
        HttpServletResponse response = (HttpServletResponse)res;

        try {
            Authentication authentication = this.tokenExtractor.extract(request);
            if (authentication == null) {
                if (this.stateless && this.isAuthenticated()) {
                    if (debug) {
                        logger.debug("Clearing security context.");
                    }

                    SecurityContextHolder.clearContext();
                }

                if (debug) {
                    logger.debug("No token in request, will continue chain.");
                }
            } else {
                request.setAttribute(OAuth2AuthenticationDetails.ACCESS_TOKEN_VALUE, authentication.getPrincipal());
                if (authentication instanceof AbstractAuthenticationToken) {
                    AbstractAuthenticationToken needsDetails = (AbstractAuthenticationToken)authentication;
                    needsDetails.setDetails(this.authenticationDetailsSource.buildDetails(request));
                }

                Authentication authResult = this.authenticationManager.authenticate(authentication);
                if (debug) {
                    logger.debug("Authentication success: " + authResult);
                }

                this.eventPublisher.publishAuthenticationSuccess(authResult);
                SecurityContextHolder.getContext().setAuthentication(authResult);
            }
        } catch (OAuth2Exception var9) {
            SecurityContextHolder.clearContext();
            if (debug) {
                logger.debug("Authentication request failed: " + var9);
            }

            this.eventPublisher.publishAuthenticationFailure(new BadCredentialsException(var9.getMessage(), var9), new PreAuthenticatedAuthenticationToken("access-token", "N/A"));
            this.authenticationEntryPoint.commence(request, response, new InsufficientAuthenticationException(var9.getMessage(), var9));
            return;
        }

        chain.doFilter(request, response);
    }

在校验成功后会调用this.eventPublisher.publishAuthenticationSuccess()，在校验失败后调用this.eventPublisher.publishAuthenticationFailure()

在接口类AuthenticationEventPublisher中有多个实现，拿实现类DefaultAuthenticationEventPublisher为例，典型地应用了Spring的观察者模式的实现，实现了ApplicationEventPublisherAware，在publishAuthenticationSuccess()中调用this.applicationEventPublisher.publishEvent

public void publishAuthenticationSuccess(Authentication authentication) {
        if (this.applicationEventPublisher != null) {
            this.applicationEventPublisher.publishEvent(new AuthenticationSuccessEvent(authentication));
        }

    }

6. 委派模式+观察者模式

回到假设的场景代码，可以发现执行器都是实现相同的一个接口，如果一个执行器没有实现该接口是不是不能对事件进行处理了？即执行器处理的方法名不一样时，这时应该怎么办呢？这时可以通过委派模式，及Java8中Consumer传参类型实现

事件

/**
 * @author Tarzan写bug
 * @since 2022/08/02
 */
public class Event {

    private Object source;

    public Event(Object source) {
        this.source = source;
    }

    public Object getSource() {
        return source;
    }
}

邮件执行器

/**
 * @author Tarzan写bug
 * @since 2022/08/02
 */
public class EmailExecutor {

    public void emailExecute(Object event) {
        System.out.println("邮件服务执行:" + ((Event)event).getSource());
    }
}

日志执行器

/**
 * @author Tarzan写bug
 * @since 2022/08/02
 */
public class LogExecutor {

    public void logExecute(Object event) {
        System.out.println("日志服务执行:" + ((Event)event).getSource());
    }
}

站内信执行器

/**
 * @author Tarzan写bug
 * @since 2022/08/02
 */
public class StationLetterExecutor {

    public void stationLetterExecute(Object event) {
        System.out.println("站内信服务执行:" + ((Event)event).getSource());
    }
}

触发器接口

/**
 * @author Tarzan写bug
 * @since 2022/08/02
 */
public interface Trigger {

    /**
     * 添加执行者
     * @param executor
     */
    void addExecutor(EventHandler handler);

    /**
     * 事件触发
     * @param event
     */
    void touchOff(Event event);
}

订单状态改变触发器

/**
 * @author Tarzan写bug
 * @since 2022/08/02
 */
public class OrderStatusChangeTrigger implements Trigger {

    private List<EventHandler> eventHandlerList = new ArrayList<>();

    @Override
    public void addExecutor(EventHandler handler) {
        eventHandlerList.add(handler);
    }

    @Override
    public void touchOff(Event event) {
        for (EventHandler handler : eventHandlerList) {
            handler.doHandler(event);
        }
    }
}

主类

/**
 * @author Tarzan写bug
 * @since 2022/08/02
 */
public class ObserverMain {

    public static void main(String[] args) {
        // 创建触发器
        OrderStatusChangeTrigger trigger = new OrderStatusChangeTrigger();
        // 执行器
        EmailExecutor emailExecutor = new EmailExecutor();
        LogExecutor logExecutor = new LogExecutor();
        StationLetterExecutor stationLetterExecutor = new StationLetterExecutor();
        // 加入执行器
        trigger.addExecutor(new EventHandler(emailExecutor::emailExecute));
        trigger.addExecutor(new EventHandler(logExecutor::logExecute));
        trigger.addExecutor(new EventHandler(stationLetterExecutor::stationLetterExecute));
        // 发布订单状态变化事件
        trigger.touchOff(new Event("订单状态变化了"));
    }
}

可以看到每个执行器的处理方法名不一样时，通过EventHandler这个委派类来处理不同执行器的不同方法名。


谢谢阅读，就分享到这，未完待续...

欢迎同频共振的那一部分人

作者公众号：Tarzan写bug

avatar
文章
阅读
粉丝
