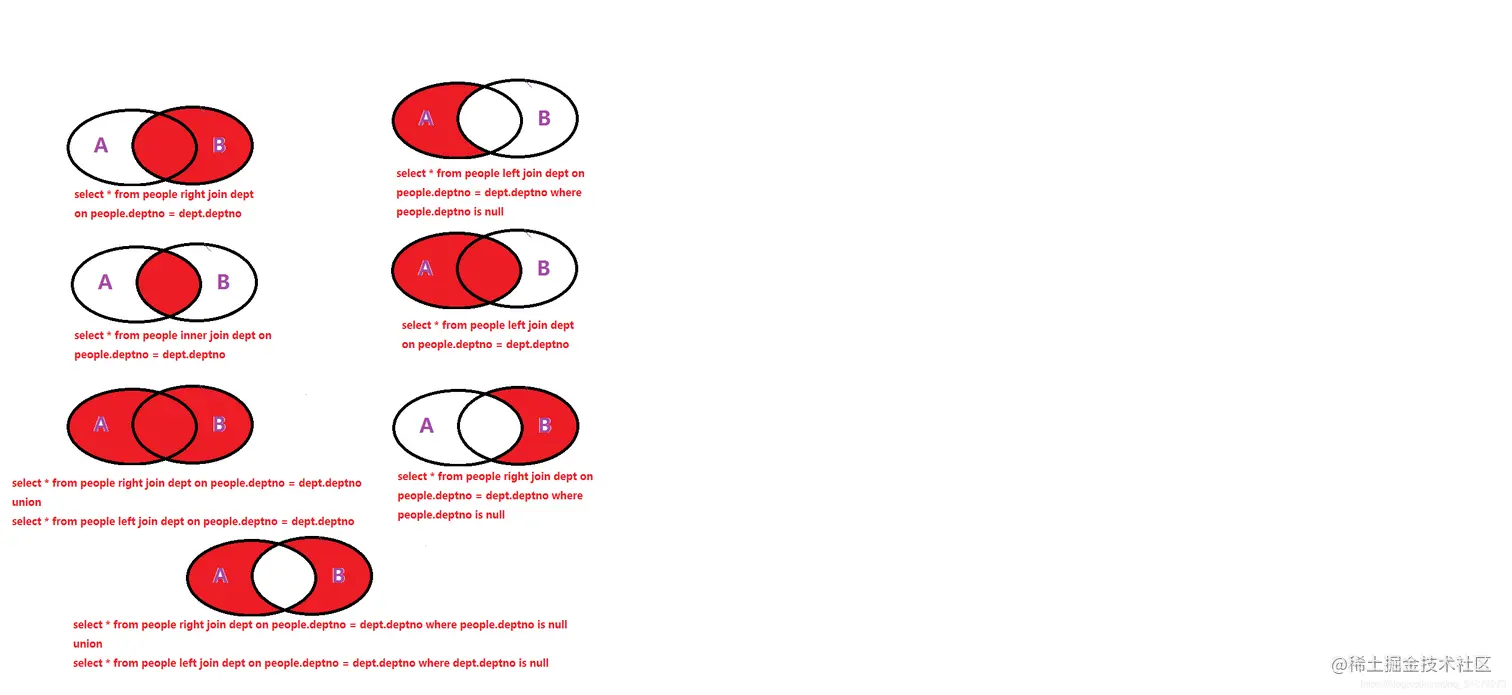

7种join语句的分析：
首先创建两张表： People表用于存放学生信息（有：id，姓名，年龄，部门字段） Dept表存放部门信息（有：部门编号，部门名称，部门位置字段）
创建脚本如下：
DROP TABLE IF EXISTS `people`;
CREATE TABLE `people` (
`id` int(11) NOT NULL AUTO_INCREMENT COMMENT '主键',
`name` varchar(255) CHARACTER SET utf8 COLLATE utf8_general_ci NULL DEFAULT NULL COMMENT '姓名',
`age` int(11) NULL DEFAULT NULL COMMENT '年龄',
`deptno` varchar(255) CHARACTER SET utf8 COLLATE utf8_general_ci NULL DEFAULT NULL COMMENT '部门',
PRIMARY KEY (`id`) USING BTREE
) ENGINE = InnoDB AUTO_INCREMENT = 13 CHARACTER SET = utf8 COLLATE = utf8_general_ci ROW_FORMAT = Compact;
INSERT INTO `people` VALUES (1, '张三', 20, '1');
INSERT INTO `people` VALUES (2, '李四', 23, '1');
INSERT INTO `people` VALUES (3, '王五', 25, '2');
INSERT INTO `people` VALUES (4, '赵柳', 20, '2');
INSERT INTO `people` VALUES (5, '张无忌', 21, '3');
INSERT INTO `people` VALUES (6, '赵敏', 18, '3');
INSERT INTO `people` VALUES (7, '唐三', 19, '3');
INSERT INTO `people` VALUES (8, '赵英俊', 50, '3');
INSERT INTO `people` VALUES (9, '无名', 72, '4');
INSERT INTO `people` VALUES (10, '小舞', 18, '3');
INSERT INTO `people` VALUES (11, '红毛', 17, '3');
INSERT INTO `people` VALUES (12, '叶凡', 20, NULL);
DROP TABLE IF EXISTS `dept`;
CREATE TABLE `dept` (
`deptno` int(10) NOT NULL AUTO_INCREMENT COMMENT '部门主键',
`deptname` varchar(255) CHARACTER SET utf8 COLLATE utf8_general_ci NULL DEFAULT NULL COMMENT '部门名称',
`address` varchar(255) CHARACTER SET utf8 COLLATE utf8_general_ci NULL DEFAULT NULL COMMENT '地址',
PRIMARY KEY (`deptno`) USING BTREE
) ENGINE = InnoDB AUTO_INCREMENT = 6 CHARACTER SET = utf8 COLLATE = utf8_general_ci ROW_FORMAT = Compact;
INSERT INTO `dept` VALUES (1, '社会部', '一楼大厅');
INSERT INTO `dept` VALUES (2, '小说部', '二楼会议室');
INSERT INTO `dept` VALUES (3, '动漫部', '三楼小广场');
INSERT INTO `dept` VALUES (4, '其他部', '楼顶办公室');
INSERT INTO `dept` VALUES (5, '市场部', '室外活动室');

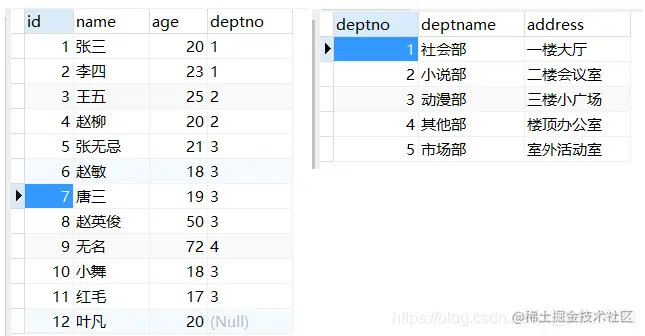

创建两张表结果为：

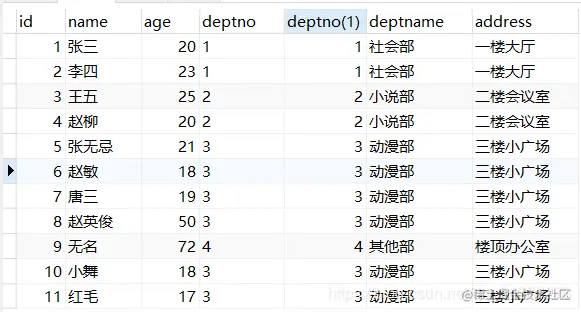

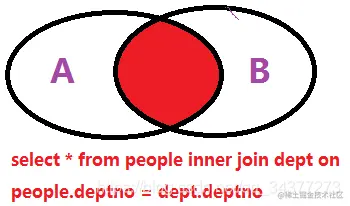

一：内连接
SQL语句：
select * from people inner join dept on people.deptno = dept.deptno
得到的结果为：

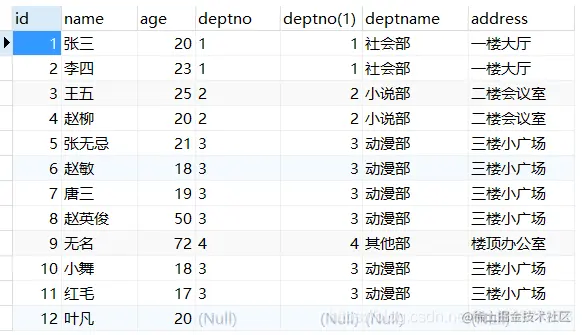

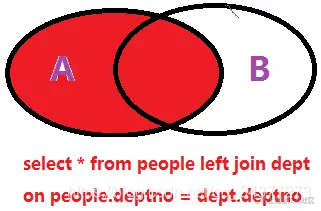

二：左外连接
SQL语句：
select * from people left join dept on people.deptno = dept.deptno
得到的结果为：

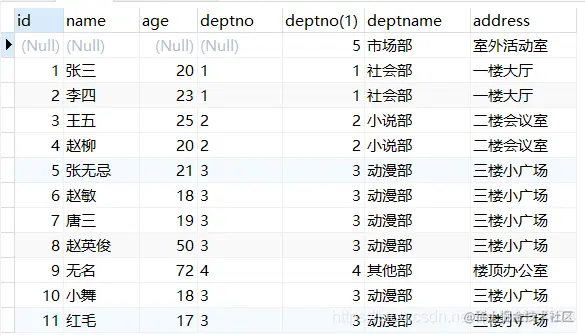

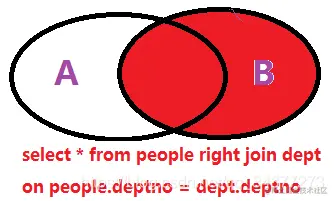

三：右外连接
SQL语句：
select * from people right join dept on people.deptno = dept.deptno
得到的结果为：

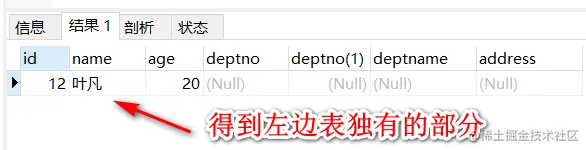

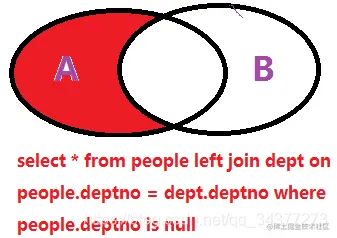

四：左连接
SQL语句：
select * from people left join dept on people.deptno = dept.deptno where dept.deptno is null
得到的结果为：

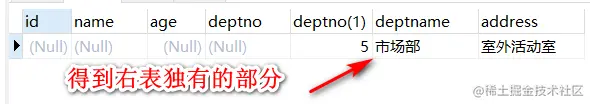

五：右连接
SQL语句：
select * from people left join dept on people.deptno = dept.deptno where dept.deptno is null
得到的结果为：

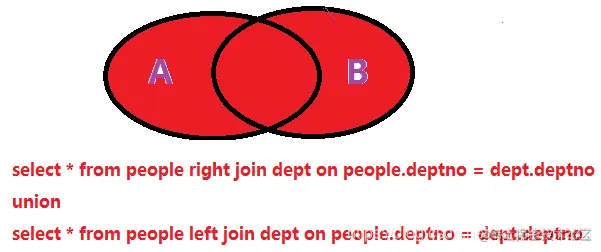

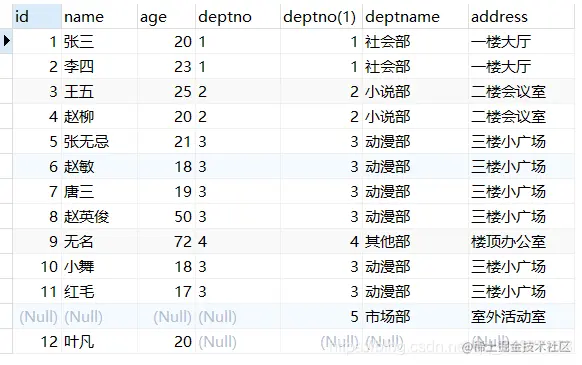

六：全连接
SQL语句：
select * from people right join dept on people.deptno = dept.deptno
union
select * from people left join dept on people.deptno = dept.deptno
得到的结果为：

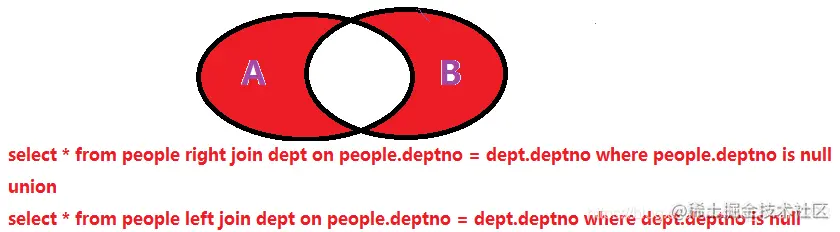

七：两张表都没有出现交集的数据集
SQL语句：
select * from people right join dept on people.deptno = dept.deptno where people.deptno is null
union
select * from people left join dept on people.deptno = dept.deptno where dept.deptno is null
得到的结果为：
