A port of the npm package asciichart by Igor Kroitor.
Just used to plot ascii line charts, no dependencies.
Usage
This is a header only library, you can copy all files in include directory to your project.
Options
The width of the chart equals to the length of data series. The height and range will be determined automatically. Users can specify:
- height: height of chart.
- offset: axis offset from the left (min 2).
- colors: colors used in chart.
- min: min value.
- max: max value.
- symbols: symbols used in chart.
Examples

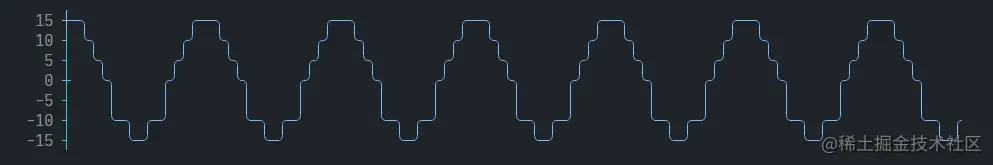

Scale to Desired height
std::vector<double> series; // range from -15 to +15
for (int i = 0; i < 200; i += 2)
{
series.push_back(15 * std::cos(i * (kPI * 8) / 120));
}
Asciichart asciichart(std::vector<std::vector<double>>{series});
std::wcout << '\n'
<< asciichart.height(10).Plot() // rescale to -3 ~ +3 lines
<< '\n';

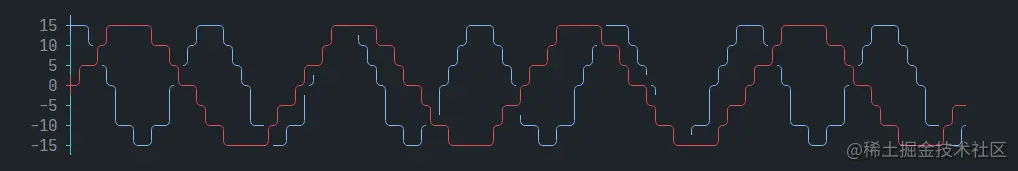

Multiple Series
std::vector<double> series;
for (int i = 0; i < 200; i += 2)
{
series.push_back(15 * std::cos(i * (kPI * 8) / 120));
}
std::vector<double> series2;
for (int i = 0; i < 200; i += 2)
{
series2.push_back(15 * std::sin(i * ((kPI * 4) / 100)));
}
Asciichart asciichart(std::vector<std::vector<double>>{series, series2});
std::wcout << '\n'
<< asciichart.height(6).Plot()
<< '\n';
