什么是事实表？

• 每行数据代表一个业务事件，通常有很多外键（地区、用户…）
• 业务事件可以是：下单、支付、退款、评价…
• 业务事件有数字度量，如：数量、金额、次数…
• 行数较多，列数较少
• 每天很多新增

事实表的分类	说明	特点	场景
事务型事实表	以每个事务为单位	数据只追加不修改	一个订单支付 一笔订单退款
周期型快照事实表	保留固定时间间隔的数据	不会保留所有数据	点赞数
累积型快照事实表	跟踪业务事实的变化	数据可修改	订单状态

本文以订单状态表为例

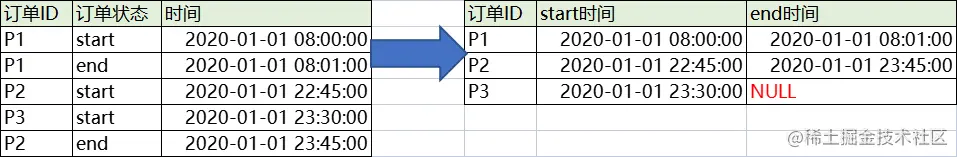

行转多列

1、按订单ID分组，聚合订单状态和时间，转为MAP

SELECT
    order_id,
    STR_TO_MAP(CONCAT_WS(',',COLLECT_SET(CONCAT(order_status,'=',operation_time))),',','=') m
FROM
    ods_order_status
GROUP BY
    order_id

打印结果

+--------+----------------------------------------------------------+
|order_id|m                                                         |
+--------+----------------------------------------------------------+
|P2      |[end -> 2020-01-01 23:45:00, start -> 2020-01-01 22:45:00]|
|P3      |[start -> 2020-01-01 23:30:00]                            |
|P1      |[start -> 2020-01-01 08:00:00, end -> 2020-01-01 08:01:00]|
+--------+----------------------------------------------------------+

2、按Key获取MAP值

WITH
    t1 AS (
        SELECT
            order_id,
            STR_TO_MAP(CONCAT_WS(',',COLLECT_SET(CONCAT(order_status,'=',operation_time))),',','=') m
        FROM
            ods_order_status
        GROUP BY
            order_id
    )
SELECT
    order_id,
    m['start'] start_time,
    m['end'] end_time
FROM
    t1

打印结果

+--------+-------------------+-------------------+
|order_id|start_time         |end_time           |
+--------+-------------------+-------------------+
|P2      |2020-01-01 22:45:00|2020-01-01 23:45:00|
|P3      |2020-01-01 23:30:00|null               |
|P1      |2020-01-01 08:00:00|2020-01-01 08:01:00|
+--------+-------------------+-------------------+

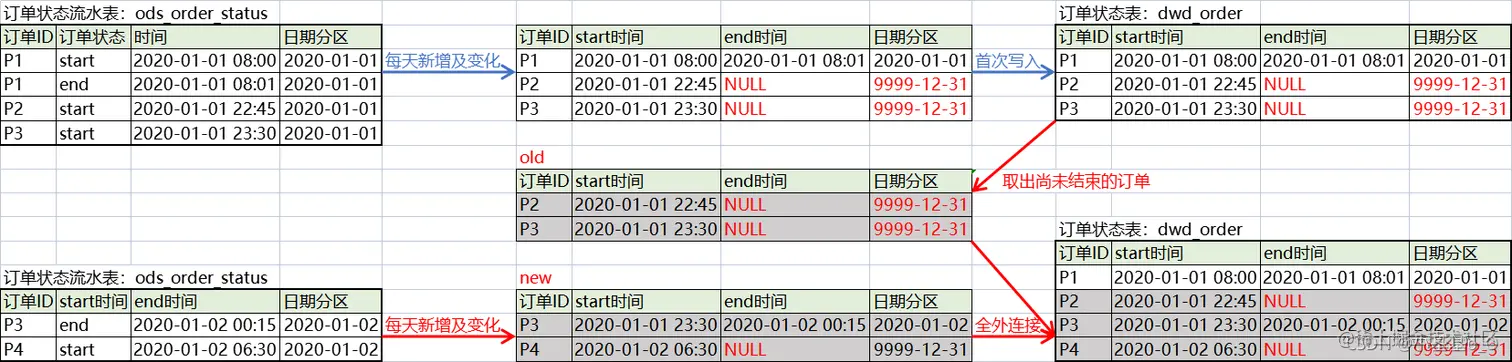

数仓详细

数据路径

graph LR
A(MySQL) --Sqoop--> B
B(HDFS) --HIVE--> C
C(ODS) --HIVE--> D
D(DWD)

表名	表名	路径	策略	备注
ods_order	订单表	sqoop > hdfs > ods	增量变化同步 按create_time和operate_time	此处省略
ods_order_status	订单状态流水表	sqoop > hdfs > ods	增量同步 按operate_time
dwd_order	订单表	ods > dwd	未结束订单写到9999-12-31分区 结束订单按结束日期写到日期分区

代码

1、数据准备

-- 建库：e-commerce
DROP DATABASE IF EXISTS ec CASCADE;
CREATE DATABASE ec LOCATION '/ec';
USE ec;
-- 建表：原始层，订单状态表
DROP TABLE IF EXISTS ec.ods_order_status;
CREATE TABLE ec.ods_order_status (
    order_id STRING,
    order_status STRING,
    operation_time STRING)
PARTITIONED BY (ymd STRING)
LOCATION '/ec/ods_order_status';
-- 建表：明细层，订单(累积型快照事实)表
DROP TABLE IF EXISTS ec.dwd_order;
CREATE TABLE ec.dwd_order (
    order_id STRING,
    start_time STRING,
    end_time STRING)
PARTITIONED BY (ymd STRING)
LOCATION '/ec/dwd_order';
-- 造数据，写到原始层
INSERT INTO TABLE ec.ods_order_status PARTITION(ymd='2020-01-01') VALUES
("P1","start","2020-01-01 08:00:00"),
("P1","end","2020-01-01 08:01:00"),
("P2","start","2020-01-01 22:45:00"),
("P3","start","2020-01-01 23:30:00");
INSERT INTO TABLE ec.ods_order_status PARTITION(ymd='2020-01-02') VALUES
("P3","end","2020-01-02 00:15:00"),
("P4","start","2020-01-02 06:30:00");

2、设置动态分区

-- 开启动态分区功能
SET hive.exec.dynamic.partition=true;
-- 设置动态分区为非严格模式
SET hive.exec.dynamic.partition.mode=nonstrict;

3、第一天数据写入

数据查询

WITH
    t1 AS(
        SELECT
            order_id,
            STR_TO_MAP(CONCAT_WS(',',COLLECT_SET(CONCAT(order_status,'=',operation_time))),',','=') m
        FROM ec.ods_order_status
        WHERE ymd='2020-01-01'
        GROUP BY order_id
    )
SELECT
    order_id,
    m['start'] start_time,
    m['end'] end_time,
    CASE
        WHEN m['end'] IS NOT NULL THEN '2020-01-01'
        ELSE '9999-12-31'
    END ymd
FROM t1;

查询结果

数据写入

注意：语法要求WITH写在INSERT前面

WITH
    t1 AS(
        SELECT
            order_id,
            STR_TO_MAP(CONCAT_WS(',',COLLECT_SET(CONCAT(order_status,'=',operation_time))),',','=') m
        FROM ec.ods_order_status
        WHERE ymd='2020-01-01'
        GROUP BY order_id
    )
INSERT OVERWRITE TABLE ec.dwd_order PARTITION(ymd)
SELECT
    order_id,
    m['start'] start_time,
    m['end'] end_time,
    CASE
        WHEN m['end'] IS NOT NULL THEN '2020-01-01'
        ELSE '9999-12-31'
    END ymd
FROM t1;

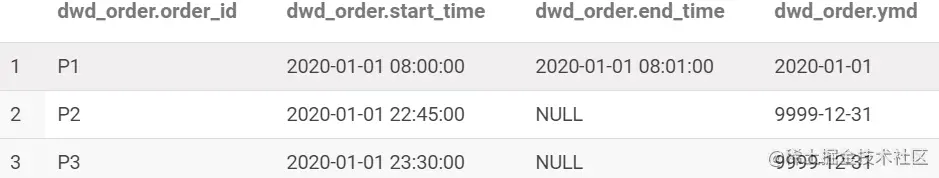

写入后结果

4、第二天数据写入

数据查询

WITH
    t1 AS(
        SELECT
            order_id,
            STR_TO_MAP(CONCAT_WS(',',COLLECT_SET(CONCAT(order_status,'=',operation_time))),',','=')m
        FROM ec.ods_order_status
        WHERE ymd='2020-01-02'
        GROUP BY order_id
    ),
    new AS(
    SELECT
        order_id,
        m['start'] start_time,
        m['end'] end_time,
        CASE
            WHEN m['end'] IS NOT NULL THEN '2020-01-02'
            ELSE '9999-12-31'
        END ymd
    FROM
        t1
    ),
    old AS (SELECT * FROM ec.dwd_order WHERE ymd='9999-12-31')
SELECT
    NVL(new.order_id,old.order_id) order_id,
    NVL(new.start_time,old.start_time) start_time,
    NVL(new.end_time,old.end_time) end_time,
    NVL(new.ymd,old.ymd) ymd
FROM new
FULL OUTER JOIN old
ON new.order_id=old.order_id;

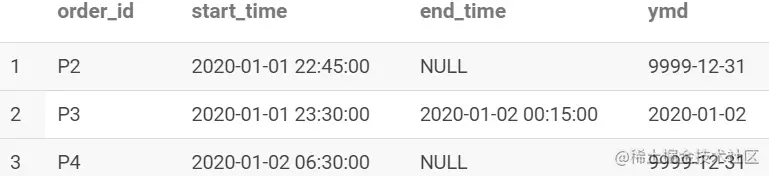

查询结果

数据写入

注意：语法要求WITH写在INSERT前面

WITH
    t1 AS(
        SELECT
            order_id,
            STR_TO_MAP(CONCAT_WS(',',COLLECT_SET(CONCAT(order_status,'=',operation_time))),',','=')m
        FROM ec.ods_order_status
        WHERE ymd='2020-01-02'
        GROUP BY order_id
    ),
    new AS(
    SELECT
        order_id,
        m['start'] start_time,
        m['end'] end_time,
        CASE
            WHEN m['end'] IS NOT NULL THEN '2020-01-02'
            ELSE '9999-12-31'
        END ymd
    FROM
        t1
    ),
    old AS (SELECT * FROM ec.dwd_order WHERE ymd='9999-12-31')
INSERT OVERWRITE TABLE ec.dwd_order PARTITION(ymd)
SELECT
    NVL(new.order_id,old.order_id) order_id,
    NVL(new.start_time,old.start_time) start_time,
    NVL(new.end_time,old.end_time) end_time,
    NVL(new.ymd,old.ymd) ymd
FROM new
FULL OUTER JOIN old
ON new.order_id=old.order_id;

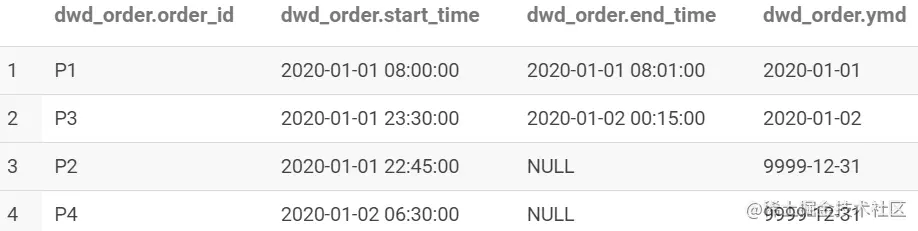

写入后结果

补充

上面的订单状态比较简单，这个全一点，SQL的思路是一样的

graph LR
a(开始)--下单-->A
A(待支付)--支付-->B(已支付)
B--主动或被动确认-->b(确认收货)
b--申请退款-->C(退款中)
B--申请退款-->C
C-->D(退款完成)
A--主动取消-->E(已取消)
A--1小时内没付款-->F(支付过期)
b--7天内没申请退款-->z(结束)
D--即-->z
E--即-->z
F--即-->z
style a fill:#bbf
style z fill:#bbf

状态	时间字段	说明	备注
待支付	create_time	创建时间
已支付	pay_time	支付时间
确认收货	confirm_time	确认时间	到货后7天内，买家可主动确认收货或退款；7天后没有操作将会自动确认收货
已取消	cancel_time	取消时间	下单后支付前，主动取消订单
支付过期	overdue_time	过期时间	下单后1小时内没有支付
退款中	refund_time	退款申请时间
退款完成	refund_finish_time	退款完成时间
结束	end_time	结束时间

WITH
    t1 AS(
        SELECT
            order_id,
            STR_TO_MAP(CONCAT_WS(',',COLLECT_SET(CONCAT(order_status,'=',operation_time))),',','=') m
        FROM ec.ods_order_status
        WHERE ymd='2020-01-01'
        GROUP BY order_id
    )
SELECT
    order_id,
    m['已支付'] pay_time,
    m['已取消'] cancel_time,
    m['确认收货'] confirm_time,
    m['退款中'] refund_time,
    m['退款完成'] refund_finish_time,
    m['支付过期'] overdue_time,
    m['结束'] end_time,
    CASE
        WHEN m['结束'] IS NOT NULL THEN '昨天'
        ELSE '9999-12-31'
    END ymd
FROM t1;

另外，订单状态表（ods_order_status）要和订单表（ods_order）连接，本文就不JOIN了
