1、背景
公司旗下有很多产品线，各种的APP，在给客户演示的时候不是很方便。还有一个问题就是团队Flutter转型，以后新的项目，技术储备成熟之后考虑使用Flutter开发。
2、页面预览

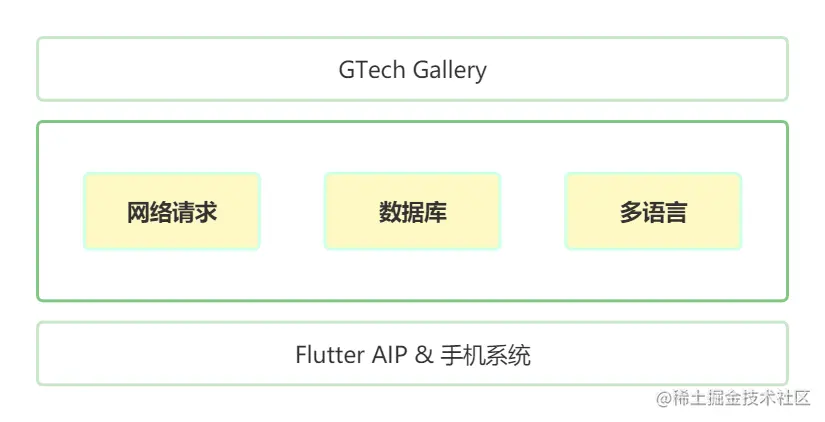

3、技术架构
4、网络请求
基于http库做网络封装，使用如下：
4.1、pubspec.yaml添加引用
dependencies:
...
http: ^0.13.4
alice: ^0.2.5
4.2、工具类API.dart
import 'dart:convert';
import 'dart:developer';
import 'dart:io';
import 'package:flutter/cupertino.dart';
import 'package:gtech_app/Config.dart';
import 'package:http/http.dart' as http;
import 'package:http/io_client.dart';
import 'package:alice/alice.dart';
enum GTechAPI {
getAppList,
getAppDetail,
getAppBuilds,
getLocalDBAppList,
getLocalDBAppDetailBuilds,
getLocalDBAppBuildsList,
}
enum HTTPMethod { GET, POST }
// GTech API
// @author zhenteng.li@gtechdigi.com
// @time 2022/7/13
class API {
final GTechAPI api;
final HTTPMethod method;
final Map<String, dynamic> parameters;
API({required this.api, this.method = HTTPMethod.POST, this.parameters = const {}});
static final Alice alice = Alice(
showNotification: false,
showInspectorOnShake: true,
darkTheme: true);
String get endpoint {
switch (api) {
case GTechAPI.getAppList:
return '${Config.baseUrl}/app/listMy';
case GTechAPI.getAppDetail:
return '${Config.baseUrl}/app/view';
case GTechAPI.getAppBuilds:
return '${Config.baseUrl}/app/builds';
}
return "";
}
final String defaultErrorMessage =
"There is something wrong with the internet connection";
String queryStringFromMap(Map<String, dynamic> map) {
List<String> params = [];
map.forEach((key, value) {
params.add("$key=$value");
});
return params.join("&");
}
Future<dynamic> request(
{BuildContext? context}) async {
http.Response response;
var ioClient = IOClient(HttpClient());
parameters["_api_key"] = Config.pgyerApiKey;
switch (method) {
case HTTPMethod.GET:
response = await ioClient
.get(Uri.parse("$endpoint?${queryStringFromMap(parameters)}"))
.catchError((e) {
});
break;
case HTTPMethod.POST:
response = await ioClient
.post(Uri.parse(endpoint), body: parameters)
.catchError((e) {
});
break;
}
alice.onHttpResponse(response);
var bodyString = utf8.decode(response.bodyBytes);
log("param $parameters\n\n");
log("\n\napi = $endpoint, code = ${response.statusCode}, response api $bodyString\n\n");
final result = json.decode(bodyString);
if (result == null) {
return AssertionError("JSON parsing error");
}
if (result['code'] != 0) {
return AssertionError(result['message']);
}
return result['data'];
}
}
4.3、使用示例
Future _getNetAppList() async {
API api = API(api: GTechAPI.getAppList, parameters: {});
final response = await api.request();
if (response is Map<String, dynamic>) {
// TODO 成功
} else {
// TODO 出错了
}
}
5、多语言
参考：多语言
6、数据库
6.1、pubspec.yaml添加引用
dependencies:
...
path_provider: ^2.0.11
sqflite: ^2.0.1
path: ^1.8.0
6.2、工具类DatabaseHelper.dart
import 'package:path/path.dart';
import 'package:sqflite/sqflite.dart';
import 'dart:async';
import 'dart:io';
import 'package:path_provider/path_provider.dart';
class DatabaseHelper {
static final _databaseName = "GtechApp.db";
static final _databaseVersion = 1;
static final gtAppListTable = 'GtAppList';
static final gtAppBuildListTable = 'GtAppBuildList';
// make this a singleton class
DatabaseHelper._privateConstructor();
static final DatabaseHelper instance = DatabaseHelper._privateConstructor();
// only have a single app-wide reference to the database
static Database? _database;
Future<Database> get database async {
if (_database != null) return _database!;
// lazily instantiate the db the first time it is accessed
_database = await _initDatabase();
return _database!;
}
// this opens the database (and creates it if it doesn't exist)
_initDatabase() async {
Directory documentsDirectory = await getApplicationDocumentsDirectory();
String path = join(documentsDirectory.path, _databaseName);
return await openDatabase(path,
version: _databaseVersion, onCreate: _onCreate);
}
// SQL code to create the database table
Future _onCreate(Database db, int version) async {
await db.execute('''
CREATE TABLE $gtAppListTable (
id INTEGER PRIMARY KEY AUTOINCREMENT,
appKey TEXT,
buildKey TEXT,
buildName TEXT,
buildIcon TEXT,
buildVersion TEXT,
buildVersionNo TEXT,
buildBuildVersion TEXT,
buildCreated TEXT,
buildType TEXT,
buildIdentifier TEXT,
buildFileName TEXT,
buildFileSize TEXT
)
''');
await db.execute('''
CREATE TABLE $gtAppBuildListTable (
id INTEGER PRIMARY KEY AUTOINCREMENT,
appKey TEXT,
buildKey TEXT,
buildName TEXT,
buildIcon TEXT,
buildVersion TEXT,
buildVersionNo TEXT,
buildBuildVersion TEXT,
buildCreated TEXT,
buildType TEXT,
buildIdentifier TEXT,
buildFileName TEXT,
buildFileSize TEXT,
buildEnv TEXT
)
''');
}
// Helper methods
// Inserts a row in the database where each key in the Map is a column name
// and the value is the column value. The return value is the id of the
// inserted row.
Future<int> insert(Map<String, dynamic> row, String table) async {
Database db = await instance.database;
try {
var id = await db.insert(table, row);
//print('inserted row id in local: $id');
return id;
} catch (e) {
//print("error: $e");
return -1;
}
}
// All of the rows are returned as a list of maps, where each map is
// a key-value list of columns.
Future<List<Map<String, dynamic>>?> queryAllRows(String table) async {
Database db = await instance.database;
try {
var rows = await db.query(table);
//print('$table query all rows:');
// rows.forEach((row) => print(row));
return rows;
} catch (e) {
//print("error: $e");
return null;
}
}
Future<List<Map<String, dynamic>>?> queryRowsWhere(
String table, Map<String, dynamic> where,
{int limit = 20, int offset = 0}) async {
Database db = await instance.database;
var whereClause = where.keys.map((e) => "$e = ?").join(" AND ");
var whereArgs = where.values.toList();
try {
var rows = await db.query(table,
where: whereClause,
whereArgs: whereArgs,
limit: limit,
orderBy: "id DESC",
offset: offset);
//print('$table query ${rows.length} rows');
return rows;
} catch (e) {
//print("error: $e");
return null;
}
}
Future<List<Map<String, dynamic>>?> queryRowsWhereOrderBy(
String table, Map<String, dynamic> where, String orderBy,
{int limit = 20, int offset = 0}) async {
Database db = await instance.database;
var whereClause = where.keys.map((e) => "$e = ?").join(" AND ");
var whereArgs = where.values.toList();
try {
var rows = await db.query(table,
where: whereClause,
whereArgs: whereArgs,
limit: limit,
orderBy: orderBy,
offset: offset);
//print('$table query ${rows.length} rows');
return rows;
} catch (e) {
//print("error: $e");
return null;
}
}
// All of the methods (insert, query, update, delete) can also be done using
// raw SQL commands. This method uses a raw query to give the row count.
Future<Object?> queryRowCount(String table,
{required Map<String, dynamic> where}) async {
Database db = await instance.database;
try {
if (where != null) {
var whereClause = where.keys.map((e) => "$e = ?").join(" AND ");
var whereArgs = where.values.toList();
var row = await db.query(
table,
columns: ["COUNT(*)"],
where: whereClause,
whereArgs: whereArgs,
);
print('$table row count: $row');
return row.first.values.first;
}
var rowCount = Sqflite.firstIntValue(
await db.rawQuery('SELECT COUNT(*) FROM $table'));
print('$table row count: $rowCount');
return rowCount;
} catch (e) {
//print("error: $e");
return -1;
}
}
// We are assuming here that the id column in the map is set. The other
// column values will be used to update the row.
Future<int> update(Map<String, dynamic> row, String table,
Map<String, dynamic> where) async {
Database db = await instance.database;
try {
var rowsAffected = await db.update(table, row,
where: '${where.keys.first} = ?', whereArgs: [where.values.first]);
//print('updated $rowsAffected row(s)');
return rowsAffected;
} catch (e) {
//print("error: $e");
return -1;
}
}
Future<int> insertOrUpdate(Map<String, dynamic> row, String table,
Map<String, dynamic> where) async {
var rowCount = await queryRowCount(table, where: where);
if(rowCount is int && rowCount > 0) {
// Update
return update(row, table, where);
} else {
// Insert
where.forEach((key, value) {
row[key] = value;
});
return insert(row, table);
}
}
// Deletes the row specified by the id. The number of affected rows is
// returned. This should be 1 as long as the row exists.
Future<int> delete(String id, String table) async {
Database db = await instance.database;
try {
var rowsDeleted =
await db.delete(table, where: 'id = ?', whereArgs: [id]);
//print('deleted $rowsDeleted row(s): row $id');
return rowsDeleted;
} catch (e) {
//print("error: $e");
return -1;
}
}
// Future<int> truncateTable(String table) async {
// Database db = await instance.database;
// try {
// var truncate = await db.rawQuery("TRUNCATE TABLE $table");
// print('truncate table $table is $truncate');
// return 1;
// } catch (e) {
// print("error: $e");
// return -1;
// }
// }
Future<int> deleteAllRows(String table) async {
Database db = await instance.database;
try {
var rowsDeleted = await db.delete(table);
//print('deleted $rowsDeleted row(s)');
return rowsDeleted;
} catch (e) {
//print("error: $e");
return -1;
}
}
}
6.3、使用示例
static Future<List<AppItem>> getDBAppBuildListWhere(AppItem appItem, Map<String, dynamic> where) async {
var contactList = await DatabaseHelper.instance.queryRowsWhereOrderBy(
DatabaseHelper.gtAppBuildListTable,
{"buildIdentifier": appItem.buildIdentifier},
"buildBuildVersion DESC");
// TODO Other
}
7、代码
8、参考资料
其他
