在之前两篇的文章中，我们利用循环神经网络来进行文本分类和文本生成的实战，在这两个实战中，我们都使用了普通的循环神经网络，在文本分类中，还使用了双向的循环神经网络和多层的循环神经网络；但是，在总体来看，在这两次的实战中得出的效果并没有那么的好。

今天我们来看一个更强大的循环神经网络——LSTM。

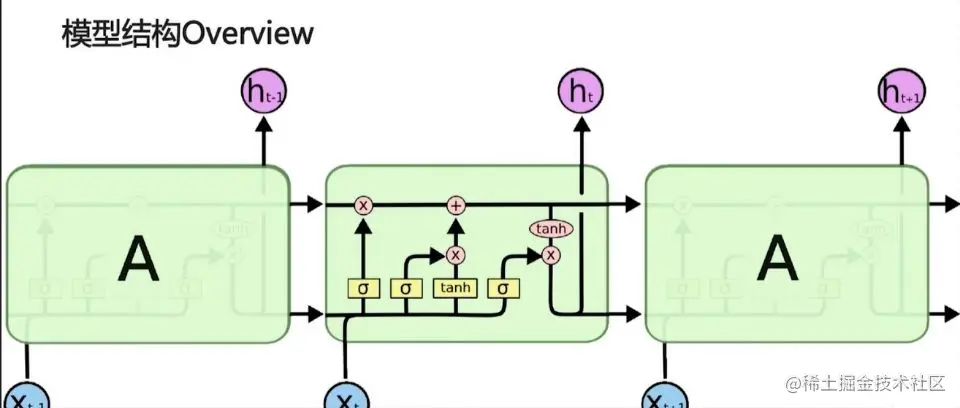

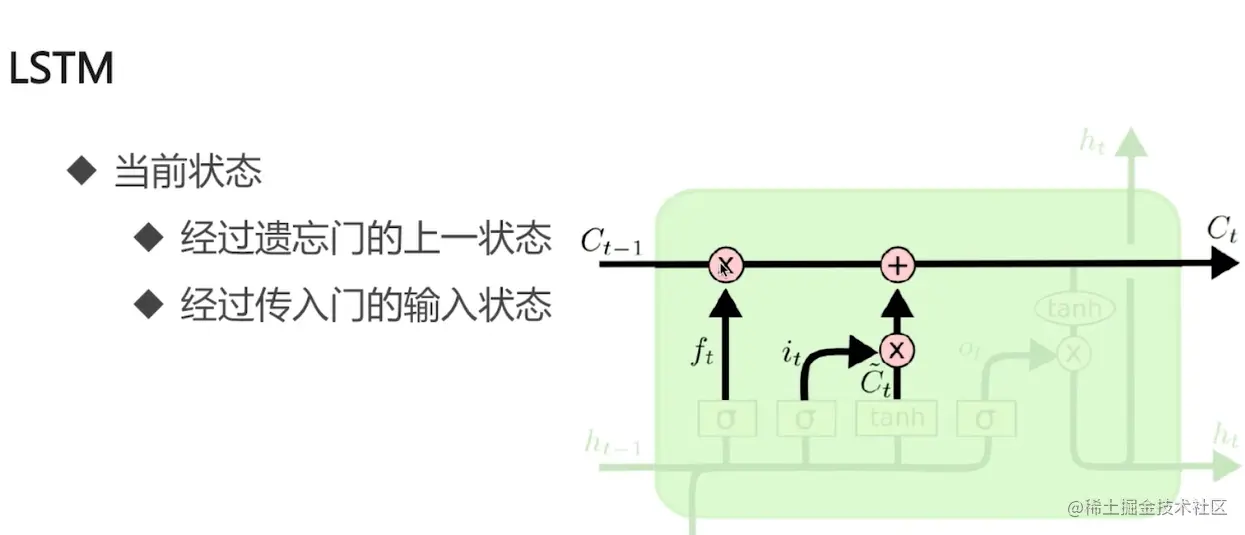

4.1 为什么需要LSTM（Long Short-Term Memory）？
- 4.1.1 普通的RNN的信息不能长久传播（存在于理论上）
  - 普通的RNN就是输入和隐含状态各乘以一个矩阵再加起来，这样呢，每次输入的信息可以很大程度上稀释我们之前保存的状态，因而就使得当句子较长的时候，距离结尾较远的信息并不能很好的保存下来
- 4.1.2 引入选择性机制
  - 选择性输出

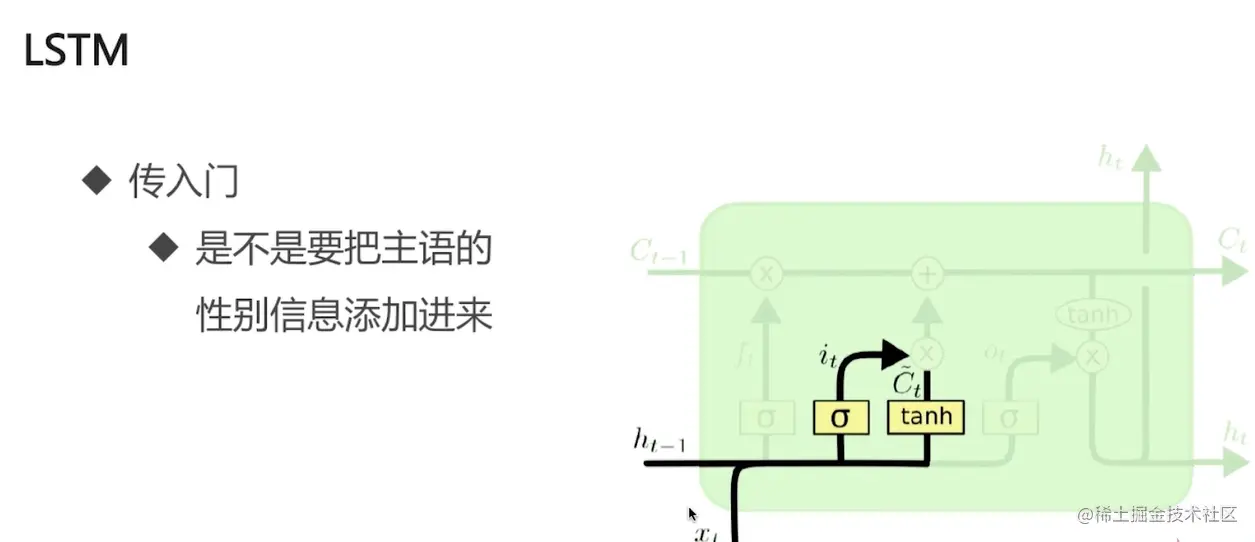

  - 选择性输入

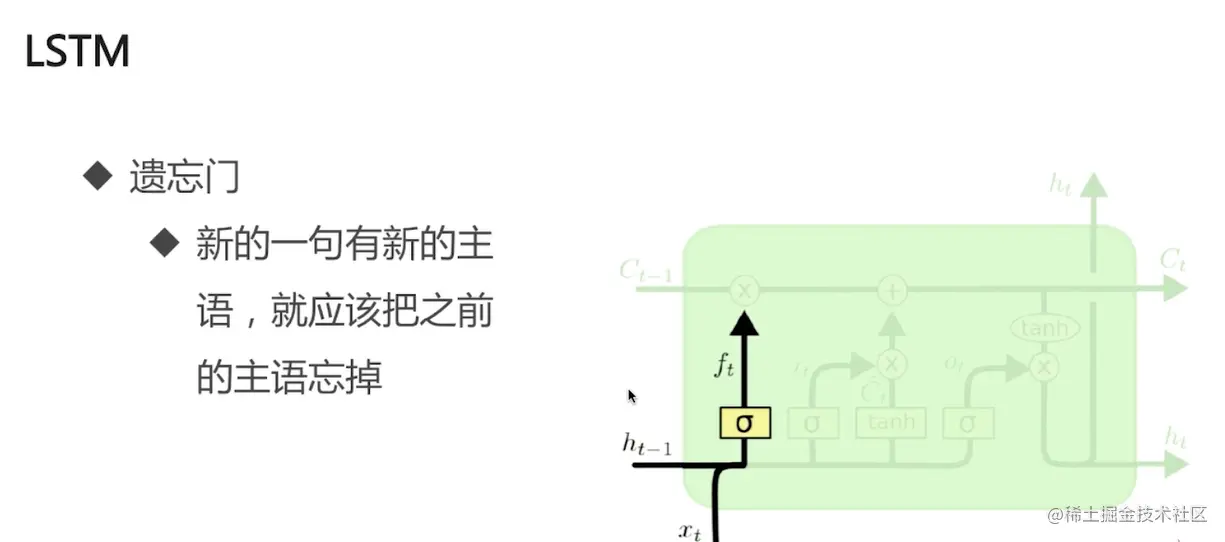

  - 选择性遗忘
- 4.1.3 选择性->门
  - Sigmoid函数：输出值在[0,1]
  - 当x足够小的时候，无限接近于0，当x足够大的时候，无限接近于1。
- 4.1.4 门限机制
  - 向量A -> sigmoid -> [0.1, 0.9, 0.4, 0, 0.6]
  - 向量B -> [13..8, 14, -7, -4, 30.0]
  - A 为门限，B为信息
  - 利用点积将它们保存起来，A * B = [0.138, 12.6, -2.8, 0, 18.0]
4.2 LSTM文本分类

因为之前使用普通RNN实现过文本分类，只需要修改一下之前的模型就可以了

4.2.1 单层单向的LSTM

embedding_dim = 16
batch_size = 512

single_rnn_model = keras.models.Sequential([
    # 1. define matrix: [vocab_size, embedding_dim]
    # 2. [1,2,3,4..], max_length * embedding_dim
    # 3. batch_size * max_length * embedding_dim
    keras.layers.Embedding(vocab_size, embedding_dim,
                           input_length = max_length),
    # return_sequences: 决定你返回的输出（False）是最后一步的输出，还是所有的输出
    keras.layers.LSTM(units = 64, return_sequences = False),
    keras.layers.Dense(64, activation = 'relu'),
    keras.layers.Dense(1, activation='sigmoid'),
])

single_rnn_model.summary()
single_rnn_model.compile(optimizer = 'adam',
                         loss = 'binary_crossentropy',
                         metrics = ['accuracy'])

模型：

Model: "sequential"
_________________________________________________________________
Layer (type)                 Output Shape              Param #
=================================================================
embedding (Embedding)        (None, 500, 16)           160000
_________________________________________________________________
lstm (LSTM)                  (None, 64)                20736
_________________________________________________________________
dense (Dense)                (None, 64)                4160
_________________________________________________________________
dense_1 (Dense)              (None, 1)                 65
=================================================================
Total params: 184,961
Trainable params: 184,961
Non-trainable params: 0
_________________________________________________________________

训练模型：

history_single_rnn = single_rnn_model.fit(
    train_data, train_labels,
    epochs = 30,
    batch_size = batch_size,
    validation_split = 0.2)

打印学习曲线：

def plot_learning_curves(history, label, epochs, min_value, max_value):
    data = {}
    data[label] = history.history[label]
    data['val_'+label] = history.history['val_'+label]
    pd.DataFrame(data).plot(figsize=(8, 5))
    plt.grid(True)
    plt.axis([0, epochs, min_value, max_value])
    plt.show()

plot_learning_curves(history_single_rnn, 'accuracy', 30, 0, 1)
plot_learning_curves(history_single_rnn, 'loss', 30, 0, 1)


单层单向的LSTM的效果和普通的单层单向的RNN是一样的效果，在0.5徘徊，和随机猜测差不了多少。

4.2.2 双层双向的LSTM

embedding_dim = 16
batch_size = 512

model = keras.models.Sequential([
    # 1. define matrix: [vocab_size, embedding_dim]
    # 2. [1,2,3,4..], max_length * embedding_dim
    # 3. batch_size * max_length * embedding_dim
    keras.layers.Embedding(vocab_size, embedding_dim,
                           input_length = max_length),
    keras.layers.Bidirectional(
        keras.layers.LSTM(
            units = 64, return_sequences = True)),
    keras.layers.Bidirectional(
        keras.layers.LSTM(
            units = 64, return_sequences = False)),
    keras.layers.Dense(64, activation = 'relu'),
    keras.layers.Dense(1, activation='sigmoid'),
])

model.summary()
model.compile(optimizer = 'adam',
              loss = 'binary_crossentropy',
              metrics = ['accuracy'])

模型：

Model: "sequential_1"
_________________________________________________________________
Layer (type)                 Output Shape              Param #
=================================================================
embedding_1 (Embedding)      (None, 500, 16)           160000
_________________________________________________________________
bidirectional (Bidirectional (None, 500, 128)          41472
_________________________________________________________________
bidirectional_1 (Bidirection (None, 128)               98816
_________________________________________________________________
dense_2 (Dense)              (None, 64)                8256
_________________________________________________________________
dense_3 (Dense)              (None, 1)                 65
=================================================================
Total params: 308,609
Trainable params: 308,609
Non-trainable params: 0
_________________________________________________________________

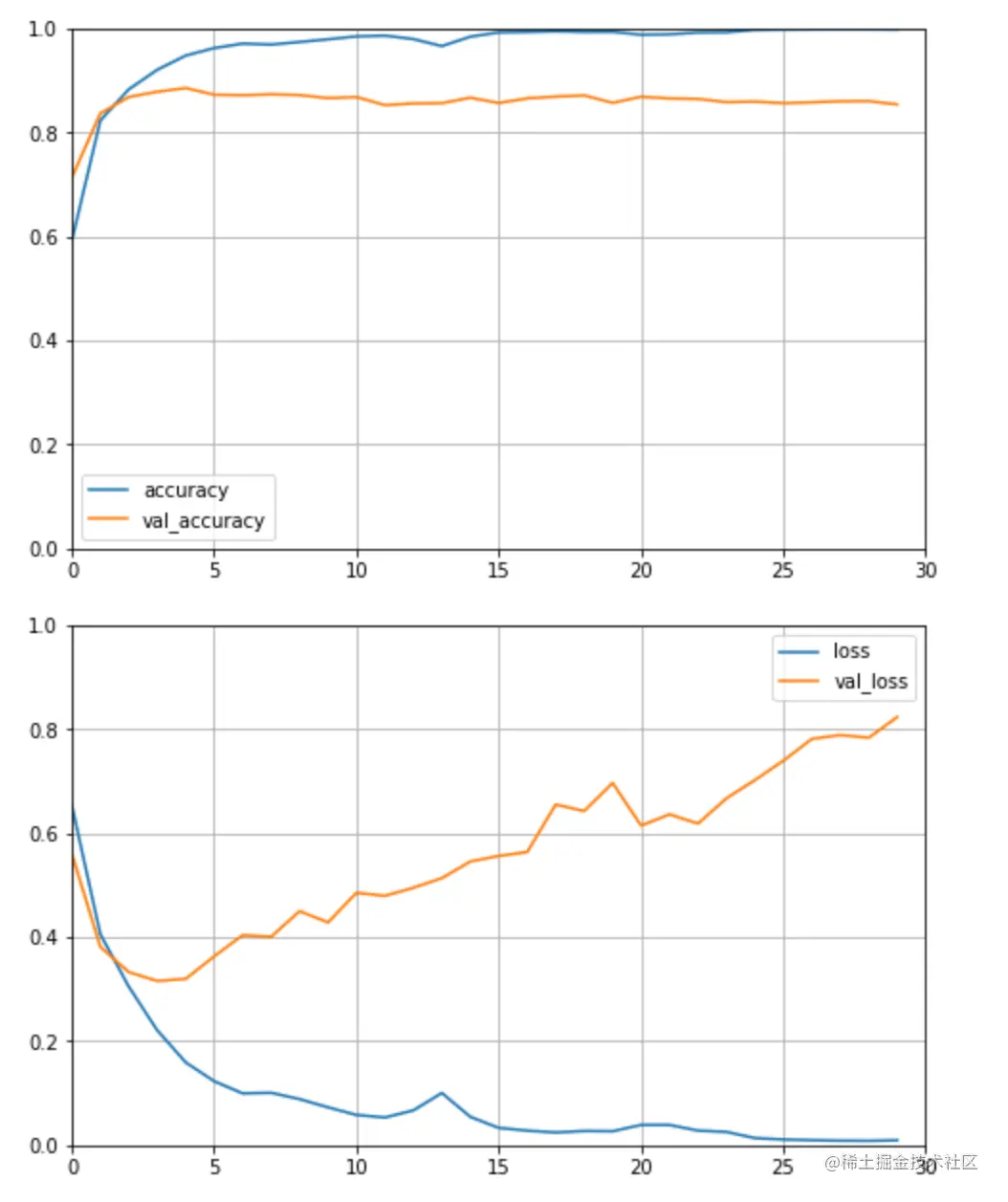

学习曲线：

$UQX5_6V5P67H2B2K1W{6UDJ.png$

双层双向的LSTM的效果的准确率达到了85%左右和之前实战中的最好效果也是差不多的，但是仍然存在这过拟合现象，经过5次迭代之后loss就开始迅速上升。

4.2.3 单层双向的LSTM

embedding_dim = 16
batch_size = 512

bi_rnn_model = keras.models.Sequential([
    # 1. define matrix: [vocab_size, embedding_dim]
    # 2. [1,2,3,4..], max_length * embedding_dim
    # 3. batch_size * max_length * embedding_dim
    keras.layers.Embedding(vocab_size, embedding_dim,
                           input_length = max_length),
    keras.layers.Bidirectional(
        keras.layers.LSTM(
            units = 32, return_sequences = False)),
    keras.layers.Dense(32, activation = 'relu'),
    keras.layers.Dense(1, activation='sigmoid'),
])

bi_rnn_model.summary()
bi_rnn_model.compile(optimizer = 'adam',
                     loss = 'binary_crossentropy',
                     metrics = ['accuracy'])

模型：

Model: "sequential_2"
_________________________________________________________________
Layer (type)                 Output Shape              Param #
=================================================================
embedding_2 (Embedding)      (None, 500, 16)           160000
_________________________________________________________________
bidirectional_2 (Bidirection (None, 64)                12544
_________________________________________________________________
dense_4 (Dense)              (None, 32)                2080
_________________________________________________________________
dense_5 (Dense)              (None, 1)                 33
=================================================================
Total params: 174,657
Trainable params: 174,657
Non-trainable params: 0
_________________________________________________________________

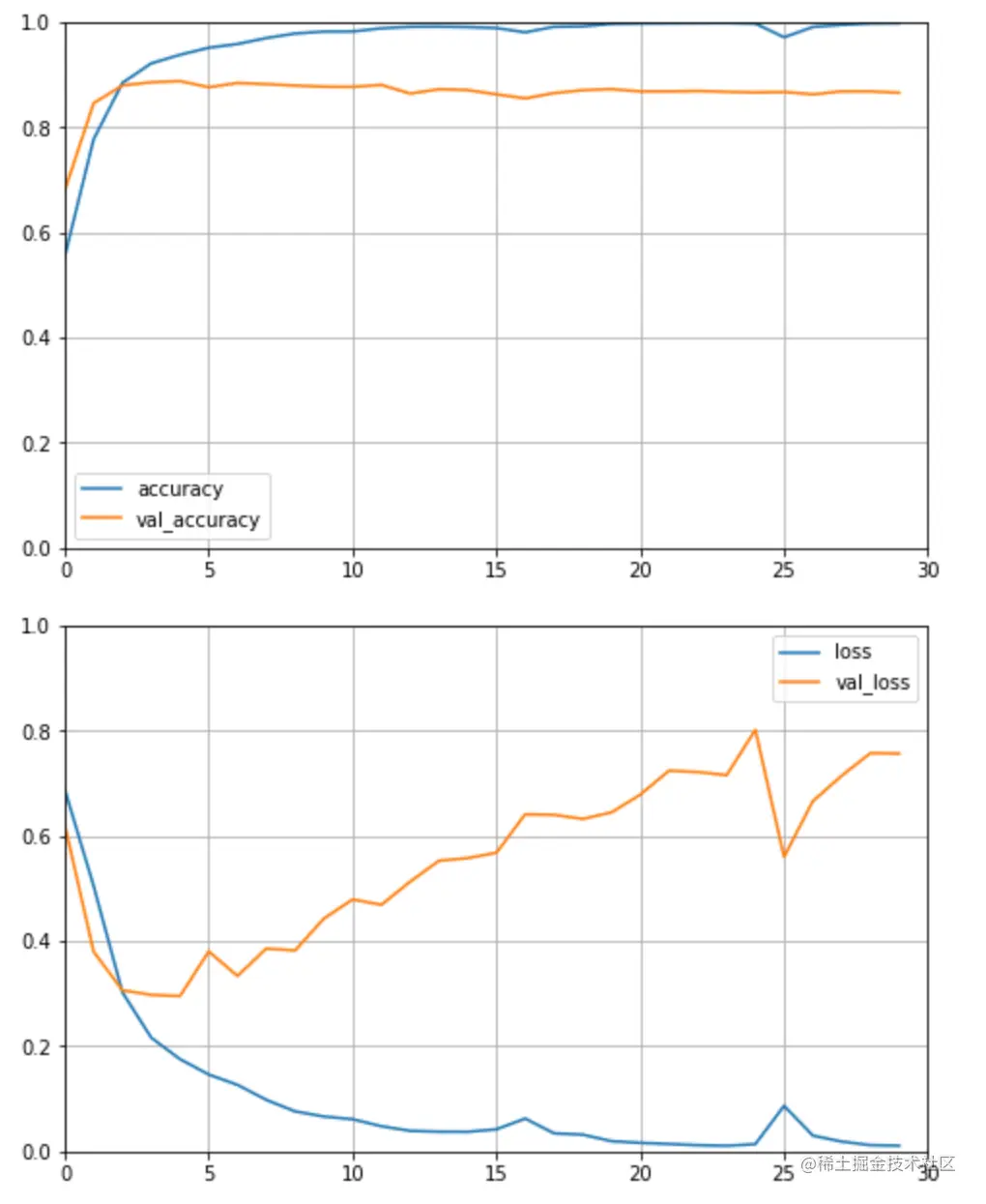

学习曲线：


单层双向的LSTM的效果的准确率达到了85%左右，也存在这过拟合现象，经过5次迭代之后loss就开始迅速上升，但是总体来说，LSTM比RNN要好很多。

4.3 LSTM文本生成

因为之前使用普通RNN实现过文本生成，只需要修改一下之前的模型就可以了

vocab_size = len(vocab)
embedding_dim = 256
rnn_units = 1024

def build_model(vocab_size, embedding_dim, rnn_units, batch_size):
    model = keras.models.Sequential([
        keras.layers.Embedding(vocab_size, embedding_dim,
                               batch_input_shape = [batch_size, None]),
        keras.layers.LSTM(units = rnn_units,
                          stateful = True,
                          recurrent_initializer = 'glorot_uniform',
                          return_sequences = True),
        keras.layers.Dense(vocab_size),
    ])
    return model

model = build_model(
    vocab_size = vocab_size,
    embedding_dim = embedding_dim,
    rnn_units = rnn_units,
    batch_size = batch_size)

model.summary()

设置一个temperature参数，当temperature小于1的时候，我们得到的结果更倾向于随机，当temperature大于1的时候，我们得到的结果更倾向于greddy算法，设置了temperature变量之后，更好的控制生成文本的流程了。

def generate_text(model, start_string, num_generate = 1000):
    input_eval = [char2idx[ch] for ch in start_string]
    input_eval = tf.expand_dims(input_eval, 0)

    text_generated = []
    model.reset_states()

    # temperature > 1, random
    # temperature < 1, greedy
    temperature = 2

    for _ in range(num_generate):
        # 1. model inference -> predictions
        # 2. sample -> ch -> text_generated.
        # 3. update input_eval

        # predictions : [batch_size, input_eval_len, vocab_size]
        predictions = model(input_eval)
        # predictions: logits -> softmax -> prob
        # softmax: e^xi
        # eg: 4,2 e^4/(e^4 + e^2) = 0.88, e^2 / (e^4 + e^2) = 0.12
        # eg: 2,1 e^2/(e^2 + e) = 0.73, e / (e^2 + e) = 0.27
        predictions = predictions / temperature
        # predictions : [input_eval_len, vocab_size]
        predictions = tf.squeeze(predictions, 0)
        # predicted_ids: [input_eval_len, 1]
        # a b c -> b c d
        predicted_id = tf.random.categorical(
            predictions, num_samples = 1)[-1, 0].numpy()
        text_generated.append(idx2char[predicted_id])
        # s, x -> rnn -> s', y
        input_eval = tf.expand_dims([predicted_id], 0)
    return start_string + ''.join(text_generated)

new_text = generate_text(model2, "All: ")
print(new_text)

训练之后的结果：

All: and much new humour
over
A Juss'd savours: call him have your temits nobolk
Soleife?
No, nor more venefl.

FLORIZEL:
We

PEThatu gods:
But kill seven bruts is e of Warwick,
And quite fell surFid CESTIO:
'rl try, luke, you nger a go, I'ld
lightful malates that doth quket. give room; and tell Northaves, blem Marianau was much all,
Pardon it: in heaven, that
Which move men's simple, 'tmore it as thy fiery Rust;
Anciuntfully he kito thy
behavish'd.
O, how it yORK:
Your migwith mere so near at me.
When that, let's hate for this well-masing, and a
dread 'Frict without Lord Ebell, Nay aptlice:
who can:
His valent of your coby Duke of York?

KING HENRY VI:
Warwick, ood my in isance that Richmond was wh,
ISABELLA:
Were hence, mill, one deny, to discharge
This schoal tust.

BAPTISTA:
Lucence gentleman, why not
she minister to run me a
O that I do filk, deciee it:
It isen out; and
Wherein thy health are chreed me, gentleman:
Yea, am ablets join'd top, and with right hadlow. How blust
His, tyrremi

从结果上看，我们发现，使用LSTM比之前好了很多
