如何在PWD中把ruoyi框架运行起来

因为PWD的docker挂载的空间比较小内存以及cpu也比较有限，虽然可以启动起来但是会因为cpu不够系统自动随机关闭占用资源比较大的docker服务，所以在搭建的时候我是把项目分成了三大块分别使用三个服务器。

后端一个服务器。前端一个服务器。nacos，mysql，redis一个服务器 启动顺序是nacos，mysql，redis最先启动，再启动后端最后启动前端

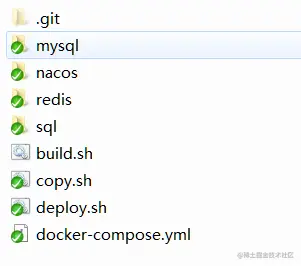

结构如下

copy.sh与docker-compose.yml做如下修改

#!/bin/sh

# 复制项目的文件到对应docker路径，便于一键生成镜像。
usage() {
	echo "Usage: sh copy.sh"
	exit 1
}


# copy sql
echo "begin copy sql "
cp sql/ry_20220613.sql mysql/db
cp sql/ry_config_20220510.sql mysql/db

上面的copy脚本需要主要就是sql文件夹下的sql脚本文件名是否一致

version : '3.8'
services:
  ruoyi-nacos:
    container_name: ruoyi-nacos
    image: nacos/nacos-server
    build:
      context: ./nacos
    environment:
      - MODE=standalone
    volumes:
      - ./nacos/logs/:/home/nacos/logs
      - ./nacos/conf/application.properties:/home/nacos/conf/application.properties
    ports:
      - "8848:8848"
      - "9848:9848"
      - "9849:9849"
    depends_on:
      - ruoyi-mysql
  ruoyi-mysql:
    container_name: ruoyi-mysql
    image: mysql:5.7
    build:
      context: ./mysql
    ports:
      - "3306:3306"
    volumes:
      - ./mysql/conf:/etc/mysql/conf.d
      - ./mysql/logs:/logs
      - ./mysql/data:/var/lib/mysql
    command: [
          'mysqld',
          '--innodb-buffer-pool-size=80M',
          '--character-set-server=utf8mb4',
          '--collation-server=utf8mb4_unicode_ci',
          '--default-time-zone=+8:00',
          '--lower-case-table-names=1'
        ]
    environment:
      MYSQL_DATABASE: 'ry-cloud'
      MYSQL_ROOT_PASSWORD: password
  ruoyi-redis:
    container_name: ruoyi-redis
    image: redis
    build:
      context: ./redis
    ports:
      - "6379:6379"
    volumes:
      - ./redis/conf/redis.conf:/home/ruoyi/redis/redis.conf
      - ./redis/data:/data
    command: redis-server /home/ruoyi/redis/redis.conf
  ruoyi-adminer:
    image: adminer
    restart: always
    ports:
      - 8080:8080

后端结构如下

在这里自己做了个build.sh脚本用来直接在服务器上生成jar包

#!/bin/sh

echo "初始化脚本"
#echo "下载源代码"
git clone https://xxxxxx.git拉取代码的位置
echo "打包jar"
cd /root/ruoyi-back-end
docker run -it --rm --name my-maven-project -v "$(pwd)":/root/ruoyi-back-end -w /root/ruoyi-back-end maven:3.3-jdk-8 mvn clean install
cd /root/ruoyi-back-end/docker
echo "给相关脚本赋予权限"
chmod 777 copy.sh
chmod 777 deploy.sh
echo "执行复制脚本"
./copy.sh
docker-compose up

#!/bin/sh


# copy jar
echo "begin copy ruoyi-gateway "
cp ../ruoyi-gateway/target/ruoyi-gateway.jar ./ruoyi/gateway/jar

echo "begin copy ruoyi-auth "
cp ../ruoyi-auth/target/ruoyi-auth.jar ./ruoyi/auth/jar

echo "begin copy ruoyi-visual "
cp ../ruoyi-visual/ruoyi-monitor/target/ruoyi-visual-monitor.jar  ./ruoyi/visual/monitor/jar

echo "begin copy ruoyi-modules-system "
cp ../ruoyi-modules/ruoyi-system/target/ruoyi-modules-system.jar ./ruoyi/modules/system/jar

echo "begin copy ruoyi-modules-file "
cp ../ruoyi-modules/ruoyi-file/target/ruoyi-modules-file.jar ./ruoyi/modules/file/jar

echo "begin copy ruoyi-modules-job "
cp ../ruoyi-modules/ruoyi-job/target/ruoyi-modules-job.jar ./ruoyi/modules/job/jar

echo "begin copy ruoyi-modules-gen "
cp ../ruoyi-modules/ruoyi-gen/target/ruoyi-modules-gen.jar ./ruoyi/modules/gen/jar

version : '3.8'
services:
  ruoyi-gateway:
    container_name: ruoyi-gateway
    build:
      context: ./ruoyi/gateway
      dockerfile: dockerfile
    ports:
      - "8080:8080"
  ruoyi-auth:
    container_name: ruoyi-auth
    build:
      context: ./ruoyi/auth
      dockerfile: dockerfile
    ports:
      - "9200:9200"
  ruoyi-modules-system:
    container_name: ruoyi-modules-system
    build:
      context: ./ruoyi/modules/system
      dockerfile: dockerfile
    ports:
      - "9201:9201"
  ruoyi-modules-gen:
    container_name: ruoyi-modules-gen
    build:
      context: ./ruoyi/modules/gen
      dockerfile: dockerfile
    ports:
      - "9202:9202"
  ruoyi-modules-job:
    container_name: ruoyi-modules-job
    build:
      context: ./ruoyi/modules/job
      dockerfile: dockerfile
    ports:
      - "9203:9203"
  ruoyi-modules-file:
    container_name: ruoyi-modules-file
    build:
      context: ./ruoyi/modules/file
      dockerfile: dockerfile
    ports:
      - "9300:9300"
    volumes:
    - ./ruoyi/uploadPath:/home/ruoyi/uploadPath
  ruoyi-visual-monitor:
    container_name: ruoyi-visual-monitor
    build:
      context: ./ruoyi/visual/monitor
      dockerfile: dockerfile
    ports:
      - "9100:9100"

还需要对代码里面的bootstrap.yml做一个批量替换 就是把服务注册还有配置中心的地址换成上面启动好的地址。

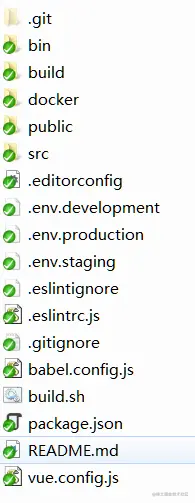

接下来就是前端了

与后端一样也做了个build.sh来直接打包

#!/bin/sh

echo "初始化脚本"
#echo "下载源代码"
git clone git clone https://xxxxxx.git拉取代码的位置
echo "前端UI"
cd /root/ruoyi-front-end
docker run -it --rm --name my-running-script -v "$(pwd)":/root/ruoyi-front-end -w /root/ruoyi-front-end node:12 npm install
docker run -it --rm --name my-running-script -v "$(pwd)":/root/ruoyi-front-end -w /root/ruoyi-front-end node:12 npm install html-webpack-plugin
docker run -it --rm --name my-running-script -v "$(pwd)":/root/ruoyi-front-end -w /root/ruoyi-front-end node:12 npm run build:prod
cd /root/ruoyi-front-end/docker
echo "给相关脚本赋予权限"
chmod 777 copy.sh
chmod 777 deploy.sh
echo "执行复制脚本"
./copy.sh
docker-compose up

#!/bin/sh

# copy html
echo "begin copy html "
cp -r ../dist/** ./nginx/html/dist

version : '3.8'
services:
  ruoyi-nginx:
    container_name: ruoyi-nginx
    image: nginx
    build:
      context: ./nginx
    ports:
      - "80:80"
    volumes:
      - ./nginx/html/dist:/home/ruoyi/projects/ruoyi-ui
      - ./nginx/conf/nginx.conf:/etc/nginx/nginx.conf
      - ./nginx/logs:/var/log/nginx
      - ./nginx/conf.d:/etc/nginx/conf.d

与后端一样，前端也需要修改连接后端的地址 vue.config.js，nginx.conf 把带8080的都改成后端的ip地址
