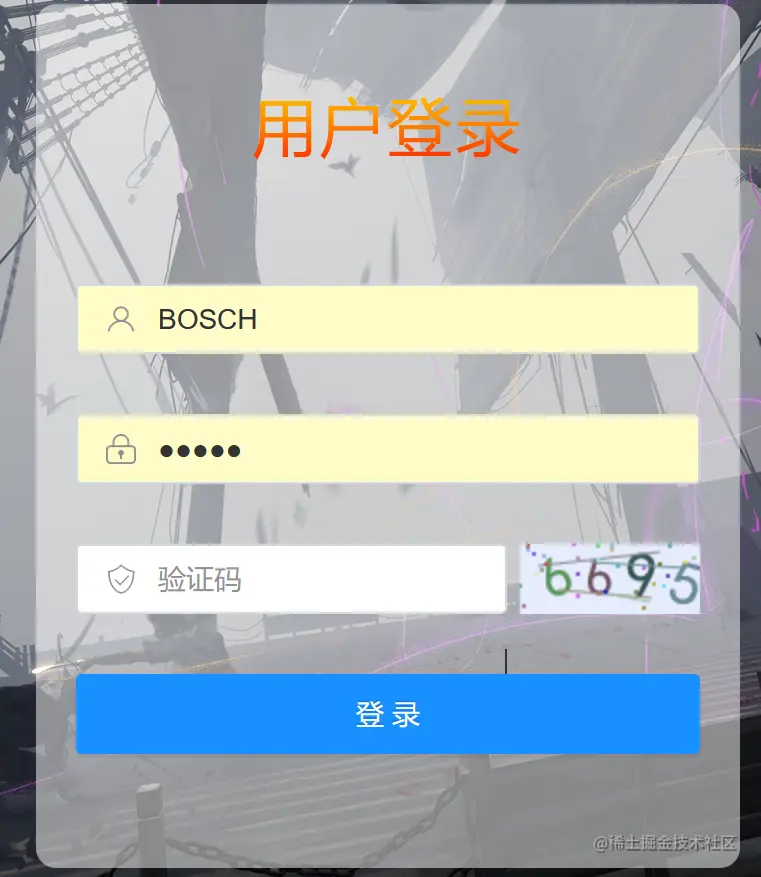

效果展示
1.在component中新增公共组件
在components目录下新建文件Identify.vue
<!-- Identify.vue-->
<template>
<div class="s-canvas">
<canvas id="s-canvas" :width="contentWidth" :height="contentHeight"></canvas>
</div>
</template>
<script>
export default{
name: 'SIdentify',
props: {
identifyCode: { // 默认注册码
type: String,
default: '1234'
},
fontSizeMin: { // 字体最小值
type: Number,
default: 25
},
fontSizeMax: { // 字体最大值
type: Number,
default: 35
},
backgroundColorMin: { // 验证码图片背景色最小值
type: Number,
default: 200
},
backgroundColorMax: { // 验证码图片背景色最大值
type: Number,
default: 220
},
dotColorMin: { // 背景干扰点最小值
type: Number,
default: 60
},
dotColorMax: { // 背景干扰点最大值
type: Number,
default: 120
},
contentWidth: { // 容器宽度
type: Number,
default: 90
},
contentHeight: { // 容器高度
type: Number,
default: 35
}
},
methods: {
// 生成一个随机数
randomNum (min, max) {
return Math.floor(Math.random() * (max - min) + min)
},
// 生成一个随机的颜色
randomColor (min, max) {
let r = this.randomNum(min, max)
let g = this.randomNum(min, max)
let b = this.randomNum(min, max)
return 'rgb(' + r + ',' + g + ',' + b + ')'
},
drawPic () {
let canvas = document.getElementById('s-canvas')
let ctx = canvas.getContext('2d')
ctx.textBaseline = 'bottom'
// 绘制背景
ctx.fillStyle = '#e6ecfd'
ctx.fillRect(0, 0, this.contentWidth, this.contentHeight)
// 绘制文字
for (let i = 0; i < this.identifyCode.length; i++) {
this.drawText(ctx, this.identifyCode[i], i)
}
this.drawLine(ctx)
this.drawDot(ctx)
},
drawText (ctx, txt, i) {
ctx.fillStyle = this.randomColor(50, 160) // 随机生成字体颜色
ctx.font = this.randomNum(this.fontSizeMin, this.fontSizeMax) + 'px SimHei' // 随机生成字体大小
let x = (i + 1) * (this.contentWidth / (this.identifyCode.length + 1))
let y = this.randomNum(this.fontSizeMax, this.contentHeight - 5)
var deg = this.randomNum(-30, 30)
// 修改坐标原点和旋转角度
ctx.translate(x, y)
ctx.rotate(deg * Math.PI / 180)
ctx.fillText(txt, 0, 0)
// 恢复坐标原点和旋转角度
ctx.rotate(-deg * Math.PI / 180)
ctx.translate(-x, -y)
},
drawLine (ctx) {
// 绘制干扰线
for (let i = 0; i < 4; i++) {
ctx.strokeStyle = this.randomColor(100, 200)
ctx.beginPath()
ctx.moveTo(this.randomNum(0, this.contentWidth), this.randomNum(0, this.contentHeight))
ctx.lineTo(this.randomNum(0, this.contentWidth), this.randomNum(0, this.contentHeight))
ctx.stroke()
}
},
drawDot (ctx) {
// 绘制干扰点
for (let i = 0; i < 30; i++) {
ctx.fillStyle = this.randomColor(0, 255)
ctx.beginPath()
ctx.arc(this.randomNum(0, this.contentWidth), this.randomNum(0, this.contentHeight), 1, 0, 2 * Math.PI)
ctx.fill()
}
}
},
watch: {
identifyCode () {
this.drawPic()
}
},
mounted () {
this.drawPic()
}
}
</script>
2.在页面中导入组件
在views目录下新建一个vue
<div class="code">
<img :src="codeImg" class="login-icon">
<input type="text" v-model="ruleForm.code" id="code" placeholder="验证码">
<div class="code_img">
<div class="login-code" @click="refreshCode">
<Identify :identifyCode="identifyCode"></Identify>
</div>
</div>
</div>
import Identify from "@/components/Identify";
components: {Identify}
data() {
return {
//验证码图标
codeImg: require('@/assets/login_images/code.png'),
ruleForm: {
code: ''
},
//用于显示什么的验证码，可以添加字母
identifyCodes: '1234567890',
identifyCode: '',
}
},
mounted() {
// 初始化验证码
this.identifyCode = ''
this.makeCode(this.identifyCodes, 4)
},
methods: {
//刷新验证码
refreshCode() {
this.ruleForm.code = ''
this.identifyCode = ''
this.makeCode(this.identifyCodes, 4)
},
//生成验证码
makeCode(o, l) {
for (let i = 0; i < l; i++) {
this.identifyCode += this.identifyCodes[this.randomNum(0, this.identifyCodes.length)]
}
},
//生成随机数
randomNum(min, max) {
return Math.floor(Math.random() * (max - min) + min)
},
}
完整代码显示
<template>
<div class="login">
<div class="login_main">
<div class="main_right">
<div class="right_title">用户登录</div>
<a-form
id="form1"
name="form1"
:model="ruleForm"
style="padding: 20px"
autocomplete="off"
>
<div class="login-box">
<img :src="userImg" class="login-icon" />
<input
type="text"
v-model="ruleForm.username"
placeholder="账号"
/>
</div>
<div>
<img :src="pwdImg" class="login-icon" />
<input
type="password"
v-model="ruleForm.password"
placeholder="密码"
/>
</div>
<div class="code">
<img :src="codeImg" class="login-icon" />
<input
type="text"
v-model="ruleForm.code"
id="code"
placeholder="验证码"
/>
<div class="code_img">
<div class="login-code" @click="refreshCode">
<Identify
:identifyCode="identifyCode"
></Identify>
</div>
</div>
</div>
<div class="yes_login">
<a-button
type="primary"
class="login-btn"
@click="Login"
>登录</a-button
>
</div>
</a-form>
</div>
</div>
</div>
</template>
<script>
import Identify from "@/components/Identify"
export default {
components: { Identify },
props: {},
data() {
return {
//用户图标
userImg: require("@/assets/login_images/login.png"),
//密码图标
pwdImg: require("@/assets/login_images/pwd.png"),
//验证码图标
codeImg: require("@/assets/login_images/code.png"),
ruleForm: {
password: "",
username: "",
code: ""
},
rules: {
username: [
{
required: true,
message: "请输入账号",
trigger: "blur"
}
],
password: [
{
required: true,
message: "请输入密码",
trigger: "blur"
}
],
code: [
{
required: true,
message: "请输入验证码",
trigger: "blur"
}
]
},
//用于显示什么的验证码，可以添加字母
identifyCodes: "1234567890",
identifyCode: ""
}
},
computed: {},
watch: {},
created() {},
mounted() {
// 初始化验证码
this.identifyCode = ""
this.makeCode(this.identifyCodes, 4)
},
methods: {
Login() {
console.log("登录")
},
//刷新验证码
refreshCode() {
this.ruleForm.code = ""
this.identifyCode = ""
this.makeCode(this.identifyCodes, 4)
},
//生成验证码
makeCode(o, l) {
for (let i = 0; i < l; i++) {
this.identifyCode +=
this.identifyCodes[
this.randomNum(0, this.identifyCodes.length)
]
}
},
//生成随机数
randomNum(min, max) {
return Math.floor(Math.random() * (max - min) + min)
}
}
}
</script>
//这里我安装的是scss,如果没有按钮也可以删除
<style lang="scss" scoped>
.login-btn {
width: 100%;
border-radius: 3px;
height: 40px;
}
.font {
margin-left: 3px;
}
.login-icon {
width: 15px;
height: 15px;
}
body {
font-family: Microsoft YaHei, Arial, "\5b8b\4f53";
}
.clearfix:before,
.clearfix:after {
content: "";
display: table;
}
.clearfix:after {
clear: both;
}
.clearfix {
*zoom: 1;
}
.login {
/* background: #03177A; */
width: 100%;
height: 100%;
background: url("../../assets/login_images/back.jpg") no-repeat center 0px;
background-size: cover;
background-position: center 0;
background-repeat: no-repeat;
background-attachment: fixed;
-webkit-background-size: cover;
-o-background-size: cover;
-moz-background-size: cover;
-ms-background-size: cover;
position: relative;
}
.login > .login_main {
width: 100%;
height: 100%;
display: flex;
justify-content: center;
align-items: center;
}
.login > .login_main > .main_right {
height: 27rem;
width: 22rem;
background: rgba(255, 255, 255, 0.5);
border-radius: 10px;
-moz-border-radius: 10px;
-webkit-border-radius: 10px;
}
.login > .login_main > .main_right > form input:focus {
border: 1px solid #9ec6ff !important;
}
.login > .login_main > .main_right > .right_title {
letter-spacing: 2px;
color: #2a82ff;
font-size: 32px;
text-align: center;
line-height: 60px;
margin: 30px auto;
font-weight: 500;
font-family: Verdana, Geneva, Tahoma, sans-serif;
background-image: -webkit-linear-gradient(bottom, red, #fd8403, yellow);
-webkit-background-clip: text;
-webkit-text-fill-color: transparent;
}
.login > .login_main > .main_right > form > div {
position: relative;
}
.login > .login_main > .main_right > form > div > img {
position: absolute;
left: 15px;
top: 10px;
}
.login > .login_main > .main_right > form input {
height: 35px;
width: 100%;
border: 1px solid #d3d8dc;
box-sizing: border-box;
margin-bottom: 30px;
border-radius: 3px;
color: #333;
padding-left: 40px;
-moz-border-radius: 3px;
-webkit-border-radius: 3px;
}
.login > .login_main > .main_right > form > .code > input {
width: 69%;
}
.login > .login_main > .main_right > form > .code > .code_img {
height: 35px;
float: right;
cursor: pointer;
}
.login > .login_main > .main_right > form input:focus {
border: 1px solid #999;
}
.login > .login_main > .main_right > form > .yes_login > a {
display: block;
width: 90%;
height: 35px;
line-height: 35px;
text-align: center;
background-color: #1677ff;
border-radius: 3px;
color: #fff;
text-decoration: none;
margin-left: 15px;
-moz-border-radius: 3px;
-webkit-border-radius: 3px;
}
.login > .login_main > .main_right > form > .yes_login > a:hover {
background-color: #0058af;
}
.login > .login_main > .main_right > form > .yes_cancle {
padding-top: 10px;
}
.login > .login_footer {
text-align: center;
padding-top: 130px;
}
.login > .login_footer > p {
font-size: 14px;
color: #eee;
line-height: 30px;
}
</style>
图片素材
注意： 里面的图片地址要放在正确的路径上，不然可能会报错
