一、RabbitMQ的路由模式和应⽤场景

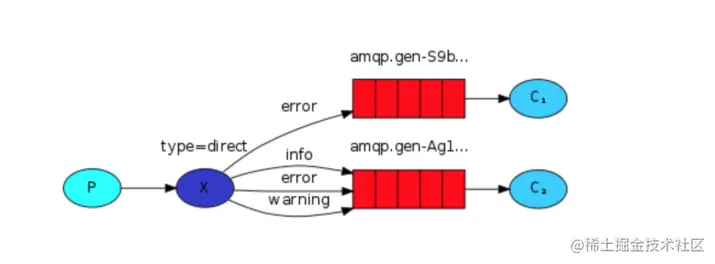

1）什么是rabbitmq的路由模式

⽂档：www.rabbitmq.com/tutorials/t…
交换机类型是Direct
队列和交换机绑定，需要指定⼀个路由key( 也叫 Bingding Key)
消息⽣产者发送消息给交换机，需要指定routingKey
交换机根据消息的路由key，转发给对应的队列
例⼦：⽇志采集系统 ELK
- ⼀个队列收集error信息 => 紧急处理
- ⼀个队列收集全部信息 =>⽇常使⽤

二、RabbitMQ路由模式代码实战_python

模拟日志采集系统

1）生产消息：send.py

import pika

# 连接mq的信息
host = 'xxx'  # mq服务所在ip
port = xxx  # amqp端口
virtualhost = '/xxx'  # 需要连接的环境
credentials = pika.PlainCredentials('xxx', 'xxx')

connection = pika.BlockingConnection(pika.ConnectionParameters(host, port, virtualhost, credentials))
channel = connection.channel()

exchange_name = 'work_direct'
exchange_type = 'direct'
"""
声明exchange交换机
    exchange：交换机名称
    exchange_type：交换机类型，默认是direct
    passive=False：检查交换机是否存在
    durable=False：是否持久化
    auto_delete=False：最后一个队列解绑则删除
    internal=False：否设置为值接收从其他交换机发送过来的消息，不接收生产者的消息
    arguments=None：自定义键值对参数，类型是字典
"""
channel.exchange_declare(exchange=exchange_name, exchange_type=exchange_type)

error_log = '我是error日志'
info_log = '我是info日志'
debug_log = '我是debug日志'
channel.basic_publish(exchange=exchange_name, routing_key='errorRoutingKey', body=error_log)
channel.basic_publish(exchange=exchange_name, routing_key='infoRoutingKey', body=info_log)
channel.basic_publish(exchange=exchange_name, routing_key='debugRoutingKey', body=debug_log)
print('direct消息发送成功')
channel.close()

2）消费者_消费error消息

import pika

# 连接mq的信息
host = 'xxx'  # mq服务所在ip
port = xxx  # amqp端口
virtualhost = '/xxx'  # 需要连接的环境
credentials = pika.PlainCredentials('xxx', 'xxx')

connection = pika.BlockingConnection(pika.ConnectionParameters(host, port, virtualhost, credentials))

channel = connection.channel()

exchange_name = 'work_direct'
exchange_type = 'direct'

# 声明交换机
channel.exchange_declare(exchange=exchange_name, exchange_type=exchange_type)
result = channel.queue_declare(queue='', exclusive=True)
queue_name = result.method.queue
"""
绑定交换机
   queue：队列的名字
   exchange：交换机的名字
   routing_key=None：路由key的规则，当为None时，默认使用queue的名字作为路由key规则
   arguments=None
"""
channel.queue_bind(exchange=exchange_name, queue=queue_name, routing_key='errorRoutingKey')


def callback(ch, method, properties, body):
    print(body.decode())


channel.basic_consume(queue=queue_name, on_message_callback=callback, auto_ack=True)
channel.start_consuming()

3）消费者_消费所有消息类型

import pika

# 连接mq的信息
host = 'xxx'  # mq服务所在ip
port = xxx  # amqp端口
virtualhost = '/xxx'  # 需要连接的环境
credentials = pika.PlainCredentials('xxx', 'xxx')

connection = pika.BlockingConnection(pika.ConnectionParameters(host, port, virtualhost, credentials))

channel = connection.channel()

exchange_name = 'work_direct'
exchange_type = 'direct'

# 声明交换机
channel.exchange_declare(exchange=exchange_name, exchange_type=exchange_type)
result = channel.queue_declare(queue='', exclusive=True)
queue_name = result.method.queue
"""
绑定交换机
   queue：队列的名字
   exchange：交换机的名字
   routing_key=None：路由key的规则，当为None时，默认使用queue的名字作为路由key规则
   arguments=None
"""
channel.queue_bind(exchange=exchange_name, queue=queue_name, routing_key='errorRoutingKey')
channel.queue_bind(exchange=exchange_name, queue=queue_name, routing_key='infoRoutingKey')
channel.queue_bind(exchange=exchange_name, queue=queue_name, routing_key='debugRoutingKey')


def callback(ch, method, properties, body):
    print(body.decode())


channel.basic_consume(queue=queue_name, on_message_callback=callback, auto_ack=True)
channel.start_consuming()

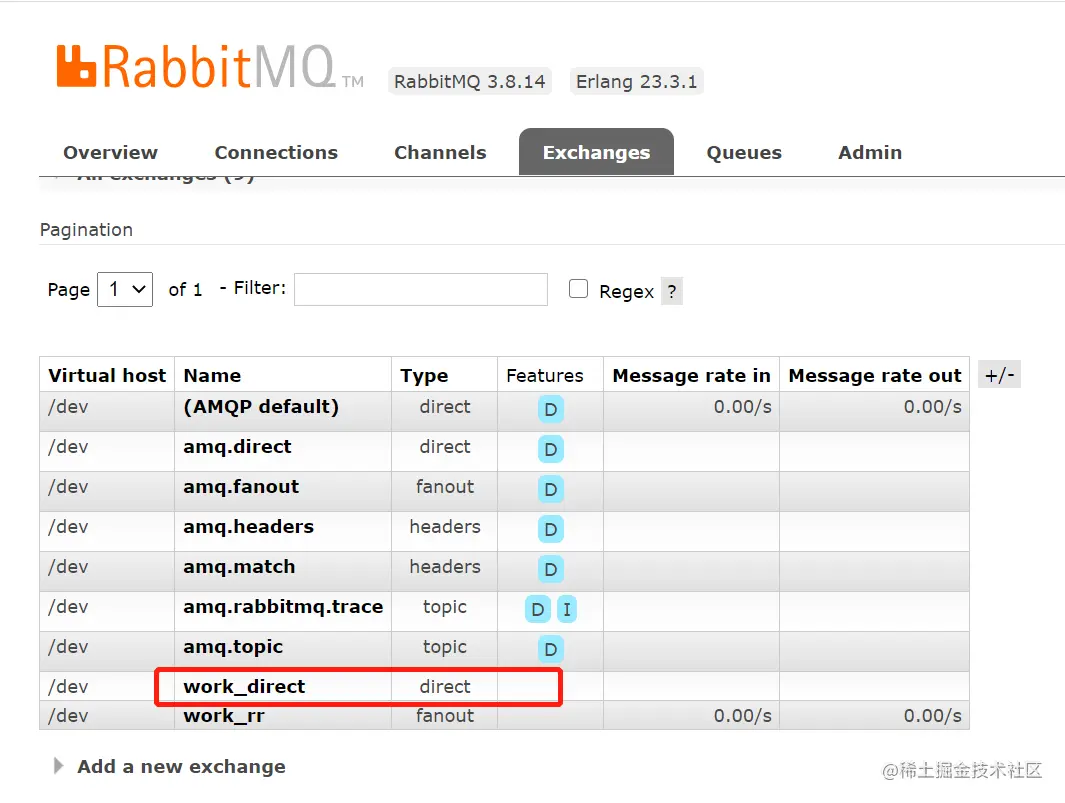

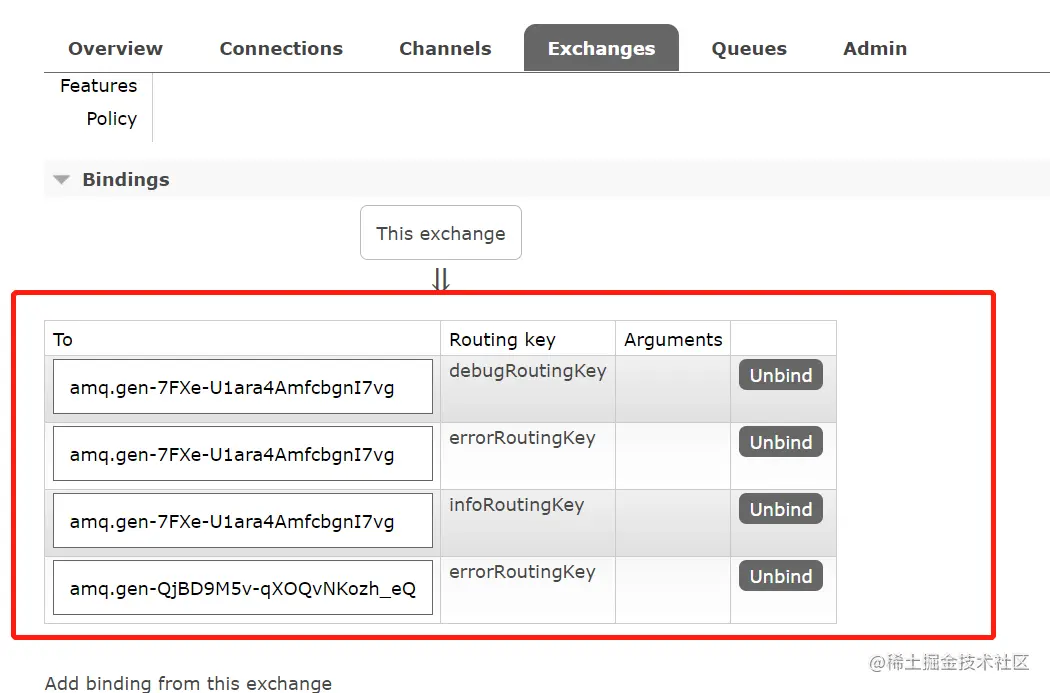

4）执行

三、RabbitMQ的topic主题通配符模式

【使用最多】

1）背景

如果业务很多路由key，怎么维护？？
topic交换机，⽀持通配符匹配模式，更加强⼤
⼯作基本都是⽤这个topic模式

2）什么是rabbitmq的topic主题模式

⽂档
- www.rabbitmq.com/tutorials/t…
交换机是 topic, 可以实现发布订阅模式fanout和路由模式Direct 的功能，更加灵活，⽀持模式匹配，通配符等
交换机同过通配符进⾏转发到对应的队列，* 代表⼀个词，#代表1个或多个词，⼀般⽤#作为通配符居多
- ⽐如 #.order, 会匹配 info.order 、sys.error.order
- ⽽ *.order，只会匹配 info.order, 之间是使⽤. 进⾏分割多个词的
- 如果是.，则info.order、error.order都会匹配
注意
- 交换机和队列绑定时⽤的binding使⽤通配符的路由健
- ⽣产者发送消息时需要使⽤具体的路由健
例子（存在如图所示的topic交换机和不同routingkey的队列，不同的通配符能进入什么队列中）

quick.orange.rabbit 只会匹配 .orange. 和 ..rabbit ，进到Q1和Q2
lazy.orange.elephant 只会匹配 .orange. 和 lazy.#，进到Q1和Q2
quick.orange.fox 只会匹配 .orange.，进⼊Q1
lazy.brown.fox 只会匹配azy.#，进⼊Q2
lazy.pink.rabbit 只会匹配 lazy.#和*.*.rabbit ，同个队列进⼊Q2(消息只会发⼀次)
quick.brown.fox 没有匹配，默认会被丢弃，可以通过回调监听⼆次处理
lazy.orange.male.rabbit，只会匹配 lazy.#，进⼊Q2
例⼦：⽇志采集系统
- ⼀个队列收集订单系统的全部⽇志信息：order.log.#
- ⼀个队列收集全部系统的全部⽇志信息： #.log

四、topic主题模式实战_python

1）生产者

mport pika

# 连接mq的信息
host = 'xxx'  # mq服务所在ip
port = xxx  # amqp端口
virtualhost = '/xxx'  # 需要连接的环境
credentials = pika.PlainCredentials('xxx', 'xxx')

connection = pika.BlockingConnection(pika.ConnectionParameters(host, port, virtualhost, credentials))
channel = connection.channel()

exchange_name = 'work_topic'
exchange_type = 'topic'
"""
声明exchange交换机
    exchange：交换机名称
    exchange_type：交换机类型，默认是direct
    passive=False：检查交换机是否存在
    durable=False：是否持久化
    auto_delete=False：最后一个队列解绑则删除
    internal=False：否设置为值接收从其他交换机发送过来的消息，不接收生产者的消息
    arguments=None：自定义键值对参数，类型是字典
"""
channel.exchange_declare(exchange=exchange_name, exchange_type=exchange_type)

channel.confirm_delivery()

# error_log = '我是订单服务的error日志'
# info_log = '我是订单服务的info日志'
debug_log = '我是订单服务的debug日志'
# channel.basic_publish(exchange=exchange_name, routing_key='order.log.error', body=error_log)
# channel.basic_publish(exchange=exchange_name, routing_key='order.log.info', body=info_log)
ack = channel.basic_publish(exchange=exchange_name, routing_key='order.log.debug', body=debug_log,
                            properties=pika.BasicProperties(delivery_mode=2))
print(ack)
print('topic消息发送成功')
channel.close()

2）消费者_消费error消息

import pika

# 连接mq的信息
host = 'xxx'  # mq服务所在ip
port = xxx  # amqp端口
virtualhost = '/xxx'  # 需要连接的环境
credentials = pika.PlainCredentials('xxx', 'xxx')

connection = pika.BlockingConnection(pika.ConnectionParameters(host, port, virtualhost, credentials))

channel = connection.channel()

exchange_name = 'work_topic'
exchange_type = 'topic'

# 声明交换机
channel.exchange_declare(exchange=exchange_name, exchange_type=exchange_type)
result = channel.queue_declare(queue='', exclusive=True)
queue_name = result.method.queue
"""
绑定交换机
   queue：队列的名字
   exchange：交换机的名字
   routing_key=None：路由key的规则，当为None时，默认使用queue的名字作为路由key规则
   arguments=None
"""
channel.queue_bind(exchange=exchange_name, queue=queue_name, routing_key='order.log.error')
channel.basic_ack()


def callback(ch, method, properties, body):
    print(body.decode())


channel.basic_consume(queue=queue_name, on_message_callback=callback, auto_ack=True)
channel.start_consuming()

3）消费者_消费所有消息

import pika

# 连接mq的信息
host = 'xxx'  # mq服务所在ip
port = xxx  # amqp端口
virtualhost = '/xxx'  # 需要连接的环境
credentials = pika.PlainCredentials('xxx', 'xxx')

connection = pika.BlockingConnection(pika.ConnectionParameters(host, port, virtualhost, credentials))

channel = connection.channel()

exchange_name = 'work_topic'
exchange_type = 'topic'

# 声明交换机
channel.exchange_declare(exchange=exchange_name, exchange_type=exchange_type)
# 消费者声明随机的消息队列名称
result = channel.queue_declare(queue='', exclusive=True)
queue_name = result.method.queue
"""
绑定交换机
   queue：队列的名字
   exchange：交换机的名字
   routing_key=None：路由key的规则，当为None时，默认使用queue的名字作为路由key规则
   arguments=None
"""
channel.queue_bind(exchange=exchange_name, queue=queue_name, routing_key='*.log.*')

def callback(ch, method, properties, body):
    print(body.decode())

channel.basic_consume(queue=queue_name, on_message_callback=callback, auto_ack=True)
channel.start_consuming()
