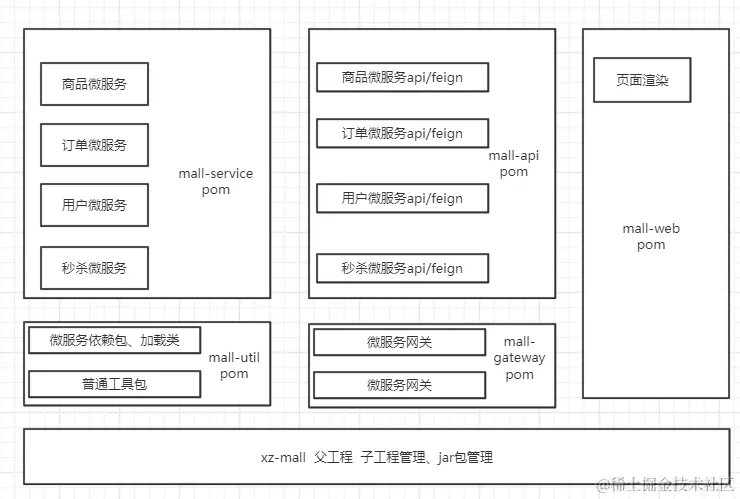

1.工程结构分析

大致分为以上这些服务模块，接下来创建对应的工程

1.父工程搭建

工程坐标

<groupId>com.xz</groupId>
<artifactId>xz-mall</artifactId>
<version>0.0.1-SNAPSHOT</version>

使用Spring Initializr创建父工程。

整理下pom.xml，在pom.xml中只留部分包，其他包是创建微服务时需要。

<?xml version="1.0" encoding="UTF-8"?>
<project xmlns="http://maven.apache.org/POM/4.0.0" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
         xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 https://maven.apache.org/xsd/maven-4.0.0.xsd">
    <modelVersion>4.0.0</modelVersion>
    <parent>
        <groupId>org.springframework.boot</groupId>
        <artifactId>spring-boot-starter-parent</artifactId>
        <version>2.2.10.RELEASE</version>
        <relativePath/> <!-- lookup parent from repository -->
    </parent>
    <groupId>com.xz</groupId>
    <artifactId>xz-mall</artifactId>
    <version>0.0.1-SNAPSHOT</version>
    <name>xz-mall</name>
    <!--父工程-->
    <packaging>pom</packaging>
    <description>SpringCloud Alibaba 云商城</description>
    <properties>
        <java.version>1.8</java.version>
        <spring-cloud-alibaba.version>2.2.1.RELEASE</spring-cloud-alibaba.version>
    </properties>

    <dependencies>
        <!--lombok，方便创建Bean对象和日志操作-->
        <dependency>
            <groupId>org.projectlombok</groupId>
            <artifactId>lombok</artifactId>
            <optional>true</optional>
        </dependency>

        <!--Test-->
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-test</artifactId>
            <scope>test</scope>
            <exclusions>
                <exclusion>
                    <groupId>org.junit.vintage</groupId>
                    <artifactId>junit-vintage-engine</artifactId>
                </exclusion>
            </exclusions>
        </dependency>

        <!--热部署插件-->
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-devtools</artifactId>
            <scope>runtime</scope>
            <optional>true</optional>
        </dependency>
    </dependencies>

    <dependencyManagement>
        <dependencies>
            <!--alibaba-->
            <dependency>
                <groupId>com.alibaba.cloud</groupId>
                <artifactId>spring-cloud-alibaba-dependencies</artifactId>
                <version>${spring-cloud-alibaba.version}</version>
                <type>pom</type>
                <scope>import</scope>
            </dependency>
        </dependencies>
    </dependencyManagement>

    <build>
        <plugins>
            <plugin>
                <groupId>org.springframework.boot</groupId>
                <artifactId>spring-boot-maven-plugin</artifactId>
            </plugin>
        </plugins>
    </build>
</project>

2.子项目父工程创建

可以按照上面的功能进行分类创建，给每类工程创建一个父工程，方便管理

mall-api：存储所有数据库表对应的Bean和Feign接口
mall-gateway：存储所有微服务网关
mall-service：存储所有微服务工程
mall-util：存储公共工程
mall-web：存储所有和页面渲染有关的工程

mall-api的pom.xml：

<?xml version="1.0" encoding="UTF-8"?>
<project xmlns="http://maven.apache.org/POM/4.0.0"
         xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
         xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 http://maven.apache.org/xsd/maven-4.0.0.xsd">
    <parent>
        <artifactId>xz-mall</artifactId>
        <groupId>com.xz</groupId>
        <version>0.0.1-SNAPSHOT</version>
    </parent>
    <modelVersion>4.0.0</modelVersion>
    <packaging>pom</packaging>
    <artifactId>mall-api</artifactId>
    <description>
        存放所有JavaBean和Feign接口
    </description>
</project>

mall-gateway的pom.xml

<?xml version="1.0" encoding="UTF-8"?>
<project xmlns="http://maven.apache.org/POM/4.0.0"
         xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
         xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 http://maven.apache.org/xsd/maven-4.0.0.xsd">
    <parent>
        <artifactId>xz-mall</artifactId>
        <groupId>com.xz</groupId>
        <version>0.0.1-SNAPSHOT</version>
    </parent>
    <modelVersion>4.0.0</modelVersion>
    <packaging>pom</packaging>
    <artifactId>mall-gateway</artifactId>
    <description>
        存放微服网关集群
    </description>

</project>

mall-service的pom.xml

<?xml version="1.0" encoding="UTF-8"?>
<project xmlns="http://maven.apache.org/POM/4.0.0"
         xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
         xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 http://maven.apache.org/xsd/maven-4.0.0.xsd">
    <parent>
        <artifactId>xz-mall</artifactId>
        <groupId>xz.mall</groupId>
        <version>0.0.1-SNAPSHOT</version>
    </parent>
    <modelVersion>4.0.0</modelVersion>
    <packaging>pom</packaging>
    <artifactId>mall-service</artifactId>
    <description>所有的应用服务</description>
</project>

mall-util的pom.xml

<?xml version="1.0" encoding="UTF-8"?>
<project xmlns="http://maven.apache.org/POM/4.0.0"
         xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
         xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 http://maven.apache.org/xsd/maven-4.0.0.xsd">
    <parent>
        <artifactId>xz-mall</artifactId>
        <groupId>xz.mall</groupId>
        <version>0.0.1-SNAPSHOT</version>
    </parent>
    <modelVersion>4.0.0</modelVersion>
    <packaging>pom</packaging>
    <artifactId>mall-util</artifactId>
    <description>
        存放所有公共工程
    </description>
</project>

mall-web的pom.xml

<?xml version="1.0" encoding="UTF-8"?>
<project xmlns="http://maven.apache.org/POM/4.0.0"
         xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
         xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 http://maven.apache.org/xsd/maven-4.0.0.xsd">
    <parent>
        <artifactId>xz-mall</artifactId>
        <groupId>xz.mall</groupId>
        <version>0.0.1-SNAPSHOT</version>
    </parent>
    <modelVersion>4.0.0</modelVersion>
    <packaging>pom</packaging>
    <artifactId>mall-web</artifactId>
    <description>
        存放所有和页面渲染有关的工程，不建议放在service中，所有service只提供基于RESTful的服务
    </description>
</project>

3.公共工程创建

3.1公共依赖汇总

service中以后要创建微服务工程操作数据库，我们可以把所有service需要用到的包以及所有service需要初始化的对象放到一个独立的工程中，以后哪个工程要用，直接依赖即可。

在mall-util中创建mall-service-dependency，pom.xml依赖如下：

<?xml version="1.0" encoding="UTF-8"?>
<project xmlns="http://maven.apache.org/POM/4.0.0"
         xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
         xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 http://maven.apache.org/xsd/maven-4.0.0.xsd">
    <parent>
        <artifactId>mall-util</artifactId>
        <groupId>xz.mall</groupId>
        <version>0.0.1-SNAPSHOT</version>
    </parent>
    <modelVersion>4.0.0</modelVersion>
    <artifactId>mall-service-dependency</artifactId>
    <description>
        所有service工程依赖的包汇总以及初始化工具包
    </description>

    <dependencies>
        <!--web包-->
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-web</artifactId>
        </dependency>

        <!--MyBatis Plus-->
        <dependency>
            <groupId>com.baomidou</groupId>
            <artifactId>mybatis-plus-boot-starter</artifactId>
            <version>3.3.2</version>
        </dependency>

        <!--MySQL-->
        <dependency>
            <groupId>mysql</groupId>
            <artifactId>mysql-connector-java</artifactId>
            <scope>runtime</scope>
        </dependency>

        <!--Redis-->
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-data-redis</artifactId>
        </dependency>

        <!--Nacos-->
        <dependency>
            <groupId>com.alibaba.cloud</groupId>
            <artifactId>spring-cloud-starter-alibaba-nacos-config</artifactId>
        </dependency>
        <dependency>
            <groupId>com.alibaba.cloud</groupId>
            <artifactId>spring-cloud-starter-alibaba-nacos-discovery</artifactId>
        </dependency>
    </dependencies>
</project>

3.2公共工具包

需要用到的工具包也可以单独放到一个工程中，每次要用，直接依赖即可。

在mall-util中创建mall-common，在工程中创建2个对象：

用于指定响应状态码的枚举对象：com.xz.mall.util.RespCode.java

public enum RespCode {

    SUCCESS(20000, "操作成功"),
    ERROR(50000, "操作失败"),
    SYSTEM_ERROR(50001, "系统错误");

    private Integer code;
    private String message;

    RespCode(Integer code, String message) {
        this.code = code;
        this.message = message;
    }
    RespCode() {
    }
    public Integer getCode() {
        return code;
    }

    public void setCode(Integer code) {
        this.code = code;
    }

    public String getMessage() {
        return message;
    }

    public void setMessage(String message) {
        this.message = message;
    }
}

用于响应用户信息封装的对象: com.xz.mall.util.RespResult.java

public class RespResult<T> implements Serializable {

    //响应数据结果集
    private T data;

    /**
     * 状态码
     * 20000 操作成功
     * 50000 操作失败
     */
    private Integer code;

    /***
     * 响应信息
     */
    private String message;

    public RespResult() {
    }

    public RespResult(RespCode resultCode) {
        this.code = resultCode.getCode();
        this.message = resultCode.getMessage();
    }

    public RespResult(T data, RespCode resultCode) {
        this.data = data;
        this.code = resultCode.getCode();
        this.message = resultCode.getMessage();
    }
    public static RespResult ok() {
        return new RespResult(null, RespCode.SUCCESS);
    }

    public static RespResult ok(Object data) {
        return new RespResult(data, RespCode.SUCCESS);
    }

    public static RespResult error() {
        return new RespResult(null, RespCode.ERROR);
    }

    public static RespResult error(String message) {
        return secByError(RespCode.ERROR.getCode(),message);
    }

    //自定义异常
    public static RespResult secByError(Integer code,String message) {
        RespResult err = new RespResult();
        err.setCode(code);
        err.setMessage(message);
        return err;
    }

    public static RespResult error(RespCode resultCode) {
        return new RespResult(resultCode);
    }

    public T getData() {
        return data;
    }

    public void setData(T data) {
        this.data = data;
    }

    public Integer getCode() {
        return code;
    }

    public void setCode(Integer code) {
        this.code = code;
    }

    public String getMessage() {
        return message;
    }

    public void setMessage(String message) {
        this.message = message;
    }
}

3.3依赖管理

service工程一定会依赖mall-service-dependency和mall-common，可以修改mall-service将这两个工程添加到依赖中：

<dependencies>
    <!--依赖mall-service-dependency-->
    <dependency>
        <groupId>com.xz</groupId>
        <artifactId>mall-service-dependency</artifactId>
        <version>0.0.1-SNAPSHOT</version>
    </dependency>

    <!--依赖mall-common-->
    <dependency>
        <groupId>com.xz</groupId>
        <artifactId>mall-common</artifactId>
        <version>0.0.1-SNAPSHOT</version>
    </dependency>
</dependencies>

总结：本篇主要讲述了父工程搭建和子项目父工程创建，还有公共工程创建。
