上篇说到已经将解析好的bean包装成BeanDefinitionHold 注册到IOC容器了，但保存的bean还没有被实例化，所有不能直接使用。这篇文章我们继续探索

DI依赖注入

1 预准备

本篇会分析bean的实例化和注入过程，前面的pom就不贴了，代码贴一下

HelloService.class //接口
HelloSeriveImpl.class //hello的实现类

@RestController
public class HelloAction {

    @Autowired
    HelloService helloService;

    @RequestMapping("/")
    public String hello(){
        return helloService.hello();
    }
}

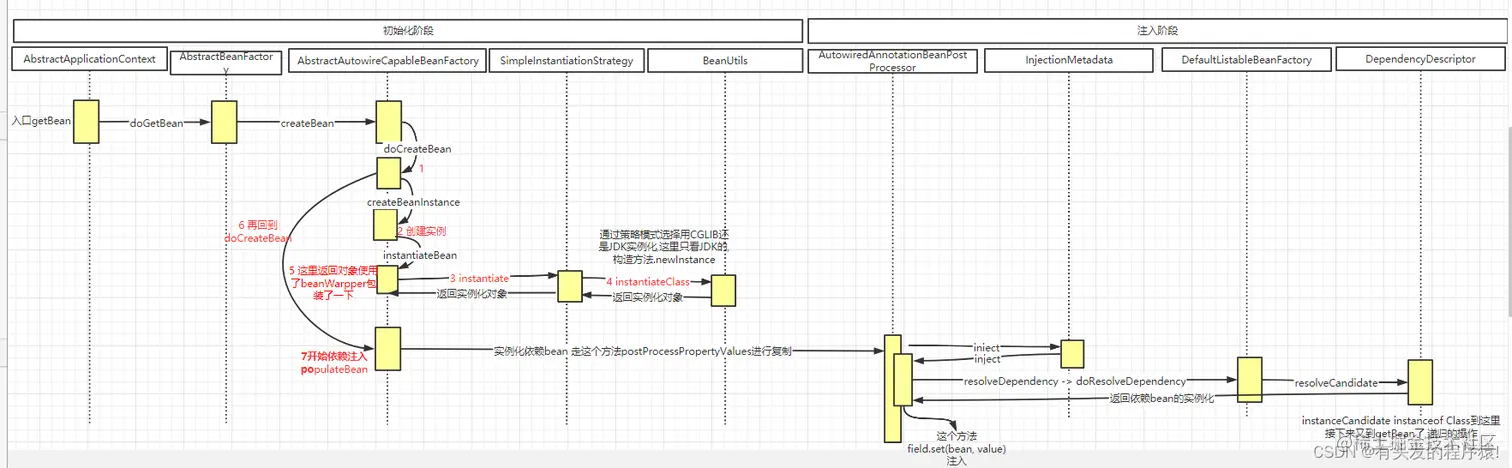

2 DI时序图

DI时序图

3.源码分析

IOC和DI是怎么样连通的，我们从最开始的refresh()开始分析，这次的入口是AbstractApplicationContext##refresh()下的beanFactory.preInstantiateSingletons()

public void preInstantiateSingletons() throws BeansException {
 if (logger.isTraceEnabled()) {
  logger.trace("Pre-instantiating singletons in " + this);
 }

 //在上篇文章的DefaultListableBeanFactory#registerBeanDefinition中我们看到已经将所有的beanName添加到这个List<String> beanDefinitionName 这个里面了
 List<String> beanNames = new ArrayList<>(this.beanDefinitionNames);

 // Trigger initialization of all non-lazy singleton beans...
 for (String beanName : beanNames) {
  //获取保存在beanDefinitionMap中的Class信息的封装类BeanDefinition
  //上篇文章结尾有说明
  //并用RootBeanDefinition 封装
  RootBeanDefinition bd = getMergedLocalBeanDefinition(beanName);
  //不是抽象类 && 是单例 && 不是延迟加载的
  if (!bd.isAbstract() && bd.isSingleton() && !bd.isLazyInit()) {
   //是工厂bean 加个&的前缀然后调用getBean
   if (isFactoryBean(beanName)) {
    Object bean = getBean(FACTORY_BEAN_PREFIX + beanName);
    if (bean instanceof FactoryBean) {
     FactoryBean<?> factory = (FactoryBean<?>) bean;
     boolean isEagerInit;
     if (System.getSecurityManager() != null && factory instanceof SmartFactoryBean) {
      isEagerInit = AccessController.doPrivileged(
        (PrivilegedAction<Boolean>) ((SmartFactoryBean<?>) factory)::isEagerInit,
        getAccessControlContext());
     }
     else {
      isEagerInit = (factory instanceof SmartFactoryBean &&
        ((SmartFactoryBean<?>) factory).isEagerInit());
     }
     if (isEagerInit) {
      getBean(beanName);
     }
    }
   }
   else {
    //普通的类之间调用getBean 接下来走这里
    getBean(beanName);
   }
  }
 }

 // Trigger post-initialization callback for all applicable beans...
 //当所有的单例bean初始化完成后
 //实现了SmartInitializingSingleton接口的，在这里回调该接口的 afterSingletonsInstantiated()方法
 for (String beanName : beanNames) {
  Object singletonInstance = getSingleton(beanName);
  if (singletonInstance instanceof SmartInitializingSingleton) {
   StartupStep smartInitialize = this.getApplicationStartup().start("spring.beans.smart-initialize")
     .tag("beanName", beanName);
   SmartInitializingSingleton smartSingleton = (SmartInitializingSingleton) singletonInstance;
   if (System.getSecurityManager() != null) {
    AccessController.doPrivileged((PrivilegedAction<Object>) () -> {
     smartSingleton.afterSingletonsInstantiated();
     return null;
    }, getAccessControlContext());
   }
   else {
    smartSingleton.afterSingletonsInstantiated();
   }
   smartInitialize.end();
  }
 }
}

3.1 初始化阶段

如果是懒加载，从下面代码可以看到调用的时候也是会走getBean进行初始化

ClassPathXmlApplicationContext ctx = new ClassPathXmlApplicationContext("xxx.xml");
ctx.getBean("beanName") - > AbstractBeanFactory.doGetBean() //向IoC容器获取被管理Bean的过程
//重点关注这段 创建单例
if (mbd.isSingleton()) {
 //先从缓存获取实例对象 先看这个方法
    sharedInstance = getSingleton(beanName, () -> {
        try {
            //接下来走这个方法
            return createBean(beanName, mbd, args);
        }
        catch (BeansException ex) {
            destroySingleton(beanName);
            throw ex;
        }
    });
    //通过FactoryBean#getObject获取实例对象
    //getObjectForBeanInstance ->getObjectFromFactoryBean
    //-> doGetObjectFromFactoryBean -> object = factory.getObject();
    //由自己控制bean的实例对象
    bean = getObjectForBeanInstance(sharedInstance, name, beanName, mbd);
}

从缓存获取单例对象DefaultSingletonBeanRegistry#getSingleton()

public Object getSingleton(String beanName, ObjectFactory<?> singletonFactory) {
 Assert.notNull(beanName, "Bean name must not be null");
 synchronized (this.singletonObjects) {
  //从单例缓存map中取
  Object singletonObject = this.singletonObjects.get(beanName);
  if (singletonObject == null) {
   if (this.singletonsCurrentlyInDestruction) {
    throw new BeanCreationNotAllowedException(beanName,
      "Singleton bean creation not allowed while singletons of this factory are in destruction " +
      "(Do not request a bean from a BeanFactory in a destroy method implementation!)");
   }
   if (logger.isDebugEnabled()) {
    logger.debug("Creating shared instance of singleton bean '" + beanName + "'");
   }
   //没取到缓存 实例化bean之前的回调
   beforeSingletonCreation(beanName);
   boolean newSingleton = false;
   boolean recordSuppressedExceptions = (this.suppressedExceptions == null);
   if (recordSuppressedExceptions) {
    this.suppressedExceptions = new LinkedHashSet<>();
   }
   try {
    //传入的回调 AbstractBeanFactory#createBean
    singletonObject = singletonFactory.getObject();
    //新添加的
    newSingleton = true;
   }
   catch (IllegalStateException ex) {
    // Has the singleton object implicitly appeared in the meantime ->
    // if yes, proceed with it since the exception indicates that state.
    singletonObject = this.singletonObjects.get(beanName);
    if (singletonObject == null) {
     throw ex;
    }
   }
   catch (BeanCreationException ex) {
    if (recordSuppressedExceptions) {
     for (Exception suppressedException : this.suppressedExceptions) {
      ex.addRelatedCause(suppressedException);
     }
    }
    throw ex;
   }
   finally {
    if (recordSuppressedExceptions) {
     this.suppressedExceptions = null;
    }
    //实例化对象之后的回调
    afterSingletonCreation(beanName);
   }
   if (newSingleton) {
    //保存到缓存map
    addSingleton(beanName, singletonObject);
   }
  }
  return singletonObject;
 }
}

addSingleton存入缓存，beanName -> 实例对象的缓存map singletonObjects

//单例的 加锁保证安全
protected void addSingleton(String beanName, Object singletonObject) {
 synchronized (this.singletonObjects) {
  this.singletonObjects.put(beanName, singletonObject);
  this.singletonFactories.remove(beanName);
  this.earlySingletonObjects.remove(beanName);
  this.registeredSingletons.add(beanName);
 }
}

//singletonObjects
private final Map<String, Object> singletonObjects = new ConcurrentHashMap<>(256);

回到回调，接下来来到AbstractAutowireCapableBeanFactory#createBean

protected Object createBean(String beanName, RootBeanDefinition mbd, @Nullable Object[] args)
   throws BeanCreationException {
     //对beanDefinition 的封装
  RootBeanDefinition mbdToUse = mbd;

  ......

        //多余的代码去掉了 重点关注这里
  try {
            //创建bean干活的类 接下来走这里
   Object beanInstance = doCreateBean(beanName, mbdToUse, args);
   if (logger.isTraceEnabled()) {
    logger.trace("Finished creating instance of bean '" + beanName + "'");
   }
   return beanInstance;
  }
  catch (BeanCreationException | ImplicitlyAppearedSingletonException ex) {
   throw ex;
  }
  catch (Throwable ex) {
   throw new BeanCreationException(
     mbdToUse.getResourceDescription(), beanName, "Unexpected exception during bean creation", ex);
  }
 }

//接下来到Bean创建
protected Object doCreateBean(final String beanName, final RootBeanDefinition mbd, final @Nullable Object[] args)
  throws BeanCreationException {

 // Instantiate the bean. 最终保存bean实例化对象的封装
 BeanWrapper instanceWrapper = null;
 if (mbd.isSingleton()) {
     //如果当前bean是工厂bean，已经实例化的话则直接取出来并删除
  instanceWrapper = this.factoryBeanInstanceCache.remove(beanName);
 }
 if (instanceWrapper == null) {
  //我们自己手写的bean，应该都是走这里
     //重点关注点 一般来说spring除了加了lazy配置 一般都会走这个
  instanceWrapper = createBeanInstance(beanName, mbd, args);
 }
 final Object bean = instanceWrapper.getWrappedInstance();
 Class<?> beanType = instanceWrapper.getWrappedClass();
 if (beanType != NullBean.class) {
  mbd.resolvedTargetType = beanType;
 }

 // Allow post-processors to modify the merged bean definition.
 synchronized (mbd.postProcessingLock) {
  if (!mbd.postProcessed) {
   try {
             //单例缓存标识
    applyMergedBeanDefinitionPostProcessors(mbd, beanType, beanName);
   }
   catch (Throwable ex) {
    throw new BeanCreationException(mbd.getResourceDescription(), beanName,
      "Post-processing of merged bean definition failed", ex);
   }
   mbd.postProcessed = true;
  }
 }

 // Initialize the bean instance.
 Object exposedObject = bean;
 try {
     //依赖注入 也是重点关注
  populateBean(beanName, mbd, instanceWrapper);
     //bean的初始化 aop切面的入口
  exposedObject = initializeBean(beanName, exposedObject, mbd);
 }
 catch (Throwable ex) {
  if (ex instanceof BeanCreationException && beanName.equals(((BeanCreationException) ex).getBeanName())) {
   throw (BeanCreationException) ex;
  }
  else {
   throw new BeanCreationException(
     mbd.getResourceDescription(), beanName, "Initialization of bean failed", ex);
  }
 }

 //不需要关注的代码暂时去掉
 return exposedObject;
}

接下来看实例化对象createBeanInstance

protected BeanWrapper createBeanInstance(String beanName, RootBeanDefinition mbd, @Nullable Object[] args) {
    //检查确认Bean是初始化的 如果这个方法跟到最后能看到这样一行代码
    //return (clToUse != null ? clToUse.loadClass(name) : Class.forName(name));
 Class<?> beanClass = resolveBeanClass(mbd, beanName);

 if (beanClass != null && !Modifier.isPublic(beanClass.getModifiers()) && !mbd.isNonPublicAccessAllowed()) {
  throw new BeanCreationException(mbd.getResourceDescription(), beanName,
    "Bean class isn't public, and non-public access not allowed: " + beanClass.getName());
 }

 Supplier<?> instanceSupplier = mbd.getInstanceSupplier();
 if (instanceSupplier != null) {
  return obtainFromSupplier(instanceSupplier, beanName);
 }

 if (mbd.getFactoryMethodName() != null) {
         //使用工厂方法初始化
  return instantiateUsingFactoryMethod(beanName, mbd, args);
 }

 // Shortcut when re-creating the same bean...
    //使用容器的自动装配方法进行初始化
 boolean resolved = false;
 boolean autowireNecessary = false;
 if (args == null) {
  synchronized (mbd.constructorArgumentLock) {
   if (mbd.resolvedConstructorOrFactoryMethod != null) {
    resolved = true;
    autowireNecessary = mbd.constructorArgumentsResolved;
   }
  }
 }
 if (resolved) {
  if (autowireNecessary) {
             //使用容器的自动装配方法进行初始化
   return autowireConstructor(beanName, mbd, null, null);
  }
  else {
             //使用默认的无参构造方法初始化
   return instantiateBean(beanName, mbd);
  }
 }

 // Candidate constructors for autowiring?
 Constructor<?>[] ctors = determineConstructorsFromBeanPostProcessors(beanClass, beanName);
 if (ctors != null || mbd.getResolvedAutowireMode() == AUTOWIRE_CONSTRUCTOR ||
   mbd.hasConstructorArgumentValues() || !ObjectUtils.isEmpty(args)) {
  return autowireConstructor(beanName, mbd, ctors, args);
 }

 // Preferred constructors for default construction?
 ctors = mbd.getPreferredConstructors();
 if (ctors != null) {
  return autowireConstructor(beanName, mbd, ctors, null);
 }

 // No special handling: simply use no-arg constructor.
    //使用默认的无参构造方法初始化  我们挑无参的继续往下看
 return instantiateBean(beanName, mbd);
}


//无参构造方法初始化对象
protected BeanWrapper instantiateBean(final String beanName, final RootBeanDefinition mbd) {
 try {
  Object beanInstance;
  final BeanFactory parent = this;
  //获取系统的安全管理接口，JDK标准的安全管理API
  if (System.getSecurityManager() != null) {
   //这里是一个匿名内置类，根据初始化策略创建初始化对象
   beanInstance = AccessController.doPrivileged((PrivilegedAction<Object>) () ->
     getInstantiationStrategy().instantiate(mbd, beanName, parent),
     getAccessControlContext());
  }
  else {
   //获得初始化对象
   beanInstance = getInstantiationStrategy().instantiate(mbd, beanName, parent);
  }
        //将初始化的对象封装起来 这里拿到beanInstance了 初始化阶段到此结束
        //封装返回一个BeanWrapper
  BeanWrapper bw = new BeanWrapperImpl(beanInstance);
  initBeanWrapper(bw);
  return bw;
 }
 catch (Throwable ex) {
  throw new BeanCreationException(
    mbd.getResourceDescription(), beanName, "Instantiation of bean failed", ex);
 }
}

接下来在看看委派方法getInstantiationStrategy().instantiate(mbd, beanName, parent);做了什么事

public Object instantiate(RootBeanDefinition bd, @Nullable String beanName, BeanFactory owner) {
 // Don't override the class with CGLIB if no overrides.
 //如果Bean定义中没有方法覆盖，则就不需要CGLIB父类类的方法
 if (!bd.hasMethodOverrides()) {
  Constructor<?> constructorToUse;
  synchronized (bd.constructorArgumentLock) {
   //获取对象的构造方法或工厂方法
   constructorToUse = (Constructor<?>) bd.resolvedConstructorOrFactoryMethod;
   //如果没有构造方法且没有工厂方法
   if (constructorToUse == null) {
    //使用JDK的反射机制，判断要初始化的Bean是否是接口
    final Class<?> clazz = bd.getBeanClass();
    if (clazz.isInterface()) {
     throw new BeanInstantiationException(clazz, "Specified class is an interface");
    }
    try {
     if (System.getSecurityManager() != null) {
      //这里是一个匿名内置类，使用反射机制获取Bean的构造方法
      constructorToUse = AccessController.doPrivileged(
        (PrivilegedExceptionAction<Constructor<?>>) () -> clazz.getDeclaredConstructor());
     }
     else {
      constructorToUse = clazz.getDeclaredConstructor();
     }
     bd.resolvedConstructorOrFactoryMethod = constructorToUse;
    }
    catch (Throwable ex) {
     throw new BeanInstantiationException(clazz, "No default constructor found", ex);
    }
   }
  }
  //使用BeanUtils初始化，通过反射机制调用”构造方法.newInstance(arg)”来进行初始化
        //至此bean已经被初始化了
  return BeanUtils.instantiateClass(constructorToUse);
 }
 else {
  // Must generate CGLIB subclass.
  //使用CGLIB来初始化对象
  return instantiateWithMethodIjection(bd, beanName, owner);
 }
}

至此，class类已经初始化完成。接下来我们看怎么注入的

3.2 注入阶段

回到AbstractAutowireCapableBeanFactory.doCreateBean()继续往下看

//找到这里
Object exposedObject = bean;
try {
    //将Bean初始对象封装，并对依赖的变量和依赖的其他类赋值
    //主要看这个  依赖注入 前面有提到过
    populateBean(beanName, mbd, instanceWrapper);
    //初始化Bean对象的初始方法 aop切面的入口aop讲解 在下篇AOP里面分析
    exposedObject = initializeBean(beanName, exposedObject, mbd);
}
catch (Throwable ex) {
    if (ex instanceof BeanCreationException && beanName.equals(((BeanCreationException) ex).getBeanName())) {
        throw (BeanCreationException) ex;
    }
    else {
        throw new BeanCreationException(
            mbd.getResourceDescription(), beanName, "Initialization of bean failed", ex);
    }
}

依赖注入AbstractAutowireCapableBeanFactory#populateBean

//对bean进行属性注入
protected void populateBean(String beanName, RootBeanDefinition mbd, @Nullable BeanWrapper bw) {
     .....
       //获取所有属性
    PropertyValues pvs = (mbd.hasPropertyValues() ? mbd.getPropertyValues() : null);
   int resolvedAutowireMode = mbd.getResolvedAutowireMode();
   //自动装配
 if (resolvedAutowireMode == AUTOWIRE_BY_NAME || resolvedAutowireMode == AUTOWIRE_BY_TYPE) {
  MutablePropertyValues newPvs = new MutablePropertyValues(pvs);
  // Add property values based on autowire by name if applicable.
  if (resolvedAutowireMode == AUTOWIRE_BY_NAME) {
   autowireByName(beanName, mbd, bw, newPvs);
  }
  // Add property values based on autowire by type if applicable.
  if (resolvedAutowireMode == AUTOWIRE_BY_TYPE) {
   autowireByType(beanName, mbd, bw, newPvs);
  }
  pvs = newPvs;
 }

 boolean hasInstAwareBpps = hasInstantiationAwareBeanPostProcessors();

 //是否需要检查依赖
    boolean needsDepCheck = (mbd.getDependencyCheck() != AbstractBeanDefinition.DEPENDENCY_CHECK_NONE);
 PropertyDescriptor[] filteredPds = null;
 if (hasInstAwareBpps) {
  if (pvs == null) {
   pvs = mbd.getPropertyValues();
  }
  for (BeanPostProcessor bp : getBeanPostProcessors()) {
   if (bp instanceof InstantiationAwareBeanPostProcessor) {
    InstantiationAwareBeanPostProcessor ibp = (InstantiationAwareBeanPostProcessor) bp;

    PropertyValues pvsToUse = ibp.postProcessProperties(pvs, bw.getWrappedInstance(), beanName);
    if (pvsToUse == null) {
     if (filteredPds == null) {
      filteredPds = filterPropertyDescriptorsForDependencyCheck(bw, mbd.allowCaching);
     }
                       //!!! @Autowrite 注解形式的注入 我们重点看这里!
                       //不要问为什么走这里 断点跟到这里的
                       //走这个类 AutowiredAnnotationBeanPostProcessor
     pvsToUse = ibp.postProcessPropertyValues(pvs, filteredPds, bw.getWrappedInstance(), beanName);
     if (pvsToUse == null) {
      return;
     }
    }
    pvs = pvsToUse;
   }
  }
 }
 if (needsDepCheck) {
  if (filteredPds == null) {
   filteredPds = filterPropertyDescriptorsForDependencyCheck(bw, mbd.allowCaching);
  }
  checkDependencies(beanName, mbd, filteredPds, pvs);
 }

 if (pvs != null) {
           //xml属性注入走这里 不多解释
  applyPropertyValues(beanName, mbd, bw, pvs);
 }
}

接下来到AutowiredAnnotationBeanPostProcessor#postProcessPropertyValues -> postProcessProperties里面

public PropertyValues postProcessProperties(PropertyValues pvs, Object bean, String beanName) {
      //注入关系获取
 InjectionMetadata metadata = findAutowiringMetadata(beanName, bean.getClass(), pvs);
 try {
          //进行注入
  metadata.inject(bean, beanName, pvs);
 }
 ......
 return pvs;
}

接下来到InjectionMetadata.inject -> AutowiredAnnotationBeanPostProcessor的内部类AutowiredFieldElement.inject

@Override
protected void inject(Object bean, @Nullable String beanName, @Nullable PropertyValues pvs) throws Throwable {
 Field field = (Field) this.member;
 Object value;
 if (this.cached) {
  try {
   //实例化依赖的bean,该方法下面有用反射注入 我们接下来看这个
   value = resolvedCachedArgument(beanName, this.cachedFieldValue);
  }
  catch (NoSuchBeanDefinitionException ex) {
   // Unexpected removal of target bean for cached argument -> re-resolve
   value = resolveFieldValue(field, bean, beanName);
  }
 }
 else {
  value = resolveFieldValue(field, bean, beanName);
 }
 //如果依赖的对象不为空 用反射设值
 if (value != null) {
  ReflectionUtils.makeAccessible(field);
  field.set(bean, value);
 }
}


@Nullable
private Object resolvedCachedArgument(@Nullable String beanName, @Nullable Object cachedArgument) {
 if (cachedArgument instanceof DependencyDescriptor) {
  DependencyDescriptor descriptor = (DependencyDescriptor) cachedArgument;
  Assert.state(this.beanFactory != null, "No BeanFactory available");
  //这里的beanFactory还记得吧 DefaultListableBeanFactory
  return this.beanFactory.resolveDependency(descriptor, beanName, null, null);
 }
 else {
  return cachedArgument;
 }
}

接下来到DefaultListableBeanFactory#resolveDependency -> doResolveDependency

// doResolveDependency 下找到这里
//如果是Class
if (instanceCandidate instanceof Class) {
    //DependencyDescriptor.resolveCandidate
 instanceCandidate = descriptor.resolveCandidate(autowiredBeanName, type, this);
}

//DependencyDescriptor#resolveCandidate
//接下来就能看到神奇的一幕了
public Object resolveCandidate(String beanName, Class<?> requiredType, BeanFactory beanFactory)
 throws BeansException {
 //getBean !!!
 return beanFactory.getBean(beanName);
}

这里在细说下AbstractAutowireCapableBeanFactory#doCreateBean中的factoryBeanInstanceCache Map是什么时候存储进去的

 //beanName -> 工厂类的封装 BeanWrapper
 private final ConcurrentMap<String, BeanWrapper> factoryBeanInstanceCache = new ConcurrentHashMap<>();

先看这个接口，继承ApplicationContextAware获取到ApplicationContext容器里的方法

//applicationContext中的顶级接口BeanFactory中的方法
Class<?> getType(String name) throws NoSuchBeanDefinitionException;
//实现类在AbstractApplicationContext类中
public Class<?> getType(String name) throws NoSuchBeanDefinitionException {
 assertBeanFactoryActive();
 return getBeanFactory().getType(name);
}

//接下来到AbstractBeanFactory#getType 记住第二个参数allowFactoryBeanInit
public Class<?> getType(String name) throws NoSuchBeanDefinitionException {
 return getType(name, true);
}

一直往下到AbstractBeanFactory#getType

public Class<?> getType(String name, boolean allowFactoryBeanInit) throws NoSuchBeanDefinitionException {
 //获取beanName
 String beanName = transformedBeanName(name);

 // Check manually registered singletons.
 //是否已经存在单例缓存map中了singletonObjects
 Object beanInstance = getSingleton(beanName, false);
 //Nullbean.class的
 if (beanInstance != null && beanInstance.getClass() != NullBean.class) {
  if (beanInstance instanceof FactoryBean && !BeanFactoryUtils.isFactoryDereference(name)) {
   return getTypeForFactoryBean((FactoryBean<?>) beanInstance);
  }
  else {
   return beanInstance.getClass();
  }
 }

 // No singleton instance found -> check bean definition.
 BeanFactory parentBeanFactory = getParentBeanFactory();
 //没有被容器扫描到的
 if (parentBeanFactory != null && !containsBeanDefinition(beanName)) {
  // No bean definition found in this factory -> delegate to parent.
  return parentBeanFactory.getType(originalBeanName(name));
 }

 RootBeanDefinition mbd = getMergedLocalBeanDefinition(beanName);

 // Check decorated bean definition, if any: We assume it'll be easier
 // to determine the decorated bean's type than the proxy's type.
 BeanDefinitionHolder dbd = mbd.getDecoratedDefinition();
 //beanName是不是以 ‘&’ 开头的
 if (dbd != null && !BeanFactoryUtils.isFactoryDereference(name)) {
  RootBeanDefinition tbd = getMergedBeanDefinition(dbd.getBeanName(), dbd.getBeanDefinition(), mbd);
  Class<?> targetClass = predictBeanType(dbd.getBeanName(), tbd);
  if (targetClass != null && !FactoryBean.class.isAssignableFrom(targetClass)) {
   return targetClass;
  }
 }

 Class<?> beanClass = predictBeanType(beanName, mbd);

 // Check bean class whether we're dealing with a FactoryBean.
 //最后判断是否是实现了FactoryBean的 但是不是&开头的
 if (beanClass != null && FactoryBean.class.isAssignableFrom(beanClass)) {
  if (!BeanFactoryUtils.isFactoryDereference(name)) {
   // If it's a FactoryBean, we want to look at what it creates, not at the factory class.
   //接下来走这里
   return getTypeForFactoryBean(beanName, mbd, allowFactoryBeanInit).resolve();
  }
  else {
   return beanClass;
  }
 }
 else {
  return (!BeanFactoryUtils.isFactoryDereference(name) ? beanClass : null);
 }
}

到AbstractAutowireCapableBeanFactory#getTypeForFactoryBean

//找到这段代码 还记得前面第二个参数吧 传的true
if (allowInit) {
 FactoryBean<?> factoryBean = (mbd.isSingleton() ?
   //如果是单例就走这里
   getSingletonFactoryBeanForTypeCheck(beanName, mbd) :
   getNonSingletonFactoryBeanForTypeCheck(beanName, mbd));
 if (factoryBean != null) {
  // Try to obtain the FactoryBean's object type from this early stage of the instance.
  Class<?> type = getTypeForFactoryBean(factoryBean);
  if (type != null) {
   return ResolvableType.forClass(type);
  }
  // No type found for shortcut FactoryBean instance:
  // fall back to full creation of the FactoryBean instance.
  return super.getTypeForFactoryBean(beanName, mbd, true);
 }
}

getSingletonFactoryBeanForTypeCheck

private FactoryBean<?> getSingletonFactoryBeanForTypeCheck(String beanName, RootBeanDefinition mbd) {
 synchronized (getSingletonMutex()) {
  //从缓存map中取到了就直接返回
  BeanWrapper bw = this.factoryBeanInstanceCache.get(beanName);
  if (bw != null) {
   return (FactoryBean<?>) bw.getWrappedInstance();
  }
  //从单例map中取到就返回
  //取值时是factoryBeanInstanceCache优先于singletonObjects map
  //初始化时是singletonObjects map优先于factoryBeanInstanceCache
  //最终会保存到singletonObjects map
  Object beanInstance = getSingleton(beanName, false);
  if (beanInstance instanceof FactoryBean) {
   return (FactoryBean<?>) beanInstance;
  }
  if (isSingletonCurrentlyInCreation(beanName) ||
    (mbd.getFactoryBeanName() != null && isSingletonCurrentlyInCreation(mbd.getFactoryBeanName()))) {
   return null;
  }

  Object instance;
  try {
   //创建单例前的回调
   beforeSingletonCreation(beanName);
   // Give BeanPostProcessors a chance to return a proxy instead of the target bean instance.
   instance = resolveBeforeInstantiation(beanName, mbd);
   if (instance == null) {
    //创建一个实例化对象
    bw = createBeanInstance(beanName, mbd, null);
    instance = bw.getWrappedInstance();
   }
  }
  catch (UnsatisfiedDependencyException ex) {
   // Don't swallow, probably misconfiguration...
   throw ex;
  }
  catch (BeanCreationException ex) {
   // Don't swallow a linkage error since it contains a full stacktrace on
   // first occurrence... and just a plain NoClassDefFoundError afterwards.
   if (ex.contains(LinkageError.class)) {
    throw ex;
   }
   // Instantiation failure, maybe too early...
   if (logger.isDebugEnabled()) {
    logger.debug("Bean creation exception on singleton FactoryBean type check: " + ex);
   }
   onSuppressedException(ex);
   return null;
  }
  finally {
   // Finished partial creation of this bean.
   //完成实例化后的回调
   afterSingletonCreation(beanName);
  }

  FactoryBean<?> fb = getFactoryBean(beanName, instance);
  if (bw != null) {
   //保存到BeanWrapper缓存map中
   this.factoryBeanInstanceCache.put(beanName, bw);
  }
  return fb;
 }
}

4 本文中的比较关注的成员变量

 //保存beanName的list 可以用此beanName取出对应的class BeanDefinition信息
 private volatile List<String> beanDefinitionNames = new ArrayList<>(256);
 //beanName -> BeanWrapper对象
 private final ConcurrentMap<String, BeanWrapper> factoryBeanInstanceCache = new ConcurrentHashMap<>();
 //beanName -> 实例化对象
 private final Map<String, Object> singletonObjects = new ConcurrentHashMap<>(256);

5 DI依赖注入总结

AbstractApplicationContext##refresh()下的finishBeanFactoryInitialization()#beanFactory.preInstantiateSingletons()中通过遍历beanDefinitionNames调用getBean()实例化对象，让代码解耦统一走getBean()更加的规范，完美解决循环依赖(程序初始化遍历一次，自己调用一次)
从上面代码看到依赖注入就如同递归，A依赖B，B依赖C，加载A的时候会去实例化B，实例化B的时候会去实例化C，直到最后没有依赖才算完结
通过Filed反射调用的方式进行注入

注入有没有你想象的那么高级？哈哈，反正我一开始是没想到会是这种方式的。下篇分析AOP切面源码，分析前一定要先看懂动态代理

以上就是本章的全部内容了。

上一篇：Spring源码分析第一弹 - IOC控制反转下一篇：Spring源码分析第三弹 - AOP切面编程分析

云想衣裳花想容，春风拂槛露华浓

Spring源码分析第二弹 - DI 依赖注入分析
