一、硬件环境介绍
单片机: STM32F103C8T6
RTC时钟来源: 使用STM32内部RTC定时器得到时间。
显示屏： 中景园0.96寸 SPI接口的OLED显示屏
编程软件： keil5
OLED就是有机发光二极管OLED 由于同时具备自发光，不需背光源、对比度高、厚度薄、视角广、反应速度快、可用于挠曲性面板、使用温度范围广、 构造及制程较简单等优异之 特性，被认为是下一代的平面显示器新兴应用技术。
LCD显示屏都需要背光，而OLED不需要，因为它是自发光的。这样同样的显示 OLED 效果要来得好一些。以目前的技术， OLED 的尺寸还难以大型化，但是分辨率确可以做到很高。

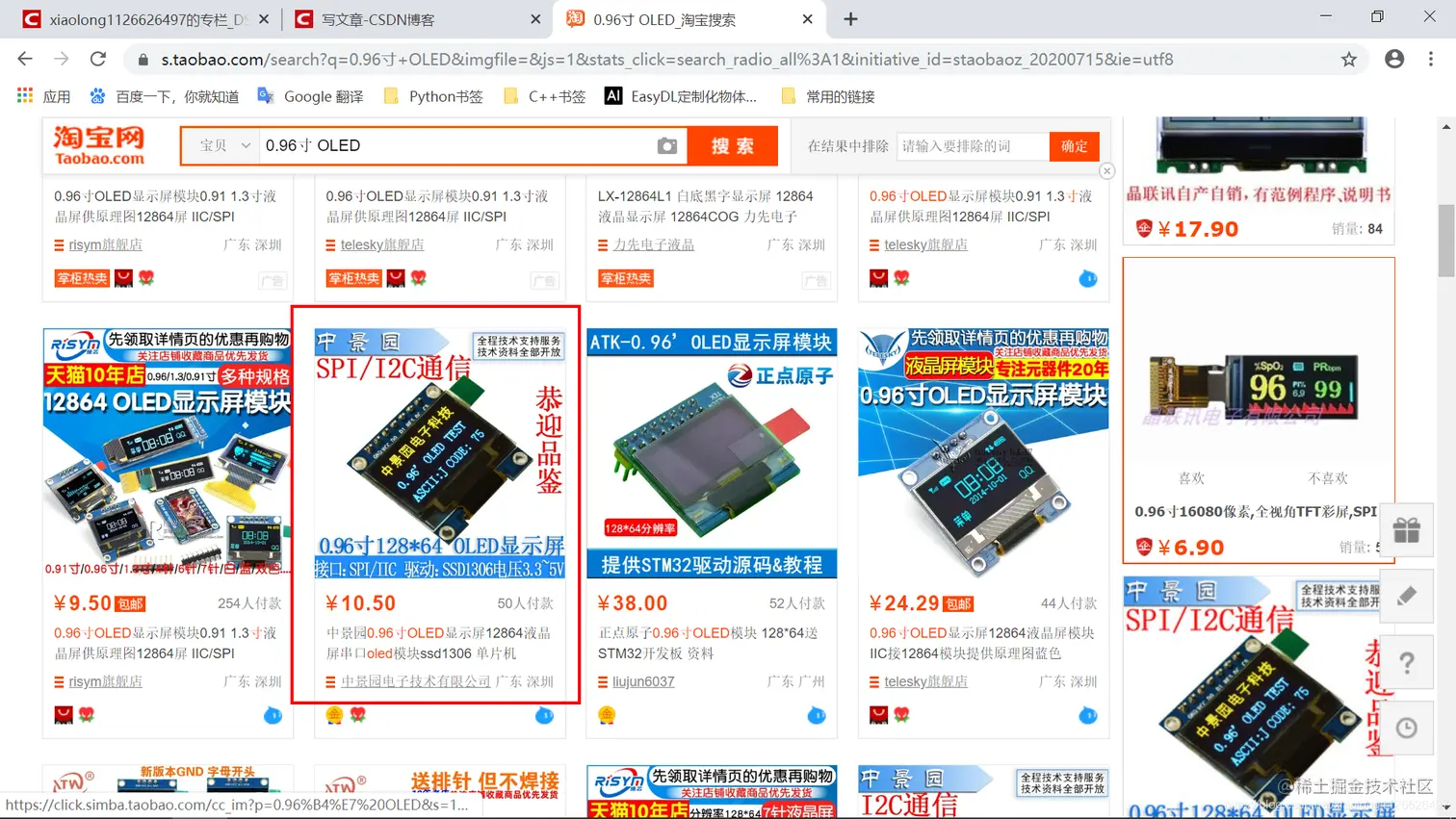

当前使用的是中景园电子的 0.96寸 OLED 显示屏，该屏有以下特点：
（1）0.96 寸 OLED 有黄蓝，白，蓝三种颜色可选；其中黄蓝是屏上 1/4 部分为黄光，下 3/4 为蓝；而且是固定区域显示固定颜色，颜色和显示区域均不能修改；白光则为纯白，也就是黑底白字； 蓝色则为纯蓝，也就是黑底蓝字。
（2）分辨率为 128*64
（3）多种接口方式； OLED 裸屏总共种接口包括： 6800、 8080 两种并行接口方式、 3 线或 4 线的串行SPI 接口方式、 IIC 接口方式（只需要 2 根线就可以控制 OLED 了！），这五种接口是通过屏上的 BS0~BS2来配置的。
（4）OLED 屏开发了两种接口的 Demo 板，接口分别为七针的 SPI/IIC 兼容模块，四针的 IIC 模块。
这块屏所用的驱动 IC 为 SSD1306；其具有内部升压功能； 所以在设计的时候不需要再专一设计升压电路；当然了本屏也可以选用外部升压，具体的请详查数据手册。
SSD1306的每页包含了 128 个字节，总共 8 页，这样刚好是 128*64 的点阵大小。这点与 1.3 寸 OLED驱动 IC SSD1106 稍有不同， SSD1106 每页是 132 个字节，也是 8 页。所以在用 0.96 寸 OLED 移植 1.3 寸OLED 程序的时候需要将 0.96 寸的显示地址向右偏移 2，这样显示就正常了；否则在用 1.3 寸的时候 1.3 寸屏右边会有 4 个像素点宽度显示不正常或是全白。其它的 SSD1306 和 SSD1106 区别不大。
二、实现效果图与代码技术部分介绍

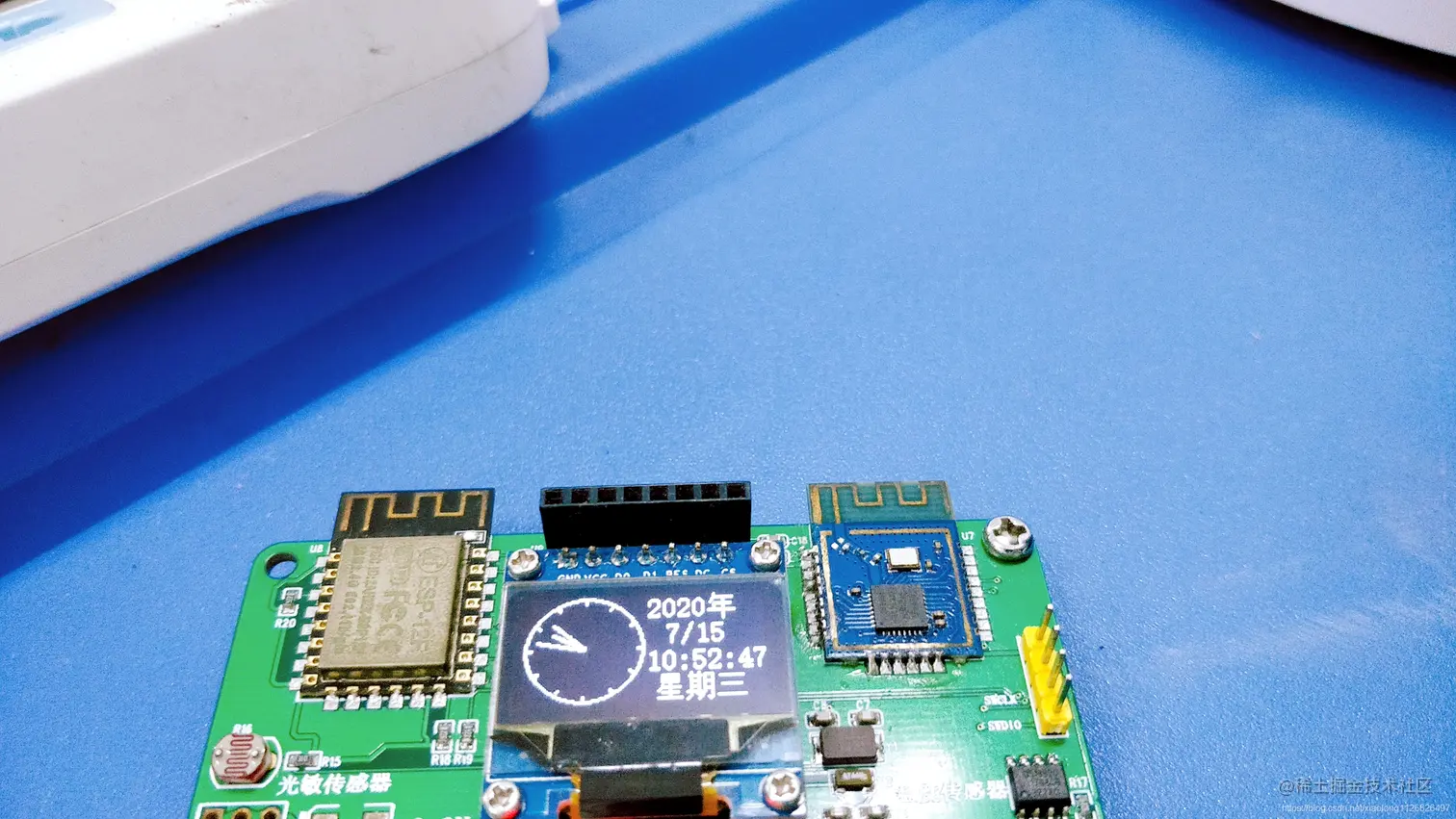

2.1 实现的效果图
2.2 代码技术部分介绍
核心代码内容里分为以下几个部分：
\1. RTC时钟代码部分：该电子钟使用的是STM32内部RTC实时时钟，需要编写RTC初始化代码。
\2. 电子钟界面逻辑代码部分：电子钟的界面仪表盘画面更新是在RTC秒中断里调用，实现时间指针的更新。
\3. OLED驱动代码部分：编写OLED驱动代码，编写常用的OLED接口函数，比如：字符串显示，画点，划线等。
OLED在程序的驱动方式采用显存的方式驱动，定义一个显存数组，程序里的所有逻辑代码先绘制在显存数组里，然后再刷新到OLED显示屏上。
三、核心代码
3.1 OLED显示屏驱动代码
(1). oled.c
完整工程源码下载地址:
https://download.csdn.net/download/xiaolong1126626497/15804479
#include "oled.h"
/*
函数功能: 初始化OLED显示屏硬件
硬件连接:
D0--PB14--时钟线
D1--PB13--数据线
RES-PB12-复位脚
DC--PB1--命令数据选择脚
CS--PA7--片选
*/
void OLED_Init(void)
{
/*1. 开时钟*/
RCC->APB2ENR|=1<<2; //PA
RCC->APB2ENR|=1<<3; //PB
/*2. 配置GPIO口模式*/
GPIOB->CRL&=0xFFFFFF0F;
GPIOB->CRL|=0x00000030;
GPIOB->CRH&=0xF000FFFF;
GPIOB->CRH|=0x03330000;
GPIOA->CRL&=0x0FFFFFFF;
GPIOA->CRL|=0x30000000;
/*配置默认电平*/
OLED_CS=1;
OLED_SCK=1;
/*OLED显示屏驱动代码*/
OLED_RES=1;
delay_ms(1000);
OLED_RES=0;
delay_ms(1000);
OLED_RES=1;
delay_ms(1000);
OLED_SPI_WriteOneByte(0xAE,OLED_WRITE_CMD);
OLED_SPI_WriteOneByte(0x00,OLED_WRITE_CMD);
OLED_SPI_WriteOneByte(0x10,OLED_WRITE_CMD);
OLED_SPI_WriteOneByte(0x40,OLED_WRITE_CMD);
OLED_SPI_WriteOneByte(0xB0,OLED_WRITE_CMD);
OLED_SPI_WriteOneByte(0x81,OLED_WRITE_CMD);
OLED_SPI_WriteOneByte(0xCF,OLED_WRITE_CMD);
OLED_SPI_WriteOneByte(0xA1,OLED_WRITE_CMD);
OLED_SPI_WriteOneByte(0xA6,OLED_WRITE_CMD);
OLED_SPI_WriteOneByte(0xA8,OLED_WRITE_CMD);
OLED_SPI_WriteOneByte(0x3F,OLED_WRITE_CMD);
OLED_SPI_WriteOneByte(0xC8,OLED_WRITE_CMD);
OLED_SPI_WriteOneByte(0xD3,OLED_WRITE_CMD);
OLED_SPI_WriteOneByte(0x00,OLED_WRITE_CMD);
OLED_SPI_WriteOneByte(0xD5,OLED_WRITE_CMD);
OLED_SPI_WriteOneByte(0x80,OLED_WRITE_CMD);
OLED_SPI_WriteOneByte(0xD9,OLED_WRITE_CMD);
OLED_SPI_WriteOneByte(0xF1,OLED_WRITE_CMD);
OLED_SPI_WriteOneByte(0xDA,OLED_WRITE_CMD);
OLED_SPI_WriteOneByte(0x12,OLED_WRITE_CMD);
OLED_SPI_WriteOneByte(0xDB,OLED_WRITE_CMD);
OLED_SPI_WriteOneByte(0x30,OLED_WRITE_CMD);
OLED_SPI_WriteOneByte(0x8D,OLED_WRITE_CMD);
OLED_SPI_WriteOneByte(0x14,OLED_WRITE_CMD);
OLED_SPI_WriteOneByte(0xAF,OLED_WRITE_CMD);
}
/*
函数功能: SPI底层发送一个字节的函数
函数参数:data 表示发送的数据 flag表示发送命令还是数据(0表示命令 1表示数据)
*/
void OLED_SPI_WriteOneByte(u8 data,u8 flag)
{
u8 i;
OLED_DC=flag; //区分发送数据还是命令
OLED_CS=0; //选中OLED显示屏
for(i=0;i<8;i++)
{
OLED_SCK=0; //表示发送数据
if(data&0x80) //先发高位
{
OLED_MOSI=1;
}
else
{
OLED_MOSI=0;
}
data<<=1;
OLED_SCK=1; //表示发送完毕
}
OLED_CS=1; //取消选中OLED显示屏
}
/*
函数功能: OLED清屏函数
函数参数: data=0xFF 表示全亮 data=0x00 表示全灭
*/
void OLED_Clear(u8 data)
{
memset(OLED_GRAM,data,sizeof(OLED_GRAM));
}
/*
函数功能: 设置光标的位置
函数参数:
u8 x 横向坐标--列地址(0~127)
u8 y 纵坐标--页地址(0~7)
*/
void OLED_SetPos(u8 x,u8 y)
{
OLED_SPI_WriteOneByte(0xB0+y,OLED_WRITE_CMD); //设置页地址
OLED_SPI_WriteOneByte(((x&0xF0)>>4)|0x10,OLED_WRITE_CMD); //设置上列地址
OLED_SPI_WriteOneByte((x&0x0F)|0x00,OLED_WRITE_CMD); //设置下列地址
}
/*
函数功能: 显示数据---取模
取模方式：横向取模
*/
void OLED_DisplayData(u8 x,u8 y,u8 w,u8 h,u8 *p)
{
u8 i,j,data;
u8 x0=x;
for(i=0;i<w/8*h;i++)
{
data=p[i];
for(j=0;j<8;j++)
{
if(data&0x80)
{
OLED_DisplayPoint(x0,y,1); //画前景色--开灯
}
else
{
OLED_DisplayPoint(x0,y,0); //画背景色--关灯
}
x0++;
data<<=1;
}
//可以换行
if(x0-x==w)
{
x0=x; //横坐标归位
y++; //换行
}
}
}
u8 OLED_GRAM[8][128]; //8行128列---->8页128列
/*
函数功能: 画点函数
函数参数:
u8 x 横坐标 0~127
u8 y 纵坐标 0~63
u8 c 显示值(0灭 1亮)
*/
void OLED_DisplayPoint(u8 x,u8 y,u8 c)
{
u8 page=y/8;//0~7
y=y%8;
if(c)
{
OLED_GRAM[page][x]|=1<<y;
}
else
{
OLED_GRAM[page][x]&=~(1<<y);
}
}
/*
函数功能: OLED显示屏数据写函数
将显存数组里的所有数据写到OLED显示屏
*/
void OLED_WriteGRAM(void)
{
u8 i,j;
for(i=0;i<8;i++)
{
OLED_SPI_WriteOneByte(0xB0+i,OLED_WRITE_CMD); //设置页地址
OLED_SPI_WriteOneByte(0x10,OLED_WRITE_CMD); //设置上列地址
OLED_SPI_WriteOneByte(0x00,OLED_WRITE_CMD); //设置下列地址
for(j=0;j<128;j++)
{
OLED_SPI_WriteOneByte(OLED_GRAM[i][j],OLED_WRITE_DAT);
}
}
}
/*---------------------------以下是显示屏相关的图形绘制算法--------------------------------------------*/
/*
函数功能：画直线
参 数：
x1,y1:起点坐标
x2,y2:终点坐标
*/
void OLED_DrawLine(u16 x1, u16 y1, u16 x2, u16 y2)
{
u16 t;
int xerr=0,yerr=0,delta_x,delta_y,distance;
int incx,incy,uRow,uCol;
delta_x=x2-x1; //计算坐标增量
delta_y=y2-y1;
uRow=x1;
uCol=y1;
if(delta_x>0)incx=1; //设置单步方向
else if(delta_x==0)incx=0;//垂直线
else {incx=-1;delta_x=-delta_x;}
if(delta_y>0)incy=1;
else if(delta_y==0)incy=0;//水平线
else{incy=-1;delta_y=-delta_y;}
if( delta_x>delta_y)distance=delta_x; //选取基本增量坐标轴
else distance=delta_y;
for(t=0;t<=distance+1;t++ )//画线输出
{
OLED_DisplayPoint(uRow,uCol,1);//画点
xerr+=delta_x ;
yerr+=delta_y ;
if(xerr>distance)
{
xerr-=distance;
uRow+=incx;
}
if(yerr>distance)
{
yerr-=distance;
uCol+=incy;
}
}
}
/*
函数功能：任意角度画直线
参 数：
x,y:坐标
du :度数
len:半径
w :线段的长度
c :颜色值 0或者1
例如:OLED_DrawAngleLine(60,30,45,20,20,1);//角度画线
*/
#include <math.h>
void OLED_DrawAngleLine(u32 x,u32 y,float du,u32 len,u32 w,u8 c)
{
int i;
int x0,y0;
double k=du*(3.1415926535/180);
for(i=len-w;i<len;i++)
{
x0=cos(k)*i;
y0=sin(k)*i;
OLED_DisplayPoint(x+x0,y+y0,c);
}
}
/*
函数功能：任意角度画直线
参 数：
x,y:坐标
du :度数
len :线段的长度
c :颜色值 0或者1
例如:OLED_DrawAngleLine(60,30,45,20,20,1);//角度画线
*/
void OLED_DrawAngleLine2(u32 x,u32 y,int du,u32 len,u8 c)
{
int i;
int x0,y0;
double k=du*(3.1415926535L/180);
for(i=0;i<len;i++)
{
x0=cos(k)*i;
y0=sin(k)*i;
OLED_DisplayPoint(x+x0,y+y0,c);
}
}
/*
函数功能：画矩形
参 数：(x1,y1),(x2,y2):矩形的对角坐标
*/
void OLED_DrawRectangle(u16 x1, u16 y1, u16 x2, u16 y2)
{
OLED_DrawLine(x1,y1,x2,y1);
OLED_DrawLine(x1,y1,x1,y2);
OLED_DrawLine(x1,y2,x2,y2);
OLED_DrawLine(x2,y1,x2,y2);
}
/*
函数功能：在指定位置画一个指定大小的圆
参 数：
(x,y):中心点
r :半径
*/
void OLED_Circle(u16 x0,u16 y0,u8 r)
{
int a,b;
int di;
a=0;b=r;
di=3-(r<<1); //判断下个点位置的标志
while(a<=b)
{
OLED_DisplayPoint(x0+a,y0-b,1); //5
OLED_DisplayPoint(x0+b,y0-a,1); //0
OLED_DisplayPoint(x0+b,y0+a,1); //4
OLED_DisplayPoint(x0+a,y0+b,1); //6
OLED_DisplayPoint(x0-a,y0+b,1); //1
OLED_DisplayPoint(x0-b,y0+a,1);
OLED_DisplayPoint(x0-a,y0-b,1); //2
OLED_DisplayPoint(x0-b,y0-a,1); //7
a++;
if(di<0)di +=4*a+6; //Bresenham画圆算法
else
{
di+=10+4*(a-b);
b--;
}
}
}
/*
函数功能: 在指定位置显示一个中文
函数参数: x列的起始位置(0~127)
y页的起始位置(0~7)
size表示字体宽度
number表示要显示的第几个汉字(数组下标)
说明: 需要保证字体横向尺寸和纵向是8的倍数。
*/
void OLED_ShowChineseFont(u8 x,u8 y,u8 size,u8 number)
{
u8 i,j,x0=x;
u8 tmp;
for(i=0;i<size*size/8;i++)
{
if(size==16)tmp=ChineseFont_16_16[number][i];
else if(size==24)tmp=ChineseFont_24_24[number][i];
for(j=0;j<8;j++)
{
if(tmp&0x80)OLED_DisplayPoint(x,y,1);
else OLED_DisplayPoint(x,y,0);
x++;
tmp<<=1; //继续判断下一位
}
if(x-x0==size)
{
y++; //纵坐标自增
x=x0; //横坐标归位
}
}
OLED_WriteGRAM(); //将显存里的数据刷新到OLED显示屏
}
/*
函数功能: 在指定位置显示一个字符串
函数参数: x列的起始位置(0~127)
y页的起始位置(0~7)
h表示字体的高度(8*16,12*24 宽*高)
说明: 字模必须保证纵向是8的倍数
*/
void OLED_ShowString(u8 x,u8 y,u8 h,char *str)
{
u8 i,j;
u8 tmp;
u8 y0=y,x0=x;
while(*str!='\0')
{
for(i=0;i<(h/8)*(h/2);i++)
{
if(h==16)tmp=ASCII_8_16[*str-' '][i];
else if(h==24)tmp=ASCII_12_24[*str-' '][i];
for(j=0;j<8;j++)
{
if(tmp&0x80)OLED_DisplayPoint(x,y,1);
else OLED_DisplayPoint(x,y,0);
y++;
tmp<<=1; //继续判断下一位
}
if(y-y0==h)
{
x++; //横坐标自增
y=y0; //纵坐标归位
}
}
str++;//继续显示下一个字符串
y=y0; //纵坐标归位
if(x>=127) //判断横坐标有没有溢出
{
y0+=h;
y=y0;
x=x0; //如果填0，就是从新行0开始
}
}
OLED_WriteGRAM(); //将显存里的数据刷新到OLED显示屏
}
//取模16*16的中文字体 横向取模、高位在前
const u8 ChineseFont_16_16[][32]=
{
{0x00,0x00,0x00,0x00,0xFF,0xFE,0x04,0x00,0x04,0x00,0x04,0x00,0x07,0xF0,0x04,0x10,0x04,0x10,0x08,0x10,0x08,0x10,0x10,0x10,0x10,0x10,0x20,0x10,0x40,0xA0,0x80,0x40},/*"万",0*/
{0x08,0x00,0x08,0x7C,0x08,0x44,0xFF,0x48,0x08,0x48,0x08,0x50,0x7E,0x48,0x08,0x48,0x08,0x44,0xFF,0x44,0x08,0x44,0x10,0x68,0x10,0x50,0x20,0x40,0x40,0x40,0x80,0x40},/*"邦",1*/
{0x0F,0xF0,0x08,0x10,0x08,0x10,0x0F,0xF0,0x08,0x10,0x08,0x10,0x0F,0xF0,0x04,0x00,0x08,0x00,0x1F,0xFC,0x22,0x44,0x42,0x44,0x04,0x84,0x08,0x84,0x11,0x28,0x02,0x10},/*"易",2*/
{0x01,0x00,0x21,0x08,0x21,0x08,0x3F,0xF8,0x00,0x20,0x22,0x20,0x22,0x3E,0xFF,0x42,0x22,0x94,0x22,0x10,0x3E,0x10,0x22,0x10,0x22,0x28,0x3E,0x28,0x22,0x44,0x00,0x82},/*"嵌",3*/
{0x10,0x00,0x10,0x00,0x1F,0xFC,0x20,0x80,0x20,0x80,0x40,0x80,0x1F,0xF8,0x10,0x80,0x10,0x80,0x10,0x80,0xFF,0xFE,0x00,0x80,0x00,0x80,0x00,0x80,0x00,0x80,0x00,0x80},/*"年",0*/
{0x00,0x00,0x1F,0xF0,0x10,0x10,0x1F,0xF0,0x10,0x10,0x1F,0xF0,0x01,0x00,0x11,0x00,0x1F,0xF8,0x21,0x00,0x41,0x00,0x1F,0xF0,0x01,0x00,0x01,0x00,0x7F,0xFC,0x00,0x00},/*"星",0*/
{0x22,0x00,0x22,0x7C,0x7F,0x44,0x22,0x44,0x22,0x44,0x3E,0x7C,0x22,0x44,0x22,0x44,0x3E,0x44,0x22,0x7C,0x22,0x44,0xFF,0x44,0x04,0x84,0x22,0x84,0x41,0x14,0x82,0x08},/*"期",1*/
{0x00,0x00,0x1F,0xF0,0x10,0x10,0x10,0x10,0x10,0x10,0x10,0x10,0x10,0x10,0x1F,0xF0,0x10,0x10,0x10,0x10,0x10,0x10,0x10,0x10,0x10,0x10,0x10,0x10,0x1F,0xF0,0x10,0x10},/*"日",6*/
{0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0xFF,0xFE,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00},/*"一",0*/
{0x00,0x00,0x00,0x00,0x00,0x00,0x3F,0xF8,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0xFF,0xFE,0x00,0x00,0x00,0x00,0x00,0x00},/*"二",1*/
{0x00,0x00,0x00,0x00,0x7F,0xFC,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x3F,0xF8,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0xFF,0xFE,0x00,0x00,0x00,0x00},/*"三",2*/
{0x00,0x00,0x00,0x00,0x7F,0xFC,0x44,0x44,0x44,0x44,0x44,0x44,0x44,0x44,0x44,0x44,0x48,0x44,0x48,0x3C,0x50,0x04,0x60,0x04,0x40,0x04,0x7F,0xFC,0x40,0x04,0x00,0x00},/*"四",3*/
{0x00,0x00,0x7F,0xFC,0x02,0x00,0x02,0x00,0x02,0x00,0x02,0x00,0x3F,0xF0,0x04,0x10,0x04,0x10,0x04,0x10,0x04,0x10,0x08,0x10,0x08,0x10,0x08,0x10,0xFF,0xFE,0x00,0x00},/*"五",4*/
{0x02,0x00,0x01,0x00,0x00,0x80,0x00,0x80,0x00,0x00,0xFF,0xFE,0x00,0x00,0x00,0x00,0x04,0x40,0x04,0x20,0x08,0x10,0x08,0x08,0x10,0x08,0x20,0x04,0x40,0x04,0x00,0x00},/*"六",5*/
};
//取模24*24的中文字体 横向取模、高位在前
const u8 ChineseFont_24_24[][24*24/8]=
{
{0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x08,0x3F,0xFF,0xFC,0x00,0x60,0x00,0x00,0x60,0x00,0x00,0x60,0x00,0x00,0x60,0x00,0x00,0x7F,0xF0,0x00,0x60,0x30,0x00,0x40,0x30,0x00,0xC0,0x30,0x00,0xC0,0x30,0x00,0x80,0x20,0x01,0x80,0x20,0x01,0x00,0x20,0x03,0x00,0x20,0x02,0x00,0x60,0x04,0x00,0x60,0x08,0x07,0xE0,0x10,0x01,0xC0,0x20,0x01,0x00,0x00,0x00,0x00},/*"万",0*/
{0x00,0x00,0x00,0x01,0x00,0x00,0x01,0x02,0x00,0x01,0x03,0xFC,0x01,0x03,0x0C,0x3F,0xFF,0x08,0x01,0x03,0x08,0x01,0x03,0x10,0x01,0x13,0x10,0x3F,0xFB,0x20,0x01,0x03,0x20,0x01,0x03,0x20,0x01,0x03,0x10,0x01,0x03,0x08,0x7F,0xFF,0x0C,0x03,0x03,0x04,0x03,0x03,0x04,0x02,0x03,0x0C,0x06,0x03,0x3C,0x04,0x03,0x10,0x08,0x03,0x00,0x30,0x03,0x00,0x40,0x02,0x00,0x00,0x00,0x00},/*"邦",1*/
{0x00,0x00,0x00,0x00,0x00,0x00,0x03,0xFF,0xC0,0x03,0x00,0x40,0x03,0x00,0x40,0x03,0x00,0x40,0x03,0xFF,0xC0,0x03,0x00,0x40,0x03,0x00,0x40,0x03,0xFF,0xC0,0x03,0xC0,0x40,0x01,0x80,0x00,0x01,0xFF,0xF8,0x03,0x31,0x18,0x04,0x23,0x10,0x08,0x62,0x10,0x10,0xC6,0x10,0x01,0x84,0x10,0x02,0x0C,0x30,0x0C,0x18,0x20,0x00,0x62,0x20,0x01,0x81,0xE0,0x06,0x00,0x80,0x00,0x00,0x00},/*"易",2*/
{0x00,0x00,0x00,0x00,0x18,0x00,0x0C,0x10,0x30,0x08,0x10,0x30,0x08,0x10,0x30,0x0F,0xFF,0xF0,0x08,0x00,0x30,0x08,0x41,0x00,0x0C,0x61,0x00,0x08,0x43,0x00,0x7F,0xFB,0xFC,0x08,0x42,0x08,0x08,0x44,0x90,0x08,0x49,0x90,0x0F,0xC9,0x80,0x08,0x41,0x40,0x08,0x41,0x40,0x08,0x41,0x40,0x08,0x42,0x20,0x0F,0xC6,0x30,0x08,0x4C,0x18,0x08,0x50,0x0E,0x00,0x20,0x00,0x00,0x00,0x00},/*"嵌",3*/
};
/*
!"#$%&'()*+,-./0123456789:;<=>?@ABCDEFGHIJKLMNOPQRSTUVWXYZ[]^_`abcdefghijklmnopqrstuvwxyz{|}~
*/
// ASCII编码8*16英文字符 纵向取模、高位在前
const u8 ASCII_8_16[][16]=
{
{0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00},/*" ",0*/
{0x00,0x00,0x00,0x00,0x00,0x00,0x1F,0xCC,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00},/*"!",1*/
{0x00,0x00,0x08,0x00,0x30,0x00,0x40,0x00,0x08,0x00,0x30,0x00,0x40,0x00,0x00,0x00},/*""",2*/
{0x00,0x00,0x02,0x20,0x03,0xFC,0x1E,0x20,0x02,0x20,0x03,0xFC,0x1E,0x20,0x00,0x00},/*"#",3*/
{0x00,0x00,0x0E,0x18,0x11,0x04,0x11,0x04,0x3F,0xFF,0x10,0x84,0x0C,0x78,0x00,0x00},/*"$",4*/
{0x0F,0x00,0x10,0x8C,0x0F,0x30,0x01,0xC0,0x06,0x78,0x18,0x84,0x00,0x78,0x00,0x00},/*"%",5*/
{0x00,0x78,0x0F,0x84,0x10,0xC4,0x11,0x34,0x0E,0x98,0x00,0xE4,0x00,0x84,0x00,0x08},/*"&",6*/
{0x00,0x00,0x48,0x00,0x70,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00},/*"'",7*/
{0x00,0x00,0x00,0x00,0x00,0x00,0x07,0xE0,0x18,0x18,0x20,0x04,0x40,0x02,0x00,0x00},/*"(",8*/
{0x00,0x00,0x40,0x02,0x20,0x04,0x18,0x18,0x07,0xE0,0x00,0x00,0x00,0x00,0x00,0x00},/*")",9*/
{0x02,0x40,0x02,0x40,0x01,0x80,0x0F,0xF0,0x01,0x80,0x02,0x40,0x02,0x40,0x00,0x00},/*"*",10*/
{0x00,0x00,0x00,0x80,0x00,0x80,0x00,0x80,0x07,0xF0,0x00,0x80,0x00,0x80,0x00,0x80},/*"+",11*/
{0x00,0x00,0x00,0x09,0x00,0x0E,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00},/*",",12*/
{0x00,0x00,0x00,0x80,0x00,0x80,0x00,0x80,0x00,0x80,0x00,0x80,0x00,0x80,0x00,0x00},/*"-",13*/
{0x00,0x00,0x00,0x0C,0x00,0x0C,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00},/*".",14*/
{0x00,0x00,0x00,0x06,0x00,0x18,0x00,0xE0,0x03,0x00,0x1C,0x00,0x20,0x00,0x00,0x00},/*"/",15*/
{0x00,0x00,0x07,0xF0,0x08,0x08,0x10,0x04,0x10,0x04,0x08,0x08,0x07,0xF0,0x00,0x00},/*"0",16*/
{0x00,0x00,0x00,0x00,0x08,0x04,0x08,0x04,0x1F,0xFC,0x00,0x04,0x00,0x04,0x00,0x00},/*"1",17*/
{0x00,0x00,0x0E,0x0C,0x10,0x14,0x10,0x24,0x10,0x44,0x10,0x84,0x0F,0x0C,0x00,0x00},/*"2",18*/
{0x00,0x00,0x0C,0x18,0x10,0x04,0x10,0x84,0x10,0x84,0x11,0x44,0x0E,0x38,0x00,0x00},/*"3",19*/
{0x00,0x00,0x00,0x60,0x01,0xA0,0x02,0x24,0x0C,0x24,0x1F,0xFC,0x00,0x24,0x00,0x24},/*"4",20*/
{0x00,0x00,0x1F,0x98,0x11,0x04,0x11,0x04,0x11,0x04,0x10,0x88,0x10,0x70,0x00,0x00},/*"5",21*/
{0x00,0x00,0x07,0xF0,0x08,0x88,0x11,0x04,0x11,0x04,0x09,0x04,0x00,0xF8,0x00,0x00},/*"6",22*/
{0x00,0x00,0x18,0x00,0x10,0x00,0x10,0x7C,0x11,0x80,0x16,0x00,0x18,0x00,0x00,0x00},/*"7",23*/
{0x00,0x00,0x0E,0x38,0x11,0x44,0x10,0x84,0x10,0x84,0x11,0x44,0x0E,0x38,0x00,0x00},/*"8",24*/
{0x00,0x00,0x0F,0x80,0x10,0x48,0x10,0x44,0x10,0x44,0x08,0x88,0x07,0xF0,0x00,0x00},/*"9",25*/
{0x00,0x00,0x00,0x00,0x00,0x00,0x03,0x0C,0x03,0x0C,0x00,0x00,0x00,0x00,0x00,0x00},/*":",26*/
{0x00,0x00,0x00,0x00,0x00,0x00,0x01,0x07,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00},/*";",27*/
{0x00,0x00,0x00,0x80,0x01,0x40,0x02,0x20,0x04,0x10,0x08,0x08,0x10,0x04,0x00,0x00},/*"<",28*/
{0x00,0x00,0x02,0x40,0x02,0x40,0x02,0x40,0x02,0x40,0x02,0x40,0x02,0x40,0x00,0x00},/*"=",29*/
{0x00,0x00,0x10,0x04,0x08,0x08,0x04,0x10,0x02,0x20,0x01,0x40,0x00,0x80,0x00,0x00},/*">",30*/
{0x00,0x00,0x0E,0x00,0x12,0x00,0x10,0x0C,0x10,0xEC,0x11,0x00,0x0E,0x00,0x00,0x00},/*"?",31*/
{0x03,0xE0,0x0C,0x18,0x13,0xE4,0x14,0x14,0x17,0xF4,0x08,0x14,0x07,0xE8,0x00,0x00},/*"@",32*/
{0x00,0x04,0x00,0x3C,0x03,0xC4,0x1C,0x40,0x07,0x40,0x00,0xE4,0x00,0x1C,0x00,0x04},/*"A",33*/
{0x10,0x04,0x1F,0xFC,0x11,0x04,0x11,0x04,0x11,0x04,0x0E,0x88,0x00,0x70,0x00,0x00},/*"B",34*/
{0x03,0xE0,0x0C,0x18,0x10,0x04,0x10,0x04,0x10,0x04,0x10,0x08,0x1C,0x10,0x00,0x00},/*"C",35*/
{0x10,0x04,0x1F,0xFC,0x10,0x04,0x10,0x04,0x10,0x04,0x08,0x08,0x07,0xF0,0x00,0x00},/*"D",36*/
{0x10,0x04,0x1F,0xFC,0x11,0x04,0x11,0x04,0x17,0xC4,0x10,0x04,0x08,0x18,0x00,0x00},/*"E",37*/
{0x10,0x04,0x1F,0xFC,0x11,0x04,0x11,0x00,0x17,0xC0,0x10,0x00,0x08,0x00,0x00,0x00},/*"F",38*/
{0x03,0xE0,0x0C,0x18,0x10,0x04,0x10,0x04,0x10,0x44,0x1C,0x78,0x00,0x40,0x00,0x00},/*"G",39*/
{0x10,0x04,0x1F,0xFC,0x10,0x84,0x00,0x80,0x00,0x80,0x10,0x84,0x1F,0xFC,0x10,0x04},/*"H",40*/
{0x00,0x00,0x10,0x04,0x10,0x04,0x1F,0xFC,0x10,0x04,0x10,0x04,0x00,0x00,0x00,0x00},/*"I",41*/
{0x00,0x03,0x00,0x01,0x10,0x01,0x10,0x01,0x1F,0xFE,0x10,0x00,0x10,0x00,0x00,0x00},/*"J",42*/
{0x10,0x04,0x1F,0xFC,0x11,0x04,0x03,0x80,0x14,0x64,0x18,0x1C,0x10,0x04,0x00,0x00},/*"K",43*/
{0x10,0x04,0x1F,0xFC,0x10,0x04,0x00,0x04,0x00,0x04,0x00,0x04,0x00,0x0C,0x00,0x00},/*"L",44*/
{0x10,0x04,0x1F,0xFC,0x1F,0x80,0x00,0x7C,0x1F,0x80,0x1F,0xFC,0x10,0x04,0x00,0x00},/*"M",45*/
{0x10,0x04,0x1F,0xFC,0x0C,0x04,0x03,0x00,0x00,0xE0,0x10,0x18,0x1F,0xFC,0x10,0x00},/*"N",46*/
{0x07,0xF0,0x08,0x08,0x10,0x04,0x10,0x04,0x10,0x04,0x08,0x08,0x07,0xF0,0x00,0x00},/*"O",47*/
{0x10,0x04,0x1F,0xFC,0x10,0x84,0x10,0x80,0x10,0x80,0x10,0x80,0x0F,0x00,0x00,0x00},/*"P",48*/
{0x07,0xF0,0x08,0x08,0x10,0x14,0x10,0x14,0x10,0x0C,0x08,0x0A,0x07,0xF2,0x00,0x00},/*"Q",49*/
{0x10,0x04,0x1F,0xFC,0x11,0x04,0x11,0x00,0x11,0xC0,0x11,0x30,0x0E,0x0C,0x00,0x04},/*"R",50*/
{0x00,0x00,0x0E,0x1C,0x11,0x04,0x10,0x84,0x10,0x84,0x10,0x44,0x1C,0x38,0x00,0x00},/*"S",51*/
{0x18,0x00,0x10,0x00,0x10,0x04,0x1F,0xFC,0x10,0x04,0x10,0x00,0x18,0x00,0x00,0x00},/*"T",52*/
{0x10,0x00,0x1F,0xF8,0x10,0x04,0x00,0x04,0x00,0x04,0x10,0x04,0x1F,0xF8,0x10,0x00},/*"U",53*/
{0x10,0x00,0x1E,0x00,0x11,0xE0,0x00,0x1C,0x00,0x70,0x13,0x80,0x1C,0x00,0x10,0x00},/*"V",54*/
{0x10,0x00,0x1F,0xC0,0x00,0x7C,0x1F,0x80,0x00,0x7C,0x1F,0xC0,0x10,0x00,0x00,0x00},/*"W",55*/
{0x10,0x04,0x18,0x0C,0x16,0x34,0x01,0xC0,0x01,0xC0,0x16,0x34,0x18,0x0C,0x10,0x04},/*"X",56*/
{0x10,0x00,0x1C,0x00,0x13,0x04,0x00,0xFC,0x13,0x04,0x1C,0x00,0x10,0x00,0x00,0x00},/*"Y",57*/
{0x08,0x04,0x10,0x1C,0x10,0x64,0x10,0x84,0x13,0x04,0x1C,0x04,0x10,0x18,0x00,0x00},/*"Z",58*/
{0x00,0x00,0x00,0x00,0x00,0x00,0x7F,0xFE,0x40,0x02,0x40,0x02,0x40,0x02,0x00,0x00},/*"[",59*/
{0x00,0x00,0x20,0x00,0x1C,0x00,0x03,0x80,0x00,0x60,0x00,0x1C,0x00,0x03,0x00,0x00},/*"",60*/
{0x00,0x00,0x40,0x02,0x40,0x02,0x40,0x02,0x7F,0xFE,0x00,0x00,0x00,0x00,0x00,0x00},/*"]",61*/
{0x00,0x00,0x00,0x00,0x20,0x00,0x40,0x00,0x40,0x00,0x20,0x00,0x00,0x00,0x00,0x00},/*"^",62*/
{0x00,0x01,0x00,0x01,0x00,0x01,0x00,0x01,0x00,0x01,0x00,0x01,0x00,0x01,0x00,0x01},/*"_",63*/
{0x00,0x00,0x40,0x00,0x40,0x00,0x20,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00},/*"`",64*/
{0x00,0x00,0x00,0x98,0x01,0x24,0x01,0x24,0x01,0x48,0x00,0xFC,0x00,0x04,0x00,0x00},/*"a",65*/
{0x08,0x00,0x0F,0xFC,0x00,0x88,0x01,0x04,0x01,0x04,0x00,0x88,0x00,0x70,0x00,0x00},/*"b",66*/
{0x00,0x00,0x00,0x70,0x00,0x88,0x01,0x04,0x01,0x04,0x01,0x04,0x00,0x88,0x00,0x00},/*"c",67*/
{0x00,0x00,0x00,0xF8,0x01,0x04,0x01,0x04,0x01,0x04,0x09,0x08,0x0F,0xFC,0x00,0x04},/*"d",68*/
{0x00,0x00,0x00,0xF8,0x01,0x24,0x01,0x24,0x01,0x24,0x01,0x24,0x00,0xE8,0x00,0x00},/*"e",69*/
{0x00,0x00,0x01,0x04,0x01,0x04,0x07,0xFC,0x09,0x04,0x09,0x04,0x04,0x00,0x00,0x00},/*"f",70*/
{0x00,0x00,0x00,0xD6,0x01,0x29,0x01,0x29,0x01,0x29,0x01,0xC9,0x01,0x06,0x00,0x00},/*"g",71*/
{0x08,0x04,0x0F,0xFC,0x00,0x84,0x01,0x00,0x01,0x00,0x01,0x04,0x00,0xFC,0x00,0x04},/*"h",72*/
{0x00,0x00,0x01,0x04,0x19,0x04,0x19,0xFC,0x00,0x04,0x00,0x04,0x00,0x00,0x00,0x00},/*"i",73*/
{0x00,0x00,0x00,0x03,0x00,0x01,0x01,0x01,0x19,0x01,0x19,0xFE,0x00,0x00,0x00,0x00},/*"j",74*/
{0x08,0x04,0x0F,0xFC,0x00,0x24,0x00,0x60,0x01,0x94,0x01,0x0C,0x01,0x04,0x00,0x00},/*"k",75*/
{0x00,0x00,0x08,0x04,0x08,0x04,0x1F,0xFC,0x00,0x04,0x00,0x04,0x00,0x00,0x00,0x00},/*"l",76*/
{0x01,0x04,0x01,0xFC,0x01,0x04,0x01,0x00,0x01,0xFC,0x01,0x04,0x01,0x00,0x00,0xFC},/*"m",77*/
{0x01,0x04,0x01,0xFC,0x00,0x84,0x01,0x00,0x01,0x00,0x01,0x04,0x00,0xFC,0x00,0x04},/*"n",78*/
{0x00,0x00,0x00,0xF8,0x01,0x04,0x01,0x04,0x01,0x04,0x01,0x04,0x00,0xF8,0x00,0x00},/*"o",79*/
{0x01,0x01,0x01,0xFF,0x00,0x89,0x01,0x04,0x01,0x04,0x00,0x88,0x00,0x70,0x00,0x00},/*"p",80*/
{0x00,0x00,0x00,0x70,0x00,0x88,0x01,0x04,0x01,0x04,0x00,0x89,0x01,0xFF,0x00,0x01},/*"q",81*/
{0x01,0x04,0x01,0x04,0x01,0xFC,0x00,0x84,0x01,0x04,0x01,0x00,0x01,0x80,0x00,0x00},/*"r",82*/
{0x00,0x00,0x00,0xCC,0x01,0x24,0x01,0x24,0x01,0x24,0x01,0x24,0x01,0x98,0x00,0x00},/*"s",83*/
{0x00,0x00,0x01,0x00,0x01,0x00,0x07,0xF8,0x01,0x04,0x01,0x04,0x00,0x08,0x00,0x00},/*"t",84*/
{0x01,0x00,0x01,0xF8,0x00,0x04,0x00,0x04,0x00,0x04,0x01,0x08,0x01,0xFC,0x00,0x04},/*"u",85*/
{0x01,0x00,0x01,0xC0,0x01,0x30,0x00,0x0C,0x01,0x30,0x01,0xC0,0x01,0x00,0x00,0x00},/*"v",86*/
{0x01,0x80,0x01,0x70,0x00,0x0C,0x01,0x30,0x01,0xE0,0x00,0x1C,0x01,0x60,0x01,0x80},/*"w",87*/
{0x00,0x00,0x01,0x04,0x01,0x8C,0x01,0x70,0x00,0x74,0x01,0x8C,0x01,0x04,0x00,0x00},/*"x",88*/
{0x01,0x00,0x01,0x81,0x01,0x61,0x00,0x1E,0x00,0x18,0x01,0x60,0x01,0x80,0x01,0x00},/*"y",89*/
{0x00,0x00,0x01,0x84,0x01,0x0C,0x01,0x34,0x01,0x44,0x01,0x84,0x01,0x0C,0x00,0x00},/*"z",90*/
{0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x80,0x3F,0x7C,0x40,0x02,0x40,0x02},/*"{",91*/
{0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0xFF,0xFF,0x00,0x00,0x00,0x00,0x00,0x00},/*"|",92*/
{0x40,0x02,0x40,0x02,0x3F,0x7C,0x00,0x80,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00},/*"}",93*/
{0x00,0x00,0x40,0x00,0x80,0x00,0x40,0x00,0x40,0x00,0x20,0x00,0x40,0x00,0x00,0x00},/*"~",94*/
};
//跑步图片1
const u8 bmp_foot_18_29_1[]=
{
// E:\教学&项目开发\教学\Cortex-M3 教学\STM32项目开发资料\05 OLED显示屏资料\软件工具\OLED屏幕_图片素材\取膜图片\OnFoot_2_1.bmp(0)
0x00,0x00,0x00,0x00,0x00,0x00,0xC0,0xE0,0xE0,0xF2,0xFF,0xFF,0xFF,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x01,0x03,0x07,0x06,0x7F,0xFF,0xFF,0xFF,0xFF,0x06,
0x00,0x00,0x00,0x00,0xF0,0x70,0x60,0x30,0x30,0x30,0x30,0x30,0x3E,0x3F,0x1F,0x07,0xFF,0xFE,0xF8,0x00,0x00,0x00,0x01,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x1B,0x1F,0x1C,0x10,0x10
};
//跑步图片2
const u8 bmp_foot_17_32_2[]=
{
0x00,0x00,0x00,0x00,0x00,0xC0,0xE0,0xF0,0xFF,0xFF,0xEF,0x0F,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x07,0xFF,0xFF,0xFF,0xFF,0xFF,0x0F,0x0C,0x0C,0x0C,0x0C,
0x0E,0x0C,0x00,0x00,0x00,0x00,0x80,0xFF,0xFF,0xFF,0xDF,0xDF,0xFE,0x7C,0x78,0x20,0x00,0x00,0x00,0x60,0xF0,0xFC,0x9E,0x87,0x1F,0x1F,0x01,0x01,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00
};
/*
尺寸: 12*24 ,纵向取模、高位在前
*/
const u8 ASCII_12_24[][12*3]=
{
{0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00},/*" ",0*/
{0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x0F,0xEE,0x38,0x0F,0xF0,0x38,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00},/*"!",1*/
{0x00,0x00,0x00,0x00,0x00,0x00,0x01,0x00,0x00,0x06,0x00,0x00,0x0C,0x00,0x00,0x38,0x00,0x00,0x31,0x00,0x00,0x06,0x00,0x00,0x0C,0x00,0x00,0x38,0x00,0x00,0x30,0x00,0x00,0x00,0x00,0x00},/*""",2*/
{0x00,0x00,0x00,0x00,0xC1,0x80,0x00,0xC1,0xF8,0x00,0xFF,0x80,0x0F,0xC1,0x80,0x00,0xC1,0x80,0x00,0xC1,0x80,0x00,0xC1,0x80,0x00,0xDF,0xF8,0x0F,0xE1,0x80,0x00,0xC1,0x80,0x00,0x00,0x00},/*"#",3*/
{0x00,0x00,0x00,0x00,0x00,0x00,0x01,0xC0,0xE0,0x03,0xE0,0xF0,0x06,0x30,0x48,0x04,0x18,0x08,0x1F,0xFF,0xFE,0x04,0x8E,0x08,0x07,0x87,0xF0,0x03,0x81,0xE0,0x00,0x00,0x00,0x00,0x00,0x00},/*"$",4*/
{0x03,0xE0,0x00,0x0C,0x18,0x00,0x08,0x08,0x18,0x0C,0x18,0xE0,0x03,0xF3,0x00,0x00,0x1C,0x00,0x00,0x63,0xE0,0x03,0x8C,0x18,0x0C,0x08,0x08,0x00,0x0C,0x18,0x00,0x03,0xE0,0x00,0x00,0x00},/*"%",5*/
{0x00,0x03,0xE0,0x00,0x07,0xF0,0x07,0xE8,0x18,0x0F,0xFC,0x08,0x08,0x1F,0x08,0x0F,0xE3,0xC8,0x07,0xC0,0xF0,0x00,0x10,0x70,0x00,0x1F,0x98,0x00,0x10,0x08,0x00,0x10,0x08,0x00,0x00,0x30},/*"&",6*/
{0x00,0x00,0x00,0x00,0x00,0x00,0x31,0x00,0x00,0x32,0x00,0x00,0x1C,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00},/*"'",7*/
{0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x7F,0x00,0x01,0x80,0xC0,0x06,0x00,0x30,0x08,0x00,0x08,0x10,0x00,0x04,0x20,0x00,0x02,0x00,0x00,0x00},/*"(",8*/
{0x00,0x00,0x00,0x20,0x00,0x02,0x10,0x00,0x04,0x08,0x00,0x08,0x06,0x00,0x30,0x01,0x80,0xC0,0x00,0x7F,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00},/*")",9*/
{0x00,0x00,0x00,0x00,0x66,0x00,0x00,0x66,0x00,0x00,0x24,0x00,0x00,0x1C,0x00,0x00,0x08,0x00,0x03,0xFF,0xC0,0x01,0x18,0x00,0x00,0x3C,0x00,0x00,0x24,0x00,0x00,0x66,0x00,0x00,0x66,0x00},/*"*",10*/
{0x00,0x00,0x00,0x00,0x08,0x00,0x00,0x08,0x00,0x00,0x08,0x00,0x00,0x08,0x00,0x00,0x08,0x00,0x01,0xFF,0xC0,0x00,0x08,0x00,0x00,0x08,0x00,0x00,0x08,0x00,0x00,0x08,0x00,0x00,0x08,0x00},/*"+",11*/
{0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x31,0x00,0x00,0x32,0x00,0x00,0x1C,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00},/*",",12*/
{0x00,0x00,0x00,0x00,0x08,0x00,0x00,0x08,0x00,0x00,0x08,0x00,0x00,0x08,0x00,0x00,0x08,0x00,0x00,0x08,0x00,0x00,0x08,0x00,0x00,0x08,0x00,0x00,0x08,0x00,0x00,0x08,0x00,0x00,0x00,0x00},/*"-",13*/
{0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x38,0x00,0x00,0x38,0x00,0x00,0x38,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00},/*".",14*/
{0x00,0x00,0x00,0x00,0x00,0x06,0x00,0x00,0x1C,0x00,0x00,0x70,0x00,0x01,0x80,0x00,0x0E,0x00,0x00,0x38,0x00,0x00,0xC0,0x00,0x07,0x00,0x00,0x1C,0x00,0x00,0x30,0x00,0x00,0x00,0x00,0x00},/*"/",15*/
{0x00,0x00,0x00,0x00,0x7F,0x80,0x01,0xFF,0xE0,0x03,0x80,0x70,0x06,0x00,0x18,0x04,0x00,0x08,0x04,0x00,0x08,0x06,0x00,0x18,0x03,0x80,0x70,0x01,0xFF,0xE0,0x00,0x7F,0x80,0x00,0x00,0x00},/*"0",16*/
{0x00,0x00,0x00,0x00,0x00,0x00,0x02,0x00,0x08,0x02,0x00,0x08,0x02,0x00,0x08,0x03,0xFF,0xF8,0x07,0xFF,0xF8,0x00,0x00,0x08,0x00,0x00,0x08,0x00,0x00,0x08,0x00,0x00,0x00,0x00,0x00,0x00},/*"1",17*/
{0x00,0x00,0x00,0x01,0xC0,0x18,0x02,0xC0,0x38,0x04,0x00,0x48,0x04,0x00,0x88,0x04,0x03,0x08,0x04,0x06,0x08,0x06,0x0C,0x08,0x03,0xF8,0x08,0x01,0xE0,0x78,0x00,0x00,0x00,0x00,0x00,0x00},/*"2",18*/
{0x00,0x00,0x00,0x03,0x80,0x70,0x03,0x80,0x70,0x04,0x00,0x08,0x04,0x08,0x08,0x04,0x08,0x08,0x06,0x18,0x08,0x03,0xF4,0x18,0x01,0xE7,0xF0,0x00,0x01,0xE0,0x00,0x00,0x00,0x00,0x00,0x00},/*"3",19*/
{0x00,0x00,0x00,0x00,0x03,0x00,0x00,0x05,0x00,0x00,0x19,0x00,0x00,0x21,0x00,0x00,0xC1,0x08,0x01,0x01,0x08,0x07,0xFF,0xF8,0x07,0xFF,0xF8,0x00,0x01,0x08,0x00,0x01,0x08,0x00,0x01,0x00},/*"4",20*/
{0x00,0x00,0x00,0x00,0x00,0xE0,0x07,0xFC,0xD0,0x04,0x08,0x08,0x04,0x10,0x08,0x04,0x10,0x08,0x04,0x10,0x08,0x04,0x18,0x38,0x04,0x0F,0xF0,0x04,0x07,0xC0,0x00,0x00,0x00,0x00,0x00,0x00},/*"5",21*/
{0x00,0x00,0x00,0x00,0x3F,0x80,0x01,0xFF,0xE0,0x03,0x84,0x30,0x02,0x08,0x18,0x04,0x10,0x08,0x04,0x10,0x08,0x04,0x10,0x08,0x07,0x18,0x10,0x03,0x0F,0xF0,0x00,0x07,0xC0,0x00,0x00,0x00},/*"6",22*/
{0x00,0x00,0x00,0x00,0x00,0x00,0x03,0x80,0x00,0x06,0x00,0x00,0x04,0x00,0x00,0x04,0x00,0xF8,0x04,0x07,0xF8,0x04,0x18,0x00,0x04,0xE0,0x00,0x07,0x00,0x00,0x06,0x00,0x00,0x00,0x00,0x00},/*"7",23*/
{0x00,0x00,0x00,0x01,0xC1,0xE0,0x03,0xF3,0xF0,0x06,0x36,0x10,0x04,0x18,0x08,0x04,0x08,0x08,0x04,0x0C,0x08,0x04,0x0C,0x08,0x06,0x16,0x18,0x03,0xF3,0xF0,0x01,0xC1,0xE0,0x00,0x00,0x00},/*"8",24*/
{0x00,0x00,0x00,0x00,0xF8,0x00,0x03,0xFC,0x30,0x03,0x06,0x38,0x04,0x02,0x08,0x04,0x02,0x08,0x04,0x02,0x08,0x04,0x04,0x10,0x03,0x08,0xF0,0x01,0xFF,0xC0,0x00,0x7F,0x00,0x00,0x00,0x00},/*"9",25*/
{0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x38,0x38,0x00,0x38,0x38,0x00,0x38,0x38,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00},/*":",26*/
{0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x30,0x1B,0x00,0x30,0x1C,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00},/*";",27*/
{0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x08,0x00,0x00,0x14,0x00,0x00,0x22,0x00,0x00,0x41,0x00,0x00,0x80,0x80,0x01,0x00,0x40,0x02,0x00,0x20,0x04,0x00,0x10,0x08,0x00,0x08,0x00,0x00,0x00},/*"<",28*/
{0x00,0x00,0x00,0x00,0x22,0x00,0x00,0x22,0x00,0x00,0x22,0x00,0x00,0x22,0x00,0x00,0x22,0x00,0x00,0x22,0x00,0x00,0x22,0x00,0x00,0x22,0x00,0x00,0x22,0x00,0x00,0x22,0x00,0x00,0x00,0x00},/*"=",29*/
{0x00,0x00,0x00,0x00,0x00,0x00,0x08,0x00,0x08,0x04,0x00,0x10,0x02,0x00,0x20,0x01,0x00,0x40,0x00,0x80,0x80,0x00,0x41,0x00,0x00,0x22,0x00,0x00,0x14,0x00,0x00,0x08,0x00,0x00,0x00,0x00},/*">",30*/
{0x00,0x00,0x00,0x00,0x00,0x00,0x01,0xE0,0x00,0x02,0x60,0x00,0x02,0x00,0x00,0x04,0x00,0x38,0x04,0x07,0x38,0x04,0x08,0x38,0x04,0x18,0x00,0x06,0x10,0x00,0x03,0xF0,0x00,0x01,0xE0,0x00},/*"?",31*/
{0x00,0x00,0x00,0x00,0x7F,0x00,0x03,0xFF,0xE0,0x07,0x00,0x70,0x04,0x1F,0x18,0x08,0xFF,0x88,0x09,0xC0,0x88,0x09,0x3F,0x88,0x05,0xE0,0x90,0x06,0x01,0x30,0x01,0xFE,0x40,0x00,0x00,0x00},/*"@",32*/
{0x00,0x00,0x08,0x00,0x00,0x38,0x00,0x01,0xC8,0x00,0x1E,0x08,0x01,0xE2,0x00,0x06,0x02,0x00,0x07,0x82,0x00,0x00,0xFA,0x00,0x00,0x0F,0x88,0x00,0x01,0xF8,0x00,0x00,0x18,0x00,0x00,0x08},/*"A",33*/
{0x00,0x00,0x00,0x04,0x00,0x08,0x07,0xFF,0xF8,0x07,0xFF,0xF8,0x04,0x08,0x08,0x04,0x08,0x08,0x04,0x08,0x08,0x06,0x18,0x08,0x03,0xF4,0x18,0x03,0xE7,0xF0,0x00,0x01,0xE0,0x00,0x00,0x00},/*"B",34*/
{0x00,0x00,0x00,0x00,0x3F,0x80,0x01,0xFF,0xE0,0x03,0x80,0x70,0x02,0x00,0x18,0x04,0x00,0x08,0x04,0x00,0x08,0x04,0x00,0x08,0x06,0x00,0x10,0x07,0x00,0x30,0x01,0xC0,0xC0,0x00,0x00,0x00},/*"C",35*/
{0x04,0x00,0x08,0x04,0x00,0x08,0x07,0xFF,0xF8,0x07,0xFF,0xF8,0x04,0x00,0x08,0x04,0x00,0x08,0x04,0x00,0x08,0x02,0x00,0x10,0x03,0x80,0x70,0x01,0xFF,0xE0,0x00,0x7F,0x80,0x00,0x00,0x00},/*"D",36*/
{0x04,0x00,0x08,0x07,0xFF,0xF8,0x07,0xFF,0xF8,0x04,0x08,0x08,0x04,0x08,0x08,0x04,0x08,0x08,0x04,0x08,0x08,0x04,0x3F,0x08,0x06,0x00,0x08,0x06,0x00,0x18,0x01,0x80,0x60,0x00,0x00,0x00},/*"E",37*/
{0x04,0x00,0x08,0x07,0xFF,0xF8,0x07,0xFF,0xF8,0x04,0x08,0x08,0x04,0x08,0x08,0x04,0x08,0x00,0x04,0x08,0x00,0x04,0x3F,0x00,0x06,0x00,0x00,0x06,0x00,0x00,0x01,0x80,0x00,0x00,0x00,0x00},/*"F",38*/
{0x00,0x00,0x00,0x00,0x3F,0x80,0x01,0xFF,0xE0,0x03,0x80,0x70,0x06,0x00,0x18,0x04,0x00,0x08,0x04,0x02,0x08,0x04,0x02,0x08,0x02,0x03,0xF0,0x01,0xC3,0xF0,0x00,0x02,0x00,0x00,0x02,0x00},/*"G",39*/
{0x04,0x00,0x08,0x07,0xFF,0xF8,0x07,0xFF,0xF8,0x04,0x08,0x08,0x00,0x08,0x00,0x00,0x08,0x00,0x00,0x08,0x00,0x00,0x08,0x00,0x04,0x08,0x08,0x07,0xFF,0xF8,0x07,0xFF,0xF8,0x04,0x00,0x08},/*"H",40*/
{0x00,0x00,0x00,0x00,0x00,0x00,0x04,0x00,0x08,0x04,0x00,0x08,0x04,0x00,0x08,0x07,0xFF,0xF8,0x07,0xFF,0xF8,0x04,0x00,0x08,0x04,0x00,0x08,0x04,0x00,0x08,0x00,0x00,0x00,0x00,0x00,0x00},/*"I",41*/
{0x00,0x00,0x00,0x00,0x00,0x06,0x00,0x00,0x07,0x04,0x00,0x01,0x04,0x00,0x01,0x04,0x00,0x03,0x07,0xFF,0xFE,0x07,0xFF,0xFC,0x04,0x00,0x00,0x04,0x00,0x00,0x04,0x00,0x00,0x00,0x00,0x00},/*"J",42*/
{0x04,0x00,0x08,0x07,0xFF,0xF8,0x07,0xFF,0xF8,0x04,0x0C,0x08,0x00,0x30,0x00,0x00,0x5C,0x00,0x05,0x87,0x00,0x07,0x01,0xC8,0x06,0x00,0x78,0x04,0x00,0x18,0x00,0x00,0x08,0x00,0x00,0x00},/*"K",43*/
{0x04,0x00,0x08,0x07,0xFF,0xF8,0x07,0xFF,0xF8,0x04,0x00,0x08,0x04,0x00,0x08,0x00,0x00,0x08,0x00,0x00,0x08,0x00,0x00,0x08,0x00,0x00,0x08,0x00,0x00,0x18,0x00,0x00,0x60,0x00,0x00,0x00},/*"L",44*/
{0x04,0x00,0x08,0x07,0xFF,0xF8,0x07,0xF0,0x08,0x00,0xFF,0x00,0x00,0x07,0xF0,0x00,0x01,0xE0,0x00,0x3E,0x00,0x03,0xC0,0x08,0x07,0xFF,0xF8,0x07,0xFF,0xF8,0x04,0x00,0x08,0x00,0x00,0x00},/*"M",45*/
{0x00,0x00,0x08,0x04,0x00,0x08,0x07,0xFF,0xF8,0x07,0x80,0x08,0x01,0xE0,0x08,0x00,0x78,0x00,0x00,0x1E,0x00,0x04,0x03,0xC0,0x04,0x00,0xF0,0x07,0xFF,0xF8,0x04,0x00,0x00,0x04,0x00,0x00},/*"N",46*/
{0x00,0x00,0x00,0x00,0x7F,0x80,0x01,0xFF,0xE0,0x03,0x80,0x70,0x06,0x00,0x18,0x04,0x00,0x08,0x04,0x00,0x08,0x06,0x00,0x18,0x03,0x00,0x30,0x01,0xFF,0xE0,0x00,0x7F,0x80,0x00,0x00,0x00},/*"O",47*/
{0x04,0x00,0x08,0x07,0xFF,0xF8,0x07,0xFF,0xF8,0x04,0x04,0x08,0x04,0x04,0x08,0x04,0x04,0x00,0x04,0x04,0x00,0x04,0x0C,0x00,0x02,0x08,0x00,0x03,0xF8,0x00,0x01,0xF0,0x00,0x00,0x00,0x00},/*"P",48*/
{0x00,0x00,0x00,0x00,0x7F,0x80,0x01,0xFF,0xE0,0x03,0x80,0x70,0x06,0x00,0x98,0x04,0x00,0x88,0x04,0x00,0xE8,0x06,0x00,0x3C,0x03,0x00,0x36,0x01,0xFF,0xE6,0x00,0x7F,0x84,0x00,0x00,0x00},/*"Q",49*/
{0x04,0x00,0x08,0x07,0xFF,0xF8,0x07,0xFF,0xF8,0x04,0x08,0x08,0x04,0x08,0x00,0x04,0x08,0x00,0x04,0x0E,0x00,0x04,0x0B,0x80,0x06,0x10,0xE0,0x03,0xF0,0x78,0x01,0xE0,0x18,0x00,0x00,0x08},/*"R",50*/
{0x00,0x00,0x00,0x01,0xE0,0xE0,0x03,0xF0,0x30,0x06,0x38,0x10,0x04,0x18,0x08,0x04,0x1C,0x08,0x04,0x0C,0x08,0x04,0x0E,0x08,0x02,0x07,0x18,0x07,0x87,0xF0,0x00,0x01,0xE0,0x00,0x00,0x00},/*"S",51*/
{0x01,0x80,0x00,0x06,0x00,0x00,0x04,0x00,0x00,0x04,0x00,0x08,0x04,0x00,0x08,0x07,0xFF,0xF8,0x07,0xFF,0xF8,0x04,0x00,0x08,0x04,0x00,0x08,0x04,0x00,0x00,0x06,0x00,0x00,0x01,0x80,0x00},/*"T",52*/
{0x00,0x00,0x00,0x04,0x00,0x00,0x07,0xFF,0xE0,0x07,0xFF,0xF0,0x04,0x00,0x18,0x00,0x00,0x08,0x00,0x00,0x08,0x00,0x00,0x08,0x04,0x00,0x10,0x07,0xFF,0xE0,0x04,0x00,0x00,0x00,0x00,0x00},/*"U",53*/
{0x04,0x00,0x00,0x06,0x00,0x00,0x07,0xE0,0x00,0x04,0x7E,0x00,0x00,0x07,0xE0,0x00,0x00,0x78,0x00,0x01,0xC0,0x00,0x1E,0x00,0x05,0xE0,0x00,0x06,0x00,0x00,0x04,0x00,0x00,0x00,0x00,0x00},/*"V",54*/
{0x04,0x00,0x00,0x07,0xC0,0x00,0x04,0xFF,0x00,0x00,0x03,0xF8,0x04,0x03,0xC0,0x06,0x3C,0x00,0x07,0xFC,0x00,0x04,0x0F,0xF8,0x00,0x01,0xE0,0x04,0x3E,0x00,0x07,0xC0,0x00,0x04,0x00,0x00},/*"W",55*/
{0x00,0x00,0x00,0x04,0x00,0x08,0x06,0x00,0x18,0x07,0x80,0x68,0x04,0xE1,0x80,0x00,0x3E,0x00,0x00,0x17,0x00,0x04,0x61,0xC8,0x07,0x80,0x78,0x04,0x00,0x18,0x04,0x00,0x08,0x00,0x00,0x00},/*"X",56*/
{0x04,0x00,0x00,0x06,0x00,0x00,0x07,0x80,0x00,0x04,0xF0,0x08,0x00,0x3C,0x08,0x00,0x1F,0xF8,0x00,0x07,0xF8,0x00,0x18,0x08,0x04,0x60,0x08,0x05,0x80,0x00,0x06,0x00,0x00,0x04,0x00,0x00},/*"Y",57*/
{0x00,0x00,0x00,0x01,0x80,0x08,0x07,0x00,0x38,0x06,0x00,0xE8,0x04,0x01,0x88,0x04,0x06,0x08,0x04,0x18,0x08,0x04,0x60,0x08,0x05,0xC0,0x08,0x07,0x00,0x18,0x04,0x00,0x60,0x00,0x00,0x00},/*"Z",58*/
{0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x3F,0xFF,0xFE,0x20,0x00,0x02,0x20,0x00,0x02,0x20,0x00,0x02,0x20,0x00,0x02,0x00,0x00,0x00,0x00,0x00,0x00},/*"[",59*/
{0x00,0x00,0x00,0x00,0x00,0x00,0x0C,0x00,0x00,0x03,0x00,0x00,0x00,0xE0,0x00,0x00,0x18,0x00,0x00,0x07,0x00,0x00,0x01,0xC0,0x00,0x00,0x30,0x00,0x00,0x0E,0x00,0x00,0x01,0x00,0x00,0x00},/*"",60*/
{0x00,0x00,0x00,0x00,0x00,0x00,0x20,0x00,0x02,0x20,0x00,0x02,0x20,0x00,0x02,0x20,0x00,0x02,0x3F,0xFF,0xFE,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00},/*"]",61*/
{0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x10,0x00,0x00,0x20,0x00,0x00,0x40,0x00,0x00,0x40,0x00,0x00,0x20,0x00,0x00,0x10,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00},/*"^",62*/
{0x00,0x00,0x01,0x00,0x00,0x01,0x00,0x00,0x01,0x00,0x00,0x01,0x00,0x00,0x01,0x00,0x00,0x01,0x00,0x00,0x01,0x00,0x00,0x01,0x00,0x00,0x01,0x00,0x00,0x01,0x00,0x00,0x01,0x00,0x00,0x01},/*"_",63*/
{0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x20,0x00,0x00,0x20,0x00,0x00,0x10,0x00,0x00,0x10,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00},/*"`",64*/
{0x00,0x00,0x00,0x00,0x00,0xF0,0x00,0x19,0xF8,0x00,0x19,0x98,0x00,0x21,0x08,0x00,0x22,0x08,0x00,0x22,0x08,0x00,0x22,0x10,0x00,0x3F,0xF0,0x00,0x1F,0xF8,0x00,0x00,0x08,0x00,0x00,0x18},/*"a",65*/
{0x00,0x00,0x00,0x04,0x00,0x00,0x07,0xFF,0xF8,0x0F,0xFF,0xF0,0x00,0x18,0x10,0x00,0x10,0x08,0x00,0x20,0x08,0x00,0x20,0x08,0x00,0x30,0x18,0x00,0x1F,0xF0,0x00,0x0F,0xC0,0x00,0x00,0x00},/*"b",66*/
{0x00,0x00,0x00,0x00,0x07,0xC0,0x00,0x1F,0xF0,0x00,0x18,0x30,0x00,0x20,0x08,0x00,0x20,0x08,0x00,0x20,0x08,0x00,0x3C,0x08,0x00,0x1C,0x10,0x00,0x00,0x60,0x00,0x00,0x00,0x00,0x00,0x00},/*"c",67*/
{0x00,0x00,0x00,0x00,0x07,0xC0,0x00,0x1F,0xF0,0x00,0x38,0x18,0x00,0x20,0x08,0x00,0x20,0x08,0x04,0x20,0x08,0x04,0x10,0x10,0x07,0xFF,0xF8,0x0F,0xFF,0xF0,0x00,0x00,0x10,0x00,0x00,0x00},/*"d",68*/
{0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x07,0xC0,0x00,0x1F,0xF0,0x00,0x11,0x30,0x00,0x21,0x08,0x00,0x21,0x08,0x00,0x21,0x08,0x00,0x31,0x08,0x00,0x1F,0x10,0x00,0x07,0x20,0x00,0x00,0x00},/*"e",69*/
{0x00,0x00,0x00,0x00,0x20,0x00,0x00,0x20,0x08,0x00,0x20,0x08,0x01,0xFF,0xF8,0x03,0xFF,0xF8,0x06,0x20,0x08,0x04,0x20,0x08,0x04,0x20,0x08,0x07,0x00,0x00,0x03,0x00,0x00,0x00,0x00,0x00},/*"f",70*/
{0x00,0x00,0x00,0x00,0x00,0x0E,0x00,0x0E,0x7E,0x00,0x1F,0xF3,0x00,0x31,0xA1,0x00,0x20,0xA1,0x00,0x30,0xB1,0x00,0x3F,0xB3,0x00,0x2F,0x1E,0x00,0x30,0x1E,0x00,0x30,0x00,0x00,0x00,0x00},/*"g",71*/
{0x00,0x00,0x00,0x04,0x00,0x08,0x07,0xFF,0xF8,0x0F,0xFF,0xF8,0x00,0x10,0x08,0x00,0x20,0x00,0x00,0x20,0x00,0x00,0x20,0x08,0x00,0x3F,0xF8,0x00,0x1F,0xF8,0x00,0x00,0x08,0x00,0x00,0x00},/*"h",72*/
{0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x20,0x08,0x00,0x20,0x08,0x00,0x20,0x08,0x06,0x3F,0xF8,0x06,0x7F,0xF8,0x00,0x00,0x08,0x00,0x00,0x08,0x00,0x00,0x08,0x00,0x00,0x00,0x00,0x00,0x00},/*"i",73*/
{0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x03,0x00,0x00,0x03,0x00,0x20,0x01,0x00,0x20,0x01,0x06,0x20,0x03,0x06,0x3F,0xFE,0x06,0x7F,0xFC,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00},/*"j",74*/
{0x00,0x00,0x00,0x04,0x00,0x08,0x07,0xFF,0xF8,0x0F,0xFF,0xF8,0x00,0x01,0x08,0x00,0x02,0x00,0x00,0x07,0x00,0x00,0x38,0xC8,0x00,0x20,0x78,0x00,0x20,0x18,0x00,0x00,0x08,0x00,0x00,0x00},/*"k",75*/
{0x00,0x00,0x00,0x00,0x00,0x00,0x04,0x00,0x08,0x04,0x00,0x08,0x04,0x00,0x08,0x07,0xFF,0xF8,0x0F,0xFF,0xF8,0x00,0x00,0x08,0x00,0x00,0x08,0x00,0x00,0x08,0x00,0x00,0x00,0x00,0x00,0x00},/*"l",76*/
{0x00,0x20,0x08,0x00,0x3F,0xF8,0x00,0x3F,0xF8,0x00,0x10,0x08,0x00,0x20,0x08,0x00,0x3F,0xF8,0x00,0x1F,0xF8,0x00,0x10,0x08,0x00,0x20,0x08,0x00,0x3F,0xF8,0x00,0x3F,0xF8,0x00,0x00,0x08},/*"m",77*/
{0x00,0x00,0x00,0x00,0x20,0x08,0x00,0x3F,0xF8,0x00,0x3F,0xF8,0x00,0x10,0x08,0x00,0x20,0x00,0x00,0x20,0x00,0x00,0x20,0x08,0x00,0x3F,0xF8,0x00,0x1F,0xF8,0x00,0x00,0x08,0x00,0x00,0x00},/*"n",78*/
{0x00,0x00,0x00,0x00,0x07,0xC0,0x00,0x0F,0xF0,0x00,0x18,0x30,0x00,0x30,0x08,0x00,0x20,0x08,0x00,0x20,0x08,0x00,0x30,0x08,0x00,0x18,0x30,0x00,0x0F,0xF0,0x00,0x07,0xC0,0x00,0x00,0x00},/*"o",79*/
{0x00,0x00,0x00,0x00,0x20,0x01,0x00,0x3F,0xFF,0x00,0x3F,0xFF,0x00,0x10,0x11,0x00,0x20,0x09,0x00,0x20,0x08,0x00,0x20,0x08,0x00,0x30,0x38,0x00,0x1F,0xF0,0x00,0x0F,0xC0,0x00,0x00,0x00},/*"p",80*/
{0x00,0x00,0x00,0x00,0x07,0xC0,0x00,0x1F,0xF0,0x00,0x38,0x18,0x00,0x20,0x08,0x00,0x20,0x08,0x00,0x20,0x09,0x00,0x10,0x11,0x00,0x1F,0xFF,0x00,0x3F,0xFF,0x00,0x00,0x01,0x00,0x00,0x00},/*"q",81*/
{0x00,0x20,0x08,0x00,0x20,0x08,0x00,0x20,0x08,0x00,0x3F,0xF8,0x00,0x3F,0xF8,0x00,0x08,0x08,0x00,0x10,0x08,0x00,0x20,0x08,0x00,0x20,0x00,0x00,0x38,0x00,0x00,0x18,0x00,0x00,0x00,0x00},/*"r",82*/
{0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x1C,0x78,0x00,0x1E,0x18,0x00,0x33,0x08,0x00,0x23,0x08,0x00,0x21,0x88,0x00,0x21,0x98,0x00,0x30,0xF8,0x00,0x3C,0xF0,0x00,0x00,0x00,0x00,0x00,0x00},/*"s",83*/
{0x00,0x00,0x00,0x00,0x20,0x00,0x00,0x20,0x00,0x00,0x20,0x00,0x00,0xFF,0xF0,0x03,0xFF,0xF8,0x00,0x20,0x08,0x00,0x20,0x08,0x00,0x20,0x08,0x00,0x00,0x30,0x00,0x00,0x00,0x00,0x00,0x00},/*"t",84*/
{0x00,0x00,0x00,0x00,0x20,0x00,0x00,0x3F,0xF0,0x00,0x7F,0xF8,0x00,0x00,0x18,0x00,0x00,0x08,0x00,0x00,0x08,0x00,0x20,0x10,0x00,0x3F,0xF8,0x00,0x7F,0xF0,0x00,0x00,0x10,0x00,0x00,0x00},/*"u",85*/
{0x00,0x00,0x00,0x00,0x20,0x00,0x00,0x30,0x00,0x00,0x3E,0x00,0x00,0x23,0xC0,0x00,0x00,0xF8,0x00,0x00,0x30,0x00,0x01,0xC0,0x00,0x2E,0x00,0x00,0x30,0x00,0x00,0x20,0x00,0x00,0x00,0x00},/*"v",86*/
{0x00,0x20,0x00,0x00,0x38,0x00,0x00,0x2F,0x80,0x00,0x01,0xF8,0x00,0x20,0xF0,0x00,0x37,0x00,0x00,0x3F,0x00,0x00,0x21,0xF0,0x00,0x00,0xF0,0x00,0x27,0x00,0x00,0x38,0x00,0x00,0x20,0x00},/*"w",87*/
{0x00,0x00,0x00,0x00,0x00,0x08,0x00,0x20,0x08,0x00,0x30,0x38,0x00,0x3C,0x48,0x00,0x27,0x80,0x00,0x03,0x80,0x00,0x24,0xC8,0x00,0x38,0x38,0x00,0x20,0x18,0x00,0x20,0x08,0x00,0x00,0x00},/*"x",88*/
{0x00,0x00,0x00,0x00,0x20,0x00,0x00,0x20,0x03,0x00,0x3C,0x01,0x00,0x23,0x81,0x00,0x00,0xFE,0x00,0x00,0x70,0x00,0x23,0x80,0x00,0x3C,0x00,0x00,0x20,0x00,0x00,0x20,0x00,0x00,0x00,0x00},/*"y",89*/
{0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x3C,0x18,0x00,0x20,0x78,0x00,0x20,0xC8,0x00,0x23,0x88,0x00,0x2E,0x08,0x00,0x38,0x08,0x00,0x30,0x18,0x00,0x00,0x70,0x00,0x00,0x00,0x00,0x00,0x00},/*"z",90*/
{0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x08,0x00,0x00,0x14,0x00,0x1F,0xE3,0xFC,0x20,0x00,0x02,0x20,0x00,0x02,0x00,0x00,0x00,0x00,0x00,0x00},/*"{",91*/
{0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0xFF,0xFF,0xFF,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00},/*"|",92*/
{0x00,0x00,0x00,0x00,0x00,0x00,0x20,0x00,0x02,0x20,0x00,0x02,0x1F,0xE3,0xFC,0x00,0x14,0x00,0x00,0x08,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00},/*"}",93*/
{0x00,0x00,0x00,0x30,0x00,0x00,0x40,0x00,0x00,0x40,0x00,0x00,0x40,0x00,0x00,0x20,0x00,0x00,0x10,0x00,0x00,0x18,0x00,0x00,0x08,0x00,0x00,0x08,0x00,0x00,0x30,0x00,0x00,0x00,0x00,0x00},/*"~",94*/
};
(2). oled.h
#ifndef _OLED_H
#define _OLED_H
#include "stm32f10x.h"
#include "delay.h"
#include "sys.h"
#include <string.h>
extern const u8 ChineseFont_16_16[][32];
extern const u8 ChineseFont_24_24[][24*24/8];
extern const u8 ASCII_8_16[][16];
extern const u8 bmp_foot_18_29_1[];
extern const u8 bmp_foot_17_32_2[];
extern const u8 ASCII_12_24[][12*3];
/*
初始化OLED显示屏硬件
硬件连接:
D0--PB14--时钟线
D1--PB13--数据线
RES-PB12-复位脚
DC--PB1--命令数据选择脚
CS--PA7--片选
*/
#define OLED_SCK PBout(14)
#define OLED_MOSI PBout(13)
#define OLED_RES PBout(12)
#define OLED_DC PBout(1)
#define OLED_CS PAout(7)
//定义命令
#define OLED_WRITE_CMD 0
#define OLED_WRITE_DAT 1
//函数声明
void OLED_SPI_WriteOneByte(u8 data,u8 flag);
void OLED_Init(void);
void OLED_Clear(u8 data);
void OLED_SetPos(u8 x,u8 y);
void OLED_DisplayPoint(u8 x,u8 y,u8 c);
void OLED_DisplayData(u8 x,u8 y,u8 w,u8 h,u8 *p);
void OLED_WriteGRAM(void);
void OLED_DrawLine(u16 x1, u16 y1, u16 x2, u16 y2); //两点画线
void OLED_DrawAngleLine(u32 x,u32 y,float du,u32 len,u32 w,u8 c);//角度画线
void OLED_DrawRectangle(u16 x1, u16 y1, u16 x2, u16 y2); //矩形
void OLED_Circle(u16 x0,u16 y0,u8 r); //圆
void OLED_DrawAngleLine2(u32 x,u32 y,int du,u32 len,u8 c);
void OLED_ShowString(u8 x,u8 y,u8 h,char *str);
void OLED_ShowChineseFont(u8 x,u8 y,u8 size,u8 number);
extern u8 OLED_GRAM[8][128]; //8行128列---->8页128列
#endif
3.2 rtc驱动代码
(1) rtc.c
#include "rtc.h"
//定义RTC标准结构体
struct RTC_CLOCK rtc_clock;
/*
函数功能: RTC初始化函数
*/
void RTC_Init(void)
{
if(BKP->DR1!=0xAB) //表示RTC第一次初始化
{
//1. 备份寄存器时钟
RCC->APB1ENR|=1<<27; //备份时钟接口
RCC->APB1ENR|=1<<28; //电源时钟接口
PWR->CR|=1<<8; //允许写入RTC和后备寄存器
//2. 配置RTC时钟源
RCC->BDCR|=1<<0; //开启外部32.768K时钟
while(!(RCC->BDCR&1<<1)){} //等待时钟就绪
RCC->BDCR&=~(0x3<<8); //清空时钟配置
RCC->BDCR|=0x1<<8; //选择外部32.768K时钟
//3. 配置RTC核心寄存器
RCC->BDCR|=1<<15; //开启RTC时钟
while(!(RTC->CRL&1<<5)){} //判断上一次寄存器是否写完成
RTC->CRL|=1<<4; //进入配置模式
RTC->PRLH=0; //预分频高位
RTC->PRLL=0x7FFF; //32767 预分频低位
RTC->CNTH=0; //计数器高位
RTC->CNTL=0; //计数器低位
RTC->ALRH=0; //闹钟寄存器高位
RTC->ALRL=60; //闹钟寄存器低位
RTC->CRL&=~(1<<4);//退出配置模式
while(!(RTC->CRL&1<<5)){} //判断上一次寄存器是否写完成
BKP->DR1=0xAB; //表示配置成功了
}
RTC->CRH|=1<<0; //秒中断
RTC->CRH|=1<<1; //闹钟中断
STM32_SetPriority(RTC_IRQn,2,2); //优先级
}
extern void Update_FrameShow(void);
/*
函数功能: RTC闹钟中断服务函数
*/
void RTC_IRQHandler(void)
{
u32 SecCnt;
if(RTC->CRL&1<<0)
{
SecCnt=RTC->CNTH<<16;//获取高位
SecCnt|=RTC->CNTL; //获取低位
RTC_GetTime(SecCnt); //转换标准时间
RTC_GetWeek(SecCnt);
// printf("%d-%d-%d %d:%d:%d week:%d\n",rtc_clock.year,rtc_clock.mon,rtc_clock.day,rtc_clock.hour,rtc_clock.min,rtc_clock.sec,rtc_clock.week);
Update_FrameShow(); //更新显示
RTC->CRL&=~(1<<0); //清除秒中断标志位
}
if(RTC->CRL&1<<1)
{
// printf("闹钟时间到达!....\n");
// BEEP=1;
// DelayMs(500);
// BEEP=0;
RTC->CRL&=~(1<<1); //清除闹钟中断标志位
}
}
//闰年的月份
static int mon_r[12]={31,29,31,30,31,30,31,31,30,31,30,31};
//平年的月份
static int mon_p[12]={31,28,31,30,31,30,31,31,30,31,30,31};
/*
函数功能: 设置RTC时间
函数形参:
u32 year; 2018
u32 mon; 8
u32 day;
u32 hour;
u32 min;
u32 sec;
*/
void RTC_SetTime(u32 year,u32 mon,u32 day,u32 hour,u32 min,u32 sec)
{
u32 i;
u32 SecCnt=0; //总秒数
/*1. 累加已经过去的年份*/
for(i=2017;i<year;i++) //基准年份:20170101000000
{
if(RTC_GetYearState(i))
{
SecCnt+=366*24*60*60; //闰年一年的秒数
}
else
{
SecCnt+=365*24*60*60; //平年一年的秒数
}
}
/*2. 累加过去的月份*/
for(i=0;i<mon-1;i++)
{
if(RTC_GetYearState(year))
{
SecCnt+=mon_r[i]*24*60*60; //闰年一月的秒数
}
else
{
SecCnt+=mon_p[i]*24*60*60; //平年一月的秒数
}
}
/*3. 累加过去的天数*/
SecCnt+=(day-1)*24*60*60;
/*4. 累加过去小时*/
SecCnt+=hour*60*60;
/*5. 累加过去的分钟*/
SecCnt+=min*60;
/*6. 累加过去的秒*/
SecCnt+=sec;
/*7. 设置RTC时间*/
RCC->APB1ENR|=1<<27; //备份时钟接口
RCC->APB1ENR|=1<<28; //电源时钟接口
PWR->CR|=1<<8; //允许写入RTC和后备寄存器
while(!(RTC->CRL&1<<5)){} //判断上一次寄存器是否写完成
RTC->CRL|=1<<4; //进入配置模式
RTC->CNTH=SecCnt>>16; //计数器高位
RTC->CNTL=SecCnt&0xFFFF; //计数器低位
RTC->CRL&=~(1<<4);//退出配置模式
while(!(RTC->CRL&1<<5)){} //判断上一次寄存器是否写完成
}
/*
函数功能: 获取RTC时间
函数参数: u32 sec 秒单位时间
*/
void RTC_GetTime(u32 sec)
{
u32 i;
rtc_clock.year=2017; //基准年份
/*1. 计算当前的年份*/
while(1)
{
if(RTC_GetYearState(rtc_clock.year))
{
if(sec>=366*24*60*60) //够一年
{
sec-=366*24*60*60;
rtc_clock.year++;
}
else break;
}
else
{
if(sec>=365*24*60*60) //够一年
{
sec-=365*24*60*60;
rtc_clock.year++;
}
else break;
}
}
/*2. 计算当前的月份*/
rtc_clock.mon=1;
for(i=0;i<12;i++)
{
if(RTC_GetYearState(rtc_clock.year))
{
if(sec>=mon_r[i]*24*60*60)
{
sec-=mon_r[i]*24*60*60;
rtc_clock.mon++;
}
else break;
}
else
{
if(sec>=mon_p[i]*24*60*60)
{
sec-=mon_p[i]*24*60*60;
rtc_clock.mon++;
}
else break;
}
}
/*3. 计算当前的天数*/
rtc_clock.day=1;
while(1)
{
if(sec>=24*60*60)
{
sec-=24*60*60;
rtc_clock.day++;
}
else break;
}
/*4. 计算当前的小时*/
rtc_clock.hour=0;
while(1)
{
if(sec>=60*60)
{
sec-=60*60;
rtc_clock.hour++;
}
else break;
}
/*5. 计算当前的分钟*/
rtc_clock.min=0;
while(1)
{
if(sec>=60)
{
sec-=60;
rtc_clock.min++;
}
else break;
}
/*6. 计算当前的秒*/
rtc_clock.sec=sec;
}
/*
函数功能: 判断年份是否是平年、闰年
返回值 : 0表示平年 1表示闰年
*/
u8 RTC_GetYearState(u32 year)
{
if((year%4==0&&year%100!=0)||year%400==0)
{
return 1;
}
return 0;
}
/*
函数功能: 获取星期
*/
void RTC_GetWeek(u32 sec)
{
u32 day1=sec/(60*60*24); //将秒单位时间转为天数
switch(day1%7)
{
case 0:
rtc_clock.week=0;
break;
case 1:
rtc_clock.week=1;
break;
case 2:
rtc_clock.week=2;
break;
case 3:
rtc_clock.week=3;
break;
case 4:
rtc_clock.week=4;
break;
case 5:
rtc_clock.week=5;
break;
case 6:
rtc_clock.week=6;
break;
}
}
（2） rtc.h
#ifndef RTC_H
#define RTC_H
#include "stm32f10x.h"
#include "sys.h"
#include "usart.h"
#include "delay.h"
//定时RTC时钟结构体
struct RTC_CLOCK
{
u32 year;
u32 mon;
u32 day;
u32 hour;
u32 min;
u32 sec;
u32 week;
};
extern struct RTC_CLOCK rtc_clock;
//函数声明
void RTC_Init(void);
u8 RTC_GetYearState(u32 year);
void RTC_GetTime(u32 sec);
void RTC_GetWeek(u32 sec);
void RTC_SetTime(u32 year,u32 mon,u32 day,u32 hour,u32 min,u32 sec);
#endif
3.3 界面绘制部分代码-主函数
#include "stm32f10x.h"
#include "led.h"
#include "delay.h"
#include "key.h"
#include "usart.h"
#include <string.h>
#include "timer.h"
#include "oled.h"
#include "rtc.h"
/*
函数功能: 绘制时钟表盘框架
*/
void DrawTimeFrame(void)
{
u8 i;
OLED_Circle(32,32,31);//画外圆
OLED_Circle(32,32,1); //画中心圆
//画刻度
for(i=0;i<60;i++)
{
if(i%5==0)OLED_DrawAngleLine(32,32,6*i,31,3,1);
}
OLED_WriteGRAM(); //刷新数据到OLED屏幕
}
/*
函数功能: 更新时间框架显示，在RTC中断里调用
*/
char TimeBuff[20];
void Update_FrameShow(void)
{
/*1. 绘制秒针、分针、时针*/
OLED_DrawAngleLine2(32,32,rtc_clock.sec*6-6-90,27,0);//清除之前的秒针
OLED_DrawAngleLine2(32,32,rtc_clock.sec*6-90,27,1); //画秒针
OLED_DrawAngleLine2(32,32,rtc_clock.min*6-6-90,24,0);
OLED_DrawAngleLine2(32,32,rtc_clock.min*6-90,24,1);
OLED_DrawAngleLine2(32,32,rtc_clock.hour*30-6-90,21,0);
OLED_DrawAngleLine2(32,32,rtc_clock.hour*30-90,21,1);
//绘制电子钟时间
sprintf(TimeBuff,"%d",rtc_clock.year);
OLED_ShowString(65,16*0,16,TimeBuff); //年份字符串
OLED_ShowChineseFont(66+32,16*0,16,4); //显示年
sprintf(TimeBuff,"%d/%d",rtc_clock.mon,rtc_clock.day);
OLED_ShowString(75,16*1,16,TimeBuff); //月
if(rtc_clock.sec==0)OLED_ShowString(65,16*2,16," "); //清除多余的数据
sprintf(TimeBuff,"%d:%d:%d",rtc_clock.hour,rtc_clock.min,rtc_clock.sec);
OLED_ShowString(65,16*2,16,TimeBuff); //秒
//显示星期
OLED_ShowChineseFont(70,16*3,16,5); //星
OLED_ShowChineseFont(70+16,16*3,16,6); //期
OLED_ShowChineseFont(70+32,16*3,16,rtc_clock.week+7); //具体的值
}
int main()
{
LED_Init();
BEEP_Init();
KEY_Init();
USART1_Init(115200);
TIMER1_Init(72,20000); //超时时间20ms
USART2_Init(9600);//串口-蓝牙
TIMER2_Init(72,20000); //超时时间20ms
USART3_Init(115200);//串口-WIFI
TIMER3_Init(72,20000); //超时时间20ms
USART1_Printf("正在初始化WIFI请稍等.\n");
RTC_Init(); //RTC初始化
OLED_Init();
OLED_Clear(0x00); //清屏
RTC_SetTime(2020,7,15,10,52,10);
DrawTimeFrame();
while(1)
{
}
}
