前端监控系统开发记录【项目工程化与基础配置】|青训营笔记

175 阅读4分钟

这是我参与「第四届青训营」笔记创作活动的第8天」

『第四届青训营」 random一个好了 团队笔记产出

本篇文章是团队项目的基础配置说明记录,以供参考。代码质量风格规范化具有一定复杂性,故不再同一篇文章中阐述。如果有成功配置代码规范化的道友,若能帮助指明一条道路,团队感激不尽。有能提高的地方也欢迎指正。

根据本篇文章,你应该能够搭建较为完善的基础项目配置,文章后续也会继续更新。

涉及工具及官网:

Vite:配置 Vite {#configuring-vite} | Vite中文网

Vite-plugins : GitHub - vitejs/awesome-vite: ⚡️ A curated list of awesome things related to Vite.js

Vue-router@4: 安装 | Vue Router

Pinia: Pinia 🍍

步骤

GitHub:

  • 在Github上创建仓库
  • 在本地git clone

本地VSCode:

创建vite3+vue3+ts4项目

  •     # npm 7+,需要加上额外的双短横线
        $ npm init vite@latest <project-name> -- --template vue-ts


Install vite插件,支持项目TSX、JSX语法

    •   为什么 Vue3 的组件库都在使用 jsx/tsx? - 知乎
    •   npm install @vitejs/plugin-vue-jsx -D

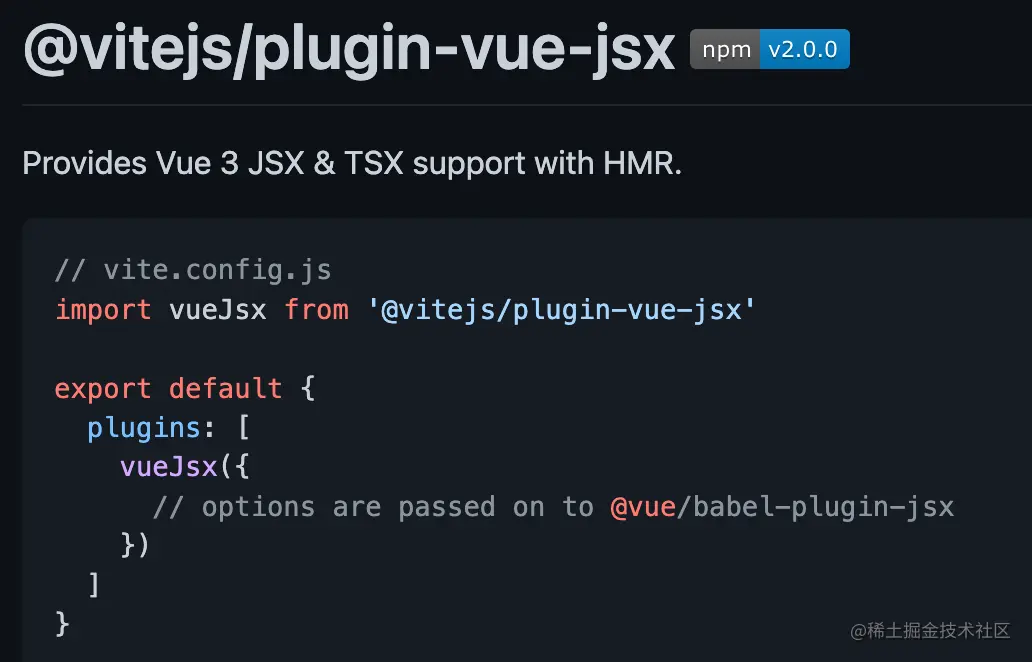

    •   安装官方维护的vite插件@vitejs/plugin-vue-jsx,这个插件其实核心还是@vue/babel-plugin-jsx,只是在这个插件上封装了一层供vite插件调用。所以关于vue的jsx语法规范可以直接参看@vue/babel-plugin-jsx。关于插件末尾写的是jsx而不是tsx,下面是GitHub上的提要: Provides Vue 3 JSX & TSX support with HMR.。
  • 在vite config中配置应用端口和src路径别名

    • 如果 import { resolve } from "path"; 报错,则安装node的TypeScript声明。

    • npm i -D @types/node

    •   此时在项目中就可以直接使用新的路径别名了,使用vscode可能会没有路径提示,这个时候只需要在jsconfig.json/tsconfig.json配置paths和baseUrl就会出现路径提示了

    • //tsconfig.json
      {
        "compilerOptions": {
          "baseUrl": ".",
          "paths": {
            "@/*": ["src/*"],
          },
        }, }

    • Vite官网-共享配置- resolve.alias 说明: 当使用文件系统路径的别名时,请始终使用绝对路径。相对路径的别名值会原封不动地被使用,因此无法被正常解析。

    • path.resolve([...paths]) : The path.resolve() method resolves a sequence of paths or path segments into an absolute path.

    • //vite.config.ts
      export default defineConfig({
          //...
          resolve: {
              alias: [
                  {
                      find: "@",
                      replacement: path.resolve("./src"),
                  },
                  ]
            //alias: {
            //    "@": path.resolve(__dirname, "src"),
            // } //两种alias配置方式均可
      })

      //tsconfig.json
      {
        "compilerOptions": {
          "baseUrl": ".",
          "paths": {
            "@/*": ["src/*"],
          },
        }, }

  • 配置 vite.config.ts - server-proxy

集成vue-router4

    • npm i vue-router@4

    • //配置src/router/index.ts
      import { createRouter, createWebHistory, RouteRecordRaw } from "vue-router";

      const routes: Array<RouteRecordRaw> = [
        {
          path: "/",
          name: "Index",
          component: () => import("@/App"),
        },
      ];

      const router = createRouter({
        history: createWebHistory(),
        routes,
      });

      export default router;

    • //在main.ts中引入router
      import router from "@/router";
      //...
      const app = createApp(App);
      app.use(router);
      //...
      app.mount("#app");

    • //在App.tsx中使用vue-router
      import { defineComponent } from "vue";
      import { RouterView } from "vue-router";
      export default defineComponent({
        setup() {
          return () => (
            <div>
              <div>Hello world!</div>
              <RouterView></RouterView>
            </div>
          );
        },
      });

    •   效果展示:(简单细节问题不过多展示了,比如JSX需要有唯一根节点..)
    •     官网链接:Vue-router@4: 安装 | Vue Router

集成pinia

    • npm i pinia

    • //配置src/store/index.ts
      import { createPinia } from "pinia";
      const store = createPinia();
      export default store;

    • 之后在main.ts中引入,参考vue-router配置流程

    • //配置src/store/User/index.ts 模块, 定义state - user
      import { defineStore } from "pinia";
      export const useUserStore = defineStore({
        id: "user", //id项必填,且需要唯一
        state: () => {
          return {
            name: "zzx",
          };
        },
        actions: {
          updateName(name: string) {
            this.name = name;
          },
        },
      });

    • //获取state,在App.tsx中消费
      //...
      import { useUserStore } from "@/store/User";
      export default defineComponent({
        setup() {
          const userStore = useUserStore();
      +++ const handleClick = () => userStore.updateName("zzinx");
          return () => (
            <div>
              <div>Hello world!</div>
              <RouterView></RouterView>
      +++     <div>{userStore.name}</div>
      +++     <button onClick={handleClick}>ChangeName</button>
            </div>
          );
        },
      });

    •   官网链接:Pinia: Pinia 🍍

集成windiCSS

npm i -D vite-plugin-windicss windicss

//vite.config.ts
import WindiCSS from 'vite-plugin-windicss'
export default {
  plugins: [WindiCSS(),],
}

//main.ts中引入WindiCSS样式
import 'virtual:windi.css'

集成axios

    • npm install --save axios vue-axios


集成Element-Plus:

    •  npm install element-plus --save

    •   自动导入(推荐)
    • //首先你需要安装unplugin-vue-components 和 unplugin-auto-import这两款插件
      npm install -D unplugin-vue-components unplugin-auto-import
      //然后把下列代码插入到你的 Vite 或 Webpack 的配置文件中

      // vite.config.ts
      import { defineConfig } from 'vite'
      import AutoImport from 'unplugin-auto-import/vite'
      import Components from 'unplugin-vue-components/vite'
      import { ElementPlusResolver } from 'unplugin-vue-components/resolvers'export default defineConfig({// ...
        plugins: [// ...
            AutoImport({
                resolvers: [ElementPlusResolver()],}),
            Components({
                resolvers: [ElementPlusResolver()],
            }),],
      })

    • TSX无法使用组件自动引入,(如有知原因者请给予点拔,感谢),使用Element按需导入,并使用unplugin-element-plus自动导入样式。(warning: unknown)

      npm install -D unplugin-element-plus


集成scss支持

        npm i -D sass sass-loade

待阐述的知识点:

代码质量风格规范化

Sever - proxy:

    • 正则表达式知识点解释
    • changeOrigin配置解释
    • target配置解释

resolve-alias:

两种配置方式中一个需要__dirname,一个不需要的原因,即差异点的原因

Windi CSS:

import "virtual:windi.css";

ElementPlus:

element-plus/es 与 element-plus 区别

tsx中使用element组件需要import?而.vue文件中不需要?

el-button 与 ElButton

可探索分支:

vite插件

Storybook组件库

vue-styled-component

在Vue项目中使用React超火的CSS-in-JS库: styled-components - 掘金

\

参考的掘金文章:

极致的开发体验 ! Vite + Vue 3 + tsx 完整教程 - 掘金

手把手教你用 vite+vue3+ts+pinia+vueuse 打造大厂企业级前端项目 - 掘金
