前端设计模式应用 | 青训营笔记

57 阅读2分钟

这是我参与「第四届青训营 」笔记创作活动的第4天

前端设计模式应用

设计模式的分类(23种)

  • 创建型:如何创建一个对象
  • 结构型:如何灵活的将对象组装成较大的结构
  • 行为型:负责对象间的高效通信和职责划分
  • ·······

浏览器中设计模式

单例模式

  • 定义 :全局唯一访问对象
  • 应用场景:缓存、全局状态管理····

用单例模式实现请求缓存:

import{api} from "./utils";

const cache:Record<string,string>={};
export const request =asynv(url:string)=>{
if (cache[url]){
    return cache[url];
    }
    const response =await api(url);
    cache[url]=response;
    return response;
    };



test("第二次的快速反应"async()=>{
    await request("/user/1");
    const startTime=Date.now();
    await request("/user/1");
    const endTime=Date.now();

    const costTime=endTime-startTime;
    expect(costTime).toBeLessThan(50);
    })

发布订阅模式

  • 定义:一种订阅机制,可在被订阅对象发生变化时通知订阅者。
  • 订阅场景:从系统架构之间的解耦,到业务中一些实现模式,像邮件订阅,上线订阅等等,应用广泛。
const button=document.getElementById("button");

const doSomthing1 =()=>{
console.log("发送消息给用户");
};

const doSomthing2=()=>{
     consle.log("Log····");
};

button.addEventListener("click",doSomthing1);
button.addEventListener("click",doSomething2);

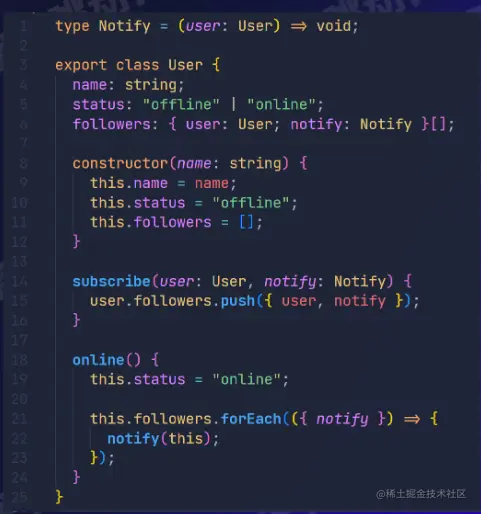

  • 用发布订阅模式实现用户上线订阅
type Notify=(user:User)=>void;

export class User{
    name:string;
    status:"offline | "online";
    followers:{ user:User;notify:Notify}[];

    constructor(name:string){
        this.name=name;
        this.status="offline";
        this.followers=[];
        }

    subscribe(user:User,notify:Notify){
        user.follwers.push({user,notify});
        }
        online(){
            this.stayus="online";
            this.followers.forEach(({notify})=>{
            notify(this);
            })
        }
    }



    test("当前用户上线,通知关注者",()=>{
        const user1=new User("user1");
        const user2=new User("user2");
        const user3=new User("user3");

        const mockNotfyUser1=jest.fn();
        const mockNotfyUser2=jest.fn();

        user1.subscribe(user3,mockNotifyUser1);
        user2.subscribe(user3,mockNotifyUser2);

        user3.online();

        exprct(mockNotfyUser1).toBeCalledWith(user3);
        exprct(mockNotfyUser2).toBeCalledWith(user3);

    });

JavaScript种的设计模式

原型模式

  • 定义:复制已有的对象来创建新的对象。
  • 应用场景:JS种对象创建的基本模式。

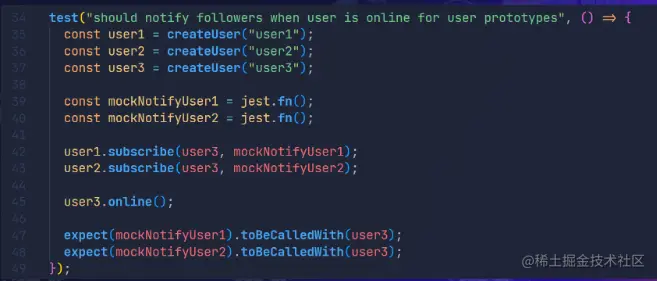

  • 用原型模式创建上线订阅中的用户。



代理模式

  • 定义:可自定义控制对原对象的访问方式,并且允许在更新前后做一些额外处理。
  • 应用场景:监控、代理工具,前端框架实现···

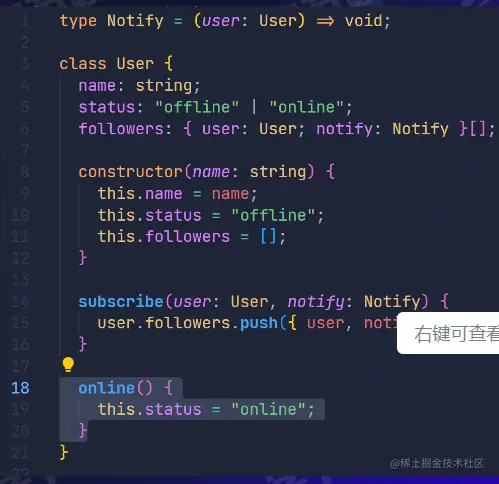

  • 使用代理模式实现用户状态订阅

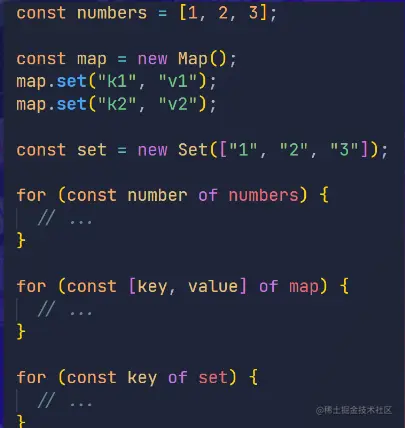

迭代器模式

  • 定义:在不保留数据类型的情况下访问集合中的数据。
  • 应用场景:数据结构中有多种数据类型,列表,树等,提供通用操作接口。

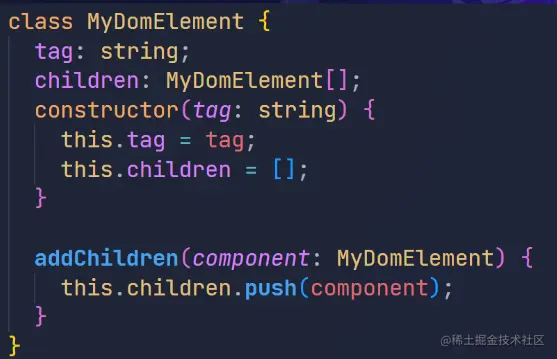

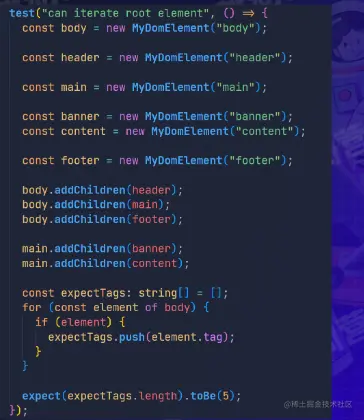

  • 用 for of迭代所以组件:
