使用 HTML、CSS 和 JS 制作一个中国象棋

·  阅读 834
使用 HTML、CSS 和 JS 制作一个中国象棋

我正在参加「创意开发 投稿大赛」详情请看:掘金创意开发大赛来了!

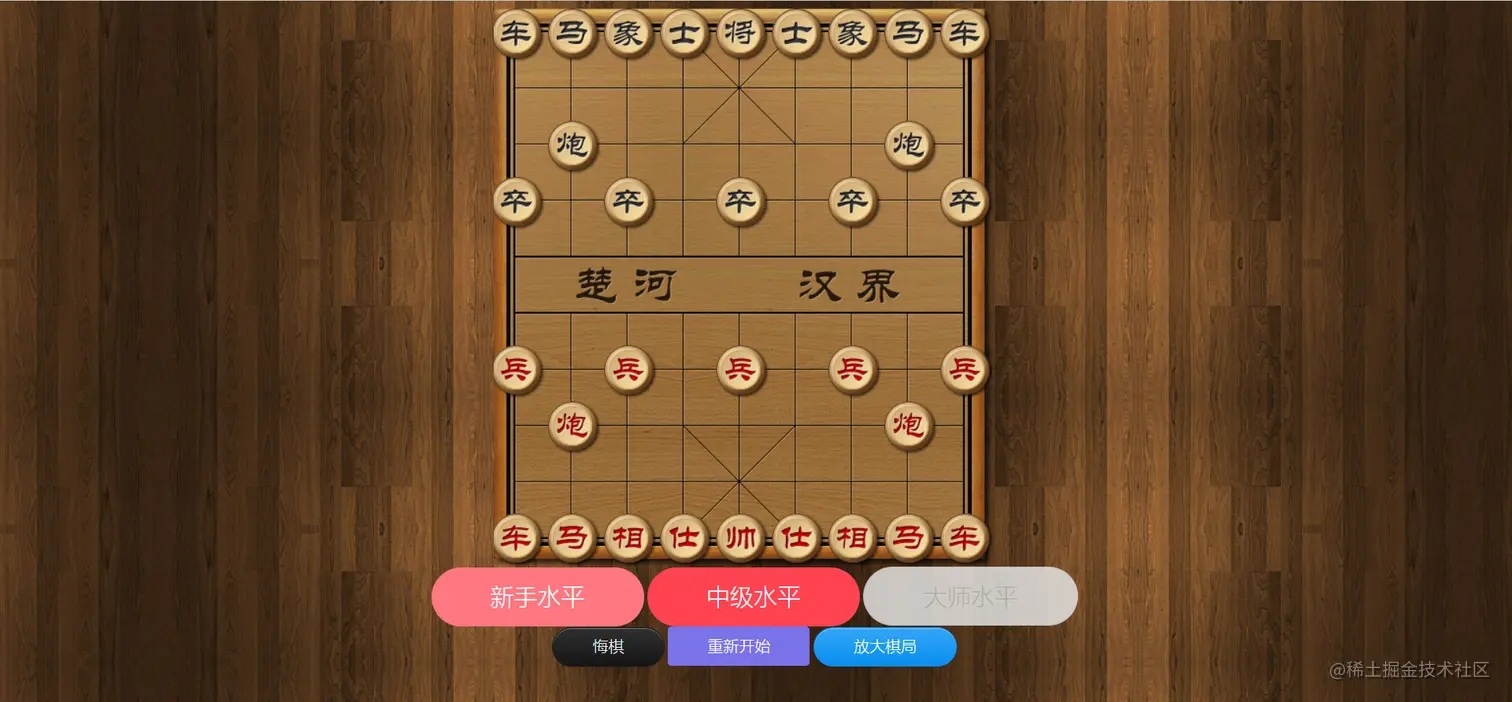

在这里插入图片描述

在线演示地址:haiyong.site/moyu/xiangq…

源码可在文末免费获取

✨ 项目基本结构

目录结构如下:

├── js
│   ├── AI.js
│   ├── bill.js
│   ├── common.js
│   ├── gambit.all.js
│   ├── gambit.js
│   ├── play.js
│   └── store.js
├── img
│   ├── stype_1
│   └── stype_2
├── css
│   └── zzsc.css
└── index.html
复制代码

🧡 HTML 代码

HTML 主要代码:

<div class="box" id="box">
	<div class="chess_left">
		<canvas id="chess">对不起,您的浏览器不支持HTML5,请升级浏览器至IE9、firefox或者谷歌浏览器!</canvas>
		<audio src="audio/click.wav" id="clickAudio" preload="auto"></audio>
		<!--<audio src="audio/check.wav" id="checkAudio" preload="auto"></audio>-->
		<audio src="audio/select.wav" id="selectAudio" preload="auto"></audio>
		<link rel="stylesheet" type="text/css" href="https://www.bootcss.com/p/buttons/css/buttons.css">
		<div>
			<div class="bn_box" id="bnBox">
				<input type="button" name="offensivePlay" id="tyroPlay" class="button button-caution button-pill button-jumbo" value="新手水平" />
				<input type="button" name="offensivePlay" id="superPlay" class="button button-caution button-pill button-jumbo" value="中级水平" />
                <input type="button" name="button" id="" value="大师水平" class="button button-caution button-pill button-jumbo" disabled /><br>
				<!--
			<input type="button" name="offensivePlay" id="offensivePlay" value="先手开始" />
			<input type="button" name="defensivePlay" id="defensivePlay" value="后手开始" />
			-->
				<input type="button" name="regret" id="regretBn" class="button button-raised button-pill button-inverse" value="悔棋" />
				<input type="button" name="billBn" id="billBn" value="重新开始" class="button button-glow button-rounded button-royal" class="bn_box" />
				<input type="button" name="stypeBn" id="stypeBn" class="button button-raised button-primary button-pill" value="放大棋局" />
			</div>
		</div>
	</div>
	<div class="chess_right" id="chessRight">
		<select name="billList" id="billList">
		</select>
		<ol id="billBox" class="bill_box">
		</ol>
	</div>
	<div id="moveInfo" class="move_info"> </div>
</div>
复制代码

💛 CSS 代码

CSS主要代码:

@charset "gb2312";
body {
	font-size: 12px;
	line-height: 150%;
}
.box {
	margin:0 auto;
	width:460px;
	position: relative;
}
.chess_left {
	float:left;
	text-align:center
}
.chess_right {
	float:left;
	display:none
}
.move_info {
	float:left;
	margin-top:20px
}
.bill_box {
	height: 320px;
	width: 80px;
	overflow:auto;
}
.bill_box li {
	cursor:pointer;
	text-align:left
}
.bill_box li:hover {
	cursor:pointer;
	background: #C6A577;
}
.bill_box li:active {
	cursor:pointer;
	background: #fff;
}
#billList {
	margin-top:20px
}
.bn_box {
	display:none
}
复制代码

💙 JS 代码

JS代码较多这里只展示部分JS代码,完整源码可在文末获取

人工智能初始化

AI.init = function(pace){
	var bill = AI.historyBill || com.gambit; //开局库
	if (bill.length){
		var len=pace.length;
		var arr=[];
		//先搜索棋谱
		for (var i=0;i< bill.length;i++){
			if (bill[i].slice(0,len)==pace) {
			arr.push(bill[i]);
			}
		}
		if (arr.length){
			var inx=Math.floor( Math.random() * arr.length );
			AI.historyBill = arr ;
			return arr[inx].slice(len,len+4).split("");
		}else{
			AI.historyBill = [] ;
		}

	}
	 //如果棋谱里面没有,人工智能开始运作
	var initTime = new Date().getTime();
	AI.treeDepth=play.depth;
	//AI.treeDepth=4;

	AI.number=0;
	AI.setHistoryTable.lenght = 0

	var val=AI.getAlphaBeta(-99999 ,99999, AI.treeDepth, com.arr2Clone(play.map),play.my);
	//var val = AI.iterativeSearch(com.arr2Clone(play.map),play.my)
	if (!val||val.value==-8888) {
		AI.treeDepth=2;
		val=AI.getAlphaBeta(-99999 ,99999, AI.treeDepth, com.arr2Clone(play.map),play.my);
	}
	//var val = AI.iterativeSearch(com.arr2Clone(play.map),play.my);
	if (val&&val.value!=-8888) {
		var man = play.mans[val.key];
		var nowTime= new Date().getTime();
		com.get("moveInfo").innerHTML='<h3>AI搜索结果:</h3>最佳着法:'+
										com.createMove(com.arr2Clone(play.map),man.x,man.y,val.x,val.y)+
										'<br />搜索深度:'+AI.treeDepth+'<br />搜索分支:'+
										AI.number+'个 <br />最佳着法评估:'+
										val.value+'分'+
										' <br />搜索用时:'+
										(nowTime-initTime)+'毫秒'
		return [man.x,man.y,val.x,val.y]
	}else {
		return false;
	}
}
复制代码

迭代加深搜索算法

AI.iterativeSearch = function (map, my){
	var timeOut=100;
	var initDepth = 1;
	var maxDepth = 8;
	AI.treeDepth=0;
	var initTime = new Date().getTime();
	var val = {};
	for (var i=initDepth; i<=maxDepth; i++){
		var nowTime= new Date().getTime();
		AI.treeDepth=i;
		AI.aotuDepth=i;
		var val = AI.getAlphaBeta(-99999, 99999, AI.treeDepth , map ,my)
		if (nowTime-initTime > timeOut){
			return val;
		}
	}
	return false;
}
复制代码

取得棋盘上所有棋子

AI.getMapAllMan = function (map, my){
	var mans=[];
	for (var i=0; i<map.length; i++){
		for (var n=0; n<map[i].length; n++){
			var key = map[i][n];
			if (key && play.mans[key].my == my){
				play.mans[key].x = n;
				play.mans[key].y = i;
				mans.push(play.mans[key])
			}
		}
	}
	return mans;
}
复制代码

取得棋谱所有己方棋子的算法

AI.getMoves = function (map, my){
	var manArr = AI.getMapAllMan (map, my);
	var moves = [];
	var foul=play.isFoul;
	for (var i=0; i<manArr.length; i++){
		var man = manArr[i];
		var val=man.bl(map);

		for (var n=0; n<val.length; n++){
			var x=man.x;
			var y=man.y;
			var newX=val[n][0];
			var newY=val[n][1];
			 //如果不是长将着法
			if (foul[0]!=x || foul[1]!=y || foul[2]!=newX || foul[3]!=newY ){
				moves.push([x,y,newX,newY,man.key])
			}
		}
	}
	return moves;
}
复制代码

A:当前棋手value/B:对手value/depth:层级

AI.getAlphaBeta = function (A, B, depth, map ,my) {
	//var txtMap= map.join();
	//var history=AI.historyTable[txtMap];
	//	if (history && history.depth >= AI.treeDepth-depth+1){
	//		return 	history.value*my;
	//}
	if (depth == 0) {
		return {"value":AI.evaluate(map , my)}; //局面评价函数;
 	}
 	var moves = AI.getMoves(map , my ); //生成全部走法;
 	//这里排序以后会增加效率

	for (var i=0; i < moves.length; i++) {


  	//走这个走法;
		var move= moves[i];
		var key = move[4];
		var oldX= move[0];
		var oldY= move[1];
		var newX= move[2];
		var newY= move[3];
		var clearKey = map[ newY ][ newX ]||"";

		map[ newY ][ newX ] = key;
		delete map[ oldY ][ oldX ];
		play.mans[key].x = newX;
		play.mans[key].y = newY;

	  if (clearKey=="j0"||clearKey=="J0") {//被吃老将,撤消这个走法;
			play.mans[key]	.x = oldX;
			play.mans[key]	.y = oldY;
			map[ oldY ][ oldX ] = key;
			delete map[ newY ][ newX ];
			if (clearKey){
				 map[ newY ][ newX ] = clearKey;
				// play.mans[ clearKey ].isShow = false;
			}

			return {"key":key,"x":newX,"y":newY,"value":8888};
			//return rootKey;
	  }else {
	  	var val = -AI.getAlphaBeta(-B, -A, depth - 1, map , -my).value;
			//val = val || val.value;

	  	//撤消这个走法;
			play.mans[key]	.x = oldX;
			play.mans[key]	.y = oldY;
			map[ oldY ][ oldX ] = key;
			delete map[ newY ][ newX ];
			if (clearKey){
				 map[ newY ][ newX ] = clearKey;
				 //play.mans[ clearKey ].isShow = true;
			}
	  	if (val >= B) {
				//将这个走法记录到历史表中;
				//AI.setHistoryTable(txtMap,AI.treeDepth-depth+1,B,my);
				return {"key":key,"x":newX,"y":newY,"value":B};
			}
			if (val > A) {
	    	A = val; //设置最佳走法;
				if (AI.treeDepth == depth) var rootKey={"key":key,"x":newX,"y":newY,"value":A};
			}
		}
 	}
	//将这个走法记录到历史表中;
	//AI.setHistoryTable(txtMap,AI.treeDepth-depth+1,A,my);
	if (AI.treeDepth == depth) {//已经递归回根了
		if (!rootKey){
			//AI没有最佳走法,说明AI被将死了,返回false
			return false;
		}else{
			//这个就是最佳走法;
			return rootKey;
		}
	}
 return {"key":key,"x":newX,"y":newY,"value":A};
}
复制代码

奖着法记录到历史表

AI.setHistoryTable = function (txtMap,depth,value,my){
	AI.setHistoryTable.lenght ++;
	AI.historyTable[txtMap] = {depth:depth,value:value}
}
复制代码

评估棋局 取得棋盘双方棋子价值差

AI.evaluate = function (map,my){
	var val=0;
	for (var i=0; i<map.length; i++){
		for (var n=0; n<map[i].length; n++){
			var key = map[i][n];
			if (key){
				val += play.mans[key].value[i][n] * play.mans[key].my;
			}
		}
	}
	//val+=Math.floor( Math.random() * 10);  //让AI走棋增加随机元素
	//com.show()
	//z(val*my)
	AI.number++;
	return val*my;
}
AI.evaluate1 = function (map,my){
	var val=0;
	for (var i in play.mans){
		var man=play.mans[i];
		if (man.isShow){
			val += man.value[man.y][man.x] * man.my;
		}
	}
	//val+=Math.floor( Math.random() * 10);  //让AI走棋增加随机元素
	//com.show()
	//z(val*my)
	AI.number++;
	return val*my;
}
复制代码

📑 完整源码下载⬇

一共三种下载方式,推荐后一种(免费)

1.CSDN资源下载:download.csdn.net/download/qq…
2.GitHub 地址(给个star ❤️ 吧):github.com/wanghao221/…
