PIXI + GSAP 实现刹车设觉动效【｜猿创营】

话不多说，代码实现附上，通过 PIXI + GSAP 实现动效真是太方便了

class BrakeBanner{
	constructor(selector){
		this.app = new PIXI.Application({
			width: window.innerWidth,
			height: window.innerHeight,
			backgroundColor: 0xffffff,
			resizeTo: window
		})
		document.querySelector(selector).appendChild(this.app.view)
		this.loader = new PIXI.Loader()
		this.loader.add('btn.png', 'images/btn.png')
		this.loader.add('brake_bike.png', 'images/brake_bike.png')
		this.loader.add('brake_handlerbar.png', 'images/brake_handlerbar.png')
		this.loader.add('brake_lever.png', 'images/brake_lever.png')
		this.loader.add('btn_circle.png', 'images/btn_circle.png')
		this.loader.load()
		this.loader.onComplete.add(() => {
			this.show()
		})
	}

	show () {
		let actionButton = this.createActionButton()
		actionButton.x = actionButton.y = 300
		actionButton.scale.x = actionButton.scale.y = 0.4


		const bikeContainer = new PIXI.Container()
		this.app.stage.addChild(bikeContainer)

		bikeContainer.scale.x = bikeContainer.scale.y = 0.2

	  const bikeImage = new PIXI.Sprite(this.loader.resources['brake_bike.png'].texture)
		const bikeHandlerbarImage = new PIXI.Sprite(this.loader.resources['brake_handlerbar.png'].texture)
		const bikeLeverImage = new PIXI.Sprite(this.loader.resources['brake_lever.png'].texture)

		bikeContainer.addChild(bikeImage)
		bikeContainer.addChild(bikeLeverImage)
		bikeContainer.addChild(bikeHandlerbarImage)

		bikeLeverImage.pivot.x = 455
		bikeLeverImage.pivot.y = 455

		bikeLeverImage.x = 722
		bikeLeverImage.y = 900

		this.app.stage.addChild(actionButton)

		actionButton.interactive = true
		actionButton.buttonMode = true

		actionButton.on('mousedown', () => {
			gsap.to(bikeLeverImage, { duration: .6, rotation: Math.PI/180*-30 })
			pause()
		})
		actionButton.on('mouseup', () => {
			gsap.to(bikeLeverImage, { duration: .6, rotation: 0 })
			start()
		})

		let resize = () => {
			bikeContainer.x = window.innerWidth - bikeContainer.width
			bikeContainer.y = window.innerHeight - bikeContainer.height
		}

		window.addEventListener('resize', resize)
		resize()

		// 创建粒子
		let particleContainer = new PIXI.Container()
		this.app.stage.addChild(particleContainer)
		particleContainer.pivot.x = window.innerWidth/2
		particleContainer.pivot.y = window.innerHeight/2
		particleContainer.x = window.innerWidth/2
		particleContainer.y = window.innerHeight/2
		particleContainer.rotation = 35 * Math.PI/180

		let particles = []
		let colors = [0xf1cf54, 0xb5cea8, 0xf1cf54, 0x818181, 0x000000]
		for (let i = 0; i < 10; i++) {
			let gr = new PIXI.Graphics()
			gr.beginFill(colors[Math.floor(Math.random()*colors.length)])
			gr.drawCircle(0, 0, 6)
			gr.endFill()

			let pItem = {
				sx: Math.random() * window.innerWidth,
				sy: Math.random() * window.innerHeight,
				gr: gr
			}

			gr.x = pItem.sx
			gr.y = pItem.sy
			particleContainer.addChild(gr)
			particles.push(pItem)
		}

		let speed = 0
		function loop () {
			speed += .5
			speed = Math.min(speed, 20)
			for (let i = 0; i < particles.length; i++) {
				let pItem = particles[i]
				pItem.gr.y += speed

				if (speed >= 20) {
					pItem.gr.scale.y = 40
					pItem.gr.scale.x = 0.03
				}
				if (pItem.gr.y > window.innerHeight) pItem.gr.y = 0
			}
		}
		function start () {
			speed = 0
			gsap.ticker.add(loop)
		}
		function pause () {
			gsap.ticker.remove(loop)
			for (let i = 0; i < particles.length; i++) {
				let pItem = particles[i]

				pItem.gr.scale.y = 1
				pItem.gr.scale.x = 1

				gsap.to(pItem.gr, { duration: .6, x: pItem.sx, y: pItem.sy, ease: 'elastic.out' })
			}
		}
		gsap.ticker.add(loop)
	}
	// 创建按钮
	createActionButton () {
		let actionButton = new PIXI.Container()

		let btnImage = new PIXI.Sprite(this.loader.resources['btn.png'].texture)
		let btnCircle = new PIXI.Sprite(this.loader.resources['btn_circle.png'].texture)
		let btnCircle2 = new PIXI.Sprite(this.loader.resources['btn_circle.png'].texture)

		actionButton.addChild(btnImage)
		actionButton.addChild(btnCircle)
		actionButton.addChild(btnCircle2)

		// 调整圆心位置
		btnImage.pivot.x = btnImage.pivot.y = btnImage.width / 2
		btnCircle.pivot.x = btnCircle.pivot.y = btnCircle.width / 2
		btnCircle2.pivot.x = btnCircle2.pivot.y = btnCircle2.width / 2

		btnCircle.scale.x = btnCircle.scale.y = 0.8
		gsap.to(btnCircle.scale, { duration: 1, x: 1.3, y: 1.3, repeat: -1})
		gsap.to(btnCircle, { duration: 1, alpha: 0, repeat: -1})

		return actionButton
	}
}

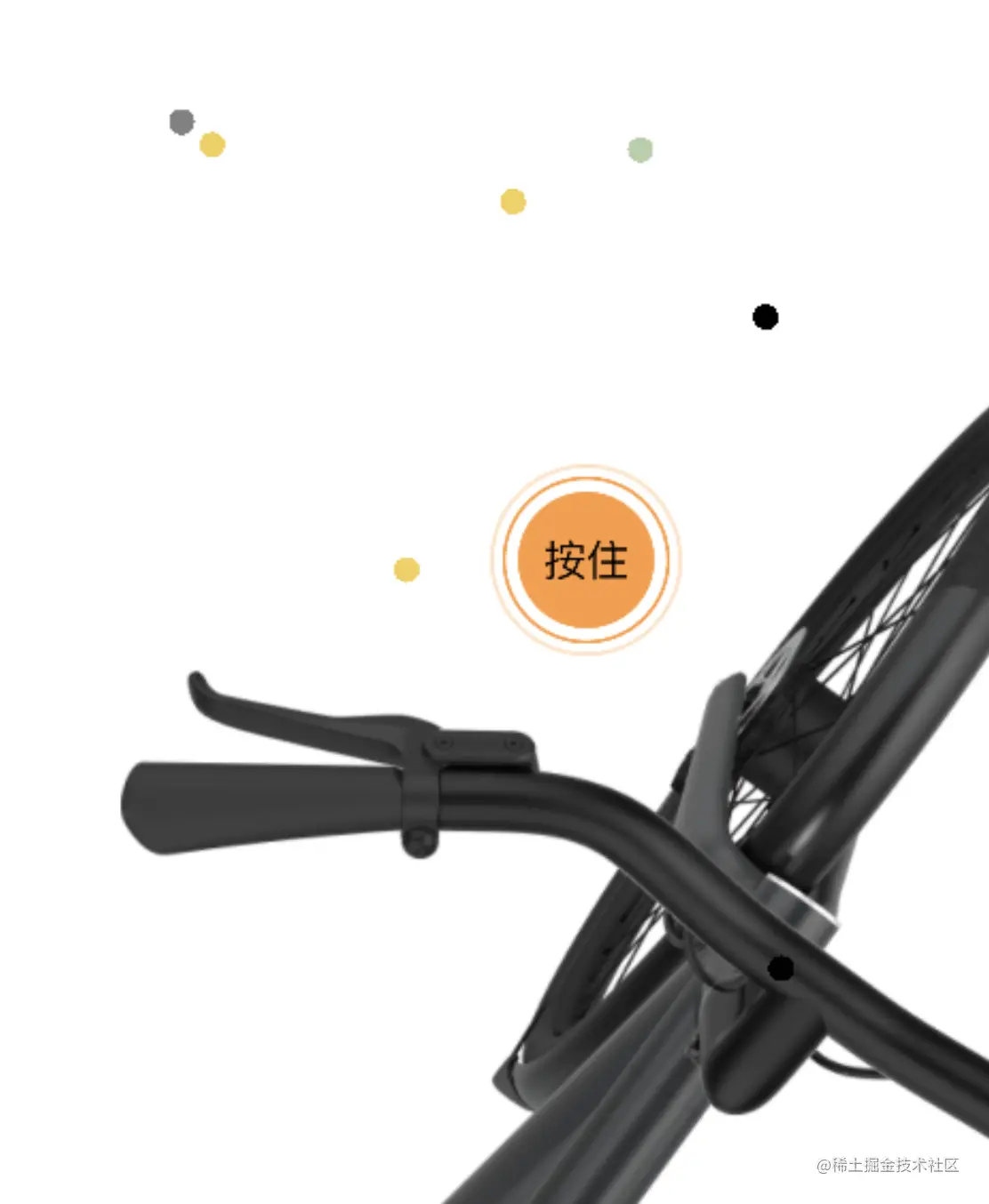

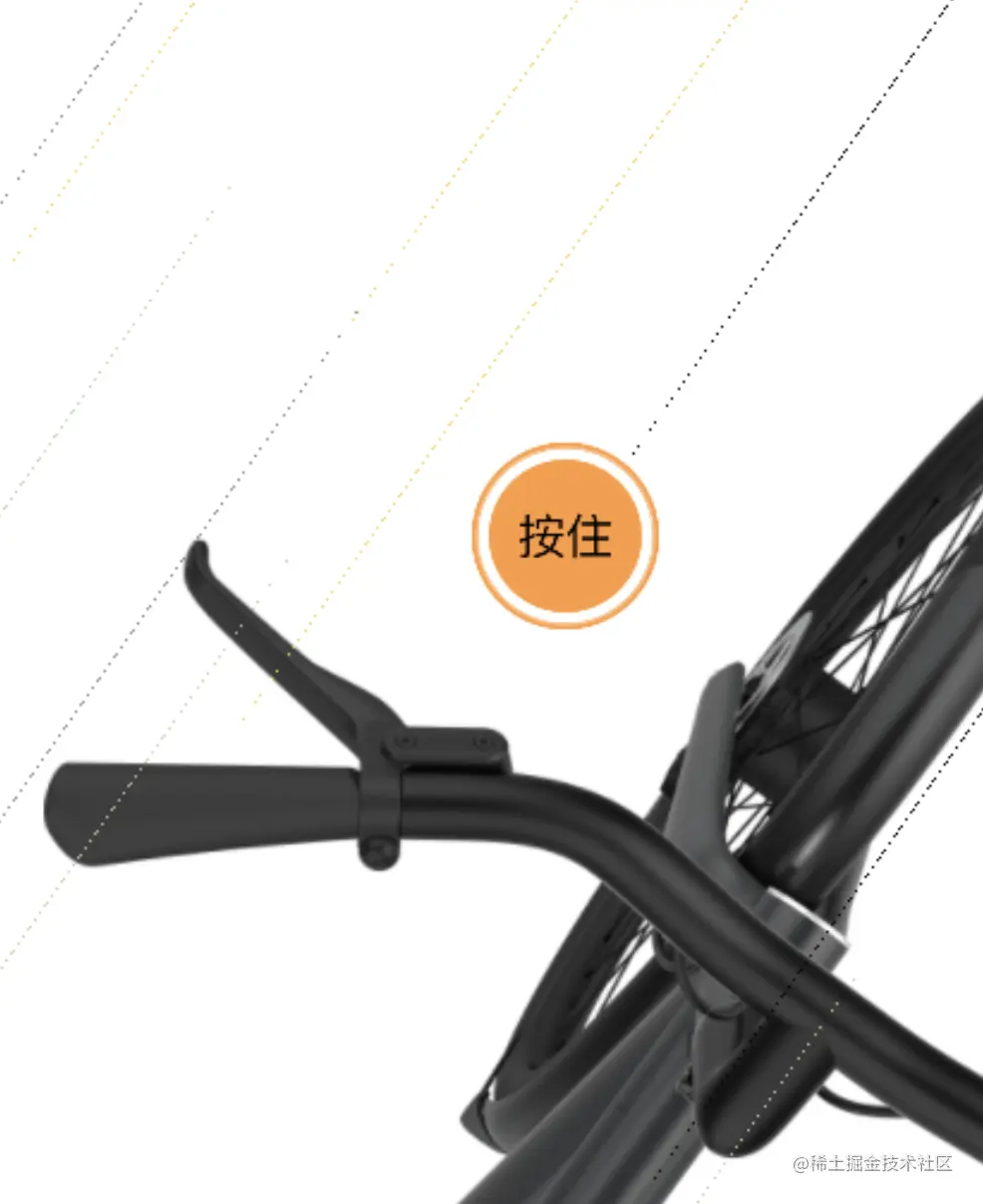

按住按钮 —— 刹车同时粒子回弹

松开按钮 —— 粒子继续运动
