学习要求
良好的java基础， 熟悉SpringBoot框架，熟悉RESTful接口开发
教学目标
了解并掌握SpringBoot集成Swagger2
##环境
springboot2.4.3 + swagger2
集成步骤

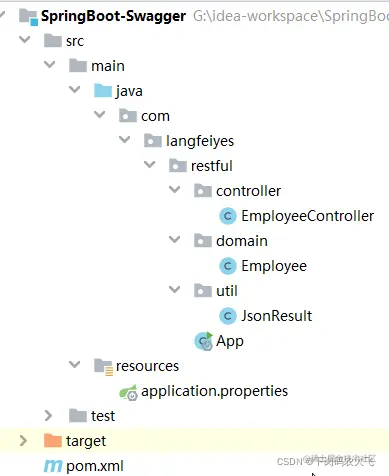

1>创建SpringBoot项目
pom.xml文件
<parent>
<groupId>org.springframework.boot</groupId>
<artifactId>spring-boot-starter-parent</artifactId>
<version>2.4.3</version>
<relativePath/>
</parent>
<dependencies>
<dependency>
<groupId>org.springframework.boot</groupId>
<artifactId>spring-boot-starter-web</artifactId>
</dependency>
</dependencies>
EmployeeController
@RestController
@RequestMapping("employees")
public class EmployeeController {
@GetMapping
public List<Employee> list(){
return Arrays.asList(new Employee(1L,"dafei", 18),new Employee(2L,"xiaofei", 16));
}
@GetMapping("/detail")
public Employee detail(Long id){
return new Employee(id, "dafei", 18);
}
@DeleteMapping
public JsonResult delete(Long id){
System.out.println("删除了.....");
return JsonResult.success();
}
@PutMapping
public Employee update(Employee employee){
employee.setName(employee.getName() +"_update");
return employee;
}
@PostMapping
public Employee add(Employee employee){
employee.setId(1L);
return employee;
}
}
Employee
public class Employee {
private Long id;
private String name;
private int age;
public Employee() {
}
public Employee(Long id, String name, int age) {
this.id = id;
this.name = name;
this.age = age;
}
public Long getId() {
return id;
}
public void setId(Long id) {
this.id = id;
}
public String getName() {
return name;
}
public void setName(String name) {
this.name = name;
}
public int getAge() {
return age;
}
public void setAge(int age) {
this.age = age;
}
}
JsonResult
public class JsonResult {
private int code;
private String msg;
private Object data;
public JsonResult(int code, String msg, Object data) {
this.code = code;
this.msg = msg;
this.data = data;
}
public static JsonResult success(){
return new JsonResult(200, "操作成功", null);
}
public static JsonResult success(Object data){
return new JsonResult(200, "操作成功", data);
}
public static JsonResult error(String msg){
return new JsonResult(500, msg, null);
}
}
App
@SpringBootApplication
public class App {
public static void main(String[] args) {
SpringApplication.run(App.class, args);
}
}
2>导入swagger2依赖
在pom.xml文件中导入jar包
<dependency>
<groupId>io.springfox</groupId>
<artifactId>springfox-swagger2</artifactId>
<version>2.9.2</version>
</dependency>
<dependency>
<groupId>io.springfox</groupId>
<artifactId>springfox-swagger-ui</artifactId>
<version>2.9.2</version>
</dependency>
3>配置swagger2
新建swagger2包，添加SwaggerConfig配置类
@Configuration
@EnableSwagger2
public class SwaggerConfig implements WebMvcConfigurer {
@Bean
public Docket productApi() {
//添加head参数start
ParameterBuilder tokenPar = new ParameterBuilder();
List<Parameter> pars = new ArrayList<Parameter>();
//这个位置设置请求头：比如令牌
tokenPar.name("token").description("令牌").modelRef(new ModelRef("string")).parameterType("header").required(false).build();
pars.add(tokenPar.build());
return new Docket(DocumentationType.SWAGGER_2).select()
// 扫描的包路径
.apis(RequestHandlerSelectors.basePackage("com.langfeiyes.restful.controller"))
// 定义要生成文档的Api的url路径规则
.paths(PathSelectors.any())
.build()
.globalOperationParameters(pars)
// 设置swagger-ui.html页面上的一些元素信息。
.apiInfo(metaData());
}
private ApiInfo metaData() {
return new ApiInfoBuilder()
// 标题
.title("SpringBoot集成Swagger2")
// 描述
.description("xxx项目接口文档")
// 文档版本
.version("1.0.0")
.license("Apache License Version 2.0")
.licenseUrl("https://www.apache.org/licenses/LICENSE-2.0")
.build();
}
//ui页面
@Override
public void addResourceHandlers(ResourceHandlerRegistry registry) {
registry.addResourceHandler("swagger-ui.html")
.addResourceLocations("classpath:/META-INF/resources/");
registry.addResourceHandler("/webjars/**")
.addResourceLocations("classpath:/META-INF/resources/webjars/");
}
}
4>启动项目并测试

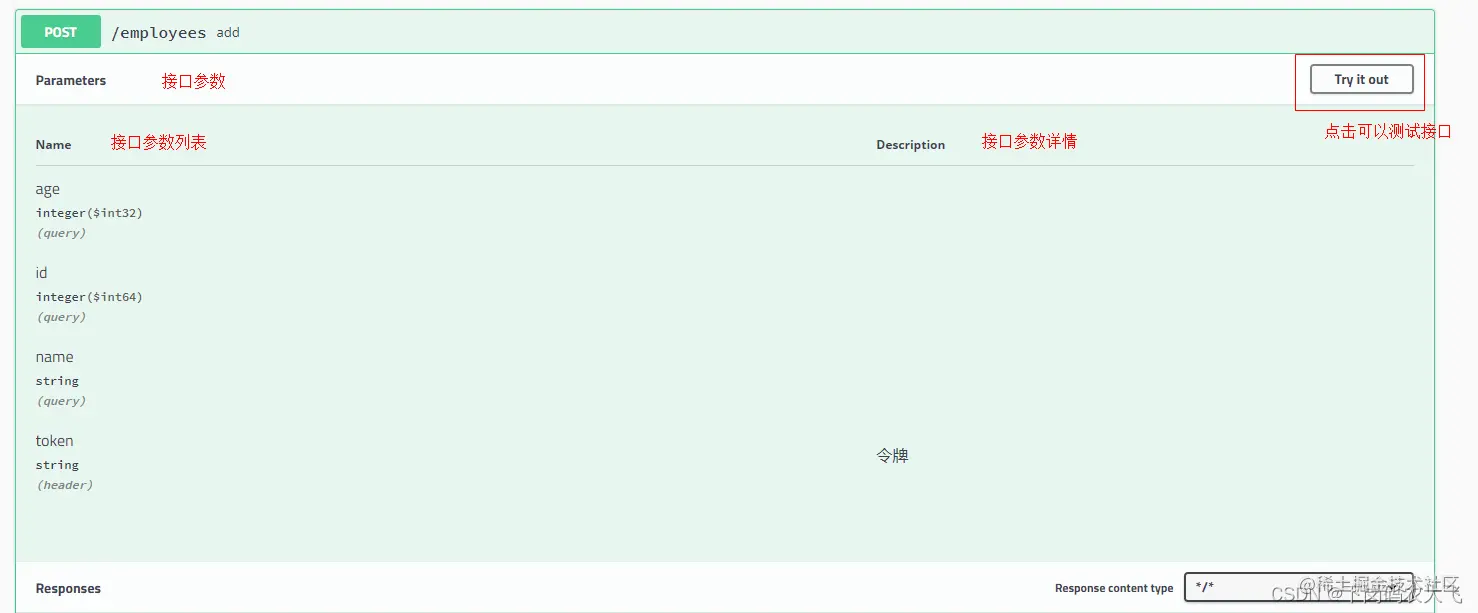

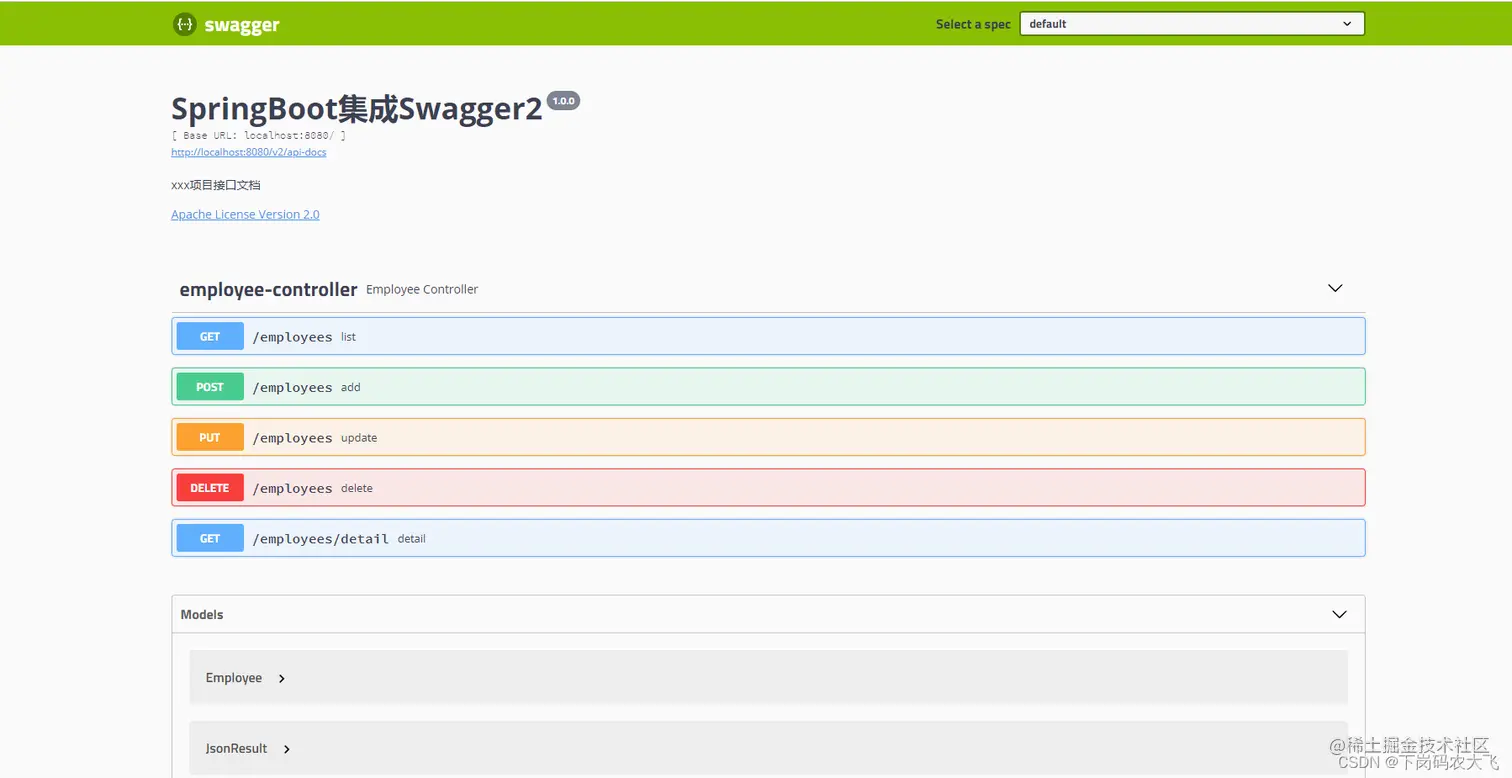

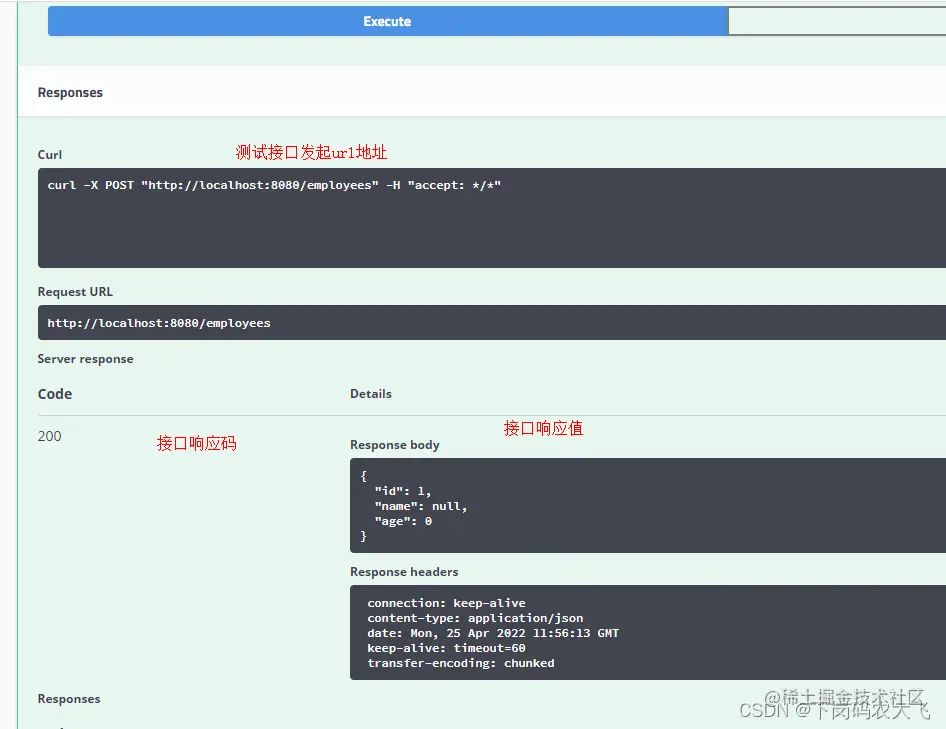

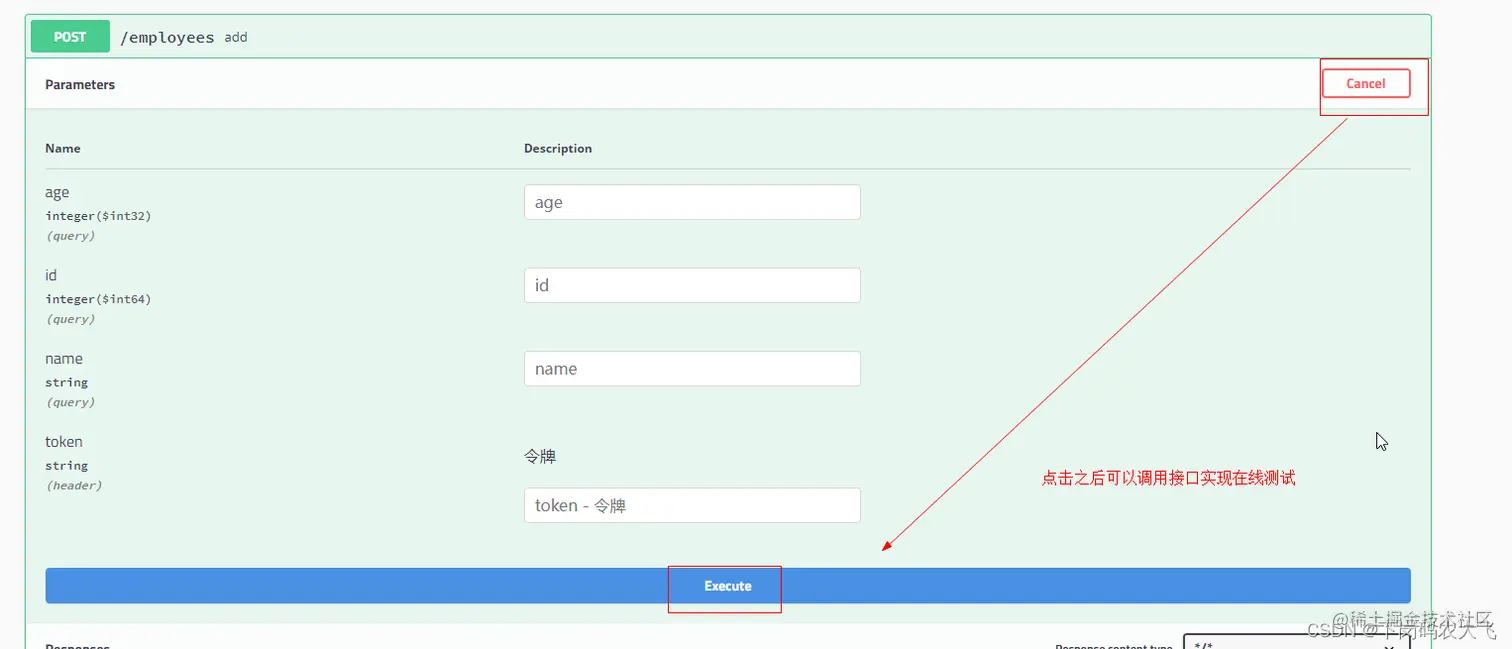

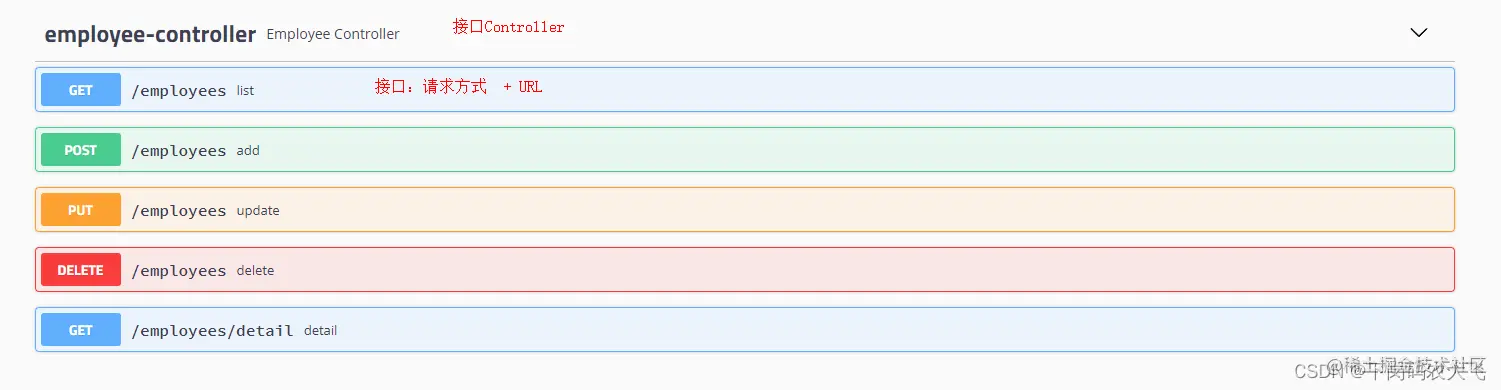

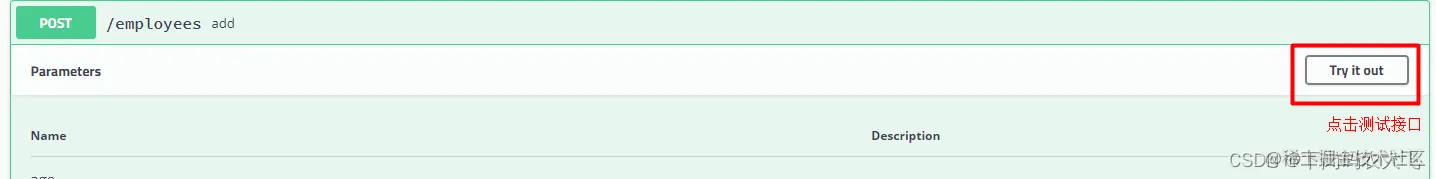

右键运行App类，访问：http://localhost:8080/swagger-ui.html
使用介绍
常用注解
@Api/@ApiOperation
@Api：用在类上，说明该类的作用
@RestController
@RequestMapping("employees")
@Api(value = "用户资源",tags = "用户资源控制器")
public class EmployeeController {
....
}

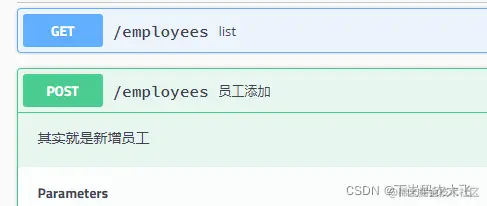

@ApiOperation：用在方法上，说明方法的作用
@ApiOperation(value = "员工添加",notes = "其实就是新增员工")
@PostMapping
public Employee add(Employee employee){
employee.setId(1L);
return employee;
}
@ApiImplicitParams/@ApiImplicitParam
@ApiImplicitParams：用在方法上包含一组参数说明
@ApiImplicitParam：用在@ApiImplicitParams注解中，指定一个请求参数的各个方面
@ApiImplicitParams({
@ApiImplicitParam(value = "昵称",name = "name",dataType = "String",required = true),
@ApiImplicitParam(value = "年龄",name = "age",dataType = "int",required = true)
})
@PostMapping("/add")
public Employee add2(String name, int age){
return new Employee(1L, name, age);
}
@ApiModel/@ApiModelProperty
@ApiModel：描述一个Model的信息 （这种一般用在post创建的时候，使用@RequestBody这样的场景，请求参数无法使用@ApiImplicitParam注解进行描述的时候） @ApiModelProperty：描述一个model的属性
@ApiModel(value="员工",description="平台注册员工模型")
public class Employee {
@ApiModelProperty(value="主键",name="id",dataType = "long",required = true)
private Long id;
@ApiModelProperty(value="名称",name="name",dataType = "String",required = true)
private String name;
@ApiModelProperty(value="年龄",name="age",dataType = "int",required = true)
private int age;
....
}
@PutMapping
public Employee update(Employee employee){
employee.setName(employee.getName() +"_update");
return employee;
}

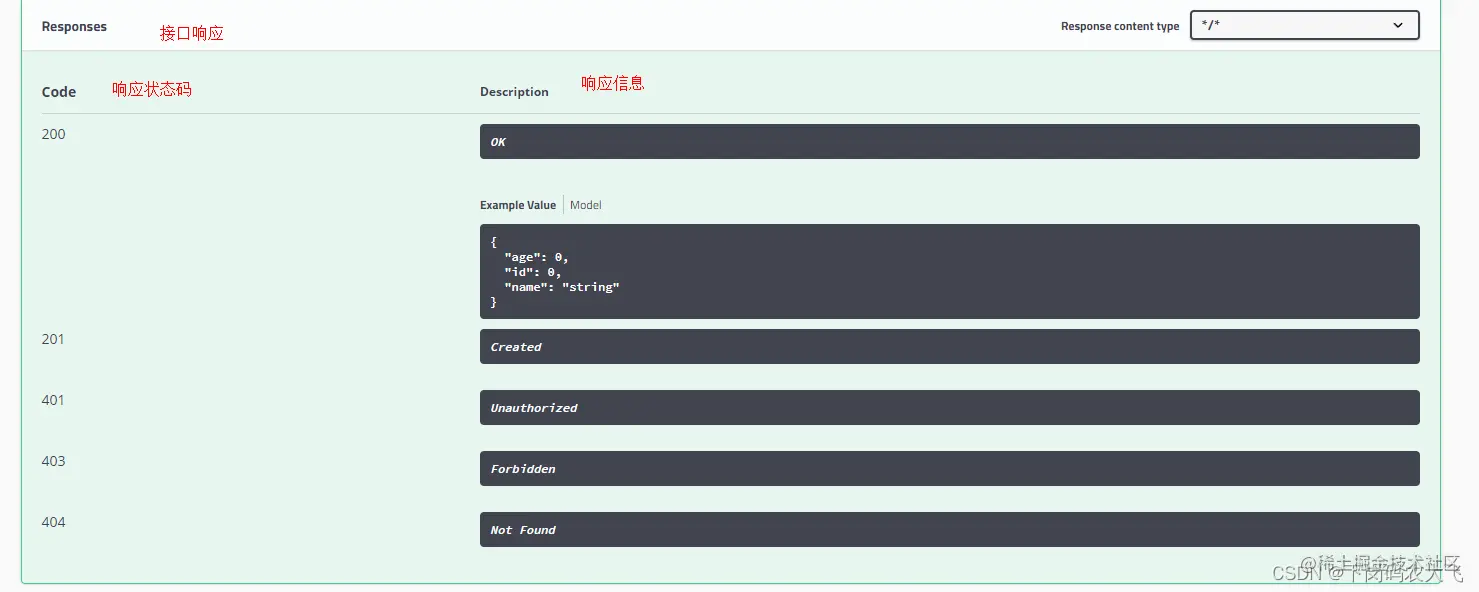

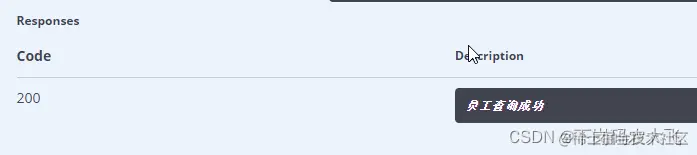

@ApiResponses
@ApiResponses：用于表示一组响应 @ApiResponse：用在@ApiResponses中，一般用于表达一个错误的响应信息(200相应不写在这里面) code：数字，例如400 message：信息，例如"请求参数没填好" response：抛出的异常类
@ApiResponses({
@ApiResponse(code=200,message="员工查询成功")
})
@GetMapping("/detail")
public Employee detail(Long id){
return new Employee(id, "dafei", 18);
}
好，到这SpringBoot集成Swagger2操作就OK拉
