Spring依赖注入
Chapter 1 Spring依赖注入源码分析
1 调用示例
/**
* @ClassName AnnotationDependencyConstructorInjectionDemo
* @Description 基于 Java 注解方式进行Constructor依赖注入示例
* @Author WQ
* @Date 2022/7/5 16:07
* @Version 1.0
*/
public class AnnotationDependencyInjectionResolutionDemo {
@Autowired
private User user;
@Autowired
private Map<String, User> users;
@Autowired
@Lazy
private User superUser;
public static void main(String[] args) {
// 获取应用上下文
AnnotationConfigApplicationContext applicationContext = new AnnotationConfigApplicationContext();
// XmlBeanDefinition 读取器
XmlBeanDefinitionReader xmlBeanDefinitionReader = new XmlBeanDefinitionReader(applicationContext);
// 依赖的上下文路径
String xmlPath = "classpath:/META-INF/dependency-lookup-context.xml";
// 加载 BeanDefinition
xmlBeanDefinitionReader.loadBeanDefinitions(xmlPath);
applicationContext.register(AnnotationDependencyInjectionResolutionDemo.class);
// 启动容器
applicationContext.refresh();
AnnotationDependencyInjectionResolutionDemo demo = applicationContext.getBean(AnnotationDependencyInjectionResolutionDemo.class);
System.out.println(demo.user);
// 关闭容器
applicationContext.close();
}
}

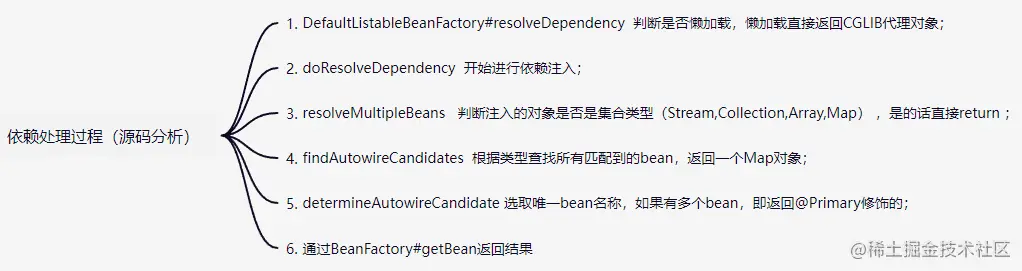

Image 1 依赖注入主要执行步骤 Source Path
2 DefaultListableBeanFactory#resolveDependency方法分析
DefaultListableBeanFactory#resolveDependency 解析依赖的方法
- DependencyDescriptor descriptor 依赖的描述符
- String requestingBeanName 需要注入的Bean名称
- Set autowiredBeanNames 所有需要自动注入的 Bean 的名称
- TypeConverter typeConverter 对于数组或者集合的转换器 该方法主要判断需要注入的对象的类型，走不通的分支去注入对象
@Override
@Nullable
public Object resolveDependency(DependencyDescriptor descriptor, @Nullable String requestingBeanName,
@Nullable Set<String> autowiredBeanNames, @Nullable TypeConverter typeConverter) throws BeansException {
descriptor.initParameterNameDiscovery(getParameterNameDiscoverer());
// 判断被注入的类是否为 Optional 类型
if (Optional.class == descriptor.getDependencyType()) {
return createOptionalDependency(descriptor, requestingBeanName);
}
// 判断被注入的类是否为 ObjectFactory 或者 ObjectFactory 等延迟加载的类型
else if (ObjectFactory.class == descriptor.getDependencyType() ||
ObjectProvider.class == descriptor.getDependencyType()) {
return new DependencyObjectProvider(descriptor, requestingBeanName);
}
// 判断被注入的类是否为 javaxInjectProviderClass 类型
else if (javaxInjectProviderClass == descriptor.getDependencyType()) {
return new Jsr330Factory().createDependencyProvider(descriptor, requestingBeanName);
}
else {
// 如果是用 @Lazy 注解标注的对象，则返回 CGLIB 提升过的代理对象
Object result = getAutowireCandidateResolver().getLazyResolutionProxyIfNecessary(
descriptor, requestingBeanName);
if (result == null) {
// 执行解析依赖的操作
result = doResolveDependency(descriptor, requestingBeanName, autowiredBeanNames, typeConverter);
}
return result;
}
}
3 DependencyDescriptor
DependencyDescriptor 是依赖的描述，该类中描述了注入对象的信息。注入类型有三种：方法注入、字段注入、构造器注入，允许其中只采用其中一种注入，但不能三种同时为空。三种注入的字段上面添加了 @Nullable 注解表明可以该字段为空，但时机上，三种注入方法必须采用其中一种，即不能同时为空。
public class DependencyDescriptor extends InjectionPoint implements Serializable {
// 被注入的类
private final Class<?> declaringClass;
@Nullable // 该注解允许该参数为空
// 方法名称 方法注入
private String methodName;
@Nullable
// 参数类型集合 构造器注入
private Class<?>[] parameterTypes;
// 参数位置
private int parameterIndex;
@Nullable
// 字段名称 字段注入
private String fieldName;
// 是否是必须的，通常这个值为true
private final boolean required;
// 是直接加载还是懒加载，对应的为@Lazy注解，如果@lazy注解为true，该值为false
private final boolean eager;
// 嵌套层次
private int nestingLevel = 1;
@Nullable
// 包含了那些类
private Class<?> containingClass;
@Nullable
private transient volatile ResolvableType resolvableType;
@Nullable
// 类型描述 主要是类型描述的内容
private transient volatile TypeDescriptor typeDescriptor;
}
4 doResolveDependency
DefaultListableBeanFactory#doResolveDependency 执行依赖解析的方法
@Nullable
public Object doResolveDependency(DependencyDescriptor descriptor, @Nullable String beanName,
@Nullable Set<String> autowiredBeanNames, @Nullable TypeConverter typeConverter) throws BeansException {
// 嵌套注入的保护点
InjectionPoint previousInjectionPoint = ConstructorResolver.setCurrentInjectionPoint(descriptor);
try {
// 是否有快捷方式
Object shortcut = descriptor.resolveShortcut(this);
if (shortcut != null) {
return shortcut;
}
// 获取自动注入的类型
Class<?> type = descriptor.getDependencyType();
// 获取自动注入候选者解析器
Object value = getAutowireCandidateResolver().getSuggestedValue(descriptor);
if (value != null) {
if (value instanceof String) {
String strVal = resolveEmbeddedValue((String) value);
BeanDefinition bd = (beanName != null && containsBean(beanName) ?
getMergedBeanDefinition(beanName) : null);
value = evaluateBeanDefinitionString(strVal, bd);
}
TypeConverter converter = (typeConverter != null ? typeConverter : getTypeConverter());
try {
return converter.convertIfNecessary(value, type, descriptor.getTypeDescriptor());
}
catch (UnsupportedOperationException ex) {
// A custom TypeConverter which does not support TypeDescriptor resolution...
return (descriptor.getField() != null ?
converter.convertIfNecessary(value, type, descriptor.getField()) :
converter.convertIfNecessary(value, type, descriptor.getMethodParameter()));
}
}
//
Object multipleBeans = resolveMultipleBeans(descriptor, beanName, autowiredBeanNames, typeConverter);
if (multipleBeans != null) {
// 这里解析到数据就直接返回了，不会继续往下走
return multipleBeans;
}
// 根据名称、类型、描述来查找符合条件的 Bean
Map<String, Object> matchingBeans = findAutowireCandidates(beanName, type, descriptor);
if (matchingBeans.isEmpty()) {
if (isRequired(descriptor)) {
raiseNoMatchingBeanFound(type, descriptor.getResolvableType(), descriptor);
}
return null;
}
String autowiredBeanName;
Object instanceCandidate;
// 如果候选者的数量大于一
if (matchingBeans.size() > 1) {
// 确定自动注入候选者的名称
autowiredBeanName = determineAutowireCandidate(matchingBeans, descriptor);
if (autowiredBeanName == null) {
if (isRequired(descriptor) || !indicatesMultipleBeans(type)) {
return descriptor.resolveNotUnique(descriptor.getResolvableType(), matchingBeans);
}
else {
// In case of an optional Collection/Map, silently ignore a non-unique case:
// possibly it was meant to be an empty collection of multiple regular beans
// (before 4.3 in particular when we didn't even look for collection beans).
return null;
}
}
// 从 IoC Container 中调用 beanFactory.getBean(name) 去获取Bean
instanceCandidate = matchingBeans.get(autowiredBeanName);
}
else {
// We have exactly one match.
Map.Entry<String, Object> entry = matchingBeans.entrySet().iterator().next();
autowiredBeanName = entry.getKey();
instanceCandidate = entry.getValue();
}
if (autowiredBeanNames != null) {
autowiredBeanNames.add(autowiredBeanName);
}
if (instanceCandidate instanceof Class) {
// 如果 候选者实例是 Class 类型， 则调用 beanFactory.getBean(beanName);
instanceCandidate = descriptor.resolveCandidate(autowiredBeanName, type, this);
}
Object result = instanceCandidate;
if (result instanceof NullBean) {
if (isRequired(descriptor)) {
raiseNoMatchingBeanFound(type, descriptor.getResolvableType(), descriptor);
}
result = null;
}
if (!ClassUtils.isAssignableValue(type, result)) {
throw new BeanNotOfRequiredTypeException(autowiredBeanName, type, instanceCandidate.getClass());
}
// 返回查找到的Bean
return result;
}
finally {
ConstructorResolver.setCurrentInjectionPoint(previousInjectionPoint);
}
}
/**
* Resolve the specified bean name, as a candidate result of the matching
* algorithm for this dependency, to a bean instance from the given factory.
* <p>The default implementation calls {@link BeanFactory#getBean(String)}.
* Subclasses may provide additional arguments or other customizations.
* @param beanName the bean name, as a candidate result for this dependency
* @param requiredType the expected type of the bean (as an assertion)
* @param beanFactory the associated factory
* @return the bean instance (never {@code null})
* @throws BeansException if the bean could not be obtained
* @since 4.3.2
* @see BeanFactory#getBean(String)
*/
public Object resolveCandidate(String beanName, Class<?> requiredType, BeanFactory beanFactory)
throws BeansException {
return beanFactory.getBean(beanName);
}
5 resolveMultipleBeans
DefaultListableBeanFactory#resolveMultipleBeans 该方法是解析 Stream、Array、Collection、Map 等类型，该方法中会提前调用 findAutowireCandidates 方法去查找符合条件的对象。
@Nullable
private Object resolveMultipleBeans(DependencyDescriptor descriptor, @Nullable String beanName,
@Nullable Set<String> autowiredBeanNames, @Nullable TypeConverter typeConverter) {
// 注入对象的类型
final Class<?> type = descriptor.getDependencyType();
// 如果是 Stream 类型
if (descriptor instanceof StreamDependencyDescriptor) {
Map<String, Object> matchingBeans = findAutowireCandidates(beanName, type, descriptor);
if (autowiredBeanNames != null) {
autowiredBeanNames.addAll(matchingBeans.keySet());
}
Stream<Object> stream = matchingBeans.keySet().stream()
.map(name -> descriptor.resolveCandidate(name, type, this))
.filter(bean -> !(bean instanceof NullBean));
if (((StreamDependencyDescriptor) descriptor).isOrdered()) {
stream = stream.sorted(adaptOrderComparator(matchingBeans));
}
return stream;
}
// 如果是数组类型
else if (type.isArray()) {
Class<?> componentType = type.getComponentType();
ResolvableType resolvableType = descriptor.getResolvableType();
Class<?> resolvedArrayType = resolvableType.resolve(type);
if (resolvedArrayType != type) {
componentType = resolvableType.getComponentType().resolve();
}
if (componentType == null) {
return null;
}
Map<String, Object> matchingBeans = findAutowireCandidates(beanName, componentType,
new MultiElementDescriptor(descriptor));
if (matchingBeans.isEmpty()) {
return null;
}
if (autowiredBeanNames != null) {
autowiredBeanNames.addAll(matchingBeans.keySet());
}
TypeConverter converter = (typeConverter != null ? typeConverter : getTypeConverter());
Object result = converter.convertIfNecessary(matchingBeans.values(), resolvedArrayType);
if (result instanceof Object[]) {
Comparator<Object> comparator = adaptDependencyComparator(matchingBeans);
if (comparator != null) {
Arrays.sort((Object[]) result, comparator);
}
}
return result;
}
// 如果是集合类型，并
else if (Collection.class.isAssignableFrom(type) && type.isInterface()) {
Class<?> elementType = descriptor.getResolvableType().asCollection().resolveGeneric();
if (elementType == null) {
return null;
}
Map<String, Object> matchingBeans = findAutowireCandidates(beanName, elementType,
new MultiElementDescriptor(descriptor));
if (matchingBeans.isEmpty()) {
return null;
}
if (autowiredBeanNames != null) {
autowiredBeanNames.addAll(matchingBeans.keySet());
}
TypeConverter converter = (typeConverter != null ? typeConverter : getTypeConverter());
Object result = converter.convertIfNecessary(matchingBeans.values(), type);
if (result instanceof List) {
Comparator<Object> comparator = adaptDependencyComparator(matchingBeans);
if (comparator != null) {
((List<?>) result).sort(comparator);
}
}
return result;
}
// 如果对象的类型为Map
else if (Map.class == type) {
// 从 descriptor 中获取解析类型并封装成一个 Map
ResolvableType mapType = descriptor.getResolvableType().asMap();
// 获取 Map 的 key 的类型
Class<?> keyType = mapType.resolveGeneric(0);
if (String.class != keyType) {
return null;
}
// 获取 Map 的 value 的类型 此处为User
Class<?> valueType = mapType.resolveGeneric(1);
if (valueType == null) {
return null;
}
// 根据 beanName、valueType、new MultiElementDescriptor(descriptor)多元素描述符来查找对象
Map<String, Object> matchingBeans = findAutowireCandidates(beanName, valueType,
new MultiElementDescriptor(descriptor));
if (matchingBeans.isEmpty()) {
return null;
}
if (autowiredBeanNames != null) {
autowiredBeanNames.addAll(matchingBeans.keySet());
}
return matchingBeans;
}
else {
return null;
}
}
6 findAutowireCandidates
DefaultListableBeanFactory#findAutowireCandidates 自动注入单个对象，找自动注入的候选者
/**
* Find bean instances that match the required type.
* Called during autowiring for the specified bean.
* @param beanName the name of the bean that is about to be wired
* @param requiredType the actual type of bean to look for
* (may be an array component type or collection element type)
* @param descriptor the descriptor of the dependency to resolve
* @return a Map of candidate names and candidate instances that match
* the required type (never {@code null})
* @throws BeansException in case of errors
* @see #autowireByType
* @see #autowireConstructor
*/
protected Map<String, Object> findAutowireCandidates(
@Nullable String beanName, Class<?> requiredType, DependencyDescriptor descriptor) {
// 获取候选者的名称
// BeanFactoryUtils.beanNamesForTypeIncludingAncestors(ListableBeanFactory lbf, Class<?> type, boolean includeNonSingletons, boolean allowEagerInit);
// ListableBeanFactory lbf IoC 容器
// Class<?> type 需要注入的类型
// boolean includeNonSingletons 是否为非单例
// boolean allowEagerInit 是否为懒加载
String[] candidateNames = BeanFactoryUtils.beanNamesForTypeIncludingAncestors(
this, requiredType, true, descriptor.isEager());
Map<String, Object> result = new LinkedHashMap<>(candidateNames.length);
// 遍历已经解析的依赖
for (Map.Entry<Class<?>, Object> classObjectEntry : this.resolvableDependencies.entrySet()) {
// 获取自动注入的类型
Class<?> autowiringType = classObjectEntry.getKey();
// requiredType是自动注入的类型，即示例中的 User
// autowiringType 已经解析的依赖的类型
// 判断这两个类型是否具有继承或者这两者是否有相等
if (autowiringType.isAssignableFrom(requiredType)) {
// 获取自动注入的对象
Object autowiringValue = classObjectEntry.getValue();
autowiringValue = AutowireUtils.resolveAutowiringValue(autowiringValue, requiredType);
if (requiredType.isInstance(autowiringValue)) {
result.put(ObjectUtils.identityToString(autowiringValue), autowiringValue);
break;
}
}
}
// 遍历候选者名称
for (String candidate : candidateNames) {
if (!isSelfReference(beanName, candidate) && isAutowireCandidate(candidate, descriptor)) {
// 添加到候选者列表 result 中
addCandidateEntry(result, candidate, descriptor, requiredType);
}
}
// 如果没有找到类型相同或者具有继承关系的类
if (result.isEmpty()) {
boolean multiple = indicatesMultipleBeans(requiredType);
// Consider fallback matches if the first pass failed to find anything...
DependencyDescriptor fallbackDescriptor = descriptor.forFallbackMatch();
for (String candidate : candidateNames) {
if (!isSelfReference(beanName, candidate) && isAutowireCandidate(candidate, fallbackDescriptor) &&
(!multiple || getAutowireCandidateResolver().hasQualifier(descriptor))) {
addCandidateEntry(result, candidate, descriptor, requiredType);
}
}
if (result.isEmpty() && !multiple) {
// Consider self references as a final pass...
// but in the case of a dependency collection, not the very same bean itself.
for (String candidate : candidateNames) {
if (isSelfReference(beanName, candidate) &&
(!(descriptor instanceof MultiElementDescriptor) || !beanName.equals(candidate)) &&
isAutowireCandidate(candidate, fallbackDescriptor)) {
addCandidateEntry(result, candidate, descriptor, requiredType);
}
}
}
}
// 返回找到的结果
return result;
}
7 beanNamesForTypeIncludingAncestors
BeanFactoryUtils#beanNamesForTypeIncludingAncestors 该方法的作用为从 IoC 容器中根据类型获取名称，如果当前的 IoC 容器是一个 层次性的容器，则还会递归向上查找父类中有没有符合条件的 Bean，如果找到符合条件的 Bean，最终将BeanName 合并成一个数组进行返回
/**
* Get all bean names for the given type, including those defined in ancestor
* factories. Will return unique names in case of overridden bean definitions.
* <p>Does consider objects created by FactoryBeans if the "allowEagerInit"
* flag is set, which means that FactoryBeans will get initialized. If the
* object created by the FactoryBean doesn't match, the raw FactoryBean itself
* will be matched against the type. If "allowEagerInit" is not set,
* only raw FactoryBeans will be checked (which doesn't require initialization
* of each FactoryBean).
* @param lbf the bean factory
* @param includeNonSingletons whether to include prototype or scoped beans too
* or just singletons (also applies to FactoryBeans)
* @param allowEagerInit whether to initialize <i>lazy-init singletons</i> and
* <i>objects created by FactoryBeans</i> (or by factory methods with a
* "factory-bean" reference) for the type check. Note that FactoryBeans need to be
* eagerly initialized to determine their type: So be aware that passing in "true"
* for this flag will initialize FactoryBeans and "factory-bean" references.
* @param type the type that beans must match
* @return the array of matching bean names, or an empty array if none
* @see ListableBeanFactory#getBeanNamesForType(Class, boolean, boolean)
*/
public static String[] beanNamesForTypeIncludingAncestors(
ListableBeanFactory lbf, Class<?> type, boolean includeNonSingletons, boolean allowEagerInit) {
Assert.notNull(lbf, "ListableBeanFactory must not be null");
// 从 IoC 容器中根据类型获取 BeanName
String[] result = lbf.getBeanNamesForType(type, includeNonSingletons, allowEagerInit);
// 如果 IoC 容器是实现了HierarchicalBeanFactory（层次性的 BeanFactory ）
if (lbf instanceof HierarchicalBeanFactory) {
// 将 IoC 容器转换为 HierarchicalBeanFactory 层次性 BeanFactory
HierarchicalBeanFactory hbf = (HierarchicalBeanFactory) lbf;
// 如果当前容器的父容器也是 ListableBeanFactory
if (hbf.getParentBeanFactory() instanceof ListableBeanFactory) {
// 递归调用查询父容器中的 BeanName
String[] parentResult = beanNamesForTypeIncludingAncestors(
(ListableBeanFactory) hbf.getParentBeanFactory(), type, includeNonSingletons, allowEagerInit);
// 合并结果
result = mergeNamesWithParent(result, parentResult, hbf);
}
}
// 返回查询到的符合条件的名称
return result;
}
8 isAssignableFrom
如果是A.isAssignableFrom(B) 确定一个类(B)是不是继承来自于另一个父类(A)，一个接口(A)是不是实现了另外一个接口(B)，或者两个类相同。主要，这里比较的维度不是实例对象，而是类本身，因为这个方法本身就是Class类的方法，判断的肯定是和类信息相关的。
public native boolean isAssignableFrom(Class<?> cls);
class A{
}
class B extends A{
}
class C extends B{
}
public class test {
public static void main(String[] args) {
A a = new A();
B b = new B();
B b1 = new B();
C c = new C();
System.out.println(a.getClass().isAssignableFrom(a.getClass()));
System.out.println(a.getClass().isAssignableFrom(b.getClass()));
System.out.println(a.getClass().isAssignableFrom(c.getClass()));
System.out.println(b1.getClass().isAssignableFrom(b.getClass()));
System.out.println(b.getClass().isAssignableFrom(c.getClass()));
System.out.println("=====================================");
System.out.println(A.class.isAssignableFrom(a.getClass()));
System.out.println(A.class.isAssignableFrom(b.getClass()));
System.out.println(A.class.isAssignableFrom(c.getClass()));
System.out.println("=====================================");
System.out.println(Object.class.isAssignableFrom(a.getClass()));
System.out.println(Object.class.isAssignableFrom(String.class));
System.out.println(String.class.isAssignableFrom(Object.class));
}
}
运行结果
true
true
true
true
true
=====================================
true
true
true
=====================================
true
true
false
9 determineAutowireCandidate
DefaultListableBeanFactory#determineAutowireCandidate 确定自动注入的候选者
/**
* Determine the autowire candidate in the given set of beans.
* <p>Looks for {@code @Primary} and {@code @Priority} (in that order).
* @param candidates a Map of candidate names and candidate instances
* that match the required type, as returned by {@link #findAutowireCandidates}
* @param descriptor the target dependency to match against
* @return the name of the autowire candidate, or {@code null} if none found
*/
@Nullable
protected String determineAutowireCandidate(Map<String, Object> candidates, DependencyDescriptor descriptor) {
// 自动注入对象的类型
Class<?> requiredType = descriptor.getDependencyType();
// 确定 Primary 标注的候选者
String primaryCandidate = determinePrimaryCandidate(candidates, requiredType);
// 如果 Primary 存在
if (primaryCandidate != null) {
// 返回 Primary 标注对象的名称
return primaryCandidate;
}
String priorityCandidate = determineHighestPriorityCandidate(candidates, requiredType);
if (priorityCandidate != null) {
return priorityCandidate;
}
// Fallback
for (Map.Entry<String, Object> entry : candidates.entrySet()) {
String candidateName = entry.getKey();
Object beanInstance = entry.getValue();
if ((beanInstance != null && this.resolvableDependencies.containsValue(beanInstance)) ||
matchesBeanName(candidateName, descriptor.getDependencyName())) {
return candidateName;
}
}
return null;
}
10 determinePrimaryCandidate
DefaultListableBeanFactory#DefaultListableBeanFactory 确定 Primary 标注的对象
/**
* Determine the primary candidate in the given set of beans.
* @param candidates a Map of candidate names and candidate instances
* (or candidate classes if not created yet) that match the required type
* @param requiredType the target dependency type to match against
* @return the name of the primary candidate, or {@code null} if none found
* @see #isPrimary(String, Object)
*/
@Nullable
protected String determinePrimaryCandidate(Map<String, Object> candidates, Class<?> requiredType) {
String primaryBeanName = null;
// 遍历候选者列表
for (Map.Entry<String, Object> entry : candidates.entrySet()) {
// 获取候选者的名称
String candidateBeanName = entry.getKey();
// 获取获选者的实例
Object beanInstance = entry.getValue();
// 根据候选者的名称和实例判断是否为Primary = true 的对象
if (isPrimary(candidateBeanName, beanInstance)) {
// 找到 primary == ture 的对象
if (primaryBeanName != null) {
// 从 Bean 定义的 Map中查看这个名称是否存在
boolean candidateLocal = containsBeanDefinition(candidateBeanName);
// 从 Bean 定义的 Map中查看这个名称是否存在
boolean primaryLocal = containsBeanDefinition(primaryBeanName);
// 找到了多个 Primary 标记的对象抛出错误
if (candidateLocal && primaryLocal) {
throw new NoUniqueBeanDefinitionException(requiredType, candidates.size(),
"more than one 'primary' bean found among candidates: " + candidates.keySet());
}
else if (candidateLocal) {
primaryBeanName = candidateBeanName;
}
}
else {
primaryBeanName = candidateBeanName;
}
}
}
return primaryBeanName;
}
@Override
public boolean containsBeanDefinition(String beanName) {
Assert.notNull(beanName, "Bean name must not be null");
return this.beanDefinitionMap.containsKey(beanName);
}
