电梯导航

633 阅读2分钟

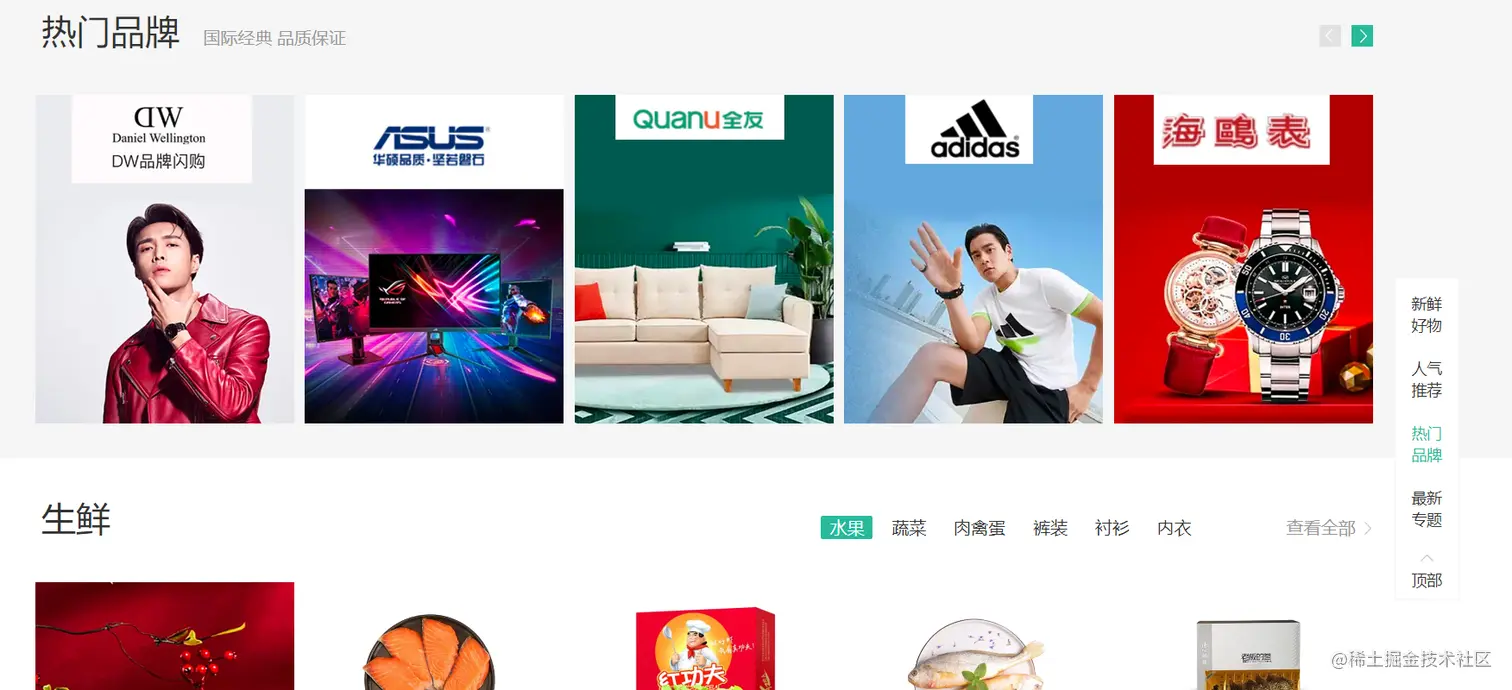

原理:判断html标签的页面垂直位置scrollTop与商品展示各区域向上卷曲的offsetTop距离,让电梯导航的盒子出现。 当窗口滚动条滚动的时候,到达楼层区域,电梯导航的标签附带高亮效果。

一、检测页面滚动的距离:

    //给 window对象或者 document 对象 注册 scroll 事件,使用 scrollTop 属性获得滚动距离。
    document.addEventListener('scroll', function () {
      console.log(document.documentElement.scrollTop)
    })

二、offsetTop :获取对象相对于版面或由offsetTop属性指定的父坐标的计算顶端位置

  1. offsetTop:元素到offsetParent顶部的距离

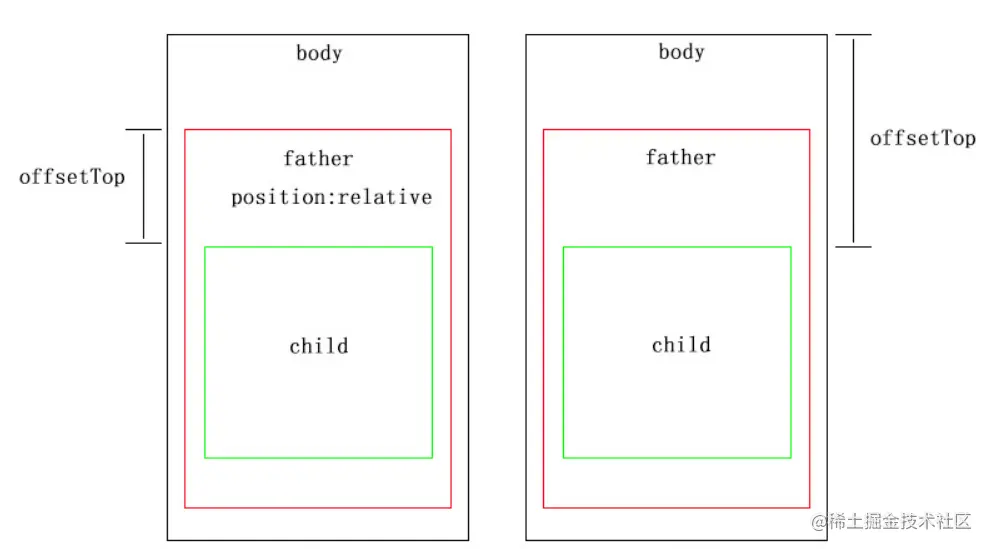

  2. offsetParent:距离元素最近的一个具有定位的祖宗元素(relative,absolute,fixed),若祖宗都不符合条件,offsetParent为body。如下图所示:获取child的offsetTop,图1的offsetParent为father,图2的offsetParent为body。

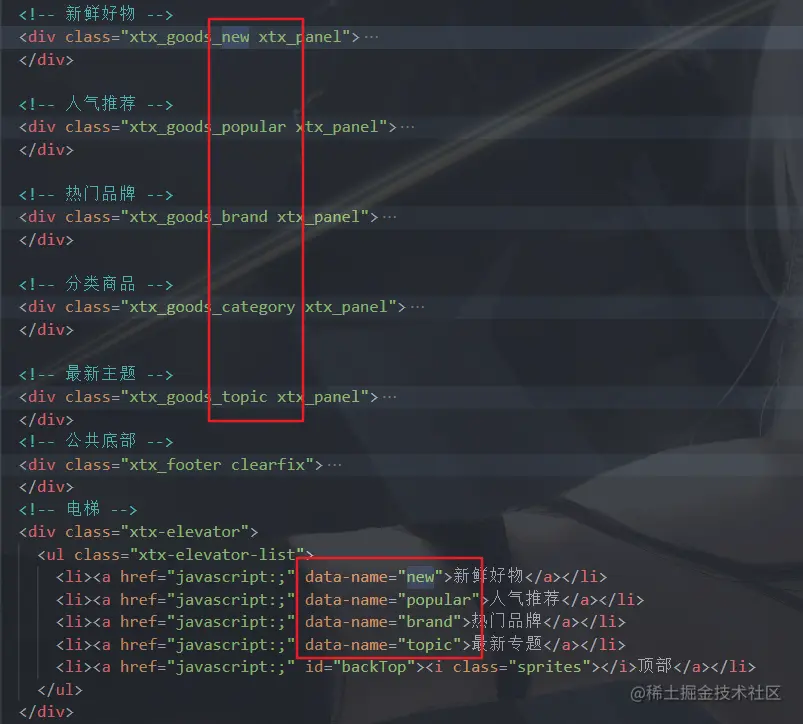

三、右侧的电梯导航跟随滚动距离进行调整,elevator导航的自定义名称与各楼层展示区域的类名有进行关联。



   //1.目标:当页面滚动大于banner区域的时候,显示右边电梯导航
    const elevator = document.querySelector('.xtx-elevator')
    // banner区域距离窗口顶部的距离
    const entryTop = document.querySelector('.xtx_entry').offsetTop
    window.addEventListener('scroll', function () {
      const n = document.documentElement.scrollTop
      elevator.style.opacity = n > entryTop ? 1 : 0
    })
    //当点击返回顶部按钮的时候,页面返回顶部
    const backTop = document.querySelector('#backTop')
    backTop.addEventListener('click', function () {
      //window.scrollTo(X坐标,Y坐标)
      window.scrollTo(0, 0)
    })


    // 2. 需求:点击返回按钮,页面会返回顶部
    //  将 document.documentElement.scrollTop 的值 设置为 0
    const backTop = document.querySelector('#backTop')
    backTop.addEventListener('click', function () {
      document.documentElement.scrollTop = 0
    })


    // 3. 需求:点击不同的模块,页面可以自动跳转不同的位置,并设置高亮效果
    elevator.addEventListener('click', function (e) {
      if (e.target.tagName === 'A' && !e.target.id) {
        // 判断选中的导航是否有active高亮,先移除,后给点击的这一个添加
        const activeObj = document.querySelector('.xtx-elevator-list a.active')
        activeObj && activeObj.classList.remove('active')
        e.target.classList.add('active')
        //  点击 a 的时候 获取 a 标签的 自定义属性值,dataName 关联 对应的 html 标签对象
        const dataName = e.target.dataset.name
        const obj = document.querySelector(`.xtx_goods_${dataName}`)
        // 获取这个元素离页面顶部的距离
        const objTop = obj.offsetTop
        //  将这个距离赋值给html页面滚动的scrollTop
        document.documentElement.scrollTop = objTop
      }
    })

    // 4.需求 页面滚动到商品楼层位置,电梯导航小盒子对应模块自动处于选中状态
    // 获取楼层离页面顶部的距离
    const newTop = document.querySelector('.xtx_goods_new').offsetTop // 新鲜好物顶部距离
    const popularTop = document.querySelector('.xtx_goods_popular').offsetTop // 人气推荐
    const brandTop = document.querySelector('.xtx_goods_brand').offsetTop // 热门品牌
    const topicTop = document.querySelector('.xtx_goods_topic').offsetTop // 最新专题
    document.addEventListener('scroll', function () {
      const activeObj = document.querySelector('.xtx-elevator-list a.active')
      //如有高亮,先移除所有高亮。滚动到哪个区域,给哪个区域加高亮效果
      activeObj && activeObj.classList.remove('active')
      //  需要判断是否滚动到对应的位置
      const n = document.documentElement.scrollTop
      if (n >= newTop && n < popularTop) {
        document.querySelector('[data-name="new"]').classList.add('active')
      } else if (n >= popularTop && n < brandTop) {
        document.querySelector('[data-name="popular"]').classList.add('active')
      } else if (n >= brandTop && n < topicTop) {
        document.querySelector('[data-name="brand"]').classList.add('active')
      } else if (n >= topicTop) {
        document.querySelector('[data-name="topic"]').classList.add('active')
      }
    })
