Netty 是一款用于高效开发网络应用的 NIO 网络框架，具有高性能、易使用、安全稳定、高可扩展等特点，并且被广泛的应用于各类中间件框架中，比如Dubbo，gRPC，ES，RocketMQ等。
本文以netty的服务端启动的Demo代码为入口，对netty的源码进行学习并加以分析，下面对server的启动过程进行记录。
以下netty代码为4.1.49。
一、基础知识
Future与Promise在netty的代码中会大量使用到Futrue与Promise，理解它们是阅读netty代码的基本门槛之一，下面对它们进行简单的回顾学习。
Future
Runnable vs Callable 在Java 1.5之前，创建线程有两种方式，一种直接通过new Thread创建，另一种是通过实现Runnable接口创建，当然Thread类也是Runnable接口的实现类，也可以是同一种方式。这种方式最大的缺点就是不能拿到线程执行的结果，为了弥补这个缺点，从Java 1.5开始引入接口Callable、Future来实现多线程中取到线程的执行结果。 如下为Callable的实用案例：
public class FactorialTask implements Callable<Integer> {
int number;
// standard constructors
public Integer call() throws InvalidParamaterException {
int fact = 1;
// ...
for(int count = number; count > 1; count--) {
fact = fact * count;
}
return fact;
}
}
@Test
public void whenTaskSubmitted_ThenFutureResultObtained(){
FactorialTask task = new FactorialTask(5);
ExecutorService executorService = Executors.newFixedThreadPool(1);
Future<Integer> future = executorService.submit(task);
assertEquals(120, future.get().intValue());
}
在JDK的并发包J.U.C中定义了一个接口Future，先从这个Future说起，它用于代表异步操作的结果。Future提供了检查线程是否执行完成的方法isDone()，提供了取消的方法cancel(）以及检查是否已取消的isCanceled()，还提供了获取线程执行结果的方法get()。Future的get方法获取结果时会阻塞。
既然JDK已提供了Future接口，为何netty要再定义一个Future接口且继承JDK的Future接口，看下netty的Future接口的定义：
/**
* The result of an asynchronous operation.
*/
@SuppressWarnings("ClassNameSameAsAncestorName")
public interface Future<V> extends java.util.concurrent.Future<V> {
/**
* Returns {@code true} if and only if the I/O operation was completed
* successfully.
*/
boolean isSuccess();
/**
* returns {@code true} if and only if the operation can be cancelled via {@link #cancel(boolean)}.
*/
boolean isCancellable();
/**
* Returns the cause of the failed I/O operation if the I/O operation has
* failed.
*
* @return the cause of the failure.
* {@code null} if succeeded or this future is not
* completed yet.
*/
Throwable cause();
/**
* Adds the specified listener to this future. The
* specified listener is notified when this future is
* {@linkplain #isDone() done}. If this future is already
* completed, the specified listener is notified immediately.
*/
Future<V> addListener(GenericFutureListener<? extends Future<? super V>> listener);
/**
* Adds the specified listeners to this future. The
* specified listeners are notified when this future is
* {@linkplain #isDone() done}. If this future is already
* completed, the specified listeners are notified immediately.
*/
Future<V> addListeners(GenericFutureListener<? extends Future<? super V>>... listeners);
/**
* Removes the first occurrence of the specified listener from this future.
* The specified listener is no longer notified when this
* future is {@linkplain #isDone() done}. If the specified
* listener is not associated with this future, this method
* does nothing and returns silently.
*/
Future<V> removeListener(GenericFutureListener<? extends Future<? super V>> listener);
/**
* Removes the first occurrence for each of the listeners from this future.
* The specified listeners are no longer notified when this
* future is {@linkplain #isDone() done}. If the specified
* listeners are not associated with this future, this method
* does nothing and returns silently.
*/
Future<V> removeListeners(GenericFutureListener<? extends Future<? super V>>... listeners);
/**
* Waits for this future until it is done, and rethrows the cause of the failure if this future
* failed.
*/
Future<V> sync() throws InterruptedException;
/**
* Waits for this future until it is done, and rethrows the cause of the failure if this future
* failed.
*/
Future<V> syncUninterruptibly();
/**
* Waits for this future to be completed.
*
* @throws InterruptedException
* if the current thread was interrupted
*/
Future<V> await() throws InterruptedException;
/**
* Waits for this future to be completed without
* interruption. This method catches an {@link InterruptedException} and
* discards it silently.
*/
Future<V> awaitUninterruptibly();
/**
* Waits for this future to be completed within the
* specified time limit.
*
* @return {@code true} if and only if the future was completed within
* the specified time limit
*
* @throws InterruptedException
* if the current thread was interrupted
*/
boolean await(long timeout, TimeUnit unit) throws InterruptedException;
/**
* Waits for this future to be completed within the
* specified time limit.
*
* @return {@code true} if and only if the future was completed within
* the specified time limit
*
* @throws InterruptedException
* if the current thread was interrupted
*/
boolean await(long timeoutMillis) throws InterruptedException;
/**
* Waits for this future to be completed within the
* specified time limit without interruption. This method catches an
* {@link InterruptedException} and discards it silently.
*
* @return {@code true} if and only if the future was completed within
* the specified time limit
*/
boolean awaitUninterruptibly(long timeout, TimeUnit unit);
/**
* Waits for this future to be completed within the
* specified time limit without interruption. This method catches an
* {@link InterruptedException} and discards it silently.
*
* @return {@code true} if and only if the future was completed within
* the specified time limit
*/
boolean awaitUninterruptibly(long timeoutMillis);
/**
* Return the result without blocking. If the future is not done yet this will return {@code null}.
*
* As it is possible that a {@code null} value is used to mark the future as successful you also need to check
* if the future is really done with {@link #isDone()} and not rely on the returned {@code null} value.
*/
V getNow();
/**
* {@inheritDoc}
*
* If the cancellation was successful it will fail the future with a {@link CancellationException}.
*/
@Override
boolean cancel(boolean mayInterruptIfRunning);
}
netty的Future接口提供了更多的方法，与JDK最主要的区别是增加了用于监听器相关的方法，可用于当future执行完成之后立即执行监听器。（观察者模式）
Promise
Promise，中文翻译为承诺或者许诺，含义是人与人之间，一个人对另一个人所说的具有一定憧憬的话，一般是可以实现的。
netty定义的Promise接口继承自其Future，是可以写操作的Future，通过setSuccess,setFailure等方法来设置返回对象。
public class PromiseDemo {
public static void main(String[] args) {
EventExecutor executor = GlobalEventExecutor.INSTANCE;
Promise<Map<String, String>> promise = new DefaultPromise<>(executor);
promise.addListener(new MyListener());
Thread myThread = new Thread(new MyThread(promise));
myThread.start();
executor.shutdownGracefully();
}
static class MyThread implements Runnable {
Promise promise;
public MyThread(Promise promise) {
this.promise = promise;
}
@Override
public void run() {
// 模拟处理业务逻辑
try {
Thread.sleep(3000);
} catch (InterruptedException e) {
e.printStackTrace();
}
Map<String, String> result = new HashMap<>();
result.put("completeTime", LocalDateTime.now().format(DateTimeFormatter.ofPattern("yyyy-MM-dd hh:mm:ss")));
promise.setSuccess(result);
}
}
static class MyListener implements GenericFutureListener<Future<Map<String, String>>> {
@Override
public void operationComplete(Future<Map<String, String>> future) throws Exception {
if (future.isSuccess()) {
Map<String, String> result = future.getNow();
System.out.println("执行完成，输出结果：");
for (Map.Entry<String, String> entry : result.entrySet()) {
System.out.println(entry.getKey() + ":" + entry.getValue());
}
}
}
}
}
二、理解EventLoopGroup、EventLoop
直接以netty的入门使用代码作为入口，如下：
ServerBootstrap server = new ServerBootstrap();
EventLoopGroup bossGroup = new NioEventLoopGroup(1);
EventLoopGroup workerGroup = new NioEventLoopGroup();
server.group(bossGroup, workerGroup);

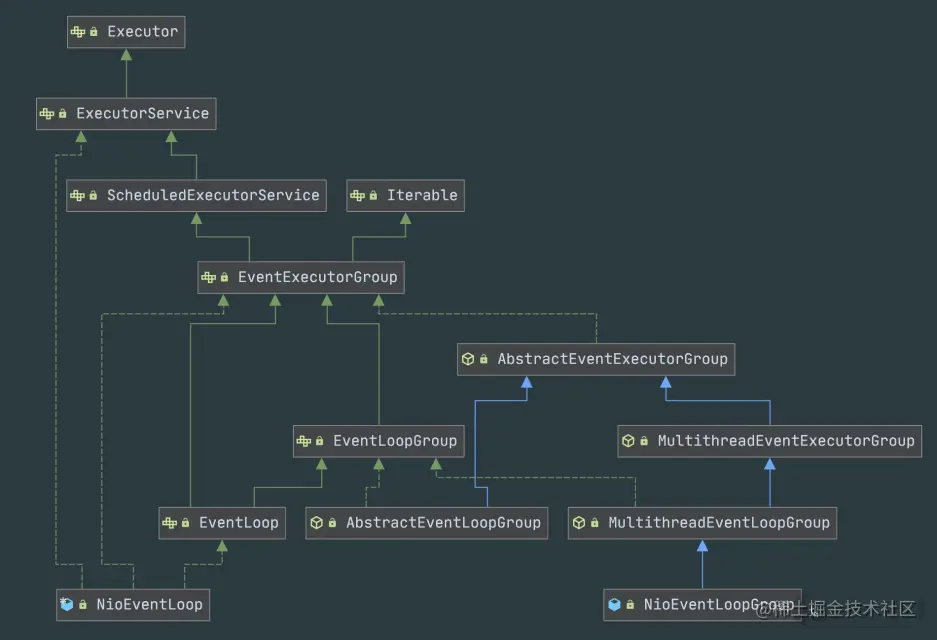

这里看到里EventLoopGroup，直接从NioEventLoopGroup的构造函数跟进。由于这里涉及到的类较多，命名看起来有点绕，所以先给出一张类图，方便在跟进代码的时候更清晰，如下：
NioEventLoopGroup初始化
NioEventLoopGroup最常用的两个构造函数为：
public NioEventLoopGroup() {
this(0);
}
public NioEventLoopGroup(int nThreads) {
this(nThreads, (Executor) null);
}
线程的数量决定了EventExecutor[] children属性，也就是EventLoopGroup中用于的EventLoop数组的长度。
** NioEventLoopGroup初始化过程中，其属性EventExecutor[] children初始化的过程？**
1）数组的大小是NioEventLoopGroup的构造函数传入的数组，当没传的时候（无参构造函数）会取默认数量，如下：
int DEFAULT_EVENT_LOOP_THREADS = Math.max(1, SystemPropertyUtil.getInt(
"io.netty.eventLoopThreads", NettyRuntime.availableProcessors() * 2));
优先取配置io.netty.eventLoopThreads，没有这个配置时会使用系统可用的处理器的两倍。
2）确定了数组的大小，然后就是进行初始化，即初始化NioEventLoop，在其构造函数中executor为new ThreadPerTaskExecutor(newDefaultThreadFactory())
3）NioEventLoopGroup的属性chooser，用于选择下一个EventLoop，也就是在children数组中选择下一个NioEventLoop，chooser会根据数组的值是否为2的幂次方有两种方式，如果是2的幂次方会使用&运算来计算下标（PowerOfTwoEventExecutorChooser），否则使用%运算来计算下标（GenericEventExecutorChooser）
关于EventLoop的内部实现这里不再展开，包括内部的任务队列、执行方式等。
三、server端启动过程
先看下简单的server端启动的代码：
ServerBootstrap server = new ServerBootstrap();
EventLoopGroup bossGroup = new NioEventLoopGroup(1);
EventLoopGroup workerGroup = new NioEventLoopGroup();
server.group(bossGroup, workerGroup);
server.channel(NioServerSocketChannel.class);
server.localAddress(8080);
server.option(ChannelOption.SO_KEEPALIVE, true);
server.option(ChannelOption.ALLOCATOR, PooledByteBufAllocator.DEFAULT);
server.childHandler(new ChannelInitializer<SocketChannel>() {
@Override
protected void initChannel(SocketChannel ch) throws Exception {
ch.pipeline().addLast("codec", new HttpServerCodec())
.addLast("compressor", new HttpContentCompressor())
.addLast("aggregator", new HttpObjectAggregator(65536))
.addLast("handler", new HttpServerHandler())
;
}
});
ChannelFuture future = server.bind().sync();
System.out.println("服务器启动成功，监听端口：" + future.channel().localAddress());
future.channel().closeFuture().sync();
代码中包含的内容分为两部分，一部分是初始化并设置一些属性，比如设置channel类型、端口号、连接的参数、处理类、流水线等；另一部分是启动服务，也就是server.bind().sync()这行代码。下面主要看下启动服务这一行代码，netty做了哪些事情，分为bind和sync两部分来看。
bind()
在使用Java NIO时，启动服务端的过程需要将Selector注册到Channel上，代码实现如下：
Selector selector = Selector.open();
ServerSocketChannel serverSocketChannel = ServerSocketChannel.open();
// 绑定端口号
serverSocketChannel.bind(new InetSocketAddress(9090));
// 设置为非阻塞
serverSocketChannel.configureBlocking(false);
SelectionKey selectionKey = serverSocketChannel.register(selector, SelectionKey.OP_ACCEPT);
selectionKey.attach(new Acceptor(serverSocketChannel, new SubReactor()));
while (true) {
int select = selector.select();
System.out.println("select收到事件数:" + select);
if (select > 0) {
Iterator<SelectionKey> iterator = selector.selectedKeys().iterator();
while (iterator.hasNext()) {
SelectionKey next = iterator.next();
dispatch(next);
// 移除
iterator.remove();
}
}
}
上面的代码省略dispatch方法，Acceptor的代码，通过Java NIO的实现服务端的方式包括了以下步骤：
- 创建Channel，新建ServerSocketChannel并绑定端口号，设置相关的属性；
- 创建Selector
- 将Selector注册到Channel上，并设置监听的类型、设置附件
- 开启循环通过Selectot.select判断是否有连接，并依次处理各连接
下面与netty的实现过程进行对比与参照，来看netty对bind的过程：
- 初始化Channel
- Channel与EventLoop的关联
- 执行绑定
初始化Channel
初始化Channel，在服务端就是实例化NioServerSocketChannel，包含设置Channel的参数（也就是server.option中设置的）、为Channel创建流水线Pipline。 调用链路：
AbstarctBootstrap#bind( ) AbstarctBootstrap#doBind( ) AbstarctBootstrap#initAndRegister( )
关键代码：
final ChannelFuture initAndRegister() {
Channel channel = null;
try {
// 通过反射实例化,在Bootstrap.channel(Class<? extends C> channelClass)方法设置要实例化的类
channel = channelFactory.newChannel();
// 设置Channel的属性Option，关联新的流水线Pipline
init(channel);
} catch (Throwable t) {
// ....
}
// ....
}
在创建Channel实例时做了两件事情：
- 通过反射实例化NioServerSocketChannel
- 设置Channel的属性Option（也就是server.option中设置的），关联新的流水线Pipline
Channel与EventLoop关联
换句话说，也就是讲Channel通过EventLoopGroup注册到某个EventLoop上，也就是AbstractBootstrap中initAndRegister方法中的下面一行代码：
final ChannelFuture initAndRegister() {
// 省略Channel的初始化及相关设置
// ....
ChannelFuture regFuture = config().group().register(channel);
// 省略返回等代码
// ....
}
首先会从EventLoopGroup中通过next()选择一个EventLoop（选择的方式在上面的chooser有说明），然后将Channel注册到EventLoop，此处也就是NioEventLoop。
// SingleThreadEventLoop是NioEventLoop的父类，注册channel的方法如下
@Override
public ChannelFuture register(Channel channel) {
return register(new DefaultChannelPromise(channel, this));
}
@Override
public ChannelFuture register(final ChannelPromise promise) {
ObjectUtil.checkNotNull(promise, "promise");
promise.channel().unsafe().register(this, promise);
return promise;
}
如上面的代码所示，会将EventLoop和Promise注册到Channel的unsafe实例上，对于netty的unsafe后面找机会再进行具体说明，这里NioServerSocketChannel的unsafe可以定位到其父类抽象类AbstractNioMessageChannel的私有内部类NioMessageUnsafe。也就是说，注册的过程要查看NioMessageUnsafe的register方法，该方法在其父类AbstractChannel的私有内部类AbstractUnsafe中，代码如下：
// AbstractChannel.java中的内部类AbstractUnsafe类
@Override
public final void register(EventLoop eventLoop, final ChannelPromise promise) {
ObjectUtil.checkNotNull(eventLoop, "eventLoop");
if (isRegistered()) {
promise.setFailure(new IllegalStateException("registered to an event loop already"));
return;
}
if (!isCompatible(eventLoop)) {
promise.setFailure(
new IllegalStateException("incompatible event loop type: " + eventLoop.getClass().getName()));
return;
}
AbstractChannel.this.eventLoop = eventLoop;
if (eventLoop.inEventLoop()) {
register0(promise);
} else {
try {
eventLoop.execute(new Runnable() {
@Override
public void run() {
register0(promise);
}
});
} catch (Throwable t) {
logger.warn(
"Force-closing a channel whose registration task was not accepted by an event loop: {}",
AbstractChannel.this, t);
closeForcibly();
closeFuture.setClosed();
safeSetFailure(promise, t);
}
}
}
private void register0(ChannelPromise promise) {
try {
// check if the channel is still open as it could be closed in the mean time when the register
// call was outside of the eventLoop
if (!promise.setUncancellable() || !ensureOpen(promise)) {
return;
}
boolean firstRegistration = neverRegistered;
doRegister();
neverRegistered = false;
registered = true;
// Ensure we call handlerAdded(...) before we actually notify the promise. This is needed as the
// user may already fire events through the pipeline in the ChannelFutureListener.
pipeline.invokeHandlerAddedIfNeeded();
safeSetSuccess(promise);
pipeline.fireChannelRegistered();
// Only fire a channelActive if the channel has never been registered. This prevents firing
// multiple channel actives if the channel is deregistered and re-registered.
if (isActive()) {
if (firstRegistration) {
pipeline.fireChannelActive();
} else if (config().isAutoRead()) {
// This channel was registered before and autoRead() is set. This means we need to begin read
// again so that we process inbound data.
//
// See https://github.com/netty/netty/issues/4805
beginRead();
}
}
} catch (Throwable t) {
// Close the channel directly to avoid FD leak.
closeForcibly();
closeFuture.setClosed();
safeSetFailure(promise, t);
}
}
调用EventLoop的execute方法，如上代码会最终会调用eventLoop.execute，并将一个执行register0的线程（任务task）传入。
到此时，将提交一个register任务到EventLoop中（EventLoop包含任务队列，具体执行方法此处不展开），然后返回一个ChannelFuture，再次回到AbstractBootstrap的initAndRegister方法的代码中：
final ChannelFuture initAndRegister() {
// 省略Channel的初始化及相关设置
// ....
// 返回DefaultChannelPromise
ChannelFuture regFuture = config().group().register(channel);
if (regFuture.cause() != null) {
if (channel.isRegistered()) {
channel.close();
} else {
channel.unsafe().closeForcibly();
}
}
// If we are here and the promise is not failed, it's one of the following cases:
// 1) If we attempted registration from the event loop, the registration has been completed at this point.
// i.e. It's safe to attempt bind() or connect() now because the channel has been registered.
// 2) If we attempted registration from the other thread, the registration request has been successfully
// added to the event loop's task queue for later execution.
// i.e. It's safe to attempt bind() or connect() now:
// because bind() or connect() will be executed *after* the scheduled registration task is executed
// because register(), bind(), and connect() are all bound to the same thread.
return regFuture;
}
netty源码中的注释显示，这个方法返回regFuture时，有两个情况，一种是注册的过程已经处理成功，另一种是提交给异步的线程，也就是添加到EventLoop的任务队列中等待被执行。所以，在这里返回的ChannelFuture（Promise）可以等待注册完成后的一个回调处理。接下来就在具体的bind过程中继续查看。
执行绑定:doBind()
最后在执行doBind操作时会进入到AbstractChannel的AbstractUnsafe中的bind方法，如下：
@Override
public final void bind(final SocketAddress localAddress, final ChannelPromise promise) {
assertEventLoop();
if (!promise.setUncancellable() || !ensureOpen(promise)) {
return;
}
// See: https://github.com/netty/netty/issues/576
if (Boolean.TRUE.equals(config().getOption(ChannelOption.SO_BROADCAST)) &&
localAddress instanceof InetSocketAddress &&
!((InetSocketAddress) localAddress).getAddress().isAnyLocalAddress() &&
!PlatformDependent.isWindows() && !PlatformDependent.maybeSuperUser()) {
// Warn a user about the fact that a non-root user can't receive a
// broadcast packet on *nix if the socket is bound on non-wildcard address.
logger.warn(
"A non-root user can't receive a broadcast packet if the socket " +
"is not bound to a wildcard address; binding to a non-wildcard " +
"address (" + localAddress + ") anyway as requested.");
}
boolean wasActive = isActive();
try {
// 执行绑定，类似serverSocketChannel.bind(new InetSocketAddress(9090));
doBind(localAddress);
} catch (Throwable t) {
safeSetFailure(promise, t);
closeIfClosed();
return;
}
if (!wasActive && isActive()) {
invokeLater(new Runnable() {
@Override
public void run() {
pipeline.fireChannelActive();
}
});
}
// 绑定成功后，设置promise为成功状态
safeSetSuccess(promise);
}
最终返回的ChannelFuture是PendingRegistrationPromise的实例。
sync()
sync的作用通过查看DefaultPromise的sync方法可知，主要作用是调用wait()进入休眠，等待上面的doBind()执行完成之后，通过调用safeSetSuccess(promise)来唤醒。其作用防止执行main方法的主线程在调用server.bind()之后就退出，具体代码细节就不再进行分析。
四、总结
netty服务端的启动过程简单概括为，首先初始化Channel，包括EventLoopGroup初始化设置、Channel属性设置、Pipline初始化设置，然后通过EventLoopGroup分配EventLoop与Channel进行关联注册，并开启绑定Selector和循环监听。 从上面的过程中来看，netty大量的使用异步的方式执行，并通过Promise来完成回调，所以理解Promise对理解netty的代码。
